Dell PowerEdge
C8220 and C8220X
Using the Baseboard
Management Controller

FILE LOCATION: D:\Projects\User Guide\Server\Dell\Zeus\HOM\BMC Manu-
al\BMC\C8000_BMC_HOM_tp.fm
NOTE: A NOTE indicates important information that helps you make better use of
your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if
instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
____________________
Information in this publication is subject to change without notice.
© 2012 Dell Inc. All rights reserved.
Reproduction of these materials in anymanner whatsoever without the written permissionof Dell Inc.
is strictly forbidden.
Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™ are trademarks of Dell Inc.
Microsoft®, Windows®, Windows Server®, MS-DOS®, Windows Vista®, and Internet Explorer®are
either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other
countries. Red Hat®and Red Hat®Enterprise Linux®are registered trademarks of Red Hat, Inc. in
the United States and/or other countries. Oracle and Java are registered trademarks of Oracle and/or
its affiliates. Intel is a registered trademark of Intel Corporation in the U.S. and other countries.
Othertrademarksandtradenamesmaybeusedinthispublicationtorefertoeithertheentitiesclaiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
2012 - 05 Rev. A00

FILE LOCATION: D:\Projects\User Guide\Server\Dell\Zeus\HOM\BMC
Manual\BMC\C8000_BMC_HOM_bk0TOC.fm
Contents 3
Contents
Intelligent Platform Management
Interface . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Baseboard Management Controller. . . . . . . . . . . . 5
Supported Platform . . . . . . . . . . . . . . . . . . . . 5
BMC Key Features and Functions . . . . . . . . . . . . . 5
Using the Web User Interface . . . . . . . . . . . . . . . 6
Logging in to the Web User Interface . . . . . . . . . . . 7
Remote Management Controller . . . . . . . . . . . . . 9
Properties. . . . . . . . . . . . . . . . . . . . . . 10
Chassis . . . . . . . . . . . . . . . . . . . . . . . 11
Configuration . . . . . . . . . . . . . . . . . . . . 12
Sessions . . . . . . . . . . . . . . . . . . . . . . 21
Update . . . . . . . . . . . . . . . . . . . . . . . 22
Utilities . . . . . . . . . . . . . . . . . . . . . . . 24
Server Information . . . . . . . . . . . . . . . . . . . . 25
Power . . . . . . . . . . . . . . . . . . . . . . . . 25
Thermal . . . . . . . . . . . . . . . . . . . . . . . 31
System Event Log. . . . . . . . . . . . . . . . . . . . . 35
Event Management . . . . . . . . . . . . . . . . . 36
Serial Over LAN . . . . . . . . . . . . . . . . . . . . . 42
vKVM & vMedia . . . . . . . . . . . . . . . . . . 43

FILE LOCATION: D:\Projects\User Guide\Server\Dell\Zeus\HOM\BMC
Manual\BMC\C8000_BMC_HOM_bk0TOC.fm
4Contents
Using the Video Viewer . . . . . . . . . . . . . . . . . 47
Video Viewer Menu . . . . . . . . . . . . . . . . . 48
IPMI 1.5/2.0 Command Support List . . . . . . . . . . . 51
Threshold Settings and Converting Formulas . . . . . . 61

Template Last Updated - 2/7/2007 5
Intelligent Platform Management
Interface
The Intelligent Platform Management Interface (IPMI) defines a set of
standardized, message-based interfaces that monitor system hardware health
(fan speed, temperature, voltage, power supply, and so on.), control system
components, and store data about important system events in a system event
log (SEL) for later examination. IPMI provides the foundation for remote
platform management.
NOTE: To learn more about IPMI, see intel.com/design/servers/ipmi/.
Baseboard Management Controller
The key component in the IPMI system is the baseboard management
controller (BMC), a microcontroller located on the server’s system board.
BMC is the “intelligence” within the IPMI architecture, responsible for
monitoring and controlling the server’s manageable devices.
BMC is connected to the various sensors through the Intelligent Platform
Management Bus (IPMB), a subset of the I2C bus. System software
communicates with BMC using a keyboard controller style (KCS) interface.
Supported Platform
PowerEdge C8220 and C8220X
BMC Key Features and Functions
The features supported by BMC are as follows:
• Support for IPMI v1.5 and v2.0
• Out-of-band monitoring and control for server management over LAN
• Dedicated NIC for remote management via network
• FRU information report, which includes system board part number,
product name, and manufacturer.
• Health status/hardware monitoring report
• View and clear events log
• Event notification by lighting chassis LED indicator and Platform Event
Trap ( PET )

6
FILE LOCATION: D:\Projects\User Guide\Server\Dell\Zeus\HOM\BMC
Manual\BMC\C8000_BMC_HOM_section1.fm
• Platform Event Filtering (PEF) to take selected action for selected events
• Chassis management, which includes power control, status report, front
panel buttons, and LEDs control
• Watchdog and auto server re-start and recovery
• Multi-session user and alert destination for LAN channel
Using the Web User Interface
The BMC firmware features an embedded web server, enabling users to
connect to the BMC using an Internet browser (Windows Internet Explorer)
without needing to install KVM and virtual storage software on a remote
console.
Web-based GUI is supported on the following browsers:
• Microsoft Windows:
– Internet Explorer 6, 7, 8, 9
– Mozilla Firefox 7, 8, 9
– Google Chrome 3.0 (optional)
•Linux:
– Mozilla Firefox 7, 8, 9
•MacOS
* :
– Safari V5.X
* Default Java Machine — Java Runtime Environment (JRE) is not yet supported.
Open Java Development Kit (OpenJDK) is supported and recommended. For more
information, see openjdk.java.net.

7
FILE LOCATION: D:\Projects\User Guide\Server\Dell\Zeus\HOM\BMC
Manual\BMC\C8000_BMC_HOM_section1.fm
Logging in to the Web User Interface
Users must enter the PowerEdge C8220 and C8220X embedded server IP
address or URL (default DHCP\static IP address) into the address bar of the
web browser.
When connecting to the PowerEdge C8220 and C8220X using a web browser,
Secure Sockets Layer (SSL) is automatically activated and the display user
login form is displayed prompting for the username and password. This
authentication with SSL protection prevents unauthorized intruders from
gaining access to the PowerEdge C8220 and C8220X web server. If
authentication is passed, you can manage the server by privilege.
A security certificate warning displays, choose Continue to this website (not
recommended) to continue.
The user authentication web page is displayed. Enter the default user name
and password, and click OK.

8
FILE LOCATION: D:\Projects\User Guide\Server\Dell\Zeus\HOM\BMC
Manual\BMC\C8000_BMC_HOM_section1.fm
NOTE: The default username and password are in lowercase characters. It is
advised to change the root password once you have logged in.
Click the Help button on the top right corner for assistance. Click Logout to
exit.
Table 1-1. Default User Name and Password
Field Default
User Name root
Password root

9
FILE LOCATION: D:\Projects\User Guide\Server\Dell\Zeus\HOM\BMC
Manual\BMC\C8000_BMC_HOM_section1.fm
The Remote Management Controller’s web UI is divided into two areas. On
the left is the multi-level navigation menu bar, which is divided into four
categories and each category is subdivided into several submenus. On the
right is the information pane, which displays list of information, commands
or configuration options that are associated with the category selected from
the navigation menu bar.

10
FILE LOCATION: D:\Projects\User Guide\Server\Dell\Zeus\HOM\BMC
Manual\BMC\C8000_BMC_HOM_section1.fm
Remote Management Controller
The Remote Management Controller menu provides general information
about the server including the BMC firmware and network information.
Administrators and operators can use this menu to check the sled server
health and access all network configuration options. It also provides options
for managing security, user access, session status, updating the BMC
firmware, and performing remote system shutdown or reboot.
The remote management controller menu provides access to the following
configuration options:
•Properties
• Chassis
• Configuration
•Sessions
•Update
• Utilities

11
FILE LOCATION: D:\Projects\User Guide\Server\Dell\Zeus\HOM\BMC
Manual\BMC\C8000_BMC_HOM_section1.fm

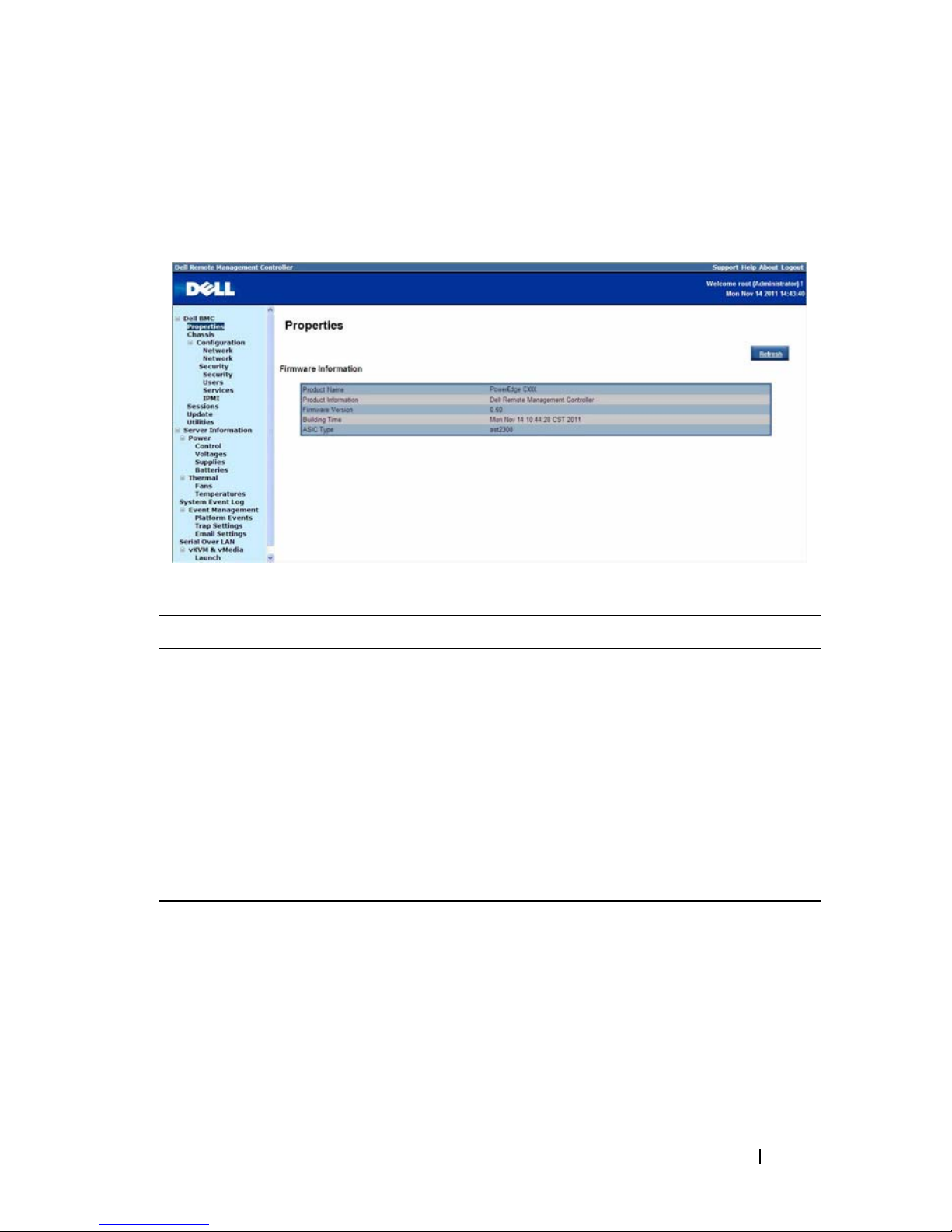

Properties
The Properties option enables you to view the remote sled server BMC
firmware information.
Table 1-2. Firmware Summary
Item Description
Product Name Sled server system board model name
Product Information Remote Management Controller firmware
Firmware Version Remote Management Controller firmware version
Building Time Date the firmware was last flashed in the following
format:
MM DD YYYY HH: MM: SS
ASIC Type Application-specific integrated circuit (ASIC) type
Refresh Button Use this button to refresh the firmware information

12
FILE LOCATION: D:\Projects\User Guide\Server\Dell\Zeus\HOM\BMC
Manual\BMC\C8000_BMC_HOM_section1.fm
Chassis
The Chassis option enables you to view a summary chassis information
including LEDs and power supply status.
Table 1-3. Chassis Summary
Item Description
Chassis Name Server chassis product model name
LEDs Server chassis identification and fault LED status
PSUs Server chassis power supply(s) status
The fan controller board on the server chassis monitors
and controls the operation of the power supplies. It
relays the status to the BMC firmware and displays the
status on the Chassis page.
Refresh Button Use this button to refresh the chassis information

13
FILE LOCATION: D:\Projects\User Guide\Server\Dell\Zeus\HOM\BMC
Manual\BMC\C8000_BMC_HOM_section1.fm
Configuration
The Configuration option enables you to view and set values for various
system functions.
Click on the Configuration option to expand the submenu items.
•Network
•Security
•Users
•Services
•IPMI
Network
Select the Network submenu to view and configure the network setting
parameters.
NOTE: To change any network setting parameters, you must have permission to
configure the BMC.

14
FILE LOCATION: D:\Projects\User Guide\Server\Dell\Zeus\HOM\BMC
Manual\BMC\C8000_BMC_HOM_section1.fm
Table 1-4. Network
Item Description
General Settings
Mode Select a network connectivity mode.
Host Name Type the name of the BMC host server in this field.
DNS Domain Name Type the domain name of the DNS server in this field.
Network Interface Configuration
Name Column Indicates the network interface name.
iF Enabled Column Indicates the operational status of the NIC.
IPv4 Enabled Column Indicates the operational status of the Internet Protocol
version 4 (IPv4).
IPv4 Address Column Indicates the IPv4 IP address.
IPv6 Enabled Column Indicates the operational status of the IPv6 protocol.
IPv6 Address Column Indicates the IPv6 IP address.
Apply Changes Button Use this button to apply the changes.
Refresh Button Use this button to refresh the network information.

15
FILE LOCATION: D:\Projects\User Guide\Server\Dell\Zeus\HOM\BMC
Manual\BMC\C8000_BMC_HOM_section1.fm
Security
Select the Security submenu to view server certificate information. Secure
server certificates ensure the identity of a remote system and ensure that
information exchanged with the remote system cannot be viewed or changed
by others. Users with administrator or operator privileges can create a
Certificate Signing Request (CSR) and upload the file to a certifying
authority.
Table 1-5. Security
Options Description
Serial Number Server certificate serial number
Subject Information:
Country Code (CC) Name of the country where the entity applying for the
certification is located
State (S) State or province where the entity applying for the
certification is located
Locality (L) City or location of the entity being certified
Organization (O) Legal name of the company or institution
Organizational Unit (OU) Name associated with the organizational unit
Common Name (CN) DNS host name

16
FILE LOCATION: D:\Projects\User Guide\Server\Dell\Zeus\HOM\BMC
Manual\BMC\C8000_BMC_HOM_section1.fm
Issuer Information:
Country Code (CC) Country that issued the certificate
State (S) State that issued the certificate
Locality (L) City or location that issued the certificate
Organization (O) Name of the institution that issued the certificate
Organizational Unit (OU) Unit that issued the certificate
Common Name (CN) Certification authority
Valid From Server certificate effective date
Valid Until Server certificate expiration date
Generate Certificate
Button
Use this button to create a Certificate Signing Request
(CSR)
Upload Certificate Button Use this button to upload the CSR file to a certifying
authority
Table 1-5. Security
Options Description

17
FILE LOCATION: D:\Projects\User Guide\Server\Dell\Zeus\HOM\BMC
Manual\BMC\C8000_BMC_HOM_section1.fm
Users
Select the Users submenu to view the list of users authorized to access the
system. Administrators can grant any user permission privileges by clicking a
user ID number.
Table 1-6. Users
Item Description
Password Policy Check
Enable Checkbox
Enables you to improve the security of your passwords
by enforcing strong password security policies.
If enabled, BMC will perform a password check each
time the user configuration is updated. The user
password must have the following requirements:
• Cannot contain the user’s account name or full name.
• Must have a minimum of 8 and a maximum of 14
alphanumeric characters.
• Can contain numbers (0-9), upper and lower case
letters (A-Z, a-z), special characters (for example, !, $,
#, %).
• Can contain a catch-all category of any Unicode
character that does not fall under the previous three
categories. This category can be regionally specific.
• Cannot contain or be similar to the last 5 passwords.

18
FILE LOCATION: D:\Projects\User Guide\Server\Dell\Zeus\HOM\BMC
Manual\BMC\C8000_BMC_HOM_section1.fm
UserID Column Displays a list of users who can access this BMC
If a privilege is assigned to a user, the user ID appears as
a hyperlink.
State Column Shows the status of each user
User Name Column Shows the login name of the user
User Role Column Shows user defined roles
IPMI LAN Privilege
Column
Displays the IPMI LAN privilege level
IPMI Serial Privilege
Column
Displays the IPMI serial privilege level
Serial Over LAN Column Indicates whether permission for configuring the serial
over LAN connection is enabled or disabled
SOL provides serial access over the NIC interface. The
server’s integrated BMC redirects data information from
the serial port (UART), and packs the data and transfers
the UART data to the NIC interface.
Apply Changes Button Use this button to apply the changes
Refresh Button Use this button to refresh the user list
Table 1-6. Users
Item Description

19
FILE LOCATION: D:\Projects\User Guide\Server\Dell\Zeus\HOM\BMC
Manual\BMC\C8000_BMC_HOM_section1.fm
Services
Select the Services submenu to view the communication service parameters.
Users with administrator or operator privileges can set up this service.
Table 1-7. Services
Item Description
HTTP Port Number Port to use for HTTP-based communication. The
default HTTP port number is 80.
HTTPS Port Number Port to use for HTTPS-based communication. The
default HTTPS port number is 443.
Timeout Specify the time out value. The timeout value can range
from 60 to 10800 seconds.
Max Sessions Indicates the number of simultaneous sessions allowed
for the system.
Active Sessions Indicates the number of sessions currently running on
the system.
Apply Changes Button Use this button to apply the changes and restart the web
server.

20
FILE LOCATION: D:\Projects\User Guide\Server\Dell\Zeus\HOM\BMC
Manual\BMC\C8000_BMC_HOM_section1.fm
IPMI
Select the IPMI submenu to view the IPMI-based communication service
parameters. Users with administrator or operator privileges can configure the
IPMI settings.
Table 1-8. IPMI
Item Description
IPMI Serial
Connection Mode
Settings
Select a mode of communication for the serial interface.
• Direct Connection Basic Mode: This mode supports a
binary interface for program access, such as IPMI shell
(ipmish) that is included with the BMC.
• Direct Connection Terminal Mode: This mode
supports ASCII commands that are submitted from a
serial terminal. The command set has a limited
number of commands (including power control) and
supports raw IPMI commands that are entered as
hexadecimal ASCII characters.
Baud Rate
Sets the IPMI serial baud rate.
Flow Control Select a flow control value.
Channel Privilege Level
Limit
Select the IPMI privilege level for serial access.
