Dell PowerEdge E10S User manual

Dell™ PowerEdge™
R210 Systems
Getting Started
With Your System
Guide de mise en route
Primeiros passos com o sistema
Procedimientos iniciales con el sistema

www.dell.com | support.dell.com
Dell™ PowerEdge™
R210 Systems
Getting Started
With Your System
Regulatory Model E10S
Regulatory Type E10S001

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of
your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data
if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
____________________
Information in this document is subject to change without notice.
© 2009 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and PowerEdge are trademarks of Dell Inc.;
Intel and Xeon are registered trademarks of Intel Corporation in the U.S. and other countries;
Microsoft,Hyper-V, Windows,and Windows Server are either trademarks or registered trademarks
of Microsoft Corporation in the United States and/or other countries; Red Hat and Red Hat Enterprise
Linux are registered trademarks of Red Hat, Inc. in the United States and other countries; SUSE is a
registered trademark of Novell, Inc. in the United States and other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
Regulatory Model E10S
Regulatory Type E10S001
June 2009 P/N U499M Rev. A01

Getting Started With Your System 3
Installation and Configuration
WARNING: Before performing the following procedure, review the safety
instructions that came with the system.
Unpacking the System
Unpack your system and identify each item.
Installing the Rails and System in a Rack
CAUTION: If installed in a closed or multi-unit rack assembly, the operating
ambient temperature of the rack environment may be greater than room ambient.
Therefore, consideration should be given to installing the equipment in an
environment compatible with the maximum ambient temperature (Tma) specified
by the manufacturer. For more information, see "Technical Specifications" on
page 8.
Assemble the rails and install the system in the rack following the safety
instructions and the rack installation instructions provided with your system.

4Getting Started With Your System

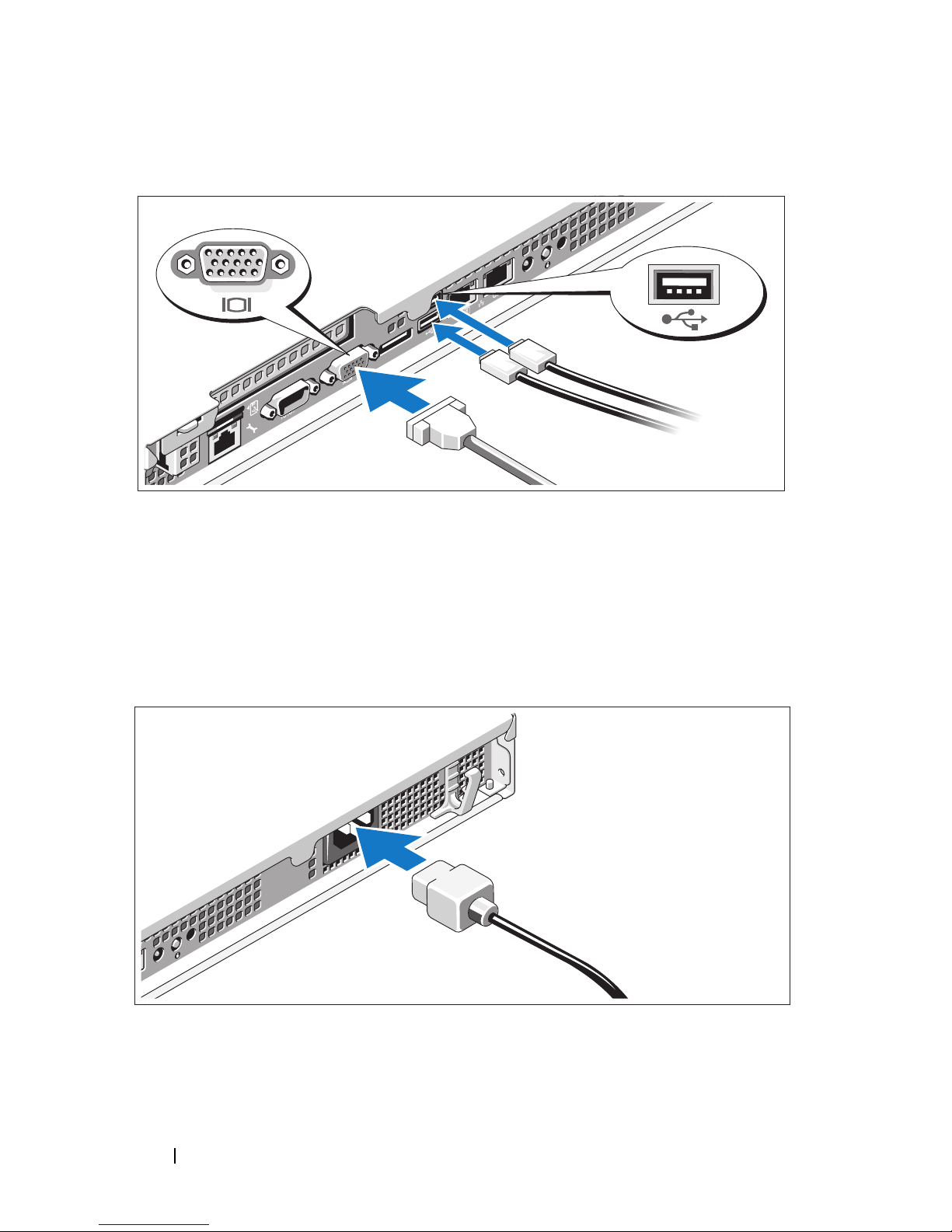

Optional – Connecting the Keyboard, Mouse, and Monitor
Connect the keyboard, mouse, and monitor (optional).
The connectors on the back of your system have icons indicating which cable
to plug into each connector. Be sure to tighten the screws (if any) on the
monitor's cable connector.
Connecting the Power Cable
Connect the system’s power cable to the system and, if a monitor is used,
connect the monitor’s power cable to the monitor.

Getting Started With Your System 5

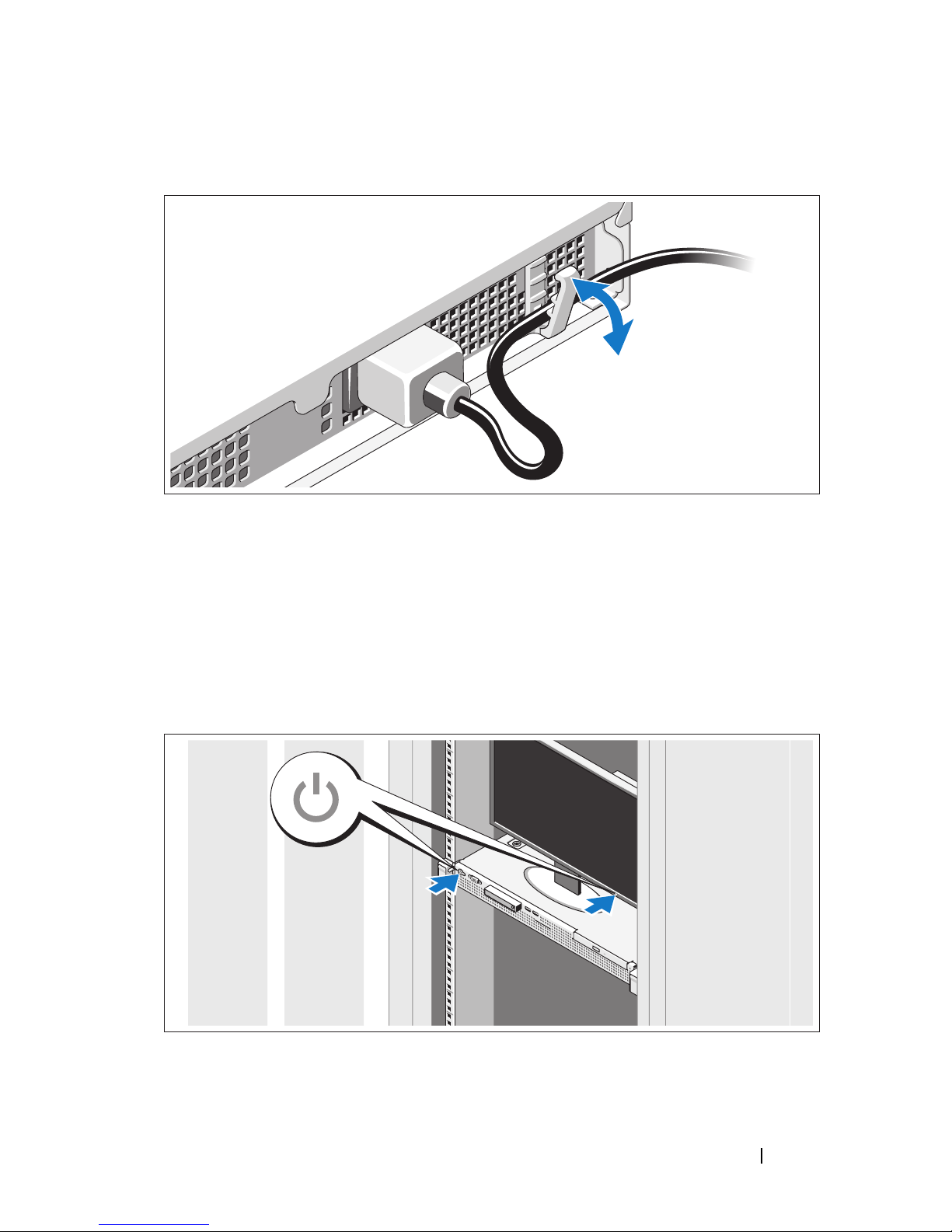

Securing the Power Cable
Bend the system power cable as shown in the illustration and secure the cable
in the retention clip.
Plug the other end of the power cable into a grounded electrical outlet or
a separate power source such as an uninterrupted power supply (UPS) or
a power distribution unit (PDU).
Turning On the System
Press the power button on the system and the monitor. The power indicators
should light.

6Getting Started With Your System

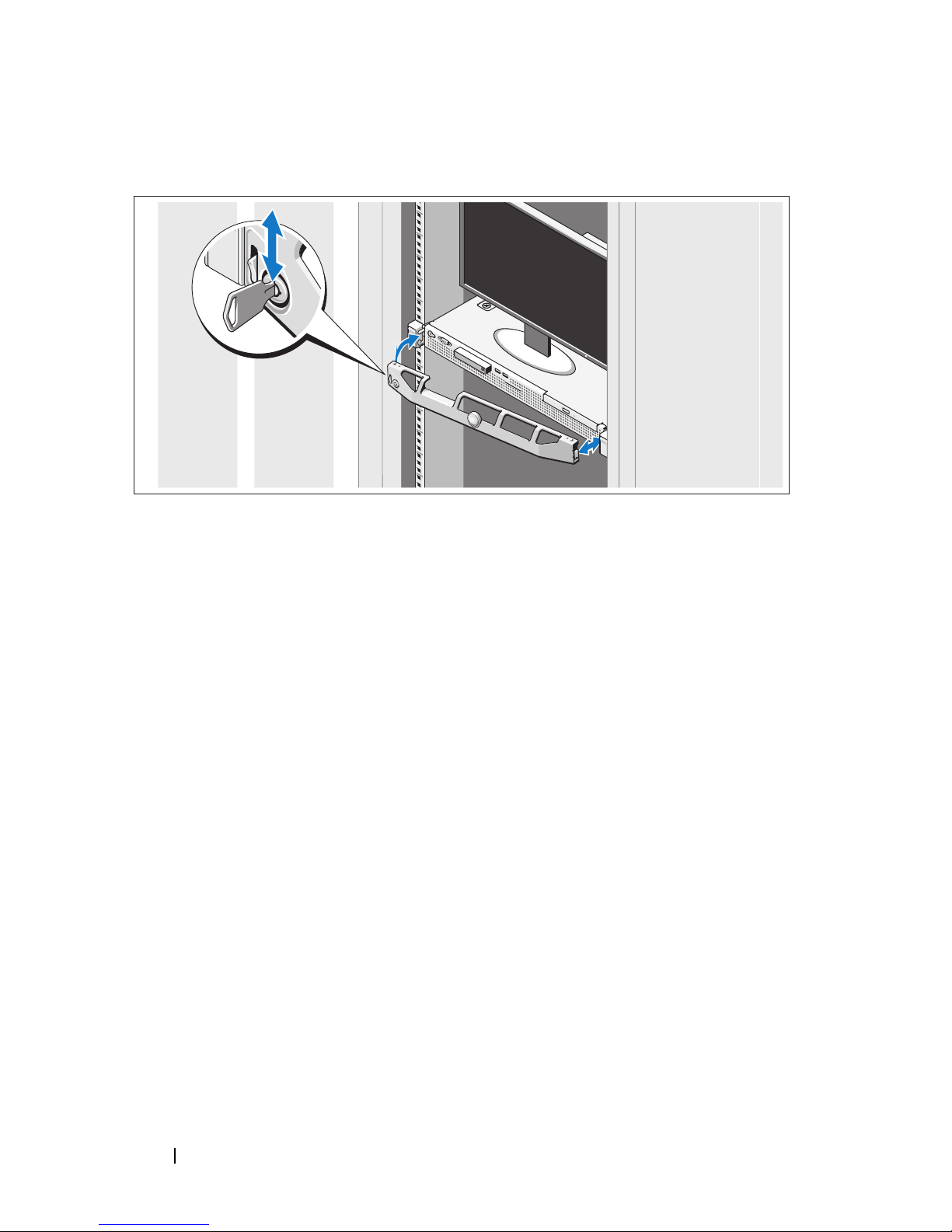

Installing the Optional Bezel
Install the bezel (optional).
Complete the Operating System Setup
If you purchased a preinstalled operating system, see the operating system
documentation that ships with your system. To install an operating system for
the first time, see the installation and configuration documentation for your
operating system. Be sure the operating system is installed before installing
hardware or software not purchased with the system.
Supported Operating Systems
• Microsoft
®
Windows Server
®
2008 R2 (x64) Web, Standard, Foundation,
and Enterprise Editions
• Microsoft Windows Server 2008 SP2 (x86) Web, Standard,
and Enterprise Editions
• Microsoft Windows Server 2008 SP2 (x64) Web, Standard,
and Enterprise Editions
• Microsoft Windows Server 2008 x32-bit (x86) Web, Standard,
and Enterprise Editions
• Microsoft Windows Server 2008 (x64) Web, Standard, Foundation,
and Enterprise Editions

Getting Started With Your System 7
• Microsoft Windows Small Business Server 2008 (x64) Standard and
Premium Editions
• Microsoft Windows
®
Essential Business Server (x64) Standard and
Premium Editions
• Microsoft Windows Server 2003 R2 32-bit (x86) Standard and
Enterprise Editions
• Microsoft Windows Server 2003 R2 (x64) Standard and
Enterprise Editions
• Microsoft Windows Server
®
2008 Hyper-V
™
• Microsoft Hyper-V Server 2008
•RedHat
®
Enterprise Linux
®
5.3 (x86_64)
• Red Hat Enterprise Linux 5.3 (x86)
•SUSE
®
Linux Enterprise Server 11 (x86_64)
NOTE: For the latest information on supported operating systems,
see www.dell.com.
Other Information You May Need
WARNING: See the safety and regulatory information that shipped with
your system. Warranty information may be included within this document or
as a separate document.
• The rack documentation included with your rack solution describes how
to install your system into a rack.
• The
Hardware Owner’s Manual provides information about system
features and describes how to troubleshoot the system and install or
replace system components. This document is available online at
support.dell.com/manuals .
• Any media that ships with your system that provides documentation and
tools for configuring and managing your system, including those pertaining
to the operating system, system management software, system updates,
and system components that you purchased with your system.
NOTE: Always check for updates on support.dell.com/manuals and read the
updates first because they often supersede information in other documents.

8Getting Started With Your System
Obtaining Technical Assistance
If you do not understand a procedure in this guide or if the system does not
perform as expected, see your Hardware Owner’s Manual. Dell™ offers
comprehensive hardware training and certification. See www.dell.com/training
for more information. This service may not be offered in all locations.
Technical Specifications
Processor
Processor type Intel®Xeon®processor 3400 series
Expansion Bus
Bus type PCI Express Generation 2
Expansion slots One full-height, half-length x16 link
Memory
Architecture 1066 and 1333 MHz DDR3 unbuffered
Error Correcting Code (ECC) DIMMs
Memory module sockets Four 240-pin
Memory module capacities 1 GB, 2 GB, or 4GB
Minimum RAM 1 GB
Maximum RAM 16 GB
Drives
Hard drives Up to two 3.5-inch cabled SAS or
SATA internal drives
or
Up to two 2.5-inch cabled SAS, SATA, or
SSD internal drives
Optical drive One optional internal slimline
SATA DVD-ROM or DVD+/-RW drive
NOTE: DVD devices are data only
Optional external USB DVD-ROM

Getting Started With Your System 9
Connectors
Back
NIC Two RJ-45 (for integrated 1-GB NICs)
Serial 9-pin, DTE, 16550-compatible
USB Two 4-pin, USB 2.0-compliant
Video 15-pin VGA
eSATA One 7-pin connector
Front
Video 15-pin VGA
USB Two 4-pin, USB 2.0-compliant
Internal
USB Two 4-pin, USB 2.0-compliant
Video
Video type Matrox G200, integrated in Winbond WPCM450
Video memory 8 MB
Power
AC power supply (per power supply)
Wattage 250 W
Voltage 100-240 VAC, 50/60 Hz, 4-2 A
Heat dissipation 1039 BTU/hr maximum
Maximum inrush current Under typical line conditions and over the entire
system ambient operating range, the inrush
current may reach 25 A
Batteries
System battery CR 2032 3.0-V lithium ion coin cell

10 Getting Started With Your System
Physical
Height 4.24 cm (1.67 in)
Width 43.4 cm (17.09 in)
Depth 39.37 cm (15.5 in)
Weight (maximum configuration) 8.058 kg (17.77 lb)
Environmental
NOTE: For additional information about environmental measurements for specific
system configurations, see www.dell.com/environmental_datasheets.
Temperature
Operating 10° to 35°C (50° to 95°F) with a maximum
temperature gradation of 10°C per hour
NOTE: For altitudes above 2950 feet, the maximum
operating temperature is derated 1ºF/550 ft.
Storage –40° to 65°C (–40° to 149°F) with a maximum
temperature gradation of 20°C per hour
Relative humidity
Operating 20% to 80% (noncondensing) with a maximum
humidity gradation of 10% per hour
Storage 5% to 95% (noncondensing)
Maximum vibration
Operating 0.26 Grms at 5–350 Hz for 15 min
Storage 1.54 Grms at 10–250 Hz for 15 min

Getting Started With Your System 11
Maximum shock
Operating One shock pulse in the positive z axis (one pulse
on each side of the system) of 31 G for 2.6 ms in
the operational orientation
Storage Six consecutively executed shock pulses in
the positive and negative x, y, and z axes
(one pulse on each side of the system) of 71 G
for up to 2 ms
Six consecutively executed shock pulses in
the positive and negative x, y, and z axes
(one pulse on each side of the system) of 32 G
faired square wave pulse with velocity change at
270 inches/second (686 centimeters/second)
Altitude
Operating –16 to 3048 m (–50 to 10,000 ft)
NOTE: For altitudes above 2950 feet, the maximum
operating temperature is derated 1ºF/550 ft.
Storage –16 to 10,600 m (–50 to 35,000 ft)
Airborne Contaminant Level
Class G2 or lower as defined by ISA-S71.04-1985
Environmental (continued)

12 Getting Started With Your System

www.dell.com | support.dell.com
Systèmes Dell™
PowerEdge™ R210
Guide de mise en route
Modèle de régulation E10S
Type de régulation E10S001

Remarques, précautions et avertissements
REMARQUE : Une REMARQUE indique des informations importantes qui peuvent
vous aider à mieux utiliser votre ordinateur.
PRÉCAUTION : Une PRÉCAUTION vous avertit d'un risque de dommage matériel
ou de perte de données en cas de non-respect des instructions données.
AVERTISSEMENT : Un AVERTISSEMENT vous avertit d'un risque
d'endommagement du matériel, de blessure corporelle ou de mort.
____________________
Les informations contenues dans ce document sont sujettes à modification sans préavis.
© 2009 Dell Inc. Tous droits réservés.
La reproduction de ce document de quelque manière que ce soit sans l'autorisation écrite de Dell Inc.
est strictement interdite.
Marques mentionnées dans ce document : Dell, le logo DELL et PowerEdge sont des marques de
Dell Inc. ; Intel et Xeon sont des marques déposées d'Intel Corporation aux États-Unis et dans d'autres
pays ; Microsoft,Hyper-V, Windows et Windows Server sont des marques ou des marques déposées
de Microsoft Corporation aux États-Unis et/ou dans d'autres pays ; Red Hat et Red Hat Enterprise
Linux sont des marques enregistrées de Red Hat, Inc. aux États-Unis et dans d'autres pays ; SUSE est
une marque déposée de Novell, Inc. aux États-Unis et dans d'autres pays.
D'autres marques commerciales et noms de marque peuvent être utilisés dans ce document pour faire
référence aux entités se réclamant de ces marques et de ces noms ou de leurs produits. Dell Inc. dénie
tout intérêt propriétaire vis-à-vis des marques commerciales et des noms de marque autres que les siens.
Modèle de régulation E10S
Type de régulation E10S001
Juin 2009 N/P U499M Rév. A01

Guide de mise en route 15
Installation et configuration
AVERTISSEMENT : avant de commencer, consultez les consignes de sécurité
fournies avec le système.
Déballage du système
Sortez le système de son emballage et identifiez chaque élément.
Installation des rails et du système dans un rack
PRÉCAUTION : en cas d'installation dans un assemblage de rack fermé ou
comprenant plusieurs unités, la température ambiante de fonctionnement
observée dans l'environnement du rack peut être supérieure à celle de la pièce.
Il est donc impératif d'installer l'équipement dans un environnement compatible
avec la température ambiante maximale indiquée par le constructeur. Pour plus
d'informations, voir “Caractéristiques techniques”, page 20.
Assemblez les rails et installez le système dans le rack en suivant les consignes
de sécurité et les instructions d'installation du rack fournies avec votre
système.

16 Guide de mise en route
Facultatif – Connexion du clavier, de la souris et du moniteur
Connectez le clavier, la souris et le moniteur (si nécessaire).
Les icônes des connecteurs situées à l'arrière du système indiquent où insérer
chaque câble. N'oubliez pas de serrer les vis situées sur le connecteur du câble
du moniteur, s'il en est équipé.
Branchement du câble d'alimentation.
Branchez le câble d'alimentation au système et, si vous utilisez un moniteur,
connectez son câble d'alimentation à celui-ci.

Guide de mise en route 17
Fixation du câble d'alimentation.
Pliez le câble d'alimentation comme le montre l'illustration et faites-le passer
dans le clip de fixation.
Branchez ensuite l'autre extrémité du câble d'alimentation à une prise de
courant mise à la terre ou à une source d'alimentation autonome (onduleur
ou unité de distribution de l'alimentation [PDU]).
Mise sous tension du système
Appuyez sur le bouton d'alimentation du système et sur celui du moniteur.
Les voyants d'alimentation s'allument.

18 Guide de mise en route
Installation du cadre en option
Installez le cadre.
Installation du système d'exploitation
Si vous avez acheté un système d'exploitation préinstallé, consultez tout
d'abord la documentation associée, fournie avec l'ordinateur. Pour une
première installation du système d'exploitation, consultez la documentation
concernant l'installation et la configuration du système d'exploitation. Veillez
à installer le système d'exploitation avant tout élément matériel ou logiciel
acheté séparément.
Systèmes d'exploitation pris en charge
• Microsoft
®
Windows Server
®
2008 R2 (x64) éditions Web, Standard,
Foundation et Enterprise
• Microsoft Windows Server 2008 SP2, éditions Web, Standard et
Enterprise (x86)
• Microsoft Windows Server 2008 SP2, éditions Web, Standard et
Enterprise (x64)
• Microsoft Windows Server 2008, éditions Web, Standard et Enterprise
x32 bits (x86)
• Microsoft Windows Server 2008, éditions Web, Standard, Foundation et
Enterprise (x64)
