Dell PowerEdge R330 User manual

Dell PowerEdge R330
Owner's Manual
Regulatory Model: E34S Series
Regulatory Type: E34S001

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you
how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
Copyright ©2015 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and
intellectual property laws. Dell™and the Dell logo are trademarks of Dell Inc. in the United States and/or other
jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.
2015 - 09
Rev. A00

Contents
1 About your system................................................................................................ 9
Supported configurations on PowerEdge R330 systems....................................................................9

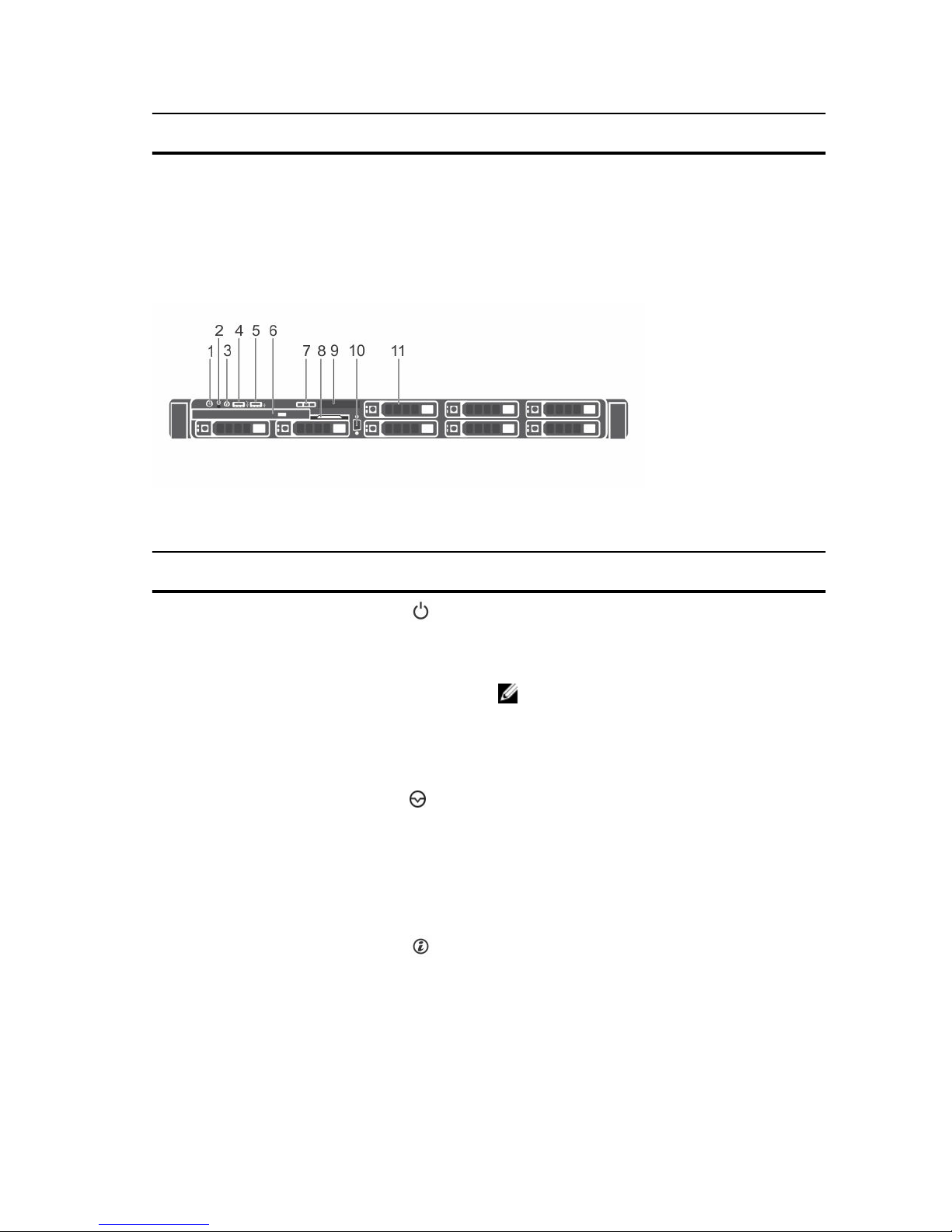

Front panel features and indicators......................................................................................................9
LCD panel features..............................................................................................................................14
Diagnostic indicators...........................................................................................................................14
Hot swappable hard drive indicator codes.........................................................................................16
Back panel features and indicators..................................................................................................... 17
NIC indicator codes.............................................................................................................................18
Indicator codes for redundant power supply unit............................................................................. 19
Documentation matrix........................................................................................................................20
Accessing system information by using QRL..................................................................................... 21
2 Performing initial system configuration ....................................................... 23
Setting up your system....................................................................................................................... 23
Setting up and configuring the iDRAC IP address ............................................................................ 23
Logging in to iDRAC............................................................................................................................24
Methods of installing the operating system.......................................................................................24
Managing your system remotely........................................................................................................24
Downloading drivers and firmware....................................................................................................24
3 Pre-operating system management applications........................................26
Navigation keys................................................................................................................................... 26
About System Setup............................................................................................................................ 27
Entering System Setup.................................................................................................................. 27
System Setup Main Menu..............................................................................................................27
System BIOS screen details...........................................................................................................27
System Information screen details............................................................................................... 28
Memory Settings screen details....................................................................................................29
Processor Settings screen details.................................................................................................29
SATA Settings screen details.........................................................................................................30
Boot Settings screen details..........................................................................................................32
Network Settings screen details................................................................................................... 33
Integrated Devices screen details.................................................................................................33
Serial Communication screen details...........................................................................................34
System Profile Settings screen details.......................................................................................... 35
System Security Settings screen details....................................................................................... 36
Miscellaneous Settings screen details.......................................................................................... 38
About Boot Manager...........................................................................................................................39
3

Entering Boot Manager................................................................................................................. 39
Boot Manager main menu............................................................................................................ 39
About Dell Lifecycle Controller.......................................................................................................... 39
Changing the boot order....................................................................................................................39
Choosing the system boot mode...................................................................................................... 40
Creating a system and setup password............................................................................................. 40
Using your system password to secure your system.........................................................................41
Deleting or changing system password and setup password...........................................................41
Operating with a setup password enabled........................................................................................ 42
Embedded system management....................................................................................................... 42
iDRAC Settings utility.......................................................................................................................... 42
Entering the iDRAC settings utility................................................................................................42
Changing the thermal settings..................................................................................................... 43
4 Installing and removing system components...............................................44
Safety instructions...............................................................................................................................44
Before working inside your system....................................................................................................44
After working inside your system....................................................................................................... 44
Recommended tools.......................................................................................................................... 45
Front bezel (optional)..........................................................................................................................45
Installing the optional front bezel.................................................................................................45
Removing the optional front bezel.............................................................................................. 46
System cover.......................................................................................................................................46
Removing the system cover......................................................................................................... 46
Installing the system cover........................................................................................................... 47
Inside the system................................................................................................................................ 48
Intrusion switch................................................................................................................................... 51
Removing the intrusion switch......................................................................................................51
Installing the intrusion switch....................................................................................................... 52
Cooling shroud....................................................................................................................................52
Removing the cooling shroud...................................................................................................... 52
Installing the cooling shroud........................................................................................................ 53
System memory.................................................................................................................................. 54
General memory module installation guidelines.........................................................................55
Sample memory configurations................................................................................................... 55
Removing a memory module.......................................................................................................56
Installing a memory module......................................................................................................... 57
Hard drives...........................................................................................................................................59
Supported hard drive configurations .......................................................................................... 60
Removing a 2.5-inch hot swappable hard drive blank................................................................60
Installing a 2.5-inch hot swappable hard drive blank.................................................................. 61
Removing a 3.5-inch hot swappable hard drive carrier blank.................................................... 62
4

Installing a 3.5-inch hot swappable hard drive carrier blank...................................................... 62
Removing a 3.5-inch cabled hard drive carrier............................................................................63
Removing a cabled hard drive from a hard drive carrier.............................................................64
Installing a cabled hard drive into a hard drive carrier.................................................................65
Installing a 3.5-inch cabled hard drive carrier............................................................................. 66
Removing a hot swappable hard drive carrier............................................................................. 67
Installing a hot swappable hard drive carrier............................................................................... 68
Removing the optional 1.8-inch solid state drives...................................................................... 69
Installing the optional 1.8-inch solid state drives.........................................................................70
Installing a 2.5-inch hot swappable hard drive into a 3.5-inch hard drive adapter.................... 71
Removing a 2.5-inch hot swappable hard drive from a 3.5-inch hard drive adapter................ 72
Installing a 3.5-inch hard drive adapter into the 3.5-inch hot swappable hard drive carrier.....73
Removing a 3.5-inch hard drive adapter from a 3.5-inch hot swappable hard drive carrier.....74
Removing a hot swappable hard drive from a hard drive carrier................................................74
Installing a hot swappable hard drive into a hot swappable hard drive carrier.......................... 75
Optical drive (optional)........................................................................................................................76
Removing the optional optical drive............................................................................................ 76
Installing the optional optical drive...............................................................................................77
Cooling fans........................................................................................................................................ 78
Removing the cooling fan blank...................................................................................................78
Installing the cooling fan blank.....................................................................................................79
Removing a cooling fan................................................................................................................80
Installing a cooling fan.................................................................................................................. 81
Internal USB memory key (optional).................................................................................................. 82
Replacing the optional internal USB memory key.......................................................................82
Expansion cards and expansion card riser.........................................................................................83
Expansion card installation guidelines......................................................................................... 83
Removing the expansion card riser..............................................................................................85
Installing the expansion card riser................................................................................................86
Removing an expansion card........................................................................................................87
Installing an expansion card......................................................................................................... 88
Removing the internal PERC card................................................................................................ 89
Installing the internal PERC card..................................................................................................90
iDRAC port card (optional)..................................................................................................................91
Replacing an optional SD vFlash card...........................................................................................91
Removing the optional iDRAC port card......................................................................................92
Installing the optional iDRAC port card........................................................................................94
Internal dual SD module (optional).................................................................................................... 94
Removing an optional internal SD card....................................................................................... 94
Installing an optional internal SD card..........................................................................................95
Removing the optional internal dual SD module.........................................................................95
Installing the optional internal dual SD module ..........................................................................97
5

Heat sink and processor..................................................................................................................... 98
Removing the heat sink................................................................................................................ 98
Removing the processor...............................................................................................................99
Installing the processor............................................................................................................... 101
Installing the heat sink.................................................................................................................103
Power supply units............................................................................................................................105
Hot spare feature.........................................................................................................................105
Removing a redundant power supply unit.................................................................................105
Installing a redundant power supply unit...................................................................................106
Removing the power supply unit blank......................................................................................107
Installing the power supply unit blank....................................................................................... 108
System battery...................................................................................................................................108
Replacing the system battery..................................................................................................... 108
Hard drive backplane.........................................................................................................................110
Removing the hard drive backplane........................................................................................... 110
Installing the hard drive backplane............................................................................................. 119
Control panel assembly.....................................................................................................................119
Removing the LCD control panel assembly...............................................................................119
Installing the LCD control panel assembly................................................................................. 121
Removing the LED control panel assembly............................................................................... 122
Installing the LED control panel assembly................................................................................. 123
Power interposer board.................................................................................................................... 124
Removing the power interposer board...................................................................................... 124
Installing the power interposer board........................................................................................ 125
Trusted Platform Module..................................................................................................................126
Installing the Trusted Platform Module......................................................................................126
Re-enabling the TPM for BitLocker users...................................................................................127
Re-enabling the TPM for TXT users............................................................................................127
System board.....................................................................................................................................128
Removing the system board.......................................................................................................128
Installing the system board.........................................................................................................130
5 Troubleshooting your system........................................................................ 133
Safety first—for you and your system...............................................................................................133
Troubleshooting system startup failure............................................................................................133
Troubleshooting external connections............................................................................................133
Troubleshooting the video subsystem............................................................................................. 133
Troubleshooting a USB device......................................................................................................... 133
Troubleshooting iDRAC Direct (USB XML configuration)................................................................134
Troubleshooting iDRAC Direct (Laptop connection)...................................................................... 135
Troubleshooting a serial I/O device................................................................................................. 135
Troubleshooting an NIC....................................................................................................................135
6

Troubleshooting a wet system......................................................................................................... 136
Troubleshooting a damaged system................................................................................................ 137
Troubleshooting the system battery.................................................................................................137
Troubleshooting power supply units............................................................................................... 138
Troubleshooting power source problems................................................................................. 138
Power supply unit problems....................................................................................................... 138
Troubleshooting cooling problems..................................................................................................139
Troubleshooting cooling fans.......................................................................................................... 139
Troubleshooting system memory....................................................................................................140
Troubleshooting an internal USB key............................................................................................... 141
Troubleshooting an SD card............................................................................................................. 141
Troubleshooting an optical drive..................................................................................................... 142
Troubleshooting a tape backup unit................................................................................................ 143
Troubleshooting a hard drive........................................................................................................... 143
Troubleshooting a storage controller.............................................................................................. 144
Troubleshooting expansion cards....................................................................................................145
Troubleshooting processors.............................................................................................................145
6 Using system diagnostics................................................................................147
Dell Embedded System Diagnostics.................................................................................................147
When to use the Embedded System Diagnostics...................................................................... 147
Running the Embedded System Diagnostics from Boot Manager............................................147
Running the Embedded System Diagnostics from the Dell Lifecycle Controller.....................147
System diagnostics controls.......................................................................................................148
7 Jumpers and connectors................................................................................ 149
System board jumper settings..........................................................................................................149
System board connectors.................................................................................................................150
Disabling a forgotten password........................................................................................................ 151
8 Technical specifications..................................................................................153
Dimensions and weight.....................................................................................................................153
Processor specifications................................................................................................................... 153
Expansion bus specifications............................................................................................................154
Memory specifications......................................................................................................................154
Power specifications......................................................................................................................... 154
Storage controller specifications......................................................................................................155
Drive specifications........................................................................................................................... 155
Connectors specifications................................................................................................................ 156
Video specifications.......................................................................................................................... 156
Expanded operating temperature.................................................................................................... 156
Environmental specifications............................................................................................................157
7

9 Getting help.......................................................................................................160
Contacting Dell................................................................................................................................. 160
Locating your system Service Tag....................................................................................................160
Documentation feedback.................................................................................................................160
8

1
About your system
The Dell PowerEdge R330 rack server supports one processor based on the Intel E3-1200V5 series, up to
4 DIMMs, and up to eight hard drives or solid state drives (SSDs).
Supported configurations on PowerEdge R330 systems
The PowerEdge R330 systems are available in the following configurations:
Table 1. Supported configurations on PowerEdge R330 systems
System Configuration
Four hard drive
systems
Up to four 3.5-inch, cabled hard drives and two optional 1.8-inch solid state
drives (SSDs) in the optical drive slot
Up to four 3.5-inch (2.5-inch with adapter), hot-swappable hard drives
Eight hard drive
systems
Up to eight 2.5-inch, hot-swappable hard drives or SSDs
Front panel features and indicators
Figure 1. Front panel features and indicators — four 3.5-inch hot-swappable hard drive chassis
Table 2. Front panel features and indicators— four 3.5-inch hot-swappable hard drive chassis
Item Indicator, button, or
connector Icon Description
1 Power-on indicator,
power button
Enables you to know the power status of the system.
The power-on indicator glows when the system
power is on. The power button controls the power
supply output to the system.
9

Item Indicator, button, or
connector Icon Description
NOTE: On ACPI-compliant operating systems,
turning off the system by pressing the power
button causes the system to perform a graceful
shutdown before power to the system is turned
off.
2 NMI button Enables you to troubleshoot software and device
driver errors when running certain operating
systems. This button can be pressed by using the
end of a paper clip.
Use this button only if directed to do so by qualified
support personnel or by the operating system's
documentation.
3 System identification
button
Enables you to locate a particular system within a
rack. The identification buttons are on the front and
back panels. When one of these buttons is pressed,
the LCD panel on the front and the system status
indicator on the back flash until one of the buttons is
pressed again.
Press the system identification button to turn the
system ID on or off.
If the system stops responding during POST, press
and hold the system ID button for more than five
seconds to enter BIOS progress mode.
To reset iDRAC (if not disabled in F2 iDRAC setup),
press and hold the button for more than 15 seconds.
4 Video connector Enables you to connect a display to the system.
5 LCD menu buttons Enable you to navigate the control panel LCD menu.
6 LCD panel Displays system ID, status information, and system
error messages. See LCD panel features.
NOTE: LCD panel is not available in a cabled
hard drive chassis.
7 USB management port/
iDRAC managed USB
port
Functions as a regular USB port or provide access to
the iDRAC Direct features. For more information, see
the iDRAC User’s Guide at Dell.com/idracmanuals.
8 USB connector Enables you to connect USB devices to the system.
The port is USB 2.0-compliant.
9 Information tag Contains system information such as service tag,
NIC, MAC address for your reference. The
information tag is a slide-out label panel.
10

Item Indicator, button, or
connector Icon Description
10 Hard drives slots Enables you to install up to four 3.5-inch hot-
swappable hard drives or four 2.5-inch hot-
swappable hard drives in 3.5-inch hard drive
adapters.
11 Optical drive slot Enables you to install an optional slim SATA DVD-
ROM drive or DVD+/-RW drive.
Figure 2. Front panel features and indicators — eight 2.5-inch hot-swappable hard drives or SSDs chassis
Table 3. Front panel features and indicators—eight 2.5-inch hot-swappable hard drives or SSDs chassis
Item Indicator, Button, or
Connector Icon Description
1 Power-on indicator,
power button
Enables you to know the power status of the
system. The power-on indicator glows when the
system power is on. The power button controls
the power supply output to the system.
NOTE: On ACPI-compliant operating
systems, turning off the system by pressing
the power button causes the system to
perform a graceful shutdown before power
to the system is turned off.
2 NMI button Enables you to troubleshoot software and device
driver errors when running certain operating
systems. This button can be pressed by using the
end of a paper clip.
Use this button only if directed to do so by
qualified support personnel or by the operating
system's documentation.
3 System identification
button
Enables you to locate a particular system within a
rack. The identification buttons are on the front
and back panels. When one of these buttons is
pressed, the LCD panel on the front and the
system status indicator on the back flash until one
of the buttons is pressed again.
11

Item Indicator, Button, or
Connector Icon Description
Press the system identification button to turn the
system ID on or off.
If the system stops responding during POST, press
and hold the system ID button for more than five
seconds to enter BIOS progress mode.
To reset iDRAC (if not disabled in F2 iDRAC setup),
press and hold the button for more than 15
seconds.
4 USB management port/
iDRAC managed USB
port
Functions as a regular USB port or provide access
to the iDRAC Direct features. For more
information, see the iDRAC User’s Guide at
Dell.com/idracmanuals.
5 USB connector Enables you to connect USB devices to the
system. The port is USB 2.0-compliant.
6 Optical drive slot Enables you to install an optional slim SATA DVD-
ROM drive or DVD+/-RW drive.
7 LCD menu buttons Enable you to navigate the control panel LCD
menu.
8 Information tag Contains system information such as service tag,
NIC, MAC address for your reference. The
information tag is a slide-out label panel.
9 LCD panel Displays system ID, status information, and system
error messages. See LCD panel features.
10 Video connector Enables you to connect a VGA display to the
system.
11 Hard drive slots Enables you to install up to eight 2.5-inch hot
swappable hard drives.
Figure 3. Front panel features and indicators — four 3.5-inch cabled hard drive chassis
12

Table 4. Front panel features and indicators — four 3.5-inch cabled hard drive chassis
Item Indicator, Button, or
Connector Icon Description
1 Power-on indicator,
power button
Enables you to know the power status of the
system. The power-on indicator glows when the
system power is on. The power button controls
the power supply output to the system.
NOTE: On ACPI-compliant operating systems,
turning off the system by pressing the power
button causes the system to perform a
graceful shutdown before power to the
system is turned off.
2 NMI button Enables you to troubleshoot software and device
driver errors when running certain operating
systems. This button can be pressed by using the
end of a paper clip.
Use this button only if directed to do so by
qualified support personnel or by the operating
system's documentation.
3 System identification
button
Enables you to locate a particular system within a
rack. The identification buttons are on the front
and back panels. When one of these buttons is
pressed, the LCD panel on the front and the
system status indicator on the back flash until one
of the buttons is pressed again.
Press the system identification button to turn the
system ID on or off.
If the system stops responding during POST, press
and hold the system ID button for more than five
seconds to enter BIOS progress mode.
To reset iDRAC (if not disabled in F2 iDRAC setup),
press and hold the button for more than 15
seconds.
4 Video connector Enables you to connect a display to the system.
5 Diagnostic indicators Glows to display error status. For more
information, see Diagnostic indicators.
6 USB connectors Enable you to connect USB devices to the system.
The ports are USB 2.0-compliant.
7 Information tag Contains system information such as service tag,
NIC, MAC address for your reference. The
information tag is a slide-out label panel.
8 Hard drive slots Enables you to install up to four 3.5-inch cabled
hard drives.
13

Item Indicator, Button, or
Connector Icon Description
9 Optical drive or solid
state drive (SSDs) slot
Enables you to install one optional SATA DVD-
ROM drive or DVD+/-RW drive, or two optional
1.8-inch SSDs
LCD panel features
The system's LCD panel provides system information and status and error messages to indicate if the
system is operating correctly or if the system needs attention. For more information about the error
messages, see the Dell Event and Error Messages Reference Guide at Dell.com/openmanagemanuals >
OpenManage software.
• The LCD backlight turns blue during normal operating conditions and turns amber to indicate an error
condition.
• The LCD backlight is turned off when the system is in standby mode and can be turned on by pressing
either the Select, Left, or Right button on the LCD panel.
• The LCD backlight remains OFF if LCD messaging is turned off through the iDRAC utility, the LCD
panel, or other tools.
Figure 4. LCD panel Features
1. Left 2. Select
3. Right
Button Description
Left Moves the cursor back in one-step increments.
Select Selects the menu item highlighted by the cursor.
Right Moves the cursor forward in one-step increments.
During message scrolling:
• Press once to increase scrolling speed
• Press again to stop
• Press again to return to the default scrolling speed
• Press again to repeat the cycle
Diagnostic indicators
The diagnostic indicators on the system front panel display error status during system startup.
14

NOTE: No diagnostic indicators are lit when the system is switched off. To start the system, plug it
into a working power source and press the power button.
Table 5. Diagnostic indicators
Icon Description Condition Corrective action
Health
indicator
If the system is on and in
good health, the indicator
turns solid blue.
None required.
The indicator flashes amber
if the system is on or in
standby, and if any error
exists (for example, a failed
fan or hard drive).
Check the System Event Log or system
messages for the specific issue. For more
information about error messages, see the
Dell Event and Error Messages Reference
Guide at Dell.com/openmanagemanuals >
OpenManage software.
Invalid memory configurations can cause
the system to halt at startup without any
video output. See Getting help.
Hard drive
indicator
The indicator flashes amber
if there is a hard drive error.
Check the System Event Log to determine
the hard drive that has an error. Run the
appropriate Online Diagnostics test. Restart
the system and run embedded diagnostics
(ePSA). If the hard drives are configured in a
RAID array, restart the system and enter the
host adapter configuration utility program.
Electrical
indicator
The indicator flashes amber
if the system experiences an
electrical error (for example,
voltage out of range, or a
failed power supply unit
(PSU) or voltage regulator).
Check the System Event Log or system
messages for the specific issue. If it is due
to a problem with the PSU, check the LED
on the PSU. Reseat the PSU. If the problem
persists, see Getting help.
Temperature
indicator
The indicator flashes amber
if the system experiences a
thermal error (for example, a
temperature out of range or
fan failure).
Ensure that none of the following
conditions exist:
• A cooling fan is removed or has failed.
• System cover, cooling shroud, EMI filler
panel, memory module blank, or back
filler bracket is removed.
• Ambient temperature is too high.
• External airflow is obstructed.
See Getting help.
Memory
indicator
The indicator flashes amber
if a memory error occurs.
Check the system event log or system
messages for the location of the failed
memory. Reseat the memory module. If
the problem persists, see Getting help.
15

Icon Description Condition Corrective action
PCIe indicator The indicator flashes amber
if a PCIe card experiences
an error.
Restart the system. Update any required
drivers for the PCIe card. Reinstall the card.
If the problem persists, see Getting help.
Hot swappable hard drive indicator codes
Figure 5. Hot swappable hard drive indicators
1. hard drive activity indicator 2. hard drive status indicator
3. hard drive
NOTE: If the hard drive is in Advanced Host Controller Interface (AHCI) mode, the status indicator
(on the right side) does not function and remains OFF.
Table 6. Hot swappable hard drive indicators
Drive-status indicator pattern (RAID only) Condition
Flashes green two times per second Identifying drive or preparing for removal.
OFF Drive ready for insertion or removal.
NOTE: The drive status indicator remains OFF
until all hard drives are initialized after the system
is turned on. Drives are not ready for insertion or
removal during this time.
Flashes green, amber, and turns off Predicted drive failure
Flashes amber four times per second Drive failed
Flashes green slowly Drive rebuilding
Turns green Drive online
16

Drive-status indicator pattern (RAID only) Condition
Flashes green three seconds, amber three
seconds, and turns off six seconds
Rebuild stopped
Back panel features and indicators
Figure 6. Back panel features and indicators
Table 7. Back panel features and indicators
Item Indicator, button, or
connector Icon Description
1 Serial connector Enables you to connect a serial device to the
system.
2 vFlash card slot
(optional)
Enables you to connect the vFlash card.
3 iDRAC port (optional) Enables you to install a dedicated management
port card.
4 PCIe expansion card
slots (2)
Enable you to connect PCI Express expansion
cards.
5 Power supply unit (PSU1
and PSU2)
Enables you to install up to two 350 W redundant
AC power supply units.
6 USB connectors Enable you to connect USB devices to the system.
These ports are USB 3.0-compliant.
7 Ethernet connectors Enable you to connect Integrated 10/100/1000
Mbps NIC connectors.
8 System identification
button
Enables you to locate a particular system within a
rack. The identification buttons are on the front
and back panels. When one of these buttons is
pressed, the LCD panel on the front and the
17

Item Indicator, button, or
connector Icon Description
system status indicator on the back flash until one
of the buttons is pressed again.
Press the system identification button to turn the
system ID on or off.
If the system stops responding during POST, press
and hold the system ID button for more than five
seconds to enter BIOS progress mode.
To reset iDRAC (if not disabled in F2 iDRAC setup),
press and hold the button for more than 15
seconds.
9 System identification
connector
Connects the optional system status indicator
assembly through the optional cable management
arm.
10 Video connector Enables you to connect a VGA display to the
system.
NIC indicator codes
Figure 7. NIC indicators
1. link indicator 2. activity indicator
Table 8. NIC indicators
Convention Indicator pattern Description
A Link and activity indicators
are OFF
The NIC is not connected to the network.
B Link indicator is green The NIC is connected to a valid network at its maximum
port speed (1 Gbps).
18

Convention Indicator pattern Description
C Link indicator is yellow The NIC is connected to a valid network at less than its
maximum port speed.
D Activity indicator is flashing
green
Network data is being sent or received.
Indicator codes for redundant power supply unit
Each AC power supply unit (PSU) has an illuminated translucent handle that indicates whether power is
present or whether a power fault has occurred.
Figure 8. AC PSU status indicator
1. AC PSU status indicator or handle
Table 9. Redundant AC PSU status indicator
Convention Power Indicator
Pattern Condition
A Green A valid power source is connected to the PSU and the PSU is
operational.
B Flashing green When the PSU firmware is being updated, the PSU handle flashes
green.
CAUTION: Do not disconnect the power cord or unplug the
PSU when updating firmware. If firmware update is
interrupted, the PSUs will not function. You must roll back the
PSU firmware by using Dell Lifecycle Controller. For more
information, see Dell Lifecycle Controller User’s Guide at
Dell.com/idracmanuals.
C Flashing green
and turns off
When hot-adding a PSU, the PSU handle flashes green five times at
4 Hz rate and turns off. This indicates that there is a PSU mismatch
19

Convention Power Indicator
Pattern Condition
with respect to efficiency, feature set, health status, and supported
voltage. Ensure that both the PSUs are the same.
D Flashing amber Indicates a problem with the PSU.
CAUTION: When correcting a PSU mismatch, replace only the
PSU with the flashing indicator. Swapping the other PSU to
make a matched pair can result in an error condition and
unexpected system shutdown. To change from a High Output
configuration to a Low Output configuration or vice versa,
you must turn off the system.
CAUTION: AC PSUs support both 220 V and 110 V input
voltages with the exception of Titanium PSUs, which support
only 220 V. When two identical PSUs receive different input
voltages, they can output different wattages, and trigger a
mismatch.
CAUTION: If two PSUs are used, they must be of the same type
and have the same maximum output power.
CAUTION: Combining AC and DC PSUs is not supported and
triggers a mismatch.
E Not lit Power is not connected.
Documentation matrix
The documentation matrix provides information on documents that you can refer to for setting up and
managing your system.
Table 10. Documentation matrix
To... See the...
Install your system into a rack Rack documentation included with your rack
solution
Set up your system and know the system technical
specifications
Getting Started With Your System that shipped with
your system or see Dell.com/poweredgemanuals
Install the operating system Operating system documentation at Dell.com/
operatingsystemmanuals
Get an overview of the Dell Systems Management
offerings
Dell OpenManage Systems Management Overview
Guide at Dell.com/openmanagemanuals >
OpenManage software
Configure and log in to iDRAC, set up managed
and management system, know the iDRAC
features, and troubleshoot by using iDRAC
Integrated Dell Remote Access Controller User's
Guide at Dell.com/idracmanuals
Know about the RACADM subcommands and
supported RACADM interfaces
RACADM Command Line Reference Guide for
iDRAC at Dell.com/idracmanuals
20
