LTO Media Handbook 5
This document describes media compatibility, handling, and usage for all Dell
PowerVault Linear Tape Open (LTO) drives.
Drives and Media
Table 1 through Table 4 list the basic characteristics of Dell PowerVault LTO
tape drives.
PowerVault LTO-1 Tape Drives

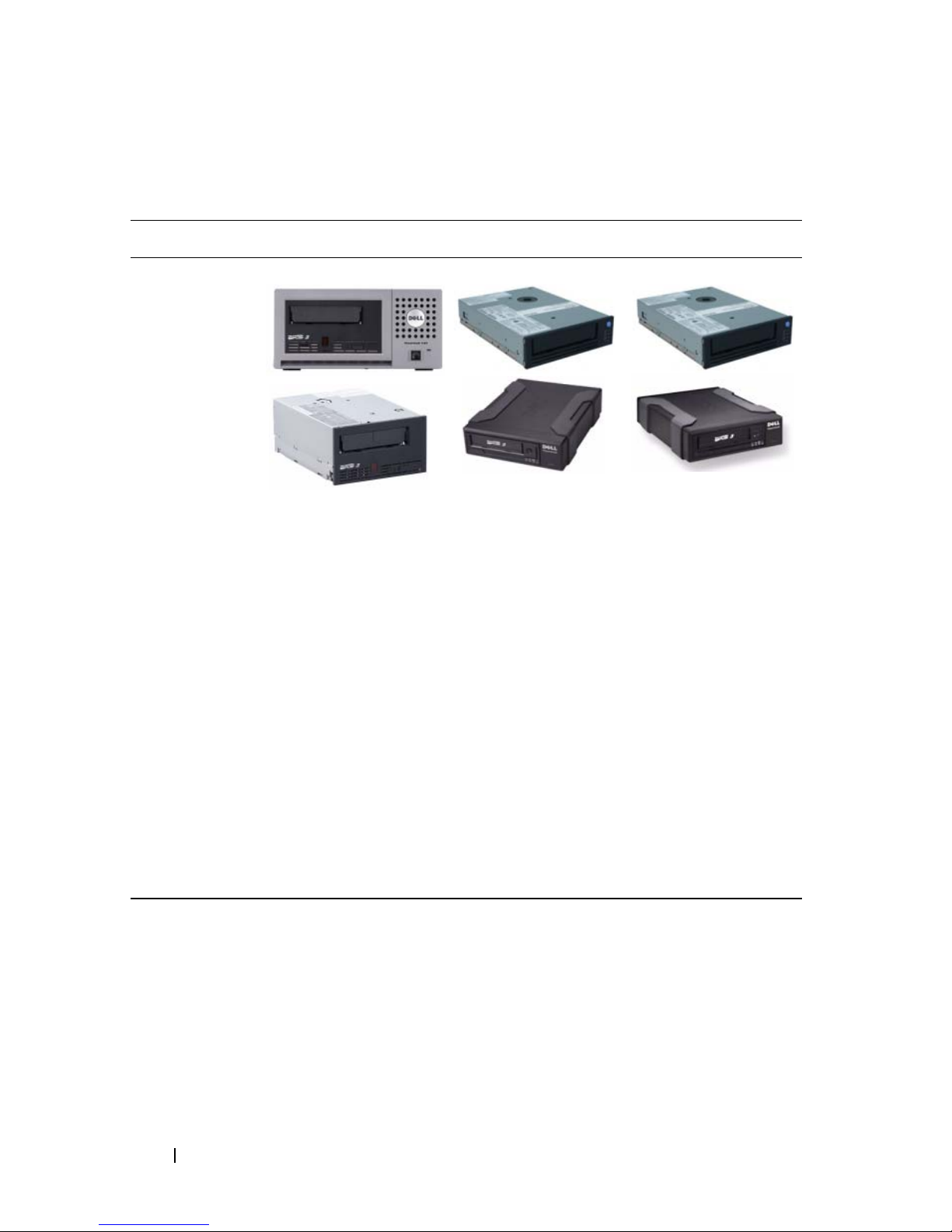

Table 1. LTO-1 Drive Types and Basic Characteristics
PowerVault 110T LTO PowerVault 110T LTO-1 PowerVault 110T LTO-1
Capacity Native
/Compressed
100 GB/200 GB 100 GB/200 GB 100 GB/200 GB
Native Speed 15 MB/s 15 MB/s 15 MB/s
Primary Media Ultrium-1 Ultrium-1 Ultrium-1

6 LTO Media Handbook
Physical
Device
Description
• Single air intake
at the bottom of
the drive
• Eject button at
top right corner
• Status lights
(vertical)
–Power
– Activity
– Error
–Status
• Ultrium-1 label on
drive bezel
•Splitairintakeson
both the bottom
corners
• Flush mount eject
button
• Status lights
(vertical)
–Ready
– Drive error
– Tape error
–Usecleaning
cartridge
Seven segment display
NOTE: PowerVault
110T LTO-1 is only sold
on 132T drive sled.
Supported
Systems
• PowerVault 110T
LTO (table top
and internal
standalone)
• PowerVault 122T
• PowerVault 136T
• PowerVault 114T
PowerVault 110T
LTO-1 (table top and
internal standalone)
PowerVault 132T
Table 1. LTO-1 Drive Types and Basic Characteristics
PowerVault 110T LTO PowerVault 110T LTO-1 PowerVault 110T LTO-1

LTO Media Handbook 7
PowerVault LTO-2 Tape Drives
Table 2. LTO-2 Drive Types and Basic Characteristics
PowerVault 110T LTO2 PowerVault 110T LTO-2-L
(Certance)
PowerVault 110T
LTO-2-L (Tandberg)
Capacity (Native/
Compressed)
200 GB/400 GB 200 GB/400 GB 200 GB/400 GB
Native Speed 35 MB/s 24 MB/s 24 MB/s
Primary Media Ultrium-2 Ultrium-2 Ultrium-2
Physical Device
Description
• Seven segment
display
• Full height
• Ultrium-2 label
• Ultrium-2 label
• Int drive has full
height expander
•LEDs(Vertical)
–Power
–Activity
–Error
– Status
• Ultrium-2 label
• Half height
•LEDsarranged
horizontally
with symbols
Supported
Systems
• PowerVault 132T
• PowerVault 136T
• PowerVault 122T
• PowerVault 110T
LTO-2 table top
and internal
standalone
• PowerVault 114T
• PowerVault 110T
LTO- 2-L (table top
and internal
standalone)
• PowerVault 114T
• PowerVault 124T
• Supported internally
on select systems
•PowerVault
110T LTO-2-L
internal
standalone
•Supported
internally on
select systems
•Supported
externally on
select systems

8 LTO Media Handbook
PowerVault LTO-3 Tape Drives

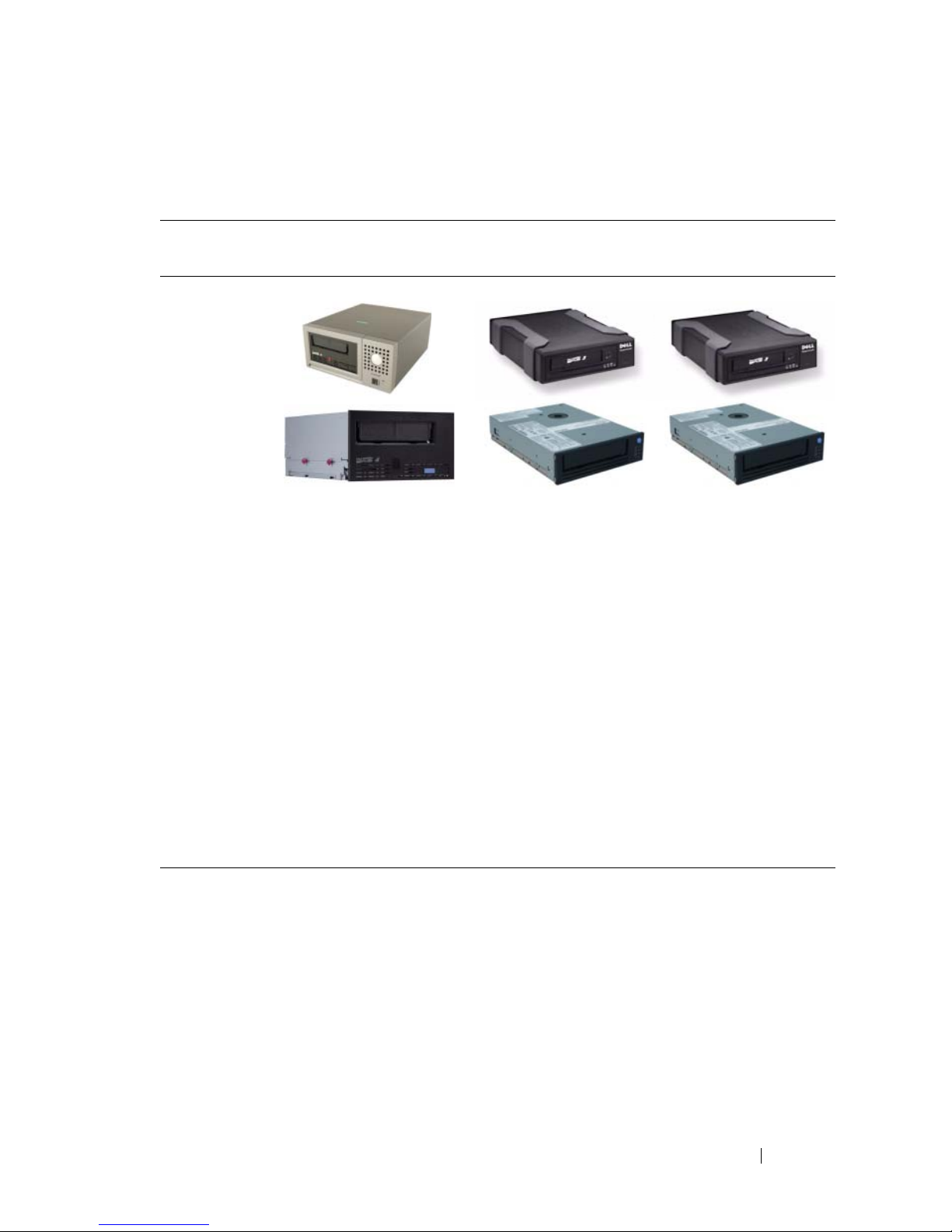

Table 3. LTO-3 Drive Types and Basic Characteristics
PowerVault 110T LTO 3 PowerVault LTO-3-060 PowerVault LTO-3-080
Capacity (Native
/Compressed)
400 GB/800 GB 400 GB/800 GB 400 GB/800 GB
Native Speed 80 MB/s 60 MB/s 80 MB/s
Primary Media Ultrium-3 Ultrium-3 Ultrium-3
Physical Device
Description
• Seven segment
display
• Ultrium-3 label
• Full height
•Internal/External
drive
• Half height
•LEDs(Vertical)
–Power
– Activity
–Clean
– Error
•Sevensegment
display
• Internal/External
drive
• Half height
Supported
Systems
For a list of supported tape devices, firmware, and driver versions, see
the Dell PowerVault Compatibility Matrix at dell.com/pvmatrix.

LTO Media Handbook 9
PowerVault LTO-4 and LTO-5 Tape Drives
Table 4. PowerVault LTO-4 and LTO-5 Drive Types and Basic Characteristics
PowerVault LTO-4-120
(IBM)
PowerVault LTO-4-120
HH (IBM)
PowerVault LTO-5-140
(IBM)
Capacity
(Native/
Compressed)
800 GB/1600 GB 800 GB/1600 GB 1500 GB/3000 GB
Native Speed 120 MB/s 120 MB/s 140 MB/s
Primary Media Ultrium-4 Ultrium-4 Ultrium-5
Physical
Device
Description
• Seven segment
display
•Ultrium-4label
• Full height
•Internal/External
drive
• Seven segment
display
• Ultrium-4 label
• Half height
• Internal/External
drive
• Seven segment
display
• Ultrium-5 label
• Half height
• Internal/External
drive
Supported
Systems
For a list of supported tape devices, firmware, and driver versions, see
the Dell PowerVault Compatibility Matrix at dell.com/pvmatrix.

10 LTO Media Handbook
Media Types for PowerVault LTO Tape Drives
Table 5. Supported Media Types Per PowerVault 110 LTO Tape Drive
Ultrium-1
Media
Ultrium-2
Media
Ultrium-3
Media
Ultrium-4
Media
Ultrium-5
Media
LTO-3
WORM
Media
LTO-4
WORM
Media
LTO-5
WORM
Media
Part No. 340-7240 340-8701 341-2645 341-4640 342-1103 341-2655 341-4647 342-1105
PowerVault
110T LTO
P✕✕✕✕✕✕✕
PowerVault
110T LTO-1
P✕✕✕✕✕✕✕
PowerVault
110T LTO-2
BC-RW P ✕✕✕✕✕✕
PowerVault
110T 
LTO-2- L
(Certance)
BC-RW P ✕✕✕✕✕✕
PowerVault
110T 
LTO-2- L
(Tandberg)
BC-RW P ✕✕✕✕✕✕
PowerVault
110T LTO 3
(IBM)
BC-R BC-RW P ✕✕ P✕✕
PowerVault
LTO3-060
(IBM)
BC-R BC-RW P ✕✕ P✕✕
PowerVault
LTO3-080
(IBM)
BC-R BC-RW P ✕✕ P✕✕
PowerVault
LTO4-120
✕BC-R BC-RW P ✕BC-RW P ✕
PowerVault
LTO5-140
✕✕BC-R BC-RW P BC-R BC-RW P
✕- Not Supported
BC-R - Backward Compatible - Read Only
BC-RW - Backward Compatible - Read/Write
P - Primary

LTO Media Handbook 11
Media Color Schemes
Table 6 describes the media color schemes and labels for PowerVault LTO
tapes.
NOTE: All Dell LTO cleaning media are black in color. Depending on the vintage of
the cartridge it may be marked Ultrium 1, 2, 3, or a combination of 1, 2, and 3. For
more details on cleaning media, see "Cleaning Media" on page 13.
NOTE: All Ultrium-xtapes may not be of the same color. To determine the correct
media for your tape drive, see the Ultrium label on the tape.
NOTE: PowerVault LTO tape drives support media from all certified media vendors.
However, it is recommended that you use Dell branded media in all PowerVault LTO
drives.
NOTE: WORM media that is not labeled "Dell" is always two toned with gray on the
bottom and uses the respective color chosen by the tape vendor on the top.
NOTE: The WORM label is present on the media regardless of media vendor.
Table 6. Media Color Schemes for PowerVault LTO Tapes
Media
Type
Ultrium-1
Media
Ultrium-2
Media
Ultrium-3
Media
Ultrium-4
Media
Ultrium-5
Media
LTO-3WORM
Media
LTO-4WORM
Media
LTO-5WORM
Media
Color
Scheme
Black Purple Blue-
Gray
Green Red Blue-Gray
on top and
gray below.
Green on
top and
gray below.
Red on top
and gray
below
Label Ultrium
-1
Ultrium
-2
Ultrium
-3
Ultrium
-4
Ultrium
-5

12 LTO Media Handbook
Invalid Media Symptoms
PowerVault LTO tape drive with invalid media displays the following
symptoms:
• Cleaning light turns on.
• Media light flashes or stays on.
• Tape ejects.
• Backup software reports invalid media.
• Error code
7 is displayed on drives with a seven segment display.
Cartridge Memory
Tape drives require information about the tape cartridge being used. For LTO
tape cartridges, this information is stored in a small chip within the tape and
is referred to as the Cartridge Memory (CM). CM is a nonvolatile memory
that responds through a passive radio frequency interface.
The CM holds the following information:
• The type of cartridge
• Important information that the drive uses to setup and calibrate
• The tape directory to enable a quick search for data sets
You experience difficulties with the cartridge if the CM is damaged or
corrupted. However, the user data can still be recovered. To recover the data,
set the write protect tab on the cartridge and the load the cartridge into an
Ultrium drive.
The drive stores enough information on tape to be able to recognize the tape.
However, the data directory is lost. Hence, the drive can only search from the
beginning of tape (BOT) to end of tape (EOT) across all wraps to find the
data. A Fast Search to the correct location is not possible.
NOTE: Recovery of data from a full tape could take up to 3 hours.
ptause Solution

LTO Media Handbook 13
Migrating LTO Media
Known issues for media migration from one manufacturer to another are
fixed through the drive firmware. Use the latest available firmware for the
drive, regardless of which vendor/OEM product is being used to create media.
This ensures optimal performance for migrating tape between different drive
vendors.
NOTE: LTO technology is built on an open standard. Migrating media from one
drive manufacturer to another is fully supported.
NOTE: For information on backward read/write compatibility of the systems, see
Table 5.
WORM Media
WORM media stands for Write Once, Read Many. This means once data is
written to a piece of WORM media, the data on the tape cannot be changed
or overwritten. WORM media can be appended to if data is already present
on the tape. The media also stores unique identifiers which allow the drive to
determine whether or not the media has been tampered with.
WORM media offers a method of data retention for compliance laws such as
the Sarbanes-Oxley Act of 2002. Specific WORM media barcode labels end
in LT.
Cleaning Media
NOTE: LTO drives in general do not require frequent cleaning.
Label Designations on LTO Cleaning Media
For the last several years, LTO drives have been using UCC (universal
cleaning cartridges) as cleaning tapes. Prior to the universal or for use with all
designation of cleaning media, vendor specific cleaning media was used. This
document provides information on only universal or for use with all cleaning
media. If a tape is not labeled universal or for use with all,then it is
recommended that you purchase a tape with that designation.
NOTE: LTO-1, 2, 3, 4, and 5 all use the same cleaning media although it may not be
labeled as such depending on the vintage of the tape.

14 LTO Media Handbook
Cleaning Media Usage and Drive Cleaning Lights
NOTE: New Dell UCC tapes are labeled—For Use With All Ultrium 1, 2, 3, 4, and 5
Drives.
Table 7. Characteristics For Cleaning Drives
Physical
Description
Black tape labeled For Use With All Ultrium X drives, Ultrium 2,
3, 4, and 5, may or may not be written on the tape.
Part Number 310-5084
Drive Type No. of tape Media Motion
hours before cleaning
light illuminates
No. of uses
before cleaning
tape expires
How the cleaning
requirement is
displayed
Dell PowerVault
110T LTO
Not Supported 15 Cleaning cartridge
light
Dell PowerVault
110T LTO-1
500 50 Status light
Dell PowerVault
110T LTO-2-L
(Certance)
500 50 Power light on
solid green, 
Status light on
solid amber
Dell PowerVault
110T LTO-2-L
(Tandberg)
100 50 Cleaning LED
(amber) ON
Dell PowerVault
110T LTO-2 (IBM)
Not Supported 50 Con seven segment
display
Dell PowerVault
110T LTO-3 (IBM)
See Table 8 50 Con seven segment
display
Dell PowerVault
110T LTO-3-060
(IBM)
See Table 8 50 Cleaning LED
(amber) ON
Dell PowerVault
110T LTO-3-080
(IBM)
See Table 8 50 Con seven segment
display
Dell PowerVault
110T LTO-4 (IBM)
See Table 8 50 Con seven segment
display

LTO Media Handbook 15
Legend
Dell PowerVault
110T LTO-4-120HH
(IBM)
See Table 8 50 Con seven segment
display
Dell PowerVault
110T LTO-5-140
(IBM)
See Table 8 50 Con seven segment
display
Table 8. Cleaning Interval Characteristics
MM (xE6) FFP equiv. TB equiv. MMH Short MMH Long
LTO2 0.7 19 4 31 63
LTO3 1.1 38 16 57 153
LTO4 1 22 19 45 173
LTO5 HH 0.5 8 12 24 82
MM (xe6) Motion Meters
FFP equiv. The approximate amount of full file passes worth of data that is
processed when you stream data with low space, locate commands, and
standard number of rewinds.
TB equiv. The approximate data processed (in TB) if streaming data with low space
and locate commands and standard number of rewinds. It refers to the
capacity to clean.
MMH Short Media Motion Hours if the drive operates at the fastest speed with
equivalent generation media for the entire operational period.
MMH Long Media Motion Hours if the drive operates at the slowest speed with
equivalent generation media for the entire operational period.
Drive Type No. of tape Media Motion
hours before cleaning
light illuminates
No. of uses
before cleaning
tape expires
How the cleaning
requirement is
displayed

16 LTO Media Handbook
The cleaning light on an LTO drive turns on for the following reasons:
• A periodic maintenance threshold has exceeded.
– If the tape drive has processed the number of equivalent FFP,
including read and writes for the generation of the drive (this can be
converted to TB) before reaching the maximum MM.
– The drive has processed the maximum MM for the generation of the
drive indicated (MMxE6) before reaching the maximum amount of
data that can be processed.
• A high error rate has occurred. This can happen due to the following:
– A head clog
– A hardware failure on the drive
– Bad or marginal media
NOTE: If you perform a backup with verification, you see a cleaning request twice
as frequently as you do when you perform a backup without verification.
Verification doubles the number of passes the tape makes over the head.
NOTE: Most backup applications support Tape Alerts. If the tape drive requests
cleaning, the backup software notifies you of the need to clean.
Characteristics of Expired LTO Cleaning Tape
Table 9. Characteristics of Expired LTO Cleaning Tape in Various Drives
Drive Type Cleaning with a Good Tape Cleaning with an Expired Tape
Dell PowerVault
110T LTO
• Ready light blinks green.
• Use cleaning cartridge
light turns on.
•Ejectstapewhendone.
•Readylightblinksgreen.
• Ejects tape out shortly after
inserting.
Dell PowerVault
110T LTO-1
• Power light on solid green.
• Activity light on solid
green.
• Status light on solid amber.
•Ejectstapewhen
complete.
• Power light on solid green.
• Activity light on solid green.
• Status light blinks amber.
• Ejects tape shortly after inserting.

LTO Media Handbook 17
Dell PowerVault
110T LTO-2
No seven segment display
indicator.
• Activity light blinks green.
• Ejects tape shorty after.
•
Pre firmware 53Y3: No seven
segment display indicator. Activity
light blinks green but ejects tape
shortly after inserting.
•
Firmware 53Y3 and newer:
– Seven segment display shows 7
– Activity light blinks amber
– Ejects tape shortly after
inserting. When tape is
completely removed, all light
indicators turn off.
Dell PowerVault
110T LTO-2-L
(Certance)
• Power light on solid green.
• Activity light on solid
green.
• Status light on solid amber.
•Ejectstapewhen
complete.
• Power light on solid green.
• Activity light on solid green.
• Status light blinks amber.
• Ejects tape shortly after inserting.
Dell PowerVault
110T LTO-2-L
(Tandberg)
• Press and hold the Eject
button for 6 seconds. The
drive enters the service
mode indicated by all
LEDs flashing slowly.
• Press Eject twice. The
Activity LED flashes fast.
• Ejects tape shorty after.
• Cleaning light turns on.
• Activity light flashes.
• Fault light flashes.
• Cartridge hold in the drive
When pressing Eject button, the
cartridge is ejected and the Cleaning
light stays on.
Dell PowerVault
110T LTO-3
No seven segment display
indicator.
• Activity light blinks green
• Ejects tape shorty after.
• Seven segment display shows
7 .
• Activity light blinks amber.
• Ejects tape shortly after inserting.
When tape is completely removed,
all light indicators turn off.
Table 9. Characteristics of Expired LTO Cleaning Tape in Various Drives (continued)
Drive Type Cleaning with a Good Tape Cleaning with an Expired Tape

18 LTO Media Handbook
NOTE: Run Dell Online PowerEdge Diagnostics to determine media or hardware
related failures.
NOTE: Dell Online PowerEdge Diagnostics does not support PowerVault 110T LTO
tape drives. For more information, see Table 1.
Dell PowerVault
LTO3-060
No seven segment display
indicator.
• Activity light blinks green.
• Ejects tape shorty after.
• Cleaning light blinks amber.
• Ejects tape shortly after inserting.
When tape is completely removed,
all light indicators turn off.
Dell PowerVault
LTO3-080
No seven segment display
indicator.
• Activity light blinks green.
• Ejects tape shorty after.
• Seven segment display shows
7 .
•Activity
light blinks amber.
• Ejects tape shortly after inserting.
When tape is completely removed,
all light indicators turn off.
Dell PowerVault
LTO4-120
No seven segment display
indicator.
• Activity light blinks green.
• Ejects tape shorty after.
• Seven segment display shows
7 .
•Activity
light blinks amber.
• Ejects tape shortly after inserting.
When tape is completely removed,
all light indicators turn off.
Dell PowerVault
LTO4-120HH
No seven segment display
indicator.
• Activity light blinks green.
• Ejects tape shorty after.
• Seven segment display shows
7 .
•Activity
light blinks amber.
• Ejects tape shortly after inserting.
When tape is completely removed,
all light indicators turn off.
Dell PowerVault
LTO5-140
No seven segment display
indicator.
• Activity light blinks green.
• Ejects tape shorty after.
• Seven segment display shows
7 .
•Activity
light blinks amber.
• Ejects tape shortly after inserting.
When tape is completely removed,
all light indicators turn off.
Table 9. Characteristics of Expired LTO Cleaning Tape in Various Drives (continued)
Drive Type Cleaning with a Good Tape Cleaning with an Expired Tape

LTO Media Handbook 19
Stuck Tapes
A stuck tape can result from a dropped or damaged media. Different drives
react differently when damaged media is inserted. Some may eject the tape,
while others may be stuck permanently with the drive and require the drive to
be returned. Most LTO drives have the capability to reset the drive in the
event of a stuck tape or other non-responsive drive issues. Table 10 describes
how to reset your PowerVault LTO tape drive.
NOTE: A drive reset may or may not help remove a stuck tape.
NOTE: Dell PowerEdge Diagnostics includes a Media Eject test that can be run to
force eject a tape.
Table 10. Resetting Your PowerVault 110T LTO Tape Drive
Drive Type Device Reset Procedure
Dell PowerVault
110T LTO
Insert a paper clip to press the Reset button on the front panel of
the drive.
Dell PowerVault
110T LTO-1
1 Press and hold the Eject button for more than 5 seconds.
2 Release the Eject button.
3 Press Eject again to eject tape.
Dell PowerVault
110T LTO-2-L
(Certance)
Press and hold the Eject button for more than 5 seconds. The tape
should eject within 40 seconds.
Dell PowerVault
110T LTO-2-L
(Tandberg)
1 Press and hold the Eject button for 6 seconds. The drive enters
Service mode and all the LEDs flash slowly.
2 Press Eject twice, the Activity LED flashes fast, then double-click
the Eject button.
Dell PowerVault
110T LTO-2
1 Press and hold the Eject button for more than 10 seconds.
2 Release the Eject button.
3 Press Eject again to eject tape.
Dell PowerVault
110T LTO-3
1 Press and hold the Eject button for more than 10 seconds.
2 Release the Eject button.
3 Press Eject again to eject tape.
Dell PowerVault
110T LTO3-060
(IBM)
1 Press and hold the Eject button for more than 10 seconds.
2 Release the Eject button.
3 Press Eject again to eject tape.

20 LTO Media Handbook
NOTE: It may take up to 20 minutes for a tape cartridge to fully rewind and eject.
Dell PowerVault
110T LTO3-060
(Tandberg)
1 Press and hold the Eject button for six seconds. The drive enters
service mode and all the LEDs flash slowly.
2 Press Eject twice. The Activity LED flashes fast.
3 Double-click the Eject button.
Dell PowerVault
110T LTO3-080
(IBM)
1 Press and hold the Eject button for more than 10 seconds.
2 Release the Eject button.
3 Press Eject again to eject tape.
Dell PowerVault
110T LTO4-120
1 Press and hold the Eject button for more than 10 seconds.
2 Release the Eject button.
3 Press Eject again to eject tape.
Dell PowerVault
110T LTO4-
120HH
1 Press and hold the Eject button for more than 10 seconds.
2 Release the Eject button.
3 Press Eject again to eject tape.
Dell PowerVault
110T LTO5-140
1 Press and hold the Eject button for more than 10 seconds.
2 Release the Eject button.
3 Press Eject again to eject tape.
Table 10. Resetting Your PowerVault 110T LTO Tape Drive (continued)
Drive Type Device Reset Procedure
