Dell PowerVault GK270 User manual

www.dell.com | support.dell.com
Getting Started
With Your System
系统使用入门
開始使用系統
はじめに
시스템시작하기
Model AMP01

www.dell.com | support.dell.com
Getting Started
With Your System

Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid
the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
____________________
Information in this document is subject to change without notice.
© 2006 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and Dell OpenManage are trademarks of Dell Inc.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names
or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
Model AMP01
June 2006 P/N GK270 Rev. A00

Getting Started With Your System 3
System Features
This section describes the major hardware and software features of your system. It also provides
information about other documents you may need when setting up your system and how to obtain
technical assistance.
Major features of your system include:
• Enclosure storage in an efficient rack-mount design
• Capacity for either 15 3.5-inch, hot-plug, 3.0-Gbps, serial-attached SCSI (SAS) hard drives
or 15 3.5-inch, hot-plug, 3.0-Gbps, Serial ATA (SATA) hard drives
• Host-based RAID support via a PERC 5/E adapter
• Redundant hot-plug power supply and cooling fans that are integrated for improved serviceability
• Optional second enclosure management module (EMM) for redundant system management
capability
• Support for either of the following direct-attach configurations:
– Unified mode for direct connectivity of up to 15 hard drives
– Split mode (with dual EMMs) providing direct connectivity to drives 0 through 6 on one
EMM and a separate direct connectivity to drives 7 through 14 on the second EMM
• Front-panel, two-position switch for setting the enclosure mode (unified or split mode)
• Support for up to three daisy-chained storage enclosures in unified mode for a total of 45 hard
drives
• In-band enclosure management provided through SCSI enclosure services (SES)
• RAID and system management using Dell OpenManage™ Server Administrator Storage
Management Service
• Four sensors for monitoring ambient temperatures (with redundant EMMs)
• Over-temperature shutdown capability
• Audible warning for critical component failure
• Support for a wide range of servers (See your system’s readme file for supported systems.
An updated readme can be viewed from the Dell website at
support.dell.com. )

4Getting Started With Your System
Other Information You May Need
CAUTION: The Product Information Guide provides important safety and regulatory information. Warranty
information may be included within this document or as a separate document.
• The Rack Installation Instructions or Rack Installation Guide included with your rack solution
describes how to install your system into a rack.
• The
Hardware Owner’s Manual provides information about system features and describes how
to troubleshoot the system and install or replace system components.
• CDs included with your system provide documentation and tools for configuring and managing
your system.
• Release notes or readme files may be included to provide last-minute updates to the system or
documentation or advanced technical reference material intended for experienced users or
technicians.
Obtaining Technical Assistance
If you do not understand a procedure in this guide or if the system does not perform as expected,
see your Hardware Owner’s Manual.
Dell Enterprise Training and Certification is available; see www.dell.com/training for more information.
This service may not be offered in all locations.
Installation and Configuration
CAUTION: Before performing the following procedure, read and follow the safety instructions and important
regulatory information in your Product Information Guide.
NOTE: Turn off the host server before installing and configuring the system.
This section describes the steps to set up your system for the first time.

Getting Started With Your System 5

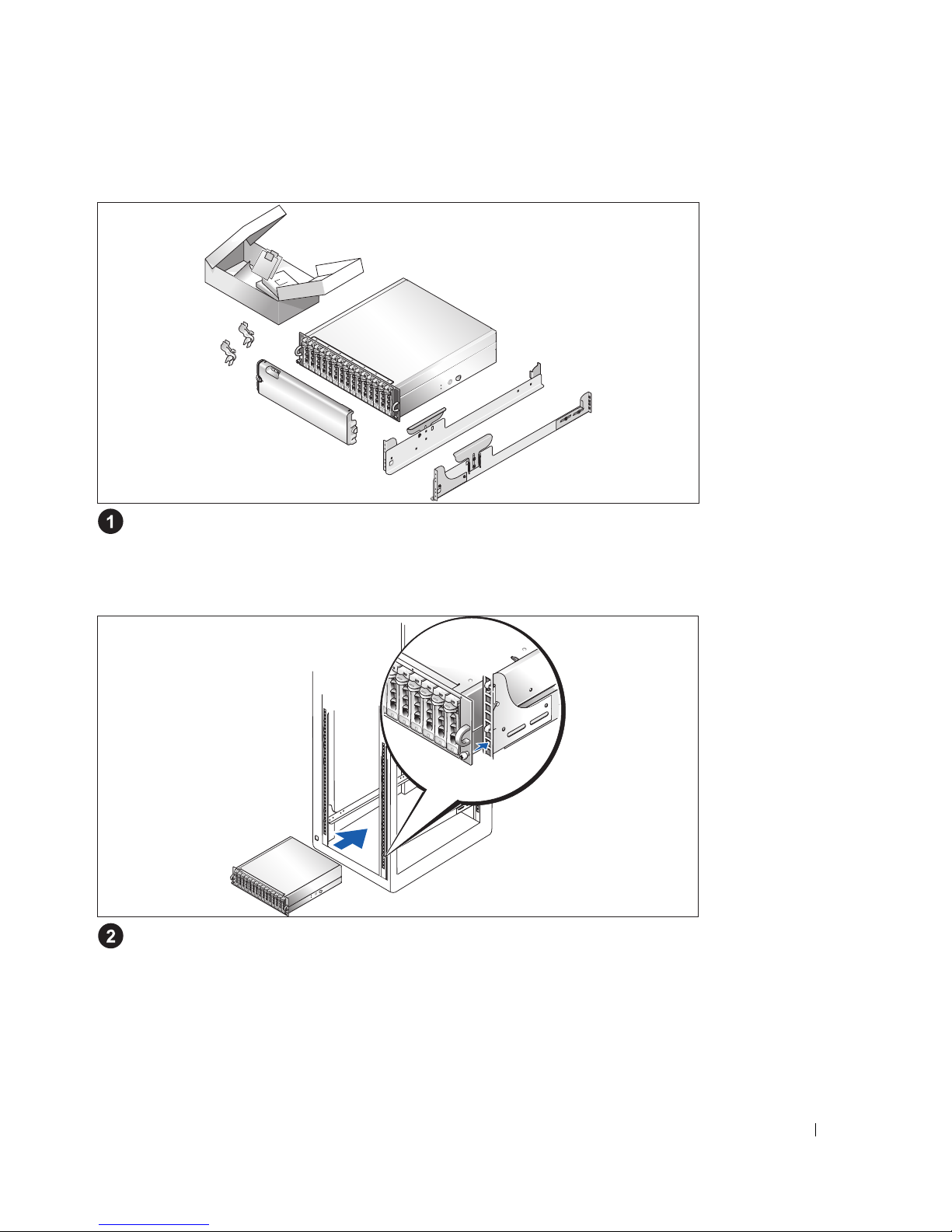

Unpacking the System
Unpack your system and identify each item.
Keep all shipping materials in case you need them later.
Installing the Rails and System in a Rack
Once you have read the "Safety Instructions" located in the rack installation documentation
for your system, install the rails and the system in the rack.
See your rack installation documentation for instructions on installing your system in a rack.

6Getting Started With Your System

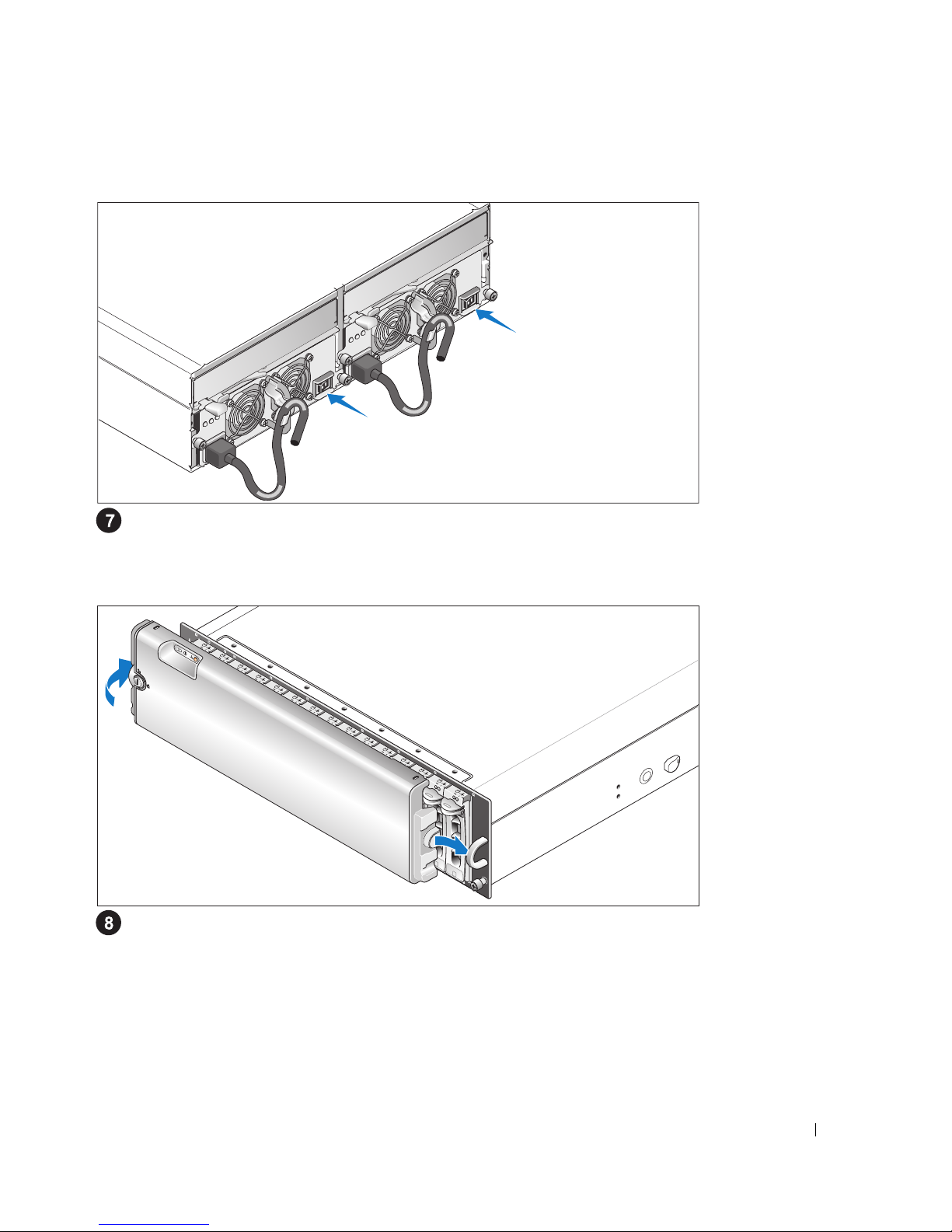

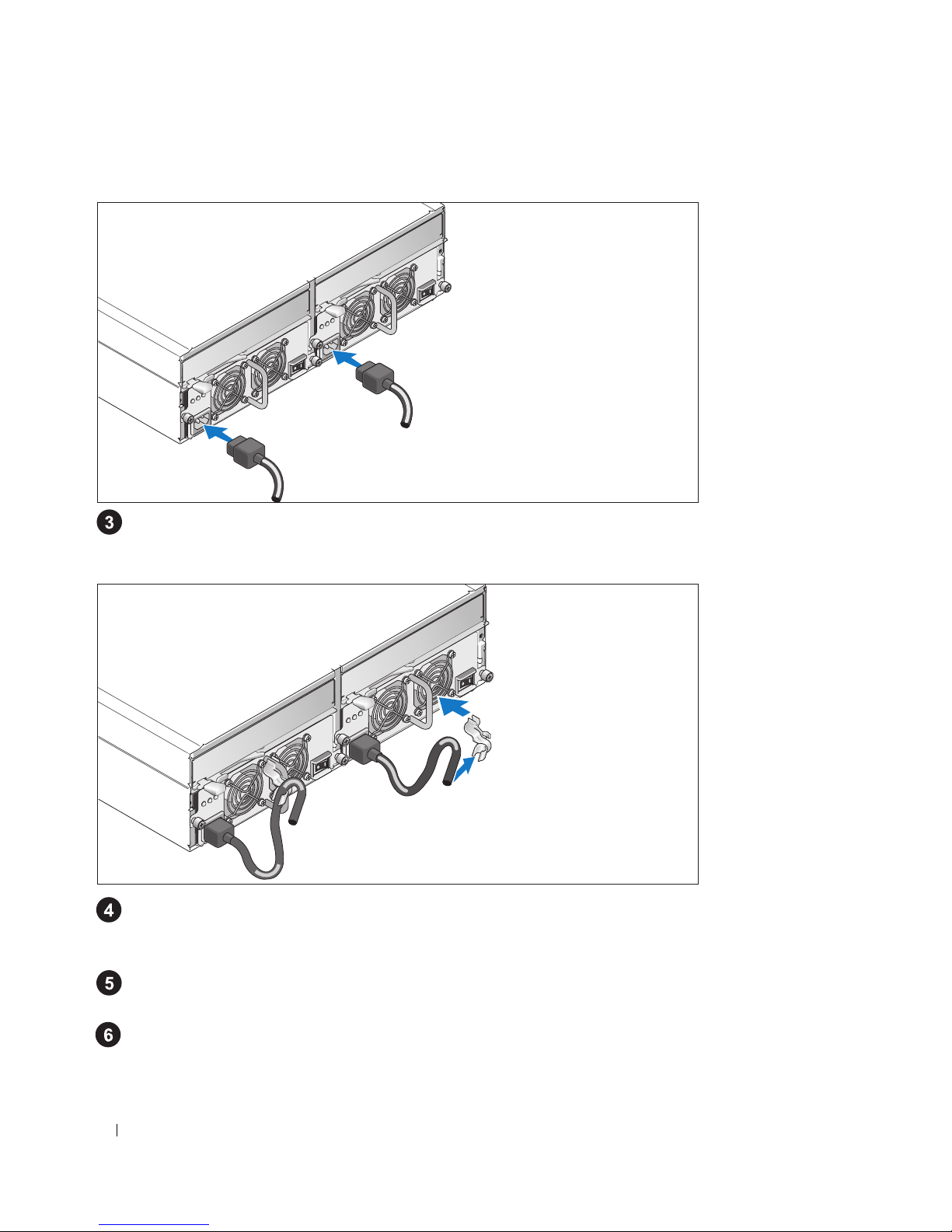

Connecting the Power Cables
Connect both power cables to the power supply/cooling fan modules.
Attaching the Power Cord Retention Bracket
Attach the power cord retention bracket to the power supply loop by affixing the back clasp of the
bracket to the top of the loop and the middle clasp to the vertical middle of the loop. Attach the
system power cable to the bracket’s cable clasp. Repeat the procedure for the second power supply.
Plug the other end of the power cables into a grounded electrical outlet or a separate power source
such as
an uninterruptible po wer supply (UPS) or a power distribution unit (PDU).
Configure the storage mode for your system by setting the configuration switch on the front of the
system and cabling the EMM(s) according to the instructions provided in the
Hardware Owner’s
Manual
.

Getting Started With Your System 7
Turning on the System
With the host server off, complete all cabling for the system. Power on the system by turning on both
power supply/cooling fan modules. Power on the host server.
Installing the Bezel
Install the bezel (optional) by inserting the right edge of the bezel into the right front loop on the
system, and then pressing the left edge of the bezel to the system until the bezel snaps into place.

8Getting Started With Your System
Technical Specifications
Drives
SAS hard drives up to 15 1-inch-by-3.5-inch SAS hot-plug hard drives (3.0 Gbps)
at speeds of 10K or 15K rpm (See your system readme file for
supported disk capacities.)
SATA hard drives up to 15 1-inch-by-3.5-inch SATA hot-plug hard drives (3.0 Gbps)
at speeds of 7.2K rpm. Connectivity to the system backplane is
provided through an interposer assembly.
Connectivity
Configurations support for either of the following configurations:
• unified mode for direct connectivity to 15 hard drives
• split mode with dual EMMs providing a direct connectivity to
drives 0 though 6 and a separate direct connectivity to drives 7
though 14
Enclosure Management Modules
EMMs 1 or 2 modules
Sensors 1 sensor per EMM
Backplane Board
Connectors
• 15 SAS hard-drive connectors
• 2 power supply/cooling fan module connectors
• 2 sets of EMM connectors (6 connectors each EMM)
• 1 control panel connector for front LEDs and enclosure mode
switch
Sensors 2 temperature sensors
Back-Panel Connectors
SAS connectors (per EMM)
• 1 SAS "IN" connector for connection to the host
• 1 SAS "OUT" connector for expansion to an additional enclosure
Serial connector (per EMM) 1 6-pin UART mini-DIN connector (for factory use only)

Getting Started With Your System 9
LED Indicators
Front panel
• 1 two-color LED indicator for system status
• 2 single-color LED indicators for power and split mode
Hard-drive carrier • 1 single-color activity LED
• 1 two-color LED status indicator per drive
EMM 3 two-color LED status indicators, one each for the two EMM SAS
ports and one for the EMM status
Power supply/
cooling fan module
3 LED status indicators for power supply status, power supply/fan
fault, and AC status
Power Supplies
Wattage 488 W maximum continuous; 550 W peak
Heat dissipation 200 W
Voltage 100–240 V rated (actual 90–264 V)
Frequency 47–63 Hz
Amperage 7.2 A at 100 V, 3.6 A at 200 V
Available Hard-Drive Power (Per Slot)
Supported hard-drive power
consumption
up to 1.3 A at +12 V
up to 1.5 A at +5 V
Physical
Height 13.11 cm (5.16 inches)
Width 44.63 cm (17.57 inches)
Depth 48.01 cm (18.9 inches)
Weight (maximum
configuration)
35.37 kg (78 lb)

10 Getting Started With Your System
Environmental
Temperature:
Operating
Storage
10° to 35°C (50° to 95°F)
–40° to 65°C (–40° to 149°F)
Relative humidity
Operating
Storage
20% to 80% (noncondensing)
5% to 95% (noncondensing)
Altitude
Operating
Storage
–16 to 3048 m (–50 to 10,000 ft)
–16 to 10,600 m (–50 to 35,000 ft)
BTU per hour 1430

www.dell.com | support.dell.com
系统使用入门

注、注意和警告
注：注表示可以帮助您更好地使用计算机的重要信息。
注意：注意表示可能会损坏硬件或导 数据丢失，并告诉您如何避免此类问题。
警告：警告表示可能会导致财产损失、人身伤害甚至死亡。
____________________
本文件中的信息如有更改，恕不另行通知。
© 2006 Dell Inc. 版权所有，翻印必究。
未经 Dell Inc. 书面许 ，严禁以任何形式进行复制。
本文中使用的商标：Dell、DELL 徽标和 Dell OpenManage 是Dell Inc. 的商标。
本文件中述及的其它商标和产品名称是指拥有相应商标和名称的公司或其制造的产品。Dell Inc. 对本公司的商标和产品名称之外
的其它商标和产品名称不拥有任何专有权。
型号：AMP01
2006 年6 月P/N GK270 修订版 A00

系统使用入门 13
系统功能
本节介绍系统的主要硬件和软件功能。还介绍了有关在安装系统时可能需要的其它说明文件的
息，以及如何获得技术帮助的 息。
系统的主要功能包括：
•存储设备采用高效的机架安装设计
•可容纳 15 个3.5 英寸、热插拔、3.0-Gbps、串行连接的 SCSI (SAS) 硬盘驱动器或
15 个3.5 英寸、热插拔、3.0-Gbps、串行 ATA (SATA) 硬盘驱动器
•通过 PERC 5/E 适配器支持基于主机的 RAID
•冗余热插拔电源设备和冷却风扇组合在一起，便于维修
•可选的第二个存储设备管理模块 (EMM)，用于实现冗余系统管理功能
•支持以下直接连接配置之一：
-用于直接连接的统一模式，支持多达 15 个硬盘驱动器
-拆分模式（具有双 EMM）为一个 EMM 上的驱动器 0 至6 提供直接连接，
而为第二个 EMM 上的驱动器 7 至14 提供单独的直接连接
•使用前面板和两个位置开关设置存储设备模式（统一模式或拆分模式）
•在统一模式下，支持多达三个以菊花链方式链接的存储设备，总共可容纳 45 个硬盘驱动器
•通过 SCSI 存储设备维修 (SES) 服务提供了带内存储设备管理
•使用 Dell OpenManage™ Server Administrator 存储设备管理服务进行 RAID 和系统管理
•四个传感器用于监测环境温度（带有冗余 EMM）
•温度过高时关闭系统的功能
•在关键组件出现故障时发出声音警告
•支持各种服务器（有关支持的系统的 息，请参阅系统自述文件。可以从 Dell Web 站点
support.dell.com 上查看更新的自述文件。）

14 系统使用入门
您可能需要的其它信息
警告：《产品信息指南》， 供了重要的安全信息和管制信息。保修信息可能包括在该说明文件中，
也可能作为单独的说明文件 供。
•随机架解决方案附带的《机架安装说明》或《机架安装指南》，介绍了如何在机架中安装系统。
•《硬盘用户手册》提供了有关系统部件的 息，并介绍了如何排除系统故障以及如何安装或更
换系统组件。
•随系统附带的 CD 提供了用于配置和管理系统的说明文件和工具。
•系统可能附带发行说明或自述文件，以提供系统或说明文件的最新更新，或者为有经验的用户
或技术人员提供高级技术参考资料。
获得技术帮助
如果您对本指南中的步骤有疑问，或系统运行无法达到预期效果，请参阅《硬盘用户手册》。
Dell 可以提供企业培训与认证；有关详情，请访问 www.dell.com/training。并非在所有国家和地区
均可提供此服务。

系统使用入门 15
安装和配置
警告：在执行以下过程之前，请阅读并遵循《产品信息指南》中的安全说明和重要的管制信息。
注意：在安装和配置系统之前，请关闭主机服务器。
本节介绍初次安装系统时的步骤。

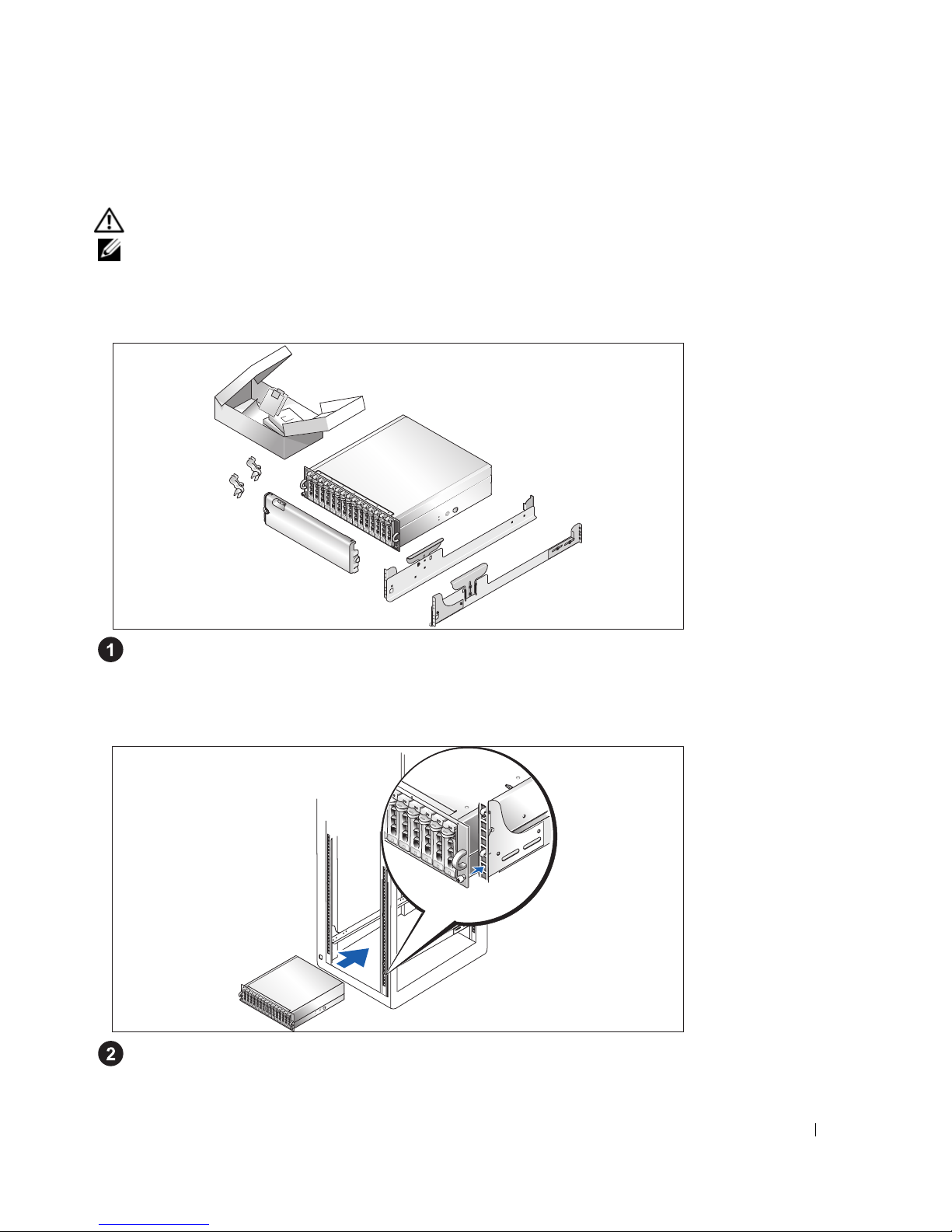

打开系统包装
打开系统包装并识别每项物品。
妥善保管所有运输包装材料，以备将来使用。
在机架中安装滑轨和系统
在仔细阅读了系统的机架安装说明文件中的“安全说明”之后，在机架中安装滑轨和系统。
有关在机架中安装系统的说明，请参阅机架安装说明文件。

16 系统使用入门

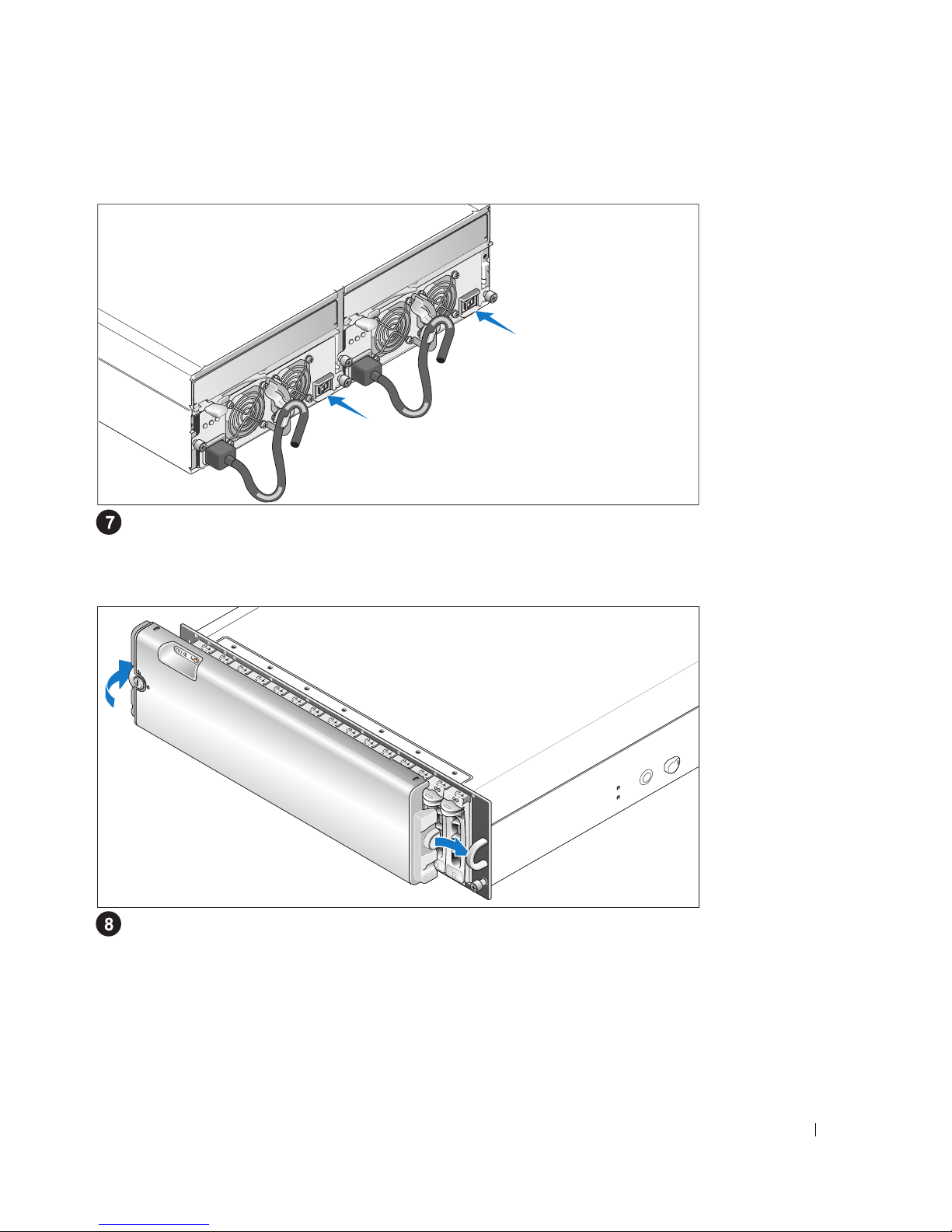

连接电源线
将两根电源线分别连接至电源设备／冷却风扇模块。
连接电源线固定支架
通过将电源线固定支架的背面挂钩附于拉环的顶部，并将中间的挂钩附于拉环的垂直中央位
置，将电源线固定支架连接至电源设备的拉环。将系统电源线连接至支架的电缆挂钩。
对第二个电源设备重复此过程。
将电源线的另一端插入接地的电源插座或一个单独的电源（如 不间 电源设备
(UPS)
或配电装置
(PDU)
）。
设置系统前面的配置开关，并按照《硬盘用户手册》中提供的说明连接 EMM 的电缆，
从而配置系统的存储模式。

系统使用入门 17
开启系统
关闭主机服务器后，完成系统的所有电缆连接。同时打开电源设备 /冷却风扇模块，
接通系统电源。打开主机服务器电源。
安装挡板
将挡板（可选）的右侧边缘插入系统前面的拉环，然后将挡板的左侧边缘朝系统方向按下，
直至挡板卡入到位，安装好挡板。

18 系统使用入门
技术规格
驱动器
SAS 硬盘驱动器 最多可容纳 15 个1 英寸 X 3.5 英寸的 SAS 热插拔硬盘驱动器
(3.0 Gbps)，速度为 10K 或15K rpm（有关支持的磁盘容量的信
息， 参阅系统自述文件。）
SATA 硬盘驱动器 多达 15 个1 英寸 ×3.5 英寸 SATA 热插拔硬盘驱动器
(3.0 Gbps)，速度为 7.2K rpm。通过插入器配件提供与系统背板
的连接。
连接性
配置 支持以下任一种配置：
•统一模式，直接连接 15 个硬盘驱动器
•拆分模式（具有双 EMM）为驱动器 0 至6 提供直接连接，
而为驱动器 7 至14 提供单独的直接连接
存储设备管理模块
EMM 1 或2 个模块
传感器 每个 EMM 一个传感器
底板
连接器 •15 个SAS 硬盘驱动器连接器
•2 个电源设备／冷却风扇模块连接器
•2 组EMM 连接器（每个 EMM 6 个连接器）
•1 个用于前面 LED 的控制面板连接器和存储设备模式开关
传感器 2 个温度传感器
背面板连接器
SAS 连接器（每个 EMM）•1 个SAS“IN”连接器，用于连接主机
•1 个SAS “OUT”连接器，用于扩展到附加的存储设备
串行连接器（每个 EMM）1 个6 针UART 小型 DIN 连接器（仅限于工厂使用）
LED 指示灯
前面板 •1 个用于显示系统状态的双色 LED 指示灯
•2 个用于电源和拆分模式的单色 LED 指示灯
硬盘驱动器托盘 •1 个单色活动 LED
•每个驱动器具有 1 个双色 LED 状态指示灯
EMM 3 个双色 LED 状态指示灯，两个分别对应于两个 EMM SAS 端
口，一个对应于 EMM 状态
电源设备／冷却风扇模块 3 个LED 状态指示灯，分别对应于电源设备状态、
电源设备／风扇故障和交流电状态
