Dell Venue 10 7000 Series User manual

Venue 10
7000 Series
User’s Manual
Tablet model: Venue 7040
Regulatory model: T13G
Regulatory type: T13G001

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you
make better use of your tablet PC.
CAUTION: A CAUTION indicates potential damage to hardware
or loss of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property
damage, personal injury, or death.
_______________________
Copyright © 2015 Dell Inc. All rights reserved.
This product is protected by U.S. and international copyright and intellectual property
laws. Dell™ and the Dell logo are trademarks of Dell Inc. in the United States and/or
other jurisdictions. All other marks and names mentioned herein may be trademarks of
their respective companies.
2015 - 05 Rev. A00

Contents |3
Contents
Features........................................................................... 5
Tablet features ..............................................................................5
Keyboard features....................................................................... 8
Accessories..................................................................... 9
Setting up your tablet................................................. 10
Charging your tablet ................................................................ 10
Connectingyour tablet to the keyboard ..............................12
Disconnecting your tablet from the keyboard ....................14
Modes...........................................................................................15
Turningonyourtablet ..............................................................16
Turningoffyourtablet ..............................................................16
Locking your tablet....................................................................17
Unlocking your tablet ...............................................................17
Inserting microSD card.............................................................18
Removing microSD card ..........................................................19
Using headphones.................................................................... 20
Using your tablet......................................................... 21
Home screen ..............................................................................21
Gestures...................................................................................... 26
Screen orientation .................................................................... 29
Wi‑Fi............................................................................................. 30
Bluetooth.....................................................................................31
IntelRealSenseSnapshot........................................................ 32
Synchronizing your tablet....................................................... 34
Resetting your tablet................................................................ 35

4 |Contents
Using the keyboard..................................................... 36
Pairing a keyboard with your tablet ...................................... 36
Connecting to the keyboard in Airplane mode.................. 38
Shortcut keys ............................................................................. 39
Cleaning your tablet and keyboard ......................... 41
Troubleshooting.......................................................... 42
Locating your Service Tag and
ExpressServiceCode .................................................46
Contacting Dell ........................................................... 47
Specifications...............................................................48
Glossary ........................................................................ 51

Features |5
Features
Tablet features
3
4
5
12
10
9
11
12
13
7
8
6

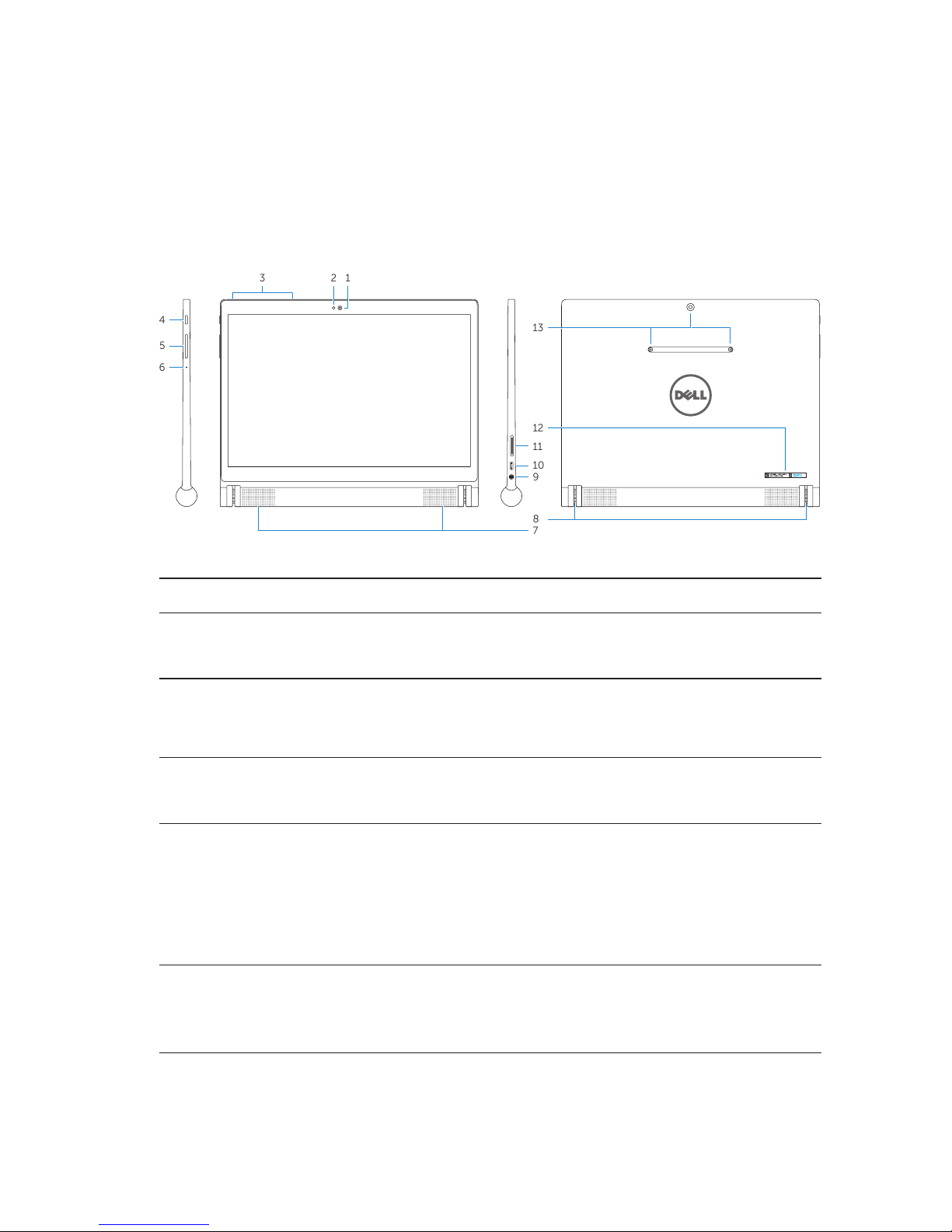

Feature Functionality
1 Front camera • Captures pictures or records videos.
• Use to make video calls.
2 Ambient‑light sensor Automatically adjusts the brightness
of the display’s backlight based on the
surrounding light intensity.
3 Microphones (2) • Record sound.
• Provide sound input.
4 Power button • Press and hold to turn the tablet on
or off.
• Press to turn the display on or off.
• In standby mode, press and hold to
display the options menu.
5 Volume buttons • Press to increase or decrease volume.
• Press and hold to continuously increase
or decrease the volume.

6 |Features
Feature Functionality
6 Microphone • Records sound.
• Provides sound input.
7 Speakers (2) Provide audio output.
8 Keyboard slots (2) Connect the Venue 10 keyboard. For more
information, see “Connectingyour tablet
to the keyboard”.
9 Headset port Connect a headset, headphone,
microphone, or other audio equipment
to listen to sound, record audio, or make
calls.
10Micro‑USB/Charging port • Connect the supplied power adapter
and micro‑USB cable to charge
thetablet.
• Connect the micro‑USB cable to a
computer to transfer documents,
music, photos, and videos, or trickle
charge the battery.
• Connect USB devices, using an optional
USB On‑The‑Go (OTG) dongle, for
transferring documents, music, photos,
videos, and so on.
11 MicroSD‑card slot Insert a microSD card to expand the
tablet’s storage capacity. Your tablet
supports a microSDcard with capacity up
to 512 GB.
12 Service Tag label Use the Service Tag and Express Service
Code when contacting Dell for customer
service or technical support.
13 Intel RealSense Snapshot Captures pictures or recordsvideos.
For more information, see
“IntelRealSenseSnapshot”.

Features |7
NOTE: The front camera supports zoom, but does not support
face tracking, continuous auto‑focus, or touch‑to‑focus feature.
NOTE: The Intel RealSense Snapshot supports continuous
auto‑focus, touch‑to‑focus, and zoom, but does not support
face tracking.
NOTE: The micro‑USB/charging port supports connecting to a
computer and power sharing to connected USB devices.

8 |Features

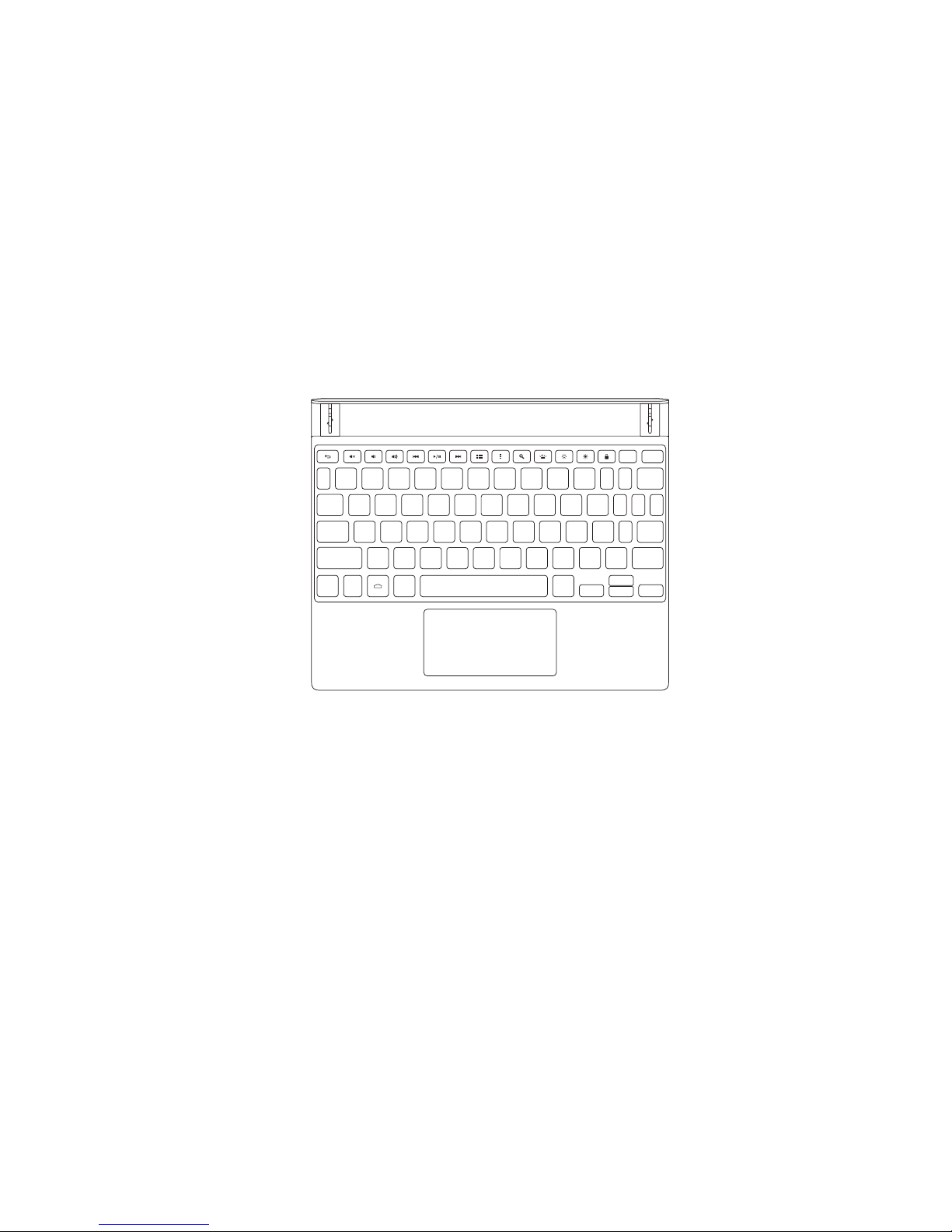

Keyboard features
1
2
3

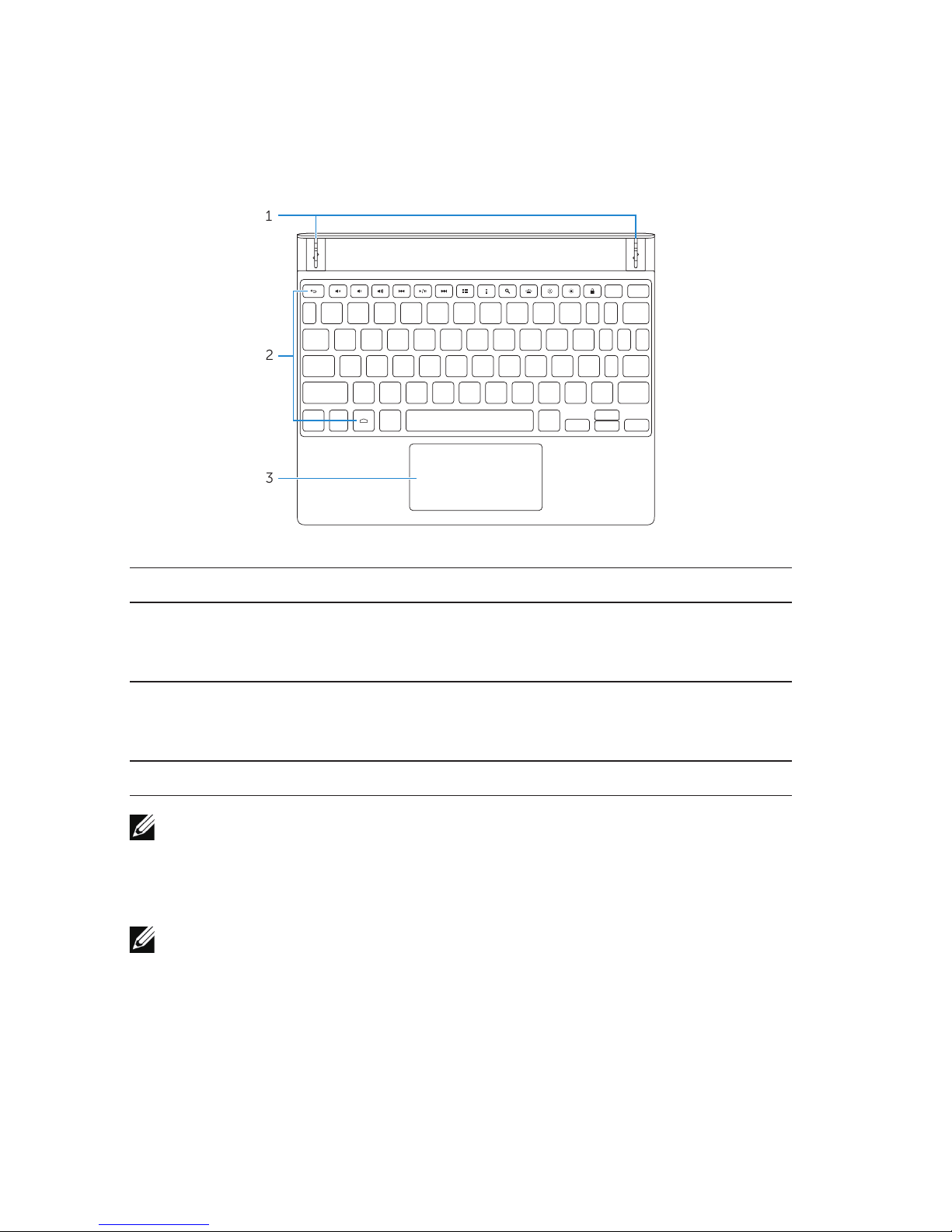

Feature Functionality
1 Tablet connectors (2) Connect your tablet to the keyboard.
For more information, see
“Connectingyour tablet to the keyboard”.
2 Shortcut keys Provides quick access to the features
you use most frequently. For more
information, see “Shortcut keys”.
3 Touchpad and click area Provides the function of a mouse.
NOTE: The keyboard is powered by your tablet. To activate
the keyboard, ensure your tablet is properly connected to the
keyboard. For more information, see “Connectingyour tablet to
the keyboard”.
NOTE: The keyboard shipped with your tablet is already paired
with the tablet. For pairing instructions, see “Pairing a keyboard
with your tablet”.

Accessories |9
Accessories
Your tablet supports the following accessories:
Venue 10 keyboard
Provides traditional typing option within the Android interface, as well
as various convenient navigation options, such as built‑in shortcut
keys and touchpad.

10 |Setting up your tablet
Setting up your tablet
WARNING: Before you begin any of the procedures in this
section, read the safety information that shipped with
your tablet. For additional best practices information, see
dell.com/regulatory_compliance.
Charging your tablet
CAUTION: Charge the battery in an ambient temperature of
0°C to 35°C (32°F to 95°F).
CAUTION: Use only the supplied power adapter to charge
your tablet. Using unauthorized power adapters or micro-USB
cables may severely damage your tablet.
NOTE: The battery may not be fully charged when you unpack
your tablet.

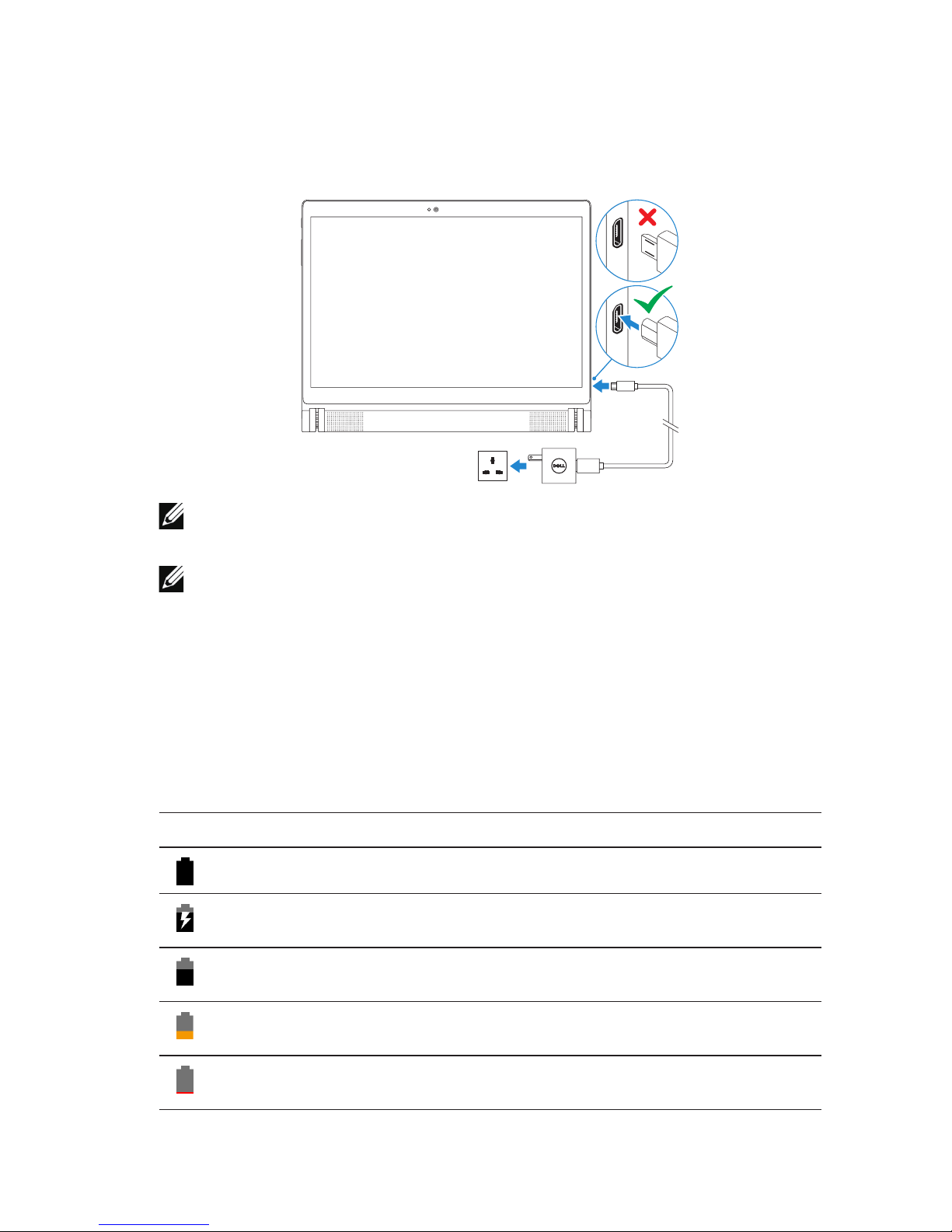

1 Connect the micro‑USB cable into the power adapter.
2 Connect the micro‑USB cable to the micro‑USB/charging port on
the tablet.

Setting up your tablet |11
3 Connect the power adapter to an electrical outlet and charge the
tablet battery until it is fully charged.
NOTE: A fully discharged battery takes up to 7 hours to fully
charge when the tablet is not in use.
NOTE: You can also trickle charge the tablet by connecting
your tablet to a computer using the micro‑USB cable. When
connected to a computer, the battery charges slowly as the
charge time depends on the power output of the USB port. The
tablet may not charge if it is connected to a USB hub, or if the
computer is switched off or in sleep mode.
You can check the tablet’s battery charge status from the battery icon
displayed at the top of the screen:
Battery icon Description
The battery is fully charged.
Tablet is connected to a power supply and the battery is
charging.
Tablet is running on the battery power and the battery is
discharging.
Tablet is running on the battery power and the battery
charge is low.
Tablet is running on the battery power and the battery
charge is critically low.

12 |Setting up your tablet
Connectingyour tablet to the keyboard
NOTE: The keyboard communicates to your tablet using
Bluetooth. Before using your keyboard, ensure that Bluetooth is
enabled on your tablet. For more information, see “Turning on/
off Bluetooth”.
1 Align the keyboard slots with the tablet connectors.
2 Insert the tablet into the keyboard until it magnetically clicks into
place.

Setting up your tablet |13
After your tablet successfully connects to the keyboard, the
keyboard backlight and the Caps Lock light turn on, and the
Bluetooth keyboard is connected message is displayed briefly on
the screen.
NOTE: When a keyboard is connected to your tablet, the
on‑screen keyboard does not appear when a text input field is
selected.

14 |Setting up your tablet
Disconnecting your tablet from the
keyboard
CAUTION: Do not try to forcefully disconnect your tablet from
the keyboard. Disconnect your tablet from the keyboard by
following these instructions.
CAUTION: To prevent the tablet from accidentally falling over,
ensure that you hold the tablet firmly with one hand while
disconnecting from the keyboard.
1 Open the tablet to the widest possible angle.
2 Hold down the keyboard, and push the center of the tablet
outwards.

Setting up your tablet |15
Modes
Laptop mode
Connect the tablet to the keyboard with the display facing toward the
keyboard.
Tent mode
Connect the tablet to the keyboard with the display facing away from
the keyboard.
NOTE: The keyboard is disabled in this mode.

16 |Setting up your tablet
Turningonyourtablet
When you turn on the tablet for the first time, you must finish Android
setup. For more information, see the Quick Start Guide that shipped
with your tablet.
1 Press and hold the power button for 7 seconds to turn on your
tablet.

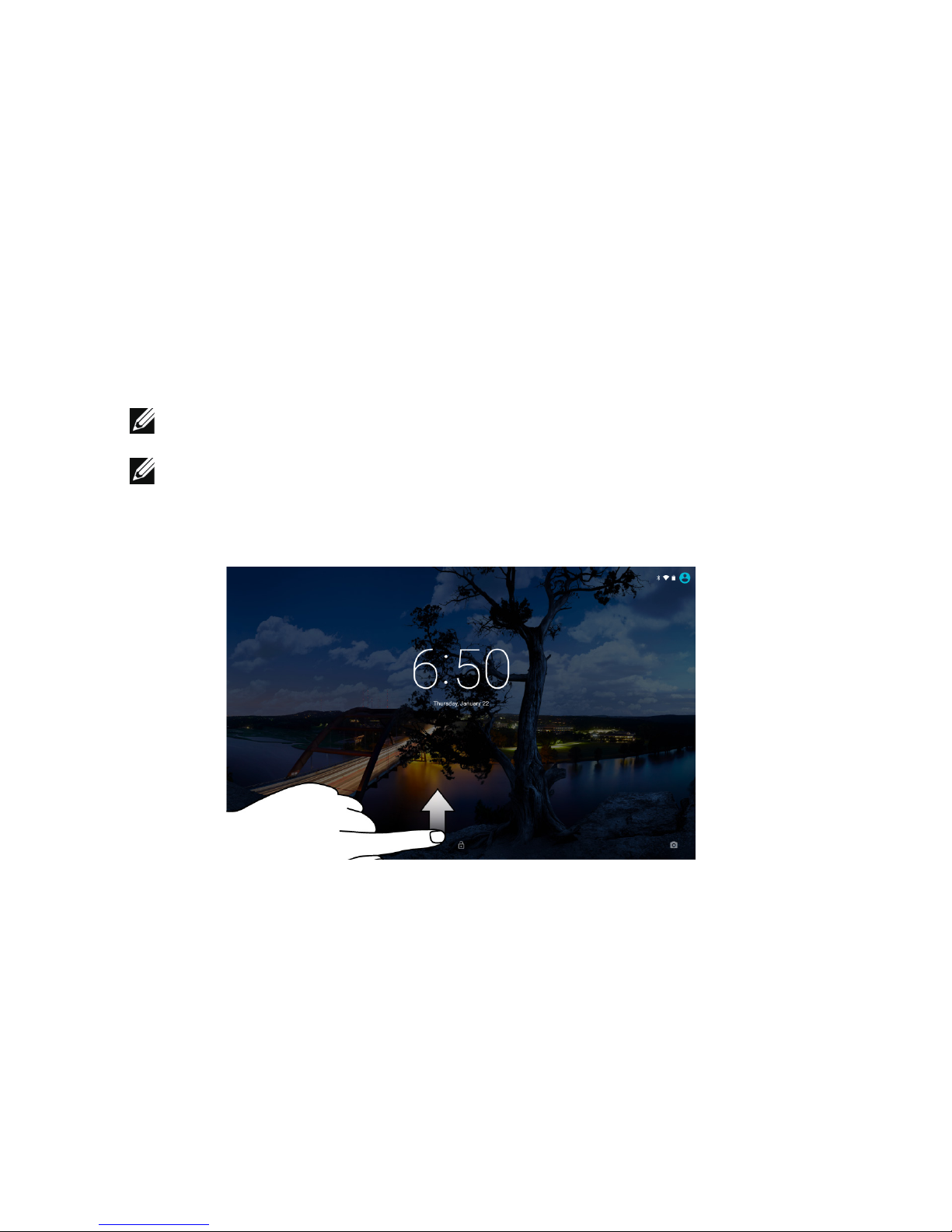

The lock screen appears.

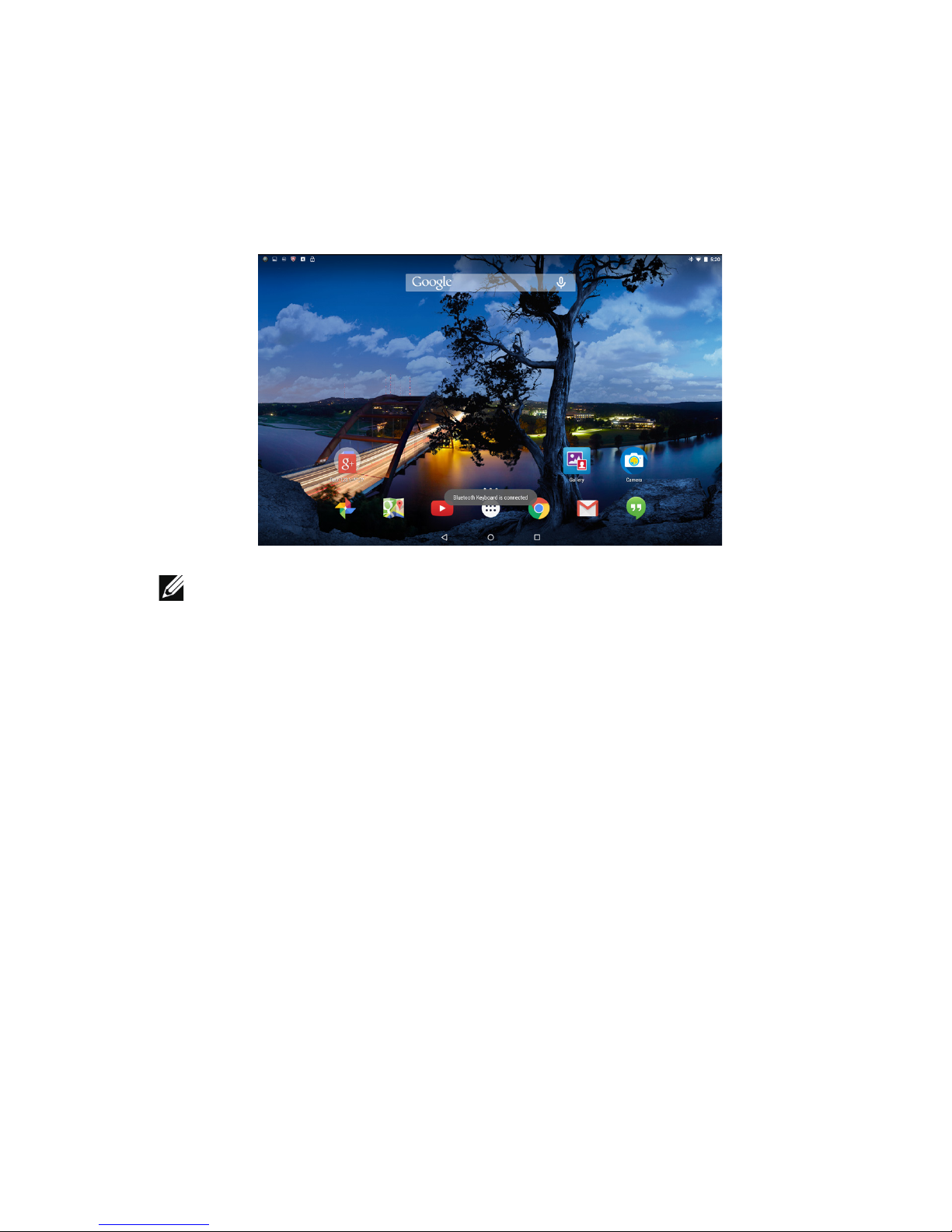

2 Swipe the lock screen up to display the Android Home screen.
NOTE: Swipe the lock screen left to launch the Camera app.
NOTE: If the lock screen is set to PIN, Pattern or Password, you
need to unlock the tablet first to access the Home screen. For
more information, see “Unlocking your tablet”.
The tablet is ready for use when the Android Home screen is displayed.
Turningoyourtablet
To turn off your tablet, press and hold the power button until the
options menu is displayed and then tap Power off.

Setting up your tablet |17
Locking your tablet
Press the power button to turn off the screen and lock your tablet.
Your tablet provides several screen locks including Swipe, Pattern,
PIN, and Password to protect your tablet against unauthorized access.
Toconfigure the screen lock:
1 Tap → Settings → Security → Screen lock.
2 Select the screen lock you want to use for your tablet and follow
the instructions on the screen.
NOTE: It is strongly recommended that you choose at least one
of the screen locks to protect your tablet.
NOTE: The default screen lock is set to Swipe.
Unlocking your tablet
To unlock your tablet:
1 Press the power button to wake up the screen.
2 Unlock the screen using one of the following methods,
depending on the type of lock you have configured:
Swipe Swipe the lock screen up.
Pattern Draw the correct pattern.
PIN Enter the correct PIN.
Password Enter the correct password.
NOTE: If a screen lock is not enabled, the Home screen is
displayed after your press the power button.

18 |Setting up your tablet
Inserting microSD card
1 Insert and press a pin or paper clip into the pinhole on the
microSD‑card tray to eject the microSD‑card tray.
2 Remove the microSD‑card tray.
3 Align and place the microSD card in the tray so that the pins are
pointed toward the card slot and are facing toward the rear of the
tablet.
4 Slide the microSD‑card tray into the card slot.

Setting up your tablet |19
Removing microSD card
CAUTION: Removing the microSD card while it is in use may
cause data loss or result in application errors. Ensure all save
operations to the microSD card are complete before removing
the microSD card.
1 Tap → Settings → Storage.
2 In the SD Card menu, tap Unmount and then confirm your
choice.
A message appears confirming that the microSD card can be
safely removed.
3 Insert and press a pin or paper clip into the hole on the
microSD‑card tray to eject the microSD‑card tray.
4 Remove the microSD‑card tray.
5 Remove the microSD card from the tray and slide the tray into the
card slot.

20 |Setting up your tablet
Using headphones
You can connect a headset, headphones, microphone, or other audio
equipment to the headset port of your tablet.
WARNING: Listening to loud music for an extended period of
time can lead to hearing loss.
1 Connect headphones to the headset port (3.5 mm) on the tablet.
2 Put on the headphones and adjust the volume to a comfortable
level.
NOTE: When you connect an audio device to the 3.5 mm
headset port, the integrated speakers on your tablet are muted
automatically.
CAUTION: To prevent damaging your headphones when
disconnecting from the tablet, pull the connector and not the
cable.
