Delta Children PATRIOT OPEN TRAILS DELUXE JOGGER User manual

PATRIOT OPEN TRAILS
DELUXE JOGGER
Customer Service: [phone]
www.DeltaChildren.com
DCP-IM-20190325-V2
Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE.
INSTRUCTION MANUAL
Fits Graco® SnugRide® Click Connect™ Infant Car Seat (not included)
Fits Evenflo® Embrace™ Select Infant Car Seat (not included)
Fits Evenflo® Nurture™ Infant Car Seat (not included)
STYLES AND COLORS MAY VARY
This stroller is not from, sponsored or endorsed by Graco Children’s Products Inc.
This stroller is not from, sponsored or endorsed by Evenflo Company, Inc.
14999
WARNING:
Adult assembly required because of
small parts. Keep assembly parts
out
of reach of children under 3 years.
CHOKING HAZARD

2
Customer Service Tel. [phone] www.DeltaChildren.com
WARNING: Please follow all of these instructions to ensure the safety of your child. Keep these instructions for future
reference.
WARNING: Failure to follow these instructions could result in serious injury or death.
WARNING: Avoid serious injury from falling or sliding out. Always insure that the child is properly positioned by using
the safety harness according to these instructions.
WARNING: Never leave children unattended.
WARNING: FALL HAZARD from tip over. Before running, jogging, or walking fast, LOCK the front wheel from
swiveling.
CAUTION: This is a single occupant jogging stroller for one child only. The use of more than one child may cause
an unstable condition which can injure your child. Do not place parcels, diaper bags or accessory items on jogging
stroller as this can cause an unstable condition.
• The maximum weight that can be carried in the lower basket, child tray and parent tray each is 3 lbs (1.36 kg).
• Before allowing the children near the stroller, be certain the stroller is fully erect and latched in the open locked
position.
• Use of the stroller with children weighing more than 50 pounds (22.62 kg) or over 42 inches (106.7 cm) tall, may
cause a hazardous unstable condition to the stroller.
• NEVER use the stroller on stairways.
• NEVER use the stroller in conjunction with bicycles, skateboards, roller skates, or in-line skates. Please discuss
using the jogging stroller with your health care provider prior to jogging use. We recommend that the child
occupant needs to be 6 months of age, at the minimum, before use of the stroller.
• To clean the stroller use a mild household soap with warm water on a sponge or clean cloth.
• Check your stroller for loose screws, worn parts, torn material or stitching on a regular basis. Replace or repair
parts as needed.
• Discontinue use of stroller if it should become damaged or malfunctions. Please contact our customer service
number 1-646-435-8726 to arrange for repair or obtain replacement parts.
• If you experience any difficulty with assembly, missing parts or use, please DO NOT return this item to the store.
Retail stores are unable to properly assist you. Contact our Customer Service Department directly for assistance
1-646-435-8726.
CARE AND MAINTENANCE

3
Customer Service Tel. [phone] www.DeltaChildren.com
EXTENDED WARRANTY
DON’T MISS YOUR CHANCE TO BE COVERED FOR ALL OF LIFES MISHAPS!
With Delta’s Extended Warranty, you’re covered for mechanical failure from normal use or if
your item stops working due to normal wear and tear, plus all those unexpected surprises.
2 YEARS OF PROTECTION
For Additional Information:
Simply visit our Website, register your product, and add the Extended Warranty
https://www.deltachildren.com/pages/product-registration
Extended Warranty only available in the following States: Arkansas, Colorado, Delaware, District of Columbia, Georgia, Idaho,
Illinois, Indiana, Iowa, Kansas, Kentucky, Louisiana, Maryland, Michigan, Mississippi, Missouri, Nebraska, Nevada, New Hampshire,
New York, North Carolina, North Dakota, Pennsylvania, Rhode Island, South Dakota, Tennessee, Utah, West Virginia

4
Customer Service Tel. [phone] www.DeltaChildren.com
Child Tray
Stroller
Part # 50218 Part # 50219
Part # 50171
Part # 50172
Part # 50181
Part # 50174
Front Wheel
Rear Wheels
Parent Tray
Front Wheel Retainer Plate
Front Wheel Axel Lock Nuts

5
Customer Service Tel. [phone] www.DeltaChildren.com
ASSEMBLY
FRONT WHEEL
IMPORTANT! To ensure safe operation of your stroller, please follow these instructions carefully. Please keep these
instructions for future reference.
IMPORTANT! Before assembly and each use, inspect this product for damaged hardware, loose joints, missing parts
or sharp edges. NEVER use stroller if any parts are missing or broken. IMPORTANT! Adult assembly is required.

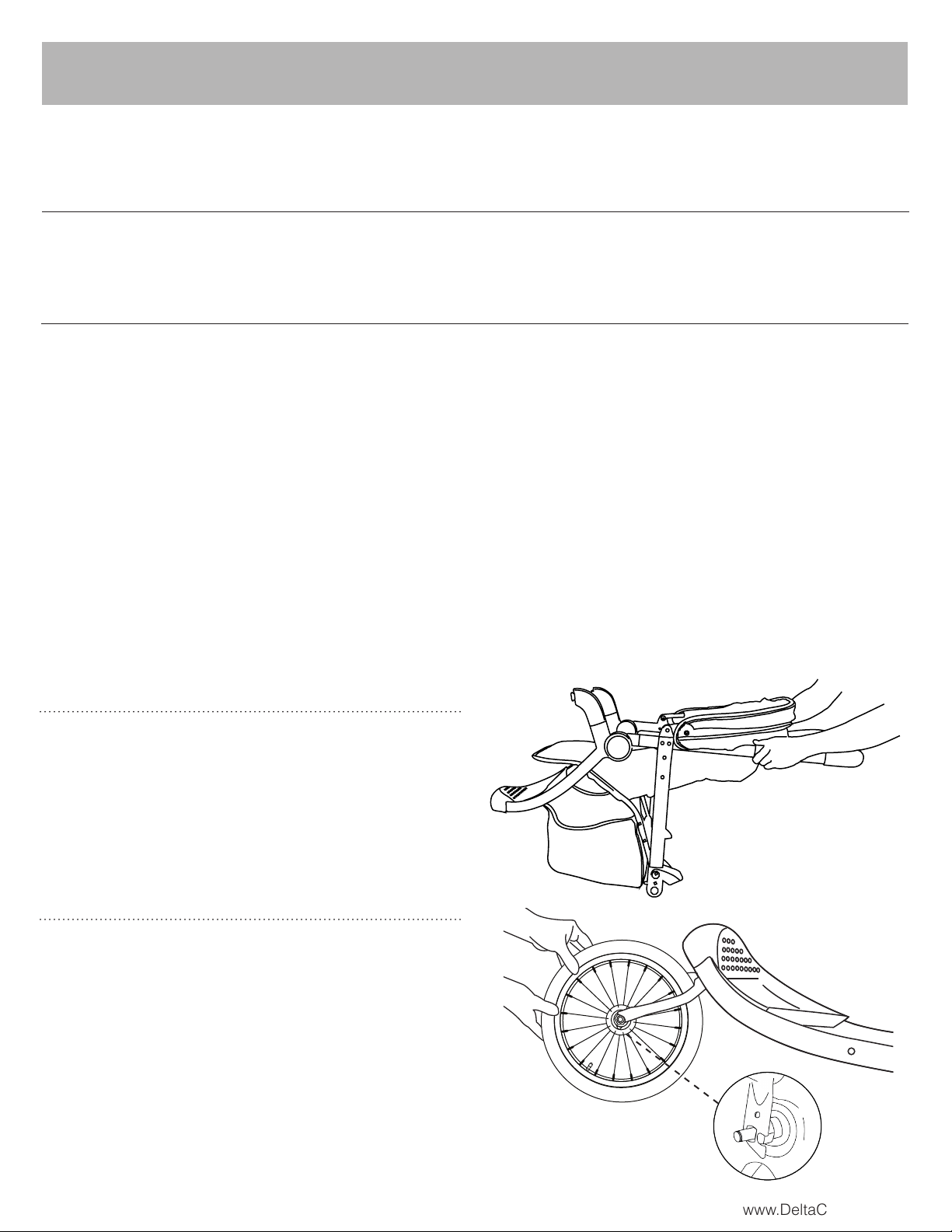

• Remove stroller from box. The front wheel, rear wheels, parent tray and child tray need to be installed prior to use.
WARNING: This front wheel utilizes a front wheel axle lock nut system. Please follow all of these instructions to
ensure the safety of your child. Failure to follow these instructions could result in serious injury or death.
1. Lean the stroller backwards so the rear axle frame is
resting on a flat surface and the front wheel forks are
pointing upward (Fig. 1).
2. Hook the front wheel axle into the front fork’s slots
(Fig. 1A).
Fig. 1
Fig. 1A
• To attach the front wheel, unfold stroller as described
in the following section:

6
Customer Service Tel. [phone] www.DeltaChildren.com
ASSEMBLY
WARNING:
FALL HAZARD
Wheel can detach and cause tip over. Pull on the wheel to assure it is securely attached and make sure
the front swivel wheel is in a locked position during running, jogging or walking fast.
WARNING: ALWAYS check that both front axle lock nuts are fully tighten before each use to ensure that
the front wheel is securely fastened to the frame.

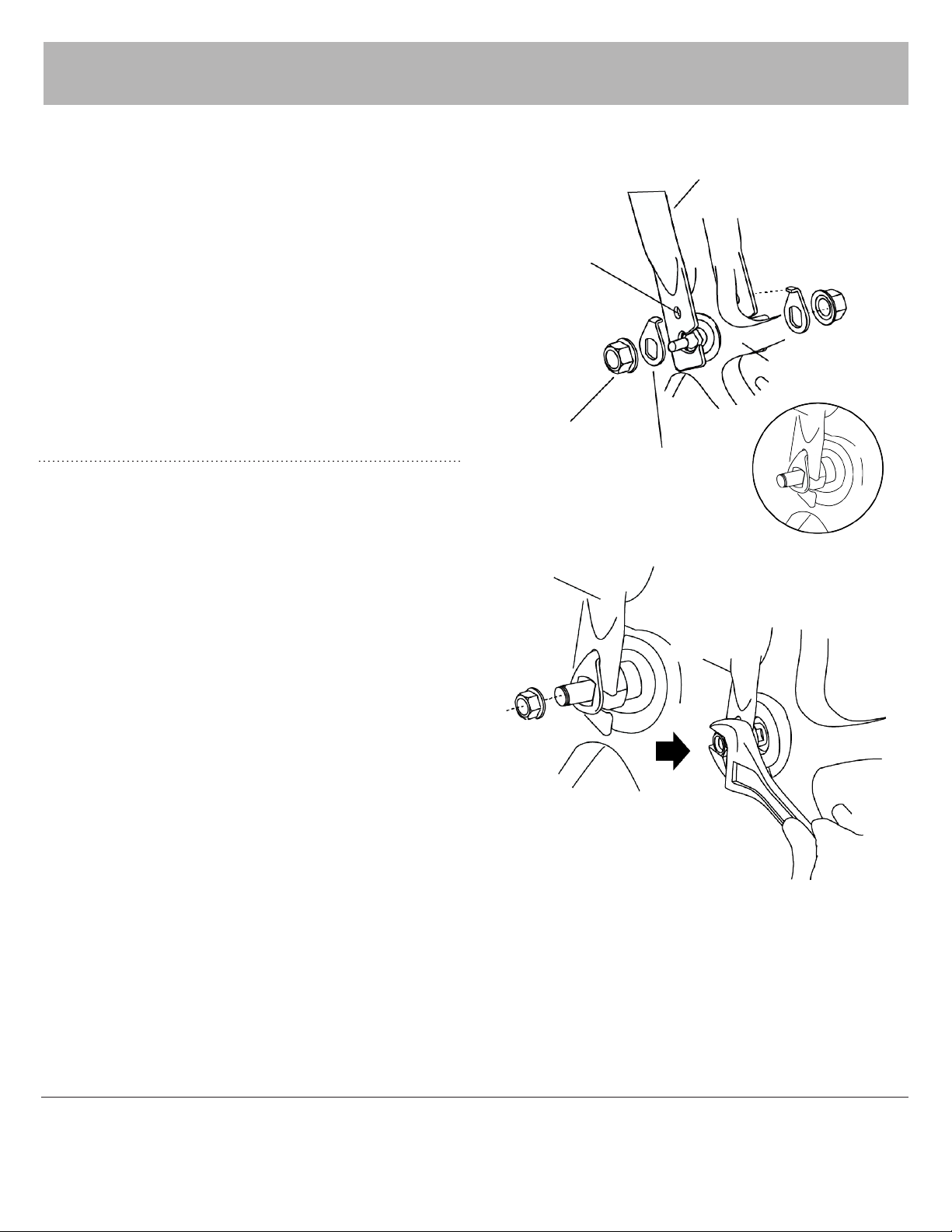

3. Slide the retainer plate onto the front wheel axle.
Be sure that the retainer plate’s bent tab is facing
towards the front fork slot. The bent tab on the
retainer plate must be lined up with and trapped
inside the front fork slot before tightening the wheel
(Fig. 1B).
4. Install the axle lock nuts and tighten with standard
wrench, box or open end wrench. The front axle lock
nut will be fully tighten and securely fastened when
there is significant resistance to front fork. Repeat on
other side. The wheel should be held tightly in place
(Fig. 1C).
Fig. 1B
TESTING FOR PROPER WHEEL INSTALLATION
Axle Lock Nut
Retainer Plate
Front Forks
Axle and Hub
Slot
Fig. 1C

7
Customer Service Tel. [phone] www.DeltaChildren.com

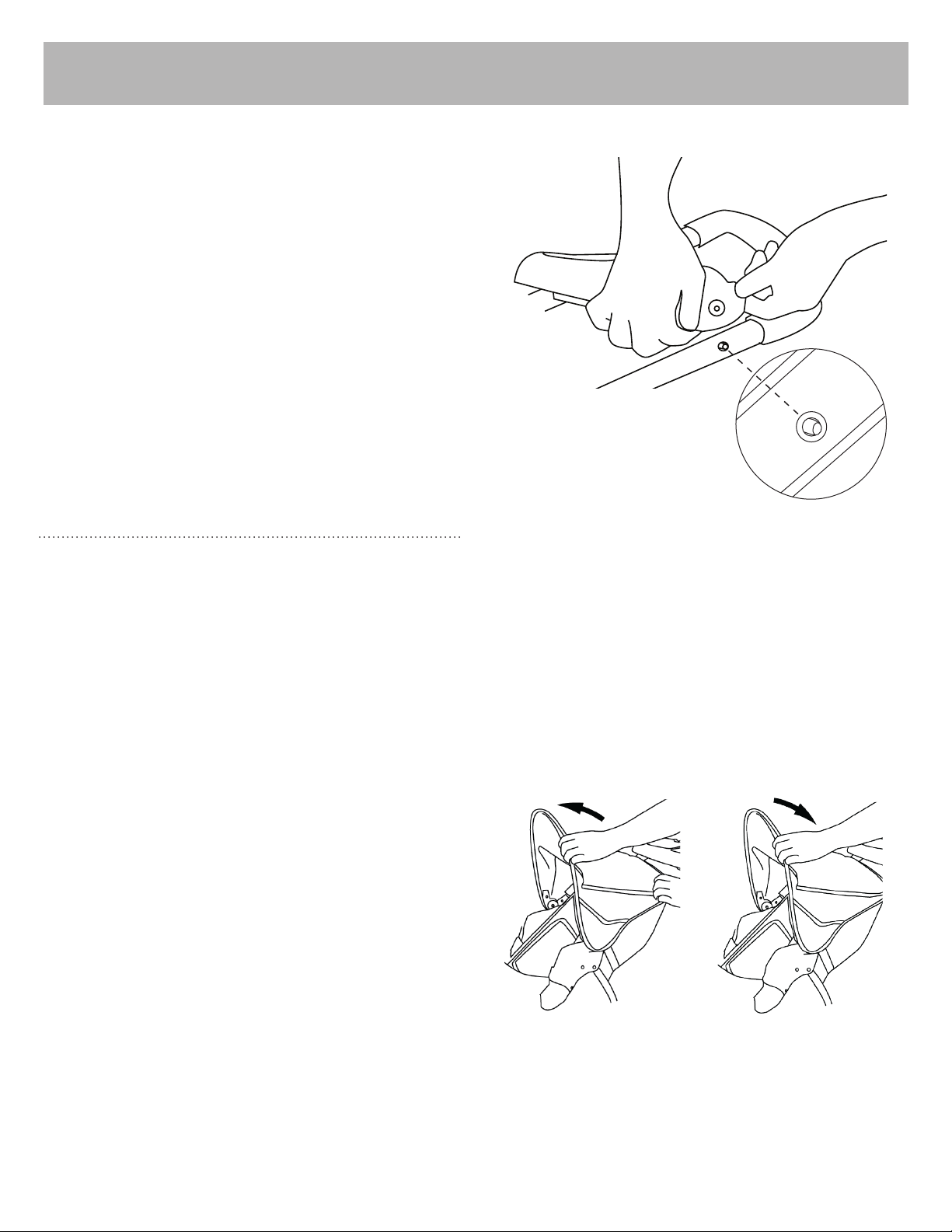

5. Lift the front wheel off of the ground and
sharply strike the top of the tire (Fig. 1D). The
wheel should not be loose or come off.
6. To attach the rear wheels, lay stroller on its
side. Align back wheel axle to the stroller's
rear wheel axle housing (Fig. 2). Push the
back wheel axle inward until you hear a "click"
(Fig. 2A). Once in a fully locked position,
check to make sure back wheel is in a fully
locked position by pulling outward. Repeat
steps for other side back wheel. NEVER use
stroller if any wheels are not in a fully locked
position. Please contact our customer service
department immediately at 1-646-435-8726 for
assistance.
REAR WHEEL
Fig. 1D
Fig. 2 Fig. 2A
PARENT TRAY
WARNING: The maximum weight that can be carried in the parent tray is 3 lbs (1.36 kg). NEVER place
hot liquids in the parent tray as can cause serious burns and NEVER place more then 3lbs (1.36kg) in
parent tray as may cause an unstable condition.
ASSEMBLY

8
Customer Service Tel. [phone] www.DeltaChildren.com
7. To attach parent tray align left and right side
holes in tray to metal posts on the outside
of handle (Fig. 3). Pop tray over metal posts
for a fully locked position. When posts are
completely enclosed through parent tray holes,
pull upward to check it is in a fully locked
position.
8. To open the canopy: pull forward on the front
edge of the canopy until fully opened. (Fig. 4)
To close canopy: push backward on front edge
until canopy is all the way collapsed. (Fig. 4A)
Fig. 3
CANOPY
Open
Fig. 4
Close
Fig. 4A
ASSEMBLY

9
Customer Service Tel. [phone] www.DeltaChildren.com

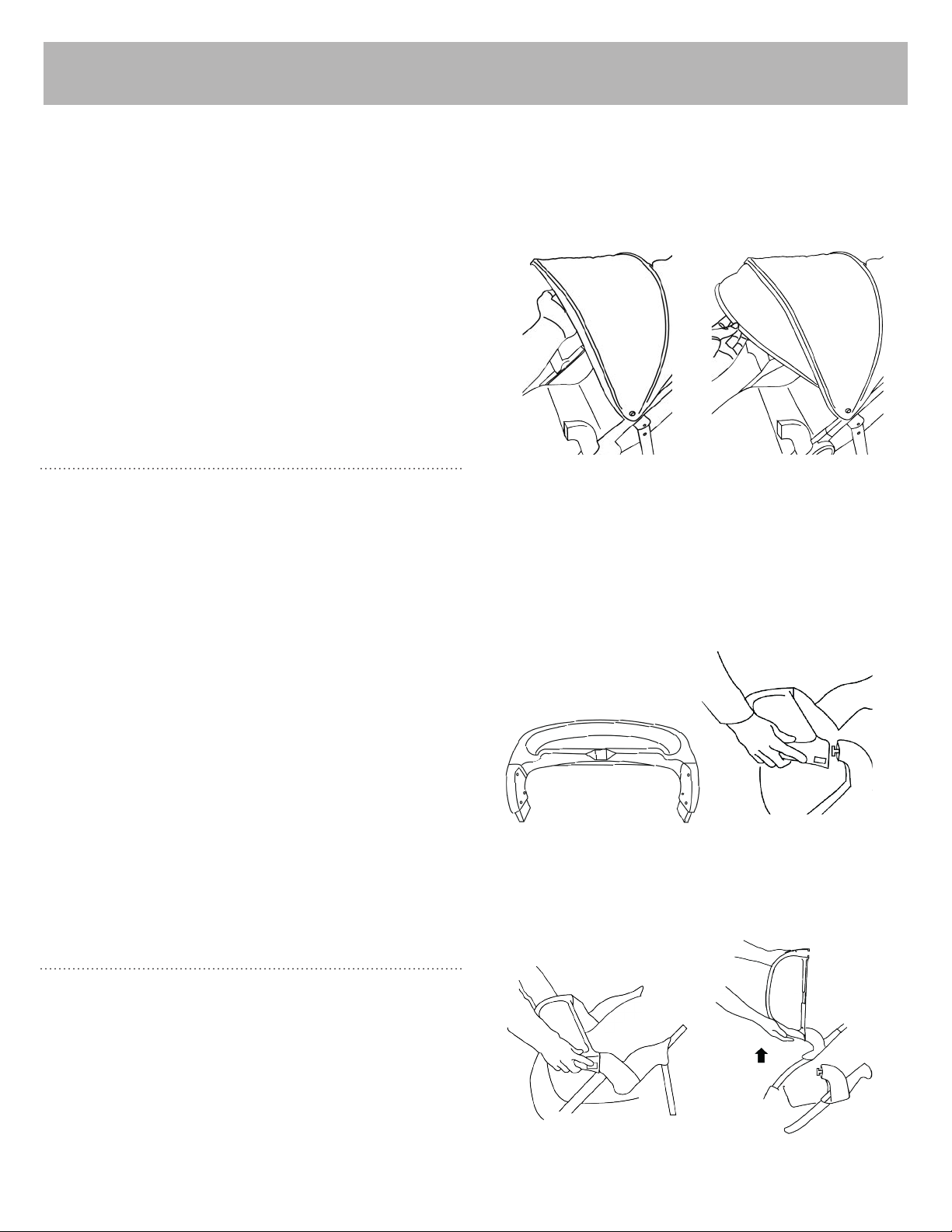

9. To open the sun visor: grab front edge of sun
visor under canopy and pull down and rotate
forward until fully extended (Fig. 5).
10.To attach the child tray: Rotate and align left
and right side of child tray posts with the left
and right side stroller tray posts. Press left and
right side child tray posts into left and right side
stroller tray posts into a fully locked position.
Press left side child tray button and snap child
tray onto stroller tray posts. Release button to
lock child tray onto stroller (Fig. 6). Repeat on
right side of child tray. Check to make sure the
child tray is securely attached to the stroller by
pulling upward on the child tray.
11.To access child seat: press left or right release
buttons (Fig. 6A) and rotate tray upward
(Fig. 6B).
SUN VISOR
CHILD TRAY
Fig. 5
Fig. 6
Fig. 6A Fig. 6B
ASSEMBLY

10
Customer Service Tel. [phone] www.DeltaChildren.com

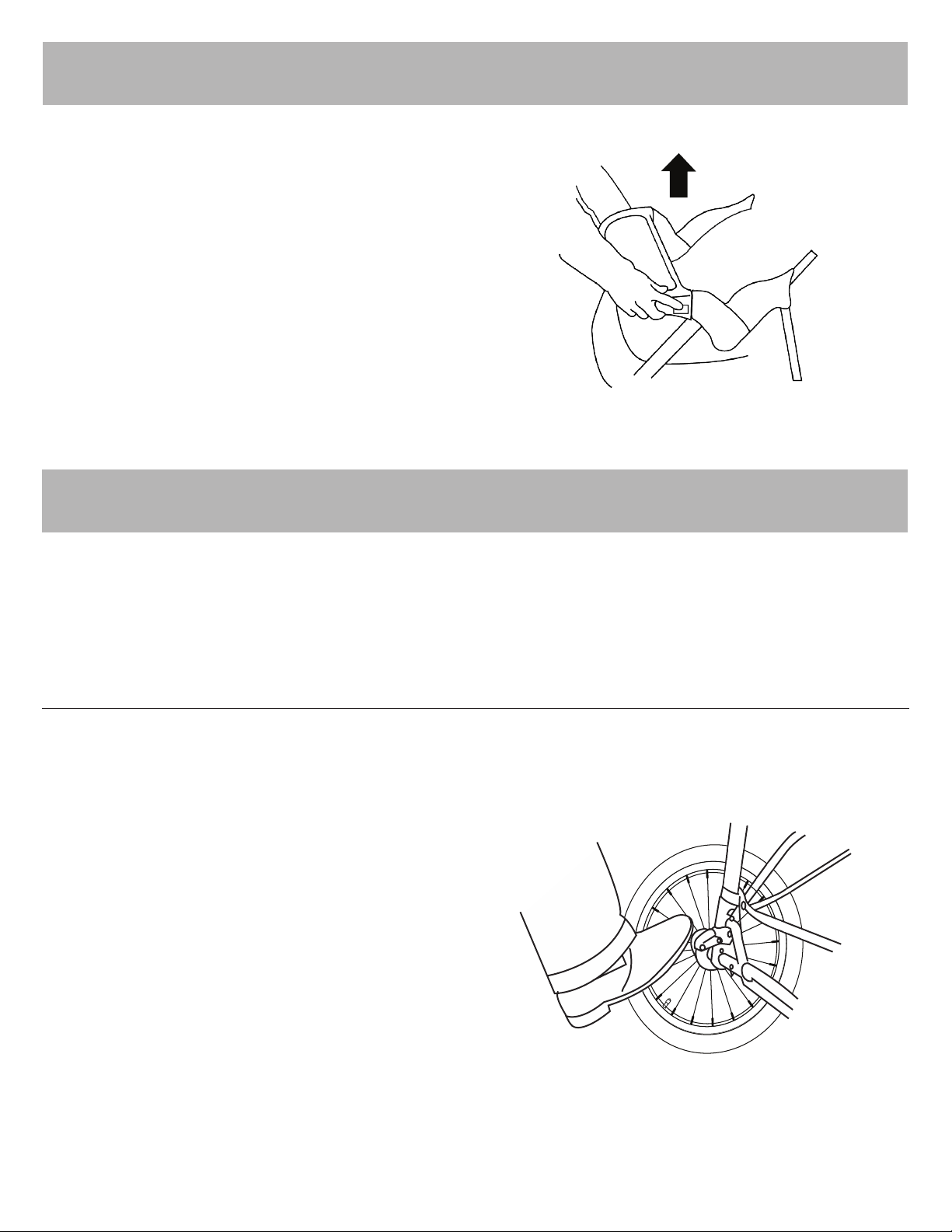

13.To lock brakes, press downward on brake lever
located on each rear wheel (Fig. 7). Please
note in order to line up the break tab with brake
tab slots stroller may need to be moved forward
or backwards slightly. Check to make sure the
brakes are in a fully locked position, so stroller
will not move when pushed. To release breaks,
gently push up on the brake lever.
12.To remove the child tray: Press the right and
left release buttons and pull upward on child
tray (Fig. 6C).
Fig. 6C
Fig. 7
SAFETY
BRAKES
WARNING: Always lock brakes when not in use on a hill or incline as stroller may roll away or slide down
the hill.
WARNING: Never leave child unattended in stroller.
Fig. 14
ASSEMBLY

11
Customer Service Tel. [phone] www.DeltaChildren.com
TO SECURE THE CHILD
1
Securing Child
•Place your child in the stroller. Position the crotch belt between your
child’s legs.
•Pull shoulder straps over child’s arm and shoulder and fasten both strap
ends to the restraint system.
•Fasten both waist belts to the buckle on each side of the crotch belt.
Make sure you hear a “click” on both sides.
•Check to be sure the restraint system is securely attached by pulling it
away from your child. The restraint system should remain attached.
3
To tighten the waist belts and shoulder straps:
•Feed the anchored end of a waist belt up through the buckle to form a
loop A. Pull the free end of the waist belt B.
•Repeat this procedure to tighten the other waist belt.
•Feed the top end of the shoulder strap through the plastic stay to form
a loop . Pull the bottom end down to tighten the strap .
•Repeat this procedure to tighten the other shoulder strap.
To loosen the waist belts and shoulder straps:
•Feed the free end of the waist belt up through the buckle to form a
loop A. Enlarge the loop by pulling on the end of the loop toward the
buckle. Pull the anchored end of the waist belt to shorten the free end of
the waist belt B.
•Repeat this procedure to loosen the other waist belt.
•Feed the bottom end of the shoulder strap through the plastic stay to form
a loop . Pull the top end up to loosen the strap .
•Repeat this procedure to loosen the other shoulder strap.
Please note: After adjusting the restraint system to fit your child, make sure
you pull on it to be sure it is securely fastened.
TIGHTEN
LOOSEN
Crotch Belt
Waist BeltWaist Belt
5 Point Safety
Harness
2
•Tighten each waist belt and shoulder strap so that the restraint system is
snug against your child.
Please refer to the next section for instructions to tighten the waist belts.
Restraint System
C
C
D
D
Before Placing your Child in Stroller:
Close Canopy. Press both brake pedals down until they “click” into the locked position.
Make sure the brake pedals are pressed down completely.
Always set both brake pedals when parking the stroller.

12
Customer Service Tel. [phone] www.DeltaChildren.com
SEAT BACK RECLINE POSITIONING
Fig. 8 Fig. 8A
14.
To return to an upright position, hold bottom
cord loops while squeezing cord housing
and move cord housing upwards towards the
backseat, as shown in Fig. 8A.
Squeeze both sides on cord housing and pull
away to recline seat, as shown in Fig. 8.
ASSEMBLY
Fig. 8B
15. Snap the three back buttons located on the
back of the seat, as shown in Fig. 8B.
WARNING: Always keep the three back buttons attached to the back of the seat at all times.

13
Customer Service Tel. [phone] www.DeltaChildren.com
ASSEMBLY
To use the car seat feature, lock back wheels,
close the canopy as described in the canopy
section (Please see Page 7 Fig. 4A). Recline
seat by squeezing both sides of cord housing as
described in seat back positioning section (Please
see Page 11 Fig. 8). Turn and lock grey latches
(Fig. 9). Align car seat as shown in Fig. 9A. Angle
feet first, while lowering car seat into a locked
position on the child tray. Car seat is in a locked
position when the car seat "CLICKS" into the
child tray. Graco car seat locked position (Fig. 9B)
Evenflo car seat locked position (Fig. 9C). Make
sure car seat is locked in place by pulling upward
on car seat.
Final step to secure the footrest side of car seat
onto the stroller, use the straps with velcro to
secure seat onto stroller. (Fig. 9D). Check that car
seat is securely attached by pulling up on the car
seat. To remove, undo latches and unlock car seat
from child tray.
HOW TO ATTACH CAR SEATS
Fig. 9A
Fig. 9D
Fig. 9
Car Seat Safety
Grey Latches
Evenflo®locked position -
grey locking tab clicks
Back of Evenflo®Car Seat
Graco locked position -
red locking tab clicks
®
Back of Graco Car Seat
®
Fig. 9B Fig. 9C
16.
17.

14
Customer Service Tel. [phone] www.DeltaChildren.com
JOGGING WITH YOUR STROLLER
Close the canopy as described in the canopy
section (Please see Page 7 Fig. 4A). Recline
seat by squeezing both sides of cord housing as
described in seat back positioning section (Please
see Page 11 Fig. 8)
• The stroller is folded by simultaneously pulling
each trigger fold located on right and left handle
above the canopy (Fig. 11). When the fold
latches are released, the handle will begin to
rotate and lower toward the floor.
Fig. 11
TO FOLD STROLLER
WARNING: Care must be taken when folding and unfolding the stroller to prevent finger entrapment.
When you are jogging with your child, use the
following safety features:
• LOCK THE FRONT SWIVEL WHEEL BY
PUSHING UPWARD ON THE FRONT
SWIVEL WHEEL LOCK PUTTING THE
FRONT WHEEL INTO A STRAIGHT
POSITION. (Fig. 10)
• SAFETY TETHER STRAP: Always connect
the safety tether strap to either right or left
wrist when jogging. The tether strap will keep
the stroller from moving or rolling away in the
event that you trip or stumble while running.
(Fig. 10A) The safety tether strap must remain
connected to the rear lower frame cross
member at all times. The safety tether strap
can be stored on the left or right side of the
stroller with the velcro attachment, when not in
use. (Fig. 10B)
Fig. 10A
Fig. 10
Push Upward To
Lock Front Swivel
Wheel
Fig. 10B
18.
19.
Front Swivel
Wheel Lock
• NOTE: Do not remove the safety tether strap
from the bottom wheel axle as it is intended to
prevent the stroller from tipping backwards if
the stroller happens to move or roll away in the
event that you trip or stumble.
ASSEMBLY

15
Customer Service Tel. [phone] www.DeltaChildren.com

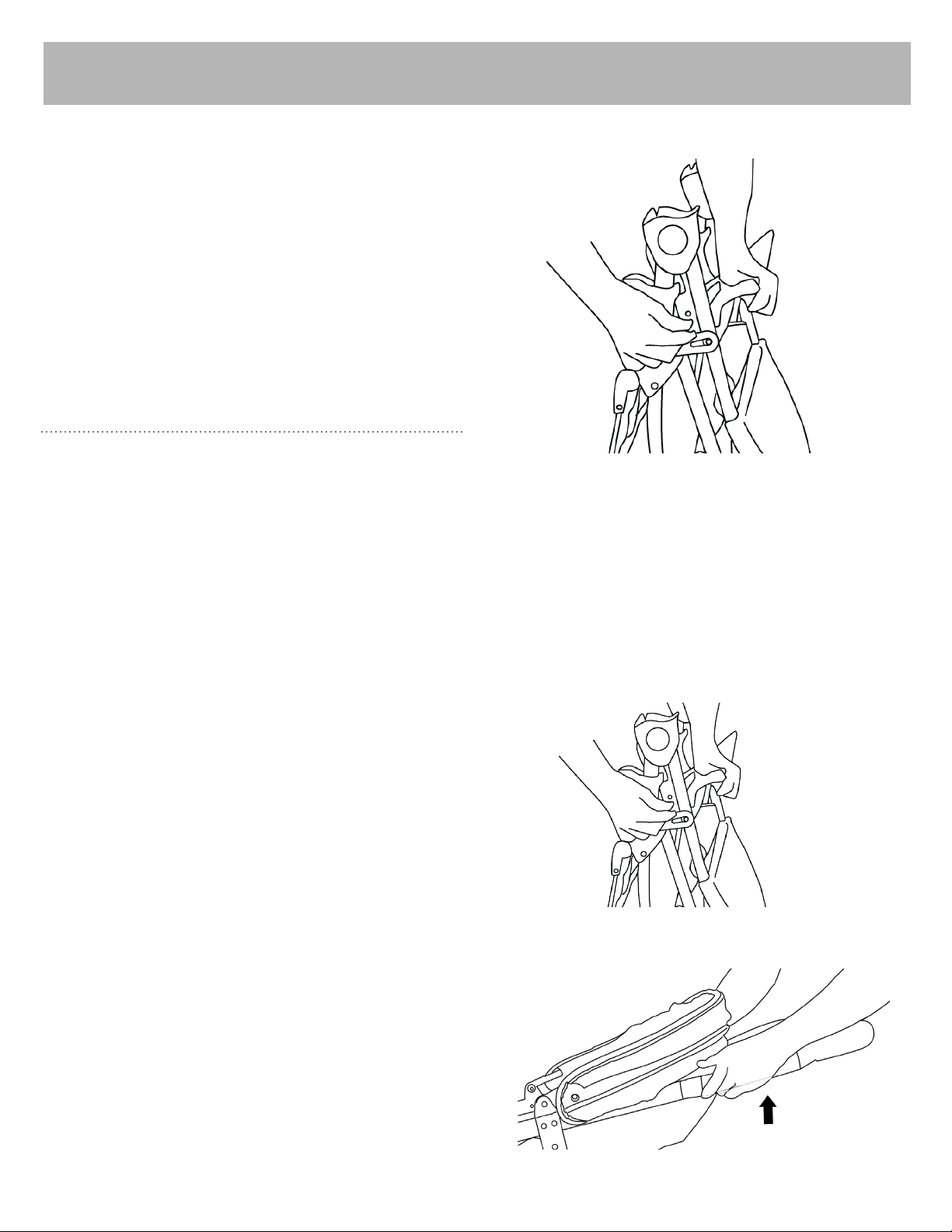

Fig. 11A
Fig. 12
Fig. 12A
WARNING: Care must be taken when folding and unfolding the stroller to prevent finger entrapment.
• Release the fold buttons and move handle
downward until the stroller is completely folded.
The stroller is in a fully locked position when
the locking fold latch is locked over the “T”
post, located on the right side of the stroller
(Fig. 11A).
Place the stroller on the ground with all three
wheels touching the ground. Release the
locking folding latch, which is located on
the right side. (Fig. 12)
• Lift up on the stroller handle with both hands
until the stroller frame is in a fully opened and
locked open position. (Fig. 12A) The stroller
is in a fully locked position when both side
handle latches are in a fully locked position.
Prior to placing your child into the stroller, test
to make sure both latches are fully engaged
and fully locked.
TO UNFOLD STROLLER
ASSEMBLY
20.

16
Customer Service Tel. [phone] www.DeltaChildren.com
OTHER
FLAT TIRE
The jogging stroller features bicycle air tires which could become flat. If you have a flat tire, use a
standard bicycle hand air pump to inflate the tires. Inflate the tires 30 psi.
NOTE: The stroller air tires can be taken to a bicycle shop for flat tire repair.

17
Customer Service Tel. [phone] www.DeltaChildren.com
STOP
Please DO NOT return this product to the store.
If you experience any difficulty with assembly, missing parts or use, please
DO NOT return this item to the store. Retail stores are unable to properly
assist you. Contact our Customer Service Department directly for
assistance 1-800-377-3777.
[phone].
www.DeltaChildren.com • [e-mail]
© 2019 Delta Children's Products, Inc. New York, NY 10001

18
Customer Service Tel. [phone] www.DeltaChildren.com

19
Customer Service Tel. [phone] www.DeltaChildren.com

Delta Childrens Products Corp.
114 West 26th Street
New York, NY 10001
[phone]
www.DeltaChildren.com
