Delta Visione DEV8 User manual

DEV8 Rel.5.1 6.05.2022
MarkingSystem
DEV8
Useandmaintenancemanual

DEV8 –Use and Maintenance Manual
Page 1
Preface
Scope of the document
This manual is a guide for the users and maintenance personnel of the DEV8 Marking System.
This instructions manual relates to a machine designed exclusively for professional use. Simply reading
this manual is not a substitute for experience and, in order for the machine to be correctly operated, it
should be operated by appropriately trained personnel. Although extreme care has been taken in the
collection and verification of these documents, Delta visione does not accept responsibility for any
imprecision or omissions, nor for the manner in which the operator uses the information contained
in this manual.
The operating manual should be referred to in order to start up the machine, to operate the machine and
to maintain the safety measures. The manual aims to:
1. Reduce the time that the machine is off-line and limit the need to request the manufacturer for
assistance
2. Guarantee that the system runs smoothly by providing complete and detailed instructions
3. Eliminate any risks connected to the use of the machine.
The operator should carefully read all the instructions in this manual and keep it for later reference. The
manual should be retained for future reference.
All the rights related to the text, images and documentation present in this manual are reserved: any
reproduction of its whole or parts is prohibited without the written permission of Delta visione. The
company can be contacted with requests for copies or updates of the manual.
Delta visione reserves the right to carry out variation in production and in the manual without warning
and without being obliged to update previously produced machines and the preceding manuals.
This manual is an integral part of the machine and should therefore be retained for reference until
such a time as the machine is decommisioned.

sistemi di marcatura industriale
sistemi di visione artificiale
Page 2
Summary
1Identification..................................................................................................... 5
Identification of the maker........................................................................................................................ 5
Identification of the machine .................................................................................................................... 5
Intended use............................................................................................................................................... 6
Compliance to safety regulations................................................................................................. 7
Personnel training........................................................................................................................... 7
Stand-alone..................................................................................................................................... 7
Maintenance service................................................................................................................................. 8
Labels........................................................................................................................................................ 10
2Description and characteristics.................................................................... 11
General description................................................................................................................................. 11
Marking head............................................................................................................................................ 12
Control unit ............................................................................................................................................... 15
Stop button.................................................................................................................................... 17
The touchscreen........................................................................................................................... 18
3Installation ...................................................................................................... 19
Transport................................................................................................................................................... 20
Installation................................................................................................................................................. 20
Connections.............................................................................................................................................. 20
Electrical connection.................................................................................................................... 20
Pneumatic connection ................................................................................................................. 20
Integration................................................................................................................................................. 21
Lighting...................................................................................................................................................... 21
Protective devices.................................................................................................................................... 21
Noise.......................................................................................................................................................... 21
Stand-alone operation ................................................................................................................. 22
Putting the machine into operation........................................................................................................ 23
Operational faults..................................................................................................................................... 24
4Residual risks................................................................................................. 25
5Commands and signals................................................................................. 27
6Ordinary maintenance ................................................................................... 29
Prerequisites and cautions..................................................................................................................... 29
General...................................................................................................................................................... 30
General rules................................................................................................................................. 30
Utensils, tools and materials....................................................................................................... 30
Maintenance interventions general plan .............................................................................................. 31
Safety –General rules................................................................................................................. 31
Maintenance plan......................................................................................................................... 32
Attachment 1 I/O Signals ..................................................................................... 35
Connector CN2 –Output........................................................................................................................ 35
Connector CN2 –Input........................................................................................................................... 36
Attachment 2 Pneumatic diagram....................................................................... 37
Attachment 3 Technical specifications .............................................................. 39

DEV8 –Use and Maintenance Manual
Page 3
Mechanical specifications....................................................................................................................... 39
Electrical specifications........................................................................................................................... 39
Pneumatic specifications........................................................................................................................ 39
Attachment 4 Exploded-view drawings of transmission unit........................... 41
Attachment 5 Exploded-view drawings of punches.......................................... 45
UE DECLARATION OF CONFORMITY................................................................... 51

DEV8 –Use and Maintenance Manual
Page 5
1 Identification
Identification of the maker
For any problem related to the operation of the machine arising during and after the warranty period,
please refer to the maintenance and service department of:
DELTA VISIONE s.r.l.
a socio unico
Via Carlo Spegazzini, n° 4
10010 Bairo (TO)
Tel. [phone]
Fax. [phone]
E-mail: [email protected]
Web: www.deltavisione.com
C.F. e P.IVA: 09403750012 - R.E.A.: TO 1049465 - Cap. Soc.: € 75.000,00 i.v.
Identification of the machine
Product type:
Micro Percussion Marking Machine
Machine code:
DEV8
The DEV8 micro percussion marking machine is a “CE” marked product, built in accordance with the
norms of the European Community, as described in the 2006/42/CE Machine Directive, 2014/30/UE
Electromagnetic Compatibility Directive, 2014/35/UE Low Voltage Directive and successive
amendments.
The certificate of conformity and the manufacturer’s declaration that are supplied with the machine
should always be retained.

sistemi di marcatura industriale
sistemi di visione artificiale
Page 6
Intended use
The DEV8 micro percussion marking machine –produced and sold to be installed and integrated into a
production line or as an adjunct to pre-existing machinery –conforms to the current laws and is destined
solely for professional use by appropriately authorised and trained personnel.
Its intended use is the Micro Percussion Marking.Micro percussion marking is intended to mean
marking with a motor-driven punch of one or more characters or phrases on parts, equipment or
machines, in order to allow their identification or traceability within the production or distribution
processes.

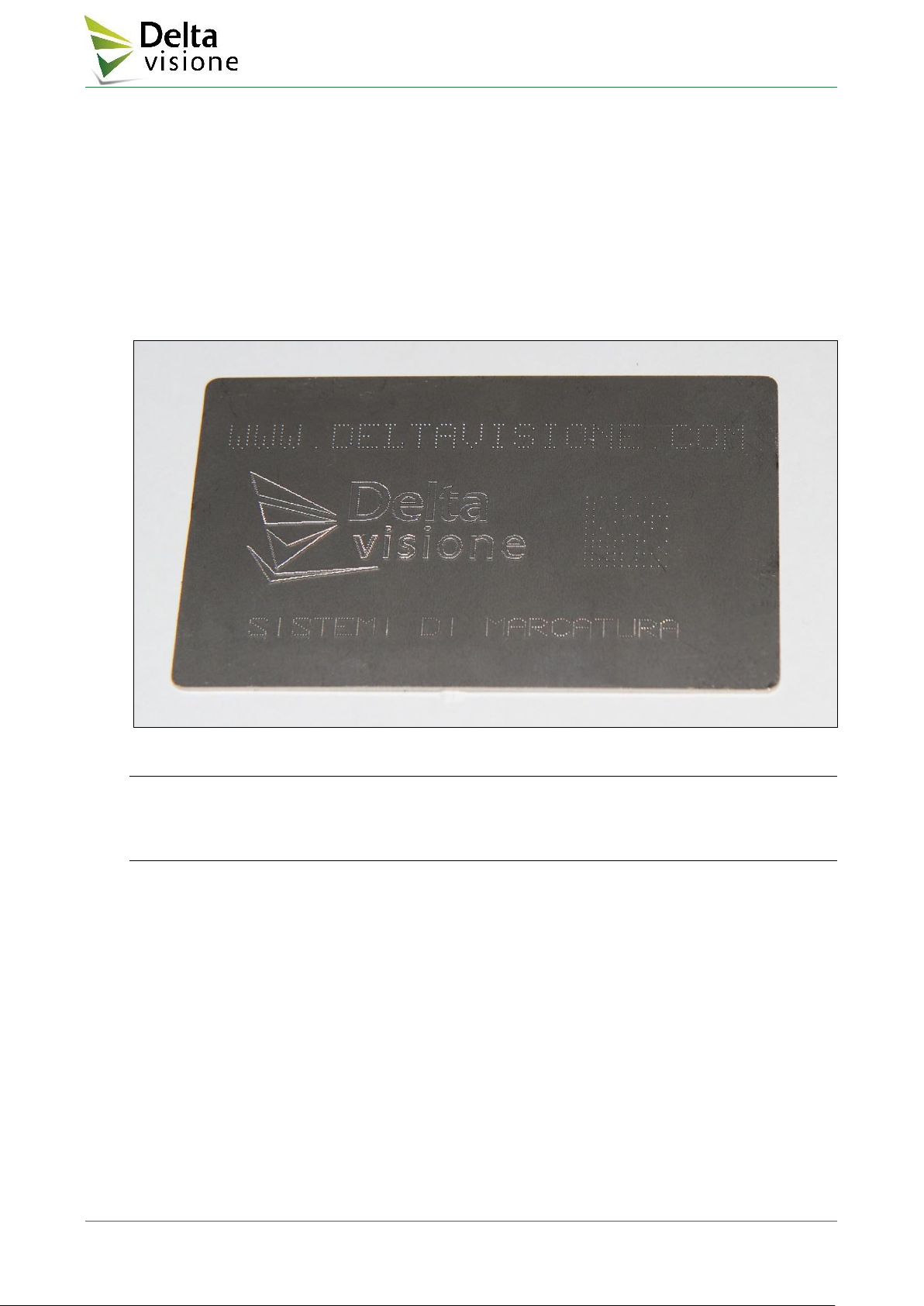

The following figure shows an example of marking made with the DEV8 device.
Figure 1 –Marking example
Note: Use of the machine or its single parts in production processes or for purposes different from those
for which it was designed, and its use by methods different from those described in the instructions
given in this document, are prohibited. Delta visione declines all liability for risks and damages to
persons or things caused by improper use of the machine.
In order to use the machine as intended, full respect must be paid to the technical instructions in this
operating manual.
The machine as a whole (including the computerized control system provided) has been designed to
provide optimal performance in its standard configuration.
Delta visione declines all liability for system faults, instability and deteriorations in performance
caused by changes made by third parties to the original mechanical, electrical, electronic, hardware
and software configurations.

DEV8 –Use and Maintenance Manual
Page 7
Compliance to safety regulations
The machine was designed and built to function and to be checked and maintained without causing the
operator to be exposed to undue risk, as long as these operations are carried out according to the
operating manual. During the design and construction phases, the mechanical and electrical risks were
eliminated as far as possible together with those resulting from the materials adopted, using the methods
described in detail later on in this document. The measures taken minimize the risks of injury throughout
the machine’s life cycle, within the scope of its intended use and any other reasonably predictable uses.
Note: As the marking head can be integrated with existing devices, its supply does not include any
additional protective measures resulting from the particular nature of the elements to be marked, or the
configuration of the integration line or the workbench.
Personnel training
Thanks to the simplicity of its operation and interface software, the DEV8 marking machine, can be
used by personnel who have not undergone specific training, but who have, however, read and
understood the operating manual.
There must only be one operator responsible for operating the machine.
Stand-alone
The DEV8 marking machine can be used as a stand-alone machine not integrated into a production line
or other devices that extend the compatibility with the essential health and safety requirements of the
2006/42/EC Directive by adding safety repairs.
A T T E NT I O N
When the machine is not integrated into a production line or other devices
compatible with the essential health and safety requirements of the 2006/42/EC
Directive, the operator must be informed and warned about the pinching / crushing
residual risks posed by the punch during the marking process.
A T T E NT I O N
When the machine is not integrated into a production line or other devices
compatible with the essential health and safety requirements of the 2006/42/EC
Directive, the operator should avoid bringing fingers, hands or other objects inside
the marking area during the marking process. In general, it is prescribed to keep
hands away from the machine during the marking process to avoid the risks
mentioned above.
Note: Delta visione is not responsible for injuries that result from disregard of the above rules of
operation or other general safety rules applicable to the use of this equipment. Furthermore,
disregarding these rules will result in the cancellation of the guarantee.

sistemi di marcatura industriale
sistemi di visione artificiale
Page 8
Maintenance service
During the warranty period, in accordance with the contract agreements and with reference to Your
orders, Delta visione s.r.l. is completely available for interventions on the DEV8 Marking System
provided that:
•The causes of malfunction are not due to improper or wrong use of the machine
•The causes of malfunction are not due to the use of parts and consumables not recommended
by this manual
•The causes of malfunction are not due to modifications or interventions not performed and
supported by Delta visione s.r.l.
The occurrence of a malfunction during the warranty period due to one of the causes listed above will
immediately void the warranty, freeing Delta visione s.r.l. from any subsequent responsibility.
At the end of the warranty period, Delta visione s.r.l. is available for interventions on the machine after
a service call of the customer or periodically if the customer has signed the maintenance program offered
by Delta visione s.r.l. A written report will be provided at the end of each service intervention.
If a maintenance program is subscribed after the warranty period has expired or in case of request of
intervention of remarkable entity, Delta visione s.r.l. reserves the right to make an inspection in order
to determine the overall functionality of the machine.
In order to obtain an efficient service intervention, follow this recommended procedure:

DEV8 –Use and Maintenance Manual
Page 9
•Go to the following address:
http://www.deltavisione.com
•Select CONTATTI (Contacts) in the top-right corner, then in “Scegli un tipo di richiesta” (select
a request type) select Richiesta assistenza (Service request)
•Fill the form indicating the type of product involved using the data provided by the identification
labels applied on the Control Unit and/or on the Marking Head, detailing the reason of the
request and/or the error condition or malfunction.
Alternatively, send the service request to the following mail address:
[email protected]
providing the data detailed above.
Service requests can be issued through this phone number:
Tel. [phone]
and will be satisfied accordingly to the availability of the service personnel.
For maintenance and service requests relative to electrical, mechanical and software issues, please refer
to the mail address provided above.

sistemi di marcatura industriale
sistemi di visione artificiale
Page 10
Labels
Both on the Control Unit and the Marking Head there is a CE label with the following identification
data:
•Model: DEV8
•Code: UX (Control Unit)
•Code: 8 XXX YY (Marking Head, see the note below)
•S/N: Serial number of the unit
•Year: 20xx
The identification data present on these labels must be provided at each service request or when ordering
spare parts.

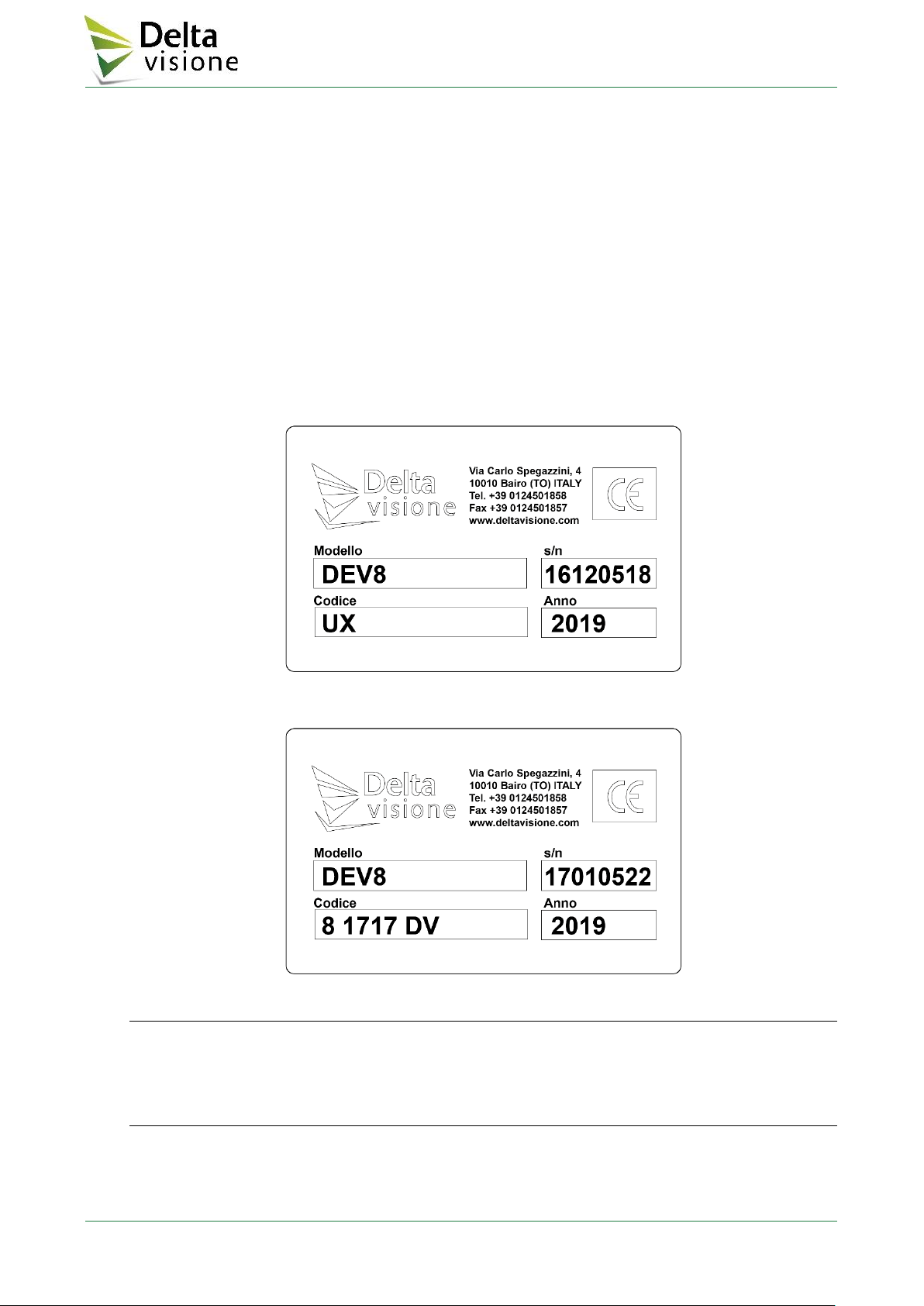

The following figure shows an example of a CE label (for the Control Unit of a DEV8 model):
Figure 2 –CE Label of the Control Unit
Figure 3 –CE Label of the Marking Head
Note: The Marking Head code (e.g. 877 DV) is made up of an initial figure possibly followed by a letter
(7 for model DEV7, 7N for model DEV7N, 8 for model DEV8), two, three or four figures indicating
the size of the marking area (e.g. 77 indicates a 70 x 70 mm marking area, 108 100 x 80 mm, 1717 170
x 170 mm) and two final figures identifying the punch type. Check Attachments 4 and 5 at the end of
this document for the details on the punch and marking unit types).

DEV8 –Use and Maintenance Manual
Page 11
2 Description and characteristics
General description
The DEV8 scribe machine is made up of two main parts (see the figure below):
•Marking Head
•Hardware-software Control Unit.
Figure 4 –Overall view
Item
Description
1
Marking head
2
Hardware-software control unit
1
2

sistemi di marcatura industriale
sistemi di visione artificiale
Page 12
Marking head
The marking head contains the body of the punch that performs the marking operations, and the motors
and transmission elements for moving the punch. All the moving parts of the marking head are isolated
by a protective metal cover, which can be removed exclusively for maintenance purposes by unscrewing
the fastening screws and with the machine at a standstill.
ATTENTION! The protective cover guarantees safe use of the machine both for its intended use and
any other reasonably predictable uses, and for the risk of unintentionally incorrect movements by the
operator. Deliberate, voluntary access to the moving elements cannot however be ruled out and this
could represent a hazard that is not justified by any production needs.
Figure 5 –Marking head
Item
Description
1
Multipolar cable (from/to Hardware-software control unit) connector
2
Stylus unit
The marking head is available in various sizes with different marking areas and different percussion
technologies: single-effect (SE) and double effect (DE) pneumatic technology.
1
2

DEV8 –Use and Maintenance Manual
Page 13
In particular, with:
•the single-effect pneumatic head, percussion is obtained through air pressure and a spring return
of the tip; the pressure, power and punch stroke can be adjusted using the pressure regulator
installed on the air supply circuit
•the double-effect pneumatic head, percussion is obtained through two opposing thrust and return
pressures on the tip; the pressure, power and punch stroke can be regulated using the pressure
regulator installed on the tip thrust circuit (connection with a diameter of 6 mm, see Figure 7),
while the pressure regulator installed on the tip return circuit (connection with a diameter of 4
mm, see Figure 7) must be regulated to a pressure of between 0.5 and max. 1 bar, according to
the tip stroke and the thrust pressure.
In both cases, the pressure regulators must be positioned as close as possible to the marking head on the
air supply circuit and, in any case, connected with tubes having a length of no more than 2 metres.
As far as the marking area is concerned, the models currently available are listed in the Appendix with
their overall dimensions and weights

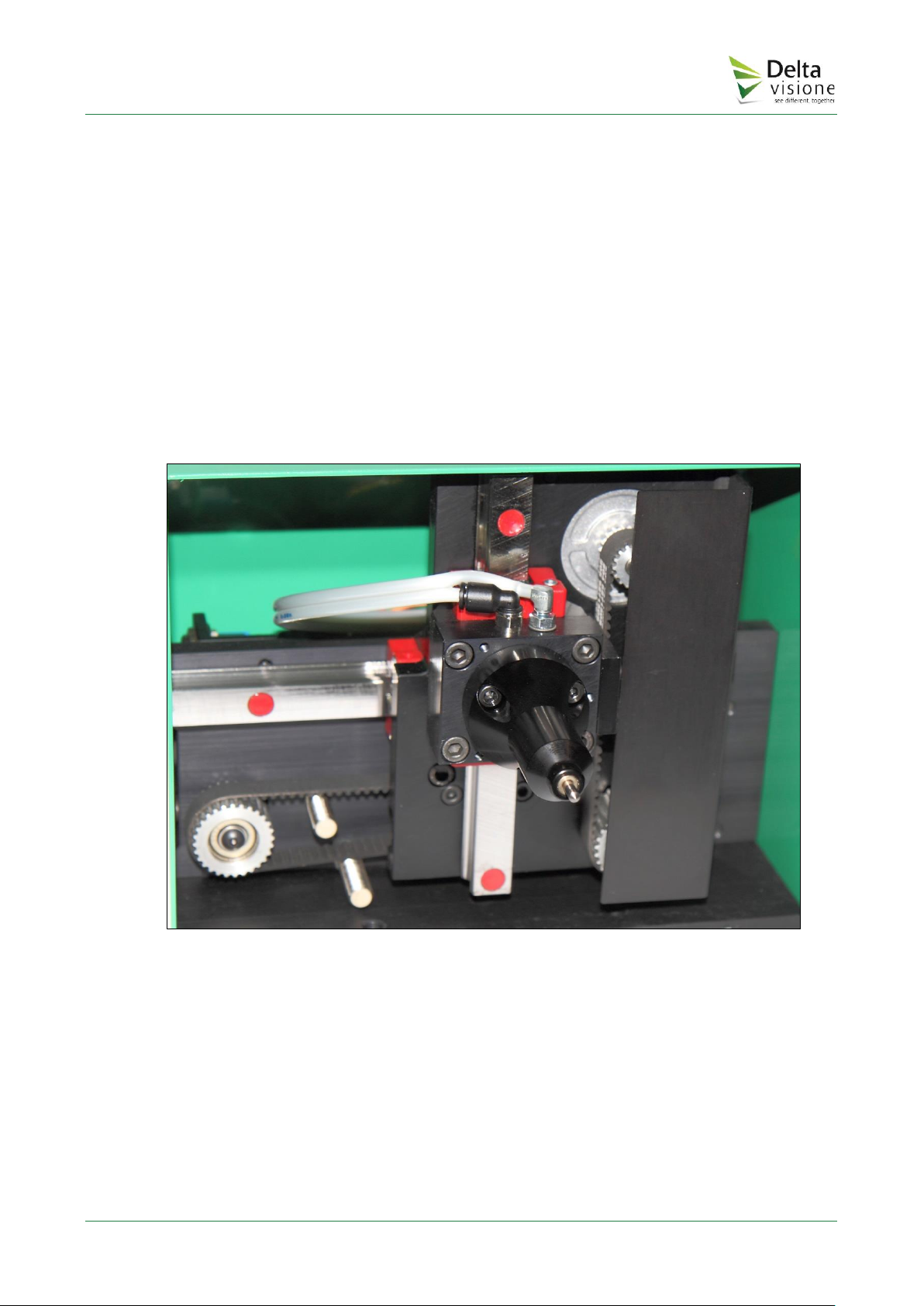

Figure 6 –Punch unit and motion gear

sistemi di marcatura industriale
sistemi di visione artificiale
Page 14
Figure 7 –Multipolar cable and compressed air inlet
Figure 8 –START button on the Marking Head
Item
Description
1
Compressed air inlet (tip return circuit, 4 mm diameter)
2
Compressed air inlet (tip thrust circuit, 6 mm diameter)
3
Multipolar cable (from/to Hardware-software control unit) connector
4
START button: it allows to perform the marking in manual mode. The marking head must be
fitted with an optional accessory with handles to position it on the part.
3
2
1
4

DEV8 –Use and Maintenance Manual
Page 15
Control unit
The control unit of the DEV8 marking machine contains the hardware and software devices and power
electronics for controlling and driving the motors present in the marking head to which it is connected
by a multipolar cable in a protective sheath with a length of 2 m (standard version).
Figure 9 –Hardware-software Control Unit
On the back side of the Control Unit there is the connectors’ compartment, also housing the power
supply socket and the power button.
Figure 10 –Back connectors and on/off switch
3
6
4
8
7
5
1
2

sistemi di marcatura industriale
sistemi di visione artificiale
Page 16
Item
Description
1
ON/OFF switch
2
Fuse holder 5X20 T5A
3
Mains cable connector
4
Optional card connector
5
Optional card connector
6
COM1 RS232 serial port
(PLC or host with serial communication port controlling the marking cycle, for the details
refer to the System management software manual)
7
Marking head cable connector
8
Input/output cable connector
On the left side of the control unit there are other connectors (see the following figure).
Figure 11 –Connectors on the left side of the control unit
Item
Description
1
USB ports (2)
2
COM2 RS232 serial port (used by a Windows PC running the Mark Wizard software that
allows creating a marking file, see the details in the System management software manual)
The DEV8 marking machine uses a software interface that can be run directly from the integrated
keyboard or from an external keyboard connected to one of the USB ports situated on the side panel of
the Control Unit.
1
2

DEV8 –Use and Maintenance Manual
Page 17
Stop button
Figure 12 –Control Unit (top view)
The STOP button is situated in the upper left part of the control panel (see the figure above).
The button can be pushed at any time, causing the immediate interruption of machine operation. If any
further operations are attempted, the following message will be displayed:
In addition to the above error message, the red LED on the left-hand side of the display will light up.
To exit from the stop condition and restore normal operation, simply press RET.

sistemi di marcatura industriale
sistemi di visione artificiale
Page 18
The touchscreen
The touchscreen situated on the body of the control unit was designed to provide all the functions
necessary to perform the operations involved in controlling the marking machine (see example below).
Figure 13 –Touchscreen view
Note: At the end of the machine testing procedure, the display is covered with a film that is to be peeled
off slowly and carefully to avoid creating electrostatic charges.
