INSTRUCTION MANUAL
Air Cleaner
50-868
PART NO. 410-09-651-0004 - 09-23-02
Copyright © 2002 Delta Machinery
ESPAÑOL: PÁGINA 11
To learn more about DELTA MACHINERY
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
please call 1-800-223-7278 (In Canada call 1-800-463-3582).

2
ADDITIONAL SAFETY RULES FOR
AIR CLEANERS
1. DO NOT USE THIS UNIT TO FILTER METAL DUST. Combining wood and metal dust can cre-
ate an explosion or fire hazard. This unit is intended to filter non-explosive atmospheres only.
2 . WARNING: DUST GENERATED BY CERTAIN WOODS AND WOOD PRODUCTS CAN BE HAZ-
ARDOUS TO YOUR HEALTH.
3. DO NOT USE THIS UNIT TO DISSIPATE FUMES OR SMOKE. This air cleaner is intended for use
where only dry airborne dust is present. Its use should be limited to non-explosive, non-metallic atmospheres.
4. DO NOT OPERATE THIS UNIT UNTIL IT IS COMPLETELY ASSEMBLED AND INSTALLED ACCORDING TO
THE INSTRUCTIONS.
5. OBTAIN ADVICE FROM YOUR SUPERVISOR, INSTRUCTOR, OR ANOTHER QUALIFIED PERSON if you are
not thoroughly familiar with the operation of this unit.
6. FOLLOW ALL WIRING CODES and recommended electrical connections.
7. DO NOT LIFT THIS UNIT BY THE POWER CORD. Do not use the power cord as a hanging device.
8. SECURELY ANCHOR THIS UNIT INTO A SUPPORTING STRUCTURE when suspending it from the ceiling.
Always keep a minimum of 7 feet between the bottom of the unit and the floor surface to allow for sufficient head
clearance. Use only chain rated for a minimum of 150 lb. working load to adequately hold the unit. Use steel S-
Hooks that are at least 1/4" in diameter to suspend the unit from the ceiling. Lag-type bolts used to suspend the
unit from the ceiling must be threaded at least 1-1/2" into supporting structural members.
9. SUPPORT THIS UNIT OR SECURELY CLAMP IT TO THE WORK SURFACE WHEN IT IS USED IN A
PORTABLE APPLICATION to eliminate potential movement and/or damage from falling.
10. INSURE THAT THE INTAKE AND EXHAUST AREAS ARE CLEAR PRIOR TO STARTING THE UNIT.
11. KEEP ARMS, HANDS, AND FINGERS AWAY FROM THE FAN. Avoid all exposure to rotating parts.
12. DO NOT OPERATE THIS UNIT WITHOUT THE FILTERS IN PLACE.
GENERAL SAFETY RULES
Woodworking can be dangerous if safe and proper operating procedures are not followed. As with all machinery,
there are certain hazards involved with the operation of the product. Using the machine with respect and caution
will considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or
ignored, personal injury to the operator may result. Safety equipment such as guards, push sticks, hold-downs,
featherboards, goggles, dust masks and hearing protection can reduce your potential for injury. But even the best
guard won’t make up for poor judgment, carelessness or inattention. Always use common sense and exercise
caution in the workshop. If a procedure feels dangerous, don’t try it. Figure out an alternative procedure that feels
safer. REMEMBER: Your personal safety is your responsibility.
This machine was designed for certain applications only. Delta Machinery strongly recommends that this machine
not be modified and/or used for any application other than that for which it was designed. If you have any ques-
tions relative to a particular application, DO NOT use the machine until you have first contacted Delta to deter-
mine if it can or should be performed on the product.
Technical Service Manager
Delta Machinery
4825 Highway 45 North
Jackson, TN 38305
(IN CANADA: 505 SOUTHGATE DRIVE, GUELPH, ONTARIO N1H 6M7)
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY.
1. FOR YOUR OWN SAFETY, READ AND UNDERSTAND THE INSTRUCTION MANUAL BEFORE OPERATING THE
UNIT. Learn the unit’s application and limitations as well as the specific hazards peculiar to it.
2. KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.
3. DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use this unit in damp or wet locations, or expose it to rain. Keep
work area well-lighted.
4. KEEP CHILDREN AND VISITORS AWAY. All children and visitors should be kept a safe distance from work area.
5. DISCONNECT UNIT before servicing.
6. CHECK DAMAGED PARTS. Before further use of the unit, properly repair or replace any part that is damaged.

3
13. DO NOT ATTEMPT TO REMOVE OR REPLACE THE FILTER(S) WHILE THE UNIT IS RUNNING. Make certain
that the unit is disconnected from the power source.
14. MAINTAIN THE UNIT IN TOP CONDITION. Keep filters clean for optimum performance. Follow all instructions for
changing and cleaning filters.
15. STORE THIS UNIT IN A LOCATION that eliminates the potential of damage to the power cord. Safely store power
cord on the unit to eliminate tripping hazards.
16. TURN THE UNIT “OFF” AND DISCONNECT IT FROM THE POWER SOURCE before installing or removing
accessories, or when making repairs.
READ AND SAVE THESE INSTRUCTIONS.
Refer to them often
and use them to instruct others.
GROUNDING INSTRUCTIONS
THIS TOOL MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM
ELECTRIC SHOCK.
2. Grounded, cord-connected tools intended for use
on a supply circuit having a nominal rating less than
150 volts:
This tool is intended for use on a normal 120-volt circuit
and has a grounded plug that looks like the plug illustrat-
ed in Fig. A.
If a properly grounded outlet is not available, a temporary
adapter, shown in Fig. B, may be used for connecting the
3-prong grounding type plug to a 2-hole receptacle. The
temporary adapter should be used only until a properly
grounded outlet can be installed by a qualified electrician.
The green colored rigid ear, lug, or the like extending from
the adapter must be connected to a permanent ground
such as a properly grounded outlet box cover. Whenever
the adapter is used, it must be held in place with a metal
screw.
NOTE: In Canada, the use of a temporary adapter is
not permitted by the Canadian Electric Code.
IN ALL CASES, MAKE CERTAIN THE
RECEPTACLE IN QUESTION IS
PROPERLY GROUNDED. IF YOU ARE NOT SURE, HAVE
A QUALIFIED ELECTRICIAN CHECK THE RECEPTACLE.
1. All grounded, cord-connected tools:
In the event of a malfunction or breakdown, grounding
provides a path of least resistance for electric current to
reduce the risk of electric shock. This tool is equipped
with an electric cord having an equipment-grounding
conductor and a grounding plug. The plug must be
plugged into a matching outlet that is properly installed
and grounded in accordance with all local codes and ordi-
nances.
Do not modify the plug provided - if it will not fit the
outlet, have the proper outlet installed by a qualified
electrician.Improper connection of the equipment-
grounding conductor can result in risk of electric shock.
The conductor with insulation having an outer surface that
is green with or without yellow stripes is the equipment-
grounding conductor. If repair or replacement of the
electric cord or plug is necessary, do not connect the
equipment-grounding conductor to a live terminal.
Check with a qualified electrician or service personnel
if the grounding instructions are not completely under-
stood, or if in doubt as to whether the tool is properly
grounded.
Use only 3-wire extension cords that have 3-prong
grounding type plugs and 3-hole receptacles that accept
the tool’s plug, as shown in Fig. A.
Repair or replace damaged or worn cord immediately.
POWER CONNECTIONS
A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should
be protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3-
prong grounding type plugs and matching receptacle which will accept the machine’s plug. Before connecting the unit
to the power line, make sure the switch (s) is in the “OFF” position and be sure that the electric current is of the same
characteristics as indicated on the machine. All line connections should make good contact. Running on low voltage
will damage the unit.
DO NOT EXPOSE THE MACHINE TO RAIN OR OPERATE THE MACHINE IN DAMP LOCATIONS.
MOTOR SPECIFICATIONS
Your machine is wired for 120 volt, 60 HZ alternating current. Before connecting the machine to the power source,
make sure the switch is in the “OFF” position. The full-load current is 5.0 amps.

INTRODUCTION
Model 50-868 Delta Air Cleaner is specifically designed to quietly circulate and filter non-metallic dust
which is generated throughout the work area. The Air Cleaner is furnished with two filters: a disposable
outer filter which filters out larger particles five microns in size, and a secondary filter which captures 91%
of the dust particles of one micron in size (one micron = one millionth of a meter). Because breathing micro-
scopic particles can be a potential health hazard, filtering microscopic dust particles offers a cleaner and
safer environment. This Air Cleaner will filter the air in a room measuring 20’ x 20’ x 8’ either 13, 16, or 18
times an hour, depending on the setting. If desired, multiple units can be used to filter larger areas. The Air
Cleaner is maintenance free. An occasional cleaning and/or replacement of filters is the only required
maintenance. UNPACKING
The Air Cleaner is shipped complete in one shipping container. Carefully unpack the Air Cleaner and all loose
items from the shipping container.
DO NOT LIFT THE AIR CLEANER BY POWER CORD.
4

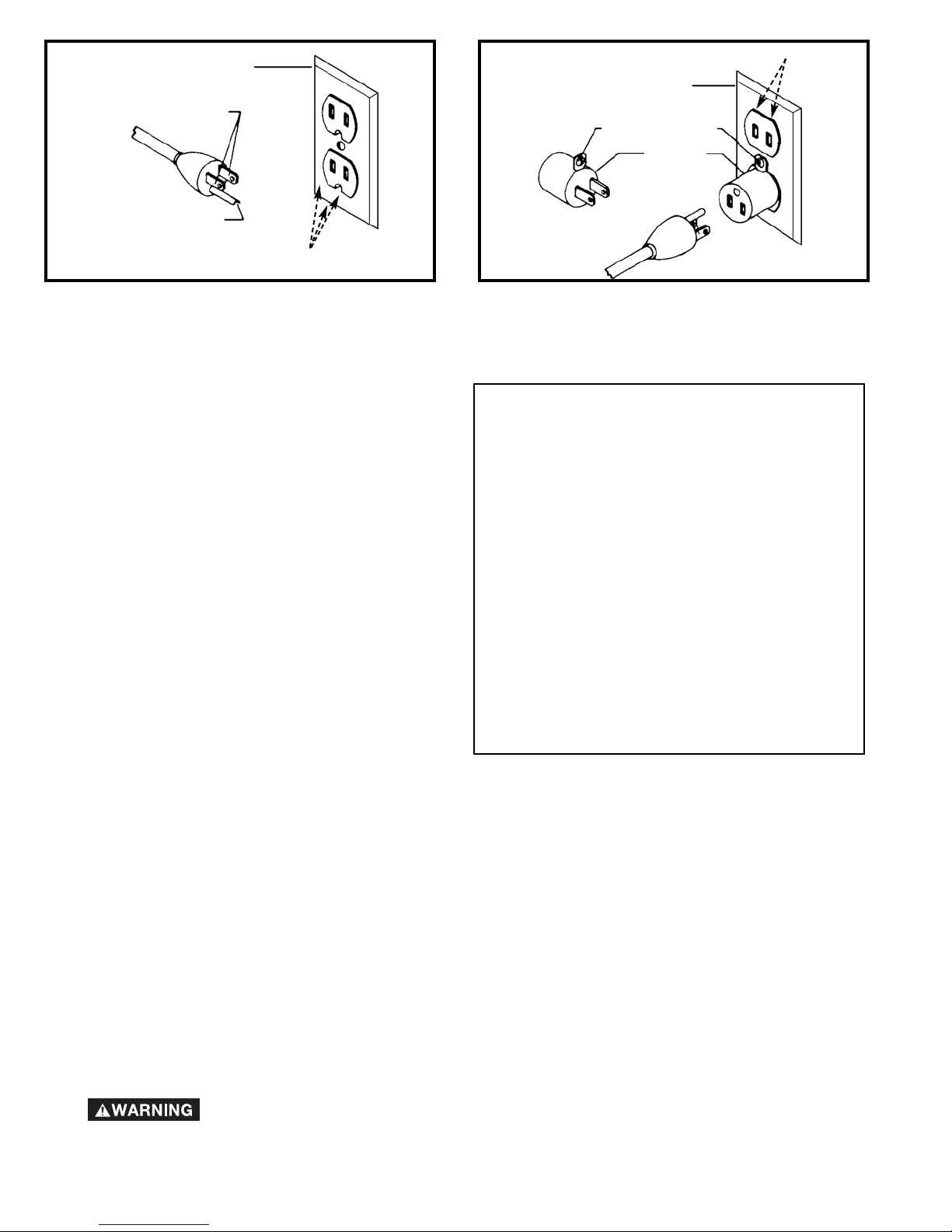

Fig. A Fig. B
GROUNDED OUTLET BOX
CURRENT
CARRYING
PRONGS
GROUNDING BLADE
IS LONGEST OF THE 3 BLADES
GROUNDED OUTLET BOX
GROUNDING
MEANS
ADAPTER
HOLES
HOLES
EXTENSION CORDS
Use proper extension cords. Make sure your extension
cord is in good condition and is a 3-wire extension
cord which has a 3-prong grounding type plug and
a 3-hole receptacle which will accept the machine’s
plug. When using an extension cord, be sure to use
one heavy enough to carry the current of the machine.
An undersized cord will cause a drop in line voltage,
resulting in loss of power and overheating. Fig. C shows
the correct gauge to use depending on the cord length.
If in doubt, use the next heavier gauge. The smaller the
gauge number, the heavier the cord.
MINIMUM GAUGE EXTENSION CORD
RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC TOOLS
Ampere Volts Total Length of Gauge of
Rating Cord in Feet Extension Cord
0-6 120 up to 25 18 AWG
0-6 120 25-50 16 AWG
0-6 120 50-100 16 AWG
0-6 120 100-150 14 AWG
6-10 120 up to 25 18 AWG
6-10 120 25-50 16 AWG
6-10 120 50-100 14 AWG
6-10 120 100-150 12 AWG
10-12 120 up to 25 16 AWG
10-12 120 25-50 16 AWG
10-12 120 50-100 14 AWG
10-12 120 100-150 12 AWG
12-16 120 up to 25 14 AWG
12-16 120 25-50 12 AWG
12-16 120 GREATER THAN 50 FEET NOT RECOMMENDED
Fig. C

5

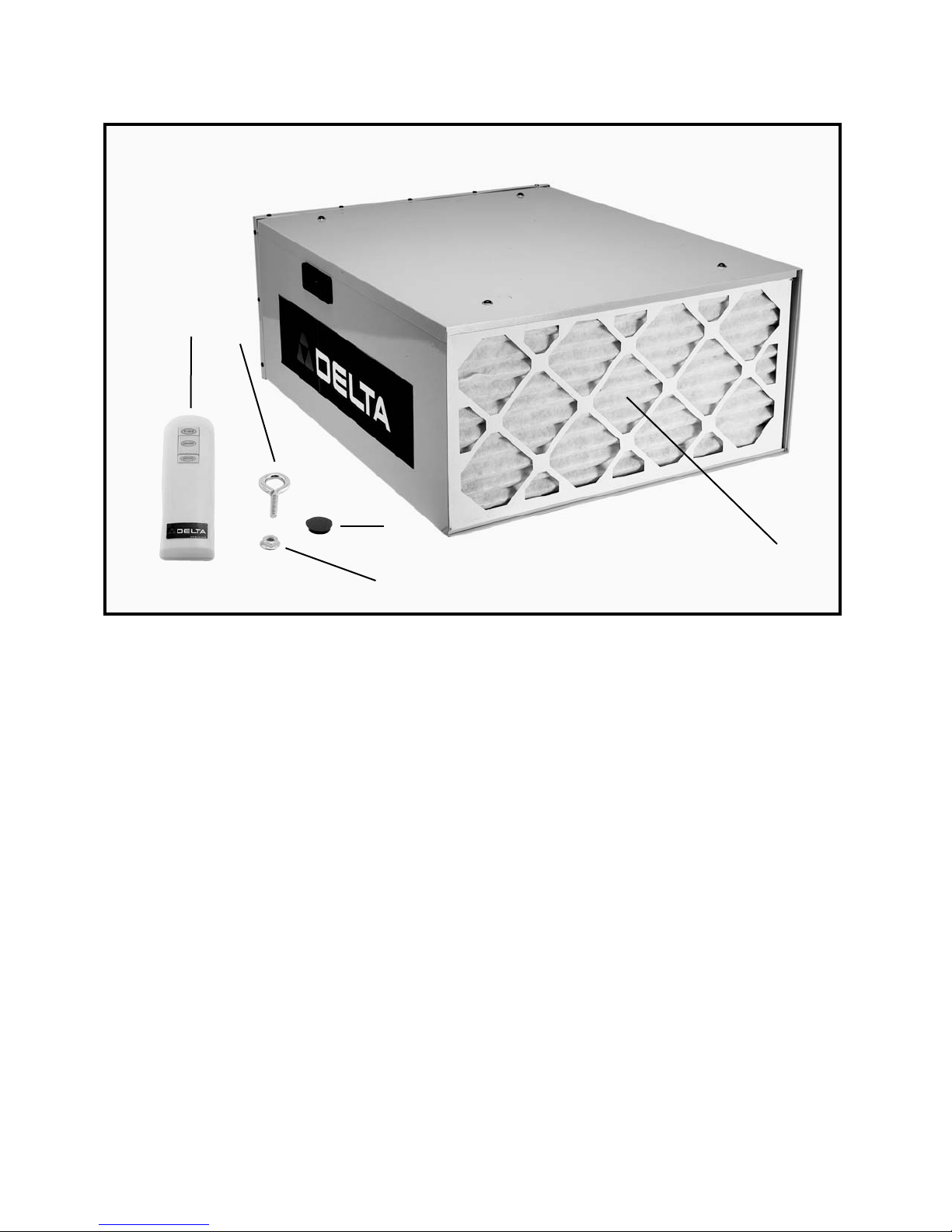

A - Air cleaner
B - Four 1” eye-bolts
C - Four 1/4-20 flange nuts
D - Four rubber feet

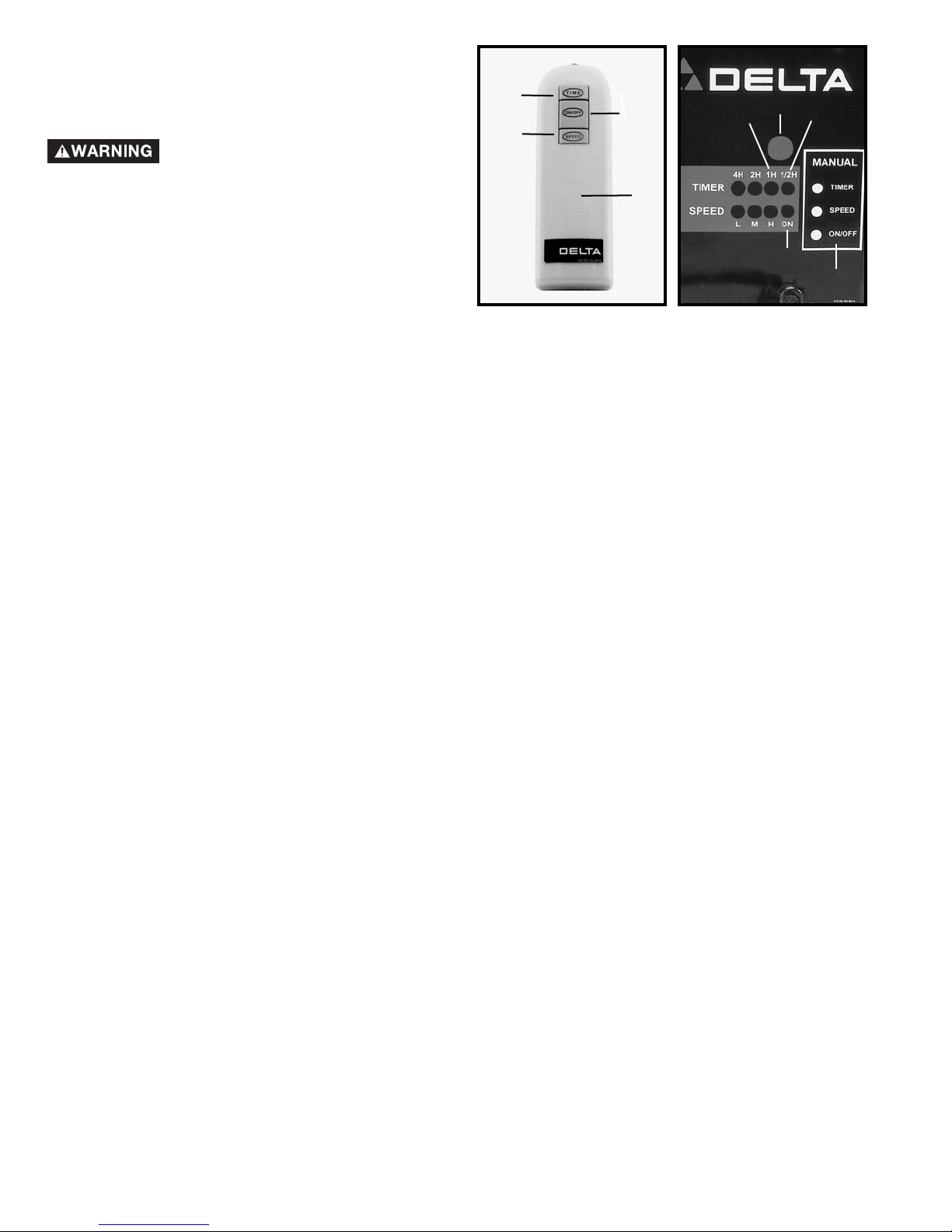

E - Remote Control Unit
(Batteries not included)
A
B
C
Fig. 2
D
E
ASSEMBLY INSTRUCTIONS
Determine whether the Air Cleaner will be used on the floor, on a bench, or hanging from an overhead support.
If the Air Cleaner will be used as a mobile unit, proceed to “USING THE AIR CLEANER ON A BENCH
OR FLOOR SURFACE” section. For overhead or ceiling mounting, refer to section “MOUNTING THE AIR
CLEANER TO A CEILING OR OVERHEAD SUPPORT.”
IMPORTANT: When determining where to mount the air cleaner, always select a location where the air flow
is unrestricted. Do not locate the unit in a corner or near any heating or cooling vents.
CARTON CONTENTS
