INSTRUCTION MANUAL
Air Cleaner
50-870
PART NO. 410-10-651-0001 - 03-31-02
Copyright © 2002 Delta Machinery
ESPAÑOL: PÁGINA 11
To learn more about DELTA MACHINERY
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
please call 1-800-223-7278 (In Canada call 1-800-463-3582).

2
GENERAL SAFETY RULES
Woodworking can be dangerous if safe and proper operating procedures are not followed. As with all machinery,
there are certain hazards involved with the operation of the product. Using the machine with respect and caution
will considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or
ignored, personal injury to the operator may result. Safety equipment such as guards, push sticks, hold-downs,
featherboards, goggles, dust masks and hearing protection can reduce your potential for injury. But even the best
guard won’t make up for poor judgment, carelessness or inattention. Always use common sense and exercise
caution in the workshop. If a procedure feels dangerous, don’t try it. Figure out an alternative procedure that feels
safer. REMEMBER: Your personal safety is your responsibility.
This machine was designed for certain applications only. Delta Machinery strongly recommends that this machine
not be modified and/or used for any application other than that for which it was designed. If you have any ques-
tions relative to a particular application, DO NOT use the machine until you have first contacted Delta to deter-
mine if it can or should be performed on the product.
Technical Service Manager
Delta Machinery
4825 Highway 45 North
Jackson, TN 38305
(IN CANADA: 505 SOUTHGATE DRIVE, GUELPH, ONTARIO N1H 6M7)
WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY.
1. FOR YOUR OWN SAFETY, READ AND UNDERSTAND THE INSTRUCTION MANUAL BEFORE OPERAT-
ING THE UNIT. Learn the unit’s application and limitations as well as the specific hazards peculiar to it.
2. KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.
3. DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use this unit in damp or wet locations, or expose it to
rain. Keep work area well-lighted.
4. KEEP CHILDREN AND VISITORS AWAY. All children and visitors should be kept a safe distance from work
area.
5. DISCONNECT UNIT before servicing.
6. CHECK DAMAGED PARTS. Before further use of the unit, properly repair or replace any part that is
damaged.

1. DANGER: DO NOT USE THIS UNIT TO FILTER METAL DUST. Combining wood and metal dust can create
an explosion or fire hazard. This unit is intended to filter non-explosive atmospheres only.
2. WARNING: DUST GENERATED BY CERTAIN WOODS AND WOOD PRODUCTS CAN BE HAZARDOUS
TO YOUR HEALTH.
3. WARNING: DO NOT USE THIS UNIT TO DISSIPATE FUMES OR SMOKE. This air cleaner is intended for use
where only dry airborne dust is present. Its use should be limited to non-explosive, non-metallic atmospheres.
4. DO NOT OPERATE THIS UNIT UNTIL IT IS COMPLETELY ASSEMBLED AND INSTALLED ACCORDING TO
THE INSTRUCTIONS.
5. OBTAIN ADVICE FROM YOUR SUPERVISOR, INSTRUCTOR, OR ANOTHER QUALIFIED PERSON if you are
not thoroughly familiar with the operation of this unit.

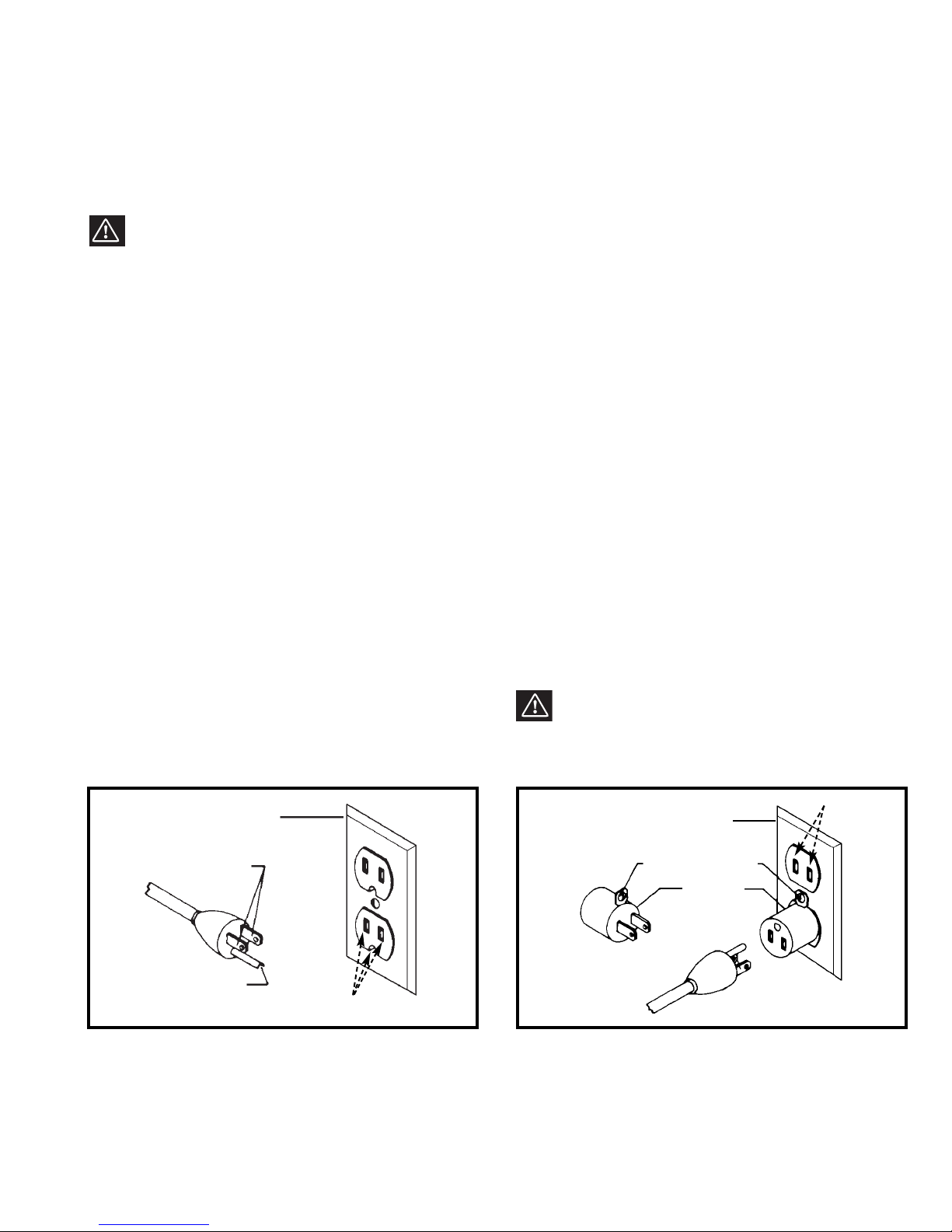

6. FOLLOW ALL WIRING CODES and recommended electrical connections.
7. DO NOT LIFT THIS UNIT BY THE POWER CORD. Do not use the power cord as a hanging device.

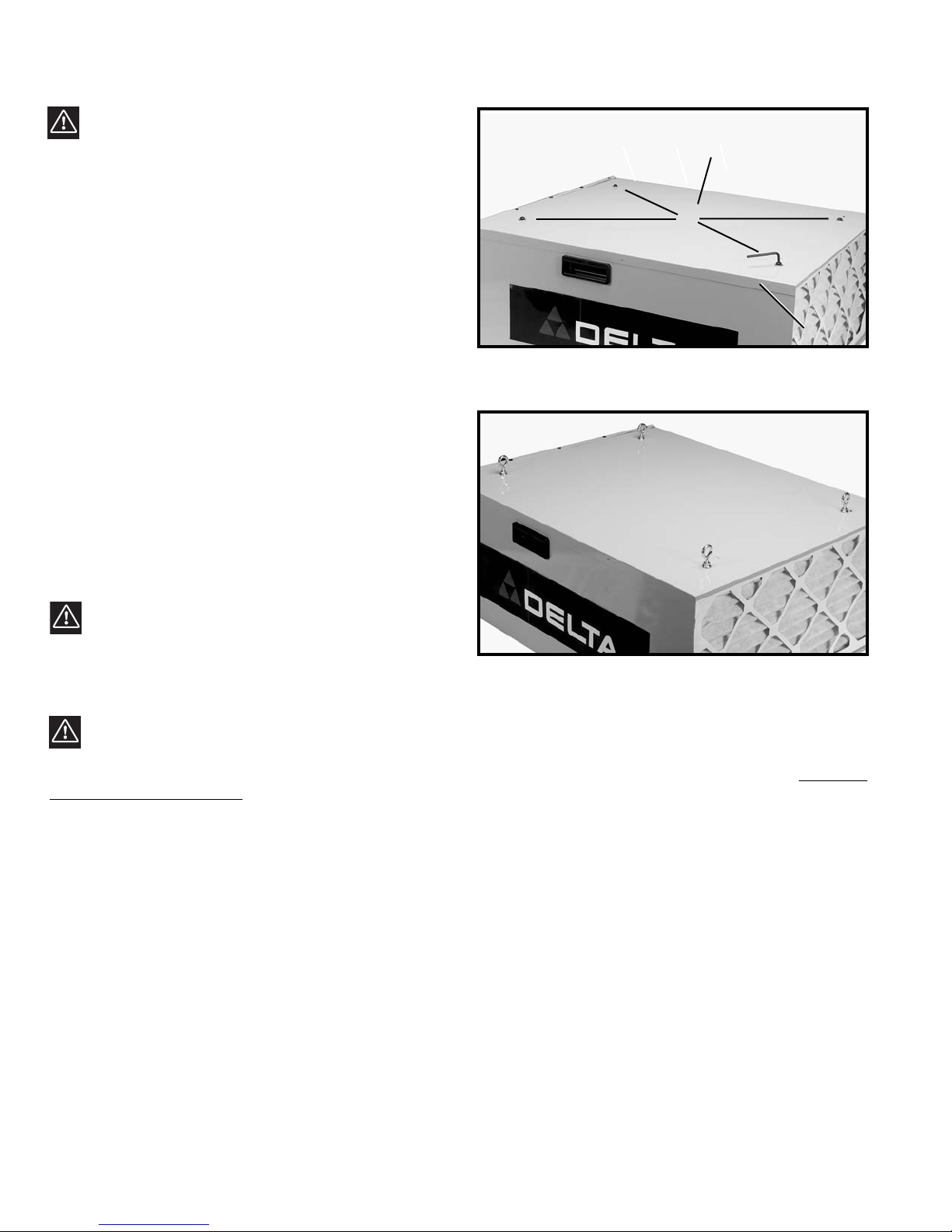

8. SECURELY ANCHOR THIS UNIT INTO A SUPPORTING STRUCTURE when suspending it from the ceiling.
Always keep a minimum of 7 feet between the bottom of the unit and the floor surface to allow for sufficient head
clearance. Use only chain rated for a minimum of 150 lb. working load to adequately hold the unit. Use steel S-
Hooks that are at least 1/4" in diameter to suspend the unit from the ceiling. Lag-type bolts used to suspend the
unit from the ceiling must be threaded at least 1-1/2" into supporting structural members.
9. SUPPORT THIS UNIT OR SECURELY CLAMP IT TO THE WORK SURFACE WHEN IT IS USED IN A PORTABLE
APPLICATION to eliminate potential movement and/or damage from falling.
10. INSURE THAT THE INTAKE AND EXHAUST AREAS ARE CLEAR PRIOR TO STARTING THE UNIT.
11. KEEP ARMS, HANDS, AND FINGERS AWAY FROM THE FAN. Avoid all exposure to rotating parts.
12. DO NOT OPERATE THIS UNIT WITHOUT THE FILTERS IN PLACE.
13. DO NOT ATTEMPT TO REMOVE OR REPLACE THE FILTER(S) WHILE THE UNIT IS RUNNING. Make certain
that the unit is disconnected from the power source.
14. MAINTAIN THE UNIT IN TOP CONDITION. Keep filters clean for optimum performance. Follow all instructions for
changing and cleaning filters.
15. STORE THIS UNIT IN A LOCATION that eliminates the potential of damage to the power cord. Safely store power
cord on the unit to eliminate tripping hazards.
16. TURN THE UNIT “OFF” AND DISCONNECT IT FROM THE POWER SOURCE before installing or removing
accessories, or when making repairs.
3
SAFETY RULES FOR
AIR CLEANERS
READ AND SAVE THESE INSTRUCTIONS.
Refer to them often
and use them to instruct others.

4
INTRODUCTION
Model 50-870 Delta Air Cleaner is specifically designed to quietly circulate and filter non-metallic dust

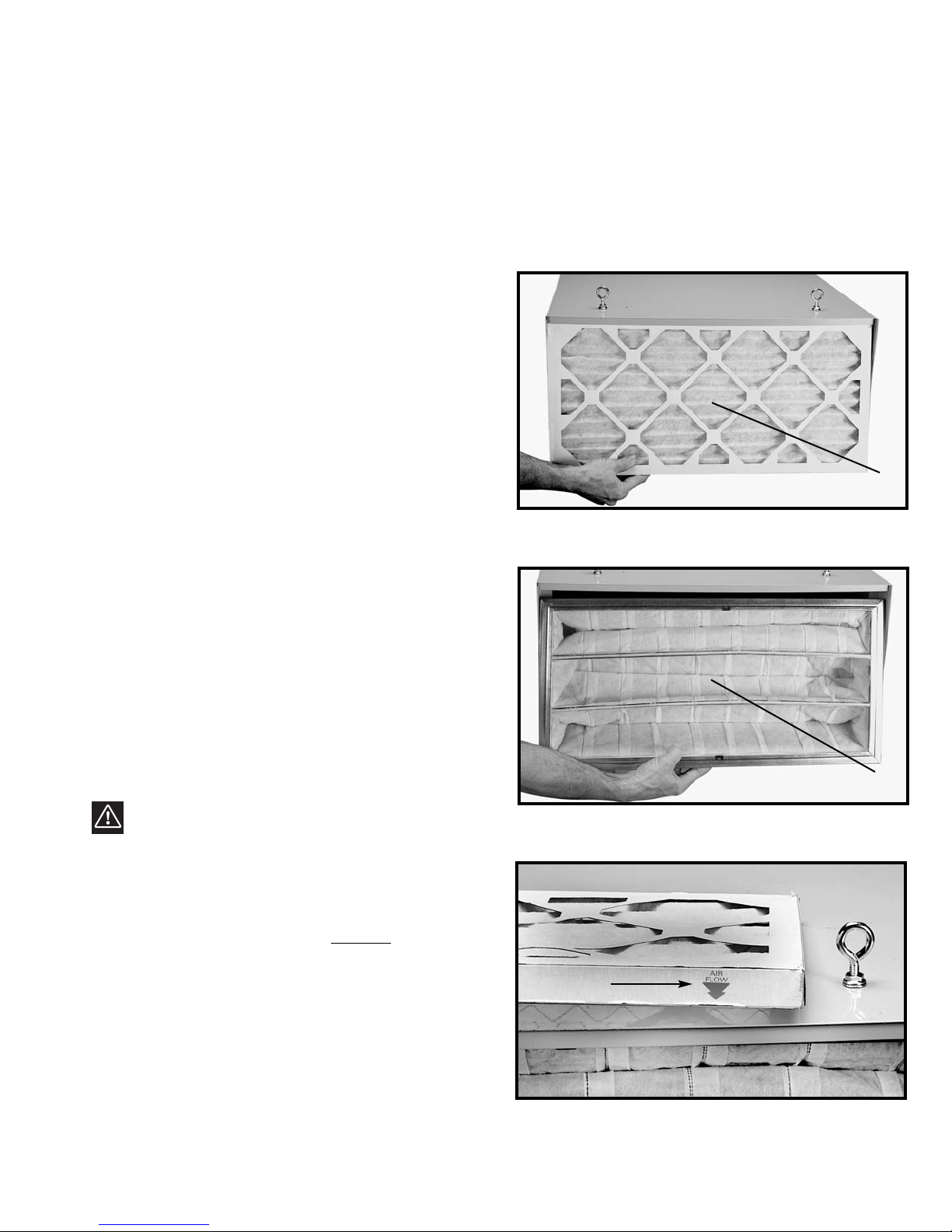

which is generated throughout the work area. The Air Cleaner is furnished with two filters: a disposable
outer filter which filters out larger particles five microns in size; and the secondary filter will capture 91% of
dust particles of one micron in size (one micron = one millionth of a meter). Because breathing microscop-
ic particles can be a potential health hazard, filtering microscopic dust particles offers a cleaner and safer
environment. This Air Cleaner will filter the air in a room measuring 20’ x 20’ x 8’ either 26, 30, or 35 times
an hour, depending on your setting. If desired, multiple units can be used to filter larger areas. The Air
Cleaner is relatively maintenance free. An occasional cleaning and/or replacement of filters is the only
required maintenance.
UNPACKING
The Air Cleaner is shipped complete in one shipping container. Carefully unpack the Air Cleaner and all
loose items from the shipping container. WARNING: DO NOT LIFT THE AIR CLEANER BY POWER
CORD. Fig. 2A illustrates the contents of the container.
Fig. 2A
A - Air cleaner
B - Four 1” eye-bolts
C - Four 1/4-20 flange nuts
D - Four rubber feet

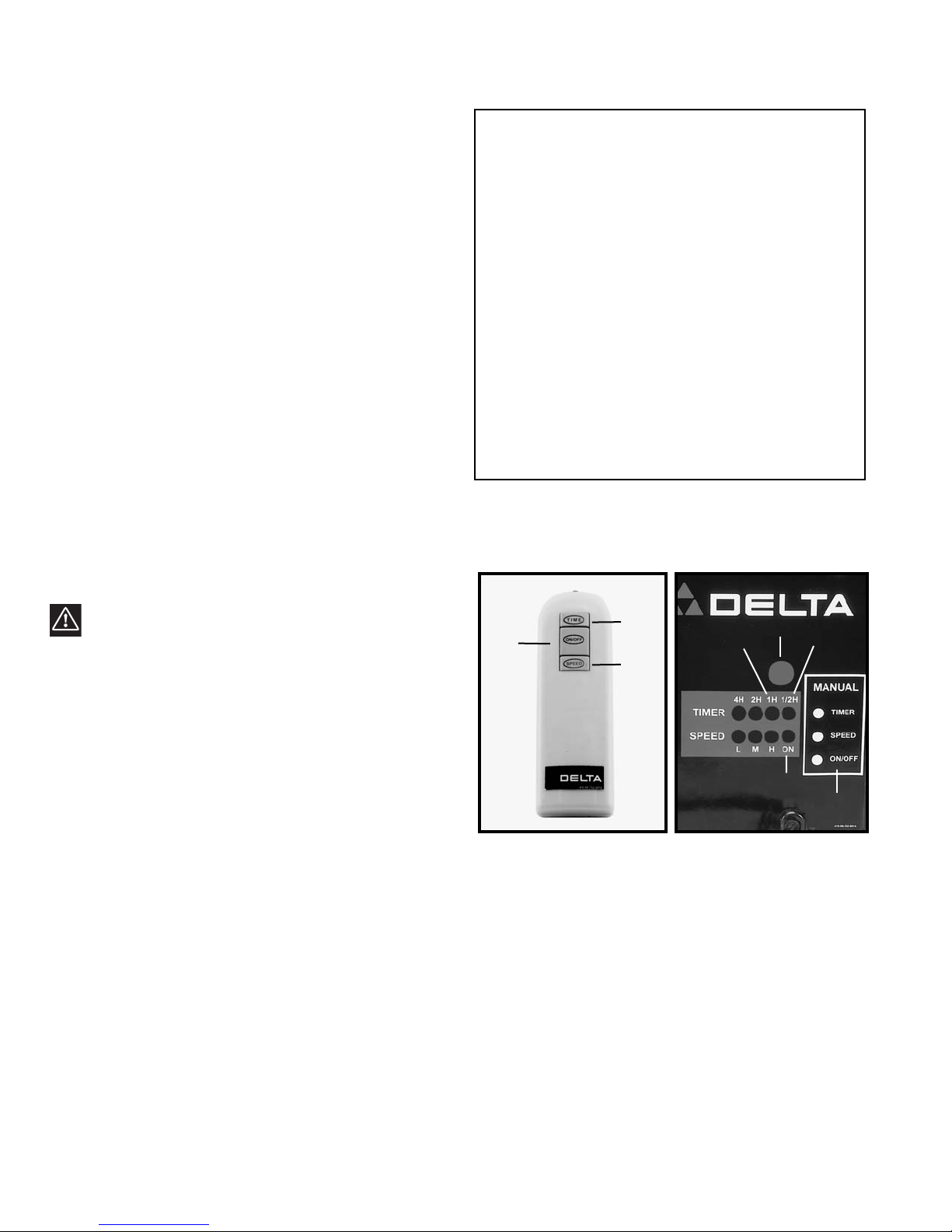

E - Remote Control Unit
Batteries not included)
Bag with twelve #8 screws
(Not shown)
A
B
C
D
Fig. 2B
WARNING: Do not plug unit into power source
prior to performing the following instructions:
1. Remove the four screws (A) Fig. 2B, one on each
side of the rear panel (B).
2. Remove the rear panel (B) Fig. 2B with the blower
housing attached.
3. Remove the cardboard protector (A) from the
blower housing (B) Fig. 2C.
4. Replace the rear panel/blower housing.
5. Secure the back panel to the cabinet with the 4
original screws plus 12 additional #8 pan head screws
(supplied) in the holes provided (A) Fig. 2D.
6. Once these steps have been taken, remove and
discard the warning labels that were attached to both
the rear panel/cabinet (C) Fig. 2B and the end of the
power cord (D).
Fig. 2C
B
A
Fig. 2D
A
A
AAAAA
AAAA
A
A
A
A
A
C
DB
E

5
ASSEMBLY INSTRUCTIONS
Determine whether the Air Cleaner will be used on the floor, on a bench, or hanging from overhead. If the Air
Cleaner will be used as a mobile unit, proceed to “USING THE AIR CLEANER ON A BENCH OR FLOOR
SURFACE” section. If ceiling mounting is desired, proceed to section “MOUNTING THE AIR CLEANER TO A
CEILING OR OVERHEAD SUPPORT.”
IMPORTANT: When determining where to mount the air cleaner, always select a location where the air flow
is unrestricted. Do not locate the unit in a corner or near any heating or cooling vents.
USING THE AIR CLEANER ON A BENCH OR
FLOOR SURFACE
1. Locate four (4) self-adhesive rubber feet (A) Fig. 3
supplied with the unit. Carefully place the air cleaner on
a firm supporting surface with access to the bottom of
the cabinet (Fig. 3). Apply a self-adhesive rubber foot (A)
Fig. 3 to the bottom at each corner of the air cleaner
cabinet. The rubber feet will help eliminate vibration and
will prevent the possibility of the air cleaner “walking”
across the work or floor surface.
For operator safety, clamp the unit to a work bench
or position it securely on sawhorses.
Fig. 3
2. The air cleaner has convenient lifting handles located on both sides of the cabinet (A) Fig. 4. To avoid damage to
the air filters, carry the air cleaner with the filters positioned away from your body. CAUTION: This unit weighs 85
pounds.
Fig.4
A
A
