Delta EN PRO ULTRA 13 21WF Series User manual

OWNER S MANUAL
'
MINI SPLIT SYSTEM
• Thank you for choosing Delta Air Conditioners, please read this owner’s manual carefully before operation
and retain it for future reference.If you have lost the Owner’s Manual, please contact the local agent
or visit www.delta-dct.com or send email to [email protected] for electronic version.
•
Delta HVAC reserves the right to interpret this manual which will be subject to any change due to product
improvement without further notice.
•DCT Inter-America LLC FL USA reserves the final right to interpret this manual.
www.delta-dct.com
EN PRO ULTRA 13
21WF - 31HF Series
21WF 74-035DWC
012C
21WF 74-053DWC
018C
31HF 74-035DGC(3C)
012C
21WF 74-026DWC
009C 31HF 74-026DGC(3C)
009C
31HF 74-053DGC(3C)
018C
21WF 74-070DWC
024C 31HF 74-070DGC(3C)
024C
INDOOR OUTDOOR
MODELS
3

Content
Operation Notices
Precautions............................................................................................................1
Parts name ............................................................................................................4
Screen Operation Guide
Buttons on remote controller .................................................................................5
Introduction for buttons on remote controller.........................................................6
Function introduction for combination buttons.......................................................8
Replacement of batteries in remote controller.......................................................9
Emergency operation ............................................................................................9
Maintenance
Clean and maintenance.......................................................................................10
Malfunction
Malfunction analysis ............................................................................................11
Installation Notice
Installation dimension diagram ............................................................................14
Tools for installation.............................................................................................16
Selection of installation location ..........................................................................16
Requirements for electric connection ..................................................................17
Installation
Installation of indoor unit......................................................................................18
Installation of outdoor unit ...................................................................................22
Vacuum pumping.................................................................................................25
Leakage detection ...............................................................................................25
Check after installation ........................................................................................26
Test and operation
Test operation......................................................................................................26
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Introduction for icons on display screen ................................................................5
Safety precautions for installing and relocating the unit ......................................15
If it needs to install, move or maintain the air conditioner, please contact dealer or local service
center to conduct it at first. Air conditioner must be installed, moved or maintained by appointed
unit. Otherwise, it may cause serious damage or personal injury or death.

WARNING
● This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory ormental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
● Children shall not play with the appliance.
● Cleaning and user maintenance shall not be made by children without
supervision.
● Do not connect air conditioner to multi-purpose socket. Otherwise, it may
cause fire hazard.
● Do disconnect power supply when cleaning air conditioner. Otherwise, it may
cause electric shock.
● If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
● Do not wash the air conditioner with water to avoid electric shock.
● Do not spray water on indoor unit. It may cause electric shock or malfunction.
● After removing the filter, do not touch fins to avoid injury.
● Do not use fire or hair dryer to dry the filter to avoid deformation or fire
hazard.
● Maintenance must be performed by qualified professionals. Otherwise, it
may cause personal injury or damage.
● Do not repair air conditioner by yourself. It may cause electric shock or
damage. Please contact dealer when you need to repair air conditioner.
● Do not extend fingers or objects into air inlet or air outlet. It may cause
personal injury or damage.
● Do not block air outlet or air inlet. It may cause malfunction.
● Do not spill water on the remote controller, otherwise the remote controller
may be broken.
● When below phenomenon occurs, please turn off air conditioner and
disconnect power immediately，and then contact the dealer or qualified
professionals for service.
■ Power cord is overheating or damaged.
■ There’s abnormal sound during operation.
■ Circuit break trips off frequently.
■ Air conditioner gives off burning smell.
■ Indoor unit is leaking.
1
Operation and Maintenance
Precautions

WARNING
Precautions
● If the air conditioner operates under abnormal conditions, it may cause
malfunction，electric shock or fire hazard.
● When turning on or turning off the unit by emergency operation switch,
please press this switch with an insulating object other than metal.
● Do not step on top panel of outdoor unit, or put heavy objects. It may cause
damage or personal injury.
Attachment
● Installation must be performed by qualified professionals. Otherwise, it may
cause personal injury or damage.
● Must follow the electric safety regulations when installing the unit.
● According to the local safety regulations, use qualified power supply circuit
and circuit break.
● Do install the circuit break. If not, it may cause malfunction.
● An all-pole disconnection switch having a contact separation of at least 3mm
in all poles should be connected in fixed wiring.
● Including an circuit break with suitable capacity, please note the following
table.Air switch should be included magnet buckle and heating buckle
function, it can protect the circuit-short and overload.
● Air Conditioner should be properly grounded. Incorrect grounding may cause
electric shock.
● Don't use unqualified power cord.
● Make sure the power supply matches with the requirement of air conditioner.
Unstable power supply or incorrect wiring or malfunction. Please install
proper power supply cables before using the air conditioner.
● Properly connect the live wire, neutral wire and grounding wire of power
socket.
● Be sure to cut off the power supply before proceeding any work related to
electricity and safety.
● Do not put through the power before finishing installation.
● If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
● The temperature of refrigerant circuit will be high, please keep the intercon-
nection cable away from the copper tube.
● The appliance shall be installed in accordance with national wiring
regulations.
● Installation must be performed in accordance with the requirement of NEC
and CEC by authorized personnel only.
2

Working temperature range
Indoor side DB/WB(℃) Outdoor side DB/WB(℃)
Maximum cooling 32/23 43/26
●The operating temperature range (outdoor temperature) for cooling only unit is
18℃~43℃.
NOTICE:
WARNING
3
● The air conditioner is the first class electric appliance. It must be properly
grounding with specialized grounding device by a professional. Please make
sure it is always grounded effectively, otherwise it may cause electric shock.
● The yellow-green wire in air conditioner is grounding wire, which can't be
used for other purposes.
● The grounding resistance should comply with national electric safety
regulations.
● The appliance must be positioned so that the plug is accessible.
● All wires of indoor unit and outdoor unit should be connected by a
professional.
● If the length of power connection wire is insufficient please contact the
supplier for a new one. Avoid extending the wire by yourself.
● For the air conditioner with plug, the plug should be reachable after finishing
installation.
● For the air conditioner without plug, an circuit break must be installed in the
line.
● If you need to relocate the air conditioner to another place, only the qualified
person can perform the work. Otherwise, it may cause personal injury or
damage.
● Select a location which is out of reach for children and far away from animals
or plants.If it is unavoidable, please add the fence for safety purpose.
● The indoor unit should be installed close to the wall.
Precautions

(Display content or position may be different from above
graphics, please refer to actual products)
Parts Name

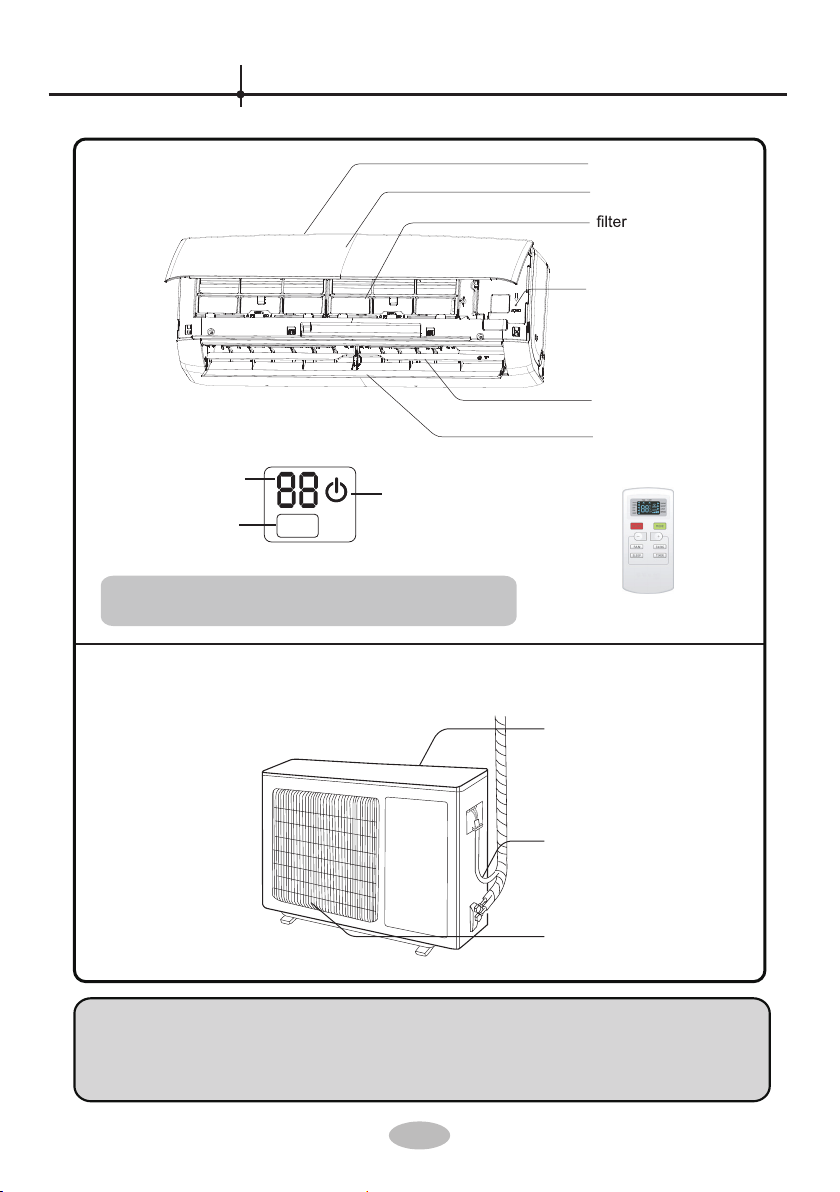

Indoor Unit
Outdoor Unit
air inlet
handle
air outlet
NOTICE:
Actual product may be different from above graphics, please refer
to actual products.
4
(Display content or position may be different from above
graphics, please refer to actual products)
air inlet
panel
aux.button
horizontal louver
air outlet
temp. indicator
power indicator
receiver window
remote control

5
Buttons on remote controller
Introduction for icons on display screen
21
3
4 5
6 7
1
3
5
2
4
6
7
ON/OFF button
MODE button
+/- button
FAN button
SWING button
SLEEP button
TIMER button
Timer on Timer off
Sending signal
swing operation
sleep operation
lock
set speed
Set timeSet temperature
heat operation
fan operation
dry operation
cool operation
auto operation

6
Introduction for buttons on remote controller
Note:
● When power is connected(stand by condition), you can operate the air conditioner
through the remote controller.
● When unit is on, each time you press the button on remote controller, the sending
signal icon " " on the display of remote controller will blink once. If the air con-
ditioner gives out a beep sound, it means the signal has been sent.
● When unit is off, set temperature will be displayed on the remote controller (If the
light of indoor unit display is turned on, the corresponding icon will be displayed);
When unit is on, it will display the icon of the on-going function.
Press this button to turn unit on/off.
ON/OFF button
1
Pressing this button once can select your required mode circularly as below (the
corresponding icon " " will be lit up after the mode is selected):
●
When selecting auto mode, air conditioner will operate automatically according to
ambient temperature. Set temperature can't be adjusted and won't be displayed
either. Press FAN button to adjust fan speed.
● When selecting cool mode, air conditioner will operate under cool mode. Then
press + or - button to adjust set temperature. Press FAN button to adjust fan speed.
● When selecting dry mode, air conditioner will operate at low fan speed under dry
mode. In dry mode, fan speed can't be adjusted.
● When selecting fan mode, air conditioner will operate in fan mode only. Then
press FAN button to adjust fan speed.
● When selecting heat mode, air conditioner will operate under heat mode. Then
press + or - button to adjust set temperature. Press FAN button to adjust fan speed.
(Cooling only unit can’t receive heating mode signal. If set HEAT mode by remote
controller, press ON/OFF button can’t turn on the air conditioner.)
AUTO COOL DRY FAN HEAT(Only for models with heating function.)
MODE button
2
● Pressing + or - button once will increase or decrease set temperature by 1°F(°C).
Hold + or - button for 2s, set temperature on remote controller will change quickly.
Release the button after your required set temperature is reached.
● When setting Timer On or Timer Off, press + or - button to adjust the time. (See
TIMER Button for setting details)
+ / - button
3
● This is a general use remote controller, it could be used for the air conditioners
with multifunction; For some function, which the model doesn't have, if press
the corresponding button on the remote controller that the unit will keep the
original running status.

7
Introduction for buttons on remote controller
Note:
● Under Auto speed, air conditioner will select proper fan speed automatically
according to ambient temperature.
● Fan speed can't be adjusted under Dry mode.

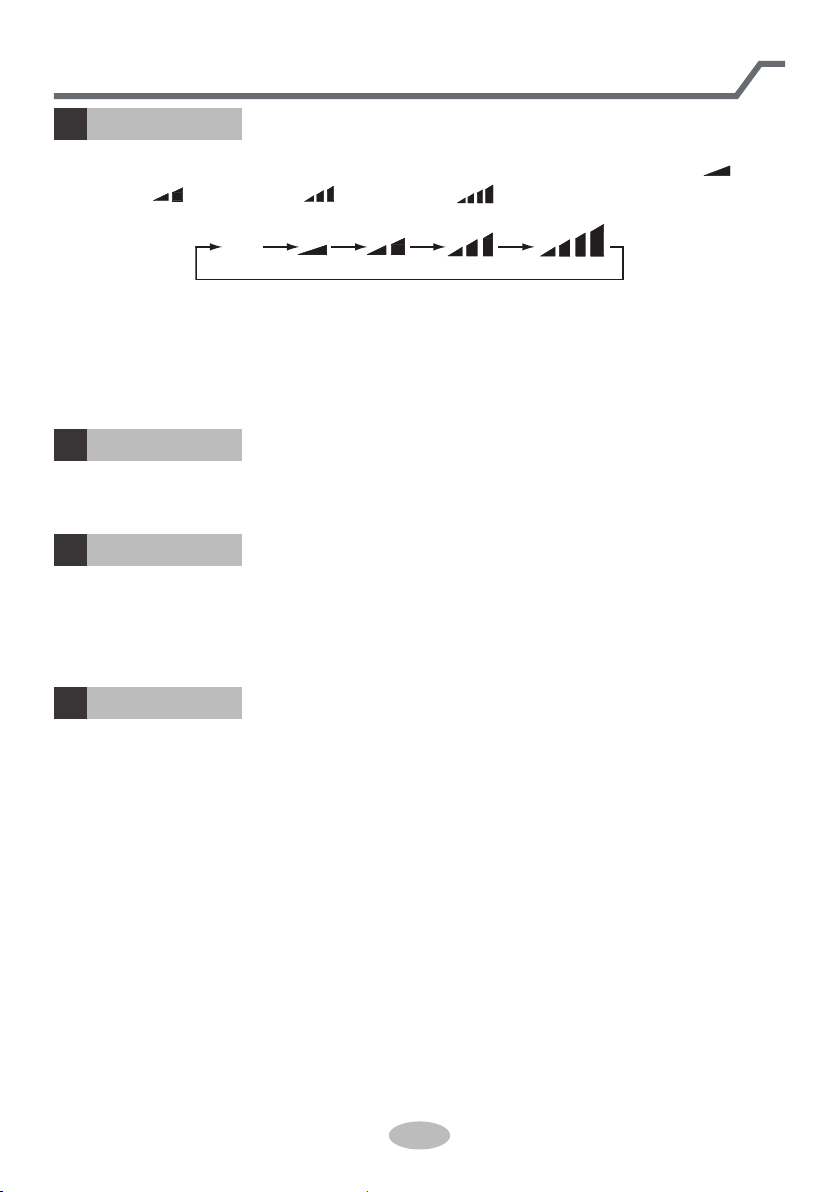

Pressing this button can select fan speed circularly as: AUTO, SPEED 1 ( ),
SPEED 2 ( ), SPEED 3 ( ), SPEED 4 ( ).
AUTO
FAN button
4
Press this button to turn on up&down air swing.
SWING button
5
Under Cool, Heat and Dry mode, press this button to turn on Sleep function. Press
this button to cancel Sleep function. Under Fan and Auto mode, this function is
unavailable.
SLEEP button
6
● When unit is on, press this button to set Timer Off. T-OFF and H icon will be
blinking. Within 5s, press + or - button to adjust the time for Timer Off. Pressing
+ or - button once will increase or decrease the time by 0.5h. Hold + or - button
for 2s, time will change quickly. Release the button after your required set time
is reached. Then press TIMER button to confirm it. T-OFF and H icon will stop
blinking.
● When unit is off, press this button to set Timer On. T-ON and H icon will be
blinking. Within 5s, press + or - button to adjust the time for Timer On. Pressing
+ or - button once will increase or decrease the time by 0.5h. Hold + or - button
for 2s, time will change quickly. Release the button after your required set time
is reached. Then press TIMER button to confirm it. T-ON and H icon will stop
blinking.
● Cancel Timer On/Off: If Timer function is set up, press TIMER button once to
review the remaining time. Within 5s, press TIMER button again to cancel this
function.
TIMER button
7

8
Introduction for buttons on remote controller
Function introduction for combination buttons
Press “+” and “-” buttons simultaneously can turn on or turn off child lock function.
When child lock function is started up, LOCK indicator on remote controller is ON.
If you operate the remote controller, remote controller won’t send signal.
Note:
● Range of time setting is: 0.5~24h
●The interval between two motions can't exceed 5s, otherwise the remote con-
troller will exit setting status.
Child lock function
Light function
Temperature display switchover function
Under OFF status, press “-” button and “MODE” button simultaneously can switch
between °C and °F.
Under switch-on or switch-off state, you may hold "+"and "FAN" buttons
simultaneously for 3 seconds to set the lamp on or off and send the
code. After being energizedthe lamp is defaulted on

9
Operation guide

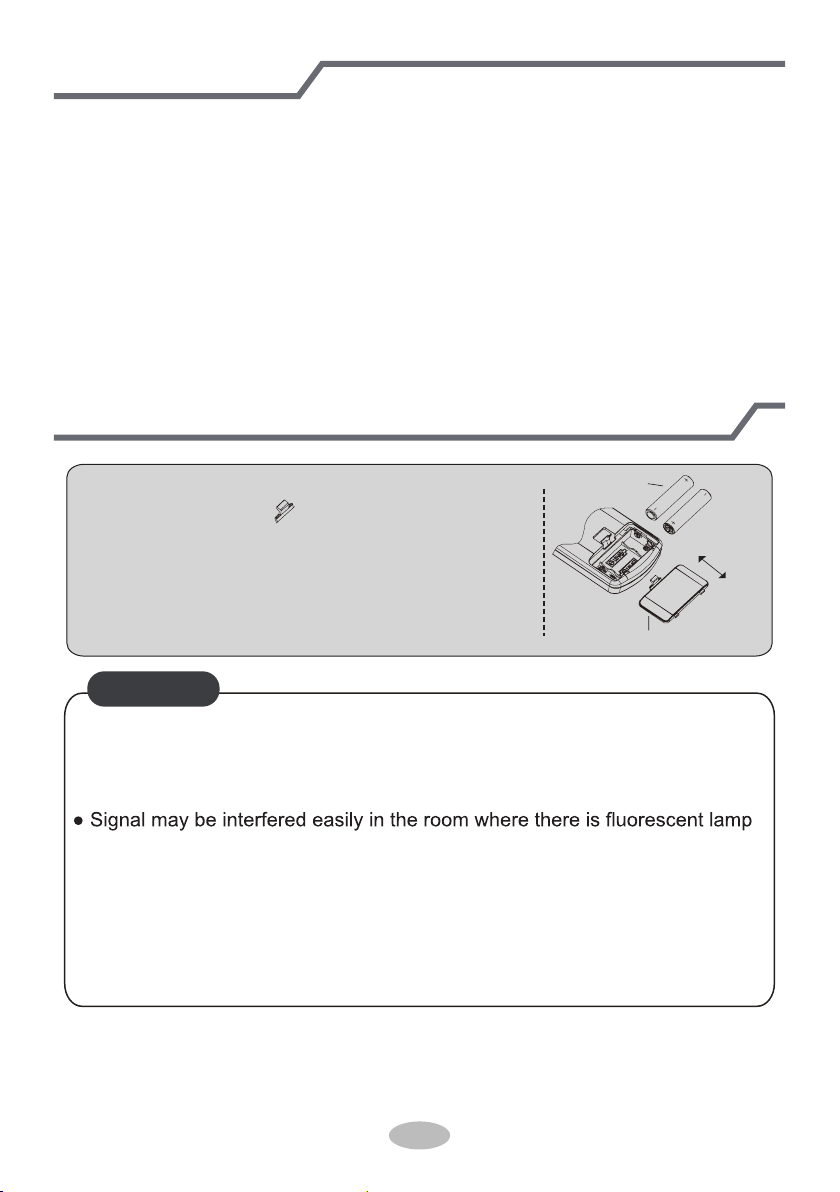

Replacement of batteries in remote controller
● During operation, point the remote control signal sender at the receiving
window on indoor unit.
● The distance between signal sender and receiving window should be no more
than 8m, and there should be no obstacles between them.
or wireless telephone; remote controller should be close to indoor unit during
operation.
● Replace new batteries of the same model when replacement is required.
● When you don’t use remote controller for a long time, please take out the
batteries.
● If the display on remote controller is fuzzy or there’s no display, please
replace batteries.
1. After putting through the power, press "ON/OFF" button on remote controller to
turn on the air conditioner.
2. Press "MODE" button to select your required mode: AUTO, COOL, DRY, FAN,
HEAT.
3. Press "+" or "-" button to set your required temperature. (Temperature can’t be
adjusted under auto mode).
4. Press "FAN" button to set your required fan speed: auto, low, medium and high
speed.
5. Press "SWING" button to select fan blowing angle.
reinstall
remove
battery
cover of battery box
1. Press the back side of remote controller on the
spot marked with " ", and then push out the
cover of battery box along the arrow direction.
2. Replace two No.7 (AAA 1.5V) dry batteries and
make sure the positions of + and- polar are
correct.
3. Reinstall the cover of battery box.
NOTICE

NOTICE: Checking before use-season/Checking after use-season
■ The filter should be cleaned every three months. If there is much dust in the
operation environment, clean frequency can be increased.
■ After removing the filter, do not touch fins to avoid injury.
■Donot use fire or hair dryer to dry the filter to avoid deformation or fire hazard.
WARNING

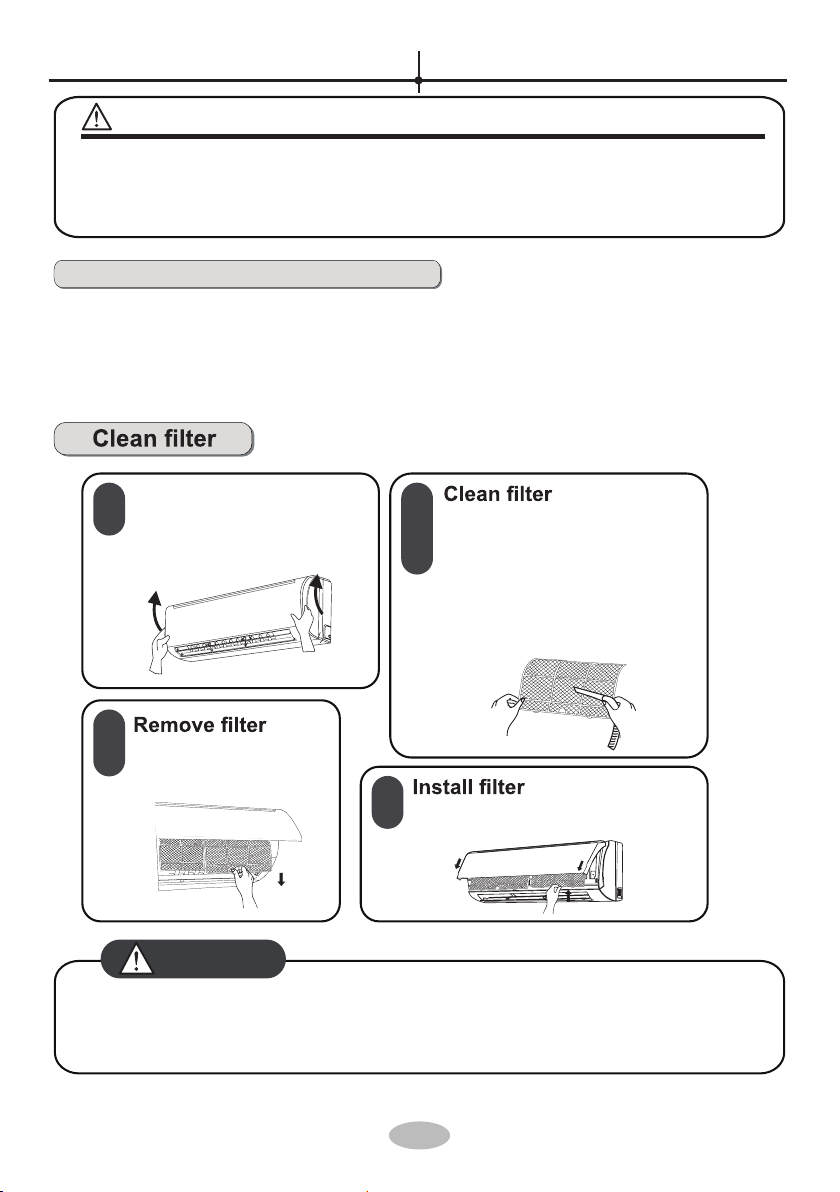

Clean and Maintenance
1
2
3
4
Open panel
Pull out the panelto acertain
angle as shown in the fig.
Remove the filter as in-
dicated in the fig.
● Use dust catcher or water to
clean the filter.
● When the filter is very dirty, use
the water (below 45℃) to clean
it, and then put it in a shady
and cool place to dry.
Install the filter and then close the
panel cover tightly.
10
■Turn off the air conditioner and disconnect the power before cleaning the air
conditioner to avoid electric shock.
■ Do not wash the air conditioner with water to avoid electric shock.
■ Do not use volatile liquid to clean the air conditioner.
Clean surface of indoor unit
When the surface of indoor unit is dirty, it is recommended to use asoft dry cloth
or wet cloth to wipe it.
● Do not remove the panel when cleaning it.
WARNING
NOTICE:

11
Malfunction analysis
General phenomenon analysis
Please check below items before asking for maintenance. If the malfunction still
Phenomenon Check items Solution
Indoor unit
can’t receive
remote
controller’s
signal or
remote
controller
has no
action.
● Whether it's interfered severely
(such as static electricity, stable
voltage)?
● Whether remote controller is
within the signal receiving
range?
● Whether there are obstacles?
● Whether remote controller is
pointing at the receiving
window?
● Is sensitivity of remote contro-
ller low; fuzzy display and no
display?
● No display when operating
remote controller?
● Fluorescent lamp in room?
● Pull out the plug. Reinsert
the plug after about 3min, and
then turn on the unit again.
● Signal receiving range is 8m.
● Remove obstacles.
●
Select proper angle and point
the remote controller at the re-
ceiving window on indoor unit.
● Check the batteries. If the
power of batteries is too low,
please replace them.
●Take the remote controller
close to indoor unit.
and then try it again.
● Check whether remote cont-
roller appears to be damaged.
If yes, replace it.
No air
emitted
from
indoor
unit
●Air inlet or air outlet of indoor
unit is blocked? ● Eliminate obstacles.
● Under heating mode, indoor
temperature is reached to set
temperature?
●After reaching to set temper-
ature, indoor unit will stop bl-
owing out air.
● Heating mode is turned on just
now? ● In order to prevent blowing out cold air, indoor unit will be
started after delaying for sev-
eral minutes, which is a nor-
mal phenomenon.

Malfunction analysis
12
● Power failure?
● Is plug loose?
● Air switch trips off or fuse is
burnt out?
● Wiring has malfunction?
● Unit has restarted immediately
after stopping operation?
● Whether the function setting
for remote controller is
correct? ● Reset the function.
● Wait for 3min, and then turn
on the unit again.
● Ask professional to replace it.
● Ask professional to replace
air switch or fuse.
● Reinsert the plug.
● Wait until power recovery.
Air condit-
ioner can’t
operate
Mist is em-
itted from
indoor unit’s
air outlet
● Indoor temperature and hum-
idity is high?
● Because indoor air is cooled
rapidly. After a while, indoor
temperature and humidity will
be decrease and mist will
disappear.
Phenomenon Check items Solution
Set temper-
ature can’t
be adjusted
● Unit is operating under auto
mode?
● Temperature can’t be adju-
sted under auto mode.
Please switch the operation
mode if you need to adjust
temperature.
● Your required temperature
exceeds the set temperature
range?
● Set temperature range:
16℃~30℃.
Cooling
(heating)
effect is
not good.
V● oltage is too low? ● Wait until the voltage
resumes normal.
● Filter is dirty?
● Set temperature is in proper
range? ● Adjust temperature to proper
range.
● Door and window are open? ● Close door and window.
Odours are
emitted
● Whether there’s odour source,
such as furniture and cigarette,
etc.
● Eliminate the odour source.

■ When below phenomenon occurs, please turn off air conditioner and discon-
for service.
Malfunction analysis
13
Note: If there're other error codes, please contact qualified professionals for service.
Error code
U8/H6/H3/E5
C5/F0/F1/F2
Troubleshooting
It can be eliminated after restarting the unit. If not, please
Error Code
Indoor
display
Error code
Above indicator diagram is only
for reference. Please refer to
actual product for the actual
indicator and position.
● Power cord is overheating or damaged.
● There’s abnormal sound during operation. ● Air switch trips off frequently.
● Air conditioner gives off burning smell. ● Indoor unit is leaking.
■ If the air conditioner operates under abnormal conditions, it may cause
WARNING
● When air conditioner status is abnormal, temperature indicator on indoor unit will
ation of error code.
● Whether there’s inter-
ference, such as thunder,
wireless devices, etc.
● Disconnect power, put back
power, and then turn on the
unit again.
Air conditio-
ner operates
abnormally
Phenomenon Check items Solution
Outdoor
unit has
vapor
● Heating mode is turned on?
● During defrosting under he-
ating mode, it may generate
vapor, which is a normal
phenomenon.
“Water
noise
● Air conditioner is turned on or
turned off just now?
● The noise is the sound of
the unit, which is a normal
phenomenon.
Cracking
noise
● Air conditioner is turned on or
turned off just now?
● This is the sound of friction
caused by expansion and/or
contraction of panel or other
parts due to the change of
temperature.

14
Installation dimension diagram
Drainage pipe
At least 250cm
At least 15cm
At least 50cm
At least 50cm
At least
30cm
At least 300cm
Space to the obstruction
Space to the
obstruction
Space to the
obstruction
Space to the ceiling
Space to the obstruction
Space to the obstruction
At least 30cm
At least 15cm
At least 15cm
Space to the wall
Space to the wall
Space to the wall
At least 200cm

15
To ensure safety, please be mindful of the following precautions.
Warning
When installing or relocating the unit, be sure to keep the refrigerant
circuit free from air or substances other than the specified refrigerant.
Any presence of air or other foreign substance in the refrigerant circuit will cause
system pressure rise or compressor rupture, resulting in injury.
When installing or moving this unit, do not charge the refrigerant which
is not comply with that on the nameplate or unqualified refrigerant.
Otherwise, it may cause abnormal operation, wrong action, mechanical
malfunction or even series safety accident.
When refrigerant needs to be recovered during relocating or repairing the
unit, be sure that the unit is running in cooling mode.Then, fully close the
valve at high pressure side (liquid valve).About 30-40 seconds later, fully
close the valve at low pressure side (gas valve), immediately stop the unit
and disconnect power. Please note that the time for refrigerant recovery
should not exceed 1 minute.
If refrigerant recovery takes too much time, air may be sucked in and cause
pressure rise or compressor rupture, resulting in injury.
During refrigerant recovery, make sure that liquid valve and gas valve are
fully closed and power is disconnected before detaching the connection pipe.
If compressor starts running when stop valve is open and connection pipe is not
yet connected, air will be sucked in and cause pressure rise or compressor
rupture, resulting in injury.
When installing the unit, make sure that connection pipe is securely
connected before the compressor starts running.
If compressor starts running when stop valve is open and connection pipe is not
yet connected, air will be sucked in and cause pressure rise or compressor
rupture, resulting in injury.
Prohibit installing the unit at the place where there may be leaked corrosive
gas or flammable gas.
If there leaked gas around the unit, it may cause explosion and other accidents.
Do not use extension cords for electrical connections. If the electric wire
is not long enough, please contact a local service center authorized
and ask for a proper electric wire.
Poor connections may lead to electric shock or fire.
Use the specified types of wires for electrical connections between the
indoor and outdoor units. Firmly clamp the wires so that their terminals
receive no external stresses.
Electric wires with insufficient capacity, wrong wire connections and insecure
wire terminals may cause electric shock or fire.
Safety precautions for installing and relocating the unit

16
Selection of installation location
Basic requirement
Outdoor unit
Installing the unit in the following pla-
ces maycause malfunction. If it is un-
avoidable, please consult the local
dealer:
1. There should be no obstruction near air
inlet and air outlet.
2. Select a location where the condensat-
ion water can be dispersed easily and
won't affect other people.
3. Select a location which is convenient to
connect the outdoor unit and near the
power socket.
4. Select a location which is out of reach
for children.
5.
The location should be able to withstand
the weight of indoor unit and won't incr-
ease noise and vibration.
6.
The appliance must be installed 2.5m
7. Don't install the indoor unit right above
the electric appliance.
Indoor unit
1.The place with strong heat sources,
,
8. Please try your best to keep way from
fluorescent lamp.
or volatile objects spread in the air.
2.The place with high-frequency
devices (such as welding machine,
medical equipment).
3.The place near coast area.
4. The place with oil or fumes in the air.
5.The place with sulfureted gas.
6.Other places with special circums-
tances.
7.The appliance shall not be install-
ed in the laundry.
will not affect neighborhood.
2. The location should be well ventilated and dry, in which the outdoor unit
Tools for installation
1 Level meter 2 Screw driver 3 Impact drill
4 Drill head 5 Pipe expander 6 Torque wrench
7 Open-end wrench 8 Pipe cutter 9 Leakage detector
10 Vacuum pump 11 Pressure meter 12 Universal meter
13 Inner hexagon spanner 14 Measuring tape
Note: ● Please contact the local agent for installation.
won't be exposed directly to sunlight or strong wind.
3. The location should be able to withstand the weight of outdoor unit.
4. Make sure that the installation follows the requirement of installation
dimension diagram.
5. Select a location which is out of reach for children and far away from animals
or plants.If it is unavoidable, please add the fence for safety purpose.

17
Requirements for electric connection
Safety precaution
Grounding requirement
1. Must follow the electric safety regulations when installing the unit.
air switch.
3. Make sure the power supply matches with the requirement of air conditioner.
Unstable power supply or incorrect wiring or malfunction. Please install proper
power supply cables before using the air conditioner.
4. Properly connect the live wire, neutral wire and grounding wire of power socket.
5. Be sure to cut off the power supply before proceeding any work related to
electricity and safety.
7. If the supply cord is damaged, it must be replaced by the manufacturer, its
8. The temperature of refrigerant circuit will be high, please keep the interconnec-
tion cable away from the copper tube.
9. The appliance shall be installed in accordance with national wiring regulations.
grounding with specialized grounding device by a professional. Please make
sure it is always grounded effectively, otherwise it may cause electric shock.
2. The yellow-green wire in air conditioner is grounding wire, which can't be used
for other purposes.
3. The grounding resistance should comply with national electric safety regulations.
4. The appliance must be positioned so that the plug is accessible.
5. An all-pole disconnection switch having a contact separation of at least 3mm in
6. Including an air switch with suitable capacity, please note the following table. Air
switch should be included magnet buckle and heating buckle function, it can
protect the circuit-short and overload. (Caution: please do not use the fuse only
for protect the circuit)
Air-conditioner Air switch capacity
10A
25A
05 07 09 12K
18K 24K

18
Installation of indoor unit

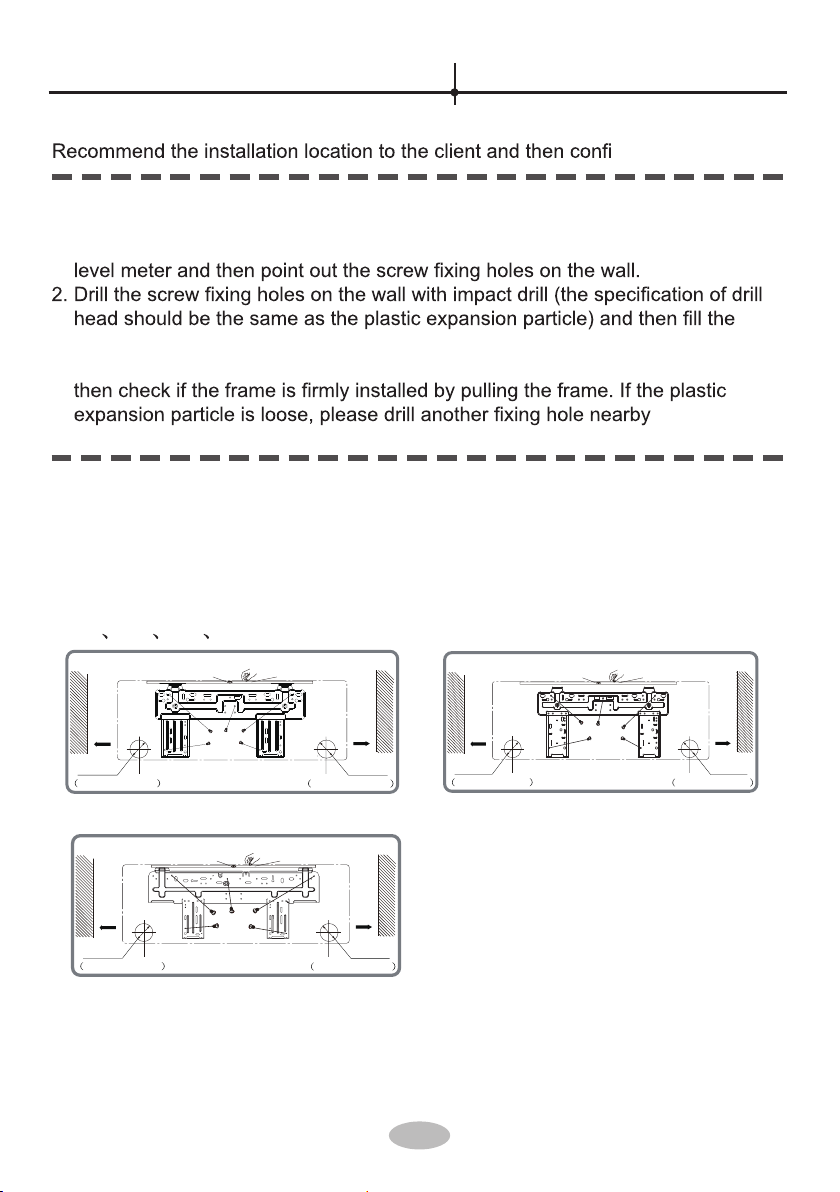

Step one: choosing installation location
Step two: install wall-mounting frame
rm it with the client.
1. Hang the wall-mounting frame on the wall; adjust it in horizontal position with the
plastic expansion particles in the holes.
3. Fix the wall-mounting frame on the wall with tapping screws (ST4.2X25TA) and
.
1. Choose the position of piping hole according to the direction of outlet pipe. The
position of piping hole should be a little lower than the wall-mounted frame,
shown as below.
Step three: open piping hole
2. Open a piping hole with the diamete
cording to actual wall-mounted plate.
Note: Please select the corresponding installation dimensional drawing ac-
r of Φ55 on the selected outlet pipe
position. In order to drain smoothly, slant the piping hole on the wall slightly
downward to the outdoor side with the gradient of 5-10°.
Left
Wall
Φ55mm
Right
Mark in the middle of it Level meter
Rear piping hole
Wall
Space
to the
wall
above
150mm
Space
to the
wall
above
150mm
Φ55mm
Rear piping hole
18K:
Left
Wall
Φ55mm
Right
Mark in the middle of it Level meter
Rear piping hole
Wall
Space
to the
wall
above
150mm
Space
to the
wall
above
150mm
Φ55mm
Rear piping hole
05 07 09 12K:
Left
Wall
Φ55mm
Right
Mark in the middle of it Level meter
Rear piping hole
Wall
Space
to the
wall
above
150mm
Space
to the
wall
above
150mm
Φ55mm
Rear piping hole
24K:
