Delta HECX1P Series User manual

Air Conditioner
Instruction Manual
DELTA ELECTRONICS, INC.
USA
46101 Fremont Blvd, Fremont, CA94538, U.S.A. TEL : [phone]
FAX : [phone]
[e-mail]
Taiwan
252, SHANG YING ROAD, KUEI SAN TEL : [phone]
TAOYUAN HSIEN 333, TAIWAN, R. O. C. FAX : [phone]

Table of Contents
1. Version......................................................................................................1
2. Description ................................................................................................1
2.1 General............................................................................................1
2.2 Specification.....................................................................................1
2.3 Environmental Condition..................................................................2
2.4 Model Identification..........................................................................2
3. Installation.................................................................................................4
3.1 Outline Drawing ...............................................................................4
3.2 Mounting Panel Cutout.....................................................................7
4. Electrical Specification.............................................................................10
4.1 Function List...................................................................................10
4.2 Connection.....................................................................................16
5. Mechanical Feature.................................................................................16
6. Maintenance............................................................................................17
6.1 Maintenance Cycle ........................................................................17
6.2 Replacement..................................................................................18
7. MTBF.......................................................................................................18
8. Safety Compliance ..................................................................................18
9. Packing & Shipping .................................................................................20

Page 1
1. Version
Rev.
Description
Drawn
Approved
Issue date
00
Issue spec.
Mars
CW
201602
2. Description
2.1 General
This document outlines installation and characteristics of Delta HECX1P series
air conditioners. Before installing the unit, please read this manual thoroughly,
and follow the instructions contained within. HECX1P is a DC air conditioner with
48 VDC power input, designed for IP55 sealed outdoor utility cabinets to provide
stable and optimum internal conditions for equipment, and prevent hot spots
inside the cabinet.
2.2 Specification
Model Number
Operating
Temperature
Range oC(oF)
Compressor
Cooling Capacity
W (Btu/hr)
Dimension HxWxD
mm (inch)
Rated
Voltage (V)
Weight
Kg (lb)
1
HEC0500PA
- 10 to + 55
( 14 to + 131)
DC
Compressor
500 (1700)
545 x 315 x 170
(21.5 x 12.4 x 6.7)
48 VDC
16 (35.3)
2
HEC0700PA
700 (2380)
3
HEC0800PB
800 (2720)
700x500x200
(27.6 x 19.7 x 7.9)
28 (61.7)
4
HEC1000PB
1000 (3400)
5
HEC1200PB
1200 (4080)
6
HEC1500PB
1500 (5100)
7
HEC0800PC
800 (2720)
796 x 383 x 160
(31.3 x 15.1 x 6.3)
25 (55.1)
8
HEC1000PC
1000 (3400)
9
HEC1200PC
1200 (4080)

Page 2
2.3 Environmental Condition
Description
Specification
Operating temperature
-10°C ~ +55°C (14°F ~ 131°F)
Storage temperature
-40°C ~ +70°C (-40°F ~ 158°F)
Humidity
External air circuit: 0 ~ 100% RH
Internal air circuit: 0 ~ 90% RH,
Non-condensing
Ingress protection level
IEC60529 IP55 on external side
2.4 Model Identification
Model number logic is as follows:
HEC 0500 P A
1 2 3 4
1. Product Code
HEX
Air to Air Heat Exchanger
HET
ThermoElectric Cooler
HEC
Compressor Air Conditioner
HEH
Heater
HEL
Siphon (Liquid - Air)
2. Cooling Capacity
0500
W
0800
W
1000
W
1200
W
1500
W
3. Operation Voltage
A
AC 110 V for door
B
AC 220V for door
C
AC 110 V for roof

Page 3
D
AC 220V for roof
E
AC 110V for door + heater
F
AC 220V for door + heater
G
AC 110V for roof + heater
H
AC 220V for roof + heater
I, J, K, L, M, N
AC other
P
DC 48V for door
Q
DC 48V for roof
R
DC 48V for door + AC 110V heater
S
DC 48V for door + AC 220V heater
T
DC 48V for roof + AC 110V heater
U
DC 48V for roof + AC 220V heater
V
DC 24V
W
DC 12V
X, Y, Z
DC other
4. Edition
A
First
B
Second
C
Third

Page 4
3. Installation
3.1 Outline Drawing

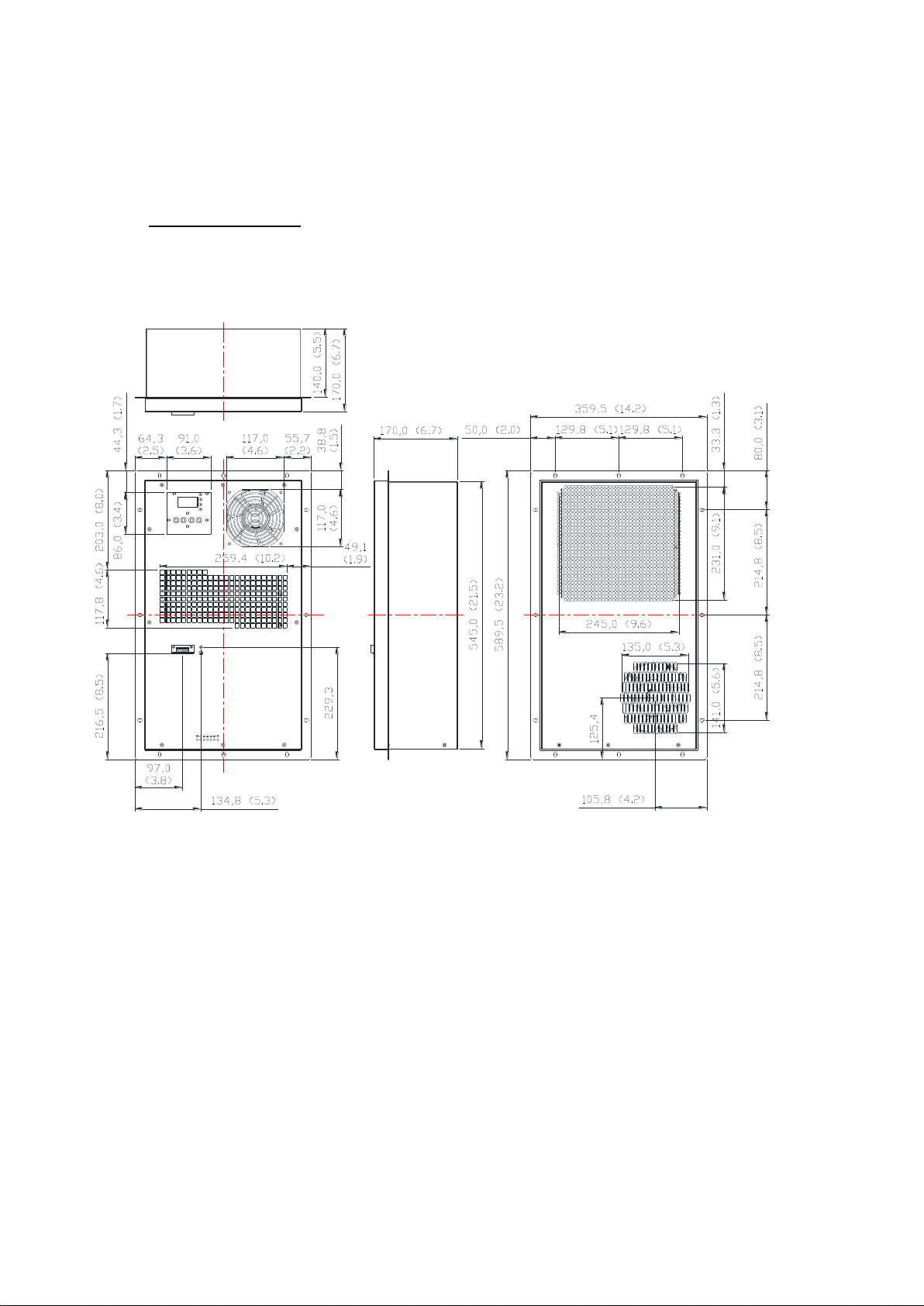

HEC0500/0700PA
(1) Material : Case SGCC Sheet
(2) Finish : Power paint 75~120um,
(3) Color : RAL 7035
(4) Dimension tolerance:
X.X [X.XX] : ± 1.0mm [0.04”]
X.XX [X.XXX] : ± 0.3mm [0.012”]
mm (inch)

Page 5
HEC0800/1000/1200/1500PB
(1) Material : Case SGCC Sheet
(2) Finish : Power paint 75~120um,
(3) Color : RAL 7035
(4) Dimension tolerance:
X.X [X.XX] : ± 1.0mm [0.04”]
X.XX [X.XXX] : ± 0.3mm [0.012”]
mm (inch)
?
?

Page 6

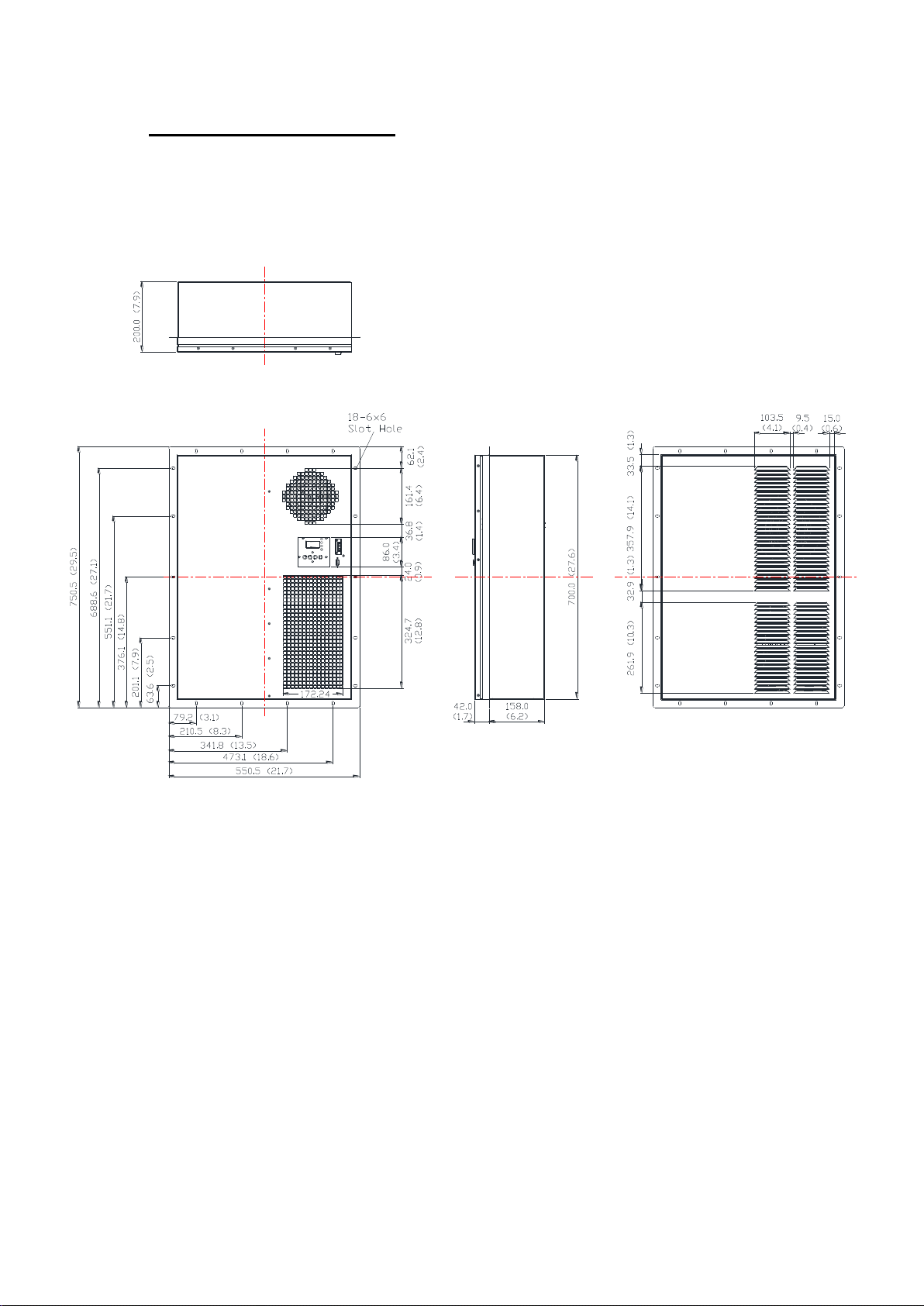

HEC0800/1000/1200PC
(1) Material : Case SGCC Sheet
(2) Finish : Power paint 75~120um,
(3) Color : RAL 7035
(4) Dimension tolerance:
X.X [X.XX] : ± 1.0mm [0.04”]
X.XX [X.XXX] : ± 0.3mm [0.012”]
mm (inch)

Page 7
3.2 Mounting Panel Cutout

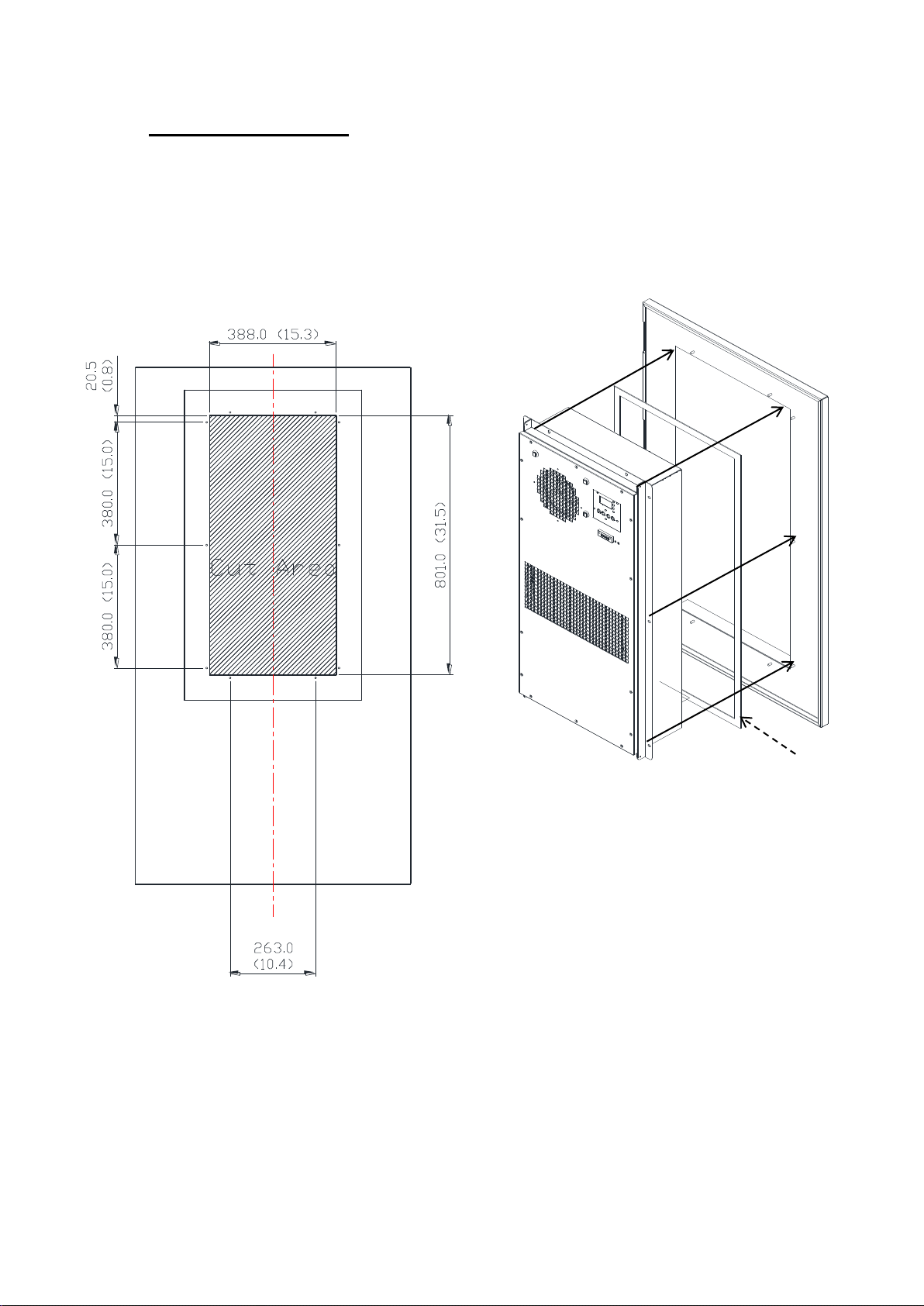

HEC0500/0700PA
Outside
Inside
Gasket
CL

Page 8
HEC0800/1000/1200/1500PB
Inside
Outside
Gasket
?

Page 9
HEC0800/1000/1200PC
Outside
Inside
Gasket
CL

Page 10
4. Electrical Specification
4.1 Function List
Part No.
Rated
Voltage
Cooling
Capacity
Cooling
Current
(L35/L35)
Display
/LED
Indication
Self-test
botton
Alarm
contact
Thermal
protection
HEC0500PA
DC 48V
500W
3.5A
Y
Y
Y
Y
HEC0700PA
DC 48V
700W
6.4A
Y
Y
Y
Y
HEC0800PB
DC 48V
800W
3.9A
Y
Y
Y
Y
HEC1000PB
DC 48V
1000W
5.6A
Y
Y
Y
Y
HEC1200PB
DC 48V
1200W
7.3A
Y
Y
Y
Y
HEC1500PB
DC 48V
1500W
12.5A
Y
Y
Y
Y
HEC0800PC
DC 48V
800W
3.8A
Y
Y
Y
Y
HEC1000PC
DC 48V
1000W
5.5A
Y
Y
Y
Y
HEC1200PC
DC 48V
1200W
8.2A
Y
Y
Y
Y

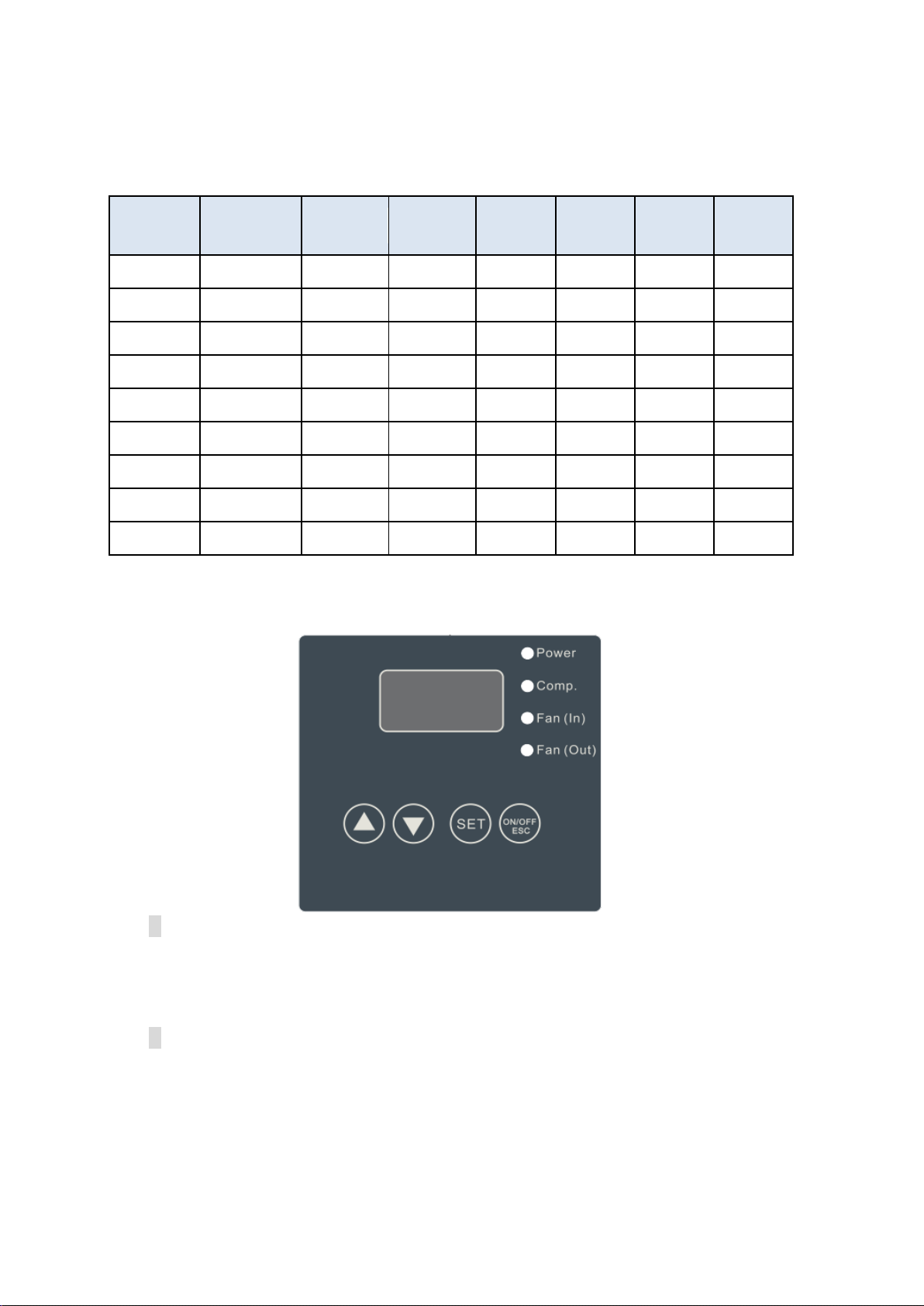

Panel Operation
A: Display:
Indicates the temperature inside the cabinet or system parametric setup.
B: LED indicator:
Power:
When the system powers on, the LED will be solid green.
A
B
C

Page 11
If LED indicates alarm, the number of flashes helps identify root
cause.
Comp.:
When the compressor is running normally, the LED will be solid
green.
If the system goes into self-test mode, the LED will flash green.
Fan (In):
When the inner fan is running normally, the LED will be solid green.
Fan (Out):
When the outer fan is running normally, the LED will be solid green.
C: Touchpad controls:
↑: UP or increase
↓: DOWN or decrease
SET: Parametric setup
ON/OFF ESC: Power on/off or back
System Alarm Default Setup

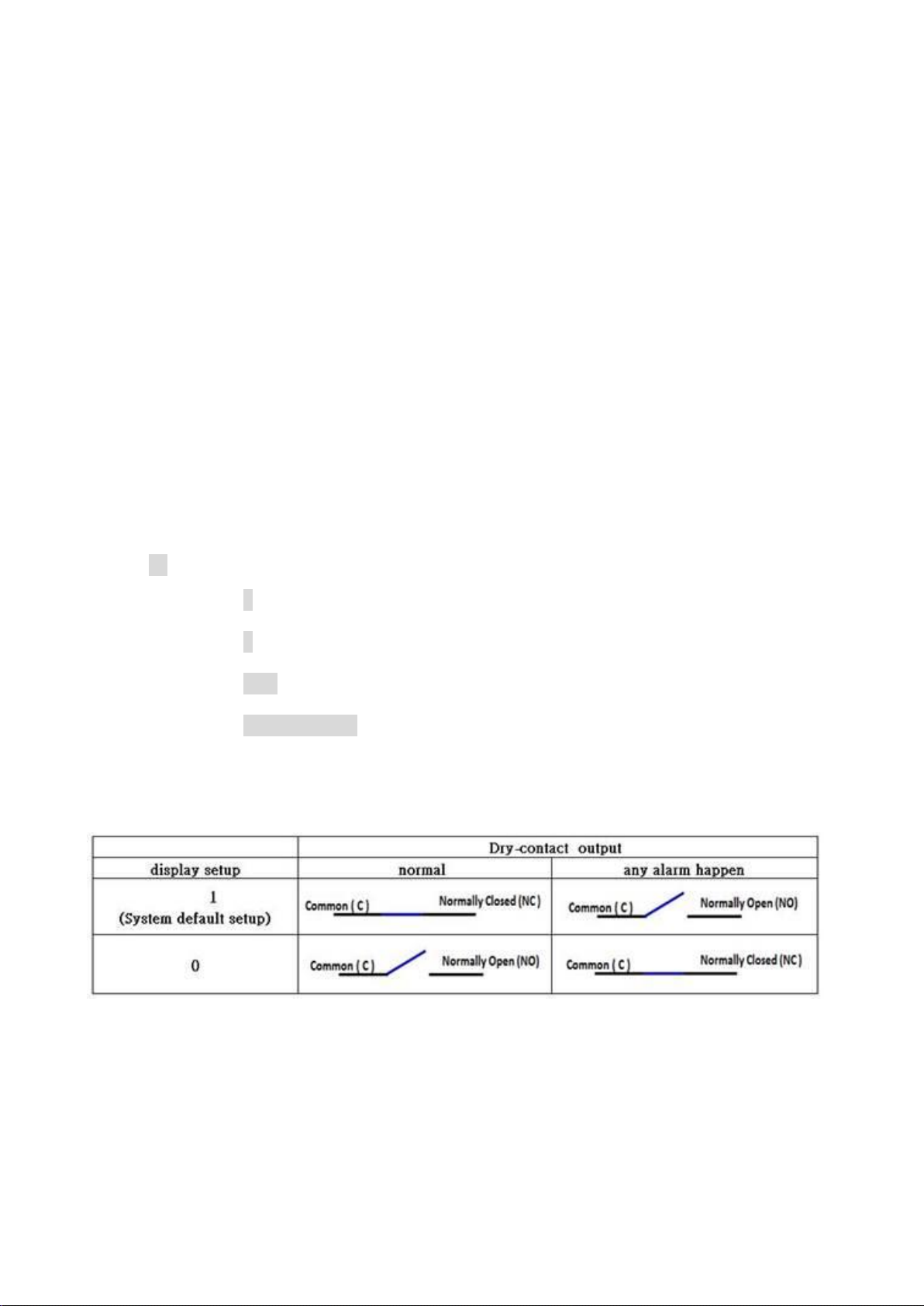

Note: Operator can set N.O or N.C when alarm is indicated on the display board.
(d1.6 Dry-contact Setup).
•Specification:
Contact rating: 60 Vdc, 100mA
•Normal :

Page 12
COM. and N.C(or N.O) PIN dry contact output close
•Any alarms happening :
COM. and N.C(or N.O) dry contact output open

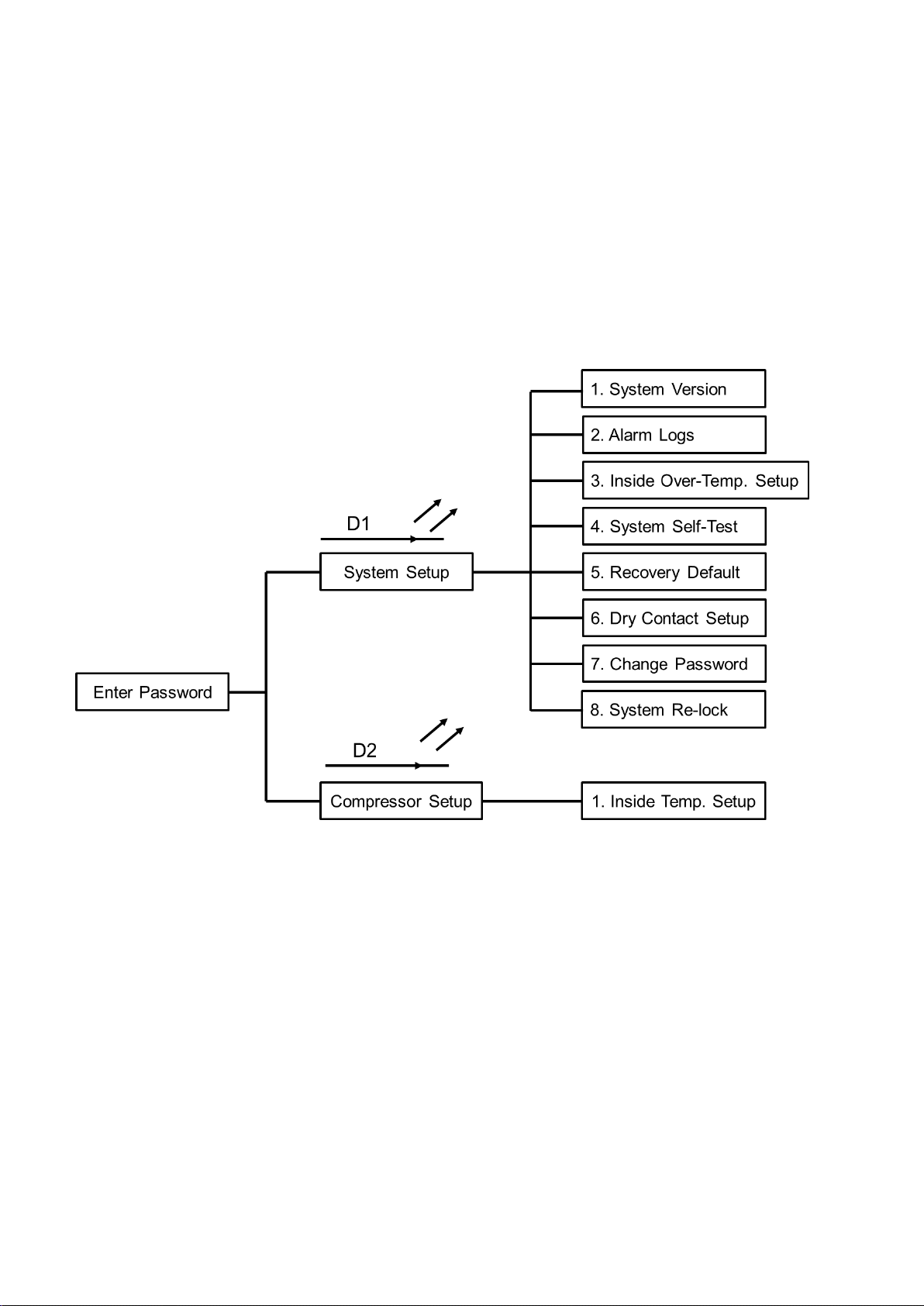

Parametric Setup

Page 13
System Default Setup
Item
System Parameter
Default
Range
d1.3
Inside over-temp. Setup
60oC
40oC- 70oC
d1.4
Auto Self Test Function
Enable
Enable/Disable
N/A
Auto Self Test Period
1 Month
1 Month - 6 Month
d1.6
Photo Coupler Normal Status
Close
Close/Open
d1.7
Password
000
000~999
d2.1
Target temperature
30oC
25 oC- 40oC
Self-Test
1. Press the SET button to enter parametric setup mode.
2. Enter the correct password into the 7-digit display and press SET button; display
shows d01. (Default password: 000)
3. Press SET button to enter detailed parametric setup.
4. Press UP button to choose d1.4, then press SET button to execute auto self-test.
5. If system goes into self-test mode, Comp. LED will flash green.
6. Auto self-test duration is about five minutes, exlusive of three-minute compressor
test.
7. The test process checks that EEPROM, NTC sensor, inner fan, outer fan and
compressor are running correctly.
8. Watch for any alarm during test process. In case of alarm, note number of
flashes to help identify root cause.

Page 14
Alarm Logs
Flash Times
(Power Led)
LV1 Alarm
LV2 Alarm
Alarm Code
--
--
Compressor 3-min
Protection
--
--
Compressor Power
Protection
--
--
Low-Temp Startup
Protection
--
2
Temperature Abnormal
Alarm
Eva Temperature Protection
2.1
Comp-out Temperature
Protection
2.2
PWB Temperature
Protection
2.3
IPM Temperature Protection
2.4
Amb Temperature
Protection
2.5
3
Temperature Sensor
Fault
Amb Temperature Sensor
3.1
Eva Temperature Sensor
3.2
Cond Temperature Sensor
3.3
Comp-Out Temperature
Sensor
3.4
PWB Temperature Sensor
3.5
IPM Temperature Sensor
3.6
4
Fan Fault
Indoor Fan
4.1
Outdoor Fan
4.2
5
Controller Fault
EEPROM
5.1
Current Sensor
5.2
DC-Bus Voltage
5.3
6
Cooling System Fault
Power Board
6.1
Startup Fail
6.2
IPM Over Current
6.3
Compressor Lack Phase
6.4

Page 15
Fault Analysis and Processing
Fault State
Analysis of the Reasons
Solutions
Power on, and the
cabinet temperature
is too high but the
air conditioner is not
working
•Power failure or no
power.
•The target temperature is
higher than inside
temperature.
•System failure.
•Check the power supply and
the electric circuit.
•Re-set the target temperature
according to the system
requirement.
•Please contact Delta or
authorized Delta service
agent.
The air conditioner
is running but the
cabinet temperature
is still high, no
obvious cooling
effect.
•The air conditioner
capacity is not match the
load of the system.
•The ambient
temperature is too high.
•Low efficiency of the
condenser.
•Other system failure
•Check the heating load of the
system.
•Ensure the air conditioner is
operating in correct
temperature range.
•Clean the condenser.
•Please contact Delta or
authorized Delta service
agent.
The air conditioner
stop operating, and
there is no alarm
signal.
•The inside temperature
is lower than the target
temperature.
•Other system failure.
•Re-set the target temperature
according to the system
requirement.
•Please contact Delta or
authorized Delta service
agent.

Page 16
4.2 Connection
Power and Alarm Contact Connection
HEC0800PB,HEC1000PB,HEC1200PB,HEC1500PB
•Power Supply Connector
Pin
Description
Cable wire size
1
+
2.5 mm2(14 AWG)
2
-
2.5 mm2(14 AWG)
•Alarm Connector
Pin
Description
Cable wire size
3
Alarm+
COM.( 24 AWG)
4
Alarm-
N.C or N.O( 24 AWG)
HEC0800PC,HEC1000PC,HEC1200PC,HEC0500PA,HEC0700PA
•HECX1PC Power Supply & Alarm Connector
Pin
Description
Cable wire size
1
+
2.5 mm2(14 AWG)
2
-
2.5 mm2(14 AWG)
3
N/A
N/A
4
Alarm+
COM.( 24 AWG)
5
Alarm-
N.C or N.O( 24 AWG)
5. Mechanical Feature
Thermal Path and Airflow Baffle
Internal and external air flow circulation is shown in below diagram. Counterflow
design prevents mixing of internal and external air flows, but waste heat can still
be dissipated from cabinet to the ambient outside air. An internal temperature
sensor has been placed in the return air stream to provide reliable temperature
measurement, and for safe operation.
Pin1
Pin5
+
-
+
-

Page 17
The heated air inside the cabinet will be cooled by the evaporator. Waste heat
absorbed by the refrigerant will be dissipated through the condenser at the
external side.
HEC0500/0700PA, HEC0800/1000/1200/PC HEC0800/1000/1200/1500PB
6. Maintenance
SHUT DOWN the power before performing regular maintenance or component
replacement.
6.1 Maintenance Cycle
Use a brush and low pressure air to remove any dust or debris in the air inlet and
air outlet openings. Suggested maintenance cycle is indicated in the table below:
Check Item
Step Description
Maintenance Cycle
Wiring
Visually check if the wiring is loose
12 months
Fan
abnormalities
Turn the fan to check for smooth rotation
and for any abnormal noise
12 months
Drainage
pipe
Visually check if the drainage opening is
blocked
6 months
Condenser
Check the cleanliness of the condenser, and
clean it with compressed air
6 months

Page 18
6.2 Replacement
In case of abnormal operation, consult Delta or an authorized Delta service agent
for assistance.
7. MTBF
The L10 Fan expected service life is to be at least 100,000 hours continuous
operation at 40°C with 15 ~ 65% RH @ label rated voltage and cooling.
8. Safety Compliance
General Warning & Safety Information
Please read the safety notes carefully before installing the air conditioner, and be
sure to install it correctly. After completing installation, check that the unit
operates properly during start-up operation.
Meaning of WARNING and CAUTION notices:
Warning:
Failure to follow these instructions properly may result in personal injury or
loss of life.
Caution:
Failure to observe these instructions properly may result in property damage
or personal injury, which may be serious depending on the circumstance.
