Delta PMC-24V100W1AB User manual

Instruction Manual PMC-24V100W1AB
1. Safety instructions
To ensure sufficient convection cooling, always maintain a safety
distance of >20mm from all ventilated surfaces while the device is in
operation.
The device is not recommended to be placed on low thermal
conductive surface, for example, plastics.
Note that the enclosure of the device can become very hot
depending on the ambient temperature and load of the power supply.
Do not touch the device while it is in operation or immediately after
power is turned OFF. Risk of burning!
Do not touch the terminals while power is being supplied. Risk of
electric shock.
Prevent any foreign metal, particles or conductors to enter the device
thro ugh the o pe nings during installati on. It can ca us e: -
- E l e c t ri c s h o c k ; S a fe t y H a z ar d ; F i r e ; P r o d u c t f a i l ur e
Warning: When connecting the device, secure Earth connection
before connecting L and N. When disconnecting the device, remove
L and N connections before removing the Earth connection.
2. Device descriptions
Refer to Fig.1.:
1Input & Output terminal block connector
2DC voltage adjustment potentiometer
3DC OK control LED (green)
3. Connection (Fig. 1)
The terminal block connector allows easy and fast wiring. A plastic cover provides
additional isolation for the electrical connection.
4. Mounting
Refer to Fig. 2.:
A Mounting holes for power supply assembly onto the mounting surface.
Power supply shall be mounted on minimum 2 mounting holes using M3
screw minimum 5mm length.
B This surface belongs to customer’s end system or panel where the
power supply is mounted.
C Connector
Use flexible cable (stranded or solid), AWG no. 22-12. The torque at the
Connector shall not exceed 13Kgf.cm The insulation stripping length
should not exceed 0.275″ or 7mm Refer to Fig. 3.
5. Installation of Mounting Accessories
Only use M3 screw < 6mm through the base mounting holes. This is to
keep a safety distance between the screw and internal components.
Refer to Fig. 4.:
Recommended mounting tightening torque : 4~8Kgf.cm
Fig. 1. Device Descriptions
www.deltapsu.com
Fig. 4. Mounting Screw
Fig. 2. Mounting Orientation
Side Mounting (Vertical)
Base Mounting (Vertical)
Side Mounting (Horizontal)
Fig. 3. Wire Type
Lug
Stripped wire
REV.01
All manuals and user guides at all-guides.com
使用說明書
1. 安全規範
與通風表面保持至少 20mm 的安全距離,以確保對流冷卻充分。
本產品不適合擺放在低熱導體,例如:塑膠。
受環境溫度及產品負載的影響,本機外殼溫度會很高,因 此在上電時或切
斷電源後短時間內不要觸摸本機,以免燙傷。
請勿在上電時觸摸連接端子,以防電擊危險。
安裝過程中,應避免金屬元件或金屬導體通過空隙或通風孔進入到產品
內,否則會引起下列狀況。
-電擊 ; 安全危害 ; 火災 ; 產品異常
警告:在連接產品電源供應時,產品必須先接地然後才接L和N。
當要解開電源供應時,必須先把L和N解開然後才把接地解開。
2. 產品外觀介紹
依據圖一:
1 輸入/輸出連接端子
2直流電壓調節電位器
3 直流電控制 OK 指示燈 (綠色)
3. 電纜聯結方式
設備配有終端块連接器。可讓設備快速連接或隔離。
使用之塑料蓋使電線連接處完全隔離。
4. 產品固定方式
依據圖二:
A 在把產品安裝在固定表面時,將螺絲鎖入此固定孔. 產品應該用長度至少
5 mm 的M3 螺絲鎖入至少兩個固定孔。
B 此固定表面為客戶系統表面。
C 輸入/輸出連接端子。
電線的設計可使用多股或實心,AWG no.22-12。扭矩不應該超過 13Kgf.cm
剝線的長度不應該超過 0.275″ 或者 7mm 依據圖 三
5. 配件組合安裝
在把配件裝上產品時,請使用長度不超過 6mm 的M3 螺絲鎖入產品底面的
固定孔。 這是為 了確保螺絲和內部元件間有足夠的絕緣距離。
依據圖四:
建議配件固定螺絲扭矩為 4~8Kgf.cm
使用说明 PMC-24V100W1AB
1. 安全规范
与通风表面保持至少 20mm 的安全距离,以确保对流冷却充分。
本产品不适合摆放在低热导体,例如:塑胶。
受环境温度及产品负载的影响,本机外壳温度会很高,因此在上电时或切
断电源后短时间内不要触摸本机,以免烫伤。
请勿在上电时触摸连接端子,以防电击危险。
安装过程中,应避免金属元件或金属导体通过空隙或通风孔进入到产品
内,否则会引起下列状况。
-电击;安全危害;火灾;产品异常
警告:在连接产品电源供应时,产品必须先接地然后才接L和N。
当要解开电源供应时,必须先把L和N解开然后才把接地解开。
2. 产品外观介绍
依据图一:
1输入/输出连接端子
2直流电压调节电位器
3直流电控制 OK 指示灯(绿色)
3. 电览连接方式
设备配有终端块连接器。可让设备快速连接或隔离。
使用之塑料盖使电线连接处完全隔离 。
4. 产品固定方式
依据图二:
A 在把产品安装在固定表面时,将螺丝锁入此固定孔.产品应该用长度至少
5mm 的M3 螺丝锁入至少两个固定孔。
B 此固定表面为客户系统表面。
C 输入/输出连接端子。
电线的设计可使用多股或实心,AWG no.22-12。扭矩不应该超过 13Kgf.cm
剥线的长度不应该超过 0.275″或者 7mm 依据图三
5. 配件组合安装
在把配件装上产品时,请使用长度不超过 6mm 的M3 螺丝锁入产品底面的
固定孔。 这是为了确保螺丝和内部元件间有足够的绝缘距离。
依据图四:
建议配件固定螺丝扭矩为 4~8Kgf.cm
www.deltapsu.com
REV.01
All manuals and user guides at all-guides.com

Other Delta Power Supply manuals

Delta PMR-V320WD Series User manual

Delta

Delta PMR-V320WD Series User manual

Delta LZ-8P/R19 User manual

Delta

Delta LZ-8P/R19 User manual

Delta A9000 User manual

Delta

Delta A9000 User manual

Delta DRP024V480W1B Series Instruction Manual

Delta

Delta DRP024V480W1B Series Instruction Manual

Delta ZBF-12V/3A User manual

Delta

Delta ZBF-12V/3A User manual

Delta PMC-24V050W1AA User manual

Delta

Delta PMC-24V050W1AA User manual

Delta GPS-1000D8 A A22 User manual

Delta

Delta GPS-1000D8 A A22 User manual

Delta PMC Series User manual

Delta

Delta PMC Series User manual

Delta HDS 3000 User manual

Delta

Delta HDS 3000 User manual

Delta PMT-36V350W1A Series User manual

Delta

Delta PMT-36V350W1A Series User manual

Delta PMC-24V035W1AA User manual

Delta

Delta PMC-24V035W1AA User manual

Delta LZ-16/R User manual

Delta

Delta LZ-16/R User manual

Delta DRP048V060W1B Series Instruction Manual

Delta

Delta DRP048V060W1B Series Instruction Manual

Delta Platinum GPS-650LB A A22 User manual

Delta

Delta Platinum GPS-650LB A A22 User manual

Delta PMC-12V060W1N Series User manual

Delta

Delta PMC-12V060W1N Series User manual

Delta PMC-12V100W1AA User manual

Delta

Delta PMC-12V100W1AA User manual

Delta GPS-850HB A A22 User manual

Delta

Delta GPS-850HB A A22 User manual

Delta PCM-48V600W1B Series User manual

Delta

Delta PCM-48V600W1B Series User manual

Delta HES Series User manual

Delta

Delta HES Series User manual

Delta HDS 7200 User manual

Delta

Delta HDS 7200 User manual

Delta PMC-48V600W1B Series User manual

Delta

Delta PMC-48V600W1B Series User manual

Delta LZ-16/R10 User manual

Delta

Delta LZ-16/R10 User manual

Delta LOYTEC LPOW-2415A User manual

Delta

Delta LOYTEC LPOW-2415A User manual

Delta PMU-27V155WC A Series User manual

Delta

Delta PMU-27V155WC A Series User manual

Popular Power Supply manuals by other brands

Perle IDPS-24-40-XT Hardware installation guide

Perle

Perle IDPS-24-40-XT Hardware installation guide

Russound V-PS-2 product manual

Russound

Russound V-PS-2 product manual

Rutland ESM401 installation guide

Rutland

Rutland ESM401 installation guide

Rebelcell Outdoorbox ThrustMe user manual

Rebelcell

Rebelcell Outdoorbox ThrustMe user manual

Velleman LABPS3003SMU user manual

Velleman

Velleman LABPS3003SMU user manual

Puls QS10.481 installation manual

Puls

Puls QS10.481 installation manual

Genki GK-2000 user manual

Genki

Genki GK-2000 user manual

Apevia Prestige Series user manual

Apevia

Apevia Prestige Series user manual

Manhattan 168205 user manual

Manhattan

Manhattan 168205 user manual

Voltech DC1000A User manal

Voltech

Voltech DC1000A User manal

Velleman PS603 user manual

Velleman

Velleman PS603 user manual

M2TECH EVO SUPPLY user manual

M2TECH

M2TECH EVO SUPPLY user manual

Huawei UPS2000 Series Development guide

Huawei

Huawei UPS2000 Series Development guide

Invitrogen PowerEase PSHV00 user guide

Invitrogen

Invitrogen PowerEase PSHV00 user guide

ELC ALR3203 quick start guide

ELC

ELC ALR3203 quick start guide

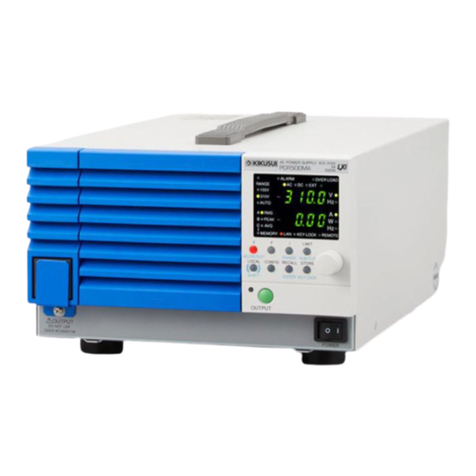

Kikusui PCR500MA Interface manual

Kikusui

Kikusui PCR500MA Interface manual

Denver MCA-110 instruction manual

Denver

Denver MCA-110 instruction manual

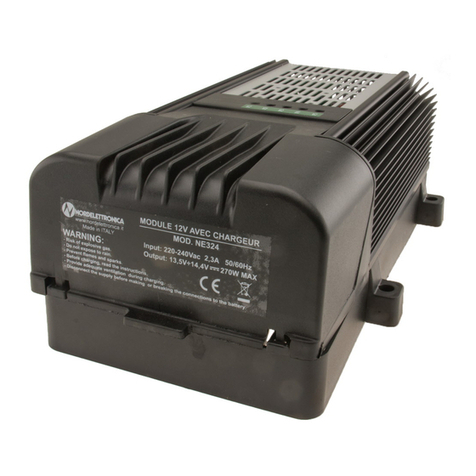

Nordelettronica NE324 TVDL instruction manual
