Demco Copernicus Regal RC107 User manual

RC107 - Version A - Released August 5, 2020 - Copernicus Educational Products Inc.
Chart Loop Hook (2)
Front Frame (1)
Safety Cap Premium
Bookledge (1)
Base (2) Caster (4)
Upper Frame (2)
Lower Frame (2)
Open Tub (4)
Tub Channel (4)
Center Frame (1)
Stretcher (2)
Front Frame Support (2)
1 Left, 1 Right
Spacer (2)
™

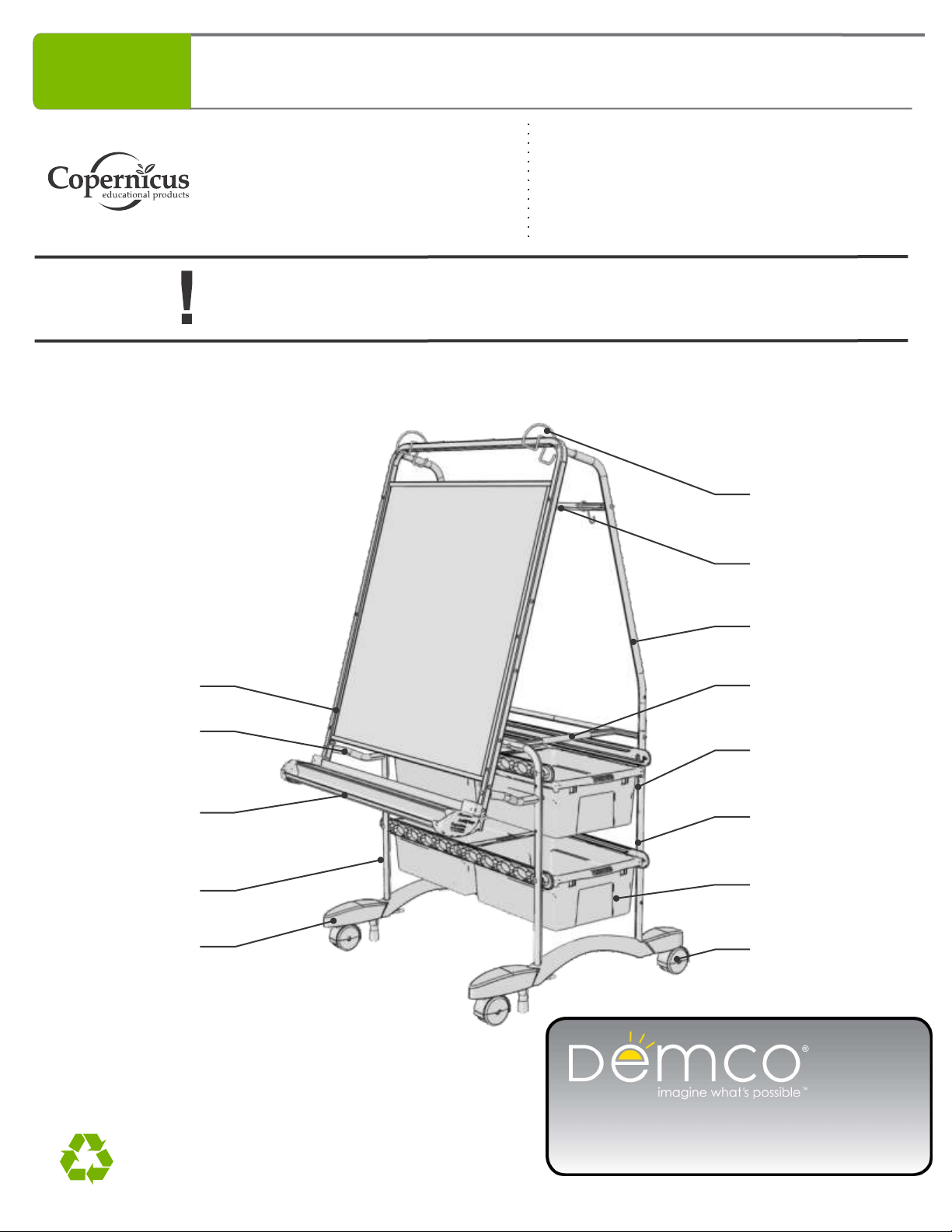

Regal Reading/Writing Center
ŸThis product is meant to be assembled by an adult.
ŸIn its unassembled state, small parts present a hazard.
ŸTo be used under direct supervision of an adult.
WARNING
Assembly Guide
RC107_2020_A
RC107
Please Recycle
Find Copernicus Regal Reading/Writing Centers @demco.com,
search copernicus regal reading writing centers
Call 800.962.4463 or email cus[email protected]

RC107 - Version A - Released August 5, 2020 - Copernicus Educational Products Inc.
2
™
Regal Reading/Writing Center
RC107
Assembly Guide
RC107_2020_A
We do not inherit the
earth from our ancestors,
we borrow it from our
children.
NORTH AMERICAN
PROVERB
Change is the end result
of all true learning.
LEO BUSCAGLIA
What you leave behind is
not what is engraved in
stone monuments, but
what is woven into the
lives of others.
PERICLES
Education is the most
powerful weapon which
you can use to change the
world.
NELSON MANDELA
Dear Educator,
Thank you for purchasing the Regal Reading/Writing Center. We hope it meets all your expectations and
you and your students enjoy using it in your school.
Happy teaching,
Kaylyn Belcourt
President
Register your Product
Registering your warranty ensures we have all the information we need to make any future warranty claims quick and
easy. Please visit www.copernicused.com/warranty and complete the form within 10 business days from product
assembly. By registering your product, you will be entered into a draw to win Copernicus product.
Make a Warranty Claim
We offer a Lifetime Warranty on almost everything we make. Please call 1-800-267-8494 or email
[email protected]om to start your warranty claim. Proof of purchase will be required upon warranty claim (i.e. copy
of invoice).
Replace your Whiteboard
Have a well-used whiteboard that needs replacing? Our whiteboards carry a five-year warranty and replacement parts
program after the warranty period. Please call 1-800-267-8494 or email [email protected] to get a new
whiteboard for your Copernicus product!
5
Year
Whiteboard
Warranty
Lifetime
Easel Components
Warranty

RC107 - Version A - Released August 5, 2020 - Copernicus Educational Products Inc.
3
Warning! Hazard Risks!
This product is to be used under the supervision of an adult.
Indoor Use
Only
This product is intended for indoor use only. To reduce the risk of fire or electric shock, do not expose
this product to rain or moisture. The internal components are not sealed from the environment.
Read your power strip electrical specifications. Only plug in devices that are approved for use with this
power strip. Connect the supplied power strip directly to a wall outlet. Do not connect to another
power strip or use an extension cord. Unplug when not in use. Do not leave this product plugged in
for more than 72 consecutive hours. Turn off power strip before unplugging.
Power Strip
Specifications
Do not install or use the electrical components of this unit during a lightning storm.
Electrical Shock
In its unassembled state, this product contains parts that can be hazardous to small children. This
product should be assembled by an adult.
Small
Parts
Ensure that any cables extending across the floor to your product are properly bundled and marked to
avoid tripping or falling which may lead to personal injury.
Cable Trip
Hazard
Climb Hazard
Do not climb on, hang from or suspend objects from any components of your product unless otherwise
specified.
Read the electrical specifications of any electronic equipment you are using with your Copernicus
products. Failure to read these specifications and follow their instructions could result in damage to your
equipment or personal injury.
Electronic
Equipment
Adult
Supervision
Please read the warnings below for important safety information regarding your product. Failure to
read these warnings or to follow the instructions below could result in personal injury or damage to
your product that could void your warranty.

RC107 - Version A - Released August 5, 2020 - Copernicus Educational Products Inc.
4
Base
x2
™
Regal Reading/Writing Center - Parts
3” Caster
x4
Center Frame
x1
Lower Frame
1 Left, 1 Right
x2 Upper Frame
1 Left, 1 Right
x2
Stretcher
x2
Front Frame Support
1 Left, 1 Right
x2
Front Frame
x1
Tub Channel
x4
Chart Loop Hook
x2
Contents - Box 1
In Box 1
Contents - Box 2
Removable Rear Whiteboard
x1
Rear Whiteboard Hook
x2
Spacer
No Thru Holes
x2
Safety Cap Premium
Bookledge
x1
Open Tub
x4
Allen Key
(Not to Scale)
x2
Hex Socket Driver
(Not to Scale)
x1
A
M5 x 35mm
x2
B
C
M6 Lock Washer
x18
D
M8 Lock Washer
x8
E
M6 Barrel Nut
x8
F
M6 x 35mm
x16
M6 x 15mm
x8
RC107
Before beginning, you should have:
Additional tools required:
Hardware
Actual Size
Rubber Mallet 1x

RC107 - Version A - Released August 5, 2020 - Copernicus Educational Products Inc.
5
This symbol denotes a 2-Person Task. For safety, please ensure that there are the
suggested number of people working on steps displaying this symbol.
Watch for this symbol throughout the Assembly Guide. Wherever you see it, pay close
attention. The symbol denotes a step needing extra attention to ensure it is done
correctly.
The star symbol highlights an advisory note.
Watch for These Helpful Symbols
Before You Begin
As You Assemble the Unit
Lay out and identify all of the included parts.
The hardware has been packed according to step.
Read the assembly guide over once to familiarize yourself with them.
Please note that in its unassembled state, this product contains parts that can be
hazardous to small children. This product should be assembled by an adult.
Follow the steps in sequence.
Before beginning each step, find the part(s) that you need for that step.
Pay attention to the labels on the parts; they are there to help direct you at certain stages.
The title of each step states what you will be doing. Review the text and the pictures as you build
the unit.
2-Person Task
Tips for Assembly

RC107 - Version A - Released August 5, 2020 - Copernicus Educational Products Inc.
6
Note - Left & Right
stickers on the frames
!
1
Caster
x4
You will need: (Not to Scale)
Actual Size:
2
Center Frame
x1
Rear Frame Lower
x2
You will need: (Not to Scale)
Actual Size:

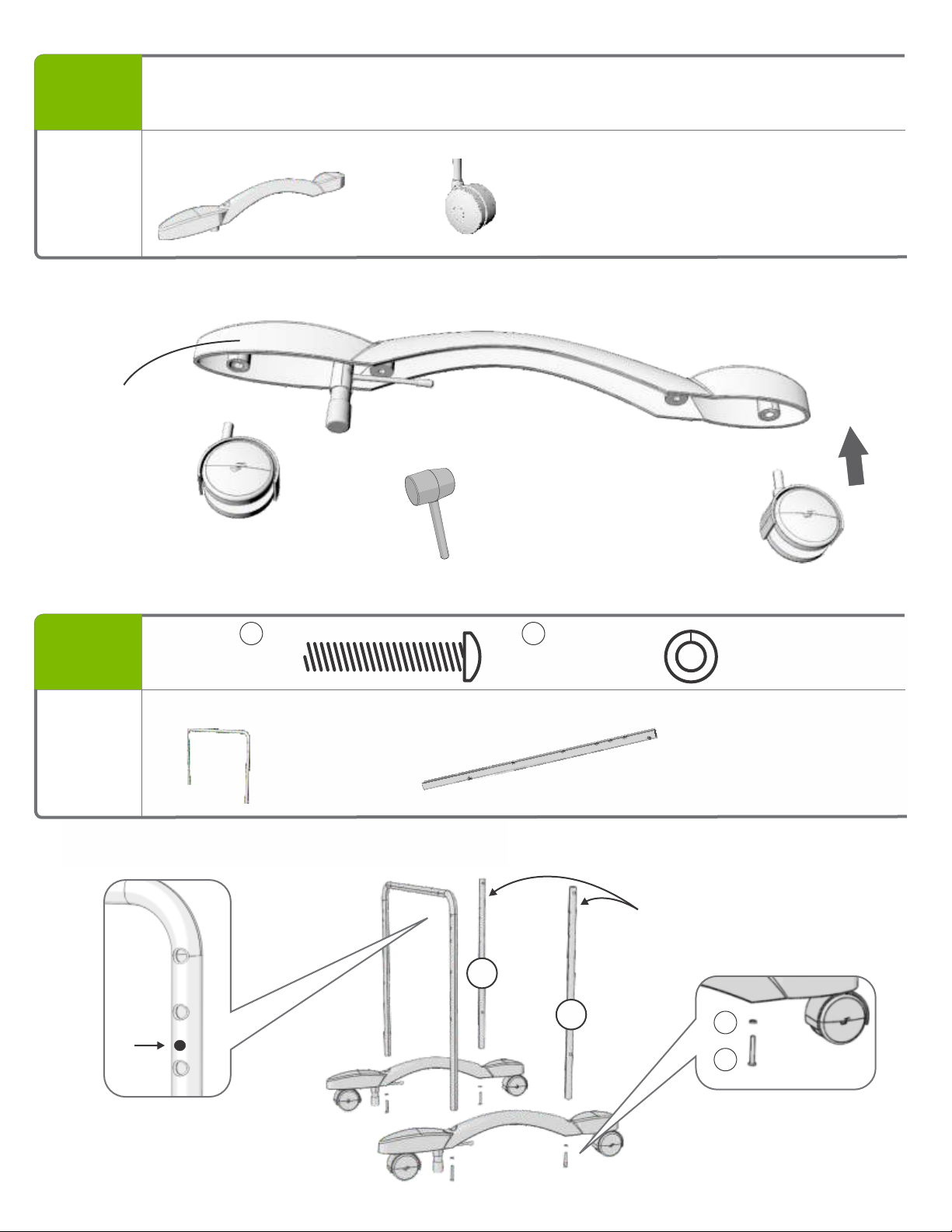

Install Casters
Front
Press Casters firmly into the Base:
ŸCasters will click into place
ŸIf necessary, tap the caster in
using a rubber mallet.
You should begin the installation with the brakes in the UP Position
Tighten bolts
!
Install Center Frame & Rear Frame Lower
R
L
Black sticker & indents
always face outward
!
B
Base
x2
E
B E
M6 x 35mm
x4
M6 Lock Washer
x4

RC107 - Version A - Released August 5, 2020 - Copernicus Educational Products Inc.
7
3
You will need: (Not to Scale)
Actual Size:

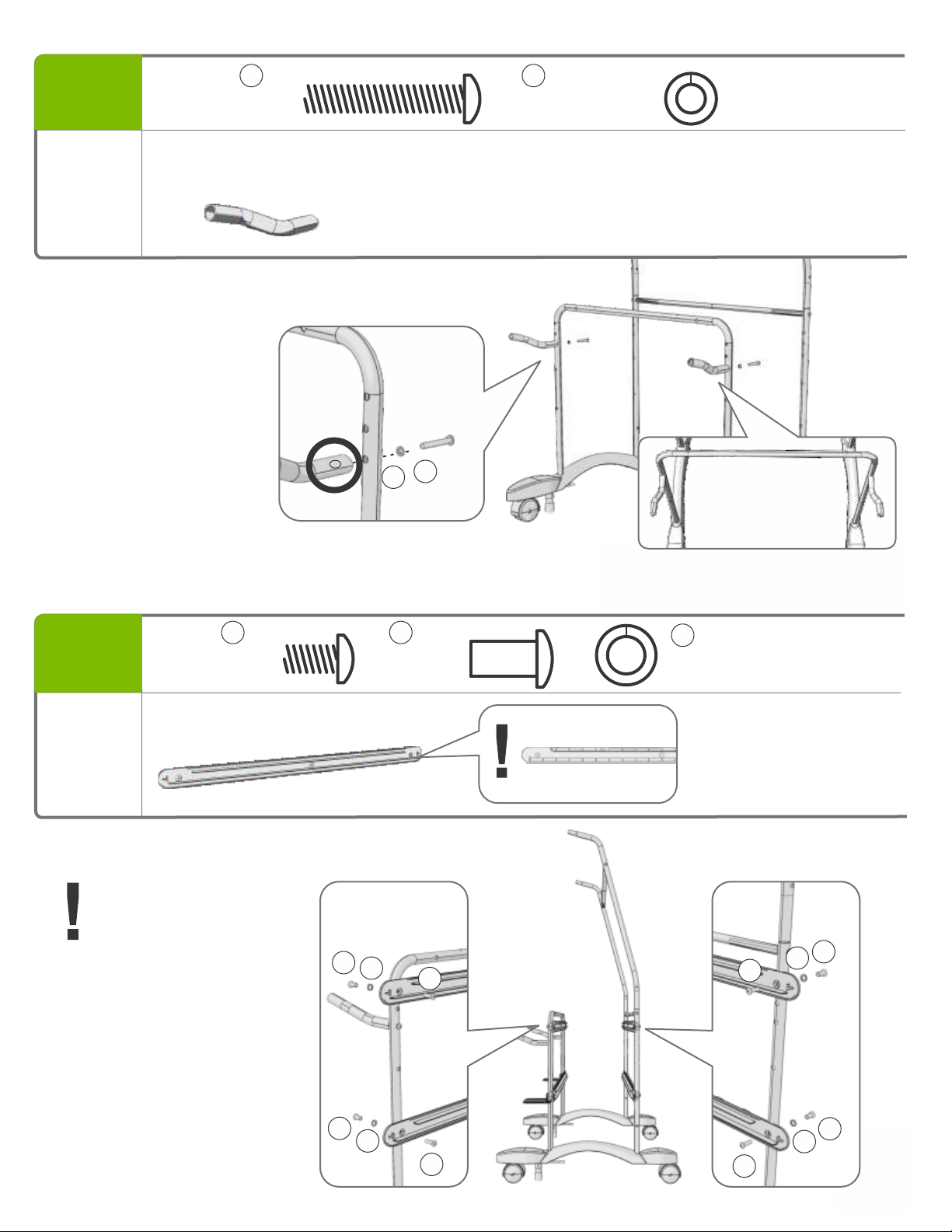

Build Rear Frame
L
R
R
L
Stretcher
x2
Rear Whiteboard
Hook
x2
Upper Frame
1 Left, 1 Right
x2
1
2
B E
B
E
!Note - Before securing the stretcher, install hooks directly onto stretcher through the loop end.
Back of unit
Stretcher
B
E
E
B
3Note - When installing the stretcher on the
upper frame, ensure hooks face back of
unit!
!
M6 x 35mm
x4
M6 Lock Washer
x4

RC107 - Version A - Released August 5, 2020 - Copernicus Educational Products Inc.
8
4
Front Frame Support
1 Left, 1 Right
x2
You will need: (Not to Scale)
Actual Size:

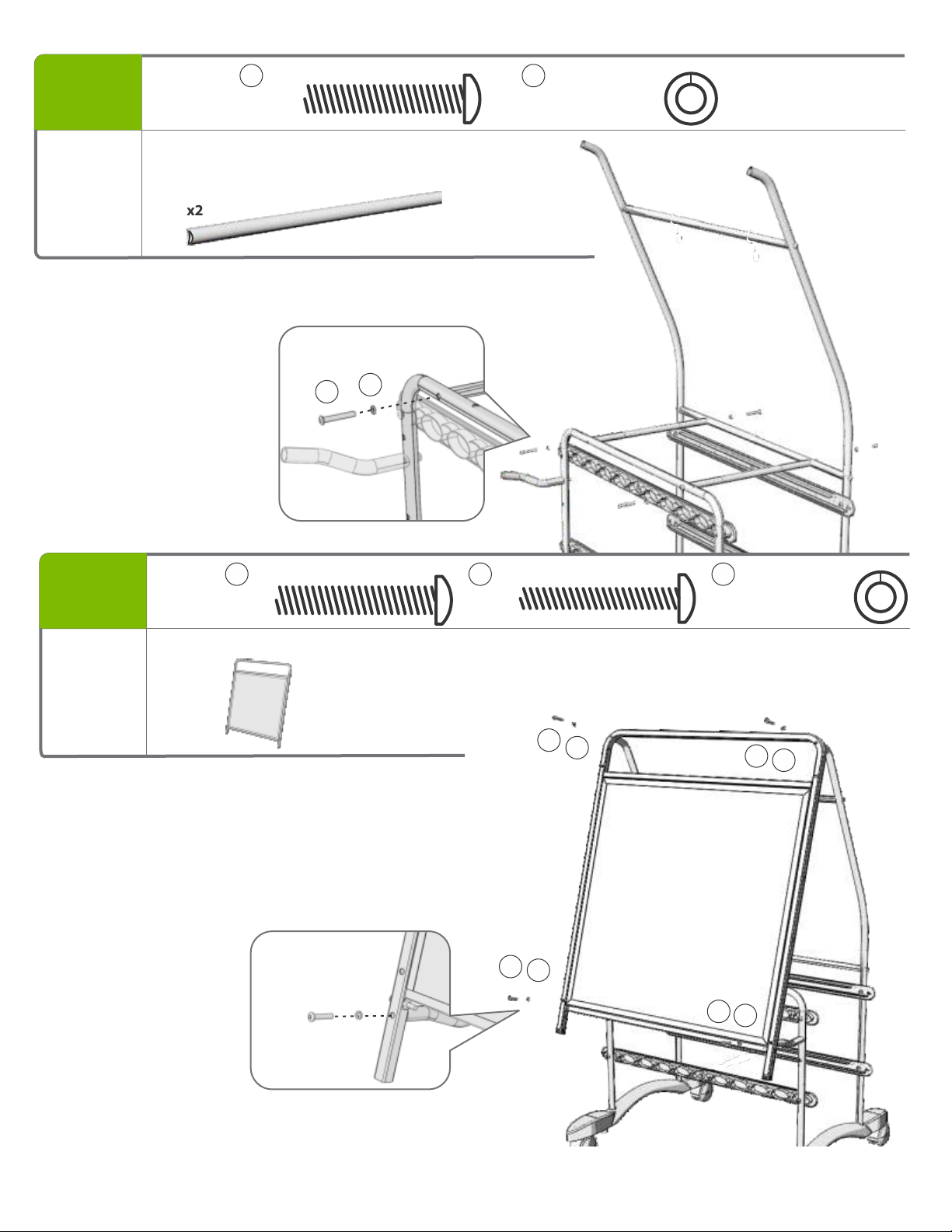

Install Front Frame Supports
Note left and right labels
to ensure correct assembly
5
You will need: (Not to Scale)
Actual Size:
Install Tub Channels
!
R
Front Frame Supports
angle outward
A
Top
Bottom
A
AA
A
A
E
D
D
D
D
D
F
F
F
F
F
B
Tub Channels
x4
B E
M6 x 35mm
x2
M6 Lock Washer
x2
M6 x 15mm
x8
M6 Barrel Nut
x8
M8 Lock Washer
x8
Note:
Fasten both ends of
each Tub Channel

RC107 - Version A - Released August 5, 2020 - Copernicus Educational Products Inc.
9
6
Spacer
No Thru Holes
x2
You will need: (Not to Scale)
Actual Size:
Install Spacers
Tighten bolts
BE
B E
M6 x 35mm
x4
M6 Lock Washer
x4
7
Front Frame Assembly
x1
You will need: (Not to Scale)
Actual Size:
Attach Whiteboard
Peel off
protective film
1. Put brakes in the LOCKED / DOWN position
to help hold unit steady.
2. It is easiest to fasten the top first and then
the bottom.
Tighten bolts
Use bottom
hole
B
B
E
E
E
CC
E
B E
M6 x 35mm
x2
M6 Lock Washer
x4
CM5 x 35mm
x2

RC107 - Version A - Released August 5, 2020 - Copernicus Educational Products Inc.
10
8

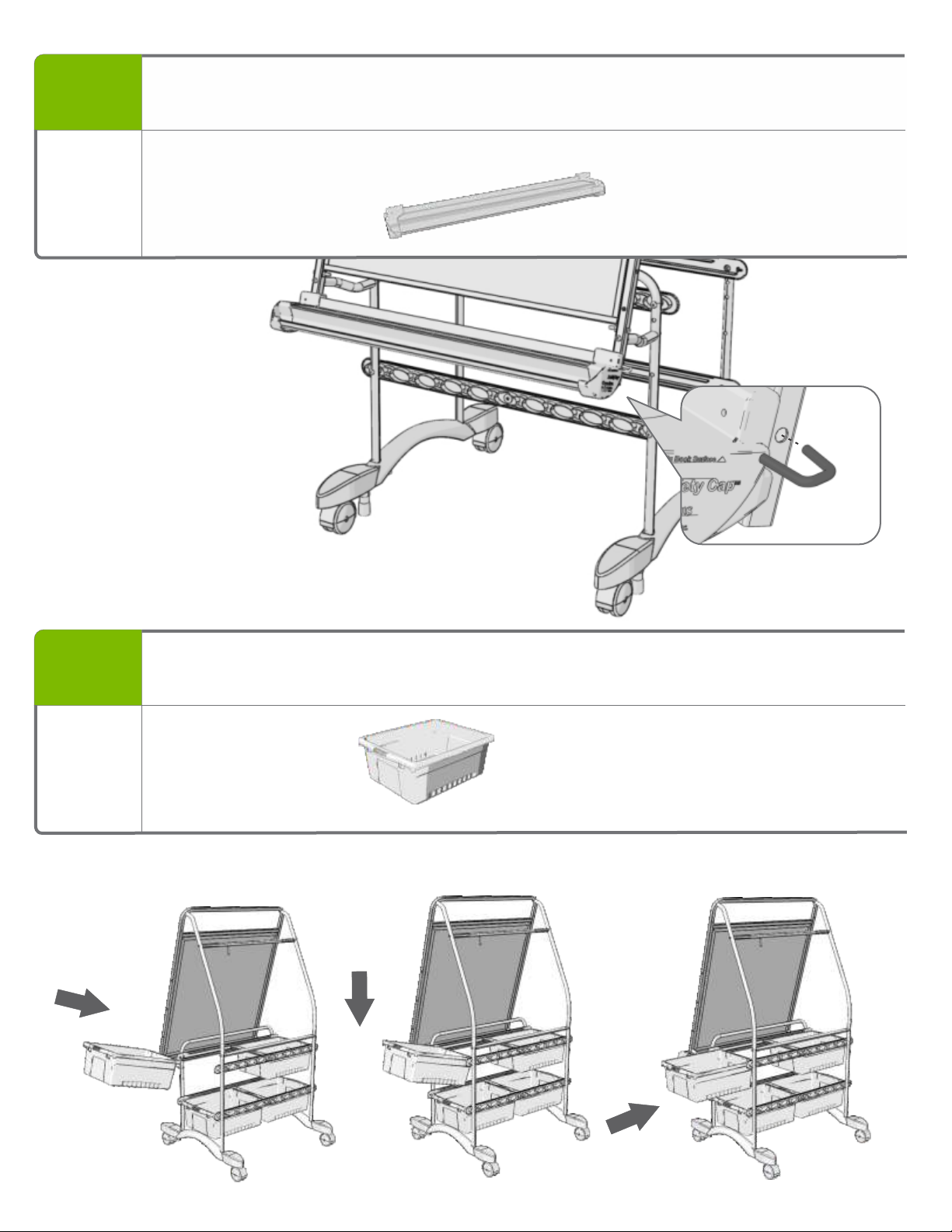

Install Book Ledge
You will need: (Not to Scale)
Note - the spring tension is
designed to discourage
children from unhooking
the book ledge
!
Safety Cap Premium Bookledge
x1
9
Place Tubs into Unit
Open Tub
x4
You will need: (Not to Scale)

RC107 - Version A - Released August 5, 2020 - Copernicus Educational Products Inc.
11
10

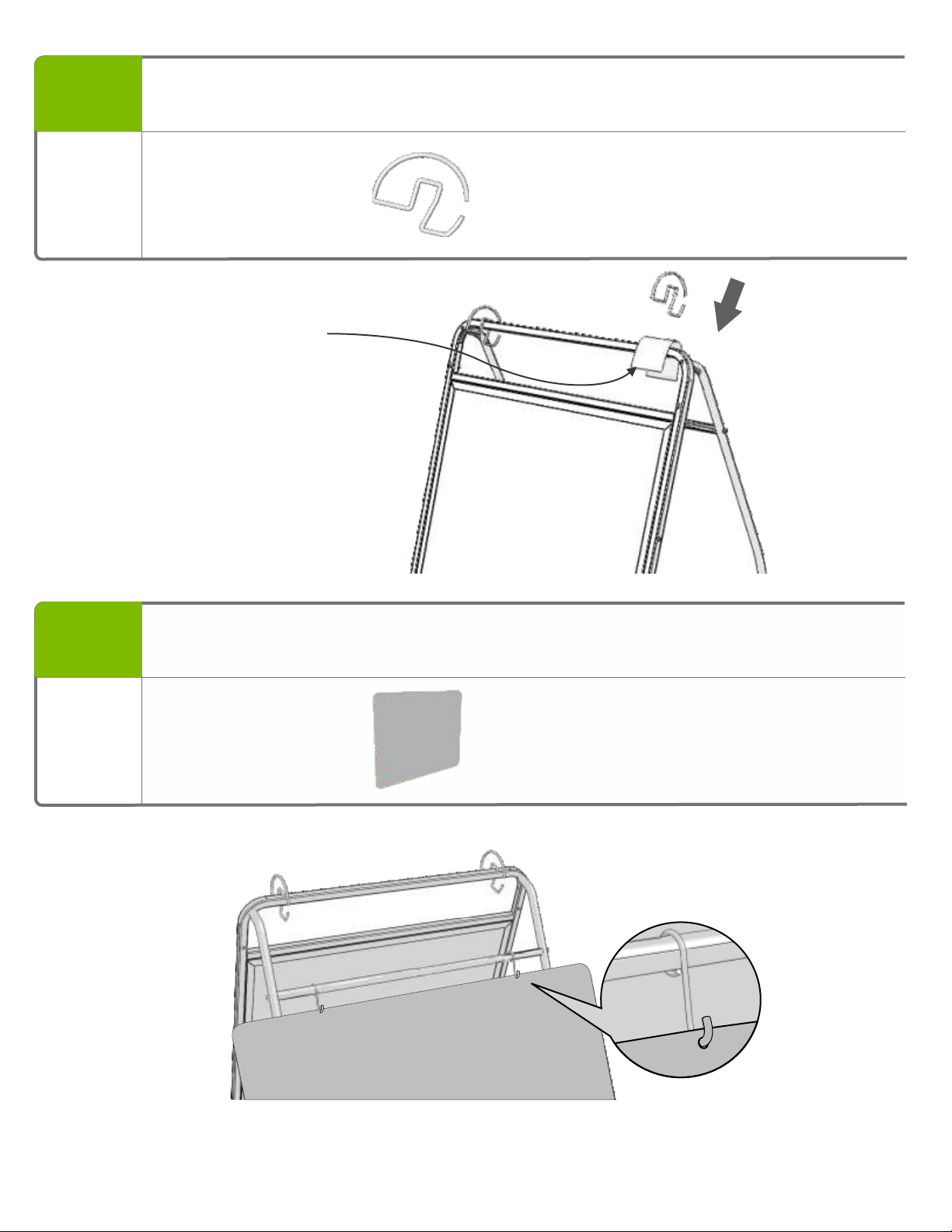

Attach Chart Paper Hooks
Chart Paper Hooks
x2
You will need: (Not to Scale)
Place an empty hardware
bag over the frame to avoid
scratching the paint.
!
11
You will need: (Not to Scale) Rear Whiteboard
x1
™
Congratulations! Now you can go and enjoy your Regal Reading and Writing Center
Hang Rear Whiteboard
