Demco LOBO User manual

Step 1:
• If assembling a Hardwood top that has a depth greater
than 36”, top will be in 2 pieces (.5”undersized on
length). Place both top halves face down on a protected
at surface. Align together the dog bone holes on both
tops.
Step 2:
• Adjust joint connector bolts to the size of the cut outs
and then place the bolt into that cut out. Using a ⁄”
wrench, tighten the bolt. Repeat for each bolt.
Step 3:
• Place LOBO frame tabs down on top of the LOBO top and
align with pre-drilled pilot holes.
Step 4:
• Starting at one corner, place the ⁄” bolt that is welded
to leg through corner support brace of frame.
Step 5:
• Using a # R2 square bit, secure the leg plate to the
tabletop with #10 x ¾” square pan screws. Repeat for
each leg plate.
Step 6:
• Place the ⁄”lock washer and ⁄” hex nut onto the leg
bolt and tighten with ½”wrench. Repeat Steps 4 & 5 on
remaining legs.
Step 7:
• Using a # R2 square bit, secure frame to table top with
#10 x ¾” Square pan screws. One screw per tab.
Step 8:
• With someone’s help, turn table upright.
Step 4
Step 2
Step 5
Step 6
Step 7

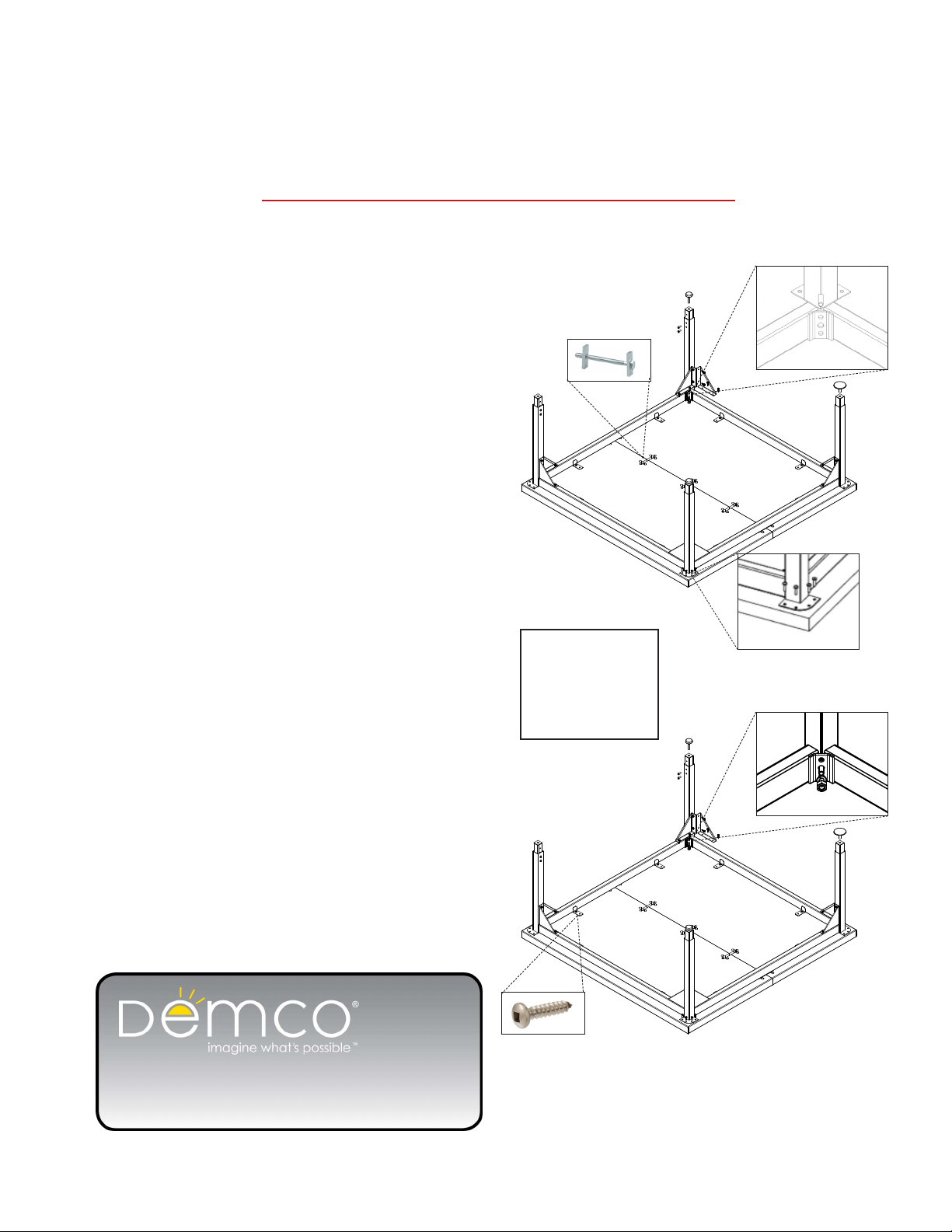

Assembly Instructions
Before you begin, please make sure all parts and proper quantities are included. (See Part Identier Key on next page) Any parts damaged during
shipment must be reported within 24 hours of receipt. To report information regarding damages or if you have any questions, please call 800.242.2303.
Tools Required
•½”Wrench
• Screw Gun
• # R2 Square Bit
Shown with optional gussets
Shown with
optional gussets
LOBO Table
2 Piece Butcherblock Top
Find LOBO Tables With Butcher Block Tops @demco.com
Search:
LOBO Butcher Block
Call 800.962.4463 or email [email protected]

3” Heavy Duty Caster Hardware Pack (04066968) Used only with 2” adj. legs (-ALR & -ABP)
Part # Description Qty.
04067460
04067064
¼” Star washers
M6 1x18 screws
(Used in leg insert to prevent bending of the leg insert)
4 per set
4 per set
(Included in Hardware Pack located in leg box as
standard. Discard if casters are not installed.)
3” Heavy Duty Caster Hardware Pack (0402020) Used only with 1.5” adj. legs (-ADJ)
04067460
0401259
¼” Star washers
M6 1x14 screws
(Used in leg insert to prevent bending of the leg insert)
4 per set
4 per set
(Included in Hardware Pack located in leg box as
standard. Discard if casters are not installed.)
LOB -ADJ
LOB -ABP
LOB -ALR
LOB -FX
Adjustable Legs
Fixed Legs
Model #
Smooth Silver
Sku #
Black
Sku# Descripon Weight Height"
LOB -ADJ 0409195-G4 0409195 LOBO 1.5" (40mm) Square Adj. Leg 18 22 - 36.6
LOB -ALR 0409193-G4 0409193 LOBO 2" (50mm) Round Adj. Leg 20 22.25 - 36.25
LOB -ABP N/A 0409196 LOBO 2" (50mm) Big Paw Sq. Adj. Leg 20 22.25 - 36.25
Model #
Smooth Silver
Sku #
Black
Sku# Descripon Weight Height"
LOB -FX 0409194-G4 0409194 LOBO 1.5" (40mm) Square Fixed Leg 16 28.5
LOBO Legs
Part # Description Qty.
0406902 Joint connector bolts # depends on size
0408231
#10 x ¾” Square pan screws
(Used to attach leg plates to hardwood top)
(Used to attach frame to hardwood top)
26
(Included in Hardware Pack located in leg box. May
need less depending on size and work service)
Hardware Pack
040379
⁄” Lock washers
⁄” Hex nuts
(Used to attach legs to frame)
4
4
Part Identifier Key
LOBO Table
2 Piece Butcherblock Top
Find LOBO Tables With Butcher Block Tops @demco.com
Search:
LOBO Butcher Block
Call 800.962.4463 or email [email protected]

LOBO Tables
w/ Casters, Glides & Leg Info.
Step 1:
• Remove Nylon glide from leg by rotating counterclockwise until
glide is free.
Step 2:
• Place stem of optional footing into the hole on the leg. Rotate
clockwise until fully inserted into leg.
• Casters are NOT to be used as a leveling device.
Step 3:
• Tighten with a ½”wrench. (only with the Dual Wheel caster.)
Step 4:
• Repeat for each caster or Grand Hank glide.
Assembly Instructions
Before you begin, please make sure all parts and proper quantities are included. (See Part Identier Key below) Any parts damaged during shipment must
be reported within 24 hours of receipt. To report information regarding damages or if you have any questions, please call 800.242.2303.
Part # Description Qty.
040164 1⁄ Dia. Grand Hank glide, ⁄-16 x 1” 1 per leg
33021BK Dual wheel casters w/brake 1 per leg
04067195 Soft tread caster 1 per leg
LOB -ADJ
LOB -ABP
LOB -ALR
LOB -FX
Adjustable Legs
Fixed Legs
Model #
Smooth Silver
Sku #
Black
Sku# Descripon Weight Height"
LOB -ADJ 0409195-G4 0409195 LOBO 1.5" (40mm) Square Adj. Leg 18 22 - 36.6
LOB -ALR 0409193-G4 0409193 LOBO 2" (50mm) Round Adj. Leg 20 22.25 - 36.25
LOB -ABP N/A 0409196 LOBO 2" (50mm) Big Paw Sq. Adj. Leg 20 22.25 - 36.25
Model #
Smooth Silver
Sku #
Black
Sku# Descripon Weight Height"
LOB -FX 0409194-G4 0409194 LOBO 1.5" (40mm) Square Fixed Leg 16 28.5
LOBO Legs
Part Identifier Key
Installing casters on tables with epoxy resin tops will void the Epoxy warranty.
Tools Required
•½”Wrench
