Demco SIDEQUEST User manual

Page 1
SIDEQUEST
05-18
AC20115, Rev 2
®

Page 2
Thank you for purchasing Demco’s SIDEQUEST ®. We feel you have made a wise choice and
hope you are completely satisfied with your SIDEQUEST ®. If you have any questions regarding the
applications of certain solutions or chemicals, contact your chemical supplier and follow chemical
manufacturer recommendations as well as all licensing and use restrictions or regulations.
Table of Contents
General information............................................................................................................. 2
Safety Information .............................................................................................................4-11
Safety Sign Locations ......................................................................................................... 6
Bolt Torque ......................................................................................................................... 12
Procedure for Checking Alignment/Run Out ...................................................................... 13
Assembly Instructions ......................................................................................................14-15
Plumbing Breakdown ......................................................................................................... 16
Hub and Spindle Breakdown ..............................................................................................17
Wheel Bearing Adjustment................................................................................................. 17
600 Gallon SIDEQUEST ® Breakdown.......................................................................18-19
Sprayer Checklist ............................................................................................................... 20
GENERAL INFORMATION
1. Unless otherwise specified, high-strength (grade5)
(3 radial-line head markings) hex head bolts are
used throughout assembly of this sprayer.
2. Whenever terms “LEFT” and “RIGHT” are used in
this manual it means from a position behind sprayer
and facing forward.
3. When placing a parts order, refer to this manual for
proper part numbers and place order by PART NO.
and DESCRIPTION.
WARNING: TO AVOID PERSONAL INJURY OR PROPERTY DAMAGE, OBSERVE
FOLLOWING INSTRUCTIONS:
Chemicals are dangerous. Know exactly what you’re going to do and what
is going to happen before attempting to work with these products. Improper
selection or use can injure people, animals, plants and soil.
Always wear protective clothing such as coveralls, goggles and gloves when
working with chemicals or sprayer.
Be sure to dispose of all unused chemicals or solutions in a proper and
ecologically sound manner.
WARRANTY POLICY, OPERATOR MANUALS & REGISTRATION
Go online to www.demco-products.com to review Demco warranty policies, operator manuals and register your Demco product.

Page 3
THIS PAGE INTENTIONALLY LEFT BLANK

Page 4
SAFETY
TAKE NOTE! THIS SAFETY ALERT SYMBOL FOUND THROUGHOUT THIS
MANUAL IS USED TO CALL YOUR ATTENTION TO INSTRUCTIONS INVOLVING
YOUR PERSONAL SAFETY AND SAFETY OF OTHERS. FAILURE TO FOLLOW
THESE INSTRUCTIONS CAN RESULT IN INJURY OR DEATH.
THIS SYMBOL MEANS
ATTENTION
BECOME ALERT
YOUR SAFETY IS INVOLVED!
SIGNAL WORDS
Note: use of the following signal words DANGER,
WARNING, and CAUTION with safety messages.
Appropriate signal word for each has been selected
using following guidelines:
DANGER:
Indicates an imminently hazardous situation that,
if not avoided, will result in death or serious injury.
This signal word is to be limited to most extreme
situations typically for machine components which,
for functional purposes, cannot be guarded.
WARNING:
Indicates a potentially hazardous situation that, if
not avoided, could result in death or serious injury,
and includes hazards that are exposed when
guards are removed. It may also be used to alert
against unsafe practices.
CAUTION:
Indicates a potentially hazardous situation that,
if not avoided, may result in minor or moderate
injury. It may also be used to alert against unsafe
practices.
If you have questions not answered in this manual, require additional copies, or if your manual is damaged,
please contact your dealer or Demco 4010 320th Street, Boyden, IA 51234
ph: [phone] or [phone] Toll Free: 1-800-543-3626 Fax: [phone]
http://www.demco-products.com

Page 5
SAFETY...YOU CAN LIVE WITH IT
EQUIPMENT SAFETY GUIDELINES
Every year many accidents occur which could be avoided by a few seconds of thought and
more careful approach to handling equipment. You, the operator, can avoid accidents by
observing precautions in this section. To avoid personal injury, study precautions and insist
those working with you, or you yourself, follow them.
In order to provide a better view, certain illustrations in this manual may show an assembly
with a safety shield removed. However, sprayer should never be operated in this condition.
Keep all shields in place. If shield removal becomes necessary for repairs, replace shield
prior to use.
Replace any caution, warning, danger or instruction safety decal that is not readable or is
missing. Location of such decals is indicated in this booklet.
Do not attempt to operate this sprayer under the influence of alcohol or drugs.
Review safety instructions with all users.
Operator should be a responsible adult. DO NOT ALLOW PERSONS TO OPERATE OR
ASSEMBLETHIS SPRAYER UNTIL THEY HAVE DEVELOPED ATHOROUGH UNDERSTANDING
OF SAFETY PRECAUTIONS AND HOW IT WORKS.
To prevent injury or death, use a tractor equipped with a roll over protective system (ROPS).
Do not paint over, remove, or deface any safety signs or warning decals on your sprayer.
Observe all safety signs and practice instructions on them.
Never exceed limits of sprayer. If its ability to do a job, or to do so safely is in question
DON’T TRY IT.
LIGHTING AND MARKING
It is the responsibility of operator to know lighting and marking requirements of local highway
authorities and to install and maintain equipment to provide compliance with regulations.
Add extra lights when transporting at night or during periods of limited visibility.
Lighting kits are available from your dealer or manufacturer.

Page 6
SAFETY SIGN LOCATIONS
WARNING
REV 1 AB21002
To prevent serious injury or death
•Store sprayer on hard level surface.
•Store empty.
AB21002
Part# 10327 Amber
Part# 10328 Red
(on back side of tank)
AB21014
WARNING
To prevent serious injury or death
•Refer to chemical supplier and manufacturer recommendations and all
licensing restrictions or regulations.
•Always wear recommended protective clothing when working with chemicals or
sprayer.
• Dispose of all unused chemicals or solutions in proper and ecologically
sound manner. Improper use can injure people, animals, plants and soil.
REV 1AB21014
AB21001
WARNING
To prevent serious injury or
death.
Do not ride or stand on sprayer
while any part of sprayer is
moving.
Keep riders off at all times.
REV 1 AB21001

Page 7
SAFETY SIGN CARE
• Keepsafetysignscleanandlegibleatalltimes.
• Replacesafetysignsthataremissingorhavebecomeillegible.
• Replacementpartsthatdisplayedasafetysignshouldalsodisplaycurrentsign.
• Safetysignsareavailablefromyourdistributor,dealerpartsdepartment,ormanufacturer.
How to install safety signs:
• Besureinstallationareaiscleananddry.
• Decideonexactpositionbeforeyouremovebackingpaper.
• Removesmallestportionofsplitbackingpaper.
• Aligndecaloverspeciedareaandcarefullypresssmallportionwith
exposed sticky backing in place.
• Slowlypeelbackremainingpaperandcarefullysmoothremainingportionof  
decal into place.
• Smallairpocketscanbepiercedwithapinandsmoothedoutusingpieceofdecal 
backing paper.
TIRE SAFETY
• Failuretofollowproperprocedureswhenmountingtireonrimcanproducean  
explosion resulting in serious injury or death.
• Donotattempttomounttireunlessyouhaveproperequipmentandexperience.
• Inatingorservicingtirescanbedangerous.Wheneverpossible,trainedpersonnel 
should be called to service or mount tires.
• Alwaysorderandinstalltiresandwheelswithappropriatetypeandloadcapacityto
meet or exceed anticipated weight to be placed on sprayer.
REMEMBER
Your best assurance against accidents is a careful and responsible operator. If there is any
portion of this manual or function you do not understand, contact your local authorized dealer
or manufacturer.
• Carefullystudyandunderstandthismanual.
• Donotwearloose-ttingclothingwhichmaycatchinmovingparts.
• Alwayswearprotectiveclothingandsubstantialshoes.
• Itisrecommendedthatsuitablehearingandeyeprotectionbeworn.
• Operatormaycomeincontactwithcertainmaterialswhichmayrequirespecicsafety
equipment relative to handling of such materials. (Examples: extremely dust, molds,
fungus, bulk fertilizers, etc.)
BEFORE OPERATION:

Page 8
• Keepwheelandlugnutstightenedtospeciedtorque.
• Assurethatagriculturalimplementtiresareinatedevenly.
• Givesprayeravisualinspectionforanyloosebolts,wornparts,orcrackedwelds,andmake
necessary repairs. Follow maintenance safety instructions included in this manual.
• Besuretherearenotoolslyingonorinequipment.
• Donotusethesprayeruntilyouaresurethatareaisclear,especiallyaroundchildrenand 
animals.
• Don’thurrylearningprocessortakesprayerforgranted.Easeintoitandbecomefamiliar 
with your new equipment.
• Practiceoperationofyoursprayeranditsattachments.Completelyfamiliarizeyourself 
and other operators with its operation before using.
• UseatractorequippedwithRollOverProtectionSystem(ROPS)andfastenyourseatbelt 
prior to starting engine.
• ManufacturerdoesnotrecommendusageoftractorwithROPSremoved.
• Movetractorwheelstowidestrecommendedsettingstoincreasestability.
• Donotallowanyonetostandbetweentongueorhitchandtowingunitwhenbacking
up to equipment.
DURING OPERATION
 • Bewareofbystanders,PARTICULARLY CHILDREN! Always look around to make sure it is
safe to start engine of towing unit or move sprayer.This is particularly important with higher
noise levels and quiet cabs, as you may not hear people shouting.
 • NOPASSENGERSALLOWED- Do not carry passengers anywhere on or in the tractor or
sprayer.
 • Keephandsandclothingclearofmovingparts.
 • Donotclean,lubricate,oradjustyoursprayerwhileitismoving.
 • Whenhaltingoperation,evenperiodically,settractorortowingunitbrakes,disengage 
PTO, shut off engine, and remove ignition key.
 • Beespeciallyobservantofoperatingareaandterrain-watchforholes,rocks,orotherhidden
hazards. Always inspect area prior to operation.
- DO NOT operate near edge of drop-offs or banks.
- DO NOT operate on steep slopes as overturn may result.
- Operate up and down (not across) intermediate slopes. Avoid sudden starts and stops.

Page 9
• Pickthemostlevelpossibleroutewhentransportingacrosselds.Avoidedgesofditches, 
gullies, and steep hillsides.
• Beextracarefulwhenworkingoninclines.
• Periodicallyclearequipmentofbrush,twigs,orothermaterialstopreventbuildupofdry 
combustible materials.
• Maneuvertractorortowingunitatsafespeeds.
• Avoidoverheadwiresorotherobstacles.Contactwithoverheadlinescouldcauseserious
injury or death.
• Avoidloosegravel,rocks,andholes;theycanbedangerousforequipmentoperationor 
movement.
• Allowforsprayerlengthwhenmakingturns.
• Donotwalkorworkunderraisedcomponentsorattachmentsunlesssecurelypositionedand
blocked.
• Keepallbystanders,pets,andlivestockclearofworkarea.
• Operatetowingunitfromoperatorsseatonly.
• Neverstandalongsideofunitwithenginerunningorattempttostartengineand/oroperate 
machine while standing alongside of unit.
• Neverleaverunningequipmentattachmentsunattended.
• Asaprecaution,alwaysrecheckhardwareonequipmentfollowingevery100hoursof 
operation. Correct all problems. Follow maintenance safety procedures.
 • Followingoperation,orwhenunhitching,stoptractorortowingunit,setbrakes,disengage 
PTO and all power drives, shut off engine and remove ignition key.
 • Storesprayerinanareaawayfromhumanactivity.
 • Donotparksprayerwhereitwillbeexposedtolivestockforlongperiodsoftime.Damageand
livestock injury could result.
 • Donotpermitchildrentoplayonoraroundthestoredsprayer.
 • Makesureallparkedmachinesareonahard,levelsurfaceandengageallsafetydevices.
 • Wheelchocksmaybeneededtopreventunitfromrolling.
FOLLOWING OPERATION

Page 10
HIGHWAY AND TRANSPORT OPERATIONS
• Adoptsafedrivingpractices:
- Keep brake pedals latched together at all times. NEVER USE INDEPENDENT BRAKING
WITH SPRAYER IN TOW. LOSS OF CONTROL OR UPSET MAY RESULT.
- Always drive at a safe speed relative to local conditions and ensure that your speed is low
enough for an emergency stop. Keep speed to a minimum.
- Reduce speed prior to turns to avoid risk of overturning.
- Always keep tractor or towing unit in gear to provide engine braking when going
downhill. Do not coast.
- Do not drink and drive!
• Complywithstateandlocallawsgoverninghighwaysafetyandmovementoffarmmachineryon 
public roads.
• Useapprovedaccessorylightingagsandnecessarywarningdevicestoprotectoperatorsof 
other vehicles on highway during transport. Various safety lights and devices are available
from your dealer.
• Useofashingamberlightsisacceptableinmostlocalities.However,somelocalitiesprohibit 
their use. Local laws should be checked for all highway lighting and marking requirements.
• Whendrivingtractorandsprayerunder20mph(40kph)dayornight,useashingamberwarning 
 lightsandaslowmovingvehicle(SMV)identicationemblem.
• Planyourroutetoavoidheavytrafc.
• Beasafeandcourteousdriver.Alwaysyieldtooncomingtrafcinallsituations,includingnarrow 
bridges, intersections, etc.
• Beobservantofbridgeloadratings.Donotcrossbridgesratedlowerthangrossweightofunit 
you are operating.
• SAFETYCHAINS:If equipment is going to be transported on a public highway, always
follow state and local regulations regarding safety chains and auxiliary lighting. Be sure to
check with local law enforcement agencies for your own particular regulations. If required
safety chains should be obtained and installed. Only safety chains (not elastic or nylon/plastic
tow straps) should be used to retain connection between towing and towed machines in event
of separation of primary attaching system. Use a high strength, appropriately sized hitch pin
with a mechanical retainer and attach safety chains. Criss cross chains under tongue and
secure to draw bar cage, mounting loops, or bumper frame.

Page 11
• Watchforobstructionsoverheadandsidetosidewhiletransporting.
• Alwaysoperateequipmentinapositiontoprovidemaximumvisibilityatalltimes.Make
allowances for increased length and weight of sprayer when making turns, or stopping.
• Goodmaintenanceisyourresponsibility.Poormaintenanceisaninvitationtotrouble.
• Makesurethereisplentyofventilation.Neveroperateengineoftowingvehiclein 
a closed building. Exhaust fumes may cause asphyxiation.
• Beforeworkingonthismachine,stoptowingvehicle,setbrakes,disengagePTO
and all power drives, shut off engine and remove ignition key.
• Becertainallmovingpartsandattachmentshavecometoacompletestopbefore
attempting to perform maintenance.
• Always use a safety support and block wheels. Never use a jack to support machine.
• Alwaysusepropertoolsorequipmentforjobathand.
• Useextremecautionwhenmakingadjustments.
• Followtorquechartinthismanualwhentighteningboltsandnuts.
• Never use your hands to locate a hydraulic leak on attachments. Use a small piece of
cardboard or wood. Hydraulic fluid escaping under pressure can penetrate skin.
• Openingsinskinandminorcutsaresusceptibletoinfectionfromhydraulicuid.
Without immediate medical treatment, serious infection and reactions can occur.
• When disconnecting hydraulic lines, shut off hydraulic supply and relieve all hydraulic 
pressure.
• Replaceall shields and guards after servicing and before moving.
• Afterservicing,besurealltools,partsandserviceequipmentareremoved.
• Donotallowgreaseoroiltobuilduponanystepsorplatform.
• Whenreplacingboltsrefertoownersmanual.
• Refertobolttorquechartforheadidenticationmarking.
• Wherereplacementpartsarenecessaryforperiodicmaintenanceandservicing,
genuine factory replacement parts must be used to restore your equipment to original
 specications. Manufacturer will not claim responsibility for use of unapproved parts or
accessories and other damages as a result of their use.
• Ifequipmenthasbeenalteredinanywayfromoriginaldesign,manufacturerdoes 
not accept any liability for injury or warranty.
• A re extinguisher and rst aid kit should be kept readily accessible while performing 
maintenance on this equipment
PERFORMING MAINTENANCE

Page 12

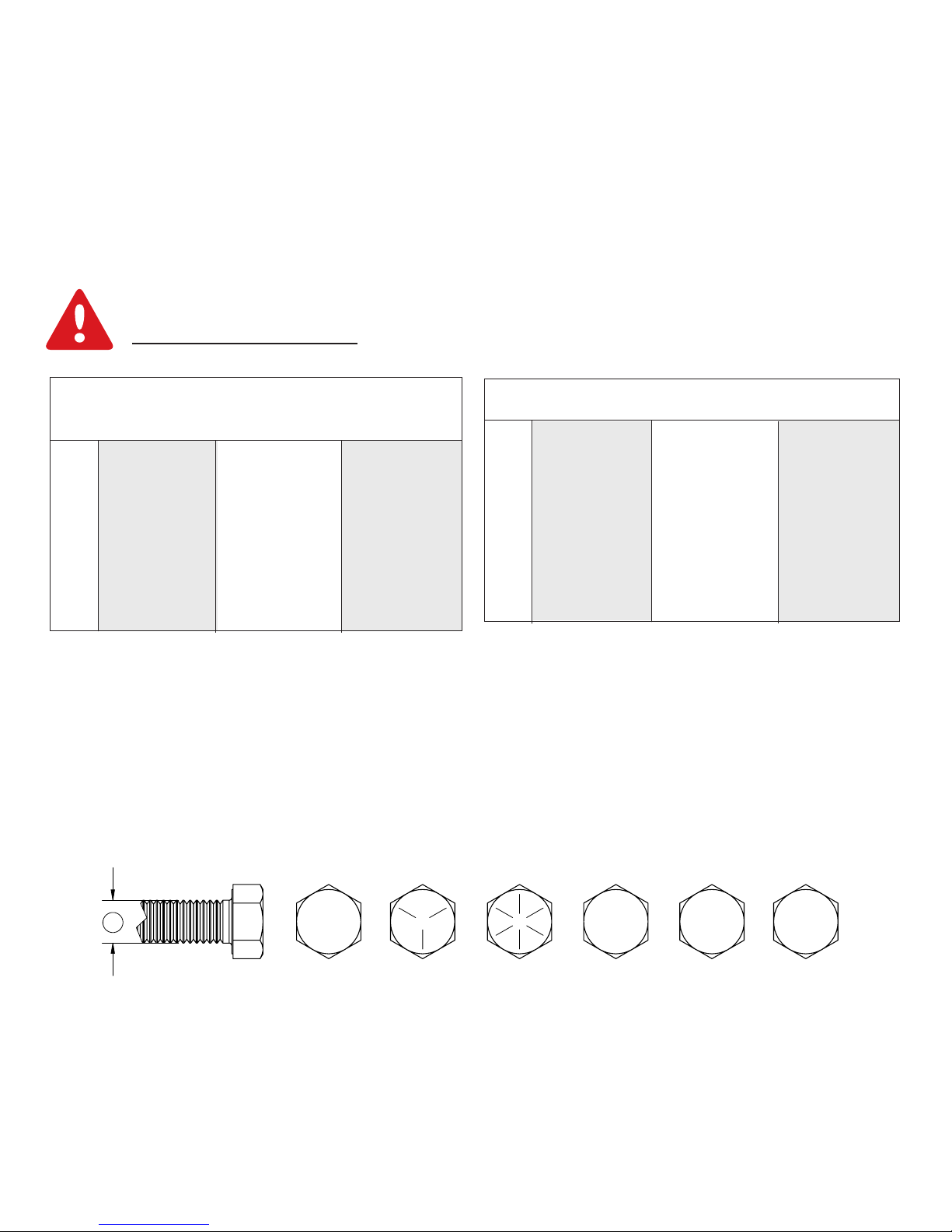

BOLT TORQUE
TORQUE DATA FOR STANDARD NUTS, BOLTS, AND CAPSCREWS.
Tighten all bolts to torques specified in chart unless otherwise noted. Check tightness of bolts
periodically, using bolt chart as guide. Replace hardware with same grade bolt.
NOTE: Unless otherwise specified, high-strength Grade 5 hex bolts are used throughout
assembly of equipment.
Torque figures indicated are valid for non-greased or non-oiled threads and heads unless otherwise
specified.Therefore, do not grease or oil bolts or capscrews unless otherwise specified in this manual.
When using locking elements, increase torque values by 5%.
* GRADE or CLASS value for bolts and capscrews are identified by their head markings.
Torque Specifications
*5$'( &/$66 &/$66
*5$'( *5$'(
&/$66
   $
Bolt Torque for Standard bolts *
GRADE 2 GRADE 5 GRADE 8
“A” lb-ft (N.m) lb-ft (N.m) lb-ft (N.m)
1/4” 6 (8) 9 (12) 12 (16)
5/16” 10 (13) 18 (25) 25 (35)
3/8” 20 (27) 30 (40) 45 (60)
7/16” 30 (40) 50 (70) 80 (110)
1/2” 45 (60) 75 (100) 115 (155)
9/16” 70 (95) 115 (155) 165 (220)
5/8” 95 (130) 150 (200) 225 (300)
3/4” 165 (225) 290 (390) 400 (540)
7/8” 170 (230) 420 (570) 650 (880)
1” 225 (300) 630 (850) 970 (1310)
CLASS 8.8 CLASS 9.8 CLASS 10.9
“A” lb-ft (N.m) lb-ft (N.m) lb-ft (N.m)
6 9 (13) 10 (14) 13 (17)
7 15 (21) 18 (24) 21 (29)
8 23 (31) 25 (34) 31 (42)
10 45 (61) 50 (68) 61 (83)
12 78 (106) 88 (118) 106 (144)
14 125 (169) 140 (189) 170 (230)
16 194 (263) 216 (293) 263 (357)
18 268 (363) -- -- 364 (493)
20 378 (513) -- -- 515 (689)
22 516 (699) -- -- 702 (952)
24 654 (886) -- -- 890 (1206)
Bolt Torque for Metric bolts *

Page 13
(B)
(A)
(A)
1. Block wheels to prevent tractor from moving.
2. Raise rear tractor tire.
3. Check rim alignment at 3, 6, 9, or 12 o’clock position while rotating wheel (A).
4. If measurement exceeds 1/4” total, remove wheel and loosen tractor hub (clean hub/axle
if necessary) and re-torque according to tractor manufacturer specifications.
5. Reinstall wheel and repeat steps 3 & 4 until measurement is 1/4” or less.
6. Install hub spacer and spindle assembly. Refer to Demco SideQuest operator manual
section “Assembly Instructions”.
7. To check spindle alignment, rotate wheel and measure at 1”- 2” from end of assembly
(B).
8. If measurement exceeds 1/4” total, repeat steps 3 & 4 until proper alignment is achieved.

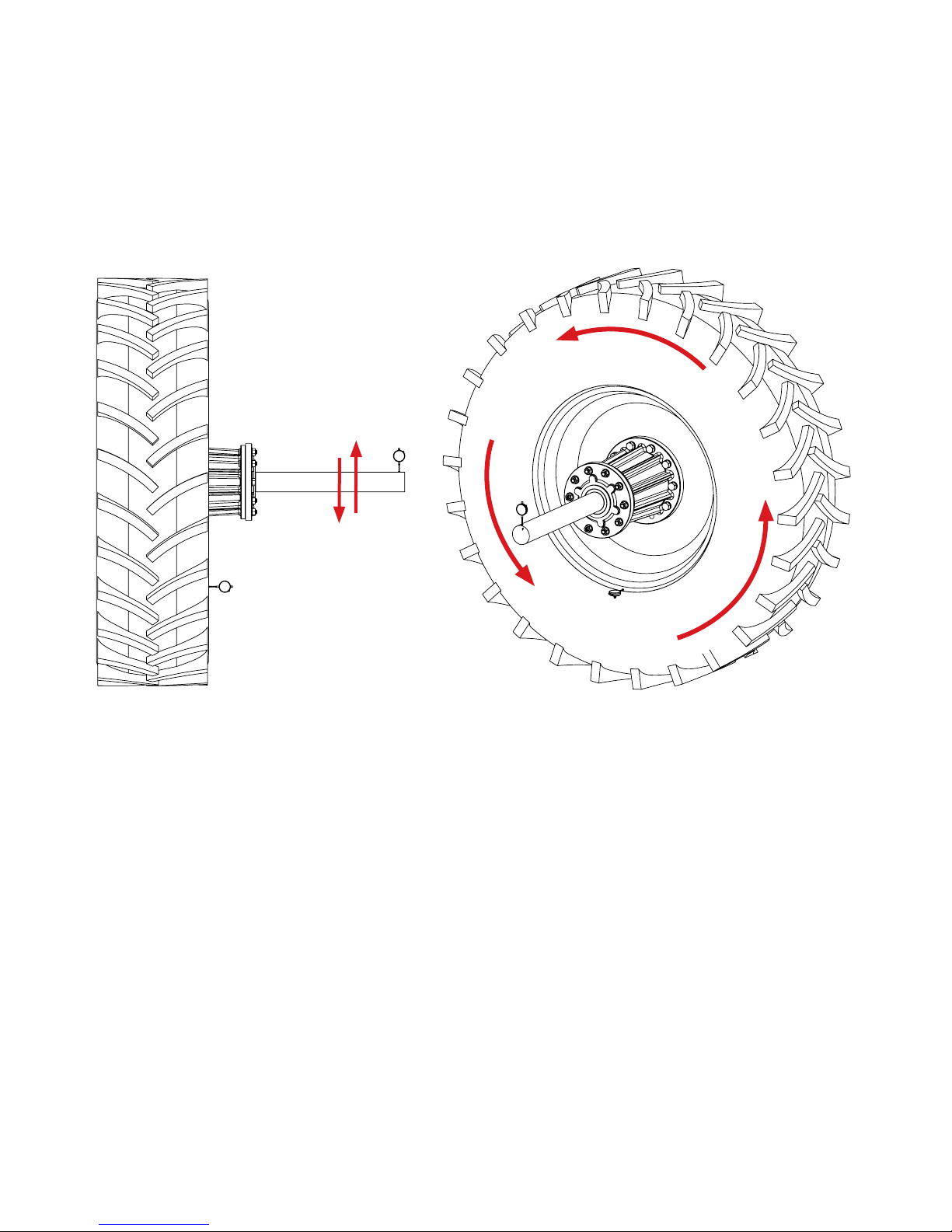

PROCEDURE FOR CHECKING ALIGNMENT/RUN OUT

Page 14
Assembly Instructions
Preparation: Remove any loader brackets from the tractor. The tractors duals must be set to 120” wheel spacing.
Mountbaseplate(specictoyourtractormodel)tothesideofthetractor.Seeseparateinstructionfoundinbaseplate
parts box.
2. With proper hydraulic jack, lift tractor until weight is
off dual wheel but still touching ground. Remove top
and bottom lug bolts on the tractors dual. Insert 2
alignment studs (13919-95). Remove the remainder of
lug bolts.
1. Insert 3/4” x 2.875” studs into Hub Spacer using nuts to
pull them in.
3. Bolt the Hub Spacer to the tractors dual using (8) new
Hex Hd. Bolts (specific to tractor model) and tractors
original washers. Remove starter studs and install the
last 2 Hex Hd. Bolts and tractors original washers.
4. Bolt the Hub/Spindle Assembly to the Hub Spacer
using (10) 3/4” Flange Nuts. Torque all bolts to
the specifications found in this manual. Slide the
Spindle Housing over the spindle and leave loose.
5. Install lower bolt, bushings, washers and nut to overhead
arm (see pg. 18 for bolt orientation). Leave lower bolt
and bushings loose until arm is aligned and bolted to
tanksaddle.Mountoverheadarmintobaseplateusing
notch for lower bolt.
6. Raise overhead bracket and install top pin. Leave
lower bolt and bushings loose at this time.

Page 15
7. Using a fork lift, lower tank assy down onto Spindle Housing.
Install 3/4” bolts and nuts into Spindle Housing. Leave bolts loose.
8. Install Extension Arm onto Overhead Arm using (4)
5/8” bolts, lockwashers and nuts. Install (2) Slide Tubes
Assemblies onto Extension Arm.
9. Line up Drop Channel holes to the holes on front of
Tank Assembly. This will vary depending on type
of tractor and wheel base. Install (4) 5/8” bolts,
lockwashers and nuts.
11. Install (4) 1/2” set screw and jam nut in each Spindle
Housing and (2) in each Slide Tube Assembly.
12. Tighten all bolts and set screws.
13. Repeat same instructions for the opposite side.
14. To remove tanks:
Remove 5/8” bolts from overhead and 3/4” bolts from•
spindle housing.
Lift tank vertically until clear of spindle housing•
Remove hub/spindle assy from spacer (see step 4)•
Optional - remove overhead using pin to release•
Note: keep overhead arms separate as left or right
10. Attach a Drop Channel to each Slide Tube Assembly.
Use (4) 5/8” bolts, lock washers and nuts.

Page 16

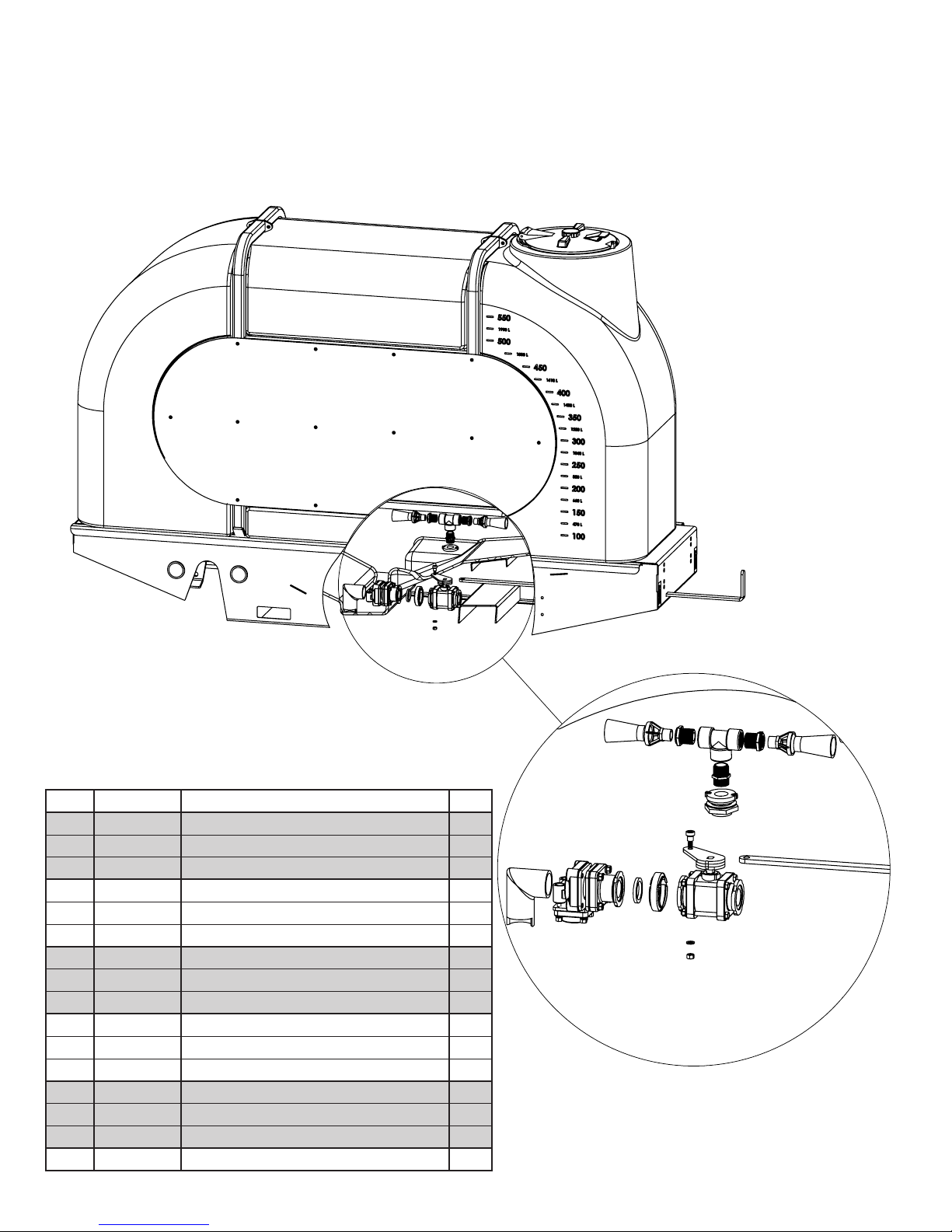

SIDEQUEST ® PLUMBING BREAKDOWN
'(7$,/$
6&$/(
P1 P3
P4
P2
P5
ITEM PART # DESCRIPTION QTY
P1 09941 AGITATORJETHV.75”MPT 2
P2 BRB1034 FTG,REDUCER,1”MPTX.75”FPT 2
P3 BTT100 FTG, TEE, 1” FPT, GFP 1
P4 BM1000 FTG,NIPPLE,1”MPT,GFP 1
P5 P100DA FTG, 1”, F/POLY TANK -ACE 1
P6 MV200CF VALVE,BALL,MANIFOLD,FL.PORT2” 1
P7 09939 CLAMP,2”,F/FLGFTG 1
P8 112G GASKET,1.50”X.25” 1
P9 FTF200 2” FLANGE TANK FITTING 1
P10 10267 2” ELBOW SIPHON FITTING 1
P11 BF100BDS FTGTANK1”BOTTOMDRAIN 1
*1 13808-76 VALVE HANDLE 1
*2 13809-15 VALVE HANDLE LINKAGE YELLOW 1
*3 13838 SHOULDERBOLT.375X1 1
*4 00060 .375 LOCKWASHER 1
*5 00061 .375HEXNUT 1
P2 P1
P6
P7
P8
P9
P10 *1
*3
*2
*4
*5
P11

Page 17
















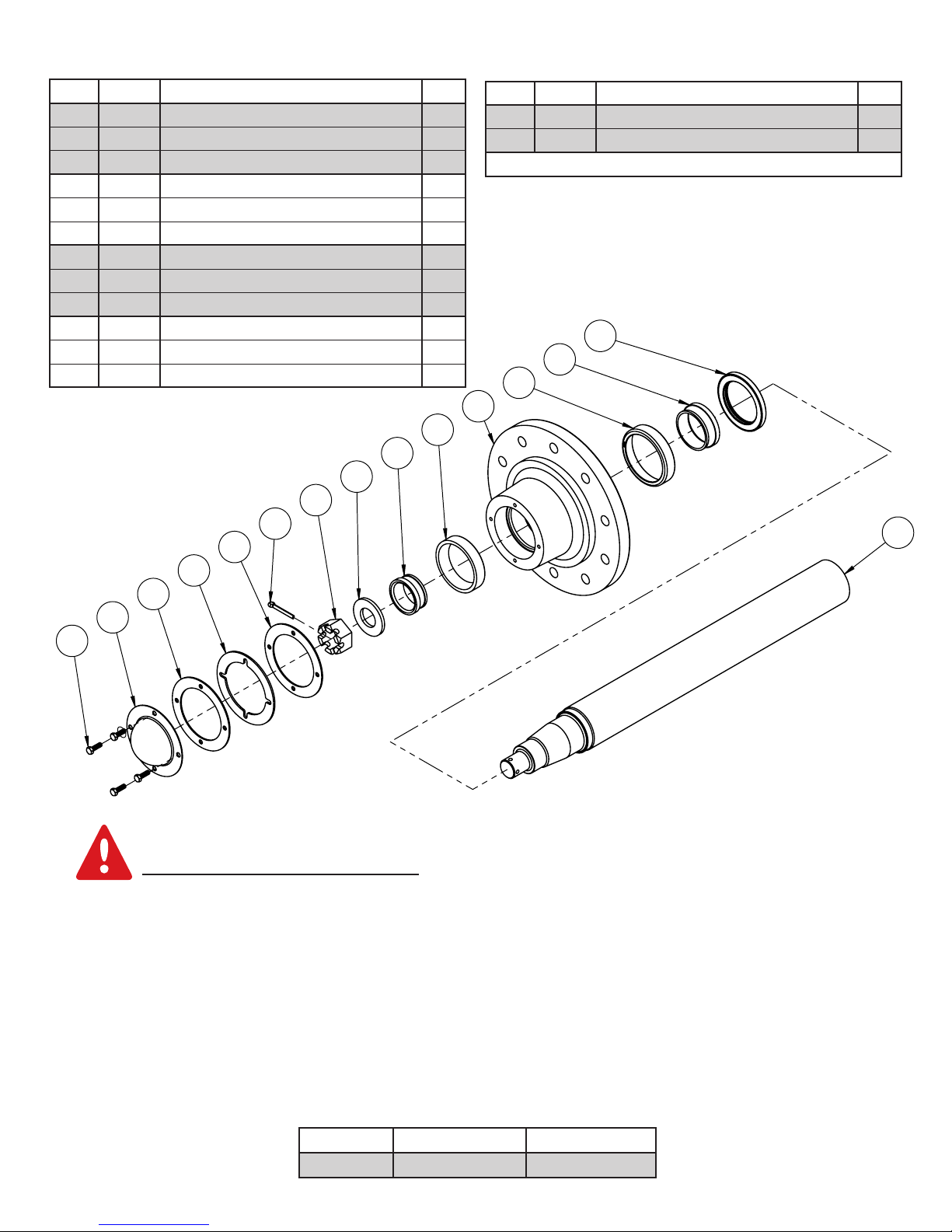

15448-35 - HUB & SPINDLE BREAKDOWN
1. Tighten castle or slotted hex nut to initial torque indicated on chart while turning hub in both
directions to insure all bearing surfaces are in contact.
2. Back nut off and repeat step #1.
3. Back nut off, do not allow hub to turn.
4. Tighten nut to final torque indicated on chart.
5. Install cotter pin, if needed loosen or tighten nut to the next closest locking slot.
6. Chuck hub for end play.
7. If end play can be felt, start over and readjust bearings. If end play is felt again, try readjusting
with a different castle or slotted hex nut.
8. The bearing are set correctly when no end play can be felt after adjustment.
Wheel Bearing Adjustment
ITEM PART # DESCRIPTION QTY.
1 02990 BOLT,.313NCX1.00HEXHEADGR.5 4
2 05088 COTTERPIN,.25X2.00 1
3 07362 HUB CAP F/ #871 & #873 1
4 09055 OIL SEAL F/ 873 HUB 1
5 09532 HUB CAP GASKET 2
6 15431 SPINDLE, SIDEQUEST GEN3 1
7 15432 10-HOLE NON-BRAKING HUB #873 1
8 13627 OUTERRACE453ATIMKEN 1
9 15468 INNERRACE33462TIMKEN 1
10 15433 BEARING#469TIMKEN2.25ID 1
11 15434 BEARING#33287TIMKEN2.875ID 1
12 15435 WASHER3.00”ODX.25”THICK 1
ITEM PART # DESCRIPTION QTY.
13 15436 CASTLE NUT 1-1/2”-12 UNF-2B 1
14 15476 HUB CAP SPACER 1
Please order replacement parts by PART #. and DESCRIPTION.
Hub Initial Toque Final Torque
SQ1200 90 ft/ lbs 60 ft/lbs

Page 18












































,7(0 3$57 '(6&5,37,21 47<
  /2&.:$6+(5

  +(;187

  :$6+(5635,1*/2&. 
 
%2/71&;*5+(; 
 
1&+(;187 
 
:$6+(5)/$7

  1871&-$0 
 
%2/71&;

  %2/71&;*5+(;

  1871&/2&.1<,16(57

  1871&1</21/2&. 
 
1&;*5+(;%2/7

  1&1</21,16(57/2&.187

  %2/71&;*5+(; 
 
%2/71&;+(;+($'*5 
 
6(76&5(:1&;&83 
 
81):+((/187

  &$67+8%63$&(5%2/7

  29(5+($'64

  29(5+($'3,1

  9$/9(+$1'/(

  9$/9(+$1'/(

  %86+,1*;

  6+28/'(5%2/7;

  678'; 
 
(;7(16,21$50$66(0%/< 
 
63,1'/(+286,1*)*(16$''/( 
 
6$''/()256,'(48(67*(1 
 
6/,'(78%($66(0%/< 
 
'523&+$11(/:,'( 
 
+8%63,1'/()64 

5 7$1.&$3

  6,'(3/$7($66(00%/<

 63(& *$//217$1.

600 GALLON SIDEQUEST® BREAKDOWN

Page 19
ITEM PART # DESCRIPTION QTY
1 00060 WASHER .375 LOCK 1
2 00061 NUT.375NCHEX 1
3 00248 WASHER .625 LOCK 16
4 00290 BOLT.625NCX2.00 4
5 00291 NUT.625NCHEX 16
6 00492 WASHER .75 FLAT 2
7 00640 NUT.50NCJAM 8
8 00967 BOLT.50NCX1.25 4
9 01235 BOLT.75NCX2.00 4
10 02178 NUT .50NC NYLON LOCK 4
11 02802 NUT .313NC NYLON LOCK 2
12 02851 BOLT.75NCX8.50 1
13 02961 NUT .75NC NYLON LOCK 5
14 03547 BOLT.313NCX2.25
15 04051 BOLT.625NCX1.50 12
16 06102 SETSCREW.50NCX1.25CUP 8
17 07435 NUT .75UNF FLANGE 10
18 14989 CAST HUB SPACER, LG BORE 1
19 13796-76 OVERHEADARMSQ1200 1
20 13802-95 OVERHEAD PIN 1
21 13808-76 VALVE HANDLE 1
22 13809-15 VALVE HANDLE 1
23 13816-95 BUSHING1.5X1.0 2
24 13838 BOLT.375NCX1.00SHOULDER 1
25 13860 STUD.75UNFX2.875 10
26 14939-76 EXTENSIONARM 1
27 15427-76 SPINDLE HOUSING 1
28 15428-76 SADDLE FOR SIDEQUEST ® 1
29 15429-76 SLIDETUBEASSEMBLY 2
30 15430-76 DROP CHANNEL, WIDE 2
31 15448-35 HUB/SPINDLEASSEMBLY 1
32 5486A REPLACEMENTLIDASSEMBLY 1
33 5956 SIDEPLATEASSEMBLY 2
34 14015 TANK W/FITTINGS & LID YELLOW 1
-- 14015C TANK W/FITTINGS & LID CHARCOAL 1
Please order replacement parts by PART# and DESCRIPTION
600 GALLON SIDEQUEST ®
BREAKDOWN

Page 20
SPRAYER CHECKLIST:
Downtime caused by field breakdowns is costly and time consuming. Many breakdowns can be
eliminated by periodic equipment maintenance. By spending time reviewing this checklist before
seasonal spraying application time and following proper after season care, you can save time
and money later.
NOTE: DEMCO does not and will not make any
recommendationsconcerning applicationofvarious
chemicals or solutions. These recommendations
relate to either amount or procedure of materials
applied. If you have any questions regarding
applicationofcertainchemicalsorsolutions,contact
your chemical supplier and follow chemical
manufacturer recommendations.
Check Before Going To The Field :
1. NOZZLES
Check tip for excessive wear by checking for grooves in
or near tip opening. Check nozzle spacing by starting
at center and working outwards. Check boom for proper
height.
2. HOSES
Check all hoses for worn or soft spots. Be sure all hose
clamps are tightened and hoses are not kinked or pinched.
Check for leakage in any lines.
3. TANK
Remove and clean agitator orifices. Check orifices for
excessive wear by checking for grooves in or near orifice
opening. Inspect fitting and grommets to insure they are
in good condition.
4. CONTROLS
Check for leakage, plugging, or wear on all valves, fittings,
etc. Clean off any build up of foreign material.
5. PUMP
Check to be sure pump turns freely.
6. FRAME
Be sure all bolts are tightened.
7. REPLACEMENT PARTS
Replace all worn or damaged parts.
After Season Care:
NOTE: It is important to wear proper safety equipment
when cleaning the SIDEQUEST ® . See your
chemical or fertilizer package for this information.
1. After spraying chemicals, run water mixed with cleaners
through tank, pump and all hose hookups. If wettable
powder dries out in the system, it is very difficult to put
back into suspension and can cause malfunction,
damage or injury.
2. When cleaned, tank should have all openings closed
or covered to keep dirt from entering.
3. Pump should be flushed with soluble oil and pump ports
plugged to keep out moisture and air.
4. Disassemble tips and rinse with water or cleaning
solution. (Appropriate for chemical sprayed).
5. Clean tip opening with a wooden toothpick. Never use
wire or hard object that could distort opening.
6. Dispose of all unused chemicals or solutions in a proper
and ecologically sound manner.
6. Water rinse and dry tips before storing.
• Keephands,feet,andlooseclothingawayfromrotatingparts.
• Wearprotectiveclothingrecommendedbyyourchemicaland 
fertilizer manufacturer when working with chemicals.
WARNING: To Prevent Serious Injury Or Death
4010 320th St., BOYDEN, IA. 51234
PH: [phone]
FAX: [phone]
TOLL FREE: 1-800-54DEMCO (1-800-543-3626)
www.demco-products.com
Go online to www.demco-products.com for Demco warranty
policies, operator manuals & product registration.
