Denon DN-C680 User manual

IMPORTANT TO SAFETY
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
2
CAUTION:
1. Handle the power supply cord carefully
2. Do not open the top cover
3. Do not place anything inside
NOTE:
LABELS
CERTIFICATION
CAUTION:
USE OF CONTROLS OR ADJUSTMENTS OR REFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR
REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE
PERSONNEL.
CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
,
CLASS 1
LASER PRODUCT,
,,
ADVARSEL: USYNLIG LASERSTRÅLING VED ÅBNING, NÅR
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION.
UNDGÅUDSAETTELSE FOR STRÅLING.
VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ
KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA
ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1
YLITTÄVÄLLE NÄKYMÄMTTÖMÄLLE LASERSÄTEILYLLE.
VARNING–OM APPARATEN ANVÄNDS PÅANNAT SÄTT ÄN I DENNA
BRUKSANVISNING SPECIFICERATS, KAN ANVÄNDAREN
UTSÄTTAS FÖR OSYNLIG LASERSTRÅLNING SOM
ÖVERSKRIDER GRÄNSEN FÖR LASERKLASS 1.

SAFETY INSTRUCTIONS
FIGURE A
EXAMPLE OF ANTENNA GROUNDING
AS PER NATIONAL
ELECTRICAL CODE ANTENNA
LEAD IN
WIRE
GROUND
CLAMP
ELECTRIC
SERVICE
EQUIPMENT
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
NEC - NATIONAL ELECTRICAL CODE
3

4 5
ENGLISH DEUTSCH FRANCAIS ESPAÑOL


NOTE ON USE / HINWEISE ZUM GEBRAUCH / OBSERVATIONS RELATIVES A L’UTILISATION /
NOTE SULL’USO / NOTAS SOBRE EL USO / ALVORENS TE GEBRUIKEN / OBSERVERA /
OBSERVAÇÕES QUANTO AO USO
✽
6
ENGLISH DEUTSCH FRANCAIS ESPAÑOL

ENGLISH
7
MAIN FEATURES
• 19 inch Rack Mountable (Height 3U)
• Large FL Display, Illuminated Rubber Button
• Track Search Select knob (Easy track selection)
• Jog/Shuttle Wheel

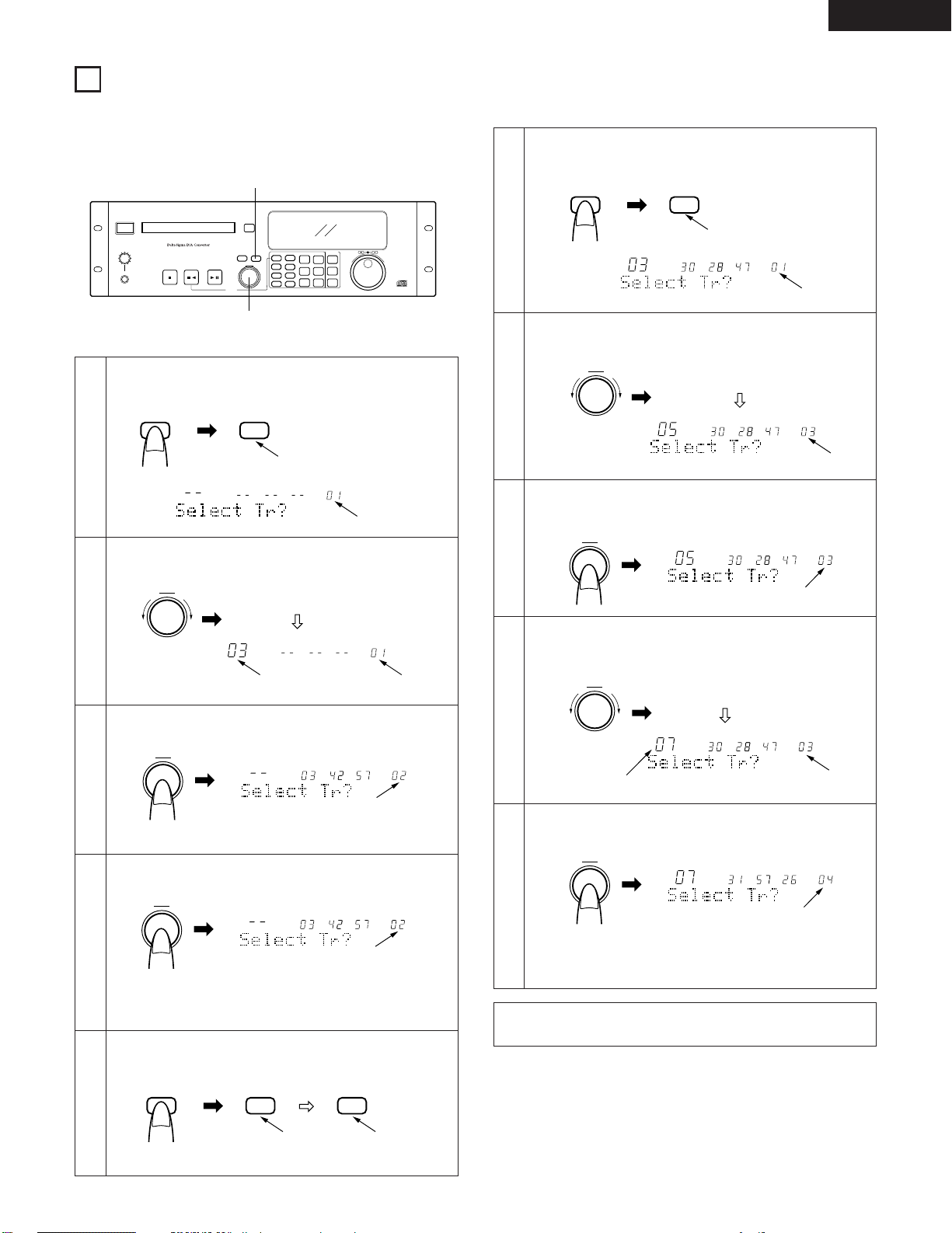

• Program Play (Max. 25 tracks)
• Play mode and Finish mode
q
w
e
q
w
e
• Auto Cue
• End Monitor
• End of Message (EOM) EOM
• Pitch Control (±9.9%, 0.1% step)
• Index Search
• AUTO SPACE
• AUTO EDIT
• Display of Playback Locations
• Rich Array of External Control Terminals
• ACD-25FSC (FS Converter Kit) Option
• ACD-27CS (External Synchronizing Kit) Option

ENGLISH
8
CONTENTS
z
x
c
v
b
n
m
,
.
⁄0
⁄1
Checking the Contents

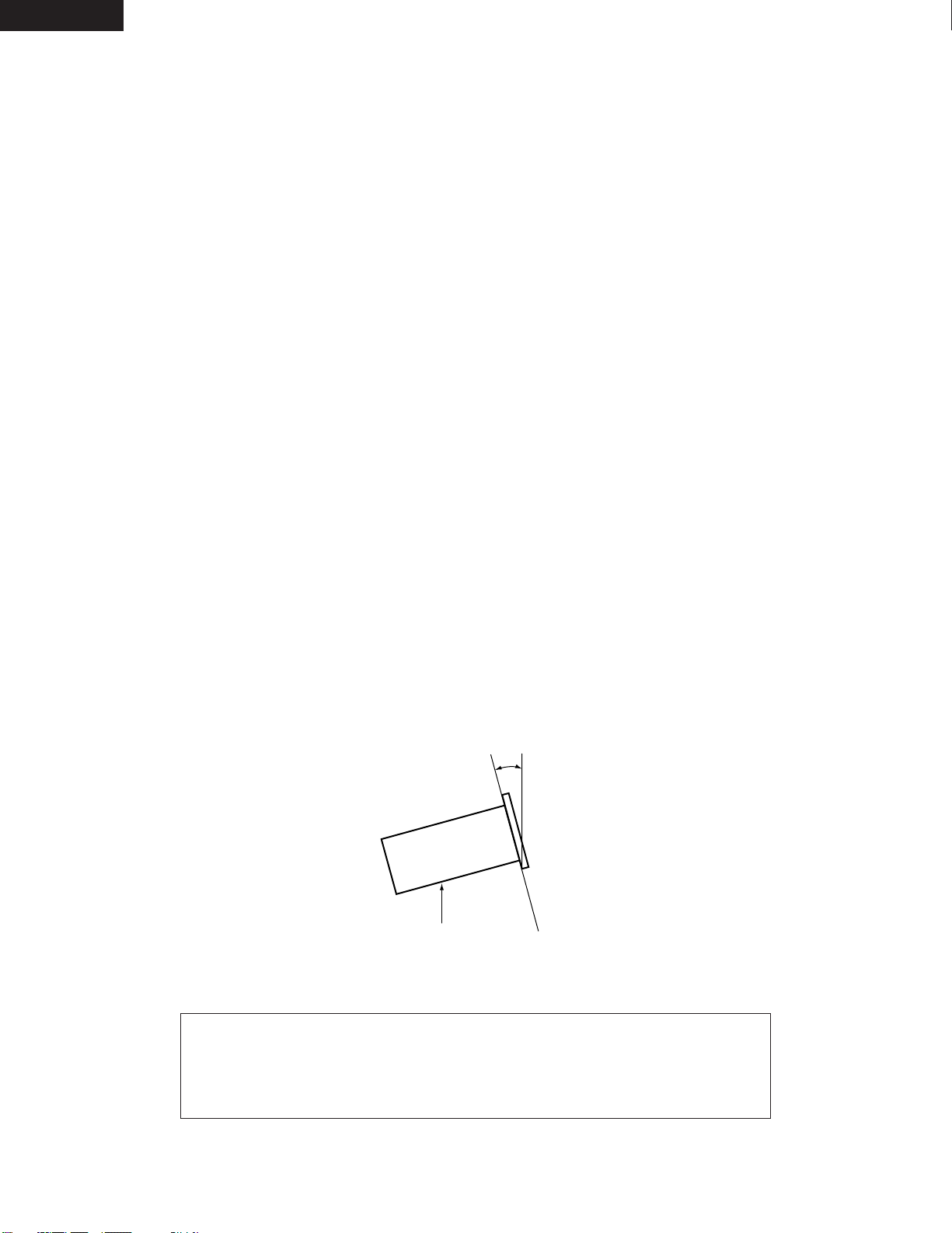

Installing the Units
CAUTION:
• DECLARATION OF CONFORMITY

ENGLISH
9

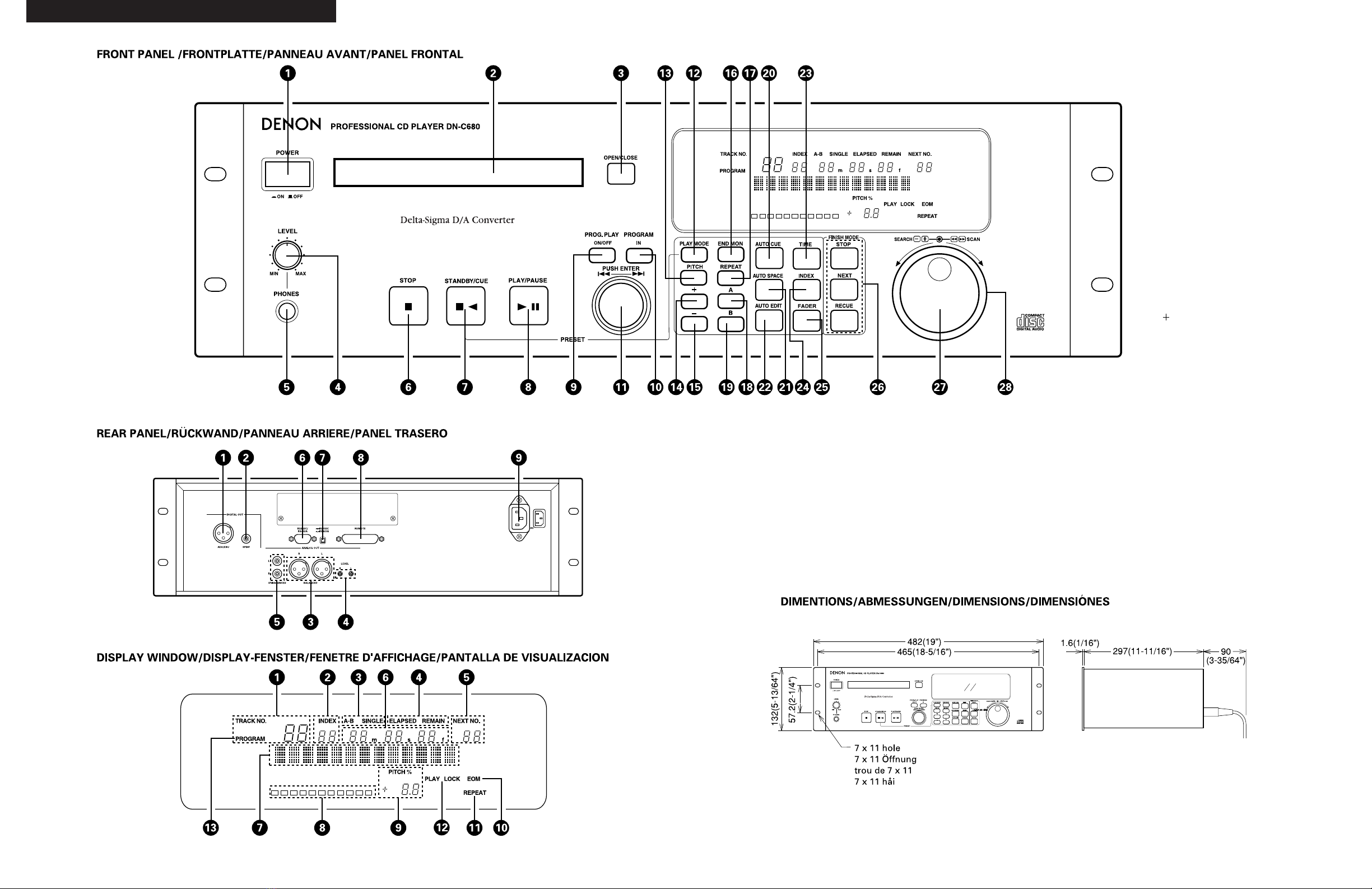

1PART NAMES AND FUNCTIONS
(1) Front Panel
qPOWER button
wDisc holder
eOPEN / CLOSE button
rLEVEL control
tPHONES jack
Ω
ySTOP button
uSTANDBY/CUE button
(Back Cue)
iPLAY/PAUSE button
oPROG. PLAY ON/OFF button
!0 PROGRAM IN button
!1 Select knob
!2 PLAY MODE button
!3 PITCH button
!4 + button
!5 – button
!6 END MON button
(End Monitor)
!7 REPEAT button
!8 A button
!9 B button

ENGLISH
10
@0 AUTO CUE button
(Auto Cue)
@1 AUTO SPACE button
(Auto
Space)
@2 AUTO EDIT button
(Auto Edit)
@3 TIME button
@4 INDEX button
@5 FADER button
@6 FINISH MODE button
@7 SEARCH dial (inner side)
@8 SCAN dial (outer side)
(2) Rear Panel
qDIGITAL OUT (BALANCED) connector
wDIGITAL OUT (UNBALANCED) jack
eANALOG OUT (BALANCE) connectors
NOTE:
rLEVEL L/R controls
tANALOG OUT (UNBALANCED) jacks

ENGLISH
11
yRS232C/RS422A connector
uRS232C/RS422A selector switch
iREMOTE connector
NOTE:
oAC inlet
(3) Display
qTRACK No. display
wINDEX No. display
ePLAY MODE indicators
rTIME MODE indicators
tNEXT No. display
yPlaying time display
uCharacter display
iPlaying position display
oPITCH display
!0 EOM indicator
!1 REPEAT indicator
!2 PLAY LOCK indicator
!3 PROGRAM indicator
