1. Handle the power supply CQP~c~~e~~liv
Do not damage or deform the power supply cord. If it is damaged or
deformed, it may cause electric shock or malfunction when used.
When removing from wall outlet, be sure to remove by holding the plug
attachment and not by pulling the cord.
2. Do not open the top cover
In order to prevent electric shock, do not open the top cover.
If problems occur, contact your DENON DEALER,
3. Do not place en~hing inside
Do not place metal objects or spill liquid inside the DVD audio-video
player.
Electric shock or malfunction may result.
Please, record and retain the Model name and serial number of your set
shown on the rating label.
Model No. DVD-9000 Serial No.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user to
the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
E:
DVD video player uses the semiconductor laser. 70 allow you to enjoy
music at a stable operation, it is recommended to use this in a room of 5
“C (41 “F) . 35 “C (95 “F).
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This Class B digrtal apparatus meets all requrrements of the
Canadian Interference-Causing Equipment Regulations.
Cet appareil num6rique de la c&se B respecte toutes les
le materiel brouilleur du Canada.
POUR WITER LES c~ocs &LECTR~X~, INTERODUIRE LA
LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE
CORRESPONDANTE DE LA PRISE El’ POUSSER JUSQU’ AU
FOND.

1.
2.
3.
4.
5.
6.
7.
8.
9.
10
11
12

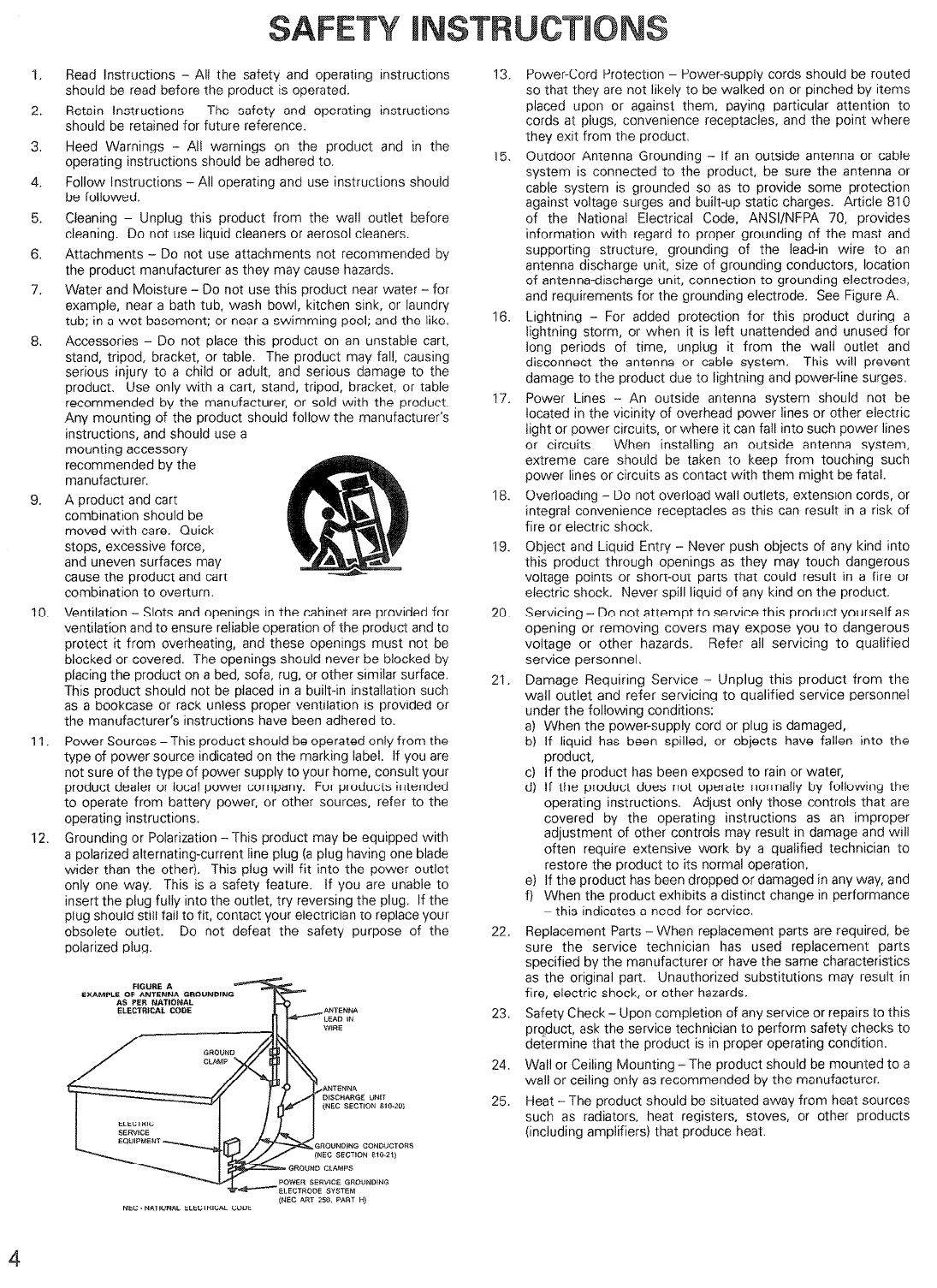

Read Instructions - All the safety and operating instructions
should be read before the product is operated.
Retain Instructions - The safety and operating instructions
should be retained for future reference.
Heed Warnings - All warnings on the product and in the
operating instructions should be adhered to.
Follow Instructions - All operating and use instructions should
be followed.
Cleaning - Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners.
Attachments - Do not use attachments not recommended by
the product manufacturer as they may cause hazards.
Water and Moisture - Do not use this product near water-for
example, near a bath tub, wash bowl, kitchen sink, or laundry
tub; in a wet basement; or near a swimming pool; and the like.
Accessories - Do not place this product on an unstable cart,
stand, tripod, bracket, or table. The product may fall, causing
serious injury to a child or adult, and serious damage to the
product. Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer, or sold with the product.
Any mounting of the product should follow the manufacturer’s
instructions. and should use a
mounting accessory
recommended by the
manufacturer.
A product and cart
combination should be
moved with care. Quick
stops, excessive force,
and uneven surfaces may
cause the product and cart
combination to overturn
Ventilation - Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the product and to
protect it from overheating, and these openings must not be
blocked or covered. The openings should never be blocked by
placing the product on a bed, sofa, rug, or other similar surface.
This product should not be placed in a built-in installation such
as a bookcase or rack unless proper ventilation is provided or
the manufacturer’s instructions have been adhered to.
Power Sources -This product should be operated only from the
type of power source indicated on the marking label. If you are
not sure of the type of power supply to your home, consult your
product dealer or local power company. For products intended
to operate from battery power, or other sources, refer to the
operating instructions.
Grounding or Polarization -This product may be equipped with
a polarized alternating-current line plug (a plug having one blade
wider than the other). This plug will fit into the power outlet
only one way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing the plug. If the
plug should still fail to fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of the
polarized plug.
13.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
Power-Cord Protection - Power-supply cords should be routed
so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to
cords at plugs, convenience receptacles, and the point where
they exit from the product.
Outdoor Antenna Grounding - If an outside antenna or cable
system is connected to the product, be sure the antenna or
cable system is grounded so as to provide some protection
against voltage surges and built-up static charges. Article 810
of the National Electrical Code, ANSI/NFPA 70. provides
information with regard to proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors, location
of antenna-discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode. See Figure A.
Lightning - For added protection for this product during a
lightning storm, or when it is left unattended and unused for
long periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent
damage to the product due to lightning and power-line surges.
Power Lines - An outside antenna system should not be
located in the vicinity of overhead power lines or other electric
light or power circuits, or where it can fall into such power lines
or circuits. When installing an outside antenna system,
extreme care should be taken to keep from touching such
power lines or circuits as contact with them might be fatal.
Overloading - Do not overload wall outlets, extension cords, or
integral convenience receptacles as this can result in a risk of
fire or electric shock.
Object and Liquid Entry - Never push objects of any kind into
this product through openings as they may touch dangerous
voltage points or short-out parts that could result in a fire or
electric shock. Never spill liquid of any kind on the product.
Servicing-Do not attempt to service this product yourself as
opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified
service personnel.
Damage Requiring Service - Unplug this product from the
wall outlet and refer servicing to qualified service personnel
under the following conditions:
a) When the power-supply cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into the
product,
c) If the product has been exposed to rain or water,
d) If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the product to its normal operation,
e) If the product has been dropped or damaged in any way, and
f) When the product exhibits a distinct change in performance
-this indicates a need for service.
Replacement Parts - When replacement parts are required, be
sure the service technician has used replacement parts
specified by the manufacturer or have the same characteristics
as the original part. Unauthorized substitutions may result in
fire, electric shock, or other hazards.
Safety Check - Upon completion of any service or repairs to this
prqduct, ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
Wall or Ceiling Mounting -The product should be mounted to a
wall or ceiling only as recommended by the manufacturer.
Heat -The product should be situated away from heat sources
such as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat.

e Avoid high temperatures.
Allow for sufficient heat dispersion when
installed on a rack.
* Eviter des temperatures elevees.
Tenir compte d’une dispersion de chaleur
suffisante lors de I’installation siir une
etagere.
* Evite altas temperaturas.
Permite la suficiente dispersi6n del calor
cuando est& instalado en la consola.
* Handle the power cord carefully.
Hold the plug when unplugging the cord.
a Manipuler le cordon d’alimentation avec
precaution.
Tenir la prise 101-sdu debranchement du
cordon.
@Maneje el cord6n de energia con
cuidado.
Sostenga el enchufe cuando desconecte
el cord6n de energfa.
0 Keep the set free from moisture, water,
and dust.
@Proteger I’appareil contre I’humidite,
l’eau et lapoussiere.
* Mantenga el equipo libre de humedad,
agua y polvo.
* Unplug the power cord when not using
the set for long periods of time.
e Debrancher le cordon d’alimentation
lorsque I’appareil n’est pas utilise
pendant de longues periodes.
* Desconecte el cord6n de energia cuando
no utilice el equip0 por mucho tiempo.
* (For sets with ventilation holes)
* Do noi obstruct the ventilation holes.
e Ne pas obstruer les trous d’aeration.
* No obstruya 10sorificios de ventilation.
0 Do not let foreign objects in the set.
0 Ne pas laisser des objets &rangers dans
I’appareil.
e No deje objetos extrarios dentro del
eyuipo.
0 Do not let insecticides, benzene, and
thinner come in contact with the set.
a Ne pas mettre en contact des
insecticides, du benzene et un diluant
avec l’appareil.
e No permite el contact0 de insecticidas,
yasolina y diluyentes con el equipo.
e Never disassemble or modify the set in
any way.
@Ne jamais demonter ou modifier
I’appareil d’une man&e ou d’une autre.
e Nunca desarme o modifique el equip0 de
ninguna manera.
It is prohibited by law to reproduce,
broadcast, rent or play discs in public
without the consent of the copyright
holder.
La reproduction, la diffusion, la
location, le pret ou la lecture publique
de ces disques sont interdits saris le
consentement du detenteur des
droits d’auteur.
De acuerdo con las leyes esta
prohibido reproducir, emitir, alquilar o
interpretar discos en public0 sin la
autorizacrbn del propietario de 10s
derechos de autor.

-
q Features.. ................................................................................. 6, 7
a Discs.. .......................................................................................... 8
q Cautions on Handling Discs ......................................................... 9
l2.N onnections -...................................................................... 10 16
Part Names and Functions.. ............................................... .17, 18
Remote Control Unit ............................................................ 19, 20
q Changing the Default Settings .......................................... 21 - 39
q Loading Discs ........................................................................... .4O
q Playback -........................................................................... .41 45
q Adjusting the Picture Quality ............................................ 46 - 48
q Using the 0 -S
n creen Display ..................................................... 49
q Playing Repeatedly .............................................................. 50, 51
-
m Playing Tracks in the Desired Order.. ....................................... .52
@ Playing Tracks in the Random Order.. ....................................... 53
m Using the P
ure Direct Mode. ..................................................... 54
m Using the DVD-9000 as a D/A converter ................................... 55
a MP3 Playback.. .................................................................... 56, 57
q Playing Still Picture Files (JPEG format) ............................ 58 - 60
q Using the Multiple Audio, Subtitle and Angle Functions ..61 - 63
q Using the Menus ................................................................. 64, 65
q Marking Scenes you want to see again .................................... 66
q Playing in the Zoom Mode ........................................................ 67
q Troubleshooting ........................................................................ .68
@ Main Spec’f’ t’I ica Ions.. ................................................................. .69
Please check to make sure Ihe following items are influxes ~~~~ the lain unit in the carton:
L-
@ Audio cord.. ............................................................................... 1 @ Remote control unit (X-552). ................................................. .I
@ Video cord ................................................................................. 1 @ “AA” (R6P) batteries ................................................................ 2
@ AC cord ..................................................................................... I @ Operating instructions .............................................................. .I
@ DENON LINK cord ................................................................... .I @I Service station list.. .................................................................. .I
-
The DVD-9000 is DENON’s top grade DVD audio-video player
equipped with the latest in digital technology. This includes AL24
Processing Plus, a newly developed analog waveform
reproduction technology with sights on next generation media, as
well as a multi 24-bit D/A converter with 192 kHz sampling
compatibility taking maximum advantage of the high quality
offered by AL24 Processing Plus.
(1) AL24 Processing Plus, an advanced version of
conventional AL24 Processing, is a newly developed
analog waveform reproduction technology, and offers
compatibility with the high number of bits and high
sampling rates of next generation media. AL24 Processing
Plus compensates the input digital data to reproduce the
sound with analog waveforms as close as possible to
those existing in nature and with 24-bit quality. The result
is increased musical reproduction capabilities of
reverberations, etc., at low levels, for a sound that seems
to draw you into the concert hall.
(2) AL24 Processing Plus of course carries over Adaptive Line
Pattern Harmonized Algorithm & Automatic Low Pass
Filter Harmonic Adjustment, the strong points of
conventional ALPHA Processing. On the DVD-9000 these
filters have been dramatically improved, resulting in a
filtered band attenuation of over -115 dB and ripple within
the passing band of ~0.00002 dB, a figure comparable to
that of professional recorders.
2. igk ~r~~is~~rn ulti converter
(1) The DVD-9000 is equipped with a multi 24-b& D/A
converter for faithful D/A conversion of the high quality 24-
bit data achieved through AL24 Processing Plus. This
further enhances such aspects of audio performance as
the S/N ratio, dynamic range and distortion and makes full
use of the possibilities for high quality sound provided by
a high number of bits and high sampling rates.
(2) The multi 24-b& D/A converter is little affected by noise
resulting from fluctuations in the power supply voltage
and current, and Ihe quantization distortion level within
the band is constant regardless of the frequency, resulting
in clear sound with little noise.

3.
HDCD is an encoding/decoding technology that greatly
reduces the distortion occurring at the time of digital
recording while maintaining compatibility with the
conventional CD format. HDCD allows 24bit data to be
converted into the 16-bit data of current CDs with no loss in
sound quality.
The use of this HDCD decoder makes it possible to achieve
the high resolution and low distortion characteristic of HDCD
when playing HDCD-compatible discs, and DENON’s digital
technology optimizes the high sound quality possibilities of
HDCD technology. Furthermore, normal CDs, DVDs and
HDCD-compatible CDs are automatically identified, and the
optimum digital signal processing for that type of disc is used.
4. ~@~~~er ( a ( 3)
The DVD-9000 is equipped with a built-in Dolby Digital (AC-3)
/DTS decoder, allowing you to recreate the atmosphere of a
movie theater or concert hall when using the DVD-9000 in
combination with an AV amplifier and speakers.
5.
The DVD-9000 meets THX@ Ultra standards, a strict set of
criteria advocated by Lucasfilm on the picture and sound
quality of DVD players and their operability with connected
equipment. This makes it possible to achieve the high quality
pictures and sound.
6. ~rQ~~@§$iv~ ~~a~ ~~r~~~~U
The DVD-9000 is equipped
Scan circuit “Pure ProgressiverM” allowing it to reproduce
movies and other images on DVDs with a quality near that of
the original.
c~mw@r~arf 61
The DVD-9000 uses a video D/A converter that conducts D/A
conversion of all video signals at 14 bits and allows 4X
oversampling in the progressive mode to achieve the high
quality picture that DVDs are meant to provide. In addition,
NSV technology reduces noise upon D/A conversion.
(1) A large sintered alloy insula
floor. rbs vibrations from the
(2) The pickup mechanism is positioned at the center to
reduce the effects of external vibrations.
(3) A heavyweight chassis and low center of gravity make for
a low vibration design.
The DVD-9000 can be used as a D/A converter by connecting
it to an external digital component using the digital
connectors.
4 ~~~i~~~~~~c~~~~~
(1) Picture CD playback function (NOTE 71
Kodak Picture CDs can be played on the DVD-9000.
Still images stored in JPEG format on CD-R/RWs can also
be played.
(2) Multiple audio function
Selection of up to 8 audio languages.
(The number of languages offered differs from DVD to
DVD.)
(3) Multiple subtitle function
Selection of up to 32 subtitle languages.
(The number of languages offered differs from DVD to
DVD.)
(4) Multiple angle function
The angle of view can be changed.
(For DVDs on which multiple angles are recorded.)
(5) GUI (Graphical User Interface) function
The display button on the remote control unit can be used
to display player and disc information on the TV screen.
(6) Marker function
The positions of up to five scenes can be stored in the
memory, so you can watch your favorite scenes whenever
you want.
(7) Playback disable function
This function can be used to disable playback of DVDs you
do not want children to watch.
1. m@,HDCD@, High Definition Compatible Digital@ and
Pacific Microsonics’” are either registered trademarks or
trademarks of Pacific Microsonics, Inc. in the United States
and/or other countries. HDCD system manufactured under
license from Pacific Microsonics, Inc. This product is covered
by one or more of the following: In the USA: 5,479,166,
5,683,074, 5,640,161, 5608,574, 5,838,274, 5,854,600,
5864,311, 5,872,531, and in Australia: 669114. Other patents
pending.
2. Manufactured under license from Dolby Laboratories. “Dolby”
and the double-D symbol are trademarks of Dolby
Laboratories. Confidential Unpublished Work. 01992 - 1998
Dolby Laboratories, Inc. All rights reserved.
3. Manufactured under license from Digital Theater Systems, Inc.
US Pat. No. 5,451,942, 5,956,674, 5,974,380, 5978,762 and
other world-wide patents issued and pending. “DTS”,“DTS-ES
Extended Surround” and “Neo:6” are trademarks of Digital
Theater Systems, Inc. Copyright 1996, 2000 Digital Theater
Systems, Inc. All Rights Reserved.
4. Manufactured under license of Lucasfilm Ltd. Lucasfilm and
THX@ Ultra are registered trademarks of Lucasfilm Ltd.
5. “Pure Progressive” is a trademark of Silicon Image, Inc.
6. “NSV” is a trademark of Analog Devices, Inc.
7. “KODAK” is a trademark of Eastman Kodak Company.

* The types of discs listed on the table below can be used on the DVD-9000.
The marks are indicated on the disc labels or jackets
Usable
discs
IVD video
3VD audio
INOTE II
DVD-R
DVD-RW
(NOTE 2)
Video CD
(NOTE Ii
CD
CD-R
CD-RW
(NOTE 3)
‘icture CD
Mark (logo)
Digital audio +
digital video
!MPEGZ)
Tke ~oliowi~~ types of
-9QQQ:
e DVDs with region numbers other than “I” or “ALL”
e DVD-ROM/RAMS
e DVD+RW/DVD+R
@SACD
e CD-ROMs
@CVD/SVCD/VSDs
e CDVs (Only the audio part can be played.)
e CD-Gs (Only the audio is output.)
@Photo CDs
NOTE 1: Some DVD audio, DVD video and video CD discs do not
operate as described in this manual due to the
intentions of the discs’ producers.
NOTE 2: Playing DVD-R and DVD-RW discs
DVD-R and DVD-RW discs recorded in video format on
a RVD recorder can be played on the DVD-9000.
Discs that have not be finalized cannot be played.
Depending on the disc’s recording status, the disc may
not be accepted or may not be played normally (the
picture or sound may be not be smooth, etc.).
NOTE 3: According to recording quality, some CD-R/RW cannot
be played
* This DVD video player is designed and
manufactured to respond to the Region
Management information that is recorded
on a DVD disc.
If the Region number described on the
DVD disc does not correspond to the
Region number of this DVD video player,
this DVD video player cannot play this disc.
The Region number for this DVD video
player is 1.
cks ( ~~~~iO$)
DVD-audios are divided into several large sections called
“groups” and smaller sections called “tracks”.
Numbers are allotted to these sections. These numbers are
called “group numbers” and “track numbers”.
1 G~oupl I^ Group 2
e bolesand~~~~~e~s( @OS)
DVD-videos are divided into several large sections called
“titles” and smaller sections called “chapters”.
Numbers are allotted to these sections. These numbers are
called “title numbers” and “chapter numbers”.
Title1
Title 2
@ ~~a~~$ (romeo .%I
Video and music CDs are divided into sections called
“tracks”.
Numbers are allotted to these sections. These numbers are
called “track numbers”.
FQsr0xa~~i~:
8)
Video CDs including the words “playback control” on the
disc or jacket are equipped with a function for displaying
menus on the TV screen for selecting the desired position,
displaying information, etc., in dialog fashion.
In this manual, playing video CDs using such menus is
referred to “menu playback”.
Video CDs with playback control can be used on the DVD-
9000.

Only the discs including the marks shown on page 8 can be
played on the DVD-9000.
Note, however, that discs with special shapes (heart-shaped
discs, hexagonal discs, etc.) cannot be played on the DVD-9000.
Do not attempt to play such discs, as they may damage the
player.
e Do not get fingerprints, grease or dirt on discs.
@Be especially careful not to scratch discs when removing them
from their cases.
* Do not bend discs.
@Do not heat discs.
Q Do not enlarge the center hole.
@Do not write on the labeled (printed) side with a ball-point pen
or a pencil.
e Water droplets may form on the surface if the disc is moved
suddenly from a cold place to a warm one. Do not use a
hairdryer, etc., to dry the disc.
Avoid touching the surface of discs when loading and unloading
them.
Becarefulnot to get
fingerprints on the signal
surface(thesidewhich
shines in rainbow colors).
Fingerprints or dirt on the disc may lower sound and picture
quality or cause breaks in playback. Wipe off fingerprints or
dirt.
Use a commercially available disc cleaning set or a soft cloth to
wipe off fingerprints or dirt
Wipe gently from the middle Do not wipe with a circular
outwards. motion.
* Do not use record spray or antistatic. Also do not use
I
1
volatile chemicals such as benzene or thinner. I
* Always eject discs after playing them.
0 Keep discs in their cases to protect them from dust, scratches
and warping.
@Do not put discs in the following places:
1. Places exposed to direct sunlight for long periods of time
2. l-lumid or dusty places
3. Places exposed to heat from heaters, etc.
0 Only load one disc at a time. Loading one disc on top of another
may result in damage or scratch the discs.
0 Load 8 cm discs securely in the disc guide, without using an
adapter. If the disc is not properly loaded, it may slip out of the
guide and block the disc tray.
@Be careful not to let your fingers get caught when the disc tray
is closing.
e Do not place anything but discs in the disc tray.
* Do not load cracked or warped discs or discs that have been
fixed with adhesive, etc.
e Do not use discs on which the adhesive part of cellophane tape
or glue used to attach the label is exposed, or discs with traces
of tape or labels that have been peeled off. Such discs may get
stuck inside the player, resulting in damage.
Record Thinner Benzene !
sway !
/

e Read the manuals of all the components when making * Be sure to connect the left and right channels properly, L
* Keep the power cord unplugged until all connections have * Plug the power cord securely into the power outlet.
Incomplete connection may result in noise.
e If the power is on when connections are made, noise may
be generated and damage the speakers. * Binding the power cord together with connection cords may
result in humming or noise.
* Use the included audio video cord to connect the TV’s video input connector and audio input connectors to the DVD-9000’s VIDEO OUT
or S-VIDEO OUT and AUDIO OUT.
Topower outlet
DVD-9000
s are divided into color (Cl and brightness
(Y) signals, achieving a clearer picture.
If the TV is equipped with an S-Video input connector, we
recommend connecting it to the DVD-9000’s S-Video
output connector using a commercially available S-Video
connection cord.
* Connect the DVD-9000’s video outputs to the TV either 0 To use with 2-channel audio output, set “2 CHANNEL” in
directly or through an AV amplifier. Do not connect it via a “AUDIO CHANNEL” in “AUDIO SETUP” in “SETUP” at the
VCR (video cassette recorder). Some discs contain copy initial settings. (See page 29)
prohibit signals. If such discs are played via a VCR, the copy * Set the “TV ASPECT” in “VIDEO SETUP” in “SETUP” to
prohibit system may cause disturbance in the picture. comply with your TV’s aspect. (See page 26)
@Set the “TV TYPE” in “VIDEO SETUP“ in “SETUP” to e To use with video out or s-video output, set “INTERLACED”
comply with your TV’s video format. When the TV is NTSC in “VIDEO OUT” in “VIDEO SETUP” in “SETUP” at the
formated set to NTSC. (See page 27) initial settings. (See page 27)

DVD,-9000
The red (PRKR), blue (PB/CB)and brightness (Y) signals are output independently, achieving more faithful
reproduction of the colors.
* The color component input connectors may be marked differently on some TVs or monitors (PR, Peand Y/R-
Y, B-Y and Y/Cn, COand Y, etc.). For details, refer to the TV’s operating instructions.
mme~ in this ~~~ if ~~~~ TV is ~~~~a~i~~~ with resaiwe Scan.
\ \ \ I
Topower outlet
* Use the three commercially available video cords to connect the DVD-9000’s color component output connectors to the TV or
monitor.
* Set the “TV TYPE” in “VIDEO SETUP” in “SETUP” to comply with your TV’s video format. When the TV is NTSC formated set to
NTSC. (See page 27)
* Set the “VIDEO OUT” in “VIDEO SETUP” in “SETUP” to comply with Progressive TV. (NTSC formated only)
* To use with 2-channel audio output, set “2 CHANNEL” in “AUDIO CHANNEL” in “AUDIO SETUP“ in “SETUP” at the initial
settings. (See page 29)
* Set the “TV ASPECT” in “VIDEO SETUP” in “SETUP” to comply with your TV’s aspect. (See page 26)
CONSUMERS StiULD NOTE THAT NOT ALL HIGH DEFiNITlON TELEVISION SETS ARE FULLY
I------
PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 PROGRESSIVE SCAN PICTURE
PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE “STANDARD DEFINITION” OUTPUT.

When DVDs recorded in Dolby Digital or DTS are played, Dolby Digital or DTS bitstream signals are output from the DVD player’s digital
audio output connectors. If a Dolby Digital or DTS decoder is connected, you can achieve sound with the power and sense of presence
of a movie theater or concert hall.
To power outlet
DVD-9000
I 1
Center speaker
Front speaker (left) Optical fiber cable
Surround
(commercially
available)
Digital audio input
connector (OPTKAL)
75621ohmspin-plug
cable (commercially
available)
Digital audio input
connector (COAXIAL)
Front speaker (right)
Subwoofer
Surround speaker
IIII
AV amplifier with a built-in decoder I Ill Ill
(AVcontrol center)
(right)
8) Harsh noise that could harm your ears or damage the speakers is generated when a DVD recorded in DTS is played while usrng a
decoder, etc., that is not DTS-compatible.
* When playing copyright-protected linear PCM or packed PCM DVDs, in consideration of copyrights, no digital signals are output for
sources exceeding 48 kHz/lG bits. When playing such sources, either set “LPCM (44.1 kHz148 kHz)” under “AUDIO SETUP” at “SETUP”
to “ON” (see page 32) or make analog connections. (See page 14.1
@When making digital connections to an AV amplifier that is not compatible with 96 kHz/88.2 kHz signals, set “LPCM (44.1 kHz/48 kHz)”
under “AUDIO SETUP” at “SETUP” to “ON”. (See page 32.)
erminal, attach the cap to protect
Remove the dust cap, line up the cable in the proper directly, then
insert it securely as far as it goes.

In the case of bit stream output
I
Settings
I
DIGITAL OUT
Dolby Digital bitstream
DTS bitstream 2 channels PCM
(48 kHr / 16 bit)
In the case of PCM output
DVD video
DVD audio
Video CD
Music CD
MP3 CD
Settings
LPCM SELECT
Audio recording format OFF
/
Copy protection ON Copy protection OFF ON
Linear PCM
Linear PCM
or
Packed PCM
44.1 kt-lz/ 16 bit Linear PCM
44.1 kHz I16 bit PCM 44.1 kHzlt6 bit PCM
* 1 Only 48 k&$6-bit sources are output.
“2 Only 44.1 kHz/l6-bit sources are output.
* Down-mixed to 2 channels for multi-channel PCM sources. (Only the front left and right channels are output for sources for which
down-mixing is prohibited.)
e When “OFF” is selected, digital signals are not output from the digital audio output at this time.
e Linear PCM audio is the signal recording format used for music CDs.
While the signals are recorded at 44.1 kHz/36 bit for music CDs, for DVDs they are recorded at 44.1 kHz/36 bit to 192 kHu’24 bit,
providing higher sound quality than music CDs.
* Packed PCM signals are high sound quality cornpressed PCM signals that are decompressed with virtually no loss of data.

Analog 5.1-channel audio signals can be output from the DVD-9000.
The multichannel audio signals recorded in packed PCM can be played when an AV amplifier equipped with analog 5.1-channel audio
inputs is connected.
To power outlet
Front speaker (right)
5
e For multi-channel connections, set “AUDIO CHANNEL” under “AUDIO SETUP” at “SETUP” to “MULTI CHANNEL” and make the
“SPEAKER CONFIGURATION”, “CHANNEL LEVEL” and “DELAY TIME” settings.
0 Set “LPCM (44.1 kHz/48 kHz)” under “AUDIO SETUP” at “SETUP” to “OFF”. (See page 32.)
(If set to “ON”, analog audio signals converted to 48 kHz will be output for linear PCM or packed PCM sources.)
0 When playing DVDs that are not copyright-protected and the unit is set to output digital and analog audio signals simultaneously, for some
discs only the signals below 96 kHz for the front two channels will be output for the analog part.
When playing DVDs that are not copyright-protected, set “DIGITAL OUTPUT” at “PURE DIRECT MODE” to “OFF”. (See page 54.)
e With the DVD-9000, we recommend turning the digital output off and only outputting analog signals in order to keep interference from
the digital output circuitry to the minimum and allow you to enjoy high bit, high sampling frequency, high quality multi-channel sound.

* Set the “AUDIO SETUP” default setting as shown below. (See page 32.1
c “DIGITAL OUT” + “PCM”
“LPCM SELECT“ -3 “ON”
Playing DVDs with incorrect settings may result noise that could damage your ears or the speakers
DUD-9000
Digital audio input connector (COAXIAL)
DVD-9000 Stereo component
* When connecting to a Z-channel audio stereo device, set “AUDIO CHANNEL” under “AUDIO SETUP” at “SETUP” to “2 CHANNEL”
(see page 29). For multi-channel sources, the signals are down-mixed into two channels (analog).
(Only the front left and right channels are output for sources for which down-mixing is prohibited.)
* Set “LPCM (44.1 kHz/48 kHz)” under “AUDIO SETUP” at “SETUP” to “OFF”. (See page 32.)
(If set to “ON”, analog audio signals converted to 48 kHz will be output for linear PCM or packed PCM sources.)
* Set “DIGITAL OUTPUT” at “PURE DIRECT MODE” to “OFF”. (See page 54.)
(If set to “ON”, analog audio signals converted to 96 kHz/88.‘2 kHz will be output when playing sources recorded at 196 kM2/176.4 kHz.1

High quality digital sound with reduced digital signal transfer loss can be enjoyed by connecting a separately sold Denon Link compatible
AU amplifier.
DVD-9000
Topower outlet
El
Centerspeaker
Frontspeaker(right)
Subwoofer
Surroundspeaker(left) Surroundspeaker(right)
e With Denon Link, digital transfer is only possible for discs that are not copyright-protected.
@When playing linear PCM or packed PCM DVDs that are not copyright-protected, digital transfer is possible at up to 24bits/Z-
channels for 192/l 76.4 kHz or 24-hits/6-channels for 96 kHz by using Denon Link connections.
* When playing copyright-protected linear PCM or packed PCM DVDs, in consideration of copyrights, linear PCM signals are not
output from the DENON LINK terminal for sources exceeding 48 kHz/lG bits, so also make analog connections (see page 141.
“PROTECTION” is displayed on the DVD-9000’s display when copyright-protected DVDs are played.
e To output signals from the DENON LINK terminal when playing DVDs that are not copyright-protected, set “DIGITAL OUTPUT”
at “PURE DIRECT MODE” to “OFF”. (See page 54.)
(If set to “ON”, for some discs signals below 96 kHz/‘2channels will be output from the DENON LINK and analog audio output
terminals,)
e Set “LPCM (44.1 kHz148kHz)” under “AUDIO SETUP” at “SETUP” to “OFF”. (See page 32.1
(If set to “ON”, analog audio signals converted to 48 kHz will be output for linear PCM or packed PCM sources.)
@To output the bitstream signals of Dolby Digital, DTS or other sources from the DENON LINK terminals, set “DIGITAL OUTPUT”
at “PURE DIRECT MODE” to “ON”. (See page 54.1

See page 3.
0 Press once to turn the power on.
e Press again to set to the “OFF” position and turn the
power off.
0 Set the power to the standby mode by pressing the
POWER OFF button on the remote control unit while the
power is on.
* Turn the power on from the standby mode by pressing the
POWER ON button on the remote control unit.
ts when the power is on and when the
power is in the standby mode.
tar
@This indicator lights when the audio signals of a DVD, etc.,
are being processed digitally with the AL24 processing
Pius, a newly developed analog waveform reproduction
in tar
0 This indicator lights when playing discs recorded in DVD
audio format.
isc tra
@Load discs here. (See page 41.)
@Press the OPEN/CLOSE button to open and close the
disc tray.
* The disc tray is also closed when the FLAY button is
tton to play the disc. (See page 42.)
* Press this to stop the disc. (See page 43.)
to move back to the beginning of the current
track (or chapter).
83Press again to move back to the beginning of the previous
track (or chapter). (See page 44.)
@Press this to move ahead to the beginning of the next
track (or chapter). (See page 44.)
es with specific movie signal and
digital audio signal output settings.
r
@Use this to select the program source for output.
DVD :The signals of the disc being played on the
DVD-9000 are output.
OPTICAL :The program source connected to the
OPTICAL digital input connector is output.
COAXIAL :The program source connected to the
COAXIAL digital input connector is output.
* The program source selected with this selector is also
output to the digital output connector.
r
ormation on the disc that is currently playing is shown
on the display. (See page ‘IS.1
* Press this button to open and close the disc tray.
(See page 41 .I

* This is a terminal for future system expansion.
I
* Connect using an optical fiber cable (available in stores).
@Digital data is output from this connector.
available 75 @‘ohms pin-plug cord.
e Digital data is output from this connector.
I
e Connect the OPTICAL digital output connector of a CD
player, DAT deck, MD recorder, etc., to this connector to
monitor the sound of that component.
e Connect the COAXIAL digital output connector of a CD
player, DAT deck, MD recorder, etc., to this connector to
monitor the sound of that component.
e This is for connection of a separately sold AV amplifier
equipped with a Denon Link connector.
* Use it to achieve high quality digital sound with low data
loss.
e This is the input connector for wired remote control.
Consult your DENON dealer if you wish to use this
connector.
e This is the output connector for wired remote control.
Consult your DENON dealer if you wish to use this
connector.
a Connect using video cords (available in stores).
eet c
stores). g an S-Video connection cord (available in
= Connect using the included video cord.
Lights during playback of multiple angles disc
Lights to indicate the currently playing disc
Lights when the audio signals can be down-mixed. Lights to indicate the currently playing audio channel.
I These light to indicate the narnes of the sections of the disc being played. Lights when in the virtual surround mode
I I
Lights to indicate the currently playing audio format.
I
I
These light to indicate the time display mode.
I
I
Displays the title, track number and elapsed time during I I
playback. I
Lights in the still/pause mode. Lights when progressive video signals are
being output.
Lights in the programmed play mode. Lights in the repeat play mode
Lights during playback, flashes when the resume play memory function is activated
_ Lights to indicate the
currently playing video
type.
F: Film source
V: Video source
G: Graphic source
-
Lights in the random play mode

The DVD-9000 can be controlled from a distance using the included remote control unit (K-552).
0) Remove the remote control unit’s rear cover.
@ Place two “AA” (R6P) batteries in the battery compartment in
the direction indicated by the marks.
(3 Close the rear cover.
* Use “AA” (R6P) batteries in this remote control unit.
@Replace the batteries with new ones approximately once
a year, though this depends on the frequency with which
the remote control unit is used.
@If the remote control unit does not operate from close to
the main unit, replace the batteries with new ones, even
if less than a year has passed.
e The included battery is only for verifying operation.
Replace it wirh a new battery as soon as possible.
* When inserting the batteries, be careful to do so in the
proper direction, following the 0 and 0 marks in the
remote control unit’s battery compartment.
a To prevent damage or battery fluid leakage:
@Do not use a new battery with an old one.
e Do not use two different types of batteries.
@Do not short-circuit, disassemble, heat or dispose of
batteries in flames.
Q Remove the batteries when not planning to use the
remote control unit for a long period of time.
8)If the batteries should leak, carefully wipe off the fluid
from the inside of the battery compartment, then insert
new batteries.
@When operating the remote control unit, point it at the
remote control sensor as shown on the diagram.
@The remote control unit can be used from a direct
distance of approximately 7 meters. This distance will
be shorter, however, if there are obstacles in the way
or if the remote control unit is not pointed directly at
the remote control sensor.
a The remote control unit can be operated at a horizontal
angle of up to 30” with respect to the remote control
sensor.
@It may be difficult to operate the remote control unit if the remote control sensor is exposed to direct sunlight or strong artificial
light.
@Do not press buttons on the main unit and on the remote control unit at the same time. Doing so will result in malfunction.

Use this to switch the set’s video output 1
format NTSC PAL.
Use these to skip to the beginnings of
: Reverse direction : Reverse direction
use the
and Y buttons to select in the
vertical direction.
Use the and buttons to select in
the horizontal direction.
Press the ENTER button to select the
item selected with the cursor buttons.
y. Can be switched in 4
Press this to clear numbers that you
~urnbe~ buttons 1
Press this to play tracks repeatedly. s to check the program
eat sections between two
Press this to mark places you want to
see again.
Press this to change the search mode to
search for groups or titles, tracks or
chanters when setectina sections of
discs directly using the number buttons.
Use these to selected the desired stall
picture on DVD audio discs containing
browseable still pictures.
Press this to play the tracks on the video (Functions when playing DVDs recorded
in Dolby Digital with two or more
20
