Denon Avr-883 User manual

Hi-Fi Component

SERVICE MANUAL

MODEL

AVR-1803/883

AV SURROUND RECEIVER

X0154 NC 0210

For U.S.A., Canada, Europe,

U.K., Asia, China, Hong Kong,

Taiwan R.O.C. & Korea model

Some illustrations using in this service manual are slightly different from the actual set.

16-11, YUSHIMA 3-CHOME, BUNKYOU-KU, TOKYO 113-0034 JAPAN

Telephone: 03 (3837) 5321

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

2

AVR-1803/883

SPECIFICATIONS



Audio section

• Power amplifier

Rated output: Front: 80W+80W (8 ohms, 20Hz~20kHz with 0.08% T.H.D.)

110W+110W (6 ohms, 1kHz with 0.7% T.H.D.)

(U.S.A., Canada,

Europe, U.K.

Models)

130W+130W (6 ohms, EIAJ *) (Asia Model)

Center: 80W (8 ohms, 20Hz~20kHz with 0.08% T.H.D.)

110W (6 ohms, 1kHz with 0.7% T.H.D.)

(U.S.A., Canada,

Europe, U.K.

Models)

130W (6 ohms, EIAJ *) (Asia Model)

Surround: 80W+80W (8 ohms, 20Hz~20kHz with 0.08% T.H.D.)

110W+110W (6 ohms, 1kHz with 0.7% T.H.D.)

(U.S.A., Canada,

Europe, U.K.

Models)

130W+130W (6 ohms, EIAJ *) (Asia Model)

Surround Back: 80 W (8 ohms , 20 Hz ~ 20 kHz with 0.08% T.H.D.)

110 W (6 ohms , 1 kHz with 0.7% T.H.D.)

130W (6 ohms, EIAJ *) (Asia Model)

Dynamic power: 100 W x 2 ch (8 ohms)

145 W x 2 ch (4 ohms)

170 W x 2 ch (2 ohms)

Output terminals: Front, Center, Surround: 6 ~ 16 ohms

Surround Back: A or B 6 ~ 16 ohms

A + B 12 ~ 16 ohms

Input sensitivity / input impedance: 200 mV / 47 kohms

Frequency response: 10 Hz ~ 100 kHz: +1, -3 dB (DIRECT mode)

S/N: 100 dB (IHF-A weighted) (DIRECT mode)

• Phone equalizer (PHONE input 



REC OUT)

Input sensitivity: 2.5 mV

RIAA deviation: ±1 dB (20 Hz to 20 kHz)

Signal to noise ratio: 74 dB (A weighting, with 5 mV input)

Rated output / Maximum output: 150 mV / 7 V

Distortion factor: 0.03% (1 kHz, 3 V)



Video section

• Standard video jacks

Input / output level and impedance: 1 Vp-p, 75 ohms

Frequency response: 5 Hz ~ 10 MHz +1, -3 dB

• S -video jacks

Input / output level and impedance: Y (brightness) signal 1 Vp-p, 75 ohms

C (color) signal 0.286 Vp-p, 75 ohms

Frequency response: 5 Hz ~ 10 MHz +1, -3 dB

• Color component video jacks

Input / output level and impedance: Y (brightness) signal 1 Vp-p, 75 ohms

PB/CB(blue) signal 0.7 Vp-p, 75 ohms

PR/CR(red) signal 0.7Vp-p, 75 ohms

Frequency response: 5 Hz ~ 27 MHz +1, -3 dB

* EIAJ: It is the standard which JEITA (Japan Electronics & Information Technology Industries Association) enacted.

SAFETY PRECAUTIONS

The following check should be performed for the continued protection of the customer and service technician.

LEAKAGE CURRENT CHECK

Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis

resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the

power cord is less than 460 kohms, the unit is defective.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

3

AVR-1803/883



Tuner section

Receiving Range: [FM] (note: µV at 75 ohms, 0 dBf=1 x 10-15 W) [AM]

U.S.A. & Canada Models: 87.50 MHz ~ 107.90 MHz 520 kHz ~ 1710 kHz

Europe & U.K. Models: 87.50 MHz ~ 108.00 MHz 522 kHz ~ 1611 kHz

Asia Model: 87.50 MHz ~ 107.90 MHz (0.2 MHz steps) 520 kHz ~ 1710 kHz (10 kHz steps)

87.50 MHz ~ 108.00 MHz (0.05 MHz steps) 522 kHz ~ 1611 kHz (9 kHz steps)

Usable Sensitivity: 1.0 µV (11.2 dBf) 18 µV

50 dB Quieting Sensitivity: MONO 1.6 µV (15.3 dBf)

STEREO 23 µV (38.5 dBf)

S/N (IHF-A): MONO 80 dB (IHF-A weighted)

STEREO 75 dB (IHF-A weighted)

Total Harmonic Distortion (at 1 kHz): MONO 0.15% (1kHz)

STEREO 0.3% (1kHz)



General

Power supply: AC 120 V, 60 Hz (U.S.A. & Canada Models)

AC 230 V, 50 Hz (Europe & U.K. Models)

AC 115/230 V, 50/60 Hz (Asia Model)

Power consumption: 4.5 A (U.S.A. & Canada Models)

260 W (Europe, U.K. & Asia Models)

1 W Max. (Standby)

Maximum external dimensions: 434 (W) x 171 (H) x 417 (D) mm (17-3/32" x 6-47/64" x 16-27/64")

Mass: 11.7 kg (25 lbs 6 oz)



Remote control unit RC-916 (U.S.A. & Canada Models)

RC-917 (Europe, U.K. & Asia Models)

Batteries: R6P/AA Type (tow batteries)

External dimensions: 55 (W) x 225 (H) x 34.5 (D) mm (2-11/64" x 8-55/64" x 1-9/64")

Mass: 165 g (Approx. 5.8 oz) (including batteries)

* For purposes of improvement, specifications and design are subject to change without notice.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

4

AVR-1803/883

DISASSEMBLY

(Follow the procedure below in the reverse order when reassembling)

1. Top Cover

Remove 6 screws 1and 3 screws 2, then detach the

Top Cover to the arrow direction.

1

2. Front Panel

(1) Remove 4 screws 3and 3 screws 4.

(2) Disconnect 4 connectors coming from the Front

Panel side.

(3) Disconnect the connector coming from the Trans.,

and detach the Front Panel to the arrow direction.

1

2

Top Cover

3

4

Connector

Front Panel

Rear Panel

6

5

3. Rear Panel

(1) Take off the AC cord 5.

(2) Remove screws 6.

(44 pieces for U.S.A & Canada models)

(41 pieces for Europe model)

(43 pieces for Asia model)

(3) Detach the Rear Panel to the arrow direction.

4

6

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

LEVEL DIAGRAMS

8

76

5

4

3

2

1

A

B

C

D

E

AVR-1803/883

5

FRONT/CENTER/SURROUND

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

8

76

5

4

3

2

1

A

B

C

D

E

AVR-1803/883

6

SUB WOOFER

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

BLOCK DIAGRAM

8

76

5

4

3

2

1

A

B

C

D

E

AVR-1803/883

7

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

8

AVR-1803/883

ADJUSTMENT

Tuner Section

CONNECTION DIAGRAM OF MEASURING INSTRUMENTS



FM

STEREO

MODULATOR

FM SSG

Digital

Voltmeter

75ohm

T402 T403

IC402

VR402

TUNER B'D

R471

20 +14

−10 dB



AM

T402 T403

IC402

TUNER B’D

R471

VR401

FM ALIGNMENT

Input Output Adjustment

Step Alignment

Item

Tuning

Frequency

Setting Type Frequency Input

Level Modulation Coupling Type Connect to Points Adjust to

1Center

Adjustment

98.1MHz

(98.0MHz) FM SSG 98.1MHz 60dBµMono

1kHz 100%

Antenna

Terminal

Digital

Voltmeter R471 T402 ±50mV

2 Distortion 98.1MHz

(98.0MHz) FM SSG 98.1MHz 60dBµMono

1kHz 100%

Antenna

Terminal

Distortion

Meter

Output

Terminal (L) T403 Minimum

Distortion

3 Repeat Steps 1 and 2

4 Signal Level 98.1MHz

(98.0MHz) FM SSG 98.1MHz 20dBµOFF Antenna

Terminal

Light “TUNED” on

FL Display VR402

AM ALIGNMENT

Output Adjustment

Step Alignment

Item Frequency Input Type Connect to Points Adjust to Remarks

1 Signal Level 999 (1000)

kHz AM SSG 

VR401 Light “TUNED” on

FL Display

SSG OUTPUT

74dBµ(EMF)

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

9

AVR-1803/883

Audio Section

Idling Current

Required measurement equipment : DC Voltmeter

Preparation

(1) Avoid direct blow from an air conditioner or an electric fan, and adjust the unit at normal room tempereture

15 °C ~ 30 °C (59 °F ~ 86 °F).

(2) Presetting

●POWER (Power sourse switch) →OFF

●SPEAKER (Speaker terminal) →No load (Do not connect speaker, dummy resistor, etc.)

Adjustment

(1) Remove top cover and set VR101, VR102, VR103, VR104, VR105 on Amp. Unit, VR106 on SURR.-BACK ch Amp.

Unit at full counterclockwise ( ) position.

(2) Connect DC Voltmeter to test points (FRONT-Lch: TP104, FRONT-Rch: TP105, CENTER ch: TP103,

SURROUND-Lch: TP101, SURROUND-Rch: TP102, SURROUND-BACK ch: CP106).

(3) Connect power cord to AC Line, and turn power switch "ON".

(4) Presetting. MASTER VOLUME : "---" counterclockwise ( min.)

MODE : 6CH STEREO

FUNCTION : CD

(5) Within 2 minutes after the power on, turn VR101 clockwise ( ) to adjust the TEST POINT voltage to 1.5 mV ±0.5 mV

DC.

(6) After 10 minutes from the preset above, turn VR101 to set the voltage to 2.5 mV ±0.5 mV DC.

(7) Adjust the Variable Resistors of other channels in the same way.

VR104

TR104

VR105

TP105

VR106

CP106

S Back ch

S Rch

VR102

TP102

VR103,TP103

C ch

VR101,TP101

F Lch

S Lch

F Rch

DC Voltmeter

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

10

AVR-1803/883

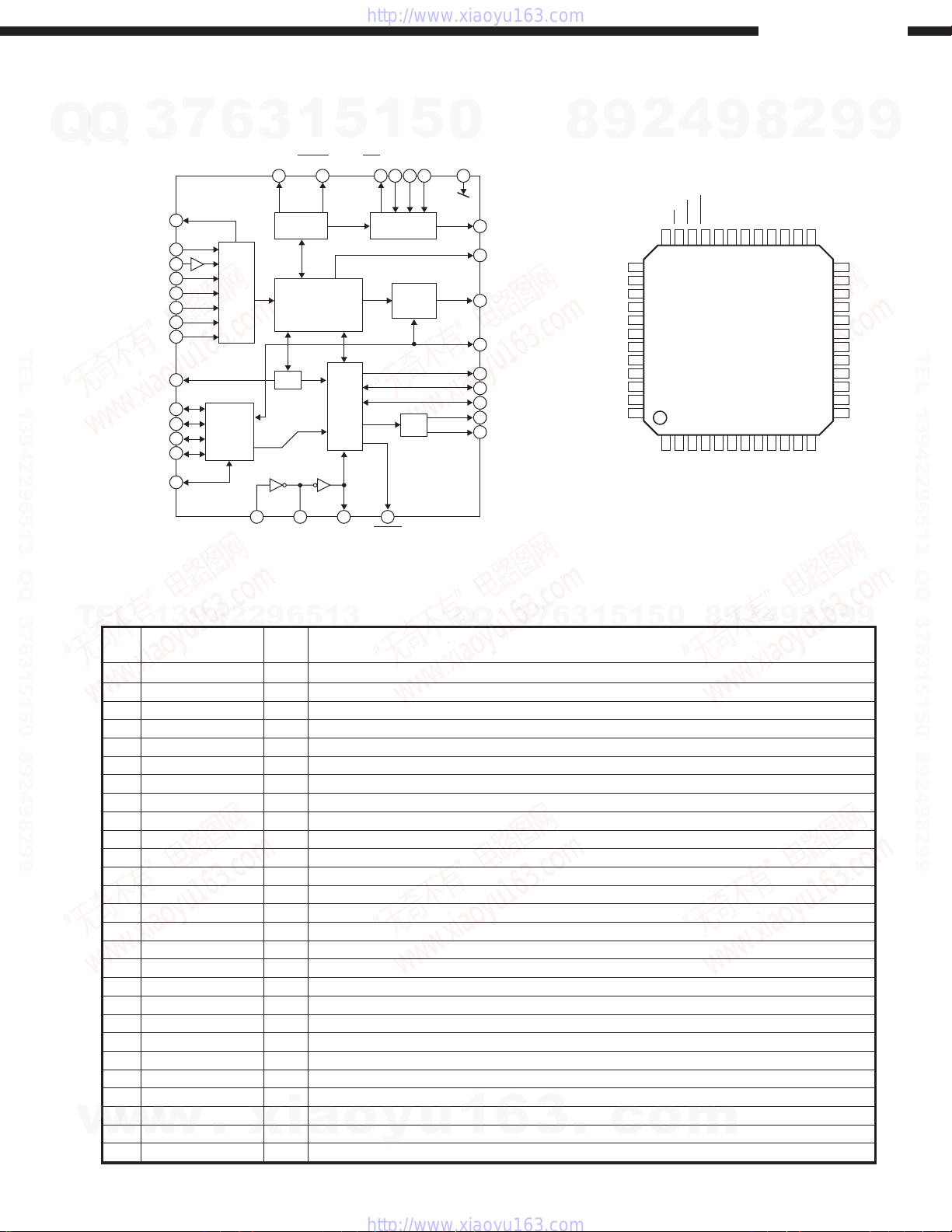

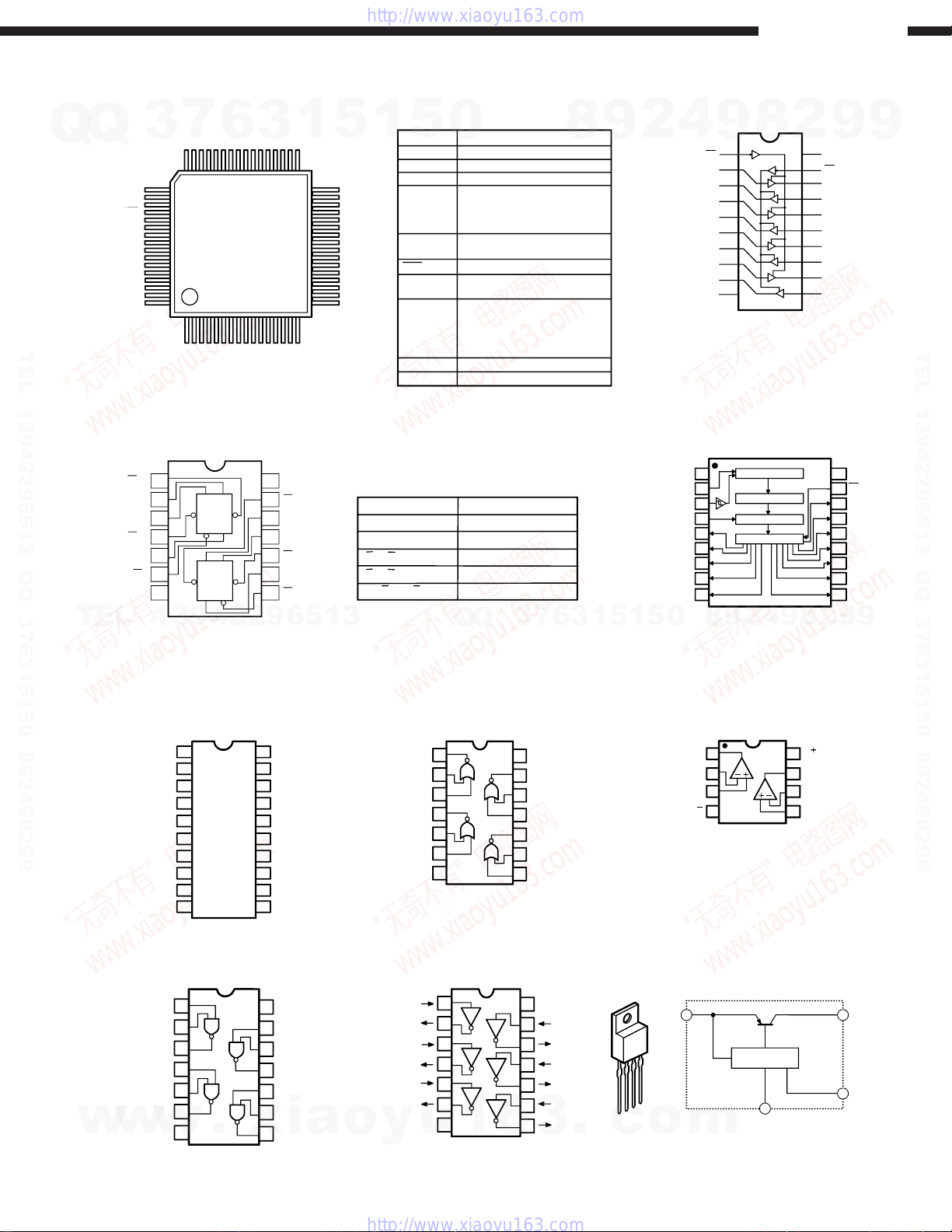

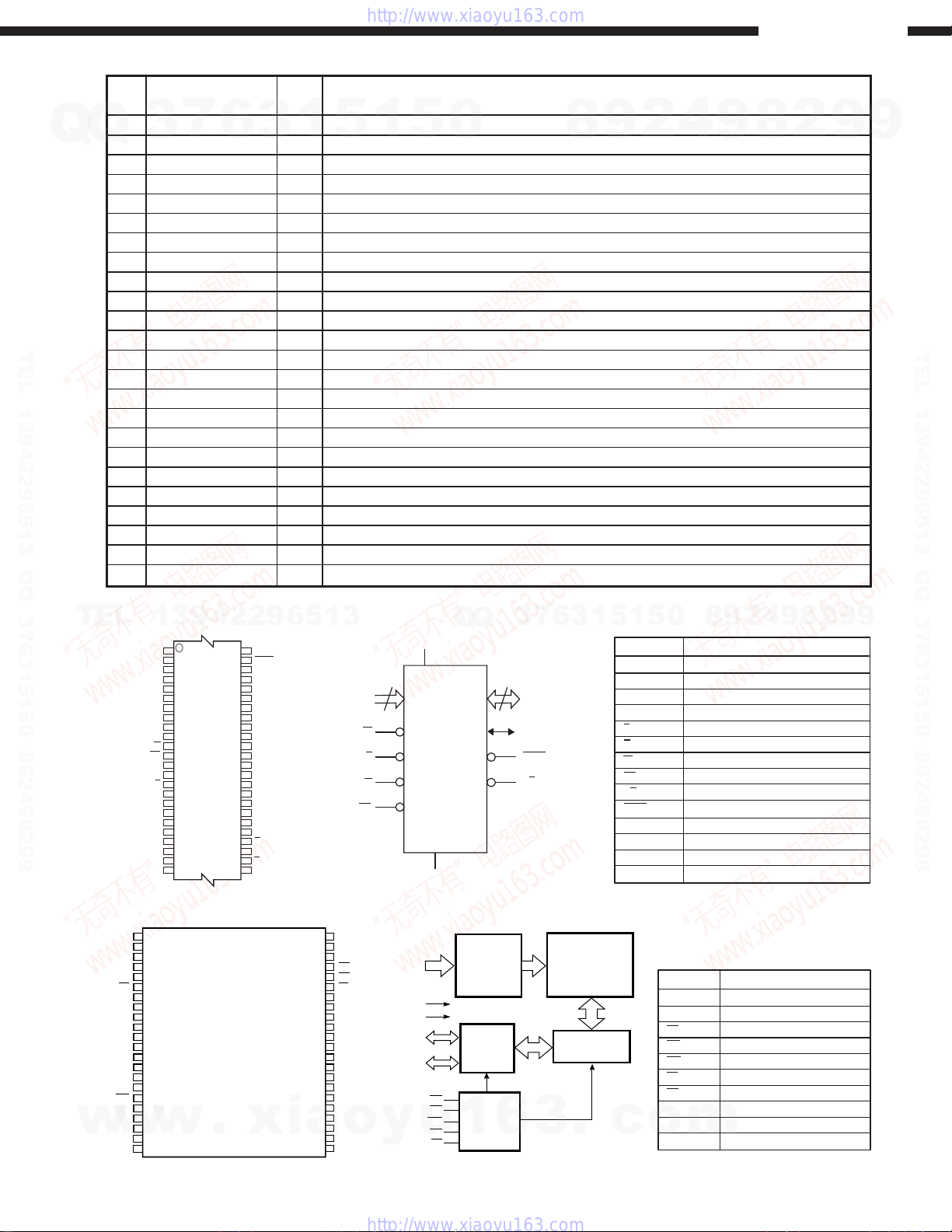

SEMICONDUCTORS



IC’s

CXP740096

(IC201)

PH7

PH6

PH5

PH4

PH3

PH2

PH1

PH0

PK7/TO1

RST

VSS

XTAL

EXTAL

PK6/CS0

PK5/SI0

PK4/SO0

PK3/SCK0

PF7/AN11

PF6/AN10

PF5/AN9

PC6

PC7

PA0

PA1

PA2

PA3

PA4

PA5

PA6

PA7

NC

VDD

VSS

PK1/TX

PK2/TEX

PI1/RMC

PI2/NMI

PI3/TO0/ADJ

PI4/INT1/CS1

PI5/SCK1

PC5

PC4

PC3

PC2

PC1

PC0

PB7/SI2

PB6/SO2

PB5/SCK2

PB4/TO2

PB3

PB2

PB1

PB0

PJ7

PJ6

PJ5

PJ4

PJ3

PJ2

PJ1

PJ0

PD7

PD6

PD5

PD4

PD3

PD2

PD1

PD0

PI6/SO1

PI7/SI1

PE0/INT0

PE1/INT2

PE2/PWM0

PE3/PWM1

PE4

PE5

PE6

PE7

PG0/TxD

PG1/RxD

PG2/EC0

PG3/EC1

PG4/EC2

PG5/INT3

PG6/INT4

PG7/CINT

AN0

AN1

AN2

AN3

PF0/AN4

PF1/AN5

PF2/AN6

PF3/AN7

AVDD

AVREF

AVSS

PF4/AN8

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

100

99

98

97

96

95

94

93

92

91

90

89

88

87

86

85

84

83

82

81

21

22

23

24

25

26

27

28

29

30

80

79

78

77

76

75

74

73

72

71

70

69

68

67

66

65

64

63

62

61

60

59

58

57

56

55

54

53

52

51

TOP VIEW

CXP740096 Terminal Function

1 9274 STB O TC9274 CONTROL

2 9274 73 9164 CLK O TC9274/TC9273/TC9164 CONTROL

3 9274 73 9164 DAT O TC9274/TC9273/TC9164 CONTROL

4 FRONT MUTE O FRONT MUTE

5 9273 CE O TC9273 CONTROL

6 ERR MUTE O ERR MUTE

7 ERR MUTE OFF O ERR MUTE OFF

8 89057 AUDIO I LC89057 CONTROL

9 89057 EMPHA I LC89057 CONTROL

10 SW SUM O SW SUMMING CONTROL

11 M32 SDIN I DATA INPUT FROM MELODY32

12 89057 SDIN I DATA INPUT FROM LC89057

13 EPROM RESET O EPROM RESET

14 89057 RESET O LC89057 RESET

15 M32 CS O MELODY32 CS

16 M32 SDOUT O MELODY32 CONTROL DATA

17 89057 CE O LC89057 CE

18 89057 1837 SDOUT O CONTROL DATA

19 89057 1837 SCLK O CONTROL CLOCK

20 1837 RESET O CODEC RESET

21 9164 CE O TC9164 CONTROL

22 SW MUTE O SW MUTE

23 RELAY SPK B O SURROUND BACK RELAY

No. Pin Name FunctionI/O

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

11

AVR-1803/883

No. Pin Name FunctionI/O

24 RELAY SPK A O FRONT RELAY

25 RELAY SURR O SURROUND RELAY

26 RELAY CNT O CENTER RELAY

27 RELAY H/P O H/P RELAY

28 FUNC UP I ENCODER INPUT(FUNCTION)

29 H/P DETECT I H/P DETECT

30 FUNC DOWN I ENCODER INPUT(FUNCTION)

31 NC 

32 CNT MUTE O CENTER MUTE

33 FRONT MUTE O FRONT MUTE

34 SURR MUTE O SURROUND MUTE

35 NC 

36 NC 

37 NC 

38 FL DRV RESET O LC75721NE RESET

39 RELAY POWER O POWER RELAY

40 RESET I RESET

41 GND I

42 XTAL 

43 EXTAL 

44 FL DRV CE O LC75721NE CE

45 FL DRV DATA O LC75721NE DATA

46 FL DRV/2090 CLK O CONTROL CLOCK

47 2090 DATA O BU2090F DATA

48 VOL DOWN I ENCODER INPUT(VOLUME)

49 VOL UP I ENCODER INPUT(VOLUME)

50 SEL DOWN I ENCODER INPUT(SELECT)

51 SEL UP I ENCODER INPUT(SELECT)

52 AVSS 

53 VREF 

54 AVDD 

55 NC 

56 GND 

57 STEP OPT I AREA SELECT

58 SET OPT I MODEL SELECT

59 GND 

60 KEY IN3 I KEY INPUT

61 KEY IN2 I KEY INPUT

62 KEY IN1 I KEY INPUT

63 9K/10K STEP I TUNER STEP SELECT

64 PROTECT I PROTECTION

65 89057 INT I LC89057 INTERUPT

66 M32 SCLK O MELODY32 CLOCK

67 1837 CE O CODEC CE

68 M32 RESET O MELODY32 RESET

69 NC 

70 STBY LED O STANDBY LED

71 NC 

72 NC 

73 NC 

74 NC 

75 SURR BACK MUTE O SURROUND BACK MUTE

76 KIC9459 CE O KIC9459 CONTROL

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

12

AVR-1803/883

No. Pin Name FunctionI/O

77 PWR DOWN I POWER DOWN DETECT

78 RDS CLK O TDA7330 CONTROL CLOCK

79 RDS DATA O TDA7330 CONTROL DATA

80 NC 

81 9184 CE O TC9184 CONTROL

82 M32 INTREQ I/O MELODY32 CONTROL

83 MULTI MUTE O MULTI MUTE

84 MULTI SB RLY O MULTI/SURROUND BACK :SELECTION RELAY

85 REMOCON I REMOTE CONTROL SIGNAL INPUT

86 GND 

87 GND 

88 VSS 

89 VDD VDD BACK UP

90 NC 

91 TC9482 CE O TC9482 CONTROL

92 PLL DATA O PLL CONTROL

93 PLL CLK O PLL CONTROL

94 PLL DT IN O PLL CONTROL

95 TU MUTE O TUNER MUTE

96 STEREO I STEREO DETECT

97 TUNED I TUNED DETECT

98 PLL CE O PLL CONTROL

99 2090 CLK VIDEO O BU2090 CONTROL(VIDEO)

100 2090 DATA VIDEO O BU2090 CONTROL(VIDEO)

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

A15

A14

A13

A12

A11

CE

I/O0

I/O1

I/O2

I/O3

Vcc

GND

I/O4

I/O5

I/O6

I/O7

WE

A10

A9

A8

A7

NC

A0

A1

A2

OE

UB

LB

I/O15

I/O14

I/O13

I/O12

GND

Vcc

I/O11

I/O10

I/O9

I/O8

NC

A3

A4

A5

A6

NC

A0-A15

CE

OE

WE

64K x 16

MEMORY ARRAY

DECODER

COLUMN I/O

CONTROL

CIRCUIT

GND

VCC

I/O

DATA

CIRCUIT

I/O0-I/O7

Lower Byte

I/O8-I/O15

Upper Byte

UB

LB

CE

OE

WE

LB

UB

PIN DESCRIPTION

Pin Name

Address inputs

Symbol

A0-A15

Data Inputs/Outputs

I/O0-I/O15

Chip Enable Input

Output Enable Input

Write Enable Input

Lower-byte Control (I/O0-I/O7)

Upper-byte Control (I/O8-I/O15)

No ConnectionNC

Power

V

CC

GroundGND

IS61LV6416 (IC806)

PIN DESCRIPTION

Pin Name

Address Inputs

Symbol

A0-A18

Data Input/Outputs, Command Inputs

DQ0-DQ7

Data Input/Outputs

DQ8-DQ14

Data Input/Output or Address Input

DQ15A-1

Chip Enable

Output Enable

Write Enable

Reset/Block Temporary Unprotect

Ready/Busy OutputRB

Byte/Word OrganizationBYTE

Supply VoltageV

CC

GroundV

SS

No Connected InternallyNC

Don’t Use as Internally ConnectedDU

E

G

W

RP

A1 A0

A2 E

A3 V

SS

A4 G

A5 DQ0

A6 DQ8

A7 DQ1

A17 DQ9

A18 DQ2

RB DQ10

NC DQ3

NC DQ11

RP V

CC

W DQ4

NC DQ12

NC DQ5

A8 DQ13

A9 DQ6

A10 DQ14

A11 DQ7

A12 DQ15A-1

A13 V

SS

A14 BYTE

A15 A16

24

13

12

1

25

36

37

48

M29W800T

19

A0-A18

W

DQ0-DQ14

M29W800AT

E

15

G

RP

DQ15A-1

BYTE

RB

V

CC

V

ss

M29W800AT (IC805)

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

13

AVR-1803/883

MELODY32 (IC804)

Pin Name

MELODY32 Terminal Function

No. Pin Name

No.

Pin Name

No.

Pin Name

No.

Pin Name

No.

Pin Name

No.

1 D14

2 D15

3 HAD0

4 HAD1

5 GND

6 HAD2

7 HAD3

8 HAD4

9 HAD5

10 HAD6

11 HAD7

12 HAD8

13 VDDEXT

14 HAD9

15 HAD10

16 GND

17 HAD11

18 HAD12

19 VDDINT

20 HAD13

21 HAD14

22 HAD15

23 HA16

24 HACK_P

25 VDDEXT

26 HACK

27 HCMS

28 HCIOMS

29 GND

30 HALE

31 HRD

32 HWR

33 GND

34 PF0

35 PF1

36 PF2

37 PF3

38 PF4

39 PF5

40 VDDEXT

41 PF6

42 PF7

43 TMR0

44 TMR1

45 TMR2

46 DT2

47 TCLK2

48 TFS2

49 DR2

50 RCLK2

51 RFS2

52 RXD

53 TXD

54 GND

55 GND

56 DT0

57 TCLK0

58 VDDINT

59 TF50

60 DR0

61 RCLK0

62 RFS0

63 VDDEXT

64 DT1

65 TCLK1

66 TFS1

67 DR1

68 RCLK1

69 RFS1

70 BMODE0

71 BMODE1

72 BYPASS

73 RESET

74 TDO

75 TDI

76 TMS

77 GND

78 TCK

79 TRST

80 GND

81 EMU

82 VDDINT

83 OPMODE

84 A0

85 A1

86 A2

87 A3

88 A4

89 A5

90 VDDEXT

91 A6

92 A7

93 A8

94 GND

95 A9

96 A10

97 A11

98 A12

99 A13

100 VDDEXT

101 A14

102 A15

103 A16

104 A17

105 GND

106 A18

107 A19

108 A20

109 A21

110 BGH

111 BG

112 BR

113 BMS

114 IOMS

115 MS0

116 MS1

117 MS2

118 VDDEXT

119 MS3

120 ACK

144

1

109

108

72

73

36

37

TOP VIEW

121 WR

122 RD

123 D0

124 D1

125 D2

126 D3

127 VDDINT

128 D4

129 GND

130 CLKOUT

131 VDDEXT

132 CLKIN

133 XTAL

134 GND

135 D5

136 D6

137 D7

138 D8

139 D9

140 D10

141 D11

142 D12

143 VDDEXT

144 D13

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

14

AVR-1803/883

AD1837 (IC808)

AD1837 Terminal Function

DescriptionPin No. Pin Name Input/

Output

1,39 DVDD Digital Power Supply. Connect to digital 5V supply.

2 CLATCH I Latch Input for Control Data

33 CIN I Serial Control Input

4 PD/RST I Power-Down/Reset

5,10,16,24,30,35 AGND Analog Ground

6,12,25,31 NC Not connected

7,13,26,32 OUTLx O DACx Left Channel Output

8,14,27,33 NC Not connected

9,15,28,34 OUTRx O DACx Right Channel Output

11,19,29 AVDD Analog Power Supply. Connect to analog 5V supply.

17 FILTD Filter Capacitor Connection. Recommend 10µF/100nF.

18 FILTR Reference Filter Capacitor Connection. Recommended 10µF/100nF.

20 ADCLN I ADC Left Channel Negative Input

21 ADCLP I ADC Left Channel Positive Input

22 ADCRN I ADC Right Channel Negative Input

23 ADCRP I ADC Right Channel Positive Input

36 M/S I ADC Master/Slave Select

37 DLRCLK I/O DAC LR Clock

38 DBCLK I/O DAC Bit Clock

40,52 DGND Digital Ground

41-44 DSDATAx I DACx Input Data (Left and Right Supply)

45 ABCLK I/O ADC Bit Clock

46 ALRCLK I/O ADC LR Clock

47 MCLK I Master Clock Input

48 ADVDD Digital Output Driver Power Supply

49 ASDATA O ADC Serial Data Output

50 COUT O Output for Control Data

51 CCLK I Control Clock Input for Control Data

1

2

3

4

5

6

7

8

9

10

11

12

13

AGND

AVDD

OUTR2

NC

OUTL2

NC

OUTR1

NC

OUTL1

NC

PD/RST

CIN

CLATCH

DVDD

NC

OUTL3

NC

OUTR3

NC

OUTL4

NC

OUTR4

AGND

DLRCLK

DBCLK

DGND

14 15 16 17 18 19 20 21 22 23 24 25 26

27

28

29

30

31

32

33

34

35

36

37

38

39

52 51 50 49 48 47 46 45 44 43 42 41 40

FILTD

FILTR

AGND

M/S

AGND

AVDD

ADCLN

ADCLP

ADCRN

ADCRP

AGND

DGND

CCLK

COUT

ASDATA

ODVDD

MCLK

ALRCLK

ABCLK

DSDATA4

DSDATA3

DSDATA2

DSDATA1

DVDD

AVDD

TOP VIEW

OUTL1

CONTROL PORT CLOCK

FILTD

FILTR

ADCLP

ADCLN

ADCRP

ADCRN

DLRCLK

DBCLK

DSDATA1

DSDATA2

DSDATA3

DSDATA4

MCLKASDATAABCLKALRCLKODVDDDVDD DVDD

DGND AGND AGND AGND AGNDDGND

CINCLATCHCCLK COUT

DIGITAL

FILTER

PD/RST M/S AVDD AVDD

VOLUME

OUTR1

OUTL2

OUTR2

OUTL3

OUTR3

OUTL4

OUTR4

AD1837

DIGITAL

FILTER

SERIAL DATA

I/O PORT VOLUME

VOLUME

DIGITAL

FILTER

DIGITAL

FILTER

DIGITAL

FILTER

DIGITAL

FILTER

VREF

Σ-∆

ADC

Σ-∆

ADC

Σ-∆

DAC

Σ-∆

DAC

Σ-∆

DAC

Σ-∆

DAC

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

15

AVR-1803/883

LC89057W Terminal Function

Function

No. Pin Name

LC89057W (IC807)

1 RXOUT O Input bi-phase select data output terminal

2 RX0 I5TTL compatible digital data input terminal

3 RX1 I Coaxial compatible amp built-in digital data input terminal

4 RX2 I5TTL compatible digital data input terminal

5 RX3 I5TTL compatible digital data input terminal

6 DGND — Digital GND

7 DVDD — Digital power

8 RX4 I5TTL compatible digital data input terminal

9 RX5/VI I5TTL compatible digital data/Validity flag input terminal for modulation

10 RX6/UI I5TTL compatible digital data/User data input terminal for modulation

11 DVDD — Digital power for PLL

12 DGND — Digital GND for PLL

13 LPF O PLL loop filter connecting terminal

14 AVDD — Analog power for PLL

15 AGND — Analog GND for PLL

16 RMCK O RMCK clock output terminal (256fs, 512fs, XIN, VCO)

17 RBCK O/I RBCK clock in/output terminal (64fs)

18 DGND — Digital GND

19 DVDD — Digital power

20 RLRCK O/I RLRCK clock in/output terminal (fs)

21 RDATA O Serial audio data output terminal

22 SBCK O SBCK clock output terminal (32fs, 64fs, 128fs)

23 SLRCK O SLRCK clock output terminal (fs/2, fs, 2fs)

24 SDIN I5Serial audio data input terminal

25 DGND — Digital GND

26 DVDD — Digital power

27 XMCK O Osc. amp output terminal

I/O

36 RERR1RXOUT

35 INT2RX0

34 CKST3RX1

33 AUDIO/VO4RX2

32 EMPHA/UO5RX3

31 DGND6DGND

30 DVDD7DVDD

29 XIN8RX4

28 XOUT9RX5/VI

27 XMCK10RX6/UI

26 DVDD11DVDD

25 DGND12DGND

24 SDIN37DO

23 SLRCK38DI

22 SBCK39CE

21 RDATA40CL

20 RLRCK41XMODE

19 DVDD42DGND

18 DGND43DVDD

17 RBCK44TMCK/PIO0

16 RMCK45TBCK/PIO1

15 AGND46TLRCK/PIO2

14 AVDD47TDATA/PIO3

13 LPF48TXO/PIOEN

TOP VIEW

1

RXOUT

32

EMPHA/UO

33

AUDIO/VO

35

INT

40

CL

39

CE

38

DI

28

XOUT

29

XIN

27

XMCK

34

CKST

41

XMODE

Input

Selector

2

RX0

3

RX1

4

RX2

5

RX3

8

RX4

9

RX5/VI

10

RX6/UI

37

DO

36

RERR

21

RDATA

24

SDIN

16

RMCK

17

RBCK

20

RLRCK

22

SBCK

23

SLRCK

13

LPF

44

TMCK/PIO0

45

TBCK/PIO1

46

TLRCK/PIO2

47

TDATA/PIO3

48

TXO/PIOEN

Clock

Selector

C bit, U bit

PLL

Demodulation

&

Lock Detect

Microcontroller

I/F

Data

Selector

I/N

Modulation

or

Parallel Port

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

16

AVR-1803/883

Function

No. Pin Name I/O

* For latch-up countermeasure, perform each power supply ON/OFF in the same timing.

28 XOUT O X’tal osc. connecting output terminal

29 XIN I X’tal osc. connection, external clock input terminal (24.576MHz or 12.288MHz)

30 DVDD — Digital power

31 DGND — Digital GND

32 EMPHA/UO I/O Emphasis information/U-data output/Chip address setting terminal

33 AUDIO/VO I/O Non-PCM detect/V-flag output/ Chip address setting terminal

34 CKST I/O Clock switch transition period output/Demodulation master or slave function switching terminal

35 INT I/O Interrupt output for µcom (Interrupt factor selectable)/Modulation or general I/O switching terminal

36 RERR O PLL lock error, data error flag output

37 DO O µcom I/F, read out data output terminal (3-state)

38 DI I5µcom I/F, write data input terminal

39 CE I5µcom I/F, chip enable input terminal

40 CL I5µcom I/F, clock input terminal

41 XMODE I5System reset input terminal

42 DGND — Digital GND

43 DVDD — Digital power

44 TMCK/PIO0 I/O 256fs system clock input for modulation/General I/O in/output terminal

45 TBCK/PIO1 I/O 64fs bit clock input for modulation/General I/O in/output terminal

46 TLRCK/PIO2 I/O fs clock input for modulation/General I/O in/output terminal

47 TDATA/PIO3 I/O Serial audio data input for modulation/General I/O in/output terminal

48 TXO/PIOEN O/I Modulation data output/ General I/O enable input terminal

LA1266 (IC402)

10

4

13

8

19

15

17

18

14

21

22

GND

Vcc

5

11

IF

BUFFER

IF

BUFFER

2

FM - IF

6

Q.D.

7

REG

23

OSC OSC

BUFFER

24

NARROW

S-METER S-METER

16

LED

DRIVER

RF MIX

12

20

AM-IF DET

AGC

POST

AMP

9

13

AM-IF FM-IF FM-IN

AM-IN



20 19 18 17 16 15 14 13 12

9

8

7

56

1

21

LA3401 (IC403)

22

VOL

REG OSC

SYMMETRICAL

REOCTANCE

CIRCUIT

PHASE

COMPARATOR

VCO STOP

PILOT DET

FF FF

38kHz

FF

38kHz 90°

FF

19kHz 90°

MUTING

FM AM CHANGE

Ro

Rc

Rc Rb

234

DECODER MUTING CONTROL

FM AM CHANGE OVER

Vcc ON

MUTING

OUTPUT

STEREO

SWITCH

TRIGGER

LAMP

DRIVER

Rb

10 11

LC72131 (IC401)

120

219

318

417

516

615

714

813

912

10 11

XIN

CE

DI

CL

DO

BO1

BO2

BO3

BO4

IO1

AOUT

AIN

PD

VDD

FMIN

AMIN

IO2

IFIN

Vss

XOUT

124

12 13

FF

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

17

AVR-1803/883

BU2090F (IC302, 602)

MM74LCX244 (IC809~811)

TDA7330BD (IC202)

TOP VIEW

POR

MUXIN

TM

VREF

FSELCOMP

T2FILOUT

VCC

GND

ARI

T1

QUAL

T3

RDDA

T4

RDCLOSCOUT

T57

OSCIN

1

2

3

4

5

6

7

8

9

10

20

19

18

17

16

15

14

13

12

11

1

2

3

4

5

6

7

8

20

19

18

16

15

14

13

I3

VCC

OE2

O2

I5

O0

I4

O1

I6

OE

I0

O4

I1

O5

I2

O6

912

O7 O3

10 11

GND I7

TOP VIEW

17

1

2

3

4

5

6

7

8

18

17

16

15

14

13

12

11Q3

VDD

OE

Q7

Q8

Q11

Q10

Q9

Q6

VSS

DATA

CLOCK

LCK

Q0

Q1

Q2

910

Q4 Q5

CONTROL CIRCUIT

12-bit SHIFT REGISTER

1 2- bi t S TRAGE REGI ST ER

OUTPUT BUFFER(OPENDRAIN)

64

49

48 33

32

17

161

AM 1

AM 2

AM 3

AM 4

AM 5

AM 6

AM 7

AM 8

AM 9

AM 10

AM 11

AM 12

AM 13

AM 14

AM 15

AM 16

AM 17

AM 18

AM 19

AM 20

AM 21

AM 22

AM 23

AM 24

AM 25

AM 26

AM 27

AM 28

AM 29

AM 30

AM 31

AM 32

G7

G8

G9

G10

G11

AA8/G12

AA7/G13

AA6/G14

AA5/G15

AA4/G16

AA3

AA2

AA1

AM35

AM34

AM33

DI

CL

CE

RES

VDD

OSCI

OSCO

Vss

TEST

VFL

G1

G2

G3

G4

G5

G6

LC75721E (IC301)

VDD

VSS

VFL

DI

CL

CE

DI: Data

CL: Clock

CE: Chip enable

OSCI

OSCO

RES

AM1~AM35

AA1~AA3

AA4/G16

AA5/G15

AA6/G14

AA7/G13

AA8/G12

G1~G11

TEST

Symbol

LC75721E Terminal Function

Power terminal +5V

Power terminal GND

Power terminal FL drive

Serial data transfer terminal

External CR connecting terminal

System reset terminal

Anode output terminal

Anode/Grid output terminal

Grid output terminal

LSI test terminal

Function



MM74LCX02 (IC813)

1Y

1A

1B

2Y

2A

2B

GND

1

2

3

4

5

6

7

14

13

12

11

10

9

8

Vcc

4Y

4B

4A

3Y

3B

3A

1A

1B

1Y

2A

2B

2Y

1

2

3

4

5

6

7

14

13

12

11

10

9

8

Vcc

4B

4A

4Y

3B

3A

3Y

GND

1

2

3

4

5

6

7

14

13

12

11

10

9

8

1A

1Y

2A

2Y

3A

3Y

GND

Vcc

6A

6Y

5A

5Y

4A

4Y

SN74LV00APW (IC814) 74HCU04 (IC803)

NJM2068MD

BA4510F

A OUTPUT

A –INPUT

A+INPUT

V

B OUTPUT

V

B –INPUT

B +INPUT

1

2

3

45

7

8

6

Pin Descriptions

Description

Pin Names

D1, D2

CP1, CP2

CD1, CD2

SD1, SD2

Q1, Q1, Q2, Q2

Data Inputs

Clock Pulse Inputs

Direct Set Inputs



Direct Clear Inputs

Outputs

KIA78R05PI (IC663)

4

3

2

1

Vin Vo

Vadj

GND

SpecificIC

12

3

4

GND Q2

Q1Q2

Q1SD2

SD1 CP2

CP1D2

D1CD2

8

9

10

11

12

13

14

7

6

5

4

3

2

1

CD1 VCC

D2

CD2 SD2

CP2

Q2Q2

74LCX74 (IC821)

CP1

SD1 CD1

D1

Q1Q1

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

18

AVR-1803/883

Vcc

GND

Vout

IC PROTECTOR

ICP-N15 (IC105)GP1FA502RZ (IC801~803)

ABLC GND

VCC

NJL64H380A(RMC301)

KIA7806AP (IC602)

KIA7805AP (IC104, 103, 822)

KIA7815AP (IC101)

KIA7812AP (IC271)

KIA7915PI (IC102)

POSISTOR

P43T7D330BW16

MM74HCT244 (IC812)

VOUT

22kohm

B.P.F

PD

201

192

183

174

165

156

147

138

129

1110

1G

2G

1A0

2A0

2A3

2Y01Y0

1Y3

1A1

2Y1

1A2

2Y2

1Y1

2A1

1Y2

2A2

1A3

2Y3

GND

VCC

FRONT

VIEW

Input

GND

Output

FRONT

VIEW

Input

GND

Output

FRONT VIEW

TOP VIEW

Vout

GND

Vcc

VCC

VOUT

GND

Vin

Vcc

GND

GP1FA502TZ(IC817)

INPUT

FRONT VIEW

OPTICAL

OUTPUT

IR SENSOR

Head Amp Amp Limitter Comparator

VCC

Vin

GND

DRIVE

IC

LED

Detector

RC1117S25T (IC824)

RC1117S33ST (IC823)

1

2

3

2

ADJ/GND

OUT

IN

VOUT

FRONT VIEW

BA7625 (IC605D)

BA7626 (IC652, 653, 601, 603

603D, 604D, 651, 654)

1

2

3

4

5

6

7

8

16

15

14

13

12

11

10

9

Monitor OUT

GND

IN5

GND

IN4

CTL E

IN3

CTL D

IN1

CTL A

V OUT1

Vcc

IN2

CTL B

V OUT2

CTL C

6dB

LOGIC

Note 1: * mark means that

feasible for either H or L.

Note 2: Each input terminal is

provided with sink chip

clamp (BA7625).

Each input terminal takes

20kohm at the end (BA7626).

CDE VOUT2

LL* IN1

HL * 

LH* IN3

HHL IN4

HHH IN5

CDE VOUT1

LL* 

HL * IN2

LH* IN3

HHL IN4

HHH IN5

ABE

MONITOR OUT

LL* IN1

HL * IN2

LH* IN3

HHL IN4

HHH IN5

TC9184AP (IC552)

2

3

4

5

6

116 78

910

15

14

13

12

11

BASS+

BASS-

COM

TREBLE-

TREBLE+

Vss

VDD

GND

CK

DATA

STB

BASS+

BASS-

COM

TREBLE-

TREBLE+

Ladder resister

Analog switch

13 bit latch circuit

Level shift

20 bit Shift register circuit

Analog switch

Ladder resister

Analog switch

13 bit latch circuit

Code

detect

circuit

Analog switch

Ladder resister

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

19

AVR-1803/883

2SC1740S

2SC3199Y

KSA916Y

KSA992F

KSC1845F

KTA1266Y

KTA1268BL

KTC2874B

KTC3198Y

KTC3200BL

2SC2412K

KTC3880S

DTA114EK

DTA114YK

DTA144EK

DTC114EK

DTC114YK

DTC144EK

TOP

VIEW

E

B

C

TOP

VIEW

E

B

C

FRONT

VIEW

B

C

E

TOP VIEW

KDS160MTZJ3.3B

MTZJ5.1B

MTZJ6.8B

MTZJ7.5A

MTZJ8.2B

MTZJ11B

MTZJ18B

MTZJ20B

1N4007

1SS133

B

C

E

R1

R2

B

C

E

R1

R2

2SK117

FRONT

VIEW

S

G

D

DTA114ES

DTC114TS

DTC114YS

DTC144ES

FRONT

VIEW

B

C

E

DTA Series DTC Series

DTA114EK

DTA114YK

R1

10kohm /Ω

R2

10kohm /Ω

DTA144EK 47kohm /Ω47kohm /Ω

10kohm /Ω47kohm /Ω

DTA114ES 10kohm /Ω10kohm /Ω

DTC114EK

DTC114YK

10kohm /Ω10kohm /Ω

DTC144EK

R1 R2

47kohm /Ω47kohm /Ω

10kohm /Ω47kohm /Ω

DTC144ES 47kohm /Ω47kohm /Ω

DTC114YS 10kohm /Ω47kohm /Ω

DTC114TS 10kohm /Ω

HL-50RDRF4T

TRANSISTORS

DIODES (LED included)

TOP VIEW

KBPC604

TOP VIEW

2SD947F 2SD3290Y

2SB1560Y

E (Emitter)

C (Collector)

B (Base)

E (Emitter)

C (Collector)

B (Base)

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

20

AVR-1803/883

16-st-42GNK (FL301)

S38

S14

S9 S1

S2

S3

S4

S5

S12

S13

S7

S15

S6

S10

S11

G1

G2

G3

G4

G5

G6

G7

G16 G15 G13 G12 G10 G9

F2F1

158

G14 G11 G8

G2~G16

1234567 8 9 10111213141516171819

23 24 25 26 27 28 29 30 31 32 33 34

F1 F1 S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15 S16 S17

20

21 22 35 36 37 38 39 40

41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57

S18

S19 S20 S21 S22 S23 S24 S25 S26 S27 S28 S29 S30 S31 S32 S33 S34 S35 S36 S37 S38

G16 G15 G14 G13 G12 G11 G10 G9 G8 G7 G6 G5 G4 G3 G2 G1 F2 F2

58

S13

S14

S15

S16

S17

S18

S19

S20

S21

S22

S23

S24

G1 G2 G3 G4 G5 G6 G7 G8 G9 G10 G11 G12 G13 G14 G15 G16

S38

S36

S37

S38

−2

DBS

TV

−1

VDP

TAPE

//(DVD)

/(MD)

AUX

DVD

MD V.AUX

TUNER

−2

−3

CD

−1

PHONO

VCR

REC

MULTI

STEREO

AUTO

TUNED

RDS

CH

S1

S2

S3

S4

S5

S6

S7

S8

S9

S10

S11

S12

S1

S2

S3

S4

S5

S6

S7

S9

S10

S11

S12

S1

S2

S3

S4

S5

S6

S7

S8

S9

S10

S11

S12

S13

S14

S15

S16

S17

S18

S19

S20

S21

S22

S23

S24

S13

S14

S15

S25

S26

S27

S28

S29

S30

S31

S32

S33

S34

S35

S25

S26

S27

S28

S29

S30

S31

S32

S33

S34

S35

G2~G16

G1

G2~G16

G1

G2~G16

G1

G2~G16

G1

DIGITAL

PRO LOGIC

S1

S6

S11

S16

S21

S26

S31

S2

S7

S12

S17

S22

S27

S32

S3

S8

S13

S18

S23

S28

S33

S4

S9

S14

S19

S24

S29

S34

S5

S10

S15

S20

S25

S30

S35

TUNED

RDS

STEREO

AUTO

REC

MULTI

PHONO

VCR

CD

−1

TUNER

−2−3 V.AUX

AUX

MD

DVD /

/TAPE

VDP TV

−1−2

/DBS

PRO LOGIC

DIGITAL

ANALOG

TUNED

RDS

STEREO

AUTO

REC

MULTI

PHONO

VCR

CD

−1

TUNER

−2−3V.AUX

AUX

MD

DVD /

/TAPE

VDP TV

−1−2

/ DBS

CH

PRO LOGIC

DIGITAL

ANALOG

FL DISPLAY

Pin Assignment

F1, F2 : Filament

G1~G16: Grid

S1~S38 : Anode

PIN NO.

CONNECTION

PIN NO.

CONNECTION

PIN NO.

CONNECTION

Anode & Grid Assignment

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

Denon AVR-883 User manual

Popular Receiver manuals by other brands
