Denon AV SURROUND RECEIVER AVR-891 User manual

AVR-891
AV Surround Receiver
New model information
Features
A/V Home Theater Receiver with 3D Video Connectivity
Equipped with a host of high tech features, the AVR-891 is one of the rst A/V receivers to include the latest HDMI 1.4a functionality,
which provides 3D pass-through (Broadcast and Blu-ray) capability, for compatibility with advanced 3D HDTVs and 3D Blu-ray discs,
and also includes Audio Return Channel. It also features the latest high resolution audio decoders, including Dolby TrueHD and DTS-
HD Master Audio, and includes Dolby Pro Logic IIz decoding, which provides front channel height eects for a dramatically expanded
front soundstage. The 7 channel amplier section features discrete component technology, each rated at a powerful 135 watts. The
video processor provides upconversion to high denition HDMI, and includes precision picture adjustments, such as brightness,
contrast, color and tint, to name a few. Setup is a breeze thanks to Audyssey MultEQ automatic room correction.
New Features
• Featuring 3D pass-through technology (supports Broadcast and Blu-ray)
• Supports HDMI 1.4a with 3D, Audio Return Channel, Deep Color,
“x.v.Color”, Auto Lipsync and HDMI control function
• Direct play for iPod®and iPhone®via USB
• Newly developed pre-memory remote control handset with Glo-Key buttons
• iPod and iPhone playback for Zone 2
• Remote Setup Guidance via On-Screen Display
• Dual subwoofer pre-amp outputs
One-cable HD solution
• Supports HDMI 1.4a with Audio Return Channel
• All sources are up-scaled to 1080P
• 6 x HDMI in / 1 x HDMI out with GUI (Graphical User Interface)
State-of-the-art Denon Solutions for Maximizing Content Quality
• Fully discrete, identical quality and power for all 7 channels (135 W x 7ch)
• Stable power supply for high-quality sound and picture playback
• High denition audio support, Dolby TrueHD and DTS-HD Master Audio
• Supports Dolby Pro Logic IIz processing
• High-bit I/P Converter and Scaler up to 1080p
• Compressed Audio Restorer to enhance digital music les
• Denon’s high picture quality circuitry
• Video digital noise reduction, to optimize eects for both SD and HD content
Connectivity & Future-ready Expandability
• Dock connectivity for iPod and network streaming
• Power Amp Assign function, for increased system conguration versatility, allows
surround back, front height, 2nd zone, or L/R bi-amp modes
Ease-of-Use
• On-Board GUI via HDMI output (up to 1080p)
• Audyssey Dynamic Volume, for real-time volume adjustment
• Audyssey MultEQ and Auto Setup
- Tower type microphone included for more accurate measuring
- Up to six measurement points
- High level resolution lters for satellite speakers and also subwoofer
• 2-line uorescent display on front panel
• Sleep timer function
Others
• Lower power consumption at stand-by 0.1 W (Standby)

Denon Brand Company
D&M Building, 2-1 Nisshin-cho, Kawasaki-ku, Kawasaki-shi,
Kanagawa, 210-8569, Japan
www.denon.com
Denon Electronics (USA), LLC.
100 Corporate Drive, Mahwah, New Jersey 07430 USA
TEL: [phone] usa.denon.com
Denon Canada Inc.
505 Apple Creek Blvd, Unit 5, Markham, Ontario, Canada L3R 5B1
TEL: [phone] ca.denon.com
17810410 A
*Design and specications are subject to change without notice.
*“Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.
*DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD
Master Audio are trademarks of DTS, Inc.
*HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
*Audyssey MultEQ®is a registered trademark of Audyssey Laboratories.
Audyssey Dynamic EQ®is a trademark of Audyssey Laboratories.
Audyssey Dynamic Volume™ is a trademark of Audyssey Laboratories.
*“Made for iPod” means that an electronic accessory has been designed to connect specically to
iPod and has been certied by the developer to meet Apple performance standards.
*“Works with iPhone” means that an electronic accessory has been designed to connect specically
to iPhone and has been certied by the developer to meet Apple performance standards.
*Apple is not responsible for the operation of this device or its compliance with
safety and regulatory standards.
*iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
*iPhone is a trademark of Apple Inc.
Main Specications
Power amplier section Preamplier section
Rated output *THD gures are power amp stage values. Input sensitivity/impedance 200 mV / 47 kΩ/kohms
Front L/R 105 W + 105 W Frequency response 10 Hz ~ 100 kHz — +1, –3 dB (DIRECT mode)
(8 ohms, 20 Hz - 20 kHz, THD 0.08 %) S/N Ratio 100 dB
(IHF-A weighted, DIRECT mode)
135 W + 135 W
(6 ohms, 1 kHz, THD 0.7%) FM section
Center 105 W Tuning frequency range 87.5 - 107.9 MHz
(8 ohms, 20 Hz - 20 kHz, THD 0.08 %) Usable sensitivity 1.0 µV (11.2 dBf)
135 W
(6 ohms, 1 kHz, THD 0.7%) AM section
Surround L/R 105 W + 105 W Tuning frequency range 520 - 1710 kHz
(8 ohms, 20 Hz - 20 kHz, THD 0.08 %) Usable sensitivity 18 µV
135 W + 135 W
(6 ohms, 1 kHz, THD 0.7%) General
Surround Back L/R 105 W + 105 W Power supply AC 120 V, 60 Hz
(8 ohms, 20 Hz - 20 kHz, THD 0.08 %) Power consumption 600 W (Standby 0.1 W)
135 W + 135 W Dimensions (W x H x D) 17-3/32” x 6-47/64” x 15”
(6 ohms, 1 kHz, THD 0.7%) 434 x 171 x 381 mm
Weight 23 lbs 13 oz, 10.8 kg

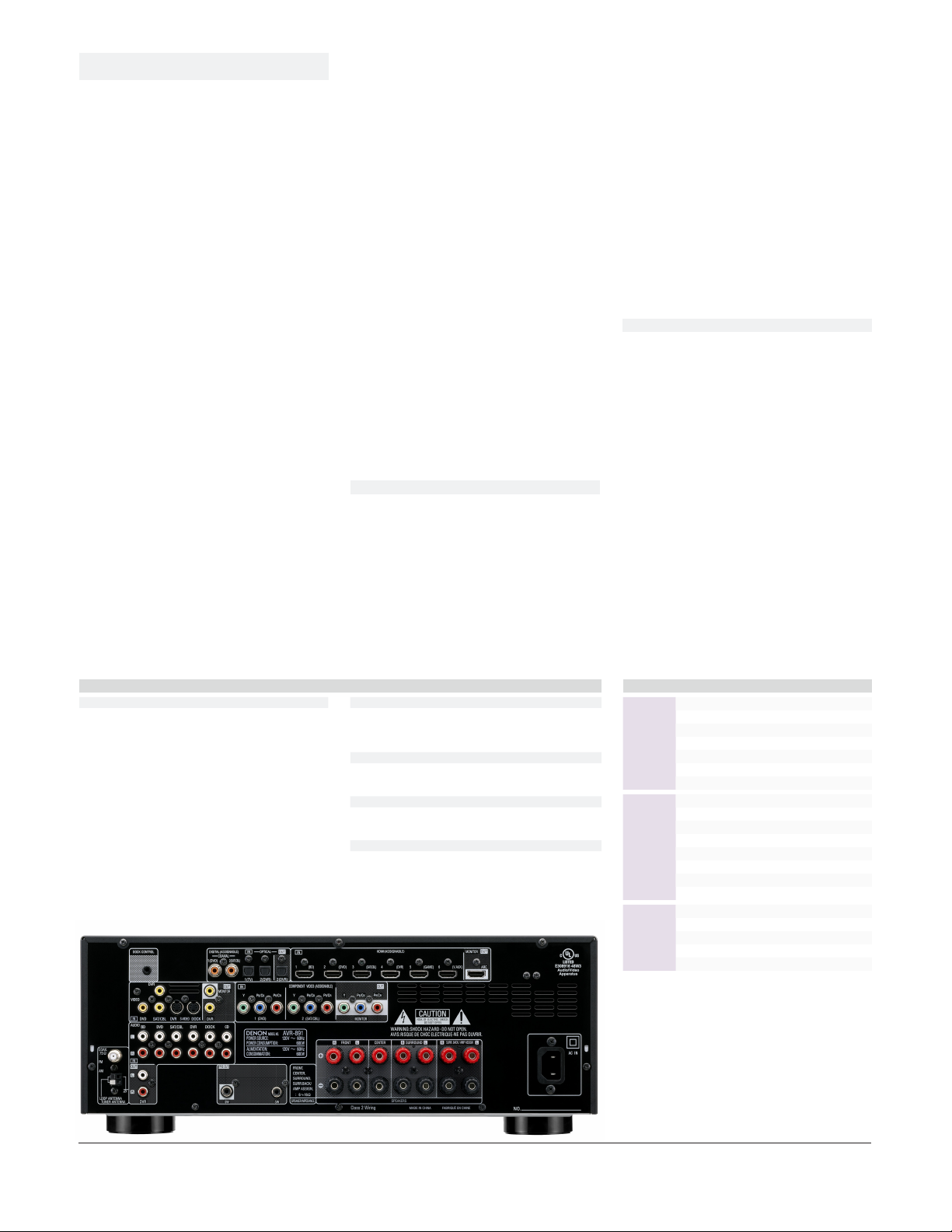

Ports
In HDMI x 6
Component x 2
S-Video x 2
Composite (Video) x 4
Analog Audio (Tuner included) x 8
Digital Optical x 2
Digital Coaxial x 2
Out HDMI Monitor x 1
Component Monitor x 1
Composite Monitor x 1
Composite (DVR) x 1
Audio Preout (SW) x 2
Audio REC out x 1
Phones x 1
Digital Optical x 1
Other USB port x 1
Microphone Port x 1
Dock Control Port x 1
FM Tuner Antenna x 1
AM Tuner Antenna x 1
State-of-the-art Denon Solutions for
Maximizing Content Quality
• Fully discrete, identical quality and power
for all 7 channels (135 W x 7ch)
To faithfully reproduce the original surround sound, each of
the AVR-891’s 7 channels is equipped with the same power
amp of equal power. Since these power amps also use dis-
crete circuits configured with parts strictly selected for their
contribution to high sound quality, rather than with low-cost
integrated circuits (ICs), the surround sound playback is of
impeccably high quality.
• Featuring 3D pass-through technology
By connecting a 3D-compliant Blue-ray disc player and 3D-
compliant TV to the AVR-891, you will have a 3D home the-
ater where you can enjoy high-denition sound and video on a
level you’ve never experienced before.
• Supports HDMI 1.4a with 3D, Audio Return
Channel, Deep Color, “x.v.Color” , Auto Lipsync
and HDMI control function
When you connect the AVR-891 to a TV with a single HDMI
cable, it supports Audio Return Channel (ARC)(*1) that can
play back the TV audio in surround sound. Until now, if you
wanted to enjoy surround sound from a TV, you needed to
use an optical digital cable or coaxial digital cable to bring
sound from the TV to the A/V receiver. The AVR-891’s ARC
feature, however, helps you keep cable connections neat and
out of the way as you build your home theater.
*1: The TV must also support ARC.
• High-denition audio support
The AVR-891 has a decoder that supports Dolby TrueHD and
DTS-HD Master Audio, the high resolution audio formats found
on many Blu-ray titles.
• Dolby Pro Logic IIz
To let you enjoy an even richer spatial expression, the
AVR-891 is equipped with a Dolby Pro Logic IIz processor.
By connecting Front Height speakers and using Dolby Pro
Logic IIz playback, you will be able to enjoy surround sound in
the vertical as well as horizontal direction.
• High-bit I/P Converter and Scaler up to 1080p
The AVR-891 uses a high-performance video up-scaler
to convert SD (standard denition) video material to HD (high
denition) quality. This means that the 480i/480p (SD-quality)
video signals of DVD programs and other material are converted
to the high-quality 1080p signal of HD video, and output to the
HDMI port. The fuzziness in the details of SD video is removed
to produce a clear picture. Now you can enjoy not only your
DVDs but also your VCR tapes and games with much greater
clarity and detail.
• Minimum Signal Path for clear audio and video
signal
The “simple and straight” design concept has been thoroughly
implemented in the signal paths to contribute to immaculately
clean audio and video playback. Signal paths are as short as
possible to keep signal degradation in the audio and video
circuitry to an absolute minimum
• Direct Mechanical Ground Construction, em-
bodying concepts for thorough vibration resistance
Vibration-resistant construction has been reviewed to
thoroughly suppress the adverse influences of vibration on
sound quality. The power transformers, a source of vibration,
have been securely mounted on the highly rigid bottom chassis.
Direct mounting of cast-iron feet to the radiator in near proximity
to each other serves to suppress mutual vibration with the
power transformers and other sources of vibration.
Connectivity & Future-ready Expandability
• 6 x HDMI in / 1 x HDMI out (Repeater)
• Direct play for iPod and iPhone via USB
You can also listen to music files from your iPod by simply
connecting it to the AVR-891’s USB port with the USB cable
that came with the iPod. To start play, just press the iPod Play
button on the AVR-891 or its remote control unit. Digital sig-
nals from the iPod are transmitted as is to the AVR-891 where
they pass through the compressed audio restorer and are
processed by advanced audio circuitry to produce a clean,
high-quality sound.
•Dock connectivity for iPod and network streaming
Network music can be enjoyed via the Denon Networked Control
Dock. (Requires optional ASD-51W or ASD-51N dock.)
•Power Amp Assign function, for versatility in
using the AVR-891 for dierent purposes
The AVR-891 supports up to 7.2 channels (FL/ FR/ C/ SL/
SR/ SBL/ SBR/ SW1/ SW2) for surround playback defined
by the Blu-ray disc format. To enjoy surround playback with
the AVR-891’s Dolby Pro Logic IIz, you can reassign the power
amp from the two surround back channels (SBL/SBR) to the
two front high channels (FHL/FHR). Or by assigning the SBL/
SBR power amp to Zone 2, you can enjoy multi-room audio
playback, or to achieve higher-quality sound for 2-channel ste-
reo playback, you can configure the AVR-891 for front bi-amp
operation. These are just some of the ways you can arrange the
AVR-891’s amps to suit various listening styles.
Ease-of-use
• On-Board GUI via HDMI output (up to 1080p)
The AVR-891 is equipped with an easy-to-view Graphical
User Interface (GUI) featuring visual menu displays. These
menu displays can also be output to the monitor over HDMI.
• Newly developed pre-memory remote control hand-
set with Glo-Key buttons
• Remote Setup Guidance via On-Screen Display
• Three Quick Select buttons
• Auto surround mode
• Sleep timer function
• Audio Delay function (max. 6 frames or 200 mSec)
• Muting level settings (Full/-40dB/-20dB)
• Audio level memory, capable of correcting
dierent signal levels for each input device
• Variable subwoofer crossover switching
