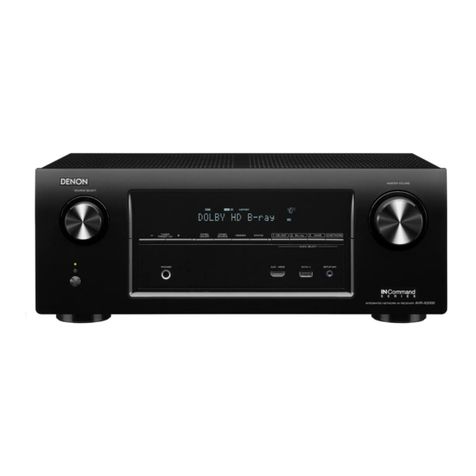

Denon AVR-X2200W User manual

.
AVR-X2200W
INTEGRATED NETWORK AV RECEIVER
Owner’s Manual
You can print more than one page of a PDF onto a single sheet of paper.
Contents Connections Playback Settings Tips Appendix
1
Front panel Display Rear panel Remote Index

Accessories 7
Inserting the batteries 8
Operating range of the remote control unit 8
Features 9
High quality sound 9
High performance 9
Easy operation 12
Part names and functions 13
Front panel 13
Display 16
Rear panel 18
Remote control unit 22
Connections
Connecting speakers 26
Speaker installation 26
Speaker connection 33
Speaker configuration and “Amp Assign” settings 37
Connecting a TV 48
Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel) 49
Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) 50
Connecting a playback device 51
Connecting a set-top box (Satellite tuner/cable TV) 52
Connecting a DVD player or Blu-ray Disc player 53
Connecting a video camcorder or game console 54
Connecting an iPod or USB memory device to the USB port 55
Connecting an FM/AM antenna 57
Connecting to a home network (LAN) 59
Wired LAN 59
Wireless LAN 60
Connecting the power cord 61
Playback
Basic operation 63
Turning the power on 63
Selecting the input source 63
Adjusting the volume 64
Turning off the sound temporarily (Muting) 64
Playback a DVD player/Blu-ray Disc player 64
Contents Connections Playback Settings Tips Appendix
Contents
2
Front panel Display Rear panel Remote Index

Playing an iPod 65
Listening to music on an iPod 66
iPod Browse Mode settings 67
Performing repeat playback 69
Performing random playback 69
Playing a USB memory device 70
Playing files stored on USB memory devices 71
Listening to music on a Bluetooth device 73
Playing music from Bluetooth device 74
Pairing with other Bluetooth devices 76
Reconnecting to this unit from a Bluetooth device 77
Listening to FM/AM broadcasts 78
Listening to FM/AM broadcasts 79
Tuning in by entering the frequency (Direct Tune) 81
RDS search 81
PTY search 82
TP search 83
Radio Text 83
Changing the tune mode (Tune Mode) 84
Tuning in to stations and presetting them automatically (Auto
Preset Memory) 84
Presetting the current broadcast station (Preset Memory) 85
Listening to preset stations 85
Specify a name for the preset broadcast station (Preset Name) 86
Skipping preset broadcast stations (Preset Skip) 87
Cancelling Preset Skip 88
Listening to Internet Radio 89
Listening to Internet Radio 90
Playing the last played Internet Radio station 91
Using vTuner to add Internet Radio stations to favorites 92
Playing back files stored on a PC and NAS 93
Applying media sharing settings 94
Playing back files stored on a PC and NAS 95
Contents Connections Playback Settings Tips Appendix
3
Front panel Display Rear panel Remote Index

AirPlay function 97
Playing songs from your iPhone, iPod touch or iPad 98
Playing iTunes music with this unit 98
Selecting multiple speakers (devices) 99
Perform iTunes playback operations with the remote control unit
of this unit 99
Spotify Connect function 100
Playing Spotify music with this unit 100
Convenience functions 101
Performing repeat playback 102
Performing random playback 102
Registering to Favorites 103
Playing back content added to the “Save to Favorites” 103
Deleting content added to favorites 104
Searching content with keywords (Text Search) 104
Playing back music and a favorite picture at the same time
(Slideshow) 105
Setting the Slideshow Interval 106
Adjusting the volume of each channel to match the input source
(Channel Level Adjust) 107
Adjusting the tone (Tone) 108
Displaying your desired video during audio playback (Video
Select) 109
Adjusting the picture quality for your viewing environment (Picture
Mode) 110
Playing the same music in all zones (All Zone Stereo) 111
Selecting a sound mode 112
Selecting a sound mode 113
Direct playback 114
Pure Direct playback 114
Auto surround playback 115
HDMI control function 124
Setting procedure 124
Smart Menu function 125
Sleep timer function 127
Using the sleep timer 128
Quick select plus function 129
Calling up the settings 130
Changing the settings 131
Web control function 132
Controlling the unit from a web control 132
Playback in ZONE2 (Separate room) 134
Connecting ZONE2 134
Playback in ZONE2 136
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index

Settings
Menu map 138
Menu operations 141
Inputting characters 142
Using the keyboard screen 143
Audio 144
Dialog Level Adjust 144
Subwoofer Level Adjust 144
Surround Parameter 145
Restorer 149
Audio Delay 150
Volume 150
Audyssey®151
Graphic EQ 154
Video 156
Picture Adjust 156
HDMI Setup 158
Output Settings 164
On Screen Display 168
TV Format 169
Inputs 170
Input Assign 170
Source Rename 172
Hide Sources 173
Source Level 173
Input Select 173
Speakers 175
Audyssey® Setup 175
Procedure for speaker settings (Audyssey® Setup) 177
Error messages 183
Retrieving Audyssey® Setup settings 184
Manual Setup 185
Amp Assign 185
Speaker Config. 186
Distances 191
Levels 192
Crossovers 193
Bass 194
Front Speaker 195
Contents Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index

Network 196
Information 196
Connection 196
Wi-Fi Setup 197
Settings 200
Network Control 202
Friendly Name 202
Diagnostics 203
Maintenance Mode 204
General 205
Language 205
ECO 205
ZONE2 Setup 208
Zone Rename 209
Quick Select Names 209
Front Display 210
Firmware 211
Information 213
Usage Data 214
Setup Lock 215
Limiting the operating zone with the remote control 216
Tips
Tips 218
Troubleshooting 220
Resetting factory settings 236
Appendix
About HDMI 237
Video conversion function 240
Playing back a USB memory devices 242
Playing back a Bluetooth device 243
Playing back a file saved on a PC or NAS 244
Playing back Internet Radio 245
Personal memory plus function 245
Last function memory 245
Sound modes and channel output 246
Sound modes and surround parameters 247
Types of input signals, and corresponding sound modes 250
Explanation of terms 253
Trademark information 262
Specifications 264
Index 269
License 272
Contents Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index

Thank you for purchasing this Denon product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
R03/AAA batteriesRemote control unit
(RC-1192)
Sound calibration
microphone stand
Sound calibration
microphone
(ACM1HB)
AM loop antennaFM indoor antenna
Power cord
Cable labelsNotes on radioSafety InstructionsCD-ROM
(Owner’s Manual)
Quick Start Guide
Contents Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index

Inserting the batteries
1Remove the rear lid in the direction of the arrow and
remove it.
.
2Insert two batteries correctly into the battery
compartment as indicated.
.
R03/AAA batteries
3Put the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
30°
Approx. 7 m
30°
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index

Features
High quality sound
0With discrete circuit technology, the power amplifier provides
identical quality for all 7-channels (125 Watts x 7-channels)
For optimum realism and stunning dynamic range, the power amplifier
section features discrete power devices (not integrated circuitry).
By using high current, high power discrete power devices, the amplifier
is able to easily drive high quality speakers.
0Dolby Atmos (v p. 253)
This unit is equipped with a decoder that supports Dolby Atmos audio
format. The placement or movement of sound is accurately reproduced
by the addition of overhead speakers, enabling you to experience an
incredibly natural and realistic surround sound field.
0DTS:X
This unit is equipped with the DTS:X decoder technology. DTS:X
brings the home theater experience to new heights with its immersive
object based audio technology which removes the bounds of channels.
The flexibility of objects allows for sound to be scaled large or small
and moved around the room with greater accuracy than ever before
leading to a richer immersive audio experience.
High performance
04K 60Hz input/output supported
.
When 4K Ultra HD (High Definition) is used, an input/output speed of 60
frames per second (60p) is achieved for video signals. When connected
to 4K Ultra HD and 60p video signal input compatible TV, you can enjoy
the sense of realism only available from high-definition images, even
when viewing fast-moving video.
This unit also supports image processing for 4K 60p, 4:4:4 and 24-bit
videos. By processing the video at the original resolution, this unit lets
you enjoy flawless, high-definition picture quality.
0HDCP 2.2
This unit is compatible with HDCP2.2 copyright protection standard.
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index

0Digital video processor upscales analog video signals (SD
resolution) to HD (720p/1080p) and 4K (v p. 166)
.
4K
Up scaling
Up to 1080p
This unit is equipped with a 4K video upscaling function that allows
analog video or SD (Standard Definition) video to be output via HDMI at
4K (3840 × 2160 pixels) resolution. This function enables the device to
be connected to a TV using a single HDMI cable, and produces high
definition images for any video source.
0HDMI connections enable connection to various digital AV
devices (8 inputs, 2 outputs)
.
Out
In
This unit is equipped with 8 HDMI inputs and 2 HDMI outputs enabling
connection to various HDMI compatible devices such as Blu-ray Disc
players, game consoles and HD video camcorders. This unit is
equipped with 2 monitor outputs, enabling you to project the same
image at the same time using this unit.
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index

0The device is equipped with a AirPlay® function in addition to
network functions such as Internet radio etc. (v p. 97)
.
You can enjoy a wide variety of content, including listening to Internet
Radio, playing audio files stored on your PC, and displaying
photographs stored on your PC on our television.
This unit also supports Apple AirPlay which lets you stream your music
library from an iPhone®, iPad®, iPod touch® or iTunes®.
0Playback of DSD and FLAC files via USB and networks
This unit supports the playback of high resolution audio formats such as
DSD (2.8 MHz) and FLAC 192 kHz files. It provides high quality
playback of high resolution files.
0Wireless connection with Bluetooth devices can be carried out
easily (v p. 73)
.
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.
0Compatible with the “Denon 2015 AVR Remote”z for performing
basic operations of the unit with an iPad, iPhone or Android™
devices (Google, Amazon Kindle Fire)
“Denon 2015 AVR Remote” is application software that allows you to
perform basic operations with an iPad, iPhone, Android smartphone or
Android tablet such as turning the unit ON/OFF, controlling the volume,
and switching the source.
zDownload the appropriate “Denon 2015 AVR Remote” for your iOS or Android
devices. This unit needs to be connected to the same LAN or Wi-Fi (wireless
LAN) network that the iPhone or iPod touch is connected to.
Contents Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index

0Multi-Room audio (v p. 111)
.
GMAIN ZONEHGZONE2H
You can select and play back the respective inputs in MAIN ZONE and
ZONE2.
In addition, when the All Zone Stereo function is used, the music being
played back in MAIN ZONE can be enjoyed in all the zones at the same
time. This is useful when you want to let the BGM propagate throughout
the whole house.
0Energy-saving design
This unit is equipped with an ECO Mode function that allows you to
enjoy music and movies while reducing the power consumption during
use, and also an auto-standby function that automatically turns off the
power supply when the unit is not in use. This helps reduce
unnecessary power use.
Easy operation
0“Setup Assistant” provides easy-to-follow setup instructions
First select the language when prompted. Then simply follow the
instructions displayed on the TV screen to set up the speakers, network,
etc.
0Easy to use Graphical User Interface
This unit is equipped with a Graphical User Interface for improved
operability.
Contents Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index

Part names and functions
Front panel
.
MASTER VOLUME
SOURCE SELECT
ONLINE
MEDIA
PLAYER
Blu-rayCBL/SAT 3214
ZONE2
ON/OFF
ZONE2
SOURCE DIMMER STATUS
TUNER
PRESET CH
SETUP MICAUX 1 - HDMI
PHONES
QUICK SELECT
er t y
uioQ0 Q1 Q2
Q
3
Q
4
Q
5
Q
6
qw
Contents Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index

.
MASTER VOLUME
SOURCE SELECT
ONLINE
MEDIA
PLAYER
Blu-rayCBL/SAT 3214
ZONE2
ON/OFF
ZONE2
SOURCE DIMMER STATUS
TUNER
PRESET CH
SETUP MICAUX1 - HDMI
PHONES
QUICK SELECT
tyq ew r
u ioQ0Q1
APower operation button (X)
Used to turn the power of the MAIN ZONE (room where this unit is
located) on/off (standby). (v p. 63)
BPower indicator
This is lit as follows according to the power status:
0Green: Power on
0Off: Normal standby
0Red:
0When “HDMI Control” is set to “On” (v p. 160)
0When “HDMI Pass Through” is set to “On” (v p. 161)
0When “Network Control” is set to “Always On” (v p. 202)
CSOURCE SELECT knob
This selects the input source. (v p. 63)
DRemote control sensor
This receives signals from the remote control unit. (v p. 8)
EDisplay
This displays various pieces of information. (v p. 16)
FMASTER VOLUME knob
This adjusts the volume level. (v p. 64)
GTuner preset channel buttons
(TUNER PRESET CH +, –)
These select preset broadcast stations. (v p. 85)
HZONE2 ON/OFF button
This turns the power of ZONE2 (separate room) on/off. (v p. 136)
IZONE2 SOURCE button
This selects the input source for ZONE2. (v p. 136)
JDIMMER button
Each press of this switches the brightness of the display. (v p. 210)
KSTATUS button
Each press of this switches the status information that is shown on the
display.
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index

.
MASTER VOLUME
SOURCE SELECT
ONLINE
MEDIA
PLAYER
Blu-rayCBL/SAT 3214
ZONE2
ON/OFF
ZONE2
SOURCE DIMMER STATUS
TUNER
PRESET CH
SETUP MICAUX1 - HDMI
PHONES
QUICK SELECT
Q2
Q6Q4Q5Q3
LQUICK SELECT buttons
With a single press of any of these buttons, you can call up various
settings you’ve registered to each button such as the input source,
volume level and sound mode settings. (v p. 129)
MHeadphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the PRE OUT
connectors.
NOTE
0To prevent hearing loss, do not raise the volume level excessively when using
headphones.
NAUX1-HDMI connector
This is used to connect HDMI output compatible devices such as video
camcorders and game consoles. (v p. 54)
OUSB port (T)
This is used to connect USB storages (such as USB memory devices)
and the USB cable supplied with iPod. (v p. 55)
PSETUP MIC jack
This is used to connect the supplied Sound calibration microphone.
(v p. 178)
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index

Display
.
iouytrewq
Q
0
Q
1
Q
2
AInput mode indicators
These light according to the audio input mode settings of each input
source. (v p. 173)
BSurround back indicator
This lights when audio signals are being output from the surround back
speakers. (v p. 188)
CDecoder indicators
These light when Dolby or DTS signals are input or when the Dolby or
DTS decoder is running.
DAudyssey® indicator
This lights when “MultEQ® XT”, “Dynamic EQ” or “Dynamic Volume”
has been set up. (v p. 151)
ETuner reception mode indicators
These light up according to the reception conditions when the input
source is set to “Tuner”.
TUNED: Lights up when the broadcast is properly tuned in.
STEREO: Lights up when receiving FM stereo broadcasts.
RDS : Lights up when receiving RDS broadcasts.
FSleep timer indicator
This lights when the sleep mode is selected. (v p. 127)
GCircle indicator
This is displayed when the input source is “Online Music” or “iPod/USB”
when you are playing back music.
Contents Connections Playback Settings Tips Appendix
16
Front panel Display Rear panel Remote Index

.
io
Q
2
Q
1
Q
0
HVolume indicator
IMUTE indicator
This blinks while the sound is muted. (v p. 64)
JInformation display
The input source name, sound mode, setting values and other
information are displayed here.
KInput signal indicators
The respective indicator will light corresponding to the input signal.
(v p. 173)
LZONE2 indicator
This lights up when ZONE2 (separate room) power is turned on.
(v p. 136)
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index

Rear panel
.
q
ioQ
0
Q
1
wer t y q u
Contents Connections Playback Settings Tips Appendix
18
Front panel Display Rear panel Remote Index

.
q q
wer
ARod antennas for Bluetooth/wireless LAN
Stand this antenna upright when connecting to a network via wireless
LAN, or when connecting to a handheld device via Bluetooth.
(v p. 60)
.
90°
320°
320°
90°
0The antenna clip can be removed from the rear panel.
ARotate the antenna clip 90 degrees to the left.
BPull the antenna clip out towards yourself.
0The antenna clip is needed when transporting this unit. Keep it in a
safe place.
0Attach the antenna clip by following the steps for removing it in
reverse.
BAnalog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
0“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 52)
0“Connecting a DVD player or Blu-ray Disc player” (v p. 53)
CNETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN
network. (v p. 59)
DVideo connectors (VIDEO)
Used to connect devices equipped with video connectors.
0“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 52)
0“Connecting a DVD player or Blu-ray Disc player” (v p. 53)
Contents Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index

.
yu
io
t
EDigital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
0“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel)” (v p. 50)
0“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 52)
FHDMI connectors
Used to connect devices equipped with HDMI connectors.
0“Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel)” (v p. 49)
0“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel)” (v p. 50)
0“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 52)
0“Connecting a DVD player or Blu-ray Disc player” (v p. 53)
GAC inlet (AC IN)
Used to connect the power cord. (v p. 61)
HFM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 57)
ISpeaker terminals (SPEAKERS)
Used to connect speakers. (v p. 33)
Contents Connections Playback Settings Tips Appendix
20
Front panel Display Rear panel Remote Index
