DENTSPLY Cavitron SPS G90 Manual

ENGLISH • 1
Cavitron® SPS™ G90
Directions For Use
Mode d’emploi
Instrucciones para el uso
Gebrauchsanweisung
Istruzioni per l’uso
Указания по применению
Ultrasonic Scaler with
Cavitron® Steri-mate® Handpiece
Détartreur à ultra-sons avec
pièce à main Cavitron® Steri-Mate®
Escaricador ultrasónica con
irrigador bucal Cavitron® Steri-Mate®
Ultraschall-Zahnsteinentfernungsgerät
mit Cavitron® Steri-Mate® Handstück
Ablatore ad ultrasuoni con
manipolo Cavitron® Steri-Mate®
Ультразвуковой аппарат для удаления зубного
камня с наконечником Cavitron® Steri-Mate®

ENGLISH • 1
Introduction
DENTSPLY Professional is an ISO 13485 registered company.
The DENTSPLY Cavitron® SPS™ Scaler System is recognized by
Underwriters Laboratories Inc. with respect to electric shock, fire,
and mechanical hazards in accordance with UL 60601-1 and CSA
C22.2 no. 601.1.
The Cavitron SPS Ultrasonic Scaler is equipped with a Sustained
Performance System™ (SPS), which offers a constant balance
between scaling efficiency and patient comfort by maintaining the
unit's power level when the insert tip encounters tenacious deposits
allowing the clinician to effectively scale even at a decreased/lower
power setting.
The System operates by converting an SELV source current into
high frequency current. The ultrasonic system consists of two
parts: an insert and the SPS™ electronic system. The SPS™ system
incorporates two closed loops. One loop provides automatic tuning
(operating frequency is adjusted to be at resonance for each insert),
the second loop automatically controls the tip stroke over different
working conditions. The DENTSPLY Cavitron® SPS™ scaler
produces 30,000 microscopically small strokes per second at the
insert’s working tip. This, combined with acoustic effects of the
coolant water, produces a synergistic action that literally “powers
away” the heaviest calculus deposits while providing exceptional
operator and patient comfort.
ENGLISH
Cavitron® SPS™ Ultrasonic Scaler
with Cavitron® Steri-Mate® Handpiece
Model G90
Directions for Use
Please read carefully and completely before operating unit.

ENGLISH • 2
1. Indications .....................................................................................................................3
1.1 Ultrasonic procedures
2. Contraindications ..........................................................................................................3
3. Warnings .......................................................................................................................3–4
4. Precautions ....................................................................................................................5
4.1 System Precautions
4.2 Procedural Precautions
5. Infection Control ...........................................................................................................6
5.1 General Information
5.2 Water Supply Recommendations
6. Installation Instructions .................................................................................................7–8
6.1 Installation
6.2 Water Line Requirements
7. SPS™ Ultrasonic Scaler System Description ..............................................................8–11
7.1 System Controls
7.2 Steri-Mate® Handpiece

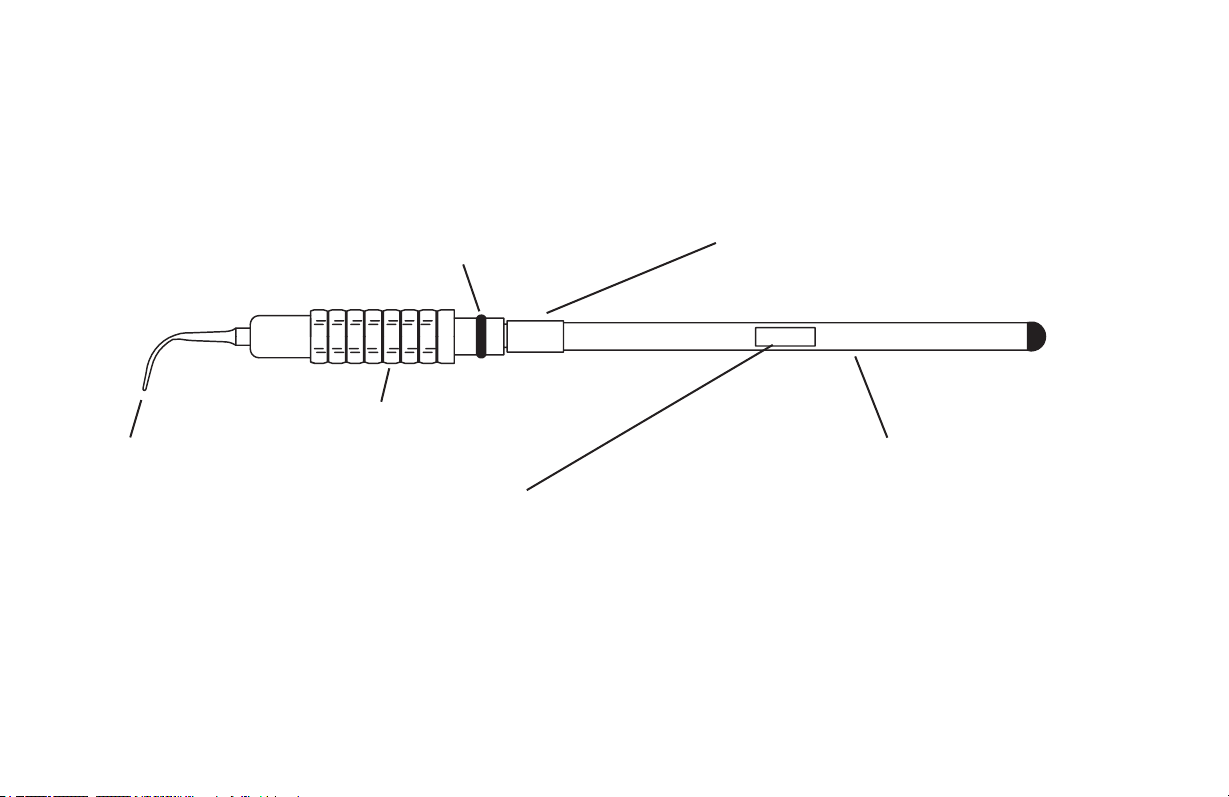

7.3 DENTSPLY Cavitron® 30K™ Ultrasonic Inserts
7.4 Foot Control Information & Operation
8. Accessories ...................................................................................................................11
9. Techniques for Use .......................................................................................................11–12
9.1 Patient Positioning
9.2 Performing Ultrasonic Scaling Procedures
9.3 Patient Comfort Considerations
10. System Care ..................................................................................................................12–13
10.1 Daily Protocol

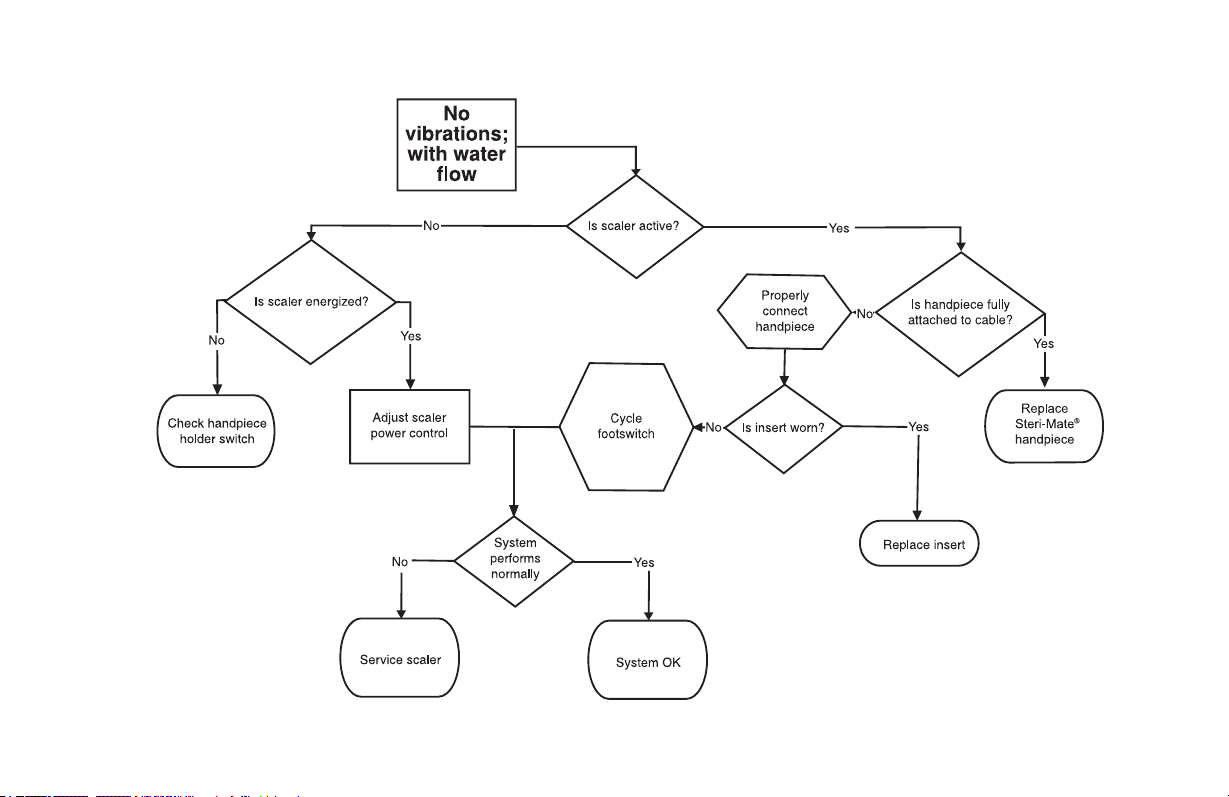

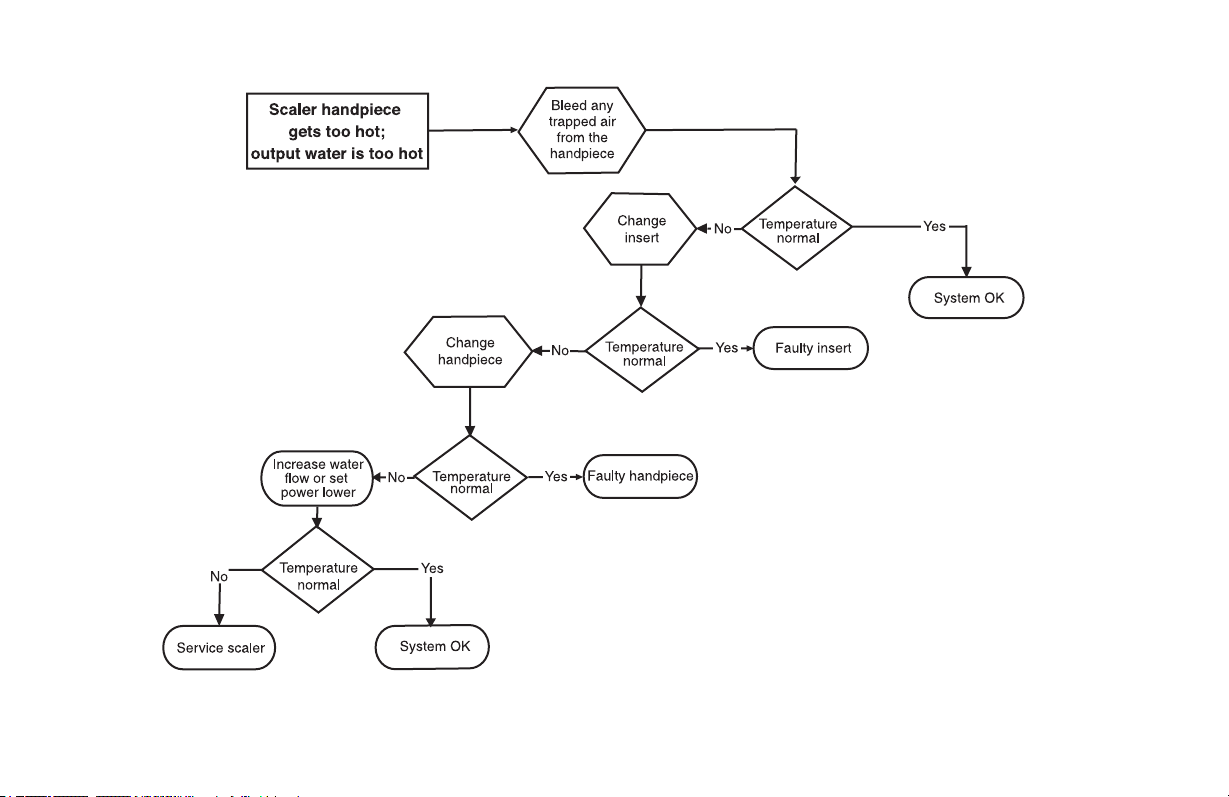

11. Troubleshooting ............................................................................................................14–18
12. Warranty ........................................................................................................................19
13. Specifications ................................................................................................................19
14. Classifications ...............................................................................................................19
Table of Contents
Section Section Title/Description of Contents Page Number

ENGLISH • 3
Section 1: Indications
1.1 Ultrasonic Procedures
• All general supra and subgingival scaling applications.
• Periodontal debridement for all types of periodontal diseases.
• Endodontic procedures.
Section 2: Contraindications
2.1 Contraindications
• Ultrasonic Systems should not be used for restorative procedures
involving condensation of amalgam.
Section 3: Warnings
3.1 Warnings
• Persons fitted with cardiac pacemakers, defibrillators and other
active implanted medical devices, have been cautioned that
some types of electronic equipment might interfere with the
operation of the device. Although no instance of interference
has ever been reported to DENTSPLY, we recommend that the
handpiece and cables be kept at least 6 to 9 inches (15 to 23 cm)
away from any device and their leads during use. There are a
variety of pacemakers and other medically implanted devices on
the market. Clinicians should contact the device manufacturer
or the patient’s physician for specific recommendations. This
unit complies with IEC 60601 Medical Device Standards.
Intended Use
This product is intended for installation into a dental system. The
end users are dental professionals. The devices are used to debride
light to heavy calculus deposits from the tooth and root surfaces.
Other applications specialties include Periodontics, Orthodontics,
and Endodontics.
Technical Support
For technical support and repair assistance in the U.S.,
call a Cavitron CareSM representative at 1-800-989-8826 or
717-767-8502 Monday through Friday, 8:00 AM to 5:00 PM
(Eastern Time). For other areas, contact your local DENTSPLY
representative.
Supplies & Replacement Parts
To order supplies and replacement parts in the U.S., contact your
local DENTSPLY distributor or call 1-800-989-8826 or 717-767-
8502, Monday through Friday, 8:00 AM to 5:00 PM (Eastern Time).
For other areas, contact your local DENTSPLY representative.
Disposal of Unit
Disposal of unit shall be in accordance with local regulations.
Caution: United States Federal Law restricts this device to sale by or
on the order of, a licensed dental professional.

ENGLISH • 4
• It is the responsibility of the Dental Healthcare Professional to
determine the appropriate uses of this product and to understand:
• the health of each patient,
• the dental procedures being undertaken,
• and applicable industry and governmental agency
recommendations for infection control in dental
healthcare settings,
• requirements, and regulations for safe practice of
dentistry; and
• these Directions for Use in their entirety, including
Section 4 Precautions, Section 5 Infection Control, and
Section 10 System Care.
• This product is designed to assist in eliminating susceptibility
to retraction of oral fluids. To ensure adequate protection
from cross-contamination from other devices connected to the
Dental Unit, it is highly recommended that the Dental Unit be
installed with anti-retraction features. Additionally, the Dental
Unit, including the anti-retraction features, must be properly
maintained and periodically tested. For more information,
please contact your Dental Unit manufacturer.
• Where asepsis is required or deemed appropriate in the best
professional judgment of the Dental Healthcare Professional,
this product should not be used, unless used in combination with
a Sterile Lavage Kit, (P/N 81340).
• During boil-water advisories, this product should not be operated
as an open water system (e.g. connected to a public water
system). Dental Healthcare Professionals should discontinue use
on patients and contact the local water authority to determine
when it is safe to continue use of this product. When the
advisory is cancelled, the local water authority should provide
guidance for flushing of waterlines. All incoming waterlines
from the public water system inside the dental office (e.g.,
faucets, waterlines, and dental equipment) should be flushed in
accordance with manufacturer’s instructions for a minimum of
5 minutes.
• Prior to beginning treatment, patients should rinse with a known
antimicrobial such as Chlorhexidine Gluconate 0.12%. Rinsing
with an antimicrobial reduces the chance of infection and
reduces the number of microorganisms released in the form of
aerosols during treatment.
• The use of High Volume Saliva Evacuation to reduce the
quantity of aerosols released during treatment is highly
recommended.
• Failure to follow recommendations for environmental operating
conditions, including input water temperature, could result in
injury to patients or users.

ENGLISH • 5
Efficiency Indicator is enclosed for your use.
• If excessive wear is noted, or the insert has been bent, reshaped or
otherwise damaged, discard the insert immediately.
• Ultrasonic insert tips that have been bent, damaged, or reshaped are
susceptible to in-use breakage and should be discarded and replaced
immediately.
• Retract the lips, cheeks, and tongue to prevent contact with the insert tip
whenever it is placed in the patient’s mouth.
• Water should be used for all scaling procedures. Water flow is adjustable
from less than 10 to greater than 60 ml per minute.
• Only adjust the systems’s power adjustment knob with the insert outside
the patients mouth.
Section 4: Precautions
4.1 System Precautions
• Equipment flushing and dental water supply system
maintenance are strongly recommended. See Section 10:
System Care.
• Close manual shut-off valve on the dental office water supply
every night before leaving the office.
• The use of an in-line water filter is recommended.
• Never operate system without fluid flowing through handpiece.
• Always ensure that the electrical connections on the handpiece
cable and the Steri-Mate® Handpiece are clean and dry before
assembling them for use.
4.2 Procedural Precautions
• The Cavitron SPS G90 unit works with Cavitron inserts as a system,
and was designed and tested to deliver maximum performance for all
currently available Cavitron and Cavitron Bellissima® brand ultrasonic
inserts. Companies that manufacture, repair or modify inserts carry the
sole responsibility for proving the efficacy and performance of their
products when used as a part of this system. Users are cautioned to
understand the operating limits of their inserts before using in a clinical
setting.
• Like bristles of a toothbrush, ultrasonic insert tips “wear” with
use. Inserts with just 2 mm of wear lose about 50% of their scaling
efficiency. In general, it is recommended that ultrasonic inserts be
discarded and replaced after one year of use to maintain optimal
efficiency and avoid breakage. A DENTSPLY Professional Insert

ENGLISH • 6
Section 5: Infection Control
5.1 General Information
• As with all dental procedures, use universal precautions (i.e., wear
face mask, eyewear, or face shield, gloves, and protective gown).
• For operator and patient safety, carefully practice the
infection control procedures detailed in the Infection Control
Information Booklet accompanying your System. Additional
booklets can be obtained by calling Customer Service at
1-800-989-8826, Monday through Friday, 8:00 A.M. to 5:00 P.M.
(Eastern Time). For areas outside the U.S., contact your local
DENTSPLY Professional representative.
• As with high speed handpieces and other dental devices, the
combination of water and ultrasonic vibration from the Cavitron SPS
Scaler will create aerosols. Following the procedural guidelines in
Section 9 of this manual can effectively control and minimize aerosol
dispersion.
5.2 Water Supply Recommendations
• It is highly recommended that all dental water supply systems
conform to applicable CDC (Centers for Disease Control and
Prevention) and ADA (American Dental Association) standards,
and that all recommendations be followed in terms of flushing, and
general infection control procedures. (See Sections 6.2 and 10)
Knowledge of and compliance with agency guidelines, standards and
recommendations is the sole responsibility of the Dental Healthcare
Professional.
• As a medical device, Cavitron® products need to be installed
in accordance with local or national regulations, including guidelines
for water quality (e.g. drinking water). As an open water system,
such regulation may require your Cavitron product to be connected
to a centralized water control device that prevents water containing
contaminates from back-flow into the water supply.

ENGLISH • 7
6.2 Water Line Requirements
UNIVERSAL CONTROL BOARD
J3M-1  NOCONNECTION
J3M-2  NOCONNECTION
J3M-3  BOOST(OPTIONAL)  ORANGE
J3M-4  POWERCONTROL-HIGH VIOLET
J3M-5  POWERCONTROL-WIPER YELLOW
J3M-6  NOCONNECTION
J3M-7  ULTRASONICON/OFF BROWN
J3M-8  POWERCONTROL-COMMON BLACK
POWER DRIVE BOARD
J1-1  HANDPIECE-DRIVE  RED
J1-2  HANDPIECE-GROUND GREEN
J1-3  HANDPIECE-FEEDBACK WHITE
J2-1  24VAC   BLUE
J2-2  24VAC   BLUE/WHITESTRIPE
J3-1  POWERRESISTOR  BLACK
J3-2  POWERRESISTOR  BLACK
Section 6: Installation Instructions
6.1 Installation
Your DENTSPLY Cavitron® SPS™ has been installed by trained technicians. The diagram below shows all connections to your
dental treatment unit. The power source is double insulated type SELV device and qualified to IEC 601.1.

ENGLISH • 8
• Incoming water supply line pressure to the ultrasonic scaler
must be 25 psi (172kPa) minimum to 60 psi (414 kPa)
maximum. If your dental water system's supply line pressure
is above 60 psi, install a water pressure regulator on the
water supply line to your Ultrasonic Scaler.
• Incoming water temperature to the Cavitron System should
not exceed 25˚C (77˚F). If needed device should be installed
to maintain a temperature within this specification, or a
Cavitron DualSelect Dispensing System attached to allow
this system to be operated as a closed water system.
• A manual shut-off valve on the dental water system supply
line should be used so that the water can be completely shut-
off when the office is unoccupied.
• A filter in the dental water system supply line is
recommended so that the particles in the water supply will be
trapped before reaching the ultrasonic scaler.
• After the above installations are complete on the dental
water supply system, the dental office water line should
be thoroughly flushed prior to connection to the ultrasonic
system.
• After flushing system, verify there are no leaks.
Section 7: SPS™ Ultrasonic Scaler
System Description
7.1 System Controls
The DENTSPLY Cavitron® SPS™ module is enabled
whenever the clinician removes the handpiece from the
handpiece holder.
ON/OFF Function
The Ultrasonics is switched ON and OFF using the
treatment unit’s footswitch.
Power Adjustment
Power is adjusted by turning a potentiometer located on the
treatment unit head that has been installed by your service
technician. The potentiometer is provided in the Installation
Kit included with your unit.
Foot Controlled Power Boost Function
(optional)
A second position on the footswitch (when available)
provides the capability to briefly increase the units power
output for quick, efficient removal of tenacious deposits
using only the footswitch without touching the unit.
Lavage Flow Adjustment
Water flow through the handpiece is adjusted by rotating a
control element on the cable connector (blue).

ENGLISH • 9
7.2 Steri-Mate® Handpiece
The handpiece accepts all Cavitron® 30K Ultrasonic Inserts.
Date Codes (MMYY)
Prior to connecting, align Handpiece and Cable
Assembly electrical connections. If Cable Assembly
does not seat into Handpiece, gently rotate handpiece
until contacts align.
DO NOT TWIST WHILE PUSHING CONNECTOR
INTO HANDPIECE.
Cable Assembly
Insert Port
Handpiece Connector
(Handpiece & Mating
Assembly are keyed)
Steri-Mate® Handpiece
Date Codes (MMYY)
Lavage Flow Adjustment
Holding open end of handpiece upright, lavage can be increased by holding the handpiece and gently twisting the blue lavage
adjustment knob clockwise. The rate of flow through the Handpiece determines the temperature of the lavage. Low flow rates
produce warmer temperatures, high flow rates produce cooler temperatures.
BLUE Lavage Knob

ENGLISH • 10
Hold the handpiece in an upright position. Activate to fill the handpiece with water. Lubricate the rubber O-Ring on the insert
with water before placing it into the handpiece. Fully seat insert with a gentle push-twist motion. DO NOT FORCE.
Magnetostrictive Stack
Converts energy provided by the
handpiece into mechanical oscillations
used to activate the insert tip.
Insert Tip
Shape and size of tip
determine access and
adaptation. Preheated
lavage is directed to
the tip.
O-Ring
Provides seal for handpiece coolant
Connecting Body
Transfers and amplifies mechanical motion
of the stack to insert tip.
Finger Grip
Insert Marking
Manufacturer, Date (YDDD= single year and
three digit day of year), Frequency, and Type
(e.g., DENTSPLY 7346 30K FSI-SLI-10S)
7.3 DENTSPLY Cavitron® 30K™ Ultrasonic Inserts
The many styles of DENTSPLY Cavitron® Ultrasonic Inserts are easily interchangeable for various procedures and applications.

ENGLISH • 11
Section 8: Accessories
• Steri-Mate® Detachable Sterilizable Handpiece
• DENTSPLY Cavitron® Ultrasonic Inserts
• In-line water control, handpiece cable assembly
Section 9: Techniques for Use
9.1 Patient Positioning
• The backrest of the chair should be adjusted for optimal
access to both the upper and lower arches. This assures
patient comfort and clinician visibility.
• Have the patient turn head to the right or left.
• Position chin up or down depending on the quadrant and
surface being treated.
• Evacuate irrigant using either a saliva ejector or High
Vacuum Evacuator (HVE).
9.2 Performing Ultrasonic
Scaling Procedures
• The edges of DENTSPLY Cavitron® Ultrasonic Inserts
are intentionally rounded so there is little danger of tissue
laceration with proper ultrasonic scaling techniques. The
lips, cheek and tongue should be retracted to prevent
• The dental unit manufacturer provides the Foot
Control. Refer to their directions for use for operating
characteristics.
• An optional boost function is activated by fully
depressing the footswitch. This feature is active
only in the low to mid range of the power control. The
power level will return to the control setting when the
footswitch is returned to its slightly depressed position.
The momentary increase in power is indicated by
a slight increase in noise level and a change in spray
pattern.
• Practicing outside the mouth is recommended for the
operator to familiarize themselves with the boost
feature.
7.4 Foot Control Information & Operation

ENGLISH • 12
• If sensitivity persists, decrease power setting and/or move
from the sensitive tooth to another and then return.
Section 10: System Care
10.1Daily Protocol
Start-up procedures at the beginning of the day
1. Switch ON the dental treatment unit (refer to instruction manual
of treatment unit).
2. Remove the DENTSPLY Cavitron® cable connector assembly
from handpiece holder and set power adjustment to 30% of
maximum.
3. Connect Steri-Mate® handpiece to the cable connector assembly
(refer to the Infection Control information booklet for sterilizing
instructions).
4. Adjust the lavage control to maximum.
5. Hold the handpiece (without an insert installed) over a sink
or drain. Activate the foot control and flush water through
handpiece for at least two minutes.
6. Place a sterilized insert into the handpiece using a gentle push-
twist motion. Refer to the Cavitron Ultrasonic Inserts Directions
for Use for cleaning and sterilizing instructions.
7. Activate the ultrasonics and adjust the power and lavage control
to your preferred operating positions.
accidental prolonged contact with the activated tip
whenever the insert is placed in the mouth.
• Always adjust the lavage so adequate fluid will be
available to cool the tip-tooth interface.
• In general, it is suggested that a “feather light touch” be
used both supra- and subgingivally. The motion of the
activated tip and acoustic effects of the irrigating fluid,
in most cases, is adequate to remove even the most
tenacious calculus.
• Set the System’s power adjustment knob to the lowest
power setting for the application and the selected insert.
• Only adjust the System’s power adjustment knob with
the insert outside the patients mouth.
9.3 Patient Comfort Considerations
Reasons for sensitivity
• Incorrect tip placement. Point should be directed away
from root surfaces.
• Not keeping the tip in motion on the tooth. Do not allow
the insert to remain in a static position on any one area
of the tooth. Change the insert’s path of motion.
• Applying pressure. Use extremely light grasp and
pressure, especially on exposed cementum.

ENGLISH • 13
Between patients
1. Remove any ultrasonic inserts and the Steri-Mate®
handpiece. Clean and sterilize the handpiece and all inserts used
during the procedure (refer to the Infection Control information
booklet and the Cavitron Ultrasonic Inserts Directions for Use
for cleaning and sterilizing instructions).
2. Clean and disinfect the handpiece cable assembly by applying
an approved non-immersion type disinfectant solution*
carefully following the instructions provided by the solution
manufacturer. To clean the cable, generously spray disinfectant
solution on a clean towel and wipe the cable and connector.
Discard used towel. To disinfect the system, generously spray
disinfectant on a clean towel and wipe the cable and connector.
Allow the disinfectant solution to air dry.
3. Clean and disinfect all surfaces of the dental treatment control
head according to the manufacturer’s instructions.
4. Connect a sterilized Steri-Mate® handpiece onto its
mating cable connector.
5. Hold the handpiece (without an insert installed) over a sink
or drain. Activate the foot control and flush water through
handpiece for at least thirty seconds.
6. Place a sterilized insert into the handpiece.
Shut down at the end of the day
1. Flush the DENTSPLY Cavitron® ultrasonic system
according the dental treatment unit manufacturer’s
instructions.
2. Remove any ultrasonic inserts and the Steri-Mate®
handpiece. Clean and sterilize the handpiece and all inserts
used during the procedure (refer to the Infection Control
information booklet and the Cavitron Ultrasonic Inserts
Directions for Use for cleaning and sterilizing instructions).
3. Clean and disinfect the handpiece cable assembly by
applying an approved non-immersion type disinfectant
solution* carefully following the instructions provided by
the solution manufacturer. To clean the cable, generously
spray disinfectant solution on a clean towel and wipe the
cable and connector. Discard used towel. To disinfect the
system, generously spray disinfectant on a clean towel and
wipe the cable and connector. Allow the disinfectant solution
to air dry.
4. Clean and disinfect all surfaces of the dental treatment
control head according to the manufacturer’s instructions.
5. Place the cable connector into the handpiece holder for
storage.
6. Turn OFF the power and water to the dental treatment unit.
*NOTE: Water-based disinfection solutions are preferred. Some alcohol-
based disinfectant solutions may discolor the handpiece cable
and connector.

ENGLISH • 14
Section 11: Troubleshooting
Some basic troubleshooting procedures that will help avoid
unnecessary service calls are listed below.

ENGLISH • 15

ENGLISH • 16

ENGLISH • 17

ENGLISH • 18
*Optional
