Deprag 345-308-31L User manual

013206EN
Operating Instruction Booklet
StationaryScrewdriverSpindle
345-308-31L 341357 A
345-408-31L 341357 E
345-508-31L 341357 B
345-708-31L 385165 A
MICROMAT

2
Dear Customer:
Thistool isthe resultofmore than75yearsofexperiencein thedesign and
manufacturing ofpneumatictoolsforthe industrial market.
Wekindlyask thatyou read theseoperating instructionscarefullysothatyou
will be able tousethistoolsafelyandfor manyyears tocome.
If you need additional information,pleasecontact your DEPRAG
Representative,one ofour international supportofficesorusdirectat
DEPRAG.Wewill be happytoanswer anyquestions.
Pleasevisitour web site: www.deprag.com
Contents
1SAFETYTIPS................................................................................................................3
1.1. GeneralSafetyTips....................................................................................................3
1.2. GeneralSafetyTipsforPneumaticStationaryScrewdriverSpindles.........................4
1.3. OwnerObligation........................................................................................................4
1.4. OperatorObligation....................................................................................................5
1.5. WarrantyandLiability.................................................................................................5
1.6. SymbolDescription.....................................................................................................6
1.7. ObserveEnvironmentalRegulations..........................................................................8
2DESIGNATEDEQUIPMENTUSE.................................................................................8
3INSTALLATION..............................................................................................................9
4OPERATION................................................................................................................11
4.1. RangeandExchangeofClutchSpring.....................................................................12
4.2. Torque Adjustment...................................................................................................13
4.3. Changeof Bits..........................................................................................................14
4.4. Connection-Possibilitiesofthe FunctionControl.......................................................15
5DISASSEMBLY-ASSEMBLY......................................................................................16
5.1. ServiceTools(OptionalEquipment).........................................................................18
5.2. SparePart Drawings.................................................................................................19
5.3. Installation TipsforScrewdriverSpindle...................................................................24
6MAINTENANCEAND UPKEEP...................................................................................26
6.1. WearParts................................................................................................................26
7TROUBLE SHOOTING................................................................................................27
8DELIVERYCAPACITY.................................................................................................28
9ACCESSORIES -OPTIONAL EQUIPMENT................................................................29
10 STORAGE..................................................................................................................30
11 TECHNICAL DATA.....................................................................................................31
12 DISPOSAL..................................................................................................................32
13 DECLARATIONOFMANUFACTURER.....................................................................33
14 SERVICELOCATIONS AND AUTHORIZEDPARTNERS.........................................34

3
1SafetyTips
1.1.GeneralSafetyTips
Beforeoperating tool makesureto carefullyreadand
observethisoperating instruction.
Generally,theoperator ofthe equipmentand/ormachineryisresponsible for
the equipment’sperfect condition and operation,while observing all necessary
safetyregulations.The equipmentand/or machineryhasbeen constructed in
accordancewiththe newestlevel oftechnologywhile recognizingall
necessarysafety-related requirements.Nevertheless,while operating the
equipmentand/or machinerythereisariskofbodilyharmtothe operator as
well as damagetoequipmentand/or machineryand other property.
Operatethe equipment and/ormachineryonlyif equipment/machinery
· Isused forthe task it was designed for
· is inperfectworkingcondition andsafetouse.
It isimportanttoobservethe technical dataofthe equipment, especiallyin
regardstotheenvironmental temperatures. The designated area ofuseforthis
equipmentisclearlydescribed in chapter Designated EquipmentUse and
thoserequirementshavetobe observed aswell.Prerequisiteforthe safe
conduct andthe uninterrupted operationofthe equipment, isthe knowledge of
the basicsafetytipsandthesafetyregulations.Additionally,all current
regulationsforasafeoperational area,for accident-prevention guidelinesof
electrical and mechanical installations, aswell asnoisesuppression
requirementsmust be observed.During anymaintenanceor repair work,a
clean worksurfaceisrecommended.Also,itisnotrecommended toeither eat
or smokeduring repair or maintenance.Arbitrarychangesmadetothe
equipment,whichaltersitsdesignated use,voidsthe warrantyand cancelsthe
manufacturersliability.
· The toolis notinsulated toprotectagainstanelectricalpower surge.
· Itisnotrecommended tousethistoolin explosivehazardous
environments,unlessit wasspecificallydesigned forsuchause.
The operating instruction booklet,especiallythe safetysymbolsandsafetytips
attachedtothe equipmentor included inthe documentation,mustbeobserved
at alltimesbyall persons gettingintocontact withtheequipment.

4
1.2.GeneralSafetyTipsforPneumaticStationaryScrewdriverSpindles
·
Disconnectthetoolfromthe airsupply, when changingbits or
when re-adjustingclutch.
· Donotwear wide clothingorjewelry, fortheycan beseizedby
movable parts.Wear ahairnet ifoperator haslonghair.
· Keep handsoff theinstalledScrewdriver Spindle.
· Injuryispossible,if the driver reacts withan unexpectedmotionor when
usedwithbrokenbit orfixture.
· Whenusing toolwithbit-adapter or bit-extension (i.e. Magnetic Bitholder)
makesure,thatthoseitems areingoodcondition andwell suitedfor the
applicationwiththistool.
· Donotexceed themaximumallowableairpressure.
Apressure
regulatorhastobeinstalled, whichregulates pressurebefore
reachingthe tool.
· Afterturning-offthetool,thebit will continuetorotate(inertia).
1.3.OwnerObligation
The owner isobligedtoonlyletpersons operatetheequipment,who
· are familiarwithbasicwork environmentsafetyrules andaccident-
preventing regulations.Also,thosepersons musthavebeen instructedin
the correctuseofthe equipment.
· haveread andunderstood all safetyand warning notificationsin the
OperatingInstructionBooklet,aswell as allotherdocumentation
pertainingtothisequipment.
· checkandconfirmat regularintervals,thatasafetyoriented operationis
guaranteed.
Onlyqualifiedandauthorizedpersonnel is allowed tooperate, maintainand
repair this equipment.Amalfunction, whichimpairs operator safety, mustbe
immediatelyremoved.

5
1.4.Operator Obligation
Personnel,who isengaged inthe operationofthe equipment,mustalways be
committed to
· observethebasicsafetyandaccident preventing regulations,
· read andobservethe safetyand warning notifications ofthisoperating
instructionbooklet.
1.5.WarrantyandLiability
Unless otherwisespecified,our “General Salesand DeliveryConditions”
apply.Warrantyand liabilityclaimsin regardstopersonsor equipment
damagesareinvalid, ifone or several ofthefollowing causesapply:
· Useoftheequipment inanon-designated application.
· Improperinstallation, operation, serviceormaintenanceofthemachine.
·
Operationofthe machine witheitherdefectiveor removed safetyand
protectiondevices.
· Non-
observanceofthe requirements stated in the operating instruction
booklet
,in regardstotransportation,storage,mounting,installation,
operation,maintenanceand serviceoftheequipment.
· Structural changeor adjustmentonthe equipmenttoanon-
designated
use.
· Inadequatesupervisionofwear parts.
· Improperrepair,inspection ormaintenance.
·
Catastrophic casesbecauseofawar,actsofgod or otherreasonswhich
are beyond ourcontrol.

6
1.6.Symbol Description
Readand observetheOperating Instruction Booklet, prior
toand during operation oftool.
DANGER
Reference toan immediatedangertoaperson.Mayleadto
seriousinjuriesor evendeathifunobserved!
Properlyrecycle environmentallydamaging grease,cooling
agents ordetergents.
RECOMMENDATIONS
Importantoradditional information onthe equipmentor inthe
documentation.
Useeyeprotectionor wear safetygoggles.
Wearhearingprotection.
Warningagainsthand-injuries.
Attention:Keepawayyour handsfromareas,whicharemarked
withthissymbol!
Hands maybe crushed,seizedorotherwiseinjured.
ESD-protected area
Equipmentmaybe damaged ordestroyed byan electrostatic
discharge.
WasteOil

7
Maintenanceand repair onhydraulicand pneumaticequipment
mayonlybe performed byspeciallytrained personnel!
Disconnectequipmentfromairsupply, priortorepair of
pneumatic orhydraulicequipment.
Provide regular preventivemaintenanceon hosesandairlines.
Exchange hoselines,even ifthere isnovisible damage!
(Observecorresponding requirementsofthe manufacturer!)
Afterrepair and maintenance,check thefollowing items:
· makesurealldetached andre-attachedconnectionsare
solid.
· confirm thatremoved covers, screensor filterswere re-
installed
· During disconnecting orreconnectingof anair-operated
equipment, injurymayoccurduetoawhipping air-hose
Afterconclusion of maintenanceor repair andpriortostartof
operation,makesure to
· removeall materials,toolsandothersuppliesneededforthe
maintenanceor repair fromworkarea oftheequipment
· removeleaking liquid oroils
· makesureallsafetydevices onthe equipment workperfectly!

8
1.7.ObserveEnvironmentalRegulations
Whenworking onorwiththe equipment,itis imperativeto
observeall requirementsinregardstowaste-disposal and
proper recycling.
Especiallyduringinstallation,repairormaintenance,water
damaging agentssuchas
· lubricatinggreaseand oil
· hydraulic fluid
· coolingagents
· solvent-containingcleaningagents
mustnot leakintothe groundorintothesewage system!
Suchmaterialsmustbestored,transported,containedand
recycled insuitablecontainers.
2DesignatedEquipment Use
Screwdriver Spindles are constructedfor thestationaryusein
·Lever OperatedSingle Spindle Screwdriving Stations
·ConstructionUnits
·Multi-SpindleScrewdriving Stations
·Robot End-Of-Arm Tooling
·X-Y-ZScrew-AssemblyStations
TheseSpindles assemble screwstotorque andmeasure thattorquemore
accuratelythan anysubsequenttestingmethod.

9
3Installation
·
Blowout airlineandpressure hose,prior toconnection ittothetool.
· Makesure,thatall air lineshaveasufficientcross-section(see technical
data)andhosesmustbefree ofbends andkinks. The hoselengthshould
not exceed2meters.
· All DEPRAGScrewdrivers maybe operatedeither withor without
lubricatedair(see paragraph: Maintenanceand Upkeep). Best resultsare
achieved, when machineislubricatedwith1–2dropsofoil per1m3.
Whenoperatingwithoilfree air,aperformancereductionof upto20%
occursandmaintenancerequirementsincreases!
· Connect the equipment asfollows:
a) for standardoperation connectequipmenttoamaintenanceunit,
consistingofFilter withcondensationreservoir, Regulatorand Oiler.
Whenchoosing amaintenanceunit, observeair consumption ratefor
the tool(see TechnicalData).
Air ConsumptionThread Size PartNo.
0,05 -0,5m³/min ¼” 820454 A
0,15 –1,5m³/min ½” 820455 A
0,8–6,0m³/min ¾” 821608 A
b) for theusewithminimal lubrication connect toFilter/Regulator
consistingofFilter withcondensationreservoir andPressure Regulator
Air ConsumptionThread Size PartNo.
0,05 -0,5m³/min ¼” 822408 A
0,15 –0,9m³/min
3¤8” 826981 A
0,15 –1,5m³/min ½” 822409 A
0,8–6,0m³/min ¾” 826982 A
Eachin connectionwithaPoint-of-UseOiler (PartNo.378077 A)
c)for oilfree operation,connecttoFilter/Regulator,consistingofFilter
withcondensationreservoir andPressure Regulator.
Air ConsumptionThread Size PartNo.
0,05 -0,5m³/min ¼” 822408 A
0,15 –0,9m³/min
3¤8” 826981 A
0,15 –1,5m³/min ½” 822409 A
0,8–6,0m³/min ¾” 826982 A

10
OUR RECOMMENDATION: The preferred lubricatingmethod for the
screwdriver spindles mountedinfixtures,brackets,machines,etc.,eachin
connection withacontroller,ismethodb) withPoint-of-UseOiler.
· Checkpressureat directlyon the machine.The Regulatorneedstobe
adjusted toanairflowbetween 5.0(71PSI)and6.3bar(90PSI).Ahigher
pressureleadstoincreased wear andtear.Alower pressure maylead to
clutchnot being abletocorrectlyshut-offthe motor.
Inregardstoair-qualityaccordingtoISO8573-1, werecommend:
CLASS
RESIDUE
OF OIL
RESIDUEOF DUST RESIDUEOF WATER
Content
mg/m³
Particle
Size mm
Concentration
max. mg/m³
DewPoint
oC
Pressure
Concentration
max. g/m³
Lubricated Air 4 5 15 8 +3 6
DryAir 3 1 5 5 -20 0,88

11
4Operation
Unlessotherwiserequested thedriver ispresettomax.torque withthe
strongest clutchspring.Adjustclutchtotherequired torquevalue. If
necessary, exchange clutchspring.
Operatingtheclutchusing aclutchspring whichexceeds its
allowable torque,leadstoareductionofthetorque accuracy.
The necessarytorque adjustmentcanbe tested, usingaDEPRAG Torque
Wrenchor Measuring Platform(see DEPRAG catalogs D3020 andD3022).
This equipment canalsobeusedtore-adjustthetorque oftheScrewdriver
Spindle.
Attention:
Push-to-start-screwdriver!
The flowpressure should notdropbelow5bar (71PSI)!
The installationandconnectionofthe Screwdriver Spindle requiresthe
following steps:
1.Adjustclutchtorequired torquesetting(see paragraph: Torque
Adjustment).
2.InstallScrewdriver spindleaccordingtopicture: „Installation Tips for
screwdriverspindle“.
3.Connectmainairhose.
4.Connectpneumaticfunctioncontrolhose.Thisfunctioncontrolisunder
pressureof2,5bar during actual screw-driving. Ifthefunction control
isnotneeded, theporthastobeclosed, otherwisethereisalossof
power of about15 %.
Pleasemakesurenottoexceed the max. driver stroke(see Installation Tips
for screwdriverspindle)during Screwdriving. The noiselevel can befurther
reduced,when an exhaust connection withconnectedFilter/Silenceris used.

12
4.1.Rangeand ExchangeofClutchSpring
The torque range oftheDEPRAG Screwdriver is adjustable.Pleaseseea
listing forthetorquerangesofthe color
-
codedspringsbelow.
TorqueRangeoftheindividualclutchspring:
PART-NO.
WIRE-Æ
COLOR TORQUE - MIN. TORQUE - MAX.
347218 2,0mm abraded 55 Ncm=4,9in.lbs. 70 Ncm=6,1in.lbs.
326730 1,8mm blue 25 Ncm=2,2in.lbs. 60 Ncm=5,3in.lbs.
323877 1,6mm green 9 Ncm=0,8in.lbs. 42 Ncm=3,7in.lbs.
323878 1,1mm red 5 Ncm=0,4in.lbs. 15 Ncm=1,3in.lbs.
322914 0,7mm natural 2 Ncm=0,2in.lbs. 5Ncm=0,4in.lbs.
All torquevalues arebased on90-PSI (6,3bar)airpressure. Torque values
are estimateddatawhichmaydiffer–dependingon thetype of screwjoint.
ChangeofClutch Spring (seepicture)
Toavoid loosingparts, itis recommended toonlydisassemble
the machineontop ofaflat worksurface.
1.Prior tochange ofclutchspring,disconnectdriver fromair/ power
supply.
2.Unscrewspringsleevecomplete(lefthand thread).
3.Unscrewclutchbearing complete(lefthand thread).
4.Takeoutthecompleteclutch.
5.Put wrench805492 (AF6)ontothehexof theclutchshaft and screwoff
adjustmentnut bymeans ofwrench805491 (AF11)(right-handthread).
6.Drawoff lock ring.
7.Takeoff clutchspring andassembleclutchinreverseorder.
8.Introduceclutchcompleteintothe clutchbearing and screwthe latter on
tothescrewdriver.
The hexoftheclutchshaft mustengagewiththehexof the
gear supportresp. spindle(located ingearing).
Checkthisandensure thatengagement lift onthe spindleis
available (onlypush-to-start-screwdriver).
9.Re-adjusttheclutchtothe requiredtorque (seechapter Torque
Adjustment).

13
Picture:Exchangeofclutchspring
Makesuretoscrewadjustment(adjusting) nut ontoclutchbearing
untilone line ofthethreadisvisible.
4.2.TorqueAdjustment
1.Disconnectdriver fromair-supply.
2.Unscrewspringsleeve(OptionalEquipment)(left handthread).
3.Unscrewclutchbearing (left handthread).
4.Takeoutclutchcomplete.
5.Put wrench805492 (AF6)ontothehexof theclutchshaft and turn
adjustmentnut 323711 bymeansof thewrench805491 (AF11).You get
ahighertorquebyturning theadjustment nutinclockwise(+)orderand
viceversa(-) alower torque.
6.Introduceclutchcompleteintothe clutchbearingandscrewthe latteron
tothescrewdriver.
The hexoftheclutchshaft mustengagewiththehexof the
gear supportor spindle (located in gearing).
Checkthisandensure thatengagement lift onthe spindleis
available (onlypush-to-start-screwdriver).
hexof the
clutchshaft
lock ring
adjustmentnut clutchspring

14
4.3.ChangeofBits
ATTENTION
Changebits only,ifair supplyisdisconnectedand
clutchbearing isunscrewed.
· Removespringsleeve364670 A(left-hand thread)-onlynecessaryif a
finderismounted!
· Unscrewclutchbearing about2,5mm (3rotations)(left-hand thread).
· Insertbit intothehexdrive(drive-size:A3 DIN3126) –bitlocks
automatically.
· Toremovethe bit,pushspindle 337290intothedriver.
· Assemble clutchbearing (left-handthread).

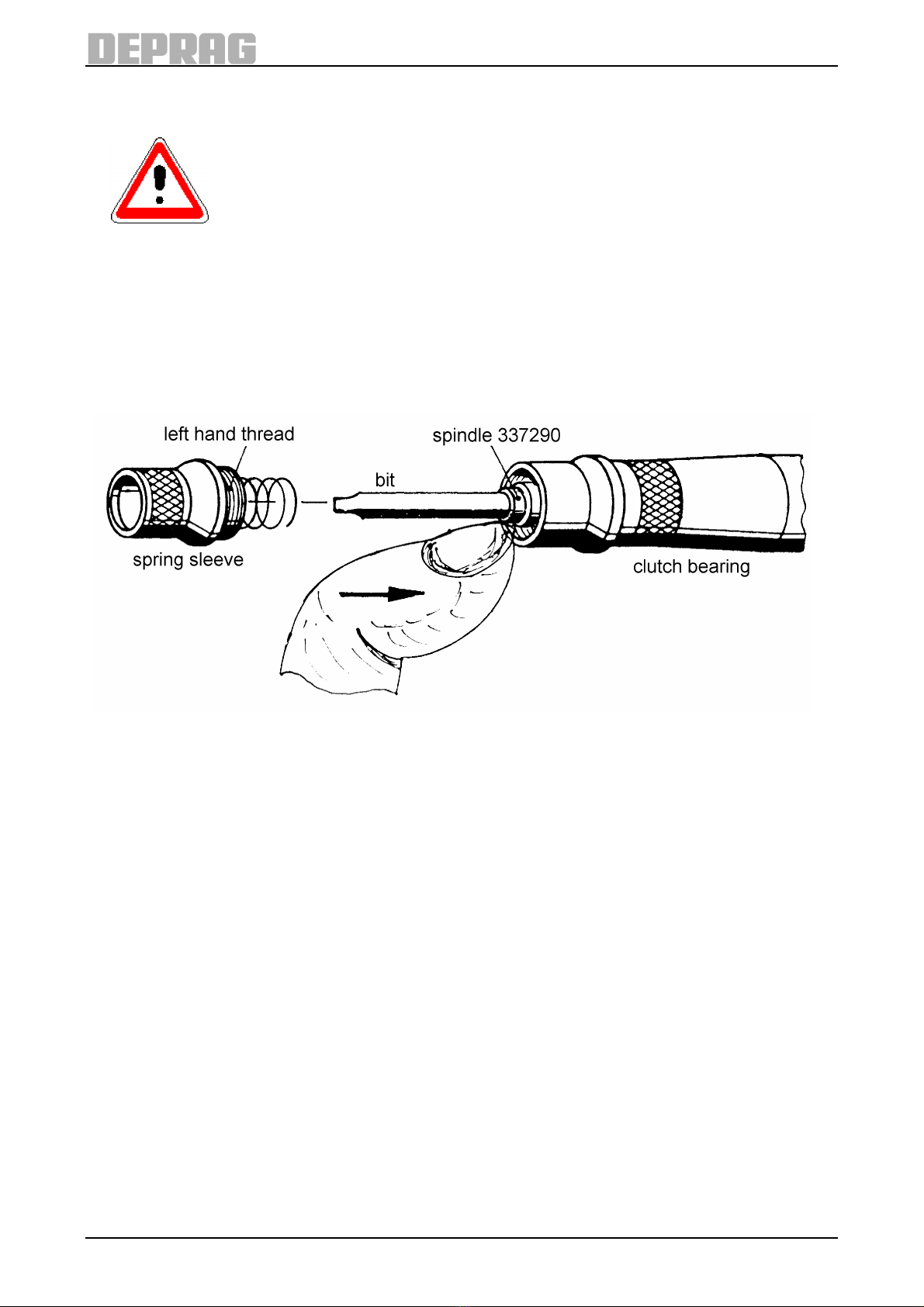

Picture:ChangingBits

15
4.4.Connection-PossibilitiesoftheFunction Control
Use as air pressureoutletduring screw-assembly:
· tocontroldriver start and stop,as well asshut-offcontrol ofclutch;
· ascycle counterof the completeprocess;
eachin connectionwithaPE-Switchorsimilar
Thisfunctioncontrolisunderpressureof appx. 2barduringactualscrew-
driving. Afterreaching thepresettorque,theclutchwill disengage andturnoff
the Screwdriver. The pressure inthe function controllinewill drop. The
Screwdriver can nowbe lifted offtheassembled screw.
Use as air pressureinlet:
· If6.3bar(90PSI)air pressure isgiven tothefunctioncontrol port, the
driver starts rotatingatabout15 %ofitsspeed. This will simplifythe enga-
gementofbit/sockettofastener (forexample when driving hexscrews,
nuts, etc.)
Ifthefunctioncontrol is notneeded,theport hastobeclosed,
otherwisethereis aloss ofpower ofabout 15%.
Function Description /Driver Start
NOTE
The screwdriver will immediatelystartrunning when the push-
to-start-strokeof approx. 2.5mm is activated.

16
5Disassembly-Assembly
Disassembly: (see SpareParts Drawing)
CAUTION
Prior todisassembly, disconnect equipmentfromair
supplyinorder to avoidtheunintentional startofthe
toolwhichmayresultinhand injuries!
Onlyexperienced maintenance personnel may
assembleor disassemblethisequipment.
Afterrepair or maintenance,verifythat equipmentrunstospecification!
Principally, useonlyDEPRAG originalspare parts. Otherwise, areduction
in equipmentpower-output and anincreasedmaintenance-requirement
occurs. If NON-DEPRAG parts areinstalled, DEPRAGis justifiedtovoid
anyexisting warrantyand liabilityobligations.
ATTENTION
Never clampmotorhousingintoavice,withouttheusageofthe
protectivechuckingjaws, sincedamagetomotor-housingand
internalparts isunavoidable.
ATTENTION
Motor- and gearingparts maybe damaged if dropped!
For disassembly proceedinthesequencedescribed below:
1.Disconnectscrewdriver fromairsupply.
2.Unscrewspringsleeve(Accessories -OptionalEquipment)(left-hand
thread).
3.Unscrewclutchbearing 335695 (AF14, left-handthread).
4.Takeoutclutch337310 B/347227Bcomplete.
5.Unscrewslide connector821431 (AF8, right-hand thread)and pull out
guide bolt328493.
6.Clampmotorhousing 323000/ 335690bymeansofthechucking jaws
461500 intoavice.
7.Unscrewairinlet 326501 C completeatthreaded fitting324974 (AF17,
right-hand thread).
8.InsertallenkeyAF6(orderno.800449) intothehexofthegearsupport
or spindleandpushthemotor- and gearing parts outofthemotorhous-
ing indirection oftheairinlet.

17
a.Clamprotorcylinder intochucking jaws.
b.Pull off shaft-sidebearing cover fromrotor.
c.Removerotorcylinder.
NOTE
Exchange onlycompletesets of vanes.
d.Removevanes andcheckthemthoroughly. Vanesthataretoonarrow
or damagedhavetobe replaced in sets.
e.Pull offairconnecting-sidebearing cover fromrotor.
f.Pressthetwoballbearingsfrom thebearing covers.
IMPORTANT
Minimumvanes widthshouldbe3mm.
Assembly:
Use the DEPRAGGrease807293 (100-gtube)togrease the
ballbearing, needle bearingandgearingpartspriorto
reassembly.
a.Clean rotor.
b.Presstheballbearingsintothe twobearing covers.
c.Presstheshaft-sidebearingcover withtheballbearing ontherotor.
d.Insertthenewvanes intotherotor.
e.Puttherotorcylinder over therotor.
After assemblythebearing coversshouldn’thaveanyaxial
gap. Therotormust turnfreely.
f.Press air-connectingside bearingcover withthe ball bearing ontherotor.
For remainingassemblyproceed logicallyin reverseorderwithreferenceto
disassembly!
IMPORTANT
Afterassembly, check thatengagement lift onthe spindleis
available (approx. 2,5mm).

18
5.1.Service Tools(OptionalEquipment)
NAME PART NO.
Chuckingjaws (toclampmotorhousing) 461500
Fixing device(for rotorcylinder) 461501
Arbor (todisassemble bearing cover withgrooved rotaryjoint) 462329
Fixture (formotorhousing) 462942
Spanner AF8(forslide connector821431) 800399
Spanner AF17(forthreadedfitting 324974) 800405
Allen keyAF6(topushoutthe motor-and gearing parts) 800449

19
5.2.SparePartDrawings

20
