DepthQ HDS3D2 User manual

Regulatory Model: IN8606HD
3534318701
DISPERINDAG No. 0287/1.824.51/09.03 by Lightspeed Design, Inc. Bellevue, WA USA

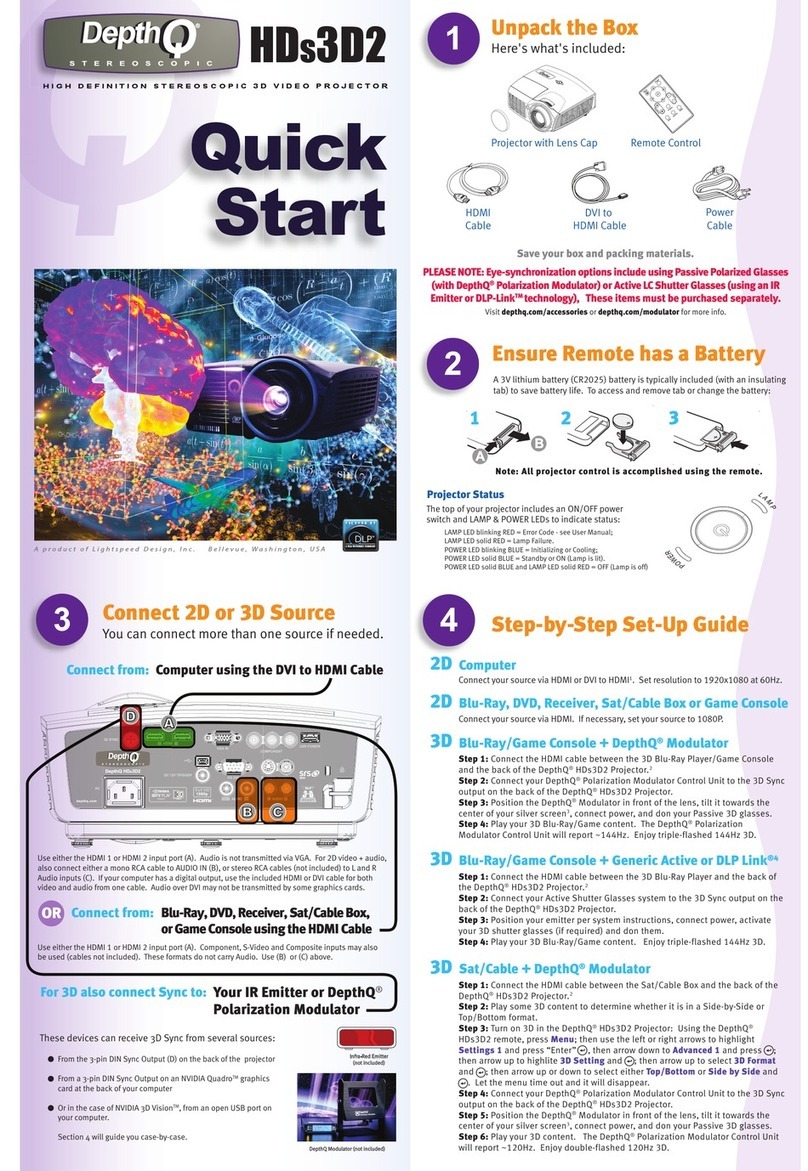

DepthQ HDs3D2
®
High Denition Stereoscopic 3D Projector

—i —
Copyright
This publication, including all photographs, illustrations and software, is protected under international
copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may
be reproduced without written consent of the author.
© Copyright 2014
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no
representations or warranties with respect to the contents hereof and specifically disclaims any implied
warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to
revise this publication and to make changes from time to time in the content hereof without obligation of
the manufacturer to notify any person of such revision or changes.
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations
and pending applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.
is a trademark of SRS Labs, Inc. WOW technology is incorporated under license from
SRS Labs, Inc.
WOW® significantly improves the playback quality of audio, delivering a dynamic 3D
entertainment experience with deep rich bass.
Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer, Inc. IBM
is a trademark or registered trademark of International Business Machines, Inc. Microsoft, PowerPoint,
and Windows are trademarks or registered trademarks of Microsoft Corporation. Adobe and Acrobat are
trademarks or registered trademarks of Adobe Systems Incorporated. DLP® , DLP Link and the DLP logo
are registered trademar
DepthQ and DepthQ Stereoscopic are trademarks or registered trademarks of Lightspeed Design, Inc. in
the United States and other countries.
All other product names used in this manual are the properties of their respective owners and are
acknowledged.

–ii –
Important Safety Information
Important:
It is strongly recommended that you read this section carefully before using the projector. These
safety and usage instructions will ensure that you enjoy many years of safe use of the projector.
Keep this manual for future reference.
Symbols Used
Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
The following styles are used in this manual to alert you to important information.
Note:
Provides additional information on the topic at hand.
Important:
Provides additional information that should not be overlooked.
Caution:
Alerts you to situations that may damage the unit.
Warning:
Alerts you to situations that may damage the unit, create a hazardous environment, or cause
personal injury.
Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this
example:
Menu button on the remote control to open the Main 
General Safety Information
Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in
the unit. For servicing, contact qualified service personnel.
Follow all warnings and cautions in this manual and on the unit case.
The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the
lens when the lamp is on.
Do not place the unit on an unstable surface, cart, or stand.
Avoid using the system near water, in direct sunlight, or near a heating device.
Do not place heavy objects such as books or bags on the unit.

–iii –
Projector Installation Notice
Place the projector in a horizontal position
The tilt angle of the projector should not exceed 15 degrees. In addition, the projector should
not be installed in any other way except desktop and ceiling mount positions. Otherwise lamp life
could decrease dramatically, and may lead to other unpredictable damage.
Allow at least 50 cm (16.69 inch) clearance around the exhaust vent.
Ensure that the intake vents do not recycle hot air from the exhaust vent.
When operating the projector in an enclosed space, ensure that the surrounding air temperature
within the enclosure does not exceed operation temperature while the projector is running, and the
air intake and exhaust vents are unobstructed.
All enclosures should pass a certified thermal evaluation to ensure that the projector does not
recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is
with the acceptable operation temperature range.
(19.69 inch)
(19.69 inch)
(19.69 inch)
(19.69 inch)
(3.94 inch)
(11.81 inch)

–iv –
Power Safety
Only use the supplied power cord.
Do not place anything on the power cord. Place the power cord where it will not be in the way of
foot traffic.
Remove the batteries from the remote control when storing or not in use for a prolonged period.
Replacing the Lamp
Replacing the lamp can be hazardous if done incorrectly. See Replacing the Projection Lamp on page 36
for clear and safe instructions for this procedure. Before replacing the lamp:
Unplug the power cord.
Allow the lamp to cool for about one hour.
Cleaning the Projector
Unplug the power cord before cleaning. See Cleaning the Projector page 39.
Allow the lamp to cool for about one hour.
Regulatory Warnings
Before installing and using the projector, read the regulatory notices in the Regulatory Compliance on
page 51.
Important Recycle Instructions:
Lamp(s) inside this product contain mercury. This product may contain other electronic waste that
can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal
Laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp
specific disposal information check WWW.LAMPRECYCLE.ORG.
Symbol Explanations
DISPOSAL: Do not use household or municipal waste collection services for
disposal of electrical and electronic equipment. EU countries require the use
of separate recycling collection services.
About this Manual
This manual is intended for end users and describes how to install and operate the DLP projector.
Wherever possible, relevant informationsuch as an illustration and its descriptionhas been kept on
one page. This printer-friendly format is both for your convenience and to help save paper, thereby
protecting the environment. It is suggested that you only print sections that are relevant to your needs.

–v –
Table of Contents
GETTING STARTED..............................................................................................................................................1
PACKING CHECKLIST .............................................................................................................................................1
VIEWS OF PROJECTOR PARTS................................................................................................................................2
Front-right View...............................................................................................................................................2
Top view—On-screen Display (OSD) buttons and LEDs................................................................................3
Rear view.........................................................................................................................................................4
Bottom view.....................................................................................................................................................6
REMOTE CONTROL PARTS.....................................................................................................................................7
REMOTE CONTROL OPERATING RANGE..................................................................................................................9
PROJECTOR AND REMOTE CONTROL BUTTONS.......................................................................................................9
SETUP AND OPERATION.................................................................................................................................. 10
INSERTING THE REMOTE CONTROL BATTERIES .................................................................................................... 10
TURNING THE PROJECTOR ON AND OFF................................................................................................................ 11
SETTING AN ACCESS PASSWORD (SECURITY LOCK)............................................................................................. 13
ADJUSTING THE PROJECTOR LEVEL..................................................................................................................... 15
ADJUSTING THE ZOOM,FOCUS AND KEYSTONE.................................................................................................... 16
ADJUSTING THE VOLUME .................................................................................................................................... 16
ON-SCREEN DISPLAY (OSD) MENU SETTINGS............................................................................................. 17
OSD MENU CONTROLS ...................................................................................................................................... 17
Navigating the OSD...................................................................................................................................... 17
SETTING THE OSD LANGUAGE............................................................................................................................ 18
OSD MENU OVERVIEW....................................................................................................................................... 19
IMAGE MENU...................................................................................................................................................... 20
Computer Menu............................................................................................................................................ 21
Advanced Features ...................................................................................................................................... 22
White Balance .............................................................................................................................................. 23
Color Manager.............................................................................................................................................. 24
SETTINGS 1MENU.............................................................................................................................................. 25
Audio............................................................................................................................................................. 26
Advanced 1 Features ................................................................................................................................... 27
Advanced 2 Features ................................................................................................................................... 29
SETTINGS 2MENU.............................................................................................................................................. 30
Status............................................................................................................................................................ 31
Advanced 1 Features ................................................................................................................................... 32
Advanced 2 Features ................................................................................................................................... 34
MAINTENANCE AND SECURITY...................................................................................................................... 36
REPLACING THE PROJECTION LAMP .................................................................................................................... 36
Resetting the Lamp Timer............................................................................................................................ 38
CLEANING THE PROJECTOR ................................................................................................................................ 39
Cleaning the Lens......................................................................................................................................... 39
Cleaning the Case........................................................................................................................................ 39
USING THE CABLE LOCK SYSTEM AND SECURITY BAR.......................................................................................... 40
Using the Cable Lock ................................................................................................................................... 40
Using the Security Bar.................................................................................................................................. 40
TROUBLESHOOTING ........................................................................................................................................ 41
COMMON PROBLEMS AND SOLUTIONS.................................................................................................................. 41
TIPS FOR TROUBLESHOOTING ............................................................................................................................. 41
LED ERROR MESSAGES..................................................................................................................................... 42
IMAGE PROBLEMS .............................................................................................................................................. 42
LAMP PROBLEMS................................................................................................................................................ 43
REMOTE CONTROL PROBLEMS............................................................................................................................ 43
AUDIO PROBLEMS .............................................................................................................................................. 44
3D PROBLEMS ................................................................................................................................................... 44
HAVING THE PROJECTOR SERVICED.................................................................................................................... 44

–vi –
HDMI Q&A...................................................................................................................................................... 45
SPECIFICATIONS............................................................................................................................................... 46
SPECIFICATIONS................................................................................................................................................. 46
PROJECTION DISTANCE VS.PROJECTION SIZE..................................................................................................... 47
Projection Distance and Size Table ............................................................................................................. 47
TIMING MODE TABLE .......................................................................................................................................... 48
PROJECTOR DIMENSIONS ................................................................................................................................... 50
REGULATORY COMPLIANCE .......................................................................................................................... 51
FCCWARNING .................................................................................................................................................. 51
CANADA............................................................................................................................................................. 51
SAFETY CERTIFICATIONS .................................................................................................................................... 51
APPENDIX I......................................................................................................................................................... 52
SERIAL COMMUNICATION .................................................................................................................................... 52

–1–
GETTING STARTED
Packing Checklist
Carefully unpack the projector and check that the following items are included:
Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It
is recommended that you keep the original packing material in case you ever need to return the
equipment for warranty service.
Caution:
Do not place the project in direct sunlight, humid, greasy or dusty places or in places where the
projector may come into contact with smoke or steam.
DVI to HDMI CABLEHDMI CABLE
POWER CORD
QUICK START GUIDE
REMOTE CONTROL
DLP PROJECTOR WITH LENS CAP

–2 –
Views of Projector Parts
Front-Right View
ITEM LABEL DESCRIPTION SEE PAGE
1. IR receiver Receive IR signal from remote control
2. Lens Projection Lens
3. Focus ring Focuses the projected image
16
4. Zoom ring Enlarges the projected image
5. Function keys See Top view—On-screen Display (OSD) buttons
and LEDs. 3
Important:
Do not block ventilation openings. Locate the projector in a well-ventilated area without obstructions
to intake or exhaust vents. Do not place the projector on a tablecloth or other soft covering that may
block the vents. Ventilation openings on the projector allow for good air circulation.
1 2 3 4 5

–3–
Top View—On-Screen Display (OSD) Buttons and LEDs
ITEM LABEL DESCRIPTION SEE PAGE
1. Turns the projector On and Off
2. LAMP LED Red Lamp Failure
42
Blinking Red Error code
3. POWER LED
Blue Projector is in standby or is fully
powered on (lamp is lit).
Blinking Blue
Projector is initializing or cooling down. It
can also indicate an error code when
blinking in conjunction with the Lamp LED.
3
1 2
