Desa LMFP33NR(B) Quick start guide

For more information, visit www.desatech.com
WARNING: If the information in this manual is not fol-
lowed exactly, a re or explosion may result causing
property damage, personal injury or loss of life.
— Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the re
department.
— Installation and service must be performed by a quali-
ed installer, service agency or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
UNVENTED (VENT-FREE) GAS FIREPLACE
OWNER’S OPERATION AND INSTALLATION MANUAL
LMFP33NR(B) AND LMFP33PR(B) REMOTE CONTROL
GAS FIREPLACE SySTEMS
Patent Pending Shown with optional
cabinet mantel and hearth
base accessories.

www.desatech.com 119526-01A2
SAFETy INFORMATION
CONTENTS
Safety Information ............................................... 2
Product identication ........................................... 4
Local Codes......................................................... 4
Unpacking............................................................ 5
Product Features................................................. 5
Air for Combustion and Ventilation ...................... 5
Installation ........................................................... 8
Operating Heater............................................... 19
Inspecting Burners............................................. 22
Cleaning and Maintenance................................ 23
Troubleshooting................................................. 24
Specications .................................................... 28
Wiring Diagram.................................................. 28
Technical Service............................................... 28
Service Hints ..................................................... 28
Replacement Parts............................................ 28
Accessories ....................................................... 29
Illustrated Parts Breakdown and Parts List........ 30
Warranty Information ..........................Back Cover
WARNING: Improper in-
stallation, adjustment, al-
teration, service or main-
tenance can cause in-
jury or property damage.
Refer to this manual for
correct installation and
operational procedures.
For assistance or addi-
tional information con-
sult a qualied installer,
service agency or the gas
supplier.
WARNING: This is an
unvented gas-red heat-
er. It uses air (oxygen)
from the room in which
it is installed. Provisions
for adequate combustion
and ventilation air must
be provided. Refer to Air
for Combustion and Ven-
tilation section on page 5
of this manual.
This appliance may be in-
stalled in an aftermarket,*
permanently located,
manufactured (mobile)
home, where not prohib-
ited by local codes.
This appliance is only for
use with the type of gas
indicated on the rating
plate. This appliance is
not convertible for use
with other gases.
* Aftermarket: Completion of sale, not for
purpose of resale, from the manufacturer
WARNING: This product con-
tains and/or generates chemicals
known to the State of California
to cause cancer or birth defects
or other reproductive harm.
IMPORTANT: Read this owner’s
manual carefully and completely
before trying to assemble, operate
or service this heater. Improper
use of this heater can cause seri-
ous injury or death from burns, re,
explosion, electrical shock and
carbon monoxide poisoning.

www.desatech.com
119526-01A 3
Fireplace and screen become
very hot when running replace.
Keep children and adults away
from hot surfaces to avoid burns
or clothing ignition. Fireplace
will remain hot for a time after
shutdown. Allow surfaces to
cool before touching.
Carefully supervise young chil-
dren when they are in the room
with replace. When using the
optional hand-held remote ac-
cessory, keep selector switch
in the OFF position to prevent
children from turning on burners
with remote.
You must operate this replace
with the replace screen and
hood in place. Make sure re-
place screen and hood are in
place before running heater.
Keep the appliance area clear
and free from combustible ma-
terials, gasoline and other am-
mable vapors and liquids.
1. This appliance is only for use with the type of
gas indicated on the rating plate. This appliance
is not convertible for use with other gases.
2. Do not place propane/LP supply tank(s) inside
any structure. Locate propane/LP supply
tank(s) outdoors (propane/LP units only).
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use
any phone in your building
• immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions
• if you cannot reach your gas supplier, call
the re department
4. This replace shall not be installed in a bed-
room or bathroom.
5. Do not use this replace as a wood-burning
replace. Use only the logs provided with the
replace.
DANGER: Carbon monoxide
poisoning may lead to death!
Carbon Monoxide Poisoning: Early signs of carbon
monoxide poisoning resemble the u, with head-
aches, dizziness or nausea. If you have these signs,
the heater may not be working properly. Get fresh
air at once! Have heater serviced. Some people
are more affected by carbon monoxide than others.
These include pregnant women, people with heart
or lung disease or anemia, those under the inuence
of alcohol and those at high altitudes.
Natural and Propane/LP Gas: Natural and pro-
pane/LP gases are odorless.An odor-making agent
is added to the gas. The odor helps you detect a gas
leak. However, the odor added to the gas can fade.
Gas may be present even though no odor exists.
Make certain you read and understand all warn-
ings. Keep this manual for reference. It is your
guide to safe and proper operation of this heater.
WARNING: Any change to
this heater or its controls can
be dangerous.
WARNING: Do not allow fans
to blow directly into the replace.
Avoid any drafts that alter burner
ame patterns. Ceiling fans can
create drafts that alter burner
ame patterns. Altered burner
patterns can cause sooting.
WARNING: Do not use a
blower insert, heat exchanger
insert or other accessory not ap-
proved for use with this heater.
Due to high temperatures, the
appliance should be located out
of trafc and away from furniture
and draperies.
Do not place clothing or other
ammable material on or near
the appliance. Never place any
objects on the heater.
SAFETy INFORMATION
Continued

www.desatech.com 119526-01A4
SAFETy INFORMATION
Continued
6. Do not add extra logs or ornaments such as
pine cones, vermiculite or rock wool. Using
these added items can cause sooting. Do not
add lava rock around base. Rock and debris
could fall into the control area of replace.
7. To prevent the creation of soot, follow the instruc-
tions in Cleaning and Maintenance, page 24.
8. Before using furniture polish, wax, carpet
cleaner or similar products, turn heater off. If
heated, the vapors from these products may
create a white powder residue within burner
box or on adjacent walls or furniture.
9. This replace needs fresh air ventilation to run
properly. This replace has an Oxygen Deple-
tion Sensing (ODS) safety shutoff system. The
ODS shuts down the replace if enough fresh
air is not available. See Air for Combustion
and Ventilation, page 5. If replace keeps
shutting off, see Troubleshooting, page 25.
10. Do not run replace
• where ammable liquids or vapors are used
or stored
• under dusty conditions
11. Do not use this replace to cook food or burn
paper or other objects.
12. Do not use replace if any part has been exposed
to or under water. Immediately call a qualied
service technician to inspect the replace and to
replace any part of the control system and any
gas control which has been under water.
13. Do not operate replace if any log is broken.
Do not operate replace if a log is chipped
(dime-sized or larger).
14. Turn replace off and let cool before servic-
ing. Only a qualied service person should
service and repair replace.
15. Operating replace above elevations of 4,500
feet could cause pilot outage.
16. To prevent performance problems in propane/LP
units, do not use propane/LP fuel tanks of less
than 100 lbs. capacity (propane/LP units only).
17. Provide adequate clearances around air
openings.
Figure 2 - Fireplace (LMFP33PR Shown)
Figure 1 - Log Base Assembly
O
F
F
P
I
L
O
T
O
N
4-Piece Log Set
(A Models shown)
Remote
Receiver
Piezo
Ignitor
Remote Control
Control
Knob
Top Louver
Assembly
Firebox
Hood
Bottom Louver Assembly
Screen
Assembly
Top Outer Casing
Firebox
Support
Blower
Assembly
(Optional)
LOCAL CODES
Install and use replace with care. Follow all local
codes. In the absence of local codes, use the lat-
est edition of The National Fuel Gas Code ANSI
Z223.1/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
Note: Where listed vented decorative logs are
required, thermostat operation is not permitted.
PRODUCT
IDENTIFICATION

www.desatech.com
119526-01A 5
UNPACkING
CAUTION: Do not remove the
data plates attached to the heater
base assembly. The data plates
contain important warranty and
safety information.
1. With utility knife, cut the carton all the way
around above the staples on the bottom tray.
Lift the carton off the heater. Remove packing.
Note: The hood is located in the packing on
the right hand side of the heater front. Lift the
heater off the bottom tray.
2. Locate two screws above top corners of the
replace screen. Remove and discard these
screws. Lift replace screen up and pull out
to remove.
3. Remove protective packaging applied to logs,
log base assembly and replace.
4. Remove replace hood from carton insert.
5. Check all items for any shipping damage. If
damaged, promptly inform dealer where you
bought replace.
PRODUCT FEATURES
OPERATION
This vent-free replace is clean burning. It requires
no outside venting. There is no heat loss out a
vent or up a chimney. Heat is generated by both
realistic ames. When used without the blower, the
replace requires no electricity making it ideal for
emergency backup heat. This heater is designed
for vent-free operation. It has been tested and ap-
proved to ANSI Z21.11.2 standard for unvented
heaters. State and local codes in some areas pro-
hibit the use of vent-free heaters.
LOCAL CODES
Continued
State of Massachusetts: The installation
must be made by a licensed plumber or
gas tter in the Commonwealth of Mas-
sachusetts.
Sellers of unvented propane or natural
gas-red supplemental room heaters shall
provide to each purchaser a copy of 527
CMR 30 upon sale of the unit.
Vent-free gas products are prohibited for
bedroom and bathroom installation in the
Commonwealth of Massachusetts.
SAFETY DEVICE
This replace has a pilot with an Oxygen Depletion
Sensing (ODS) safety shutoff system. The ODS/
pilot is a required feature for vent-free room heat-
ers. The ODS/pilot system shuts off the replace
if there is not enough fresh air.
PIEZO IGNITION SYSTEM
This replace has a piezo ignitor. This system
requires no matches, batteries or other sources to
light replace.
OPTIONAL BLOWER ASSEMBLY
(GA3750 SERIES & GA3650TB
SERIES)
This replace accepts an optional blower assembly
(not included). The GA3650TB Series blower
operates thermostatically and features a variable
speed control. The GA3750 Series blower operates
manually and also features a variable speed control.
The blower circulates heated air from the replace
into the room. See Accessories, page 34 .
AIR FOR COMBUSTION
AND VENTILATION
WARNING: This heater shall
not be installed in a conned
space or unusually tight construc-
tion unless provisions are provid-
ed for adequate combustion and
ventilation air. Read the following
instructions to insure proper fresh
air for this and other fuel-burning
appliances in your home.
Today’s homes are built more energy efcient
than ever. New materials, increased insulation and
new construction methods help reduce heat loss
in homes. Home owners weather strip and caulk
around windows and doors to keep the cold air out
and the warm air in. During heating months, home
owners want their homes as airtight as possible.
While it is good to make your home energy ef-
cient, your home needs to breathe. Fresh air must
enter your home.All fuel-burning appliances need
fresh air for proper combustion and ventilation.
Exhaust fans, replaces, clothes dryers and fuel
burning appliances draw air from the house to
operate. You must provide adequate fresh air for
these appliances. This will insure proper venting
of vented fuel-burning appliances.

www.desatech.com 119526-01A6
PROVIDING ADEQUATE
VENTILATION
The following are excerpts from National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Section 5.3,
Air for Combustion and Ventilation.
All spaces in homes fall into one of the three fol-
lowing ventilation classications:
1. Unusually Tight Construction
2. Unconned Space
3. Conned Space
The information on pages 5 through 7 will help
you classify your space and provide adequate
ventilation.
Unusually Tight Construction
The air that leaks around doors and windows
may provide enough fresh air for combustion and
ventilation. However, in buildings of unusually
tight construction, you must provide additional
fresh air.
Unusually tight construction is dened as
construction where:
a. walls and ceilings exposed to the out-
side atmosphere have a continuous
water vapor retarder with a rating of one
perm (6 x 10-11 kg per pa-sec-m2) or less
with openings gasketed or sealed and
b. weather stripping has been added on
openable windows and doors and
c. caulking or sealants are applied to areas
such as joints around window and door
frames, between sole plates and oors,
between wall-ceiling joints, between
wall panels, at penetrations for plumb-
ing, electrical and gas lines and at other
openings.
If your home meets all of the three criteria
above, you must provide additional fresh
air. See Ventilation Air From Outdoors,
page 7.
If your home does not meet all of the three
criteria above, proceed to Determining
Fresh-Air Flow For Heater Location.
Conned and Unconned Space
The National Fuel Gas Code, ANSI Z223.1/NFPA
54 denes a conned space as a space whose vol-
ume is less than 50 cubic feet per 1,000 Btu per hour
(4.8 m
3
per kw) of the aggregate input rating of all
appliances installed in that space and an unconned
space as a space whose volume is not less than 50
cubic feet per 1,000 Btu per hour (4.8 m
3
per kw) of
the aggregate input rating of all appliances installed
in that space. Rooms communicating directly with
the space in which the appliances are installed*,
through openings not furnished with doors, are
considered a part of the unconned space.
* Adjoining rooms are communicating only if
there are doorless passageways or ventilation grills
between them.
DETERMINING FRESH-AIR FLOW
FOR FIREPLACE LOCATION
Determining if You Have a Conned or
Unconned Space
Use this work sheet to determine if you have a
conned or unconned space.
Space: Includes the room in which you will install
replace plus any adjoining rooms with doorless pas-
sageways or ventilation grills between the rooms.
1. Determine the volume of the space (length x
width x height).
Length x Width x Height =__________cu. ft.
(volume of space)
Example: Space size 20 ft. (length) x 16 ft.
(width) x 8 ft. (ceiling height) = 2,560 cu. ft.
(volume of space)
If additional ventilation to adjoining room is
supplied with grills or openings, add the volume
of these rooms to the total volume of the space.
2. Multiply the space volume by 20 to determine
the maximum Btu/Hr the space can support.
__________ (volume of space) x 20 = (Maxi-
mum Btu/Hr the space can support)
Example: 2,560 cu. ft. (volume of space) x 20 =
51,200 (maximum Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in
the space.
Vent-free replace __________ Btu/Hr
Gas water heater* __________ Btu/Hr
Gas furnace __________ Btu/Hr
Vented gas heater __________ Btu/Hr
Gas replace logs __________ Btu/Hr
Other gas appliances* + ________ Btu/Hr
Total = ________ Btu/Hr
* Do not include direct-vent gas appliances. Di-
rect-vent draws combustion air from the outdoors
and vents to the outdoors.
AIR FOR COMBUSTION
AND VENTILATION
Continued

www.desatech.com
119526-01A 7
AIR FOR COMBUSTION
AND VENTILATION
Continued
Figure 4 - Ventilation Air from Outdoors
Figure 3 - Ventilation Air from Inside
Building
Outlet
Air
Ventilated
Attic
Outlet
A
ir
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills
Into Adjoining
Room,
Option 1
12"
12"
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining un-
conned space. When ventilating to an adjoining
unconned space, you must provide two perma-
nent openings: one within 12" of the ceiling and
one within 12" of the oor on the wall connecting
the two spaces (see options 1 and 2, Figure 3). You
can also remove door into adjoining room (see
option 3, Figure 3). Follow the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for
Combustion and Ventilation for required size of
ventilation grills or ducts.
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills or
ducts. You must provide two permanent openings:
one within 12" of the ceiling and one within 12"
of the oor. Connect these items directly to the
outdoors or spaces open to the outdoors. These
spaces include attics and crawl spaces. Follow the
National Fuel Gas Code, ANSI Z223.1/NFPA 54,
Section 5.3, Air for Combustion and Ventilation for
required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings for inlet
or outlet air into attic if attic has a thermostat-
controlled power vent. Heated air entering the attic
will activate the power vent.
Example:
Gas water heater __________ Btu/Hr
Vent-free replace + ________ Btu/Hr
Total = ________ Btu/Hr
4. Compare the maximum Btu/Hr the space can
support with the actual amount of Btu/Hr used.
__________ Btu/Hr (maximum the space can support)
_________ Btu/Hr (actual amount of Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the space
can support)
73,000 Btu/Hr (actual amount of
Btu/Hr used)
The space in the example is a conned space because
the actual Btu/Hr used is more than the maximum
Btu/Hr the space can support. You must provide ad-
ditional fresh air. Your options are as follows:
A. Rework worksheet, adding the space of an adjoin-
ing room. If the extra space provides an unconned
space, remove door to adjoining room or add
ventilation grills between rooms. See Ventilation
Air From Inside Building.
B. Vent room directly to the outdoors. See Ventila-
tion Air From Outdoors.
C. Install a lower Btu/Hr replace, if lower Btu/Hr
size makes room unconned.
If the actual Btu/Hr used is less than the maximum
Btu/Hr the space can support, the space is an un-
conned space. You will need no additional fresh
air ventilation.
WARNING: If the area in
which the heater may be oper-
ated is smaller than that dened
as an unconned space or if the
building is of unusually tight
construction, provide adequate
combustion and ventilation air
by one of the methods described
in the National Fuel Gas Code,
ANSI Z223.1/NFPA54 Section 5.3
or applicable local codes.
40,000
33,000
73,000

www.desatech.com 119526-01A8
INSTALLATION
NOTICE: This heater is intended
for use as supplemental heat.
Use this heater along with your
primary heating system. Do not
install this heater as your pri-
mary heat source. If you have a
central heating system, you may
run system’s circulating blower
while using heater. This will help
circulate the heat throughout the
house. In the event of a power
outage, you can use this heater
as your primary heat source.
WARNING: A qualied ser-
vice person must install re-
place. Follow all local codes.
WARNING: Never install the
replace
• in a bedroom or bathroom
• in a recreational vehicle
• where curtains, furniture,
clothing or other ammable
objects are less than 42 inches
from the front, top or sides of
the heater
• in high trafc areas
• in windy or drafty areas
CAUTION: This replace cre-
ates warm air currents. These
currents move heat to wall sur-
faces next to replace. Installing
replace next to vinyl or cloth
wall coverings or operating
heater where impurities (such
as, but not limited to, tobacco
smoke, aromatic candles, clean-
ing uids, oil or kerosene lamps,
etc.) in the air exist, may discolor
walls or cause odors.
Note: Your replace is designed to be used in zero
clearance installations. Wall or framing material
can be placed directly against any exterior surface
on the rear, sides or top of your replace, except
where standoff spacers are integrally attached. If
standoff spacers are attached to your replace,
these spacers can be placed directly against wall
or framing materials.
Use the dimensions shown for rough openings to
create the easiest installation. See Built-In Fire-
place Installation, page 11.
IMPORTANT: Vent-free heaters add moisture
to the air. Although this is benecial, installing
replace in rooms without enough ventilation
air may cause mildew to form from too much
moisture. See Air for Combustion and Ventilation,
page 5. IMPORTANT: Make sure the replace
is level. If replace is not level, log set will not
work properly.
CHECK GAS TYPE
Use the correct gas type (natural or propane/LP)
for your replace. If your gas supply is not cor-
rect, do not install replace. Call dealer where you
bought replace for proper type replace.
WARNING: This appliance
is equipped for (natural or pro-
pane/LP) gas. Field conversion
is not permitted.
ELECTRICAL HOOKUP
(Models GA3750 Series and GA3650TB
Series Blower Accessories and GA3555
Internal Duplex Kit)
This replace accepts a blower assembly with an
electrical cord. The electrical cord is ve feet in
length. You must locate replace within reach of
a 120 volt grounded electrical outlet. If not, you
must install an electrical outlet within reach of
replace power cord. The GA3555 outlet acces-
sory is used for built-in applications with blower
accessory installed.

www.desatech.com
119526-01A 9
MINIMUM CLEARANCE TO
COMBUSTIBLE MATERIALS
Top Left and Bottom
Right Sides and Rear
42" 16" 0"
Figure 5 - Installing Hood to Firebox
Figure 6 - Assembling Trim
Side Trim
Slot
Mitered
Edge
Slot
Shim
Set Screws
Adjusting
Plate
Trim
Hanging
Screws
Assembled
Trim
Hanging
Notches
on Trim
INSTALLING HOOD

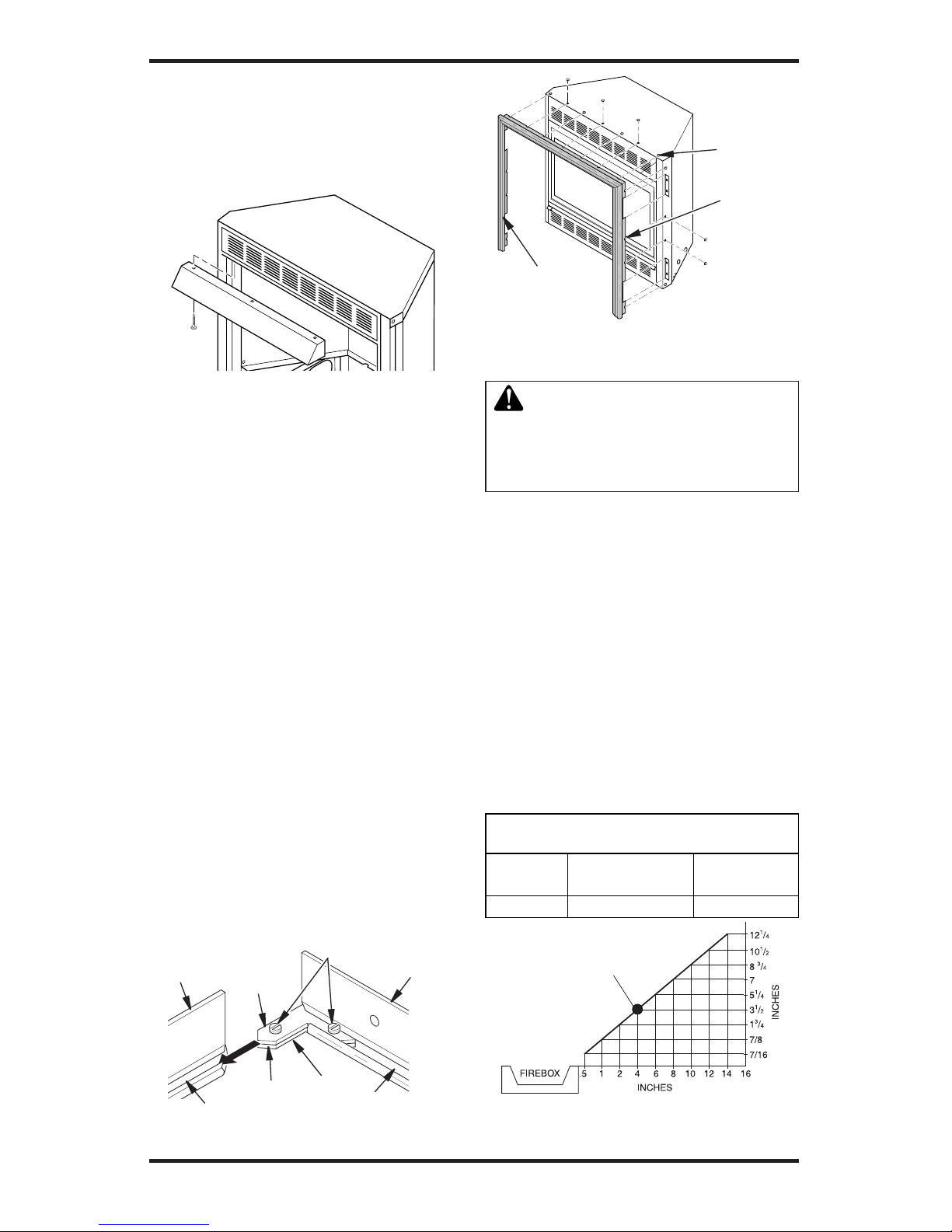

Install hood to top of rebox as shown in Figure
5. Use 3 Phillips screws provided
Top Trim
INSTALLATION
Continued
Figure 7 - Attaching Trim to Fireplace
*
Example
Figure 8 - Minimum Clearance for
Combustible to Wall
*Minimum 16 inches from Side Wall
ASSEMBLING AND ATTACHING
OPTIONAL TRIM)
IMPORTANT: If you are recessing the rebox in a
wall, do not attach trim at this time. See page 11.
Note: The instructions below show assembling
and attaching trim to replace.
1. Remove packaging from three pieces of trim.
2. Locate four brass screws, two adjusting plates
with set screws and two shims in the hardware
packet.
3. Align shim under adjusting plate as shown in
Figure 6.
4. Slide one end of adjusting plate/shim in slot
on mitered edge of top trim (see Figure 6).
5. Slide other end of adjusting plate/shim in slot
on mitered edge of side trim (see Figure 6).
6. While rmly holding edges of trim together,
tighten both set screws on the adjusting plate
with slotted screwdriver.
7. Repeat steps 1 through 6 for other side.
8. Tighten trim hanging screws (#10 x 6.25
shoulder) into holes in cabinets. Place the
assembled trim onto replace cabinet. Align
hanging notches on trim with hanging screws
on side of replace (see Figure 7). Push trim
rmly into place, sliding hanging notches over
hanging screws.
INSTALLATION CLEARANCES
WARNING: Maintain the
minimum clearances. If you can,
provide greater clearances from
oor, ceiling and adjoining wall.
Carefully follow the instructions below. This will
ensure safe installation.
Minimum Clearances For Side
Combustible Material, Side Wall and
Ceiling
A. Clearances from the side of the fireplace
cabinet to any combustible material and wall
should follow diagram in Figure 8.
Example: The face of a mantel, bookshelf,
etc. is made of combustible material and
protrudes 3 1/2" from the wall. This combus-
tible material must be 4" from the side of the
replace opening (see Figure 8).
B. Clearances from the top of the replace opening
to the ceiling should not be less than 42 inches.

www.desatech.com 119526-01A10
CONVENTIONAL FIREPLACE
INSTALLATION
Conventional installation of this replace involves
installing replace along with the corner, face or
cabinet mantel with hearth base accessories against
a wall in your home. Follow the instructions below
to install the replace in this manner.
Note: The instructions in this section show instal-
lation using the cabinet mantel and hearth base
accessories. The hearth base accessory shown is
optional for this installation. You can install re-
place and cabinet mantel directly on the oor.

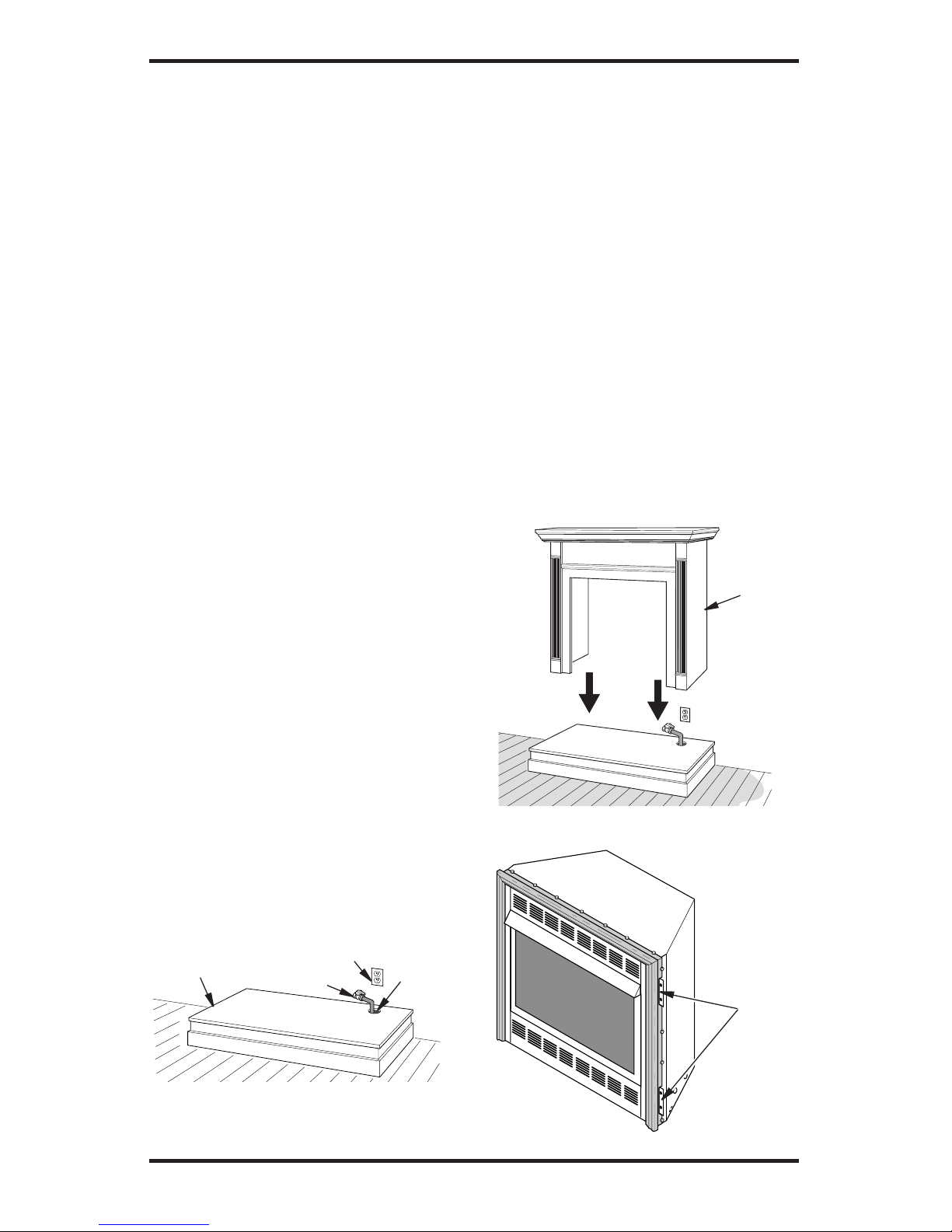

1. Assemble cabinet mantel, hearth base and
trim accessories. Assembly instructions are
included with each accessory.
2. When installing blower, install a properly
grounded, 120 volt three-prong electrical out-
let at replace location if an outlet is not there.
If possible, locate outlet so cabinet mantel will
cover it when installed (see Figure 9).
3. Install gas piping to replace location. This
installation includes an approved exible gas
line (if allowed by local codes) after the equip-
ment shutoff valve. The exible gas line must
be the last item installed on the gas piping. See
Installing Gas Piping to Fireplace Location,
page 13.
4. Place hearth base accessory against wall at instal-
lation location. Cut an access hole in hearth top
to run exible gas line to replace (see Figure
9). Make sure to locate access hole so cabinet
mantel will cover it when installed. Note: You
can secure base to oor using wood screws.
Countersink screw heads and putty over.
5. Route exible gas line through access hole in
hearth base.
6. Center cabinet mantel on hearth base (see Figure
10). Make sure mantel is ush against wall.
7. Break off nailing anges (see Figure 11) with
hammer or pliers.
INSTALLATION
Continued
8. Place cardboard or other protective material
on top of hearth base. Carefully set replace
on protective material, with back of replace
inside mantel opening.
9. Attach exible gas line from replace gas
regulator to gas supply. See Connecting
Fireplace to Gas Supply, page 15.
10. If blower is installed, route blower electrical cord
through access holes in either side of replace.
Note: Bushing may be moved if necessary. Plug
electrical cord into electrical outlet.
11. Carefully insert replace into cabinet mantel.
Be careful not to scratch or damage hearth base
or cabinet mantel. Remove protective material
from top of hearth base and from front of re-
place (if any). Note: You can secure replace
to hearth or oor. Open lower louver. Locate
screw holes in bottom of base. Tighten wood
screws through these holes and into hearth or
oor.
12. Check all gas connections for leaks. See
Checking Gas Connections, page 16.
Figure 10 - Installing Cabinet Mantel
Cabinet
Mantel
Figure 11 - Location of Nailing Flanges
Nailing
Flanges
Electrical Outlet
Rigid Gas Line
Gas Line
Access
Hole
Figure 9 - Placing Hearth Base
Accessory Against Wall
Hearth
Base

www.desatech.com
119526-01A 11
INSTALLATION
Continued
Actual Framing
Height 32 3/8" 33"
Front Width 34 5/16" 35 1/8"
Depth 16 11/16" 17 3/4"
BUILT-IN FIREPLACE
INSTALLATION
Built-in installation of this fireplace involves
installing replace into a framed-in enclosure.
This makes the front of replace ush with wall.
If installing a mantel above the replace, you must
follow the clearances shown in Figure 18, page 13.
Follow the instructions below to install the replace
in this manner.
WARNING: A qualied electri-
cian must connect electrical wiring
to duplex outlet for built-in instal-
lation. Follow all local codes.
1. Frame in rough opening. Use dimensions
shown in Figure 12 for the rough opening. If
installing in a corner, use dimensions shown
in Figure 13 for the rough opening. The height
is 33" which is the same as the wall opening
above.
2. If using blower, install duplex outlet to the
right support bracket in the bottom of rebox
(see Figure 14). See Accessories, page 29. If
not using blower, go to step 7.

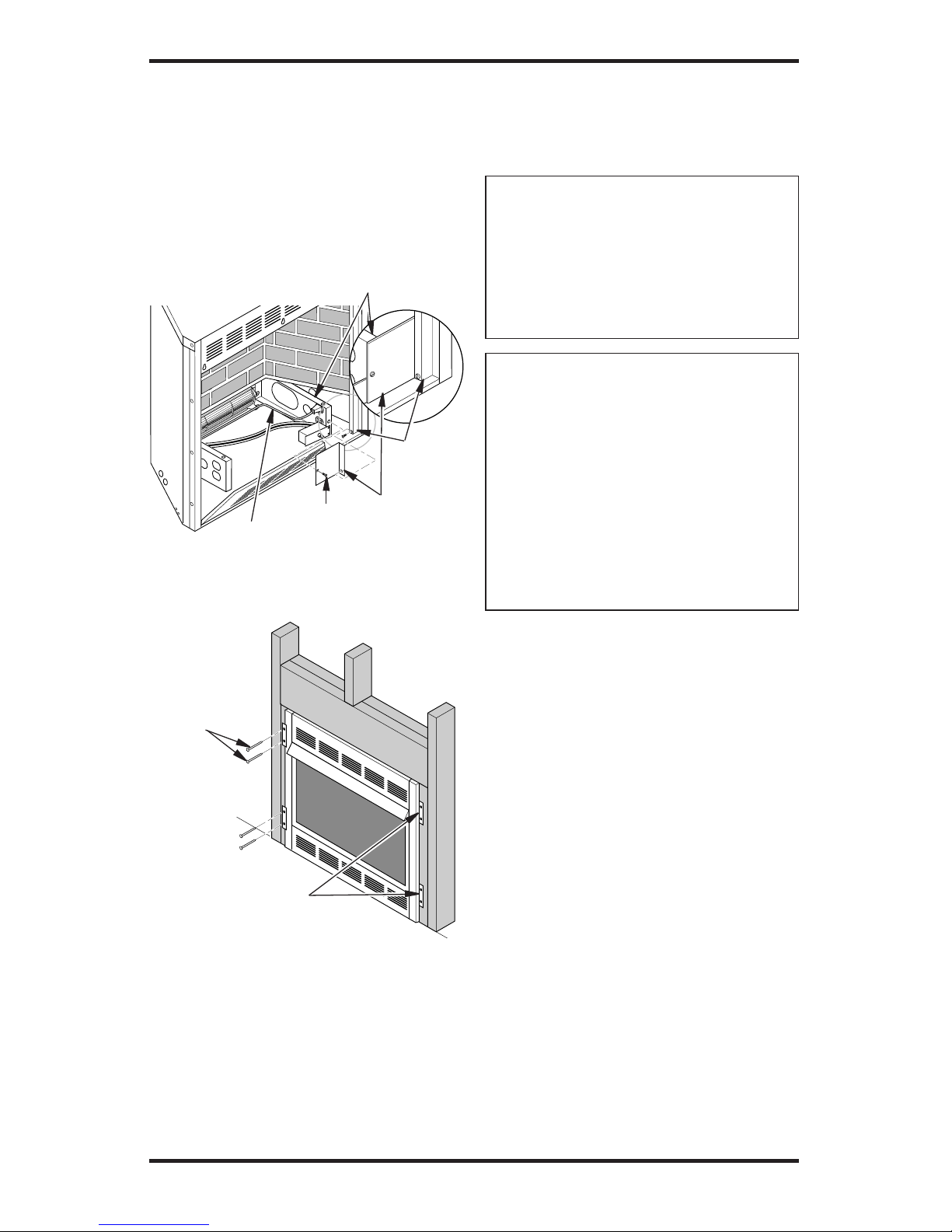

3. Route wires from electrical box through
smallest hole in outer casing using strain relief
tting provided (see Figure 14).
4. Connect wires from the electrical box to
duplex outlet. Match wire colors to those
indicated on duplex outlet. Be sure to connect
ground wire.
5. Install shield to end of right support bracket
and behind the rebox wrapper with 2 screws
provided (see Figure 15, page 12).
6. Plug blower cord into duplex outlet.
7. Replace bottom of firebox and reconnect
remote receiver module to valve.
8. Install gas piping to replace location. This
installation includes an approved exible gas
line (if allowed by local codes) after the equip-
ment shutoff valve. The exible gas line must
be the last item installed on the gas piping. See
Installing Gas Piping to Fireplace Location,
page 13.
9. Carefully set replace in front of rough opening
with back of replace inside wall opening.
10. Attach exible gas line to gas supply. See Con-
necting Fireplace to Gas Supply, page 15.
11. Plug electrical cord into electrical outlet
installed in step 2 if using blower.
12. Carefully insert replace into rough opening.
35 1/8"
17 3/4"
33"
Figure 12 - Rough Opening for Installing
in Wall
39
3
/ 8 "
27
7
/ 8 "
55
5
/ 8 "
35
1
/ 8 "
Figure 13 - Rough Opening for Installing
in Corner
Blower
Support
Bracket
Cable from
Electrical Source
Duplex
Outlet
Screw
Blower
Power Cord
Strain
Relief
Fitting
Figure 14 - Connecting Duplex Outlet

www.desatech.com 119526-01A12
Mantel Clearances for Built-In
Installation
If placing mantel above built-in replace, you must
meet minimum clearance between mantel shelf and
top of replace opening.
NOTICE: If your installation does
not meet the minimum clear-
ances shown, you must do one
of the following:
• raise the mantel to an accept-
able height
• remove the mantel
NOTICE: Surface temperatures
of adjacent walls and mantels
become hot during operation.
Walls and mantels above the
rebox may become hot to the
touch. If installed properly,
these temperatures meet the
requirement of the national
product standard. Follow all
minimum clearances shown in
this manual.
13. Attach replace to wall studs using nails or
wood screws through holes in nailing ange
(see Figure 16).
14. Check all gas connections for leaks. See
Checking Gas Connections, page 16.
15. Install trim after nal nishing and/or painting
of wall (see Figure 7, page 9).
Figure 16 - Attaching Fireplace to Wall
Studs
Nailing Flanges
Nails or Wood
Screws
Shield
Screw
Support Bracket
Firebox
Wrapper
Power
Cord
Figure 15 - Installing Shield to Support
Bracket
INSTALLATION
Continued

www.desatech.com
119526-01A 13

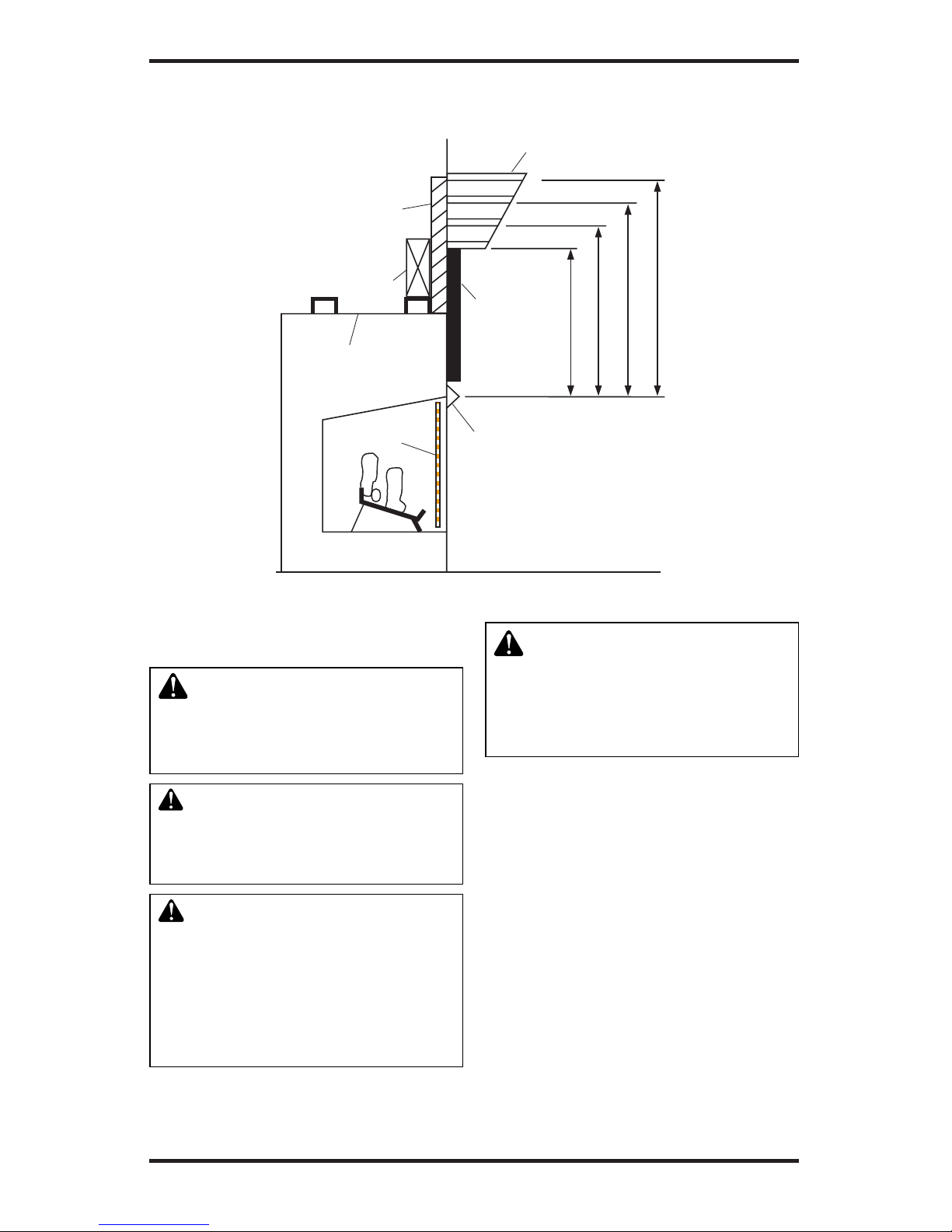

Figure 17 - Minimum Mantel Clearances for Built-In Installation
Supplied
Firebox
Hood
Must Be
Used at
All Times
Wire-mesh
Screen
Firebox
Noncombustible
Material May
Project Off this
Surface above
the Firebox
Hood
Mantel Shelf
13" 16" 19" 21"
2
1/2
"
6"
8"
10"
Note: All vertical
measurements are
from top of fireplace
hood opening to
bottom of mantel
shelf. These minimum
clearances replace any
other recommended
clearances supplied
with your ANSI Z21.11.2
approved gas logs.
Wall board or facing
material (above
firebox) may be of
combustible material,
including decorative
mantel ornaments or
other similar projec-
tions off of the facing
material. Framing
Material
INSTALLATION
Continued
INSTALLING GAS PIPING TO
FIREPLACE LOCATION
WARNING: This appliance
requires a 1/2" NPT (National
Pipe Thread) inlet connection to
the pressure regulator.
WARNING: A qualied service
person must connect replace
to gas supply. Follow all local
codes.
CAUTION: Never connect pro-
pane/LP replace directly to the
propane/LP supply. This replace
requires an external regulator
(not supplied). Install the external
regulator between the replace
and propane/LP supply.
WARNING: Never connect
natural gas replace to private
(non-utility) gas wells. This
gas is commonly known as
wellhead gas.
Installation Items Needed
Before installing replace, make sure you have
the items listed below.
• external regulator for propane/LP unit only
(supplied by installer)
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• test gauge connection *
• sediment trap (optional)
• tee joint
• pipe wrench
• approved exible gas line with gas connector
(if allowed by local codes) (not provided)
* A CSA design-certied equipment shutoff valve
with 1/8" NPT tap is an acceptable alternative to
test gauge connection. Purchase the optional CSA
design-certied equipment shutoff valve from your
dealer. See Accessories, page 29.

www.desatech.com 119526-01A14
For propane/LP units, the installer must supply
an external regulator. The external regulator will
reduce incoming gas pressure. You must reduce
incoming gas pressure to between 11" and 14" of
water. If you do not reduce incoming gas pres-
sure, heater regulator damage could occur. Install
external regulator with the vent pointing down
as shown in Figure 18. Pointing the vent down
protects it from freezing rain or sleet.
CAUTION: Use only new,
black iron or steel pipe. Inter-
nally-tinned copper tubing may
be used in certain areas. Check
your local codes. Use pipe of
1/2" diameter or greater to allow
proper gas volume to replace.
If pipe is too small, undue loss
of volume will occur.
Installation must include an equipment shutoff valve,
union and plugged 1/8" NPT tap. Locate NPT tap
within reach for test gauge hook up. NPT tap must
be upstream from replace (see Figure 19).
IMPORTANT: Install equipment shutoff valve
in an accessible location. The equipment shutoff
valve is for turning on or shutting off the gas to
the appliance.
Check your building codes for any special re-
quirements for locating equipment shutoff valve
to replaces.
Apply pipe joint sealant lightly to male NPT threads.
This will prevent excess sealant from going into
pipe. Excess sealant in pipe could result in clogged
replace valves. Never use sealant on are threads.
WARNING: Use pipe joint
sealant that is resistant to liquid
petroleum (LP) gas.
We recommend that you install a sediment trap in
supply line as shown in Figure 19. Locate sediment
trap where it is within reach for cleaning. Install in
piping system between fuel supply and replace.
Locate sediment trap where trapped matter is not
likely to freeze. A sediment trap traps moisture and
contaminants. This keeps them from going into re-
place gas controls. If sediment trap is not installed or
is installed wrong, replace may not run properly.
INSTALLATION
Continued
Figure 18 - External Regulator on
Propane/LP Supply Tank with Vent
Pointing Down
External
Regulator
Vent Pointing Down
Propane/LP
Supply Tank
Figure 19 - Gas Connection
* Purchase the optional CSA design-certified
equipment shutoff valve from your dealer. See
Accessories, page 29.
** Minimum inlet pressure for purpose of input
adjustment.
Sediment Trap
3" Minimum
Cap Pipe Tee
Nipple Joint
CSA Design-Certied Equipment Shutoff
Valve With 1/8" NPT Tap*
Natural Gas
From Gas Meter
(5" W.C.** to
10.5" W.C.
Pressure)
Propane/LP
From External
Regulator
(11" W.C.**
to 14" W.C.
Pressure)

www.desatech.com
119526-01A 15
CONNECTING FIREPLACE TO GAS
SUPPLY
Installation Items Needed
• 5/16" hex socket wrench or nut-driver
• Phillips screwdriver
• sealant (resistant to propane/LP gas, not pro-
vided)
1. Remove two screws that hold replace screen
in place for shipping. These screws are located
near top of screen. Discard screws. Lift re-
place screen up and pull out to remove.
2. Open lower louver door. Carefully pull
straight out on the wire harnesses attached to
right side and front of remote receiver module
(see Figure 20).
3. Remove screws that attach log base assembly
to replace (see Figure 20). Carefully lift up
log base assembly and remove from replace
(see Figure 20).
Note: If adding the G8000A series brick liner
accessory, install it now. Follow instructions in
G8000A accessory kit.
CAUTION: Do not pick up
log base assembly by burner.
This could damage burner. Only
handle base by grates.
4. Route gas line (provided by installer) from
equipment shutoff valve to replace. Route
exible gas supply line through one of the
access holes.
NOTICE: Most building codes
do not permit concealed gas
connections. A exible gas line
is provided to allow accessibility
from the replace (see Figure 21).
The exible gas supply line con-
nection to the equipment shutoff
valve should be accessible.
5. Attach the exible gas line to gas supply (see
Figure 21). Check tightness of exible gas
line attached to gas regulator of replace (see
Figure 21).
6. Check all gas connections for leaks. See
Checking Gas Connections, page 16.
INSTALLATION
Continued
7. Replace log base assembly back into replace.
Feed exible gas line into replace base area
while replacing log base assembly. Make sure
the entire exible gas line is in replace base
area. Reattach log base assembly to replace
with screws removed in step 2.
Figure 20 - Removing Log Base
Assembly From Fireplace
O
F
F
P
I
L
O
T
O
N
Figure 21 - Attaching Flexible Gas Lines
Together
Flexible Gas Line from
Fireplace Gas Regulator
To Fireplace Gas
Regulator Equipment Shutoff
Valve Provided by
Installer
Unplug From
Remote Receiver
Module
Log Base
Assembly
Screw
Screw
Propane/LP
To External Regulator
Natural Gas
To Gas Meter
Remote
Receiver
Module
Flexible Gas
Line

www.desatech.com 119526-01A16
CHECKING GAS CONNECTIONS
WARNING: Test all gas pip-
ing and connections, internal
and external to unit, for leaks
after installing or servicing. Cor-
rect all leaks at once.
WARNING: Never use an
open ame to check for a leak.
Apply a noncorrosive leak detec-
tion uid to all joints. Bubbles
forming show a leak. Correct all
leaks at once.
CAUTION: Make sure exter-
nal regulator has been installed
between propane/LP supply and
replace. See guidelines under
Connecting Fireplace to Gas
Supply, page 15.
PRESSURE TESTING GAS SUPPLY
PIPING SYSTEM
Test Pressures In Excess Of 1/2 PSIG
(3.5 kPa)
1. Disconnect replace with its appliance main
gas valve (control valve) and equipment
shutoff valve from gas supply piping system.
Pressures in excess of 1/2 psig will damage
replace regulator.
2. Cap off open end of gas pipe where equipment
shutoff valve was connected.
3. Pressurize supply piping system by either
opening propane/LP supply tank valve for
propane/LP gas or opening main gas valve
located on or near gas meter for natural gas
or using compressed air.
4. Check all joints of gas supply piping system.
Apply noncorrosive leak detection uid to all
joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Reconnect replace and equipment shutoff
valve to gas supply. Check reconnected t-
tings for leaks.
INSTALLATION
Continued
Test Pressures Equal To or Less Than
1/2 PSIG (3.5 kPa)
1. Close equipment shutoff valve (see Figure 22).
2. Pressurize supply piping system by either
opening propane/LP supply tank valve for
propane/LP gas or opening main gas valve
located on or near gas meter for natural gas
or using compressed air.
3. Check all joints from gas meter to equipment
shutoff valve for natural gas or propane/LP
supply to equipment shutoff valve for
propane/LP (see Figures 23 or 24). Apply
noncorrosive leak detection uid to all joints.
Bubbles forming show a leak.
4. Correct all leaks at once.
Figure 22 - Equipment Shutoff Valve
Open
Closed
Equipment
Shutoff
Valve
Figure 24 - Checking Gas Joints for
Propane/LP Gas
Gas Control Valve
Figure 23 - Checking Gas Joints for
Natural Gas
Equipment
Shutoff
Valve
Gas Meter
Equipment Shutoff Valve
Gas Control Valve
Propane/LP
Supply Tank

www.desatech.com
119526-01A 17
INSTALLATION
Continued
Pressure Testing Fireplace Gas
Connections
1. Open equipment shutoff valve (see Figure 22,
page 16).
2. Open main gas valve located on or near gas
meter for natural gas or open propane/LP
supply tank valve.
3. Make sure control knob of replace is in the
OFF position.
4. Check all joints from equipment shutoff valve
to gas control valve (see Figures 23 or 24, page
16). Apply noncorrosive leak detection uid
to all joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Light replace (see Operating Fireplace, page
19.) Check all other internal joints for leaks.
7. Turn off replace (see To Turn Off Gas to
Appliance, page 21).

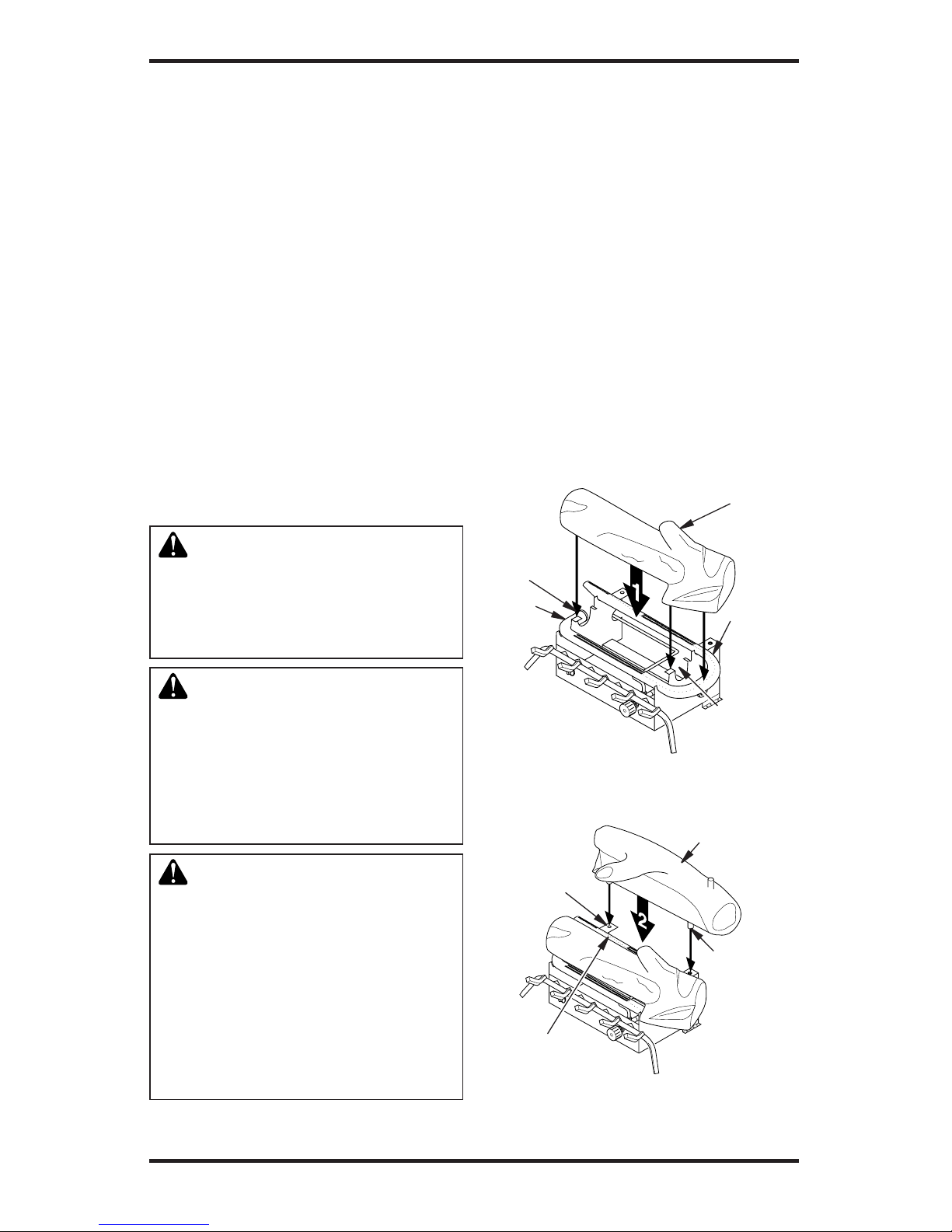

INSTALLING LOGS
CAUTION: Do not remove the
data plates attached to the heater
base assembly. The data plates
contain important warranty and
safety information.
WARNING: Failure to posi-
tion the parts in accordance
with these diagrams or failure
to use only parts specically
approved with this heater may
result in property damage or
personal injury.
WARNING: After installa-
tion and periodically thereafter,
check to ensure that no ame
comes in contact with any log.
With the heater set to High, check
to see if ame contact any log. If
so, reposition logs according to
the log installation instructions
in this manual. Flames contact-
ing logs will create soot.
Each log is marked with a number. These numbers
will help you identify the log when installing. It
is very important to install these logs exactly as
instructed. Do not modify logs. Only use logs
supplied with heater.
1. Place the base of the middle log (#1) in the
U-shaped slots of the grate base. The cutout
on the right of the middle log should t over
the burner (see Figure 25). Make sure the front
of the middle log is resting on the tabs of the
grate base and the cutout area is centered over
the burner “U” bend.
2. Locate pegs on the bottom of back log (#2).
Slide these pegs into the holes in the grate base
behind the burner (see Figure 26).
3. Locate the notches in the bottom of the front
log (#3). Place the front log on the grate n-
gers. Make sure the notches of the front log
line up with the grate ngers (see Figure 27,
page 18).
Middle
Log (#1)
Tab
Burner “U” Bend
U-Shaped
Slot
Figure 25 - Installing Middle Log (#1)
(Base may very from illustration)
Middle
Log (#1)
Figure 26 - Installing Back Log (#2)
(Base may very from illustration)
Hole in
Grate
Base
Back Log (#2)
Peg
Burner

www.desatech.com 119526-01A18
INSTALLATION
Continued
Figure 28 - Installing Crossover Log (#4)
(Base may very from illustration)
Notches
Grate Finger
Figure 27 - Installing Front Log (#3)
(Base may very from illustration)
Crossover
Log (#4)
Recess
Peg
Figure 29 - Installing Batteries in
Receiver
Cover
Receiver
Slot
4 AA Batteries
Battery
Housing
Backup Switch
INSTALLING BATTERIES FOR
REMOTE RECEIVER AND HAND
HELD REMOTE CONTROL
Four AA batteries and three AAA batteries are
required to operate this heater with the wireless
hand-held remote control set. Four AA batteries
must be installed in the receiver and three AAA
batteries in the hand-held remote control unit.
Note: Only use alkaline batteries.
Installing Batteries in Receiver
1. Locate slot on battery cover of receiver (see
Figure 29). Firmly insert tool such as a small
screwdriver, butter knife or dime into the slot
and lift up to remove cover.
2. Insert 4 AA batteries into receiver. Positive
and negative are marked inside receiver
casing. Note: Receiver will not function if
batteries are not installed correctly.
3. Slide tab on cover into receiver housing and
snap cover back into place.
Cover
Remote
Control
3 AAA Batteries
Installing Battery into Remote
1. Remove remote cover (see Figure 30).
2. Insert 3 AAA batteries into remote control (see
Figure 30). Positive and negative are marked
inside remote control casing. Note: Remote
will not function if batteries are not installed
correctly.
3. Slide remote cover back into place.
Figure 30 - Installing Batteries in Remote
Control
Front Log
(#3)
4. Place crossover log (#4) onto the pin (right) on
back log (#2) and into the recess of the middle
log (#1) (see Figure 28).
WARNING: You must operate
this replace with the replace
screen in place. Make sure re-
place screen is in place before
running replace.

www.desatech.com
119526-01A 19
LIGHTING
INSTRUCTIONS
WARNING
• If replace has glass doors,
never operate this heater with
glass doors closed. If you op-
erate heater with doors closed,
heat buildup inside replace
will cause glass to burst. Make
sure there are no obstructions
across opening of replace.
• You must operate this heater
with a fireplace screen in
place. Make sure fireplace
screen is closed before run-
ning heater.
NOTICE: During initial operation
of new heater, burning logs will
give off a paper-burning smell.
Orange ame will also be pres-
ent. Open damper or window to
vent smell. This will only last a
few hours.
Note: Home owners generally prefer to operate
their heater with the chimney damper closed.
This will put all the heat into the room. How-
ever, there may be times you will desire the
full ames of the highest heat setting but will
nd the heat output excessive. You can open
the chimney damper (if you have one) fully or
partially to release some of the heat.
WARNING: Damper handle
will be hot if heater has been
running.
WARNING: Burners will
come on automatically within
one minute when the control
valve is in the ON position after
the pilot is lit.
OPERATING HEATER
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: If you do not fol-
low these instructions exactly,
a re or explosion may result
causing property damage, per-
sonal injury or loss of life.
A. This appliance has a pilot which must be
lighted by hand. When lighting the pilot,
follow these instructions exactly.
B. BEFORE LIGHTING smell all around the
appliance area for gas. Be sure to smell next
to the oor because some gas is heavier than
air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the re department.
C. Use only your hand to push in or turn the
gas control knob. Never use tools. If the
knob will not push in or turn by hand, don’t
try to repair it, call a qualied service tech-
nician or gas supplier. Force or attempted
repair may result in a re or explosion.
D. Do not use this appliance if any part has been
under water. Immediately call a qualied ser-
vice technician to inspect the appliance and to
replace any part of the control system and any
gas control which has been under water.

www.desatech.com 119526-01A20
1. STOP! Read the safety information on
page 19.
2. Make sure equipment shutoff valve is fully
open.
3. Set remote selector switch in the AUTO
position (see Figure 31).
4. Press in and turn control knob clockwise
to the OFF position (see Figure 31).
5. Wait ve (5) minutes to clear out any gas.
Then smell for gas, including near the oor.
If you smell gas, STOP! Follow “B” in the
safety information on page 20. If you don’t
smell gas, go to the next step.
6. Press in and turn control knob counter-
clockwise to the PILOT position.
Press in control knob for ve (5) seconds
(see Figure 34).
Note: You may be running this heater for
the rst time after hooking up to gas sup-
ply. If so, the control knob may need to be
pressed in for 30 seconds or more. This will
allow air to bleed from the gas system.
7. With control knob pressed in, press and
release ignitor button. This will light pilot.
The pilot is attached to the rear of the front
burner. If needed, keep pressing ignitor
button until pilot lights.
Note: If pilot does not stay lit, contact a
qualied service person or gas supplier for
repairs. Until repairs are made, light pilot
with match. To light pilot with match, see
Manual Lighting Procedure.
8. Keep control knob pressed in for 30 seconds
after lighting pilot. After 30 seconds, release
control knob.
• If control knob does not pop out when
released, contact a qualied service person
or gas supplier for repairs.
Note: If pilot goes out, repeat steps 4
through 8.
AUTO MAN
Control Knob
Ignitor Button
Figure 31 - Remote Selector Switch,
Control Knob and Ignitor Button
Remote Selector
Switch
OPERATING HEATER
Continued
Figure 32 - Pilot (Propane/LP)
Ignitor
Electrode
Pilot Burner
Figure 33 - Pilot (Natural)
Ignitor
Electrode
Pilot Burner
9. Slightly push in and turn control knob coun-
terclockwise to the ON position.
10. Press the on/off key on the remote control
to turn on appliance main burner. Wait at
least 5 seconds before setting desired ame
height.
11. Press the up or down key until the small
triangle is to the left of large ame icon
at the top of LCD display (see Figure 36,
page 22). Press the left or right key to set
the desired ame height.
CAUTION: Do not try to ad-
just heating levels by using the
equipment shutoff valve.
TO TURN OFF GAS
TO APPLIANCE
Shutting Off Heater
Press on/off key on remote control and turn
control knob clockwise to the OFF posi-
tion (see Figure 31).
Shutting Off Burners Only (pilot stays lit)
Press the on/off key on remote control or turn
control knob clockwise to the PILOT
position.
MANUAL LIGHTING
PROCEDURE
1. Follow steps 1 through 7 under Lighting
Instructions, column 1.
2. Depress control knob and light pilot with
match.
3. Keep control knob pressed in for 30 seconds
after lighting pilot. After 30 seconds, release
control knob. Now follow steps 9 through
11 under Lighting Instructions.
