Desa VC42 Quick start guide

MODELS (V)C42, (V)C42I, (V)C42H, (V)C42L, (V)C42LI,
(V)C42LH AND CWC42C
For more information, visit www.desatech.com
SAVE THIS BOOK
This book is valuable. In addition to instructing you
on how to install and maintain your appliance, it also
contains information that will enable you to obtain re-
placement parts or accessory items when needed. Keep
it with your other important papers.
-
place or for use with a vented gas log approved to ANS
Z21.60, Z21.84 or RGA2-72 standards or for use with a vent-
free gas log heater approved to ANS Z21.11.2 standard. A
DESAHeating Productshood mustbeinstalled whenusing
a vent-free log heater (see Accessories, page 18).
      
     



etc.) should be contacted before installation to deter-
mine the need to obtain a permit.


WOOD BURNING FIREPLACE
OWNER’S OPERATION AND INSTALLATION MANUAL
ICC-ES #ESR-2542

www.desatech.com 107826-01J2
TABLE OF CONTENTS
Safety .................................................................. 2
Specications ...................................................... 3
Fireplace Installation............................................ 4
Venting Installation .............................................. 7
Optional Gas Line Installation............................ 13
Operation and Maintenance .............................. 14
Technical Service............................................... 15
Parts .................................................................. 16
Replacement Parts............................................ 18
Accessories ....................................................... 18
-
  
service or maintenance can

loss of life. Refer to this manual
for assistance or additional in-
   
installer or local distributor.


Before beginning installation of this replace,
read these instructions through completely.
• This DESA Heating Products replace and
its components are safe when installed
according to this installation manual.
Unless you use DESA Heating Products
components, which have been designed
and tested for the replace system, you
may cause a re hazard.
• The DESA Heating Products warranty will
be voided by and DESA Heating Products
disclaims any responsibility for the following
actions.
a. Modification of the fireplace, com-
ponents, doors, air inlet system and
damper control.
b. Use of any component part not manu-
factured or approved by DESA Heating
Products in combination with a DESA
Heating Products replace system.
Proper installation is the most important step
in ensuring safe and continuous operation of
replace. Consult the local building codes as
to the particular requirements concerned with
the installation of all factory built replaces.
SAFETY


the manufacturer's instructions


use with this insert.

 

or liquids in the vicinity of this
or any other appliance.
 
appliance should be located
     
furniture and draperies.
 

the appliance.
    -




only. When processed wood
      
poke or stir the logs while they

that have been evaluated for

     
caution markings on packaging
prior to use.

be used as a substitute for a fur-

for supplemental heat only.

www.desatech.com
107826-01J 3
SPECIFICATIONS
0" TO
BOTTOM
(LEFT SIDE ONLY)
OUTSIDE AIR
TOP SPACERS
BACK AND
SIDES
3/4" AIR
SPACE
HEARTH
EXTENSION
66" X 20"
PERPENDICULAR
12"
EACH SIDE
NOT LESS
THAN 12" TO
1" AIRSPACE
TO COMBUSTIBLE
COMBUSTIBLE
WALL BOARD
0" TO
MATERIAL
NO COMBUSTIBLE
MATERIAL ON FACE
SIDEWALL
GAS LINE
KNOCK OUT
AIR KIT
KNOCK OUTS
GAS LINE
KNOCK OUTS
ELECTRICAL
OUTLET
LEFT SIDE
RIGHT SIDE
8.125"
12.625"
14.25"
44.25"
40"
48"
42"
24" 37"
7"
39"
16.25"
29.5"
2.5"
10.625"
1"
12"
2.5" 8.125"
6.75"
10.625"
12.25"
48"
2.25"
0.625"
36"
22.5"
SQUARE CHASE-TOP
TERMINATION
ROUND TOP TERMINATION

www.desatech.com 107826-01J4
FIREPLACE INSTALLATION

To determine safest and most efcient location
for replace, you must take into consideration
the following guidelines:
1. Location must allow for proper clearances
(see Figures 1 and 2).
2. Consider a location where replace will
not be affected by drafts, air conditioning
ducts, windows or doors.
3. A location that avoids cutting of joists or
roof rafters will make installation easier.
4. An outside air kit is available with this
replace (see Optional Outside Air Kit on
page 7).


Back and sides of replace 3/4" minimum*
Floor** 0" minimum
Perpendicular wall to opening 12" minimum
Top spacers 0" minimum
Mantel clearances see Mantels, page 6
Chimney outer pipe surface 2" minimum
* Not required at nailing anges
** See step 2 of Framing
-
quiredairspaceswithinsulation
or other materials.

Minimum height of chimney, measured from
base of replace to ue gas outlet of termina-
tion, is 14.5 feet for straight ue or a ue with
one elbow set. Maximum distance between
elbows is 6 feet. For systems with two elbow
sets, minimum height is 22 feet. Maximum
height of any system is 50 feet. This measure-
ment includes replace, chimney sections and
height of termination assembly at level of ue
gas outlet (see Figure 18, page 11).

1. Frame opening for replace using dimen-
sions shown in Figures 1 and 2.
2. If replace is to be installed directly on
carpeting, tile (other than ceramic) or any
combustible material other than wood
ooring, replace must be installed upon
a metal or wood panel extending full width
and depth of replace.
23.5"
44.75"
48.75"
Figure 1 - Framing Dimensions
59.3"
19.5"
27.5"
83.8"
Maintain 3/4"
Clearance at
Sides and
Back of
Fireplace
3/4" Clearance Not
Required at Nailing Flanges
Figure 2 - Corner Installation
3. Set replace directly in front of this open-
ing and slide unit back until nailing anges
touch side framing.
4. Check level of replace and shim with
sheet metal if necessary.
5. Before securing fireplace to prepared
framing, ember protector must be placed
between hearth extension (not included)
and under bottom front edge of replace
to protect against glowing embers falling
through. If replace is to be installed on
a raised platform, a Z-type ember protec-
tor (not included) must be fabricated to
t your required platform height. Ember
protector should extend under replace a
minimum of 1 1/2". Ember protector should
be made of galvanized sheet metal (28
gauge minimum) to prevent corrosion.
6. Using screws or nails, secure replace to
framing through anges located on sides
of replace.

www.desatech.com
107826-01J 5
HEARTH ExTENSION
A hearth extension projecting a minimum of
20" in front of and a minimum of 12" beyond
each side of replace opening is required to
protect combustible oor construction in front
of replace. Fabricate a hearth extension
using a material which meets the following
specications: a layer of noncombustible,
inorganic material having a thermal conductiv-
ity of K=0.84 BTU IN/FT, HR. F (or less) at 1"
thick. For example, if material selected has
a K factor of 0.25, such as glass ber, the
following formula would apply:
0.25 x 1.0" = 0.30" thickness required
0.84
Thermal conductivity "K" of materials can be
obtained from manufacturer or supplier of
noncombustible material. If hearth extension
is to be covered, use noncombustible mate-
rial such as tile, slate, brick, concrete, metal,
glass, marble, stone, etc. Provide a means
to prevent hearth extension from shifting and
seal gap between replace frame and hearth
extension with a noncombustible material
(see Figure 3).

is to be installed only as shown

FIREPLACE INSTALLATION
Continued
Figure 3 - Hearth Extension
Seal Gap
Fireplace Front
Ember Protector
Fireplace Front
Raised Hearth
Fireplace Front
Elevated
Ember Protector
Ember Protector
Seal Gap
Hearth
Extension
Seal Gap
Fireplace Front
Ember Protector
Fireplace Front
Elevated
Do Not Block Louver
Ember Protector
Seal Gap
Hearth
Extension


NO

www.desatech.com 107826-01J6

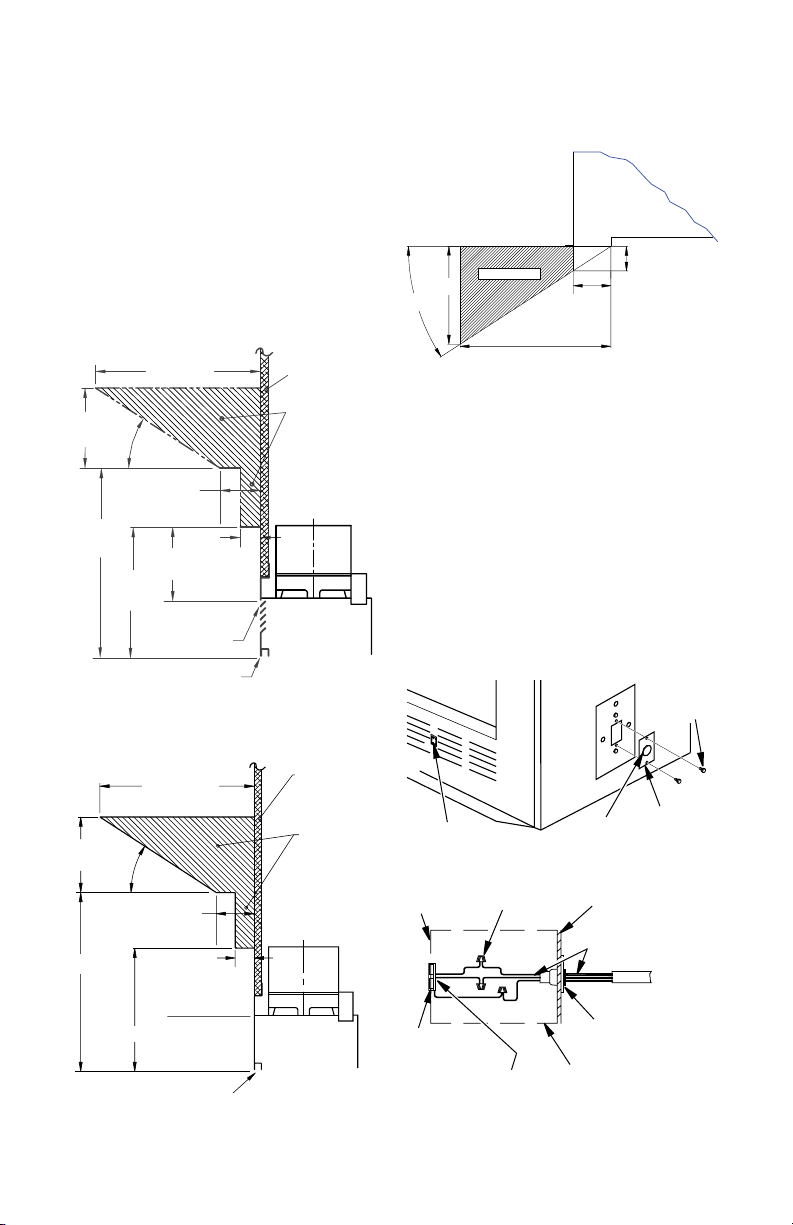

Mantels or any other combustible material
may come up to side edge of black metal face
of replace if projection from front face falls
within limits shown in Figure 6.
FIREPLACE INSTALLATION
Continued
12 1/4" Ref.
6"
Ref.
15" Min.
12" Min.
11/2" Max.
3" Nom.
33°
Combustible
Material
Safe
Zone for
Projection of
Combustible
Materials
Fireplace Opening
Upper
Section of
Fireplace
Figure 4 - Mantel Clearances to
Combustible Material (with Louver)
Electrical
Bushing
Electrical
Cover
Plate
Rocker
Switch
Figure 7 - Fan Switch-Electrical Bushing
Electrical
Housing
Wire Nut (3x)
(Not Supplied)
Outer Wrapper
of Fireplace
Electrical Cover
Plate and
Electrical Bushing
Fireplace Chassis
Ground
To Power
Source
Receptacle
(Supplied)
Power Source Wiring
(Not Supplied)
Prewired Receptacle
and Ground

A mantel may be installed if desired (see
Figures 4 and 5). Woodwork such as wood
trims, mantels or any other combustible ma-
terial projecting from front face, must not be
placed within 12" of replace opening and
within 9" of top louver opening. Combustible
materials above 12" and projecting more than
1 1/2" from replace must not be placed less
than 12" from top opening of replace (NFPA
STD 211, Sec. 7-3.3.3).
Figure 5 - Mantel Clearances to
Combustible Material (without Louver)
12 1/4" Ref.
1 1/2"
Max.
Upper Section
of Circulating
Fireplace
6"
Ref.
9"
Min.
33°
3" Nom. *Note: Drawing
Not To Scale
Safe Zone For
Projection of
Combustible
Materials
Combustible
Material
15"
Min.
12"
Min.
Fireplace Opening
To p of
Louvered
Opening

Fan or blower kit is optional with this replace
(circulating models only). Use of blowers or
fans other than those manufactured by DESA
Heating Products voids warranty. Fan is oper-
ated by pressing rocker switch (see Figure 7)
in lower right hand corner of replace face.
Blower is operated by turning control knob
(not shown).
Fan/blower kit electrical connections are
made through electrical cover plate on side
of replace a shown in Figure 7.
FIREBOX
SAFE ZONE
Figure 6 - Side Mantel Clearance
Top View of Fireplace
Min. 12" from
Perpendicular Side Wall
3"
2" Max.
33°
8"
Sheet
Metal
Screws

www.desatech.com
107826-01J 7
Figure 9 - Lineal Gain
Figure 8 - Outside Air Kit
Secure to Collars with Metal Tape, Screws
or Straps (Min. of 1/4" x 20" in size)
Air Inlet
Location
Must Allow
For Bushes
or Snow
Vent Hood
Required for
Wall Installation
Air Inlet
Eyebrow
Vented Crawl Space
(Check Local Codes
Before Installing in a
Vented Crawl Space)
Wiring Instructions
1. Remove electrical cover plate with bushing
from replace by removing 2 sheet metal
screws as shown in Figure 7, page 6.
2. Slide power source wiring through electrical
bushing opening and electrical cover plate
and make all necessary connections.
3. Slide all wiring connections in electrical
housing as shown in Figure 7, page 6.
4. Secure electrical cover plate with screws
previously removed.
Note: Electrical housing and cover plate have
sharp edges. Wear protective gloves.
VENTING INSTALLATION


Installation of outside air kit should be per-
formed during rough framing of replace due
to the nature of it's location. Outside combus-
tion air is accessed through a vented crawl
space (AK4F) or through a sidewall (AK4).

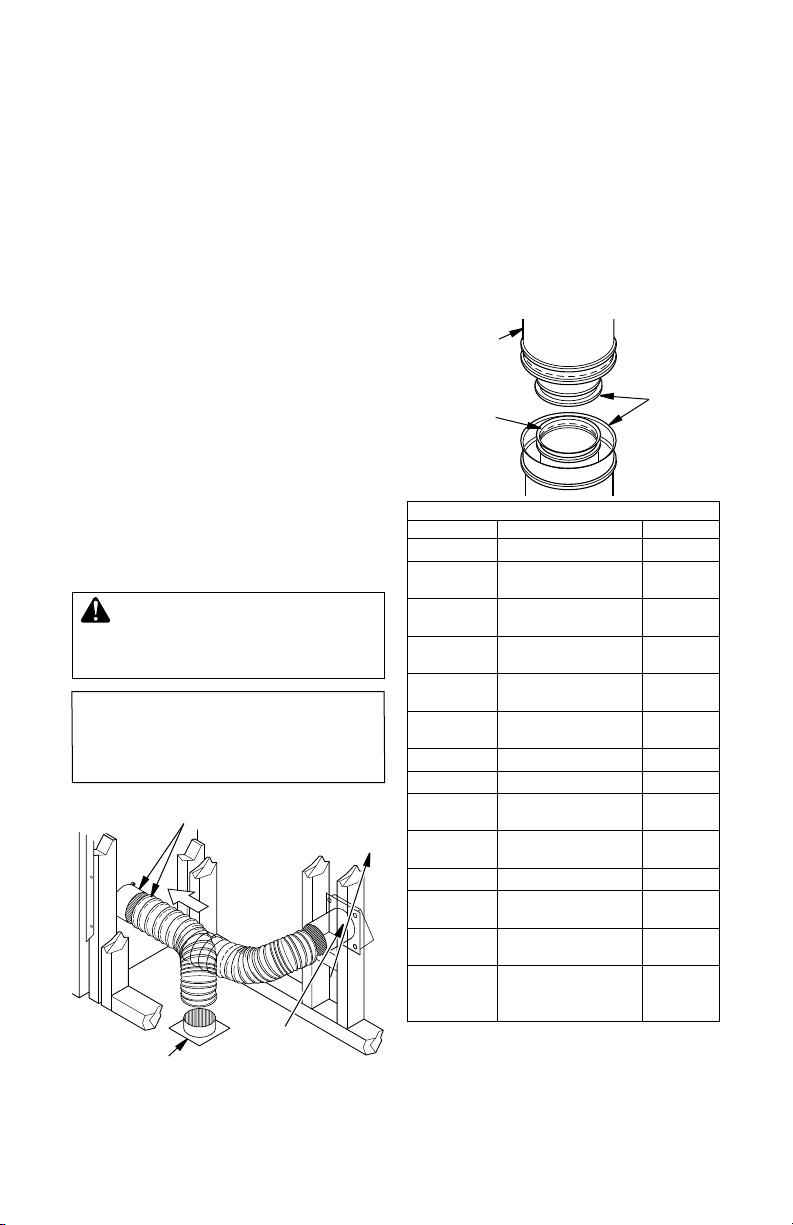

See Figure 25 on page 15 for instruction of
operating air kit.
   
inlet ducts shall not terminate
in attic space.
    
      

termination.
FIREPLACE INSTALLATION
Continued

PART NO. DESCRIPTION GAIN
36" Fireplace 37 1/2"
12-8DM
12-8HT Pipe Section 10 5/8"
18-8DM
18-8HT Pipe Section 16 5/8"
24-8DM
24-8HT Pipe Section 23 5/8"
36-8DM
36-8HT Pipe Section 34 5/8"
48-8DM
48-8HT Pipe Section 46 5/8"
RT-8DM Round Termination 6 7/8"*
RTL-8DM Round Termination 7 3/4"*
RTT-8DM Round Termination
with Slip Section
6 7/8" to
23 1/8"*
RTTL-8DM Round Termination
with Slip Section
8 1/2" to
21 1/2"*
ET-8DM Square Chase-Top 12"*
ETO-8DM Square Chase-Top
with Mesh 12"*
ETL-8DM Square Chase-Top
with Slip Section 7" to 15"*
ETLO-8DM
Square Chase-Top
with Mesh & Slip
Section
12" to
25 1/2"*
* The lineal gain for the terminations is
measured to the ue gas outlet height.
Hemmed
End
8" Stainless
Inner Pipe
12 3/8"
Galvanized
Outer Pipe

DESA Heating Products chimney system
consists of 12", 18", 24", 36" and 48" snap-
lock, double-wall pipe segments, planned
for maximum adaptability to individual site
requirements. Actual lengths gained after t-
ting overlaps must be taken into consideration
(lineal gain) and are given in lineal gain chart
(see Figure 9). Lineal gain is actual measur-
able length of a part after two or more parts
are connected. For Canada, use chimney parts
designated "HT".

www.desatech.com 107826-01J8
VENTING INSTALLATION
Continued
Figure 10 - Typical Offset Installation
Return
Elbow
Offset
Elbow
Return
Elbow Offset
Elbow
6' Max.
6' Max.
6' Max.
6' Max.
6' Max.
6' Max.
Return
Elbow
Offset
Elbow
Offset
Elbow
Return
Elbow
A B C
Offset
Elbow
Ceiling
Support Pipe
12S-8DM
Return
Elbow


Each double wall chimney section consists of
a galvanized outer pipe, a stainless steel in-
ner ue pipe and a wire spacer. Pipe sections
must be assembled independently as chimney
is installed. When connecting chimney directly
to replace, inner ue pipe section must be
installed rst with lanced side up. Outer pipe
section can then be installed over ue pipe
section with hemmed end up. Press down
on each pipe section until lances securely
engage hem on replace starter. Wire will
assure proper spacing between inner and
outer pipe sections.
Note: For Canada, use chimney parts des-
ignated HT.
Opening in collar around

not be obstructed. Never use

enclosure.
Continue to assemble chimney sections as
outlined, making sure that both inner and
outer pipe sections are locked together. When
installing double wall snap-lock chimney to-
gether, it is important to assure joint between
chimney sections is locked. Check by pulling
chimney upward after locking. Chimney will
not come apart if properly locked. It is not
necessary to add screws to keep chimney to-
gether (exception - see Figure 12, page 9).

1. To achieve desired offset, you may install
combinations of 12", 18", 24", 36" and 48"
length of double wall pipe (see offset chart
and Figure 10).
Note: For systems with 2 elbow sets, mini-
mum height is 22 feet. Maximum height
for any system is 50 feet.
2. Chimney weight above offset rests on
return elbow. Straps must be securely
nailed to rafters or joists (see Figure 11,
details A and B on page 9).
3. Maximum length of pipe between supports
(return elbow or 12S-8DM) is 6' of angle
run. Maximum of two 6' angle run sections
per chimney system (see Figure 10).
4. All pipe connections between offset and
return must be secured with two screws
on outer pipe only (see Figure 12, page
9). Do not penetrate inner stainless.
    
collar around chimney at top of


chimney enclosure.

www.desatech.com
107826-01J 9
Figure 12 - Elbow Offset
B
A
Screws
Figure 11 - Ceiling Support Pipe 12S-8DM
2" Min.
Straps Straps
Straps
Straps
Detail A
Return Elbow
Detail B Angle
Firestop
See Detail A
See Detail B
OFFSET CHART (22-50 FT. SYSTEM HEIGHT)
VENTING INSTALLATION
Continued
Ceiling Support
Pipe 12S-8DM
 RISE 
A B 48"  24" 18" 12"
4 3/8"16 3/8" ELBOW SET ONLY
9 3/4"25 1/2"1
12 3/4"30 3/4"1
15" 34 3/4"1
18" 40" 1 1
21 1/4"46 1/4"1
23 3/4" 49 1/4"1 1
27 3/4"56 3/4"1
30" 60 3/4"1 1
33" 66" 1 1
36" 71" 1 1
38 1/4" 75" 2
41 1/4"80 1/4"1 1 1
45" 86 3/4"2
46 3/4" 89 1/2"1 1 1
51" 97" 1 1
53 1/4" 101" 2 1
56 1/4"106 1/4"2
59 1/4"111 1/2"1 1 1
61 3/4"115 1/2"2 1
64 3/4"120 3/4"2 1
68 1/4" 127" 1 2
70" 130" 2 1 1
74 1/4"137 1/2"1 2 1
76 3/4"141 1/2"1 2 1
79 3/4"146 3/4"4

www.desatech.com 107826-01J10
VENTING INSTALLATION
Continued
30"
(76.2 cm)
Minimum Measurements
Opening "A"
16
3
/
8
"
(48.3 cm)
2"
(5.1
cm)
2"
(5.1
cm)
2"
(5.1 cm)
4. Remove shingles around opening mea-
sured. Cut out this section.
5. Add next sections of pipe until end
penetrates roof line. Check to see that
proper clearances are maintained. Extend
chimney by adding sections of double wall
pipe until pipe is minimum of 30" above
highest point of roof cutout. Termination
and chimney must extend a minimum of
36" above highest point where it passes
through roof.
Figure 15 - Roof Opening Measurements


Determine ashing to be used with roof open-
ing chart. Slide ashing over pipe until base is
at against roof. Replace as many shingles as
needed to cover exposed area and ashing
base. Secure in position by nailing through
shingles (see Figure 16, page 11). DO NOT
NAIL THROUGH FLASHING CONE.

When installing ashing on a metal roof, it
is required that putty tape be used between
ashing and roof. Flashing must be secured
to roof using #8 x 3/4" screws and then sealed
with roof coating to prevent leakage through
screw holes. A roof coating must also be ap-
plied around perimeter of ashing to provide
a proper seal.

Firestop spacers are required at each point
where chimney penetrates a floor space.
Their purpose is to establish and maintain
required clearance between chimney and
combustible materials. When pipe passes
through a framed opening into a living space
above, restop must be placed onto ceiling
from below as shown in Figure 13.
They also provide complete separation from
one oor space to another or attic space as
required by most codes. When double wall
pipe passes through a framed opening into
an attic space, restop must be placed into
an attic oor as shown in Figure 14.
Figure 13 - Firestop Spacer with Living
Space Above Ceiling
Figure 14 - Firestop Spacer with Attic
Space Above Ceiling

To maintain a 2" clearance to pipe on a roof with
a pitch, a rectangular opening must be cut.
1. Determine center point where pipe will
penetrate the roof.
2. Determine center point of the roof. Pitch
is the distance the roof drops over a given
span, usually 12". A 6/12 pitch means that
the roof drops 6" for each 12" measure
horizontally down from roof rafters.
3. Use roof opening chart (Figure 15) to
determine correct opening length and
ashing required.
Pitch Slope Opening



Flat 0° 15" V6F-8DM
0-6/12 26.6° 19 1/8" V6F-8DM
6/12- 12/12 45.0° 24 1/4" V12F-8DM
If area above is a living space, install
restop below framed hole.
If area above is an attic or insulated area,
install restop above framed hole.

www.desatech.com
107826-01J 11
Nail Only
Outer
Perimeter
of Flashing
Storm Collar
Underlap Shingles
at Bottom
Overlap
Shingles Top
and Sides Only
Figure 16 - Flashing Installation
Figure 17 - Storm Collar
Chimney
Pipe
Waterproof
Caulk
Storm
Collar Flashing
Storm Collar Installation (SC1 or SC2)
Place storm collar over pipe and slide down
until it is snug against open edge of ashing
(see Figure 17). Use SC1 for all round ter-
minations and SC2 for all terminations with
slip sections. Apply waterproof caulk around
perimeter of collar to provide a proper seal.
Attach Bracket
Tabs to
Outer Pipe
(3 Places)
Secure with
Screws
RTL-8D
Level of
Flue Gas
Outlet
Caulk
Collar
Flashing
Underlap Shingles
Bottom Only
Figure 18 - Termination
Overlap
Shingles Top
and Sides
Terminations with 16" slip pipe sections are
available. RTT-8DM and RTTL-8DM are
approved for flashing installations. When
needed, these adjustable terminations may
be used in combination with pipe assembly
to achieve correct chimney height.
Note: In the rare instance there is a problem
with side driven rain or wind or chimney is
not drafting properly, an ADS-8DM (Anti-Draft
Shield) can be used with round terminations.

Instructions for chase installations are includ-
ed with chase style termination chosen. In a
multiple chase installation, be sure to provide
adequate distance between terminations to
prevent smoke spillage from one termination
to another. We suggest that terminations be
separated at least 24", center to center and
stacked at a vertical height difference of 18"
(see Figure 19).
Note: If a decorative shroud is to be installed,
contact manufacturer for specications.
18" MIN. TYP.
24" MIN. 24" MIN.
Figure 19 - Multiple Chase Installation
VENTING INSTALLATION
Continued
Terminations/Spark Arrestor
Fireplace system must be terminated with
listed round top or chase terminations. In any
case, refer to installation instructions supplied
with termination. Terminations approved for
this replace are RT-8DM and RTL-8DM that
can be used for ashing or chase and ET-
8DM, ETO-8DM, ETL-8DM and ETLO-8DM
for chase style termination only. Figure 18
shows an RTL-8DM round top termination.
-
-
low the installation instructions
provided with the termination
being used.
Flashing
Cone

www.desatech.com 107826-01J12
VENTING INSTALLATION
Continued
30E-8DM
EFFECTIVE HEIGHT
OF TERMINATION CAP
EFFECTIVE HEIGHT
OF TERMINATION CAP
EFFECTIVE HEIGHT
OF TERMINATION CAP
EFFECTIVE HEIGHT
OF TERMINATION CAP
MINIMUM
HEIGHT
14.5 FT.
MINIMUM
UP TO
6FT. MAX.
UP TO
6FT. MAX.
HEIGHT
14.5 FT.
MIN. HEIGHT
OF 22 FT. (WITH
2 ELBOW SETS)
MAX. HEIGHT OF
50 FT.
MAX. HEIGHT
50 FT.
(ANY SYSTEM)
30E-8DM
Figure 21 - Typical Residential Installations
10'
2' Min.
10'
3' Min.
2' Min. 3' Min.
Level of
Flue Gas
Outlet
Figure 20 - 10 Foot Rule

All ue gas outlet chimney terminations must
extend a minimum of 3 feet in height above
highest point where it passes through roof and
must be at least 2 feet above highest point of
the roof that is within a horizontal distance of
10 feet (see Figure 20).

Combustible materials, such as wallboard,
gypsum board, sheet rock, drywall, plywood,
etc., may make direct contact with sides and
top around replace face. It is important that
combustible materials do not overlap face
itself. Brick, glass, tile or other noncombustible
materials may overlap front face provided
they do not obstruct essential openings such
as louvered slots. When overlapping with
a noncombustible facing material, use only
noncombustible mortar or adhesive.

www.desatech.com
107826-01J 13

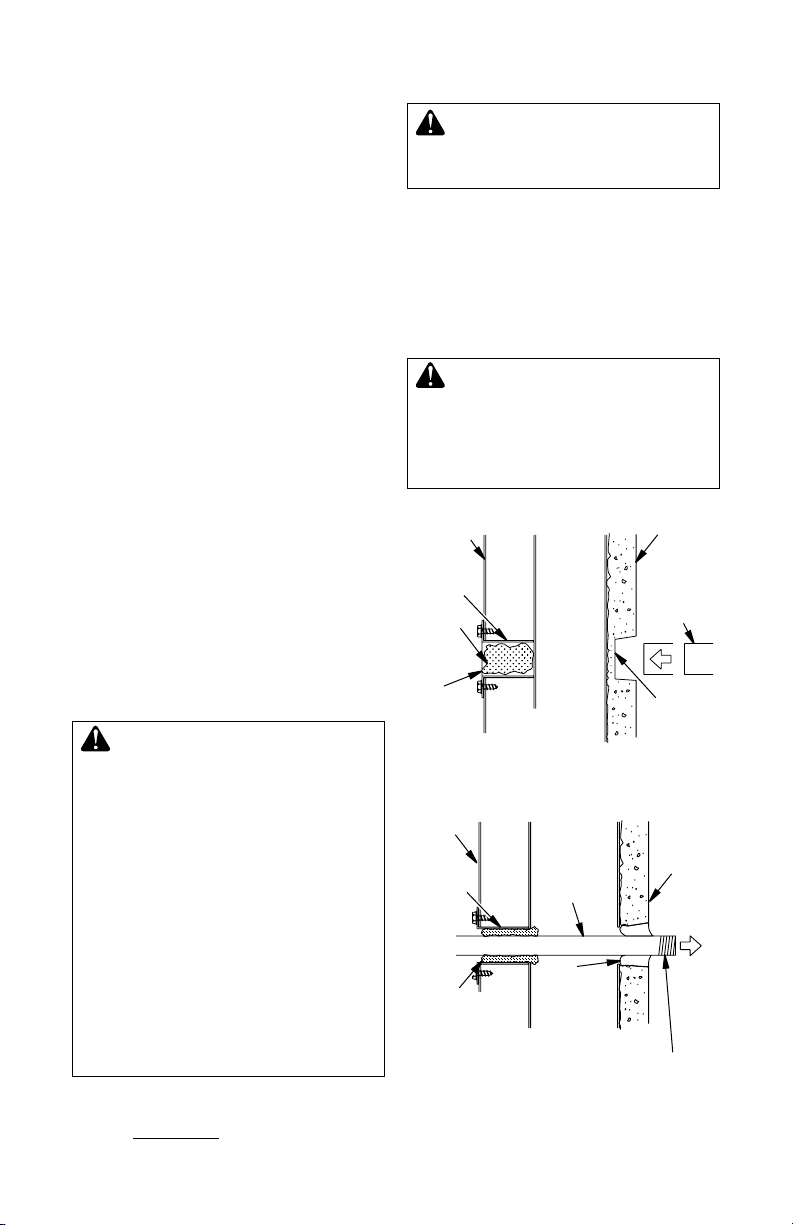

OPTIONAL GAS LINE INSTALLATION
Figure 22 - Gas Line Knockout
Side
Firebrick
Finished
Side
Refractory
Knockout
Plug
Outside of
Fireplace
Gas Line
Conduit
Insulation
Gas
Conduit
Cover
1/2" Dowel
Gas line hook up should be done by your
supplier or a qualied service person.
Note: Before you proceed, make sure your
gas supply is turned off.
Use only a 1/2" black iron pipe and appropri-
ate ttings.
1. Remove knockout indentation on refracto-
ry or rebrick wall located above refractory
hearth oor. Knockout indentation must
be rmly tapped with any solid object,
such as a 1/2" dowel, until it is released.
Remove fragmented portions of refractory
(see Figure 22).
2. Remove gas line cover plate located on
either side of replace and pull out insu-
lation from gas line conduit sleeve. Save
insulation for reuse.
3. Run a 1/2" black iron gas line into replace
through rear at gas line conduit sleeve (if
using a raised platform, add height). Provide
sufcient gas line into replace chamber for
tting connection (see Figure 23).
Note: Secure incoming gas line to wood
framing to provide rigidity for threaded
end.
4. Repack insulation around gas line and into
sleeve opening. Seal any gaps between
gas line and refractory knockout hole with
refractory cement or commercial furnace
cement. Install gas appliance or cap off
gas line if desired.

connections must be tested for
leaks after installation is com-
pleted. After ensuring that gas
valveison,applysoapandwater
solution to all connections and

leak. Correct all leaks at once.

    


   
   
PERSON.
Note: A DESA Heating Products hood must
be installed when using an unvented gas log
set (see Accessories on page 18).

-
place with chimney removed.
If you install a decorative gas appliance (vent-
ed gas log), decorative gas appliance must
comply with the Standard for Decorative Gas
Appliance for Installation in Solid Fuel Burning
Fireplaces, ANS Z21.60, Z21.84 or RG 2-72
and shall also be installed in accordance with
the National Fuel Gas Code, ANSI 7223NFPA
54 latest edition.

   -
als and increasing the risk of
-
place to cook or warm food.
Seal
Opening
with
Refractory
Cement
Outside of
Fireplace
Gas
Line
Conduit
Repack
Insulation
Incoming
1/2" Black
Iron Pipe
Side
Firebrick
Finished
Side
Provide Enough Threaded
End for Fitting Connection
Figure 23 - Gas Line Installation

www.desatech.com 107826-01J14

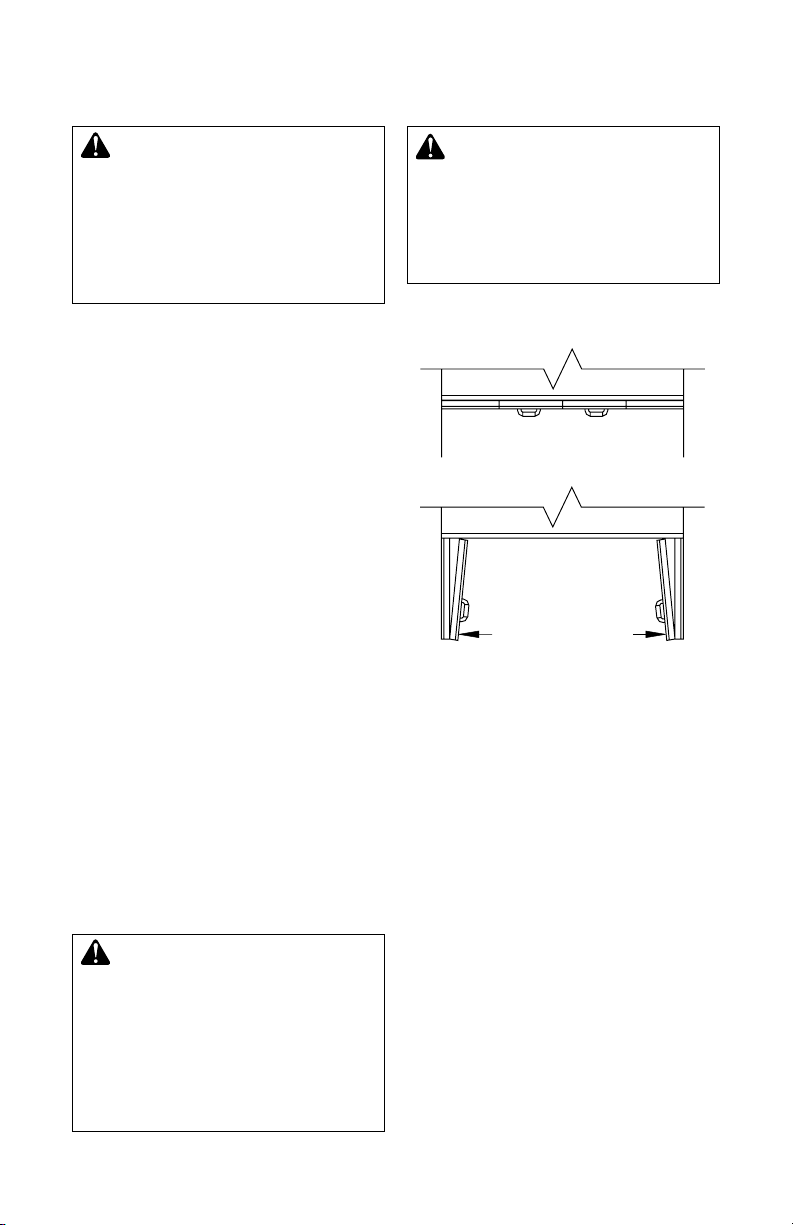

OPTIONAL GAS LINE INSTALLATION
Continued
    
has been used for wood burn-

becleanedof soot, creosoteand
    
cleaner. Creosote will ignite if
heavily heated.
OPERATION AND MAINTENANCE
Figure 24 - Glass Doors
Cleaning Glass
Clean glass with any commercial glass
cleaner or soap and water. Do not use any
abrasive material to clean glass. Do not clean
glass with any cool water if glass is still hot
from re and smoke.
A gas line or gas log lighter may be installed
for the purpose of installing a vented or vent-
free decorative gas appliance incorporating an
automatic shutoff device and complying with
the Standard for Decorative Gas Appliances
for Installation in Vented Fireplaces, ANSI
Z21.60 or American Gas Association draft
requirements for Gas Fired Log Lighters for
Wood Burning Fireplaces, Draft NO. 4 dated
August, 1993.
If you wish to install an unvented (vent-free)
gas log set, only unvented gas log sets which
have been found to comply with the standard
for unvented room heaters, ANSI Z21.11.2 are
to be installed in this replace.
   
a decorative vented gas log,
damper must be removed or
permanentlylockedinfullyopen
position and glass doors must
be in fully open position.

Glass doors are optional with this replace.
When replace is in operation, doors must be
fully opened or fully closed position only or a
re hazard may be created (see Figure 24).
A replace equipped with glass doors oper-
ates much differently than a replace with an
open front. A replace with glass doors has a
limited amount of air for combustion. Exces-
sive heat within replace can result if too large
a re is built or if combustion air gate is not
completely open.
The following tips should be used to assure
that both fireplace and glass door retain
their beauty and function properly. Both
ue damper and glass doors must be fully
opened before starting a re. This will provide
sufcient combustion air and maintain safe
temperatures in rebox.
IMPORTANT: Glass must be allowed to
warm slowly and evenly. Tempered glass
will withstand a gradual temperature rise to
550° F, which is more than a normal re will
generate. Such materials as pitch/wax laden
logs, very dry mill end lumber and large
amounts of paper or cardboard boxes can
create an excessively hot re and should not
be burned in this replace. Always keep re
back from doors and never allow ames to
contact glass.
  
equipped with glass doors
should be operated only with
doorsfullyopenedordoorsfully
closed.Doors, ifleft partlyopen,

   

Doors Fully Closed
Doors Fully Opened
Fireplace Front
Fireplace Front

www.desatech.com
107826-01J 15
Figure 25 - Damper and Air Kit Handle
OPERATION AND MAINTENANCE
Continued
OPEN CLOSE
Damper
Handle
Outside Air
Kit Handle
Keyway
Slot
Handle
Retainer
TECHNICAL SERVICE


The damper handle, which opens and closes
the damper blade, is located in upper front
face of replace. Pushing handle into the
left of keyway slot will free damper blade
to automatically open. Pushing handle into
the right will lock damper blade closed (see
Figure 25).
Outside air kit handle is located at left hand
side of fireplace (see Figure 25). Pulling
handle out will free outside air door to open.
Pushing handle in will lock door closed.
-
place grate with DESA Heating
Products model 109911-01 only.
This grate has been designed
to keep the operation of your

You may have further questions about installa-
tion, operation, or troubleshooting. If so, con-
tact DESA Heating, LLC at 1-866-672-6040.
When calling please have your model and
serial numbers of your heater ready.
You can also visit DESA Heating, LLC’s web
site at www.desatech.com.
-
tions and warranty information, please re-
fer to your homeowner's guide or contact
your authorized dealer.

www.desatech.com 107826-01J16
PARTS


9
12
25
20
30
17
8
1
5
21
2
34
18
11
14
3
41
13
22
10 6
31
7
36
37/38
39/40
35
28
29
15
27
26
16
16
27
4
32
33
19
23
24

www.desatech.com
107826-01J 17

NO. PART NO. DESCRIPTION 
1** Insulation Pan • • • • 1
2** Fireplace Top • • • • 1
3 107800-01 Fireplace Surround • • • • 1
4 106642-01 Air Rod Retainer • • • • 1
5** Damper Rod Retainer • • • • 1
6** Firebox Bottom • • • • 1
7** Firebox Surround • • • • 1
8** Air Separator • • • • 1
9 See Page 18 Left Refractory • • • • 1
10 See Page 18 Right Refractory • • • • 1
11 See Page 18 Rear Refractory • • • • 1
12 See Page 18 Bottom Rear Refractory • • • • 1
13 See Page 18 Bottom Front Refractory • • • • 1
14 ** Firebox Support Leg • • • • 4
15 106687-02 Damper Can Collar • • • • 1
16 107839-01 Screen Rod • • • • 2
17 ** Firebox Top Assembly • • • • 1
18 ** Air Kit Door Assembly • • • • 1
19 ** Face Weldment • • • • 1
20 107823-01 Smoke Deector • • • • 1
21 ** Fireplace Top Insulation • • • • 1
22 ** Access Panel • • • • 1
23 107854-01 Right Refractory Bracket • • • • 1
24 107854-02 Left Refractory Bracket • • • • 1
25 109911-01 Grate • • • • 1
26 11418 Push-On Nut • • • • 2
27 107840-01 Stainless Screen • • • • 2
28 ** Collar Insulation • • • • 1
29 20023 Chimney Starter Collar • • • • 1
30 20027 Refractory Retainer • • • • 2
31 20046 Grate Retainer • • • • 2
32 20088 Door Stop • • • • 1
33 20090 Spring Clip • • • • 2
34 20280 Top Standoff • • • • 4
35 21171 Conduit Plate Cover • • • • 4
36 24460 Gas Conduit • • • • 2
37 107805-03 Bottom Louver Panel • • 1
38 107805-01 Bottom Smooth Panel • 1
39 107805-02 Top Louver Panel • • 1
40 107805-01 Top Smooth Panel • 1
41 110037-01 Electrical Duct Assembly • • • • 1

14607 Rocker Switch • 1
** Not a eld replaceable part
PARTS


This list contains replaceable parts used in your replace. When ordering parts, see Replace-
ment Parts on page 18 of this manual.


CWC42C
(V)C42(I,H)

www.desatech.com 107826-01J18




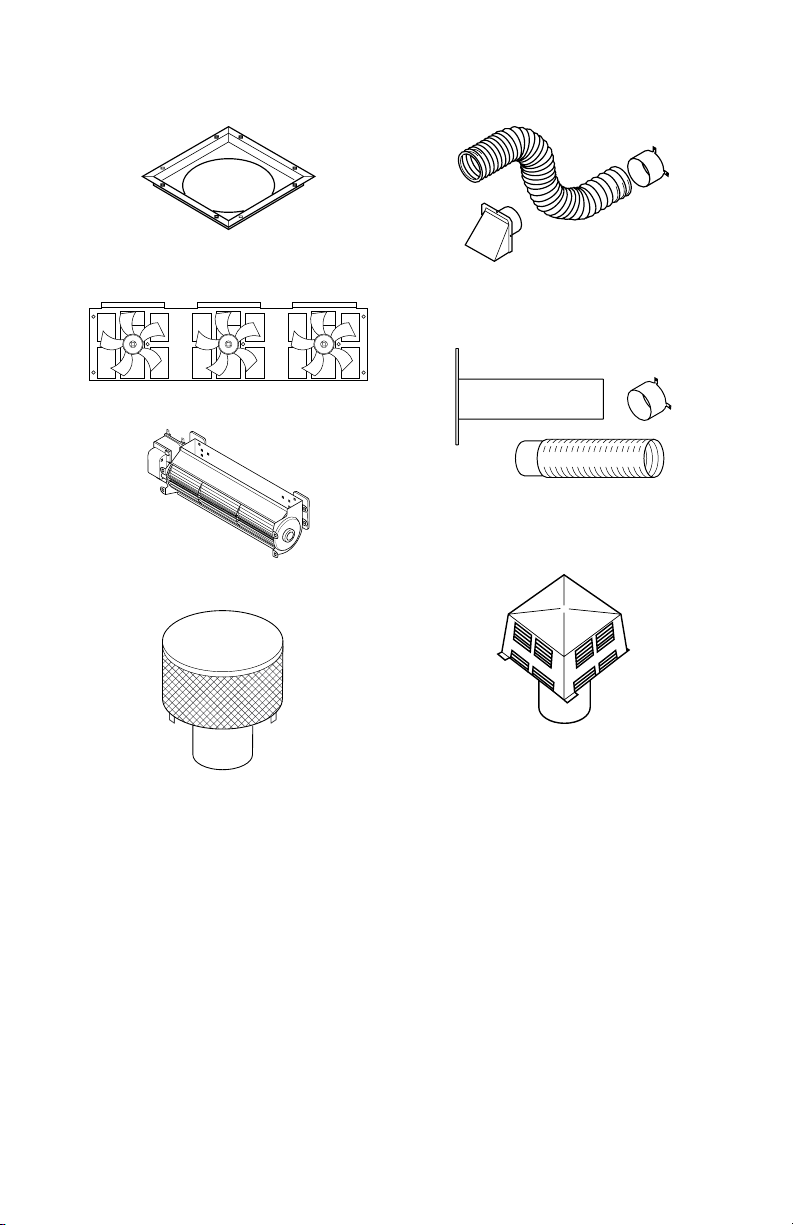

ACCESSORIES

 
 
 
 
 

(Round Top Termination Only)





Required when installing a vent-free gas log
in this replace.




BD42 - Black
BD42B - Brushed Brass
BD42P - Platinum
REPLACEMENT PARTS



Right - 108170-01
Rear - 108171-01
Bottom Rear - 108172-01



Right - 108170-02
Rear - 108171-02
Bottom Rear - 108172-02




Right - 107814-01
Rear - 107816-01
Bottom Rear - 107818-01



Right - 107814-02
Rear - 107816-02
Bottom Rear - 107818-02





www.desatech.com
107826-01J 19




















ACCESSORIES
Continued

107826-01
Rev. J
06/08
DESA Heating, LLC
2701 Industrial Drive
Bowling Green, KY 42101
www.desatech.com
1-866-672-6040
