Devine Artis MKII Series User manual

Artis MKII series
Passive speaker
User manual
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:18-07-2018 RV Revision date and author's initials: -

Introduction
Thank you for purchasing this Devine Artis MKII passive speaker. We advise that you read this user manual
in its entirety before unpacking the contents of the box so that you are familiar with all of the functionality
that this product has to offer. Please be sure to check that all of the parts and accessories listed below under
'box contents' are included in the package. In the event that the product does not function properly or if you
have any issues while operating it please remove the plug from the power socket and contact your dealer for
assistance.
Box contents:
– Devine Artis MKII passive speaker (10 12 or 15 inches)
Please inspect the device and the included accessories.
Should you discover that either the device or one or more of the included parts have been damaged or
rendered defective while in transit please contact your dealer directly.
Please note that the pictures in this user manual serve illustrative purposes only and may differ slightly from
the product you receive.
Contact:
Devine Pro Audio Products
Verrijn Stuartweg 18
4462 GE Goes
The Netherlands
Please do not send any products to this correspondence address.
Should you wish to send in a product for repair or for a refund, please contact your dealer for an RMA
Return Merchandise Authorisation).
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:18-07-2018 RV Revision date and author's initials: -

Safet instructions
Everyone involved with the installation operation and maintenance of this device must:
- Be qualified
- Be skilled
- Have read the instructions in this user manual
- Be sure that neither the device nor the included accessories are damaged. Should the device or the
included accessories be damaged please contact your dealer for more information.
- Ensure that the device is in good working condition and is safe to operate. Please follow the advice and
instructions as they are described in this user manual.
Damage caused by misuse and/or modifications made to the device are not covered by the warranty.
This device does not contain any parts that need to be repaired or replaced by the user. Should maintenance
or repairs be necessary they must be handled by a qualified technician.
Important information regarding health and safet :
- Do not remove any labels or stickers from this device.
- Do not leave any cables lying around.
- The device should not be opened up and any hardware or software that may be present should not be
modified.
- To achieve optimal performance inputs on this device should not be fed with a signal higher than
necessary.
- The device should only be used indoors; contact with water rain and moisture should always be avoided.
Do not place any objects containing liquids on top of the device.
- Remove the device from any nearby flames or heat sources; do not place it near flammable fluids gasses
or objects.
- Disconnect this device from the power supply if it will not be used for a longer period of time if maintenance
is necessary or if the device needs to be cleaned.
- Do not pull on the cable to remove a connector as this could cause damage.
- Do not use any cables other than the ones described in this manual. Do not use defective cables. Please
contact your dealer if the included or necessary cables do not function properly with this device.
- In the event that the device is exposed to extreme temperature changes (e.g. transported through a cold
outside environment into a warm indoor environment) it should not be turned on until it has reached room
temperature. This is necessary to prevent moisture from forming in the device which could lead to electric
shocks.
Guidelines and operation of this device:
- This device is intended for indoor use by adults.
- This device is not suitable for use by children and should always be operated by an adult.
- This device may only be used in a suitable environment where no damage to the device can occur. Do not
use the device in moist or dusty environments such as:
- indoor swimming pools where chlorine is used
- beaches where there is sand and salt
- outdoors
- indoors in spaces where intense heat sources are present or where it reaches temperature levels
that would be considered uncomfortable for a person
- Avoid impacts and collisions during use and transport. Do not transport the device while it is in use. Avoid
using excessive force when installing and operating the device.
- The user should become familiar with the functions of this device before using it.
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:18-07-2018 RV Revision date and author's initials: -
WARNING!
Keep this device awa from moisture, water and rain to avoid the chance of electric shocks.

- Should the device not be used in the manner described in this user manual damages or even injuries could
occur. Devine cannot be held responsible for any injuries or damages that occur as a result of improper use
of this product.
Storage and transport:
- This product is designed for mobile use. It can be transported separately as long as it’s well-protected
against shocks and collisions.
- This device is not designed for permanent (24/7) use. The expected lifespan of the device will not be
affected by occasionally turning the device off. Disconnect the device or turn off the power when it is not
actively in use.
- If the device will not be used for a longer period of time it should be disconnected and stored in a dust-free
environment.
- Do not expose the device to extreme temperature differences.
Housing
- Inspect the device's housing frequently and always just before use. Avoid operating the device if there are
large dents or cracks or if screws are missing. Do not use the device if the housing is not in good condition.
Contact your dealer or a qualified technician if you are unsure about the state of the device.
- Check the device and the screws for corrosion. Corrosion must not be present on this device. Contact your
dealer or a qualified technician if you find any corrosion on the screws.
Every power and signal connector should be securely mounted. Do not use the device if the connectors are
not secure.
Avoid dust and dirt build-up. Clean the device once a month by disconnecting it from the power supply and
wiping it down with a dry or slightly moist cloth. If the device is used frequently the cleaning intervals should
increase.
S mbol explanation:
WEEE: Ensure that this device is disposed of properly. This product falls under the WEEE
(Waste Electrical and Electronic Equipment) directive. The requirements of this directive apply
to all manufacturers and producers of electronic devices in the EU. Do not throw this product
away with regular rubbish. Please contact your local authority for more information about how
to recycle and dispose of these products in your region. By recycling this product in the proper
manner we can work together to ensure that we can continue to enjoy these kinds of
products and still protect the environment as much as possible from pollution.
CE: The CE logo indicates that this product meets the European norms and requirements to
which it must legally conform.
Onl suitable for indoor use: this product was only designed for indoor use. The maximum
environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit).
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:18-07-2018 RV Revision date and author's initials: -

Guidelines and operation of this device
The connection panels on the Artis 10 MKII 12 MKII and 15 MKII are almost identical.

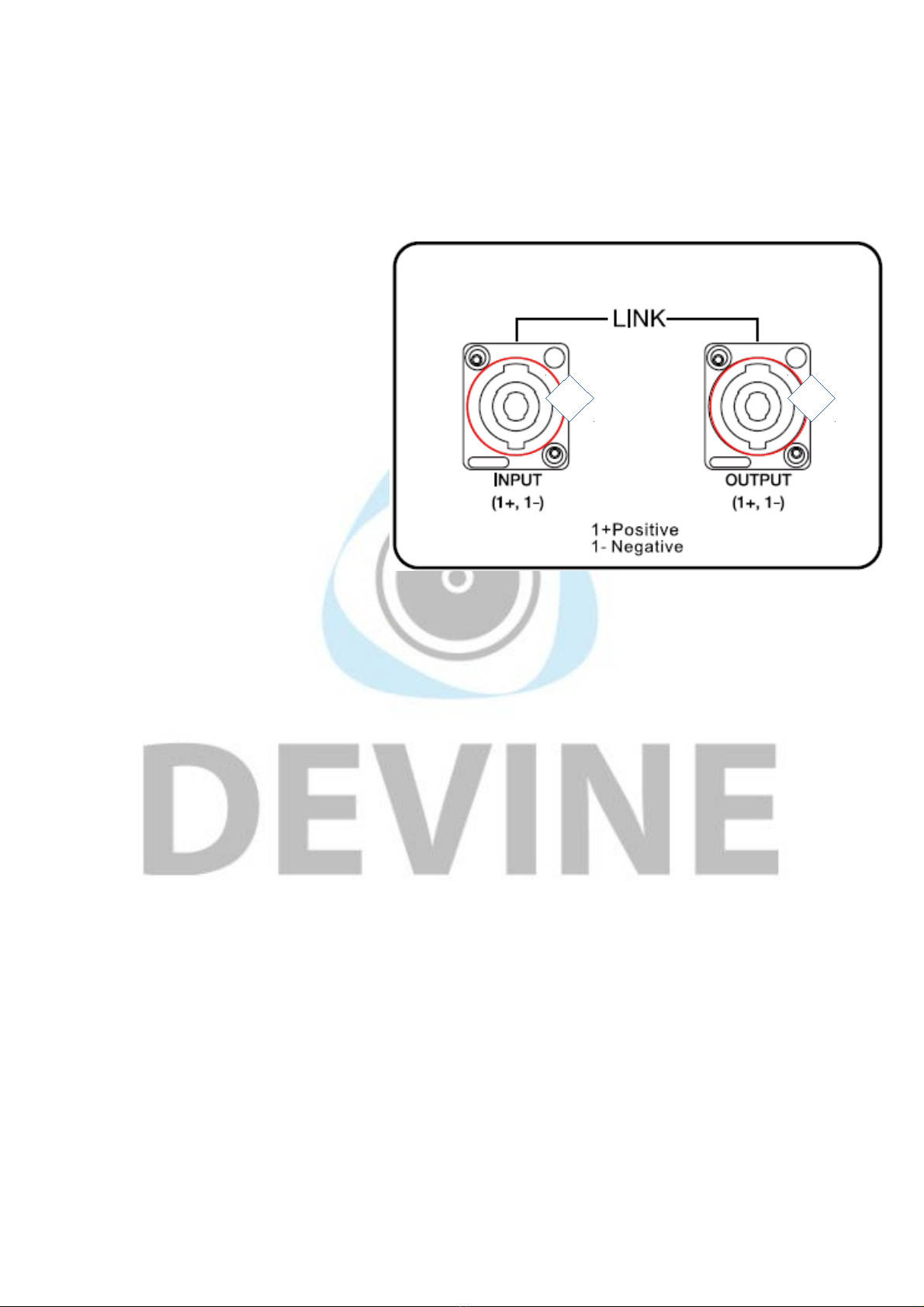

1. lockable speaker input
speaker connector
2. lockable speaker output
speaker connector
The following information applies to these
connectors:
- The speakers have an impedance of 8
ohms. Always choose an amplifier that can
provide at least the full RMS capacity of the
speaker with this impedance to ensure a
good balance between the two. The more
powerful the amplifier the less hard it
needs to work to deliver the power. Be
aware that with a high-power amplifier
however it's also easier to provide a
speaker with too much power. Always listen
carefully to the speaker and reduce the
volume if there is any distortion or crackles
in the sound.
- The lockable speaker connectors need to be turned by 90 degrees upon insertion in order to create a
secure connection. You'll hear a 'click' when they're connected properly. They can only be unlocked by
pulling the tab towards you and then turning them by 90 degrees in the opposite direction. This functionality
ensures a secure connection when the speakers are being used.
- Bear in mind that the impedance of a connection is halved if a speaker is connected in parallel. For
example: by connecting two 8 ohm speakers the joint impedance will be 4 ohms. The capacity is the sum of
the two speakers together and will be divided equally so long as the speakers are the same.
Most PA amplifiers can handle a load of 4 ohms per channel so it's usually possible to connect 2 speakers in
parallel to a PA amplifier. Always consult you amplifier's manual beforehand however to find out its limits and
make sure that it can handle this type of setup.
- The speaker connector terminals are always wired to +1/-1 which is standard for most speakers and
amplifiers.
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:18-07-2018 RV Revision date and author's initials: -
12 1 2

Operating the device
The Artis MKII speakers can be used for different purposes but it's important to be aware of the following
information beforehand in order to achieve optimal performance.
Warning before use
Devine's Artis MKII speakers are capable of producing volume levels that can cause temporary or permanent
hearing damage. Use these units with care and keep the volume at a reasonable level when possible. The
volume should ideally be set to a comfortable level when listening to music.
Devine cannot be held liable for any injuries or damage resulting from the use of this product.
General use
Housing
The Artis MKII speaker has a robust housing made of moulded plastic. While this is designed to withstand
regular mobile use it is not designed to withstand falls or damage by (relatively) sharp objects.
During use storage and transport ensure that the speaker cannot fall or be damaged by nearby objects that
could fall or move.
Handles
The Artis speakers are all equipped with a handle on the top and handles on both sides.
The handles are designed to make it easier to pick up and move the speakers only. They should never be
used as part of the speaker's installation. The use of harnesses or tension straps is not recommended when
stacking the speaker on top of a subwoofer for instance. If you do decide to use harnesses or straps
however ensure that the handles are not subjected to great forces as this is likely to cause damage.
Protection during transport
While the Artis MKII speakers can be transported they are not waterproof and caution is therefore advised if
they taken outside during rain or in adverse weather conditions. If they are exposed to moisture in any form
ensure that they are completely dry again before use. Failure to do so may result in a short circuit which
could cause permanent damage or injury. Exposure to moisture can also cause visible or invisible corrosion
which may cause damage in the long term.
Grille
The Artis MKII speakers are equipped with a metal grille on the front to protect the speaker components
behind. There is also acoustic foam behind the grille to prevent any unwanted matter from getting inside the
speaker. The grille should therefore not be removed.
Stand flange
The speaker is equipped with a 35 mm stand flange on the bottom which allows it to be easily mounted on a
stand. From an elevated position the speaker's high tones will travel further thereby reaching a larger
audience.
For optimal sound dispersion the middle of the speaker's woofer should ideally be placed at a height of
between 1.80 and 2.00 metres.
By means of a knob the stand flange can be tightened to hold the speaker firmly in place on the stand. As
well as being secure this also prevents undesirable vibrations and resonance.
When the speaker is mounted on a stand make sure that the stand is not placed anywhere it will be in the
way and/or could be knocked over. The legs on a stand should always be fully extended to ensure optimal
stability.
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:18-07-2018 RV Revision date and author's initials: -

The 35 mm stand flange can also be used to mount the speaker on a suitable wall bracket. Consult the
manual or instructions that come with your wall bracket to ensure proper installation before mounting the
speaker.
Audio technolog
The Artis MKII speaker series features the very latest in audio technology. By adhering to the following tips
and instructions you can make the most of everything this speaker has to offer for the very best audio and
performance quality possible.
When using as a monitor
The Artis MKII speakers are suitable for use as a (floor) monitor and can be placed at an angle so that the
sound is directed towards artists performers or presenters. No extra adapters or supports are required.
Ensure that the speaker is not pushed across surfaces as this may damage the speaker's housing.
Using with external equipment
It's possible to use the Artis MKII speakers with external equipment like crossovers equalisers and speaker
management systems. Bear in mind that using external equipment may change the character of the
speaker's sound. Normally it's best to ensure that the speaker's 2-band EQ is set to the neutral position
before connecting external equipment.
In order to use the Artis MKII passive speakers properly a power amplifier with sufficient capacity is always
required.
Using together with a subwoofer
When you want to use the Devine Artis MKII speakers in combination with a separately available subwoofer
it's best to choose one that's a size bigger than your speaker which will help to ensure an optimal sound.
Working with two separate amplifiers allows you to use a crossover which means you can efficiently divide
the frequencies of your audio signal before they are amplified. With passive speakers it's common to use
two amplifiers and a crossover. The crossover separates the incoming signal at line level creating high and
low frequencies that are each sent to an appropriate amplifier. This is by far the most efficient way to power
your sound system and also have control over among other things the level of each volume (treble and
bass) as well as the separation of the frequencies.
Using additional equipment like a speaker processing system gives you additional possibilities when it comes
to tweaking the sound and making adjustments that are appropriate for your situation.
Speaker capacit
In order to produce music these speakers require the use of a separate power amplifier. The load capacity
of a speaker is always indicated with RMS and max. values. The RMS value is what the speaker can
process continuously while the max. value is a peak load that cannot be processed continuously but for a
very short time only.
Ensure a good balance between amplifier and speaker. Ideally you should use an amplifier that can provide
1.5 to 2x the RMS power the speaker can theoretically handle according to its RMS value. This ensures that
you'll choose an amplifier with sufficient headroom. Headroom means that the amp still has sufficient
capacity left over after providing optimum power to the speaker. This prevents the amplifier from being
(inadvertently) overloaded thereby making your sound system more reliable.
It's also important to constantly monitor the behaviour of the speaker(s) of course. If the sound becomes
unpleasant distorted or crackles the volume should be turned down immediately . Devine does not
guarantee components that have become defective due to overloads.
Connecting to an active speaker
It's possible to connect the passive Artis MKII speakers to an equivalent active Artis MKII speaker. The Artis
MKII active speakers have a speaker output so that a passive speaker can be connected.
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:18-07-2018 RV Revision date and author's initials: -

Note that in that case the amplifier power will be divided over both speakers. This will not result in more
volume therefore but the sound will be better dispersed. This can be practical in applications where a wider
sound dispersion is desirable.
To connect a passive Artis MKII to an active Artis MKII speaker a speaker cable is required that has a
lockable speaker connection on both sides. This is not included.
Compatibility with other systems is not guaranteed. If in doubt contact your local dealer for advice.
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:18-07-2018 RV Revision date and author's initials: -

Speaker troubleshooting guide
If you have a problem with your speaker please consult this troubleshooting section for possible solutions. If
after consulting this section the problem remains unresolved please contact your dealer for more
information and/or help.
This troubleshooting section contains information on how to solve the most common speaker problems but it
does not and cannot cover every eventuality. It is possible that you won't find your problem cause and
solution in this section due to differences between products.
Problem Possible cause Solution
No sound via one of the inputs Cable not connected properly Make sure that the cable is
properly connected to both the
speaker and the amplifier.
Defective cable Try using another cable to
determine whether the cable is the
problem.
No sound Volume control is not turned up Turn up the volume control on the
signal source and/or amplifier to a
sufficient level.
Red Clip Limiter LED lights up
often or continually
Volume is too high Lower the volume of the input
signal or the amplifier. Overloading
the speaker can cause permanent
damage.
Distorted clipping or crackling
sound
Source device is transferring a
distorted signal
Check if any of the connected
source devices is transferring a
distorted signal and turn down the
volume on the device if necessary.
Volume control is too loud Turn the volume down
The tone controls for treble and/or
bass are too high or too low.
Turn the tone control back to 12
o'clock and listen to hear if clipping
is still audible.
Woofer or tweeter is defective If a speaker is exposed to a loud
distorted or clipped signal for a
longer period of time this can
cause permanent damage to its
internal components. If you
suspect that the woofer or tweeter
is damaged contact your local
dealer for assistance.
Sound is dull Tweeter is defective Turn the speaker to an appropriate
volume (ensure that it's not too
loud) so that you can listen directly
to the tweeter with it close to your
ear. If the tweeter is not
responding it is probably defective
and you should contact your
dealer for assistance.
2-band EQ incorrectly set Check the setting of the treble
control. If it's turned all the way
down (fully to the left) turn it back
to the neutral position (12 o'clock).
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:18-07-2018 RV Revision date and author's initials: -

Specifications
General specifications for all models:
– lightweight speaker cabinet with plastic housing
– 10 12 or 15-inch passive speaker with woofer and compression driver + horn
– metal grille
– practical handles
– acoustic foam behind grille to prevent any unwanted matter from getting inside the speaker
– grille covers the front of the speaker for optimal protection
– locking speaker input and output
– cabinet design also suitable for use as a floor monitor
– 35 mm stand flange with tightening knob for secure mounting on a speaker stand and optimal dispersion of
the high tones
Technical specifications per model:
Model Artis 10 MKII Artis 12 MKII Artis 15 MKII
Frequency range 60 Hz – 18 kHz 55 Hz – 18 kHz 45 Hz – 18 kHz
Power capacity (RMS / Peak) 100 / 200 W 150 / 300 W 200 / 400 W
Impedance 8 ohms
Sensitivity 95 dB 96 dB
Low tone speaker 10-inch woofer 12-inch woofer 15-inch woofer
High tone speaker 1-inch driver 1.35-inch driver
high tone driver with horn
dispersion
90 x 60 degrees
Crossover frequency 3 kHz 2.8 kHz
Dimensions 390 x 325 x 580 mm 455 x 375 x 680 mm 510 x 425 x 790 mm
Weight 7.5 kg 13.5 kg 17 kg
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:18-07-2018 RV Revision date and author's initials: -
