DeWalt MD501 Instruction manual

MD501
QUICK START MANUAL_EN

EN
RESERVATION
Technical Data is subject to change without notice.
Changes, errors and misprints may not be used as a
basis for any claim for damages.
The content of this document is presented as it
currently exists. Global Mobile Communications Ltd.
does not provide any explicit or tacit guarantee for
the accuracy or completeness of the content of this
document, including, but not restricted to, the tacit
guarantee of market suitability or fitness for a specific
purpose unless applicable laws or court decisions
make liability mandatory. Global Mobile Communica-
tions Ltd. reserves the right to make changes to this
document or to withdraw it any time without prior
notice.
All rights reserved.
Manufactured under license by Global Mobile
Communications Ltd.
Global Mobile Communications Ltd. cannot be held
responsible for any data or other loss and direct or
indirect damages caused by any improper use of
this phone.
(C) 2016 GLOBAL MOBILE COMMUNICATIONS LTD.
DEWALT
®and the DEWALT ®logo are trademarks of
Stanley Black & Decker Inc. or an affiliate thereof and
are used under licence.
3
DW3161201
1_Introduction � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
2_Faults and damages � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
3_Further safety advice � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
4_Keys� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
5_First steps � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
5.1_Battery � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
5.1.1_Charging the battery� � � � � � � � � � � � � � � � � � � � � 9
5.1.2_Battery use � � � � � � � � � � � � � � � � � � � � � � � � � � 10
5.2_Opening the card compartment � � � � � � � � � � � � � � � � 10
5.3_Installation of the SIM cards � � � � � � � � � � � � � � � � � � 10
5.4_Installation of the microSD card � � � � � � � � � � � � � � � 11
6_First Use� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11
6.1_Powering on your phone � � � � � � � � � � � � � � � � � � � � � 11
6.2_Powering off your phone� � � � � � � � � � � � � � � � � � � � � 12
6.3_Locking and unlocking the phone � � � � � � � � � � � � � � 12
6.4_Using the touchscreen � � � � � � � � � � � � � � � � � � � � � � 12
6.5_Connecting the phone with a computer � � � � � � � � � � 13
7_Display layout � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 14
7.1_Notification panel � � � � � � � � � � � � � � � � � � � � � � � � � � 14
7.2_Status bar � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 15
7.3_Quick access panel� � � � � � � � � � � � � � � � � � � � � � � � � 16
7.4_Home screen � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 16
7.4.1_Adding a new screen item� � � � � � � � � � � � � � � � 16
7.4.2_Moving a screen item� � � � � � � � � � � � � � � � � � � 17
7.4.3_Removing a screen item� � � � � � � � � � � � � � � � � 17
7.4.4_Creating a folder � � � � � � � � � � � � � � � � � � � � � � 17
7.4.5_Renaming a folder � � � � � � � � � � � � � � � � � � � � � 17

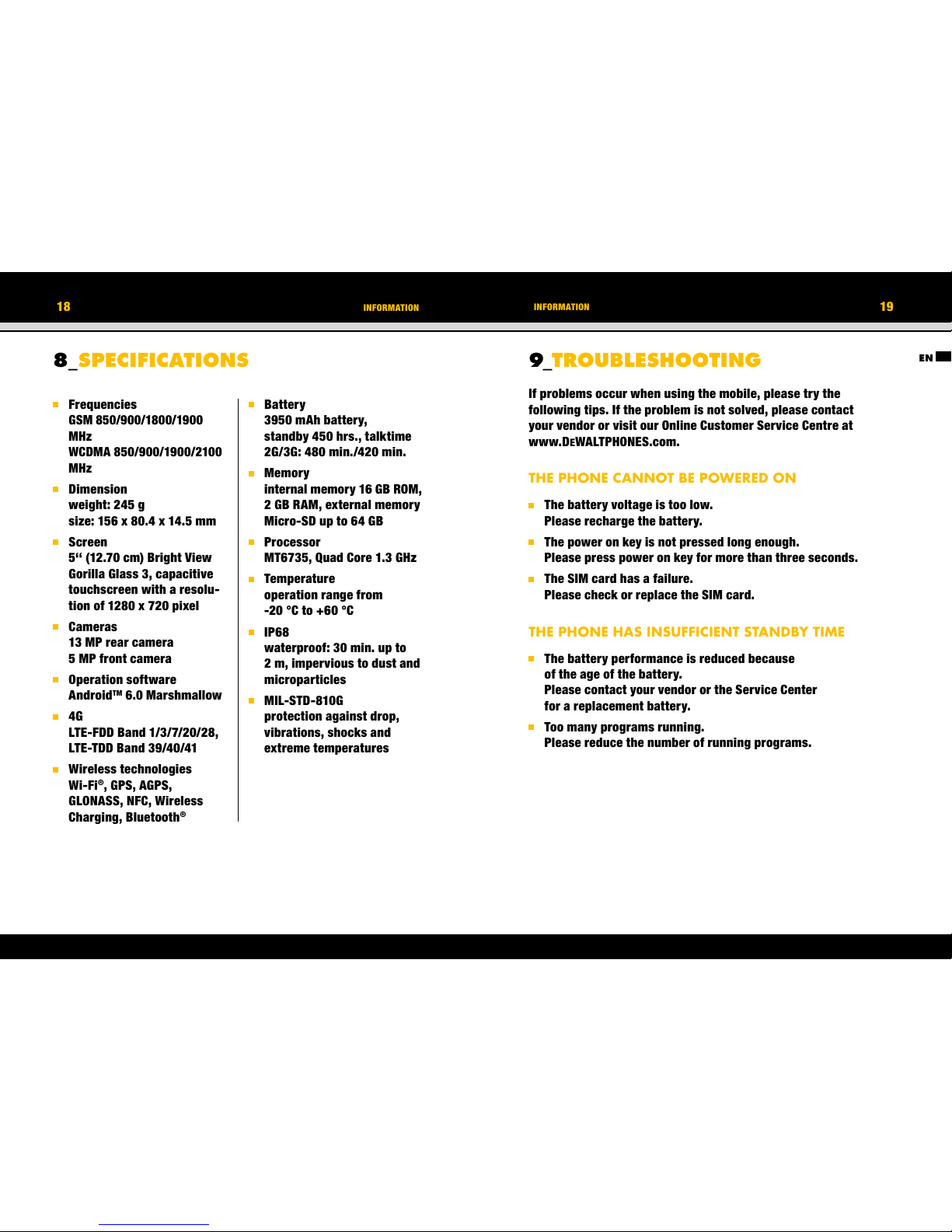

8_Specifications� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 18
9_Troubleshooting � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 19
10_Maintenance � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 21

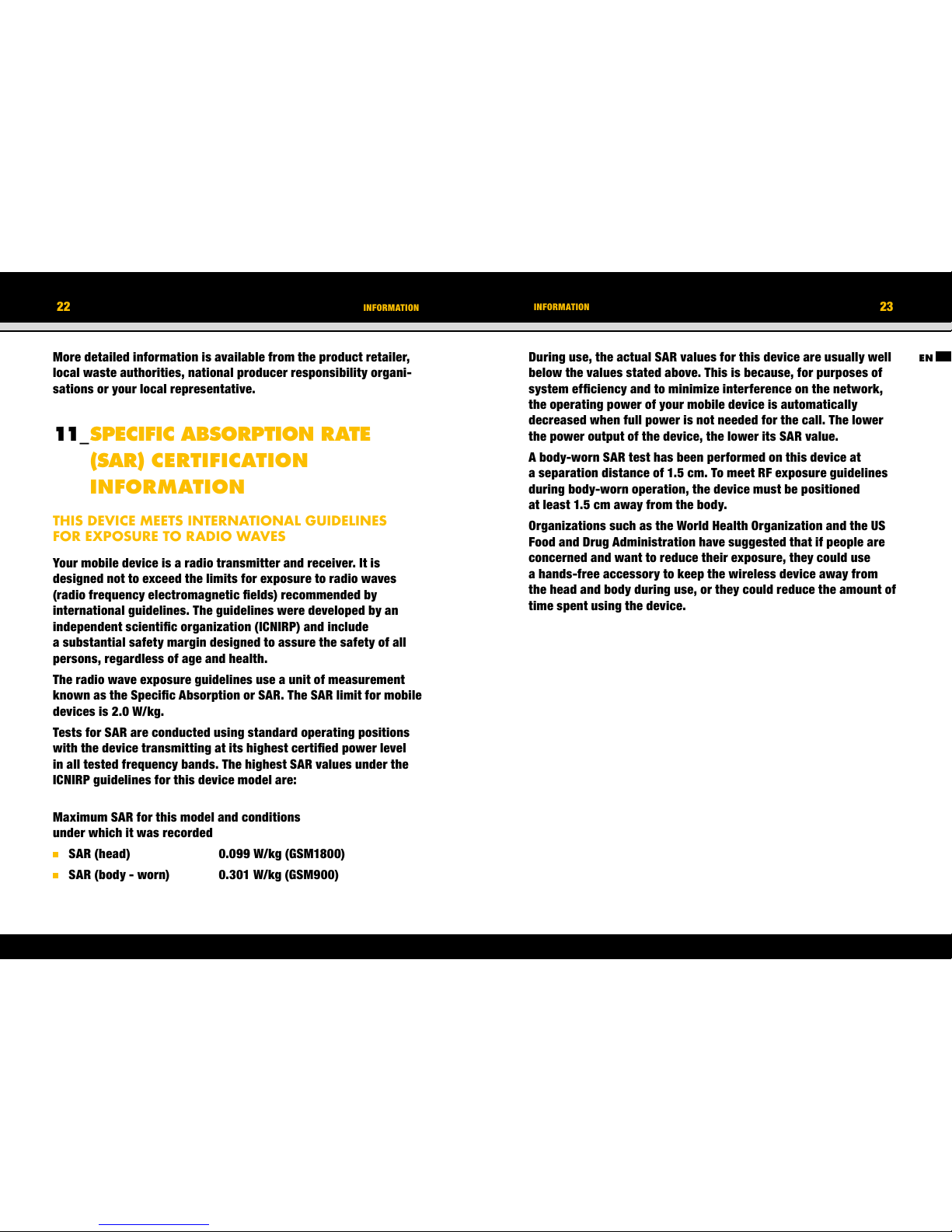

11_SAR � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 22

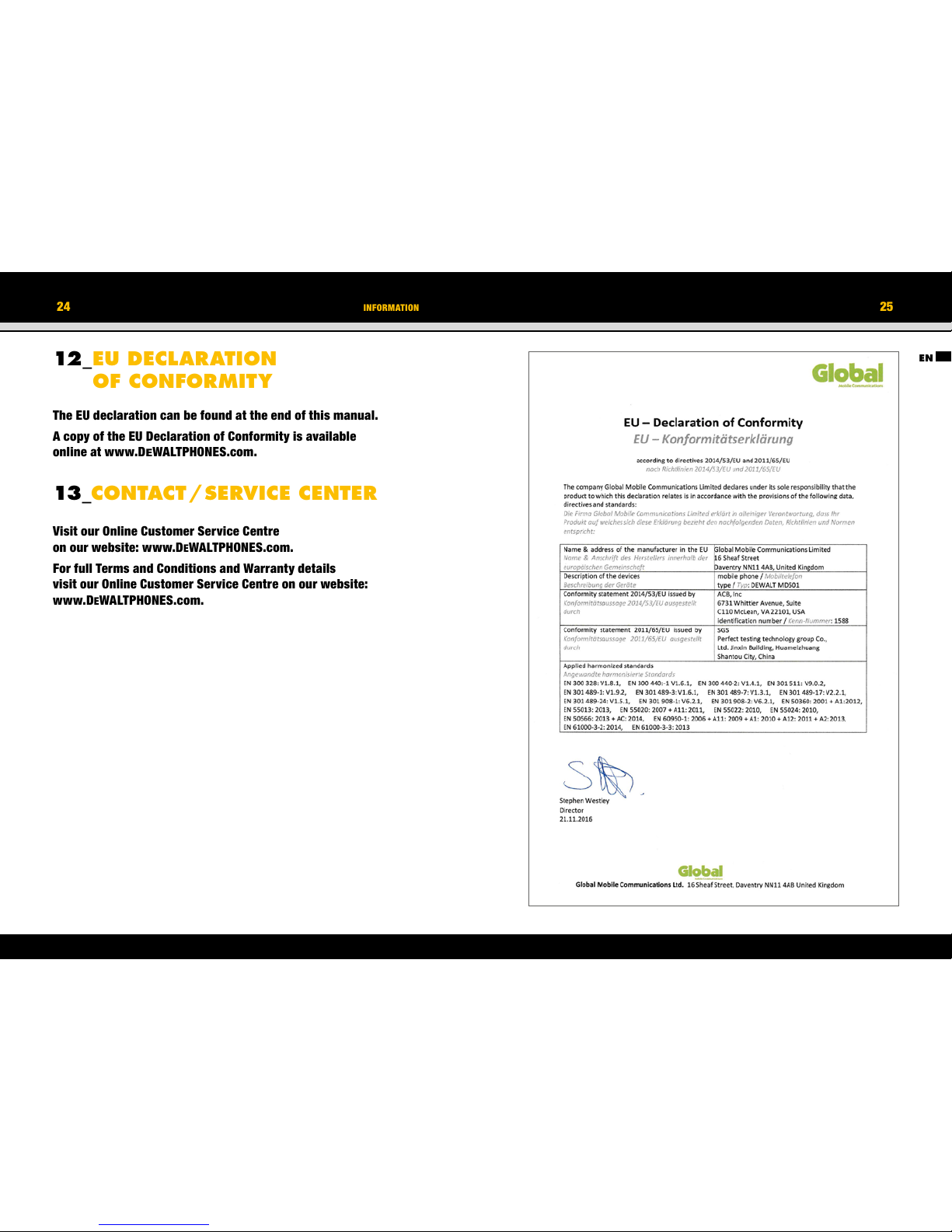

12_EU Declaration of Conformity � � � � � � � � � � � � � � � � � � � � 24
13_Contact /Service Center � � � � � � � � � � � � � � � � � � � � � � � � 24
CONTENT
2

EN
4TITEL DES KAPITELSSAFETY INSTRUCTIONS 5
SAFETY INSTRUCTIONS

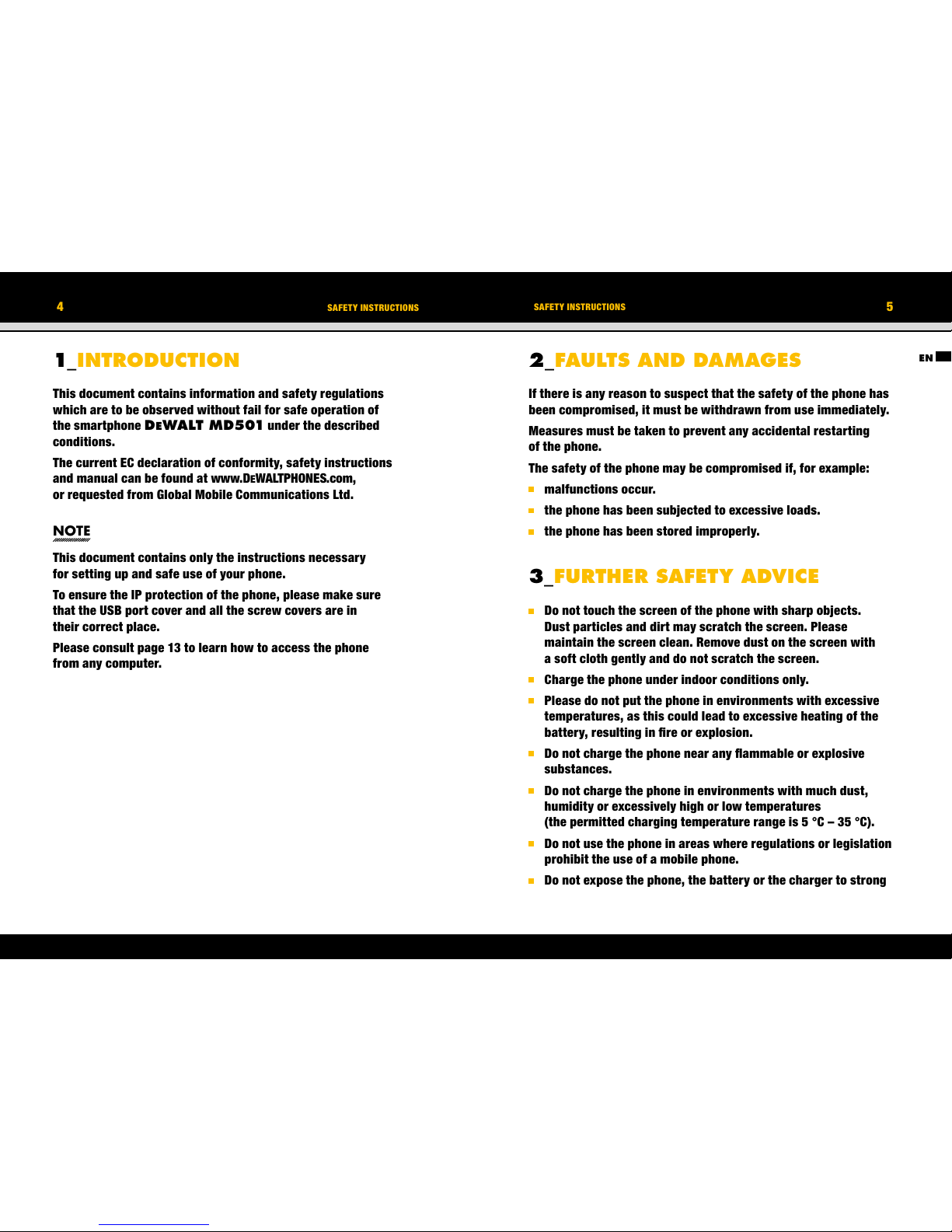

1_INTRODUCTION
This document contains information and safety regulations
which are to be observed without fail for safe operation of
the smartphone DEW A L T M D 5 0 1 under the described
conditions.
The current EC declaration of conformity, safety instructions
and manual can be found at www.DEWALTPHONES.com,
or requested from Global Mobile Communications Ltd.
NOTE
This document contains only the instructions necessary
for setting up and safe use of your phone.
To ensure the IP protection of the phone, please make sure
that the USB port cover and all the screw covers are in
their correct place.
Please consult page 13 to learn how to access the phone
from any computer.
2_FAULTS AND DAMAGES
If there is any reason to suspect that the safety of the phone has
been compromised, it must be withdrawn from use immediately.
Measures must be taken to prevent any accidental restarting
of the phone.
The safety of the phone may be compromised if, for example:
malfunctions occur.
the phone has been subjected to excessive loads.
the phone has been stored improperly.
3_FURTHER SAFETY ADVICE
Do not touch the screen of the phone with sharp objects.
Dust particles and dirt may scratch the screen. Please
maintain the screen clean. Remove dust on the screen with
a soft cloth gently and do not scratch the screen.
Charge the phone under indoor conditions only.
Please do not put the phone in environments with excessive
temperatures, as this could lead to excessive heating of the
battery, resulting in fire or explosion.
Do not charge the phone near any flammable or explosive
substances.
Do not charge the phone in environments with much dust,
humidity or excessively high or low temperatures
(the permitted charging temperature range is 5 °C – 35 °C).
Do not use the phone in areas where regulations or legislation
prohibit the use of a mobile phone.
Do not expose the phone, the battery or the charger to strong

EN
6SAFETY INSTRUCTIONS 7
KEYS
4_KEYS
magnetic fields, such as are emitted from induction ovens or
micro-waves.
Do not attempt to open or repair the phone. Improper
repair or opening can lead to the destruction of the phone,
fire or explosion. Only authorized personnel are allowed
to repair the phone.
Only use accessories approved for the product.
Power off the phone in hospitals or other places where the
use of mobile phones is prohibited. This phone may affect
proper working of medical equipment, like pacemakers, so
always keep a distance of at least 15 cm between the phone
and these devices.
Observe all corresponding laws that are in force in
the respective countries regarding the use of mobile
phones while operating a vehicle.
Please power off the phone and disconnect the charging
cable before cleaning the phone.
Do not use any chemical cleaning agents to clean the phone or
the charger. Use a damp and anti-static soft cloth for cleaning.
Do not discard old and abandoned lithium batteries into
the trash, send them to designated waste disposal locations.
The user alone is responsible for any and all damages and
liabilities caused by malware, downloaded when using the
network or other data-exchange functions of the phone.
Global Mobile Communications Ltd. cannot be held
responsible for any of these claims.
WARNING
Global Mobile Communications will not assume any liability for
damages caused by the disregarding of any of the Safety Advice
given herein, or by any inappropriate use of the phone.
12
3
8
9
7
10
4
5
6
13 12 11

8 9
EN
KEYS QUICK START

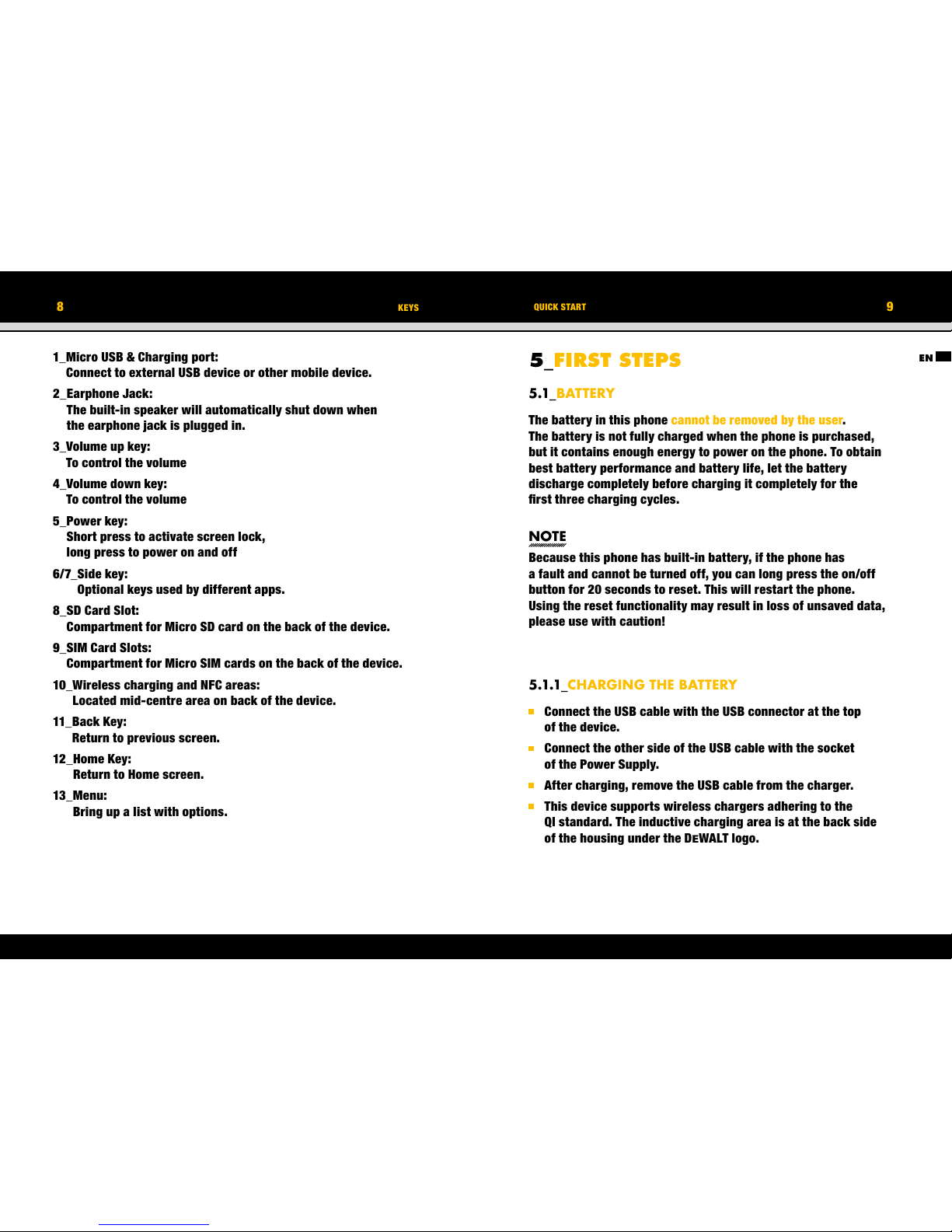

5_FIRST STEPS
5.1_ BATTERY
The battery in this phone cannot be removed by the user.
The battery is not fully charged when the phone is purchased,
but it contains enough energy to power on the phone. To obtain
best battery performance and battery life, let the battery
discharge completely before charging it completely for the
first three charging cycles.
NOTE
Because this phone has built-in battery, if the phone has
a fault and cannot be turned off, you can long press the on/off
button for 20 seconds to reset. This will restart the phone.
Using the reset functionality may result in loss of unsaved data,
please use with caution!
5.1.1_CHARGING THE BATTERY
Connect the USB cable with the USB connector at the top
of the device.
Connect the other side of the USB cable with the socket
of the Power Supply.
After charging, remove the USB cable from the charger.
This device supports wireless chargers adhering to the
QI standard. The inductive charging area is at the back side
of the housing under the D
E WALT logo.
1_Micro USB & Charging port:
Connect to external USB device or other mobile device.
2_Earphone Jack:
The built-in speaker will automatically shut down when
the earphone jack is plugged in.
3_Volume up key:
To control the volume
4_Volume down key:
To control the volume
5_Power key:
Short press to activate screen lock,
long press to power on and off
6/7_Side key:
Optional keys used by different apps.
8_SD Card Slot:
Compartment for Micro SD card on the back of the device.
9_SIM Card Slots:
Compartment for Micro SIM cards on the back of the device.
10_Wireless charging and NFC areas:
Located mid-centre area on back of the device.
11_Back Key:
Return to previous screen.
12_Home Key:
Return to Home screen.
13_Menu:
Bring up a list with options.

EN
10 QUICK START 11
QUICK START / FIRST USE

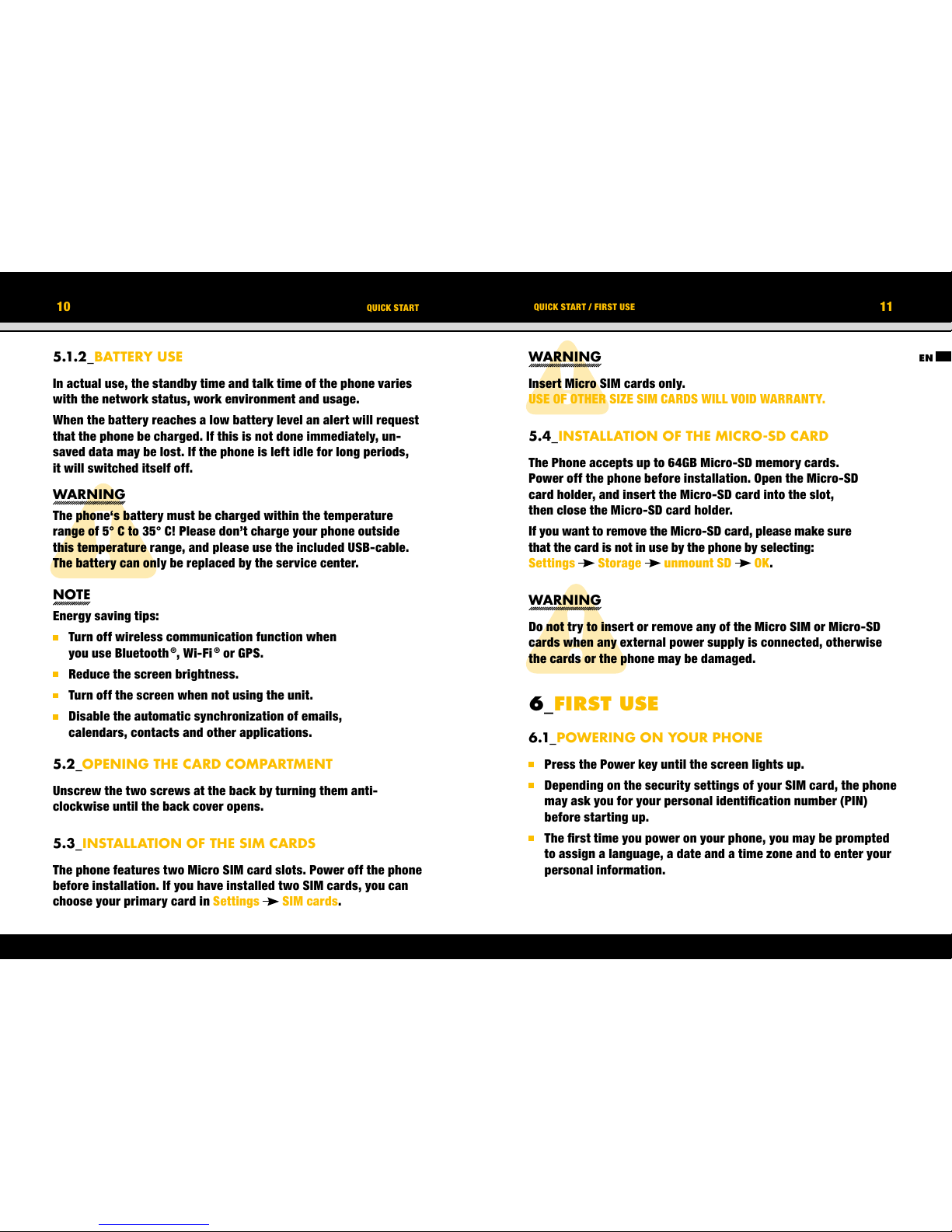

5.1.2_ BATTERY USE
In actual use, the standby time and talk time of the phone varies
with the network status, work environment and usage.
When the battery reaches a low battery level an alert will request
that the phone be charged. If this is not done immediately, un-
saved data may be lost. If the phone is left idle for long periods,
it will switched itself off.
WARNING
The phone‘s battery must be charged within the temperature
range of 5° C to 35° C! Please don’t charge your phone outside
this temperature range, and please use the included USB-cable.
The battery can only be replaced by the service center.
NOTE
Energy saving tips:
Turn off wireless communication function when
you use Bluetooth
®, Wi-Fi ®or GPS.
Reduce the screen brightness.
Turn off the screen when not using the unit.
Disable the automatic synchronization of emails,
calendars, contacts and other applications.
5.2_OPENING THE CARD COMPARTMENT
Unscrew the two screws at the back by turning them anti-
clockwise until the back cover opens.
5.3_INSTALLATION OF THE SIM CARDS
The phone features two Micro SIM card slots. Power off the phone
before installation. If you have installed two SIM cards, you can
choose your primary card in Settings SIM cards.
WARNING
Insert Micro SIM cards only.
USE OF OTHER SIZE SIM CARDS WILL VOID WARRANTY.
5.4_INSTALLATION OF THE MICRO-SD CARD
The Phone accepts up to 64GB Micro-SD memory cards.
Power off the phone before installation. Open the Micro-SD
card holder, and insert the Micro-SD card into the slot,
then close the Micro-SD card holder.
If you want to remove the Micro-SD card, please make sure
that the card is not in use by the phone by selecting:
Settings Storage unmount SD OK.
WARNING
Do not try to insert or remove any of the Micro SIM or Micro-SD
cards when any external power supply is connected, otherwise
the cards or the phone may be damaged.
6_FIRST USE
6.1_POWERING ON YOUR PHONE
Press the Power key until the screen lights up.
Depending on the security settings of your SIM card, the phone
may ask you for your personal identification number (PIN)
before starting up.
The first time you power on your phone, you may be prompted
to assign a language, a date and a time zone and to enter your
personal information.

EN
12 FIRST USE 13
FIRST USE
You will also be asked to sign in or set up your Google™
account. You can do this later but please note that some of the
functions of the phone like the Google Play™ Store depend on
a Google™ account.
6.2_POWERING OFF YOUR PHONE
1. Press and hold the Power key to open the Phone options menu.
2. Tap Power off.
3. Tap OK.
6.3_LOCKING AND UNLOCKING THE PHONE
Press the Power key to lock the phone. When the screen
is locked, you can still receive messages and calls.
If you leave your phone undisturbed for a while, the screen
will lock automatically.
To unlock the phone, press the Power key again. After
the screen has lit up, drag the lock icon to the unlock icon
to unlock the phone.
Depending on your security settings, the phone may ask for a
PIN to unlock. Please note that this is NOT the PIN of your SIM
card, but a code that can be assigned under System settings
Security Screen lock.
6.4_USING THE TOUCHSCREEN
This phone features a capacitive touchscreen. It is not necessary
to press the screen for it to work, a simple tap is enough.
The following gestures can be used with this phone:
Tap
To open an application (app), or to enter a character using
the on-screen keyboard, tap it with a finger.
Tap and hold
Tap and hold your finger to the screen for more than two
seconds to access further options where available.
Drag
Tap an icon and hold your finger to the screen. Then drag it
to where you would like to place it.
Double tap
Perform two taps onto a webpage or image to zoom in.
Double tap again to zoom out.
Flick
Tap the screen and flick your finger left, right, up or down
to scroll through available panels or lists.
Pinch
Tap the screen with two fingers near together. While touching
the screen, put your fingers farther apart to zoom into
a webpage or picture. Do the reverse to zoom out again.
6.5_CONNECTING THE PHONE WITH A COMPUTER
You can access the Micro-SD card of the phone by any compatible
computer via the USB cable. The card will be accessed as a mass
storage device.
1. Connect your phone to the computer with the USB cable.
When connecting the phone to a computer for the first time,
the computer will install the necessary drivers automatically.
2. Tap turn on USB storage in the dialogue box that opens on the
phone and tap OK to confirm your choice. Your computer
will detect the Micro-SD card as a removable disc. You can
now transfer files from and to the Micro-SD card.
NOTE
While USB mass storage function is enabled, some functions
of the phone may not be available.

EN
14 DISPLAY LAYOUT 15
DISPLAY LAYOUT
After you sign in or when you power on the phone, by default the
Home Screen opens:
Status Bar
Home
Screen
Quick
Access Bar
The Home Screen is your
starting point to access
all the features on your
phone. It displays appli-
cation icons, shortcuts
and other features. You
can customize the Home
Screen and display the
items you need.
7.1_ NOTIFICATION PANEL
Drag the Status Bar down to reveal the notification panel:
Your phone will notify you here when you
receive a new message or when there is an
upcoming event. The notification panel also
informs you about alarms, settings and other
relevant information.
Tap a notification to open a related applica-
tion.
To remove notifications from the panel,
swipe the notification to the left or to the
right side of the panel.
Use the settings icon in the top right corner of
the notification panel to access system settings.
To close the notification panel, drag the bottom of the panel
to the top of the screen.
7_ DISPLAY LAYOUT 7.2 _ STATUS BAR
The status bar appears at the top of every screen. On the right
side, it displays phone status icons, such as the status of the
battery, GPS, data or mobile connections and the time. On the
left side, it displays notification icons, such as missed calls or
received messages. The table below lists various icons that might
appear on the status bar of the device.
4G network
Strength of network
Searching the network
No SIM card or network
Wi-Fi conected
Wi-Fi wireless hotspot
Roam network
Airplane mode
Receive GPS signal
Bluetooth open
New E-Mail
New SMS / MMS
Alarm clock
USB debugging
USB network share
Play / pause
FM radio
Earphone mode
Silent mode
Vibrating
Low battery
Full battery
Charging
Missed call
Calling
Call transfer
Call waiting
Remove mission list
BT earphone connected
New voice message
Network data connection
Setting menu
Not enough memory
Blacklightling adjustment
Download
Upload
Events
STATUS ICONSNOTIFICATION ICONS

EN
16 DISPLAY LAYOUT 17
DISPLAY LAYOUT
7. 3 _ QUICK ACCESS PANEL
Shortcuts to apps placed here are visible on every panel
of the Home Screen.
Tap on the App icon to open up the App Drawer.
Here you can start any App with a tap on its icon.
7. 4 _ HOME SCREEN
Here, you can place shortcuts to apps and widgets.
Widgets are small applications that provide functions and infor-
mation on your Home Screen, like local weather, stock exchange
information or e-mail previews. To use them, add widgets from
the App drawer in the Quick Access Panel.
NOTE
Some widgets connect to web services which might result
in additional charges.
7. 4 .1_ ADDING A NEW SCREEN ITEM
1. Tap on the App icon to open up the App Drawer.
2. Scroll for the app or widget you would like to add
by flicking the screen left or right.
3. Tap and hold the icon of the item you want to use and
wait until the screen changes to show your Home Screen.
4. Move the item to the desired place and lift your finger.
To change to a different panel of your Home Screen, move
the item to the right or left border of the screen.
7. 4 . 2 _ MOVING A SCREEN ITEM
1. Tap and hold an icon on the Home Screen until
the icon enlarges.
2. Without lifting your finger, drag the icon to the desired
position on the screen and release it.
NOTE
There must be enough space for the icon to fit on the current
Home Screen.
7. 4 . 3 _ REMOVING A SCREEN ITEM
1. Tap and hold an application icon on the Home Screen until
the icon enlarges.
2. Drag the item to the top of the screen towards Remove.
7.4.4_CREATING A FOLDER
Drag the application icon or shortcut and drop it on top of
another app icon. A folder containing both icons will be created.
You can then add other icons into the folder.
7.4.5_RENAMING A FOLDER
1. Tap a folder to open it.
2. Tap the title bar of the folder.
3. Enter the new folder name.
4. Tap Done or press the Back key.

EN
18 INFORMATION 19
INFORMATION
Frequencies
GSM 850/900/1800/1900
MHz
WCDMA 850/900/1900/2100
MHz
Dimension
weight: 245 g
size: 156 x 80.4 x 14.5 mm
Screen
5‘‘ (12.70 cm) Bright View
Gorilla Glass 3, capacitive
touchscreen with a resolu-
tion of 1280 x 720 pixel
Cameras
13 MP rear camera
5 MP front camera
Operation software
AndroidTM 6.0 Marshmallow
4G
LTE-FDD Band 1/3/7/20/28,
LTE-TDD Band 39/40/41
Wireless technologies
Wi-Fi®, GPS, AGPS,
GLONASS, NFC, Wireless
Charging, Bluetooth®
Battery
3950 mAh battery,
standby 450 hrs., talktime
2G/3G: 480 min./420 min.
Memory
internal memory 16 GB ROM,
2 GB RAM, external memory
Micro-SD up to 64 GB
Processor
MT6735, Quad Core 1.3 GHz
Temperature
operation range from
-20 °C to +60 °C
IP68
waterproof: 30 min. up to
2 m, impervious to dust and
microparticles
MIL-STD-810G
protection against drop,
vibrations, shocks and
extreme temperatures
8_SPECIFICATIONS 9_TROUBLESHOOTING
If problems occur when using the mobile, please try the
following tips. If the problem is not solved, please contact
your vendor or visit our Online Customer Service Centre at
www.DEWALTPHONES.com.
THE PHONE CANNOT BE POWERED ON
The battery voltage is too low.
Please recharge the battery.
The power on key is not pressed long enough.
Please press power on key for more than three seconds.
The SIM card has a failure.
Please check or replace the SIM card.
THE PHONE HAS INSUFFICIENT STANDBY TIME
The battery performance is reduced because
of the age of the battery.
Please contact your vendor or the Service Center
for a replacement battery.
Too many programs running.
Please reduce the number of running programs.

EN
20 INFORMATION 21
INFORMATION
THE PHONE IS NOT CHARGING
Poor electrical contact.
Please check and replace any dirty or broken plugs.
Input voltage is too low.
Please charge for about one hour first, remove the plug, wait
a minute and then continue charging. During this time it is
possible that the phone cannot be powered on as the voltage
is too low.
A battery fault has occurred.
Please replace the battery.
FAILURES DURING CALLS OCCUR
SIM Card failures occur.
Please check the contacts of the SIM card or replace the card.
Network error.
Please change to a network provider with a stronger signal.
OTHER PEOPLE ARE ANSWERING MY CALLS
The phone has been set to divert your calls
to another phone number.
Please check and cancel call divert.
THE PHONE POWERS OFF AUTOMATICALLY
The charge of the battery is too low.
Please recharge the battery.
There was an error during operation.
Please restart the phone. If the problem reoccurs, please
contact your vendor or visit our Online Customer Service
Centre at www.DEWALTPHONES.com.
10_ MAINTENANCE
Thank you for using the DEWALT MD501. If there is a
problem with the phone or if the phone is in need of repair,
please contact your vendor or visit our Online Customer Service
Centre at www.DEWALTPHONES.com.
TRADEMARKS
DEWALT
®and the DEWALT ®logo are trademarks of Stanley
Black & Decker Inc. or an affiliate thereof and are used under
licence.
The Android logo, Google™ and Google Play™ Store
are registered trademarks of Google, Inc.
The Android robot is reproduced or modified from work
created and shared by Google™ and used according to terms
described in the Creative Commons 3.0 Attribution License.
Bluetooth
®is a registered trademark of Bluetooth SIG,
Inc. worldwide.
Wi-Fi
®is a registered trademark of the Wi-Fi Alliance.
All other trademarks and copyrights are the properties
of their respective owners.
RECYCLING
The symbol means that electrical and electronic products
and batteries must be disposed of at the end of their life
in a separate collection facility. This requirement applies
in the European Union. Do not dispose of these products as unsor-
ted municipal waste.
Always return your used electronic products, batteries, and
packaging materials to dedicated collection points. This way
you help to prevent uncontrolled waste disposal and to promote
the recycling of materials.

EN
22 INFORMATION 23
INFORMATION
More detailed information is available from the product retailer,
local waste authorities, national producer responsibility organi-
sations or your local representative.
11_ SPECIFIC ABSORPTION RATE
(SAR) CERTIFICATION
INFORMATION
THIS DEVICE MEETS INTERNATIONAL GUIDELINES
FOR EXPOSURE TO RADIO WAVES
Your mobile device is a radio transmitter and receiver. It is
designed not to exceed the limits for exposure to radio waves
(radio frequency electromagnetic fields) recommended by
international guidelines. The guidelines were developed by an
independent scientific organization (ICNIRP) and include
a substantial safety margin designed to assure the safety of all
persons, regardless of age and health.
The radio wave exposure guidelines use a unit of measurement
known as the Specific Absorption or SAR. The SAR limit for mobile
devices is 2.0 W/kg.
Tests for SAR are conducted using standard operating positions
with the device transmitting at its highest certified power level
in all tested frequency bands. The highest SAR values under the
ICNIRP guidelines for this device model are:
Maximum SAR for this model and conditions
under which it was recorded
SAR (head) 0.099 W/kg (GSM1800)
SAR (body - worn) 0.301 W/kg (GSM900)
During use, the actual SAR values for this device are usually well
below the values stated above. This is because, for purposes of
system efficiency and to minimize interference on the network,
the operating power of your mobile device is automatically
decreased when full power is not needed for the call. The lower
the power output of the device, the lower its SAR value.
A body-worn SAR test has been performed on this device at
a separation distance of 1.5 cm. To meet RF exposure guidelines
during body-worn operation, the device must be positioned
at least 1.5 cm away from the body.
Organizations such as the World Health Organization and the US
Food and Drug Administration have suggested that if people are
concerned and want to reduce their exposure, they could use
a hands-free accessory to keep the wireless device away from
the head and body during use, or they could reduce the amount of
time spent using the device.

EN
24 INFORMATION 25
12_ EU DECLARATION
OF CONFORMITY
The EU declaration can be found at the end of this manual.
A copy of the EU Declaration of Conformity is available
online at www.D
E WALTPHONES.com.
13_CONTACT/SERVICE CENTER
Visit our Online Customer Service Centre
on our website: www.DEWALTPHONES.com.
For full Terms and Conditions and Warranty details
visit our Online Customer Service Centre on our website:
www.DEWALTPHONES.com.

www.DEWALTPHONES.com
Global Mobile Communications Ltd.
16 Sheaf Street | Daventry | Northants NN11 4AB | United Kingdom
www.DEWALTPHONES.com
