ENGLISH
3
aWARNING: To reduce the risk of injury, read the
instructionmanual.
Definitions: Safety Guidelines
The definitions below describe the level of severity for each
signal word. Please read the manual and pay attention to
thesesymbols.
DANGER: Indicates an imminently hazardous
situation which, if not avoided, will result in death or
seriousinjury.
WARNING: Indicates a potentially hazardous situation
which, if not avoided, could result in death or
seriousinjury.
CAUTION: Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderateinjury.
NOTICE: Indicates a practice not related to
personal injury which, if not avoided, may result in
propertydamage.
Denotes risk of electricshock.
Denotes risk offire.
The vibration and/or noise emission level given in this
information sheet has been measured in accordance with
a standardised test given in EN60745and may be used to
compare one tool with another. It may be used for a preliminary
assessment ofexposure.
WARNING: The declared vibration and/or noise emission
level represents the main applications of the tool. However
if the tool is used for different applications, with different
accessories or poorly maintained, the vibration and/or
noise emission may differ. This may significantly increase
the exposure level over the total workingperiod.
An estimation of the level of exposure to vibration and/or
noise should also take into account the times when the tool
is switched off or when it is running but not actually doing
the job. This may significantly reduce the exposure level
over the total workingperiod.
Identify additional safety measures to protect the operator
from the effects of vibration and/or noise such as: maintain
the tool and the accessories, keep the hands warm
(relevant for vibration), organisation of workpatterns.
DCD992 DCD997
Screwdriving
Vibration emission value a
h, D
= m/s2<2.5 <2.5
Uncertainty K = m/s21.5 1.5
DCD992 DCD997
Voltage VDC 18 18
Type 1 1
Battery type Li‑Ion Li‑Ion
Power output W820 820
No load speed Drill, Driver/Hammer
1st gear min‑1 0–450 0–450/500
2nd gear 0–1300 0–1300/1500
3rd gear 0–2000 0–2000/2250
Impact rate
1st gear min‑1 –0–8600
2nd gear –0–25500
3rd gear –0–38250
Max. torque (hard/soft)
hard Nm 95 95
soft Nm 66 66
Chuck capacity mm 1.5–13 1.5–13
Maximum drilling capcity
Wood mm 55 55
Metal 15 15
Masonry –13
Weight (without battery pack) kg 1.5 1.6
Noise values and vibration values (triax vector sum) according to EN60745‑2:
LPA (emission sound pressure
level)
dB(A) 75 97
LWA (sound power level) dB(A) 86 108
K (uncertainty for the given
sound level)
dB(A) 3 3
Drilling into metal
Vibration emission value a
h,D
= m/s2<2.5 <2.5
Uncertainty K = m/s21.5 1.5
Impact drilling
Vibration emission value a
h,ID
= m/s2–15.0
Uncertainty K = m/s2–3.9
Congratulations!
You have chosen a
DeWALT
tool. Years of experience, thorough
product development and innovation make
DeWALT
one of the
most reliable partners for professional power toolusers.
Technical Data
English (original instructions)
TOOL CONNECT™CORDLESS 13mm DRILL/DRIVER, DCD992
TOOL CONNECT™CORDLESS 13mm DRILL/DRIVER/
HAMMERDRILL, DCD997

4
ENGLISH
e ) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electricshock.
f ) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electricshock.
3) Personal Safety
a ) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personalinjury.
b ) Use personal protective equipment. Always wear eye
protection. Protective equipment such as a dust mask,
non‑skid safety shoes, hard hat or hearing protection used
for appropriate conditions will reduce personalinjuries.
c ) Prevent unintentional starting. Ensure the switch
is in the off‑position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch on
invitesaccidents.
d ) Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached
to a rotating part of the power tool may result in
personalinjury.
e ) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpectedsituations.
f ) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be
caught in movingparts.
g ) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust‑relatedhazards.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING: Read all safety warnings, instructions,
illustrations and specifications provided with this
power tool. Failure to follow all instructions listed below
may result in electric shock, fire and/or seriousinjury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTUREREFERENCE
The term “power tool” in the warnings refers to your
mains‑operated (corded) power tool or battery‑operated (cordless)
powertool.
1) Work Area Safety
a ) Keep work area clean and well lit. Cluttered or dark
areas inviteaccidents.
b ) Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which
may ignite the dust orfumes.
c ) Keep children and bystanders away while operating
a power tool. Distractions can cause you to losecontrol.
2) Electrical Safety
a ) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of
electricshock.
b ) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if
your body is earthed orgrounded.
c ) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electricshock.
d ) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electricshock.
Batteries Chargers/Charge Times (Minutes)
Cat # VDC Ah Weight (kg) DCB104 DCB107 DCB112 DCB113 DCB115 DCB116 DCB117 DCB118 DCB132 DCB119
DCB546 18/54 6.0/2.0 1.05 60 270 170 140 90 80 40 60 90 X
DCB547 18/54 9.0/3.0 1.46 75* 420 270 220 135* 110* 60 75* 135* X
DCB548 18/54 12.0/4.0 1.44 120 540 350 300 180 150 80 120 180 X
DCB181 18 1.5 0.35 22 70 45 35 22 22 22 22 22 45
DCB182 18 4.0 0.61 60/40** 185 120 100 60 60/45** 60/40** 60/40** 60 120
DCB183/B 18 2.0 0.40 30 90 60 50 30 30 30 30 30 60
DCB184/B 18 5.0 0.62 75/50** 240 150 120 75 75/60** 75/50** 75/50** 75 150
DCB185 18 1.3 0.35 22 60 40 30 22 22 22 22 22 X
DCB187 18 3.0 0.54 45 140 90 70 45 45 45 45 45 90
DCB189 18 4.0 0.54 60 185 120 100 60 60 60 60 60 120
*Date code 201811475B or later
**Date code 201536or later
Batteries
Chargers/Charge Times (Minutes)
Cat #
DC
Weight
*Date code 201811475B or later
**Date code 201536or later

5
ENGLISH
Residual Risks
In spite of the application of the relevant safety regulations
and the implementation of safety devices, certain residual risks
cannot be avoided. These are:
• Impairment ofhearing.
Additional Specific Safety Rules for Drill/
Driver/Hammerdrill
• Wear ear protectors when impact drilling. Exposure to
noise can cause hearingloss.
• Use auxiliary handle(s), if supplied with the tool. Loss of
control can cause personalinjury.
• Hold power tool by insulated gripping surfaces, when
performing an operation where the cutting accessory
may contact hidden wiring. Cutting accessory contacting
a “live” wire may make exposed metal parts of the power tool
“live” and could give the operator an electricshock.
• Use clamps or other practical way to secure and support
the workpiece to a stable platform. Holding the work by
hand or against your body is unstable and may lead to loss
ofcontrol.
• Wear safety goggles or other eye protection. Hammering
and drilling operations cause chips to fly. Flying particles can
cause permanent eyedamage.
• Accessories and tool may get hot during operation. Wear
gloves when handling them if performing heat producing
applications such as hammerdrilling and drillingmetals.
• Do not operate this tool for long periods of time.
Vibration caused by hammer action may be harmful to your
hands and arms. Use gloves to provide extra cushion and limit
exposure by taking frequent restperiods.
• Air vents often cover moving parts and should be
avoided. Loose clothes, jewelry or long hair can be caught in
movingparts.
contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation orburns.
e ) Do not use a battery pack or tool that is damaged or
modified. Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire, explosion or risk
ofinjury.
f ) Do not expose a battery pack or tool to fire or
excessive temperature. Exposure to fire or temperature
above 130°C may causeexplosion.
g ) Follow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specified in the instructions. Charging
improperly or at temperatures outside the specified range
may damage the battery and increase the risk offire.
6) Service
a ) Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool ismaintained.
b ) Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized serviceproviders.
h ) Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause severe
injury within a fraction of asecond.
4) Power Tool Use and Care
a ) Do not force the power tool. Use the correct power
tool for your application. The correct power tool
will do the job better and safer at the rate for which it
wasdesigned.
b ) Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must berepaired.
c ) Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the
power toolaccidentally.
d ) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrainedusers.
e ) Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by
poorly maintained powertools.
f ) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier tocontrol.
g ) Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardoussituation.
h ) Keep handles and grasping surfaces dry, clean and
free from oil and grease. Slippery handles and grasping
surfaces do not allow for safe handling and control of the
tool in unexpectedsituations.
5) Battery Tool Use and Care
a ) Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another batterypack.
b ) Use power tools only with specifically designated
battery packs. Use of any other battery packs may create
a risk of injury andfire.
c ) When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause burns
or afire.
d ) Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid

6
ENGLISH
NOTICE: Under certain conditions, with the charger
plugged into the power supply, the exposed charging
contacts inside the charger can be shorted by foreign
material. Foreign materials of a conductive nature such
as, but not limited to, steel wool, aluminum foil or any
buildup of metallic particles should be kept away from
charger cavities. Always unplug the charger from the
power supply when there is no battery pack in the cavity.
Unplug charger before attempting toclean.
• DO NOT attempt to charge the battery pack with any
chargers other than the ones in this manual. The charger
and battery pack are specifically designed to worktogether.
• These chargers are not intended for any uses other than
charging
DeWALT
rechargeable batteries. Any other uses
may result in risk of fire, electric shock orelectrocution.
• Do not expose charger to rain orsnow.
• Pull by plug rather than cord when disconnecting
charger. This will reduce risk ofdamage to electric plug
andcord.
• Make sure that cord is located so that it will not be
stepped on, tripped over, or otherwise subjected to
damage orstress.
• Do not use an extension cord unless it is absolutely
necessary. Use of improper extension cord could result in risk
of fire,electric shock, orelectrocution.
• Do not place any object on top of charger or place
the charger on a soft surface that might block the
ventilation slots and result in excessive internal heat.
Place the charger in a position away from any heat source. The
charger is ventilated through slots in the top and the bottom
of thehousing.
• Do not operate charger with damaged cord or plug—
have them replacedimmediately.
• Do not operate charger if it has received a sharp blow,
been dropped, or otherwise damaged in any way. Take it
to an authorised servicecentre.
• Do not disassemble charger; take it to an authorised
service centre when service or repair is required. Incorrect
reassembly may result in a risk of electric shock, electrocution
orfire.
• In case of damaged power supply cord, the supply cord must
be replaced immediately by the manufacturer, its service agent
or similar qualified person to prevent anyhazard.
• Disconnect the charger from the outlet before
attempting any cleaning. This will reduce the risk of
electric shock. Removing the battery pack will not reduce
thisrisk.
• NEVER attempt to connect two chargerstogether.
• The charger is designed to operate on standard
230V household electrical power. Do not attempt to
use it on any other voltage. This does not apply to the
vehicularcharger.
Charging a Battery (Fig.B)
1. Plug the charger into an appropriate outlet before inserting
batterypack.
Chargers
DeWALT
chargers require no adjustment and are designed to be
as easy as possible tooperate.
Electrical Safety
The electric motor has been designed for one voltage only.
Always check that the battery pack voltage corresponds to the
voltage on the rating plate. Also make sure that the voltage of
your charger corresponds to that of yourmains.
iYour
DeWALT
charger is double insulated in
accordance with EN60335; therefore no earth wire
isrequired.
If the supply cord is damaged, it must be replaced only by
DeWALT
or an authorised serviceorganisation.
Mains Plug Replacement
(U.K.& Ireland Only)
If a new mains plug needs to be fitted:
• Safely dispose of the oldplug.
• Connect the brown lead to the live terminal in theplug.
• Connect the blue lead to the neutralterminal.
WARNING: No connection is to be made to the
earthterminal.
Follow the fitting instructions supplied with good quality plugs.
Recommended fuse: 3A.
Using an Extension Cable
An extension cord should not be used unless absolutely
necessary. Use an approved extension cable suitable for
the power input of your charger (see Technical Data). The
minimum conductor size is 1mm2; the maximum length
is30m.
When using a cable reel, always unwind the cablecompletely.
Important Safety Instructions for All Battery
Chargers
SAVE THESE INSTRUCTIONS: This manual contains important
safety and operating instructions for compatible battery
chargers (refer to TechnicalData).
• Before using charger, read all instructions and cautionary
markings on charger, battery pack, and product using
batterypack.
WARNING: Shock hazard. Do not allow any liquid to get
inside charger. Electric shock mayresult.
WARNING: We recommend the use of a residual current
device with a residual current rating of 30mA orless.
CAUTION: Burn hazard. To reduce the risk of injury,
charge only
DeWALT
rechargeable batteries. Other types of
batteries may burst causing personal injury anddamage.
CAUTION: Children should be supervised to ensure that
they do not play with theappliance.
• Risk of personal injury due to flyingparticles.
• Risk of burns due to accessories becoming hot
duringoperation.
• Risk of personal injury due to prolongeduse.
SAVE THESE INSTRUCTIONS

7
ENGLISH
Battery Packs
Important Safety Instructions for All Battery
Packs
When ordering replacement battery packs, be sure to include
catalogue number andvoltage.
The battery pack is not fully charged out of the carton. Before
using the battery pack and charger, read the safety instructions
below. Then follow charging proceduresoutlined.
READ ALL INSTRUCTIONS
• Do not charge or use battery in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Inserting or removing the battery from the charger may
ignite the dust orfumes.
• Never force battery pack into charger. Do not modify
battery pack in any way to fit into a non‑compatible
charger as battery pack may rupture causing serious
personalinjury.
• Charge the battery packs only in
DeWALT
chargers.
• DO NOT splash or immerse in water or otherliquids.
• Do not store or use the tool and battery pack in locations
where the temperature may fall below 4˚C (34˚F) (such
as outside sheds or metal buildings in winter), or reach
or exceed 40˚C (104˚F) (such as outside sheds or metal
buildings insummer).
• Do not incinerate the battery pack even if it is severely
damaged or is completely worn out. The battery pack can
explode in a fire. Toxic fumes and materials are created when
lithium‑ion battery packs areburned.
• If battery contents come into contact with the skin,
immediately wash area with mild soap and water. If
battery liquid gets into the eye, rinse water over the open eye
for 15minutes or until irritation ceases. If medical attention
is needed, the battery electrolyte is composed of a mixture of
liquid organic carbonates and lithiumsalts.
Wall Mounting
These chargers are designed to be wall mountable or to sit
upright on a table or work surface. If wall mounting, locate the
charger within reach of an electrical outlet, and away from a
corner or other obstructions which may impede air flow. Use
the back of the charger as a template for the location of the
mounting screws on the wall. Mount the charger securely using
drywall screws (purchased separately) at least 25.4mm long
with a screw head diameter of 7–9mm, screwed into wood to
an optimal depth leaving approximately 5.5mm of the screw
exposed. Align the slots on the back of the charger with the
exposed screws and fully engage them in theslots.
Charger Cleaning Instructions
WARNING: Shock hazard. Disconnect the charger
from the AC outlet before cleaning. Dirt and grease
may be removed from the exterior of the charger using a
cloth or soft non‑metallic brush. Do not use water or any
cleaning solutions. Never let any liquid get inside the tool;
never immerse any part of the tool into aliquid.
2. Insert the battery pack 11 into the charger, making sure the
battery pack is fully seated in the charger. The red (charging)
light will blink repeatedly indicating that the charging
process hasstarted.
3. The completion of charge will be indicated by the red
light remaining ON continuously. The battery pack is fully
charged and may be used at this time or left in the charger.
To remove the battery pack from the charger, push the
battery release button 10 on the batterypack.
NOTE: To ensure maximum performance and life of lithium‑ion
battery packs, charge the battery pack fully before firstuse.
Charger Operation
Refer to the indicators below for the charge status of the
batterypack.
Charge Indicators
FCharging I
GFully Charged J
HHot/Cold Pack Delay* K
*The red light will continue to blink, but a yellow indicator light
will be illuminated during this operation. Once the battery pack
has reached an appropriate temperature, the yellow light will
turn off and the charger will resume the chargingprocedure.
The compatible charger(s) will not charge a faulty battery pack.
The charger will indicate faulty battery by refusing tolight.
NOTE: This could also mean a problem with acharger.
If the charger indicates a problem, take the charger and battery
pack to be tested at an authorised servicecentre.
Hot/Cold Pack Delay
When the charger detects a battery pack that is too hot or too
cold, it automatically starts a Hot/Cold Pack Delay, suspending
charging until the battery pack has reached an appropriate
temperature. The charger then automatically switches to the
pack charging mode. This feature ensures maximum battery
packlife.
A cold battery pack will charge at a slower rate than a warm
battery pack. The battery pack will charge at that slower rate
throughout the entire charging cycle and will not return to
maximum charge rate even if the battery packwarms.
The DCB118 charger is equipped with an internal fan designed
to cool the battery pack. The fan will turn on automatically
when the battery pack needs to be cooled. Never operate the
charger if the fan does not operate properly or if ventilation slots
are blocked. Do not permit foreign objects to enter the interior
of thecharger.
Electronic Protection System
XR Li‑Ion tools are designed with an Electronic Protection
System that will protect the battery pack against overloading,
overheating or deepdischarge.
The tool will automatically turn off if the Electronic Protection
System engages. If this occurs, place the lithium‑ion battery
pack on the charger until it is fullycharged.

8
ENGLISH
the latest regulations for packaging, labeling/marking and
documentationrequirements.
The information provided in this section of the manual is
provided in good faith and believed to be accurate at the time
the document was created. However, no warranty, expressed or
implied, is given. It is the buyer’s responsibility to ensure that its
activities comply with the applicableregulations.
Transporting the FLEXVOLTTM Battery
The
DeWALT
FLEXVOLTTM battery has two modes: Use
andTransport.
Use Mode: When the FLEXVOLTTM battery stands alone or is in
a
DeWALT
18V product, it will operate as an 18V battery. When
the FLEXVOLTTM battery is in a 54V or a 108V (two 54V batteries)
product, it will operate as a 54Vbattery.
Transport Mode: When the cap is attached to the FLEXVOLTTM
battery, the battery is in Transport mode. Keep the cap
forshipping.
When in Transport mode, strings
of cells are electrically
disconnected within the pack
resulting in 3batteries with a
lower Watt hour (Wh) rating as compared to 1battery with a
higher Watt hour rating. This increased quantity of 3batteries
with the lower Watt hour rating can exempt the pack from
certain shipping regulations that are imposed upon the higher
Watt hour batteries.
For example, the Transport
Wh rating might indicate
3x36Wh, meaning
3batteries of 36Wh each.
The Use Wh rating might
indicate 108Wh (1batteryimplied).
Storage Recommendations
1. The best storage place is one that is cool and dry away
from direct sunlight and excess heat or cold. For optimum
battery performance and life, store battery packs at room
temperature when not inuse.
2. For long storage, it is recommended to store a fully charged
battery pack in a cool, dry place out of the charger for
optimalresults.
NOTE: Battery packs should not be stored completely
depleted of charge. The battery pack will need to be recharged
beforeuse.
Labels on Charger and Battery Pack
In addition to the pictographs used in this manual, the labels
on the charger and the battery pack may show the following
pictographs:
LRead instruction manual beforeuse.
p See Technical Data for chargingtime.

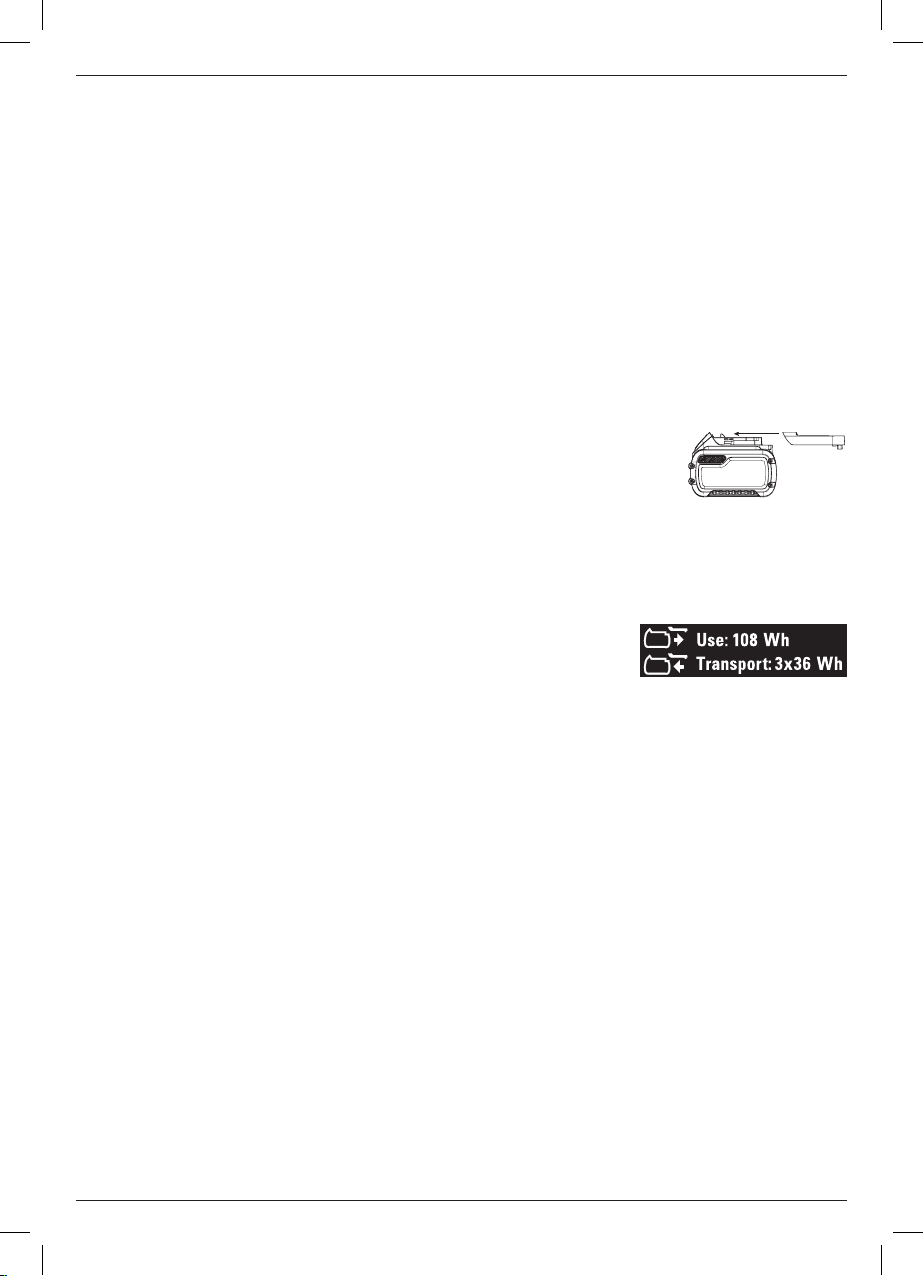

Example of Use and Transport Label Marking
• Contents of opened battery cells may cause respiratory
irritation. Provide fresh air. If symptoms persists, seek
medicalattention.
WARNING: Burn hazard. Battery liquid may be flammable
if exposed to spark orflame.
WARNING: Never attempt to open the battery pack for
any reason. If battery pack case is cracked or damaged,
do not insert into charger. Do not crush, drop or damage
battery pack. Do not use a battery pack or charger that
has received a sharp blow, been dropped, run over or
damaged in any way (i.e., pierced with a nail, hit with
a hammer, stepped on). Electric shock or electrocution
may result. Damaged battery packs should be returned to
service centre forrecycling.
WARNING: Fire hazard. Do not store or carry the
battery pack so that metal objects can contact
exposed battery terminals. For example, do not place
the battery pack in aprons, pockets, tool boxes, product kit
boxes, drawers, etc., with loose nails, screws, keys,etc.
CAUTION: When not in use, place tool on its side on
a stable surface where it will not cause a tripping
or falling hazard. Some tools with large battery packs
will stand upright on the battery pack but may be easily
knockedover.
Transportation
WARNING: Fire hazard. Transporting batteries can
possibly cause fire if the battery terminals inadvertently
come in contact with conductive materials. When
transporting batteries, make sure that the battery
terminals are protected and well insulated from
materials that could contact them and cause a short
circuit. NOTE: Lithium‑ion batteries should not be put in
checkedbaggage.
DeWALT
batteries comply with all applicable shipping
regulations as prescribed by industry and legal standards which
include UN Recommendations on the Transport of Dangerous
Goods; International Air Transport Association (IATA) Dangerous
Goods Regulations, International Maritime Dangerous Goods
(IMDG) Regulations, and the European Agreement Concerning
The International Carriage of Dangerous Goods by Road
(ADR). Lithium‑ion cells and batteries have been tested to
section 38.3of the UN Recommendations on the Transport of
Dangerous Goods Manual of Tests andCriteria.
In most instances, shipping a
DeWALT
battery pack will be
excepted from being classified as a fully regulated Class
9Hazardous Material. In general, only shipments containing a
lithium‑ion battery with an energy rating greater than 100Watt
Hours (Wh) will require being shipped as fully regulated Class 9.
All lithium‑ion batteries have the Watt Hour rating marked on
the pack. Furthermore, due to regulation complexities,
DeWALT
does not recommend air shipping lithium‑ion battery packs
alone regardless of Watt Hour rating. Shipments of tools with
batteries (combo kits) can be air shipped as excepted if the Watt
Hour rating of the battery pack is no greater than 100Wh.
Regardless of whether a shipment is considered excepted
or fully regulated, it is the shipper's responsibility to consult

9
ENGLISH
Description (Fig.A)
WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1 Variable speed trigger switch
2 Forward/reverse control button
3 Torque adjustment collar
4 Gear shifter
5 Worklight
6 Keyless chuck
7 Belt hook
8 Mounting screw
9 Bit holder
10 Battery release button
11 Battery pack
12 Main handle
13 Side handle
14 Mode selector button
15 Date code
Intended Use
These drills/drivers/hammerdrills are designed for professional
drilling, percussion drilling and screwdriving applications. This
tool is compatible with Bluetooth® Battery Technology and with
the
DeWALT
Tool Connect™App.
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
These drills/drivers/hammerdrills are professional powertools.
Date Code Position (Fig.A)
The date code 15, which also includes the year of manufacture,
is printed into thehousing.
Example:
2019 XX XX
Year of Manufacture
Markings on Tool
The following pictograms are shown on the tool:
a Read instruction manual beforeuse.
g Wear earprotection.
f Wear eyeprotection.
n Visible radiation. Do not stare intolight.
NOTE: The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth®, SIG, Inc. and any use of
such marks by
DeWALT
is under license. Other trademarks and
trade names are those of their respectiveowners.
• Check for damage to the tool, parts or accessories which may
have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.
Package Contents
The package contains:
1 Brushless cordless drill/driver (DCD992)
1 Brushless cordless hammerdrill (DCD997)
1 Li‑Ion battery pack (C1, D1, L1, M1, P1, S1, T1, X1 models)
2 Li‑Ion battery packs (C2, D2, L2, M2, P2, S2, T2, X2 models)
3 Li‑Ion battery packs (C3, D3, L3, M3, P3, S3, T3, X3 models)
1 Kitbox
1 Charger
1 Side handle
1 Magnetic bit holder (Optional accessory)
1 Belt hook (Optional accessory)
1 Instruction manual
NOTE: Battery packs, chargers and kitboxes are not included
with N models. Battery packs and chargers are not included with
NT models. Bmodels include Bluetooth® batterypacks.
Battery Type
The following SKU(s) operate on a 18 volt battery pack:
DCD992, DCD997
These battery packs may be used: DCB181, DCB182, DCB183,
DCB183B, DCB184, DCB184B, DCB185, DCB187, DCB189,
DCB546, DCB547, DCB548. Refer to Technical Data for
moreinformation.
q Do not probe with conductiveobjects.
r Do not charge damaged batterypacks.
s Do not expose towater.
t Have defective cords replacedimmediately
u Charge only between 4˚C and 40˚C.
v Only for indooruse.
x Discard the battery pack with due care for
theenvironment.
y Charge
DeWALT
battery packs only with designated
DeWALT
chargers. Charging battery packs other than
the designated
DeWALT
batteries with a
DeWALT
charger may make them burst or lead to other
dangeroussituations.
z Do not incinerate the batterypack.
B USE (without transport cap). Example: Wh rating
indicates 108Wh (1battery with 108Wh).
A TRANSPORT (with built‑in transport cap). Example: Wh
rating indicates 3x 36Wh (3batteries of 36Wh).

10
ENGLISH
use. DO NOT suspend tool overhead or suspend objects
from the belthook.
WARNING:To reduce the risk of serious personal
injury, ensure the screw holding the belt hook issecure.
CAUTION: To reduce the risk of personal injury or
damage, DO NOT use the belt hook to hang the drill
while using as aspotlight.
IMPORTANT: When attaching or replacing the belt hook7 or
magnetic bit holder9, use only the screw8 that is provided.
Be sure to securely tighten thescrew.
The belt hook7 and magnetic bit holder9 can be be attached
to either side of the tool using only the screw8 provided,
to accommodate left‑ or right‑ handed users. If the hook or
magnetic bit holder is not desired at all, it can be removed from
thetool.
To move belt hook or magnetic bit holder, remove the screw8
that holds it in place then reassemble on the opposite side. Be
sure to securely tighten thescrew.
Variable Speed Trigger Switch (Fig.A)
To turn the tool on, squeeze the trigger switch1. To turn the
tool off, release the trigger switch. Your tool is equipped with
a brake. The chuck will stop as soon as the trigger switch is
fullyreleased.
NOTE: Continuous use in variable speed range is not
recommended. It may damage the switch and should
beavoided.
Side Handle (Fig.A)
WARNING: To reduce the risk of personal injury, ALWAYS
operate the tool with the side handle properly installed.
Failure to do so may result in the side handle slipping
during tool operation and subsequent loss of control. Hold
tool with both hands to maximizecontrol.
The side handle13 clamps to the front of the gear case and
may be rotated 360˚ to permit right‑ or left‑hand use. Side
handle must be tightened sufficiently to resist the twisting
action of the tool if the accessory binds or stalls. Be sure to grip
the side handle at the far end to control the tool during astall.
If model is not equipped with side handle, grip drill with one
hand on the handle and one hand on the batterypack.
NOTE: Side handle comes equipped on allmodels.
Forward/Reverse Control Button (Fig.A)
A forward/reverse control button2 determines the direction of
the tool and also serves as a lock‑offbutton.
To select forward rotation, release the trigger switch and
depress the forward/reverse control button on the right side of
thetool.
To select reverse, release the trigger switch and depress the
forward/reverse control button on the left side of thetool.
The center position of the control button locks the tool in the off
position. When changing the position of the control button, be
sure the trigger isreleased.
Belt Hook and Magnetic Bit Holder (Fig.A)
(OptionalAccessories)
WARNING:To reduce the risk of serious personal
injury, ONLY use the tool's belt hook to hang the
tool from a work belt. DO NOT use the belt hook for
tethering or securing the tool to a person or object during
Inserting and Removing the Battery Pack
from the Tool (Fig.B)
NOTE: Make sure your battery pack 11 is fullycharged.
To Install the Battery Pack into the Tool Handle
1. Align the battery pack 11 with the rails inside the tool’s
handle (Fig. B).
2. Slide it into the handle until the battery pack is firmly seated
in the tool and ensure that you hear the lock snap intoplace.
To Remove the Battery Pack from the Tool
1. Press the release button 10 and firmly pull the battery pack
out of the toolhandle.
2. Insert battery pack into the charger as described in the
charger section of thismanual.
Fuel Gauge Battery Packs (Fig.B)
Some
DeWALT
battery packs include a fuel gauge which
consists of three green LED lights that indicate the level of
charge remaining in the batterypack.
To actuate the fuel gauge, press and hold the fuel gauge button.
A combination of the three green LED lights will illuminate
designating the level of charge left. When the level of charge
in the battery is below the usable limit, the fuel gauge will not
illuminate and the battery will need to berecharged.
NOTE: The fuel gauge is only an indication of the charge left on
the battery pack. It does not indicate tool functionality and is
subject to variation based on product components, temperature
and end‑userapplication.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect battery pack
before making any adjustments or removing/
installing attachments or accessories. An accidental
start‑up can causeinjury.
WARNING: Use only
DeWALT
battery packs andchargers.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
withoutsupervision.
• This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or
mental abilities; lack of experience, knowledge or skills
unless they are supervised by a person responsible for their
safety. Children should never be left alone with thisproduct.

11
ENGLISH
Spotlight Mode
In factory default settings, mode 3is the spotlight mode. The
spotlight will run for 20minutes after the trigger switch is
released. Two minutes before the spotlight will shut off, it will
flash twice and then dim. To avoid the spotlight shutting off,
lightly tap the triggerswitch.
WARNING: While using the worklight in medium or
spotlight mode, do not stare at the light or place the
drill in a position which may cause anyone to stare
into the light. Serious eye injury couldresult.
CAUTION: When using the tool as a spotlight, be sure
it is secured on a stable surface where it will not cause a
tripping or fallinghazard.
CAUTION: Remove all accessories from the chuck before
using the drill as a spotlight. Personal injury or property
damage couldresult.
Low Battery Warning
When in spotlight mode and the battery is nearing complete
discharge, the spotlight will flash twice and then dim. After two
minutes, the battery will be completely discharged and the
drill will immediately shut down. At this point, replace with a
freshbattery.
WARNING:To reduce the risk of injury, always have a
back‑up battery or secondary lighting available if the
situation warrantsit.
Keyless Single Sleeve Chuck (Fig.H–J)
WARNING: Do not attempt to tighten drill bits (or
any other accessory) by gripping the front part of the
chuck and turning the tool on. Damage to the chuck
and personal injury may result. Always lock off trigger
switch and remove the battery from the tool when
changingaccessories.
WARNING: Always ensure the bit is secure before starting
the tool. A loose bit may eject from tool causing possible
personalinjury.
Your tool features a keyless chuck6 with one rotating sleeve for
one‑handed operation of the chuck. To insert a drill bit or other
accessory, follow thesesteps.
1. Turn tool off and disconnect tool from powersource.
2. Grasp the black sleeve of the chuck6 with one hand and
use the other hand to secure the tool. Rotate the sleeve
anticlockwise (as viewed from the front) far enough to
accept the desiredaccessory.
3. Insert the accessory about 19mm into the chuck and
tighten securely by rotating the chuck sleeve clockwise
with one hand while holding the tool with the other hand.
Continue to rotate the chuck sleeve until several ratchet
clicks are heard to ensure full grippingpower.
NOTE: Be sure to tighten chuck with one hand on
the chuck sleeve and one hand holding the tool for
maximumtightness.
To release the accessory, repeat steps 1and 2above.
NOTE: The first time the tool is run after changing the direction
of rotation, you may hear a click on start up. This is normal and
does not indicate aproblem.
Torque Adjustment Collar/Electronic Clutch
(Fig.A, E–G)
Your tool has an electronic adjustable torque screwdriver
mechanism for driving and removing a wide array of fasteners.
Circling the torque adjustment collar3 are numbers. These
numbers are used to set the clutch to deliver a torque range.
The higher the number on the collar, the higher the torque and
the larger the fastener which can be driven. To select any of the
numbers, rotate until the desired number aligns with thearrow.
WARNING: When the torque adjustment collar is in the
drill or hammerdrill positions, the drill will not clutch. The
drill may stall if overloaded, causing a suddentwist.
Bind‑Up Control®
The DCD992 and DCD997 are equipped with a Bind‑Up Control®
system. This feature senses the current through the motor
and reduces the motor torque to a manageable level before
ultimately shutting down. The Bind‑Up Control®system setting
is preset as disabled at the factory but can be customized using
the Tool Connect™ app. Refer to ModeSelector.
Three‑Speed Gearing (Fig.E–G)
The three‑speed feature of your tool allows you to shift gears
for greater versatility. To select speed 1(highest torque setting),
turn the tool off and permit it to stop. Slide the gear shifter4
all the way forward. Speed 2(middle torque and speed setting)
is in the middle position. Speed 3(highest speed setting) is to
therear.
NOTE: Do not change gears when the tool is running. Always
allow the drill to come to a complete stop before changing
gears. If you have trouble changing gears, make sure that the
gear shifter is engaged in one of the three speedsettings.
If the speed shifter becomes stuck or is difficult to select the
desired gear, pull the trigger switch1 to rotate the motor. Then
select thegear.
Gear speed settings are preset at the factory but can be
customized using the Tool Connect™ app. Refer to Mode
Selector table for factorypresets.
Worklight (Fig.A)
CAUTION: Do not stare into worklight. Serious eye
injury couldresult.
The worklight5 located on the foot of the tool is activated
when the trigger switch is depressed. In the Home setting,
when the trigger is released, the worklight will stay illuminated
for up to 20seconds. If the trigger switch remains depressed,
the worklight will remain on. These settings can be customized
using the Tool Connect™ app. Refer to ModeSelector.
NOTE: The worklight is for lighting the immediate work surface
and are not intended to be used as aflashlight.

12
ENGLISH
Mode Selector (Fig.A,D)
Your tool is equipped with a mode selector that allows
3modes17 to be customized using the Tool Connect™ app.
Home settings are active when the home indicator16 is lit.
Refer to Table 1for customizablefeatures.
Once configured, pressing the mode button14 on the foot of
the tool will cycle through the modes17.
If you are unsure of the current configuration, press the mode
selector button14 to set the tool to the Home setting (home
indicator16 islit).
DeWALT
Tool Connect™
WARNING: To reduce the risk of injury, remove accessories
from the tool chuck before any Tool Connect™interaction.
NOTICE: Always check the tool configuration prior to use.
If you are unsure of the current configuration, press the
mode selector button14 (Fig. D) to set the tool to the
Home setting as described on the label and thismanual.
This tool is capable of connecting with mobile devices that
support Bluetooth® Smart (or Bluetooth® 4.0) technology.
(To see if your mobile device is compatible, visit: http://
www.bluetooth.com/Pages/Bluetooth‑Smart‑Devices‑List.aspx)
DeWALT
Tool Connect™ is an application for your smart device
(such as a smart phone or tablet) that connects the device to
your tool to allow you to configure specific tool functions. Refer
to ModeSelector.
NOTE: The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth®, SIG, Inc. and any use of
such marks by
DeWALT
is under license. Other trademarks and
trade names are those of their respectiveowners.
NOTE: The Tool Connect™ App is governed by separate
terms and conditions available for viewing through the
mobileapplication.
Download the
DeWALT
Tool Connect™ applicationat:
• Install a fully charged 18V battery pack into the tool. Refer to
Inserting and Removing the Battery Pack from theTool.
• Follow the instructions in the app to create your Tool
Connect™account.
TABLE 1
Customizable Features Home
Factory Presets Customizable
RangeMode 1 Mode 2 Mode 3
Worklight brightness MED OFF MED HIGH OFF‑HIGH
Worklight delay off 20 secs 20 secs 20 secs 20 minutes 0–20 minutes
Maximum speed (RPM)
in Drill Mode
Speed 1
Speed 2
Speed 3
450
1300
2000
450
1300
2000
450
1300
2000
450
1300
2000
140–450
400–1300
600–2000
Bind‑Up Control® Disabled Disabled Disabled Disabled Disabled/
Enabled
• On the Home screen of the app, select "+ Tool" to begin the
process of adding your tool to theapp.
• To connect your tool with the
DeWALT
Tool Connect™
app, at the appropriate screen, press the mode selector
button14 for 3–5 seconds, then wait for the tool to
connect. The tool can only be connected to one Tool
Connect™ account at atime.
Once the tool has been connected, you can confirm that you
would like to register the product.
DeWALT
.comaccount.
Coin Cell Battery
Bluetooth® capability is powered by one coin cell battery in
your tool, that when necessary, should be replaced by your local
DeWALT
service center. Do not attempt to replace the coin cell
batteryyourself.
WARNING: Danger of explosion if battery is
incorrectlyreplaced.
WARNING: DO NOT INGEST BATTERY; CHEMICAL
BURN HAZARD. This product contains a coin/button cell
battery. If the coin/button cell battery is swallowed, it can
cause severe internal burns in just 2hours and can lead
todeath.
• Keep new and used batteries away from children. If
the battery compartment does not close securely, stop
using the product and keep it away fromchildren.
• If you think batteries might have been swallowed or
placed inside any part of the body, seek immediate
medicalattention.
• If the coin cell battery contents come into contact
with the skin, immediately wash area with mild soap
and water. If coin cell battery liquid gets into the eye,
rinse water over the open eye for 15minutes or until
irritation ceases. If medical attention is needed, the
battery electrolyte is composed of an organic solvent
and lithiumsalts.
• Do not incinerate or dispose of tool together with
household waste material! Tool that has reached
the end of its life must be collected separately
and returned to an environmentally compatible
recyclingfacility.

13
ENGLISH
D
Cleaning
WARNING: Blow dirt and dust out of the main housing
with dry air as often as dirt is seen collecting in and around
the air vents. Wear approved eye protection and approved
dust mask when performing thisprocedure.
WARNING: Never use solvents or other harsh chemicals
for cleaning the non‑metallic parts of the tool. These
C
Lubrication
Your power tool requires no additionallubrication.
MAINTENANCE
Your power tool has been designed to operate over a long
period of time with a minimum of maintenance. Continuous
satisfactory operation depends upon proper tool care and
regularcleaning.
WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect battery pack
before making any adjustments or removing/
installing attachments or accessories. An accidental
start‑up can causeinjury.
The charger and battery pack are notserviceable.
Proper hand position requires one hand on the main handle12
and one hand on the side handle13.
Screwdriver Operation (Fig.E)
1. Select the desired speed/torque range using the
three‑speed gear shifter4 on the top of the tool. If using
the torque adjustment collar3, initially set the three‑speed
gear shifter to speed 2or 3. This ensures effective control
over the fastener allowing the screw to be seated correctly
and set to specification. Speed 1will provide the same
clutching torque as speeds 2and 3. However, for optimum
performance of the electronic clutch, speeds 2and
3arepreferred.
NOTE: Use the lowest torque setting (1) first and increase
the number through to the highest setting (11) to seat the
fastener at the desired depth. The lower the number, the
lower the torqueoutput.
2. Reset the torque adjustment collar3 to the appropriate
number setting for the torque desired. Make a few practice
runs in scrap or unseen areas to determine the proper
position of the torque adjustmentcollar.
NOTE: The torque adjustment collar may be set to any number
at anytime.
Drill Operation (Fig.F)
WARNING: TO REDUCE THE RISK OF PERSONAL
INJURY, ALWAYS ensure workpiece is anchored or
clamped firmly. If drilling thin material, use a wood
“back‑up” block to prevent damage to thematerial.
1. Select the desired speed/torque range using the gear shifter
to match the speed and torque to the planned operation.
Set the torque adjustment collar3 to the drillsymbol.
2. For WOOD, use twist bits, spade bits, power auger bits or
hole saws. For METAL, use high‑speed steel twist drill bits
or hole saws. Use a cutting lubricant when drilling metals.
The exceptions are cast iron and brass which should be
drilleddry.
3. Always apply pressure in a straight line with the bit. Use
enough pressure to keep the drill bit biting, but do not push
hard enough to stall the motor or deflect thebit.
Proper Hand Position (Fig.K)
WARNING: To reduce the risk of serious personal injury,
ALWAYS use proper hand position asshown.
WARNING: To reduce the risk of serious personal
injury, ALWAYS hold securely in anticipation of a
suddenreaction.
OPERATION
Instructions for Use
WARNING: Always observe the safety instructions and
applicableregulations.
WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect battery pack
before making any adjustments or removing/
installing attachments or accessories. An accidental
start‑up can causeinjury.
4. Hold tool firmly with both hands to control the twisting
action of thedrill.
5. IF DRILL STALLS, it is usually because it is being
overloaded. RELEASE TRIGGER IMMEDIATELY, remove
drill bit from work, and determine cause of stalling. DO NOT
CLICK TRIGGER OFF AND ON IN AN ATTEMPT TO START
A STALLED DRILL – THIS CAN DAMAGE THEDRILL.
6. Keep the motor running when pulling the bit back out of a
drilled hole. This will help preventjamming.
Hammerdrill Operation (Fig.G)
DCD997 Only
1. Select the desired speed/torque range using the gear shifter
to match the speed and torque to the planned operation.
Set the torque adjustment collar3 to the hammersymbol.
2. Select the high speed 3setting by sliding the gear shifter4
back (away form thechuck).
3. When drilling, use just enough force on the hammer to
keep it from bouncing excessively. Prolonged and too much
force on the hammer will cause slower drilling speeds and
potentialoverheating.
4. Drill straight, keeping the bit at a right angle to the work. Do
not exert side pressure on the bit when drilling as this will
cause clogging of the bit flutes and a slower drillingspeed.
5. When drilling deep holes, if the hammer speed starts to
drop off, pull the bit partially out of the hole with the tool
still running to help clear debris from thehole.
6. For masonry, use carbide‑tipped bits or masonry bits. A
smooth, even flow of dust indicates the proper drillingrate.

14
ENGLISH
Protecting the Environment
wSeparate collection. Products and batteries marked
with this symbol must not be disposed of with
normal householdwaste.
Products and batteries contain materials that
can be recovered or recycled reducing the demand for raw
materials. Please recycle electrical products and batteries
according to local provisions. Further information is available at
www.2helpU.com.
Rechargeable Battery Pack
This long life battery pack must be recharged when it fails
to produce sufficient power on jobs which were easily done
before. At the end of its technical life, discard it with due care for
our environment:
• Run the battery pack down completely, then remove it from
thetool.
• Li‑Ion cells are recyclable. Take them to your dealer or a
local recycling station. The collected battery packs will be
recycled or disposed ofproperly.
Optional Accessories
WARNING: Since accessories, other than those offered
by
DeWALT
, have not been tested with this product, use
of such accessories with this tool could be hazardous.
To reduce the risk of injury, only
DeWALT
recommended
accessories should be used with thisproduct.
Consult your dealer for further information on the
appropriateaccessories.
chemicals may weaken the materials used in these parts.
Use a cloth dampened only with water and mild soap.
Never let any liquid get inside the tool; never immerse any
part of the tool into aliquid.

15
PУССКИЙ
aВНИМАНИЕ: Во избежание риска получения травм
ознакомьтесь синструкцией.
Значение шумовой эмиссии и/или эмиссии вибрации,
указанное в данном справочном листке, было получено
в соответствии со стандартным тестом, приведенным
в EN60745, и может использоваться для сравнения
инструментов. Кроме того, оно может использоваться для
предварительной оценки воздействиявибрации.
ОСТОРОЖНО! Заявленное значение шумовой
эмиссии и/или эмиссии вибрации относится к
основным областям применения инструмента.
Однако, если инструмент используется для
различных целей, с различными дополнительными
принадлежностями или при ненадлежащем уходе, то
уровень шума и/или вибрации может измениться.
Это может привести к значительному увеличению
уровня воздействия вибрации в течение всего
рабочегопериода.
При расчете приблизительного значения уровня
воздействия шума и/или вибрации также
необходимо учитывать время, когда инструмент
выключен или то время, когда он работает
на холостом ходу. Это может привести к
значительному снижению уровня воздействия
вибрации в течение всего рабочегопериода.
Определите дополнительные меры техники
безопасности для защиты оператора от
воздействия шума и/или вибрации, а именно:
поддержание инструмента и дополнительных
принадлежностей в рабочем состоянии, создание
комфортных условий работы (соответствующих
вибрации), хорошая организация рабочегоместа.
DCD992 DCD997
Сверление металла
Значение вибрационного
воздействия a
h, D
=
м/с2<2,5 <2,5
Погрешность K = м/с21,5 1,5
Ударное сверление
Значение вибрационного
воздействия a
h, ID
=
м/с2–15,0
Погрешность K = м/с2–3,9
Заворачивание
Значение вибрационного
воздействия a
h, D
=
м/с2<2,5 <2,5
Погрешность K = м/с21,5 1,5
DCD992 DCD997
Напряжение Впост. тока 18 18
Тип 1 1
Тип батареи Ионно‑литиевая Ионно‑литиевая
Выходная мощность Вт 820 820
Скорость без нагрузки Дрель,
шуруповерт/
ударная дрель
1‑я скорость мин‑1 0‑450 0‑450/500
2‑я скорость 0‑1300 0‑1300/1500
3‑я скорость 0–2000 0‑2000/2250
Скорость удара
1‑я скорость мин‑1 –0‑8600
2‑я скорость –0‑25500
3‑я скорость –0‑38250
Макс. крутящий момент
(жесткий/мягкий)
жесткий Нм 95 95
мягкий Нм 66 66
Диаметр патрона мм 1,5‑13 1,5‑13
Макс. скорость сверления
Древесина мм 55 55
Металл 15 15
Кирпичная кладка –13
Вес (без аккумуляторной
батареи)
кг 1,5 1,6
Значения шума и вибрации (сумма векторов в трех плоскостях) в
соответствии с EN60745‑2:
LPA (уровень звукового
давления)
дБ(A) 75 97
LWA (уровень акустической
мощности)
дБ(A) 86 108
K (погрешность для
заданного уровня
мощности)
дБ(A) 3 3
Поздравляем!
Вы приобрели инструмент
DeWALT
. Многолетний опыт,
тщательная разработка изделий иинновации делают
компанию
DeWALT
одним из самых надёжных партнеров для
пользователей профессиональногоэлектроинструмента.
Технические характеристики
Pусский (перевод соригинала инструкции)
TOOL CONNECT™13мм ДРЕЛЬ/ШУРУПОВЕРТ, DCD992
TOOL CONNECT™CORDLESS 13мм ДРЕЛЬ/ШУРУПОВЕРТ/
УДАРНАЯ ДРЕЛЬ DCD997

16
PУССКИЙ
СОХРАНИТЕ ВСЕ ИНСТРУКЦИИ ДЛЯ
ПОСЛЕДУЮЩЕГОИСПОЛЬЗОВАНИЯ
Термин «электроинструмент» впредупреждениях
относится кработающим от сети
(проводным) электроинструментам или
работающим от аккумуляторной батареи
(беспроводным)электроинструментам.
1) Безопасность на рабочем месте
a ) Следите за чистотой ихорошим освещением
на рабочем месте. Захламленное или плохо
освещенное рабочее место может стать причиной
несчастногослучая.
b ) Запрещается работать
сэлектроинструментами во
взрывоопасных местах, например, вблизи
легковоспламеняющихся жидкостей, газов
ипыли. Искры, которые появляются при
работе электроинструментов могут привести
квоспламенению пыли илипаров.
c ) Следите за тем, чтобы во время работы
сэлектроинструментом взоне работы
не было посторонних идетей. Отвлекаясь
от работы вы можете потерять контроль
надинструментом.
2) Электробезопасность
a ) Штепсельная вилка электроинструмента
должна соответствовать розетке. Никогда
не меняйте вилку инструмента. Запрещается
использовать переходники квилкам для
электроинструментов сзаземлением.
Использование оригинальных штепсельных вилок,
соответствующих типу сетевой розетки снижает
риск поражения электрическимтоком.
b ) Избегайте контакта сзаземленными
поверхностями, такими как трубы,
радиаторы ихолодильники. Если вы будете
заземлены, увеличивается риск поражения
электрическимтоком.
ОБЩИЕ ПРАВИЛА ТЕХНИКИ
БЕЗОПАСНОСТИ ПРИ ИСПОЛЬЗОВАНИИ
ЭЛЕКТРОИНСТРУМЕНТОВ
ВНИМАНИЕ: Прочитайте ипросмотрите
все предупреждения, инструкции,
иллюстрации испецификации по данному
электроинструменту. Несоблюдение всех
приведенных ниже инструкций может стать
причиной поражения электрическим током,
возгорания и/или тяжелойтравмы.
Обозначения: правила техники
безопасности
Ниже описывается уровень опасности, обозначаемый
каждым из предупреждений. Прочитайте руководство
иобратите внимание на данныесимволы.
ОПАСНО: Обозначает опасную ситуацию, которая
неизбежно приведет ксерьезной травме или
смертельному исходу, вслучае несоблюдения
соответствующих мербезопасности.
ВНИМАНИЕ: Указывает на потенциально опасную
ситуацию, которая, вслучае несоблюдения
соответствующих мер безопасности,
может привести ксерьезной травме или
смертельномуисходу.
ПРЕДУПРЕЖДЕНИЕ: Указывает на потенциально
опасную ситуацию, которая, вслучае несоблюдения
соответствующих мер безопасности может
стать причиной травм средней или легкой
степенитяжести.
ПОЯСНЕНИЕ: Указывает на практики,
использование которых не связано
сполучением травмы, но если ими пренебречь,
могут привести кпорчеимущества.
Указывает на риск поражения электрическимтоком.
Указывает на рисквозгорания.
Батареи
Зарядные устройства/время зарядки (мин)
Кат. №
пост.тока
Вес
*Код даты 201811475B или новее
**Код даты 201536или новее
Батареи Зарядные устройства/время зарядки (мин)
Кат. № Vпост. тока Ah Вес (kg) DCB104 DCB107 DCB112 DCB113 DCB115 DCB116 DCB117 DCB118 DCB132 DCB119
DCB546 18/54 6,0/2,0 1,05 60 270 170 140 90 80 40 60 90 X
DCB547 18/54 9,0/3,0 1,46 75* 420 270 220 135* 110* 60 75* 135* X
DCB548 18/54 12,0/4,0 1,44 120 540 350 300 180 150 80 120 180 X
DCB181 18 1,5 0,35 22 70 45 35 22 22 22 22 22 45
DCB182 18 4,0 0,61 60/40** 185 120 100 60 60/45** 60/40** 60/40** 60 120
DCB183/B 18 2,0 0,40 30 90 60 50 30 30 30 30 30 60
DCB184/B 18 5,0 0,62 75/50** 240 150 120 75 75/60** 75/50** 75/50** 75 150
DCB185 18 1,3 0,35 22 60 40 30 22 22 22 22 22 X
DCB187 18 3,0 0,54 45 140 90 70 45 45 45 45 45 90
DCB189 18 4,0 0,54 60 185 120 100 60 60 60 60 60 120
*Код даты 201811475B или новее
**Код даты 201536или новее

17
PУССКИЙ
равновесие. Это позволит лучше контролировать
электроинструмент внепредвиденныхситуациях.
f ) Одевайтесь соответствующим образом.
Избегайте носить свободную одежду
иювелирные украшения. Следите за тем,
чтобы волосы иодежда не попадали под
движущиеся детали. Возможно наматывание
свободной одежды, ювелирных изделий идлинных
волос на движущиесядетали.
g ) При наличии устройств для подключения
оборудования для удаления исбора пыли
необходимо обеспечить правильность их
подключения иэксплуатации. Использование
устройства для пылеудаления сокращает риски,
связанные спылью.
h ) Не позволяйте хорошему знанию от частого
использования инструментов стать причиной
самонадеянности иигнорирования правил
техники безопасности. Небрежное действие
может повлечь серьезные травмы за долюсекунды.
4) Эксплуатация электроинструмента иуход
за ним
a ) Избегайте чрезмерной нагрузки
электроинструмента. Используйте
электроинструмент всоответствии
сназначением. Правильно подобранный
электроинструмент выполнит работу более
эффективно ибезопасно при стандартнойнагрузке.
b ) Не пользуйтесь инструментом, если
не работает выключатель. Любой
инструмент, управлять выключением
ивключением которого невозможно, опасен, иего
необходимоотремонтировать.
c ) Перед выполнением любых настроек,
сменой аксессуаров или прежде чем убрать
инструмент на хранение, отключите его от
сети и/или снимите снего аккумуляторную
батарею, если ее можно снять. Такие
превентивные меры безопасности сокращают риск
случайного включенияэлектроинструмента.
d ) Храните электроинструмент внедоступном
для детей месте ине позволяйте работать
синструментом людям, не имеющим
соответствующих навыков работы стакого
рода инструментами. Электроинструмент
представляет опасность вруках
неопытныхпользователей.
e ) Поддерживайте электроинструмент
ипринадлежности висправном состоянии.
Проверьте, не нарушена ли центровка или
не заклинены ли движущиеся детали, нет
ли повреждений или иных неисправностей,
которые могли бы повлиять на работу
электроинструмента. Вслучае обнаружения
повреждений, прежде чем приступить
кэксплуатации электроинструмента, его
нужно отремонтировать. Большинство
несчастных случаев происходит из‑за
c ) Запрещается оставлять электроинструмент
под дождем ивместах повышенной влажности.
При попадании воды вэлектроинструмент риск
поражения электротокомвозрастает.
d ) Берегите кабель от повреждений. Никогда
не используйте кабель для переноски
инструмента, не тяните за него, пытаясь
отключить инструмент от сети. Держите
кабель подальше от источников тепла, масла,
острых углов или движущихся предметов.
Поврежденный или запутанный кабель питания
повышает риск поражения электрическимтоком.
e ) При работе сэлектроинструментом на
открытом воздухе используйте удлинитель,
подходящий для использования на улице.
Использования кабеля питания, предназначенного
для использования вне помещения, снижает риск
поражения электрическимтоком.
f ) Если использование электроинструмента
вусловиях повышенной влажности неизбежно,
используйте устройства защитного
отключения (УЗО) для защиты сети.
Использование УЗО сокращает риск поражения
электрическимтоком.
3) Обеспечение индивидуальной
безопасности
a ) Будьте внимательны, смотрите, что делаете
ине забывайте оздравом смысле при работе
сэлектроинструментом. Запрещается
работать сэлектроинструментом
всостоянии усталости, наркотического,
алкогольного опьянения или под воздействием
лекарственных препаратов. Невнимательность
при работе сэлектроинструментом может
привести ксерьезным телеснымповреждениям.
b ) Используйте индивидуальные средства
защиты. Всегда используйте защитные очки.
Средства защиты, такие как пылезащитная маска,
обувь снескользящей подошвой, каска изащитные
наушники, используемые при работе, уменьшают
риск получениятравм.
c ) Примите меры для предотвращения
случайного включения. Перед тем как
подключить электроинструмент ксети и/или
аккумуляторной батарее, взять инструмент
или перенести его на другое место, убедитесь
втом, что выключатель находится
вположении «Выкл.». Если при переноске
электроинструмента он подключен ксети, ипри
этом ваш палец находится на выключателе, это
может стать причиной несчастныхслучаев.
d ) Уберите все регулировочные или гаечные ключи
перед включением электроинструмента.
Ключ, оставленный на вращающейся части
электроинструмента, может привести ктравме.
e ) Не пытайтесь дотянуться до слишком
удаленных поверхностей. Обувь должна быть
удобной, чтобы вы всегда могли сохранять

18
PУССКИЙ
Дополнительные правила техники
безопасности для дрелей/шуруповертов/
ударных дрелей
• При эксплуатации ударных дрелей следует
использовать средства защиты слуха. Шум может
стать причиной сниженияслуха.
• Используйте дополнительную рукоятку(и),
которая входит в комплектацию инструмента.
Потеря контроля может привести ктравме.
• Удерживайте инструмент за изолированные
поверхности захватывания при выполнении
работ, во время которых имеется вероятность
контакта инструмента со скрытой
электропроводкой. При удерживании металлических
деталей инструмента, в случае перерезания
находящегося под напряжением провода возможно
поражение оператора электрическимтоком.
• Используйте зажимы или другие уместные
средства фиксации заготовки на устойчивой
опоре. Удерживание заготовки рукой или прижимание
ее к телу не обеспечивает устойчивости и может
привести к потереконтроля.
• Всегда надевайте защитные очки или другое
устройство защиты для глаз. Во время сверления без
удара или с ударом могут разлетаться кусочки стружки
и частицы материала. Разлетающиеся осколки могут
серьезно повредитьглаза.
• Принадлежности и инструмент могут нагреться
во время работы. Надевайте перчатки во время
выполнения работ, сопровождающихся нагревом,
например, ударное сверление и сверлениеметаллов.
• Не используйте данный инструмент в течение
длительных промежутков времени. Вибрация,
вызываемая инструментом, может оказывать
вредное воздействие на руки. Используйте перчатки,
для обеспечения дополнительной амортизации и
g ) Следуйте всем инструкциям по зарядке ине
заряжайте аккумуляторную батарею или
инструмент вне температурного диапазона,
указанного винструкции. Неправильная зарядка
или зарядка вне указанного температурного
диапазона может привести кповреждению батареи
иувеличить риск возгорания.
6) Обслуживание
a ) Обслуживание электроинструмента
должен проводить квалифицированный
специалист сиспользованием только
оригинальных запасных частей. Это позволит
обеспечить безопасность обслуживаемого
электрифицированногоинструмента.
b ) Не выполняйте обслуживание поврежденных
аккумуляторных батарей. Обслуживание
аккумуляторных батарей должно выполняться
только производителем или авторизованными
поставщикамиуслуг.
электроинструментов, которые не обслуживаются
должнымобразом.
f ) Содержите режущий инструмент востро
заточенном ичистом состоянии. Вероятность
заклинивания инструмента, за которым следят
должным образом икоторый хорошо заточен,
значительно меньше, аработать снимлегче.
g ) Используйте электроинструменты,
принадлежности инасадки всоответствии
сданными инструкциями, принимая во
внимание условия работы ихарактер
выполняемой работы. Использование
электроинструмента для выполнения операций,
для которых он не предназначен, может привести
ксозданию опасныхситуаций.
h ) Все рукоятки иповерхности захватывания
должны быть сухими ибез следов смазки.
Скользкие рукоятки иповерхности захватывания
не позволяют обеспечить безопасность
работы иуправления инструментом
внепредвиденныхситуациях.
5) Использование аккумуляторных
электроинструментов иуход за ними
a ) Используйте для зарядки аккумуляторной
батареи только указанное производителем
зарядное устройство. Использование зарядного
устройства определенного типа для зарядки других
батарей может привести квозгоранию.
b ) Используйте для электроинструмента только
батареи указанного типа. Использование других
аккумуляторных батарей может стать причиной
травмы ипожара.
c ) Оберегайте батарею от попадания внее
скрепок, монет, ключей, гвоздей, болтов или
других мелких металлических предметов,
которые могут вызывать замыкание
контактов. Короткое замыкание контактов
аккумуляторной батареи может привести кпожару
или получениюожогов.
d ) При повреждении батареи, из нее может
вытечь электролит. Не прикасайтесь кнему.
При случайном контакте сэлектролитом
смойте его водой. При попадании электролита
вглаза обратитесь за медицинской помощью.
Жидкость, находящаяся внутри батареи, может
вызвать раздражение илиожоги.
e ) Не используйте поврежденные или измененные
аккумуляторные батареи или инструменты.
Поврежденные или измененные аккумуляторные
батареи могут работать непредсказуемо, что
может привести квозгоранию, взрыву или риску
получениятравм.
f ) Не подвергайте аккумуляторные батареи
или инструмент воздействию огня или
повышенной температуры. Открытый огонь
или воздействие высокой температуры выше 130°C
может привести квзрыву.
