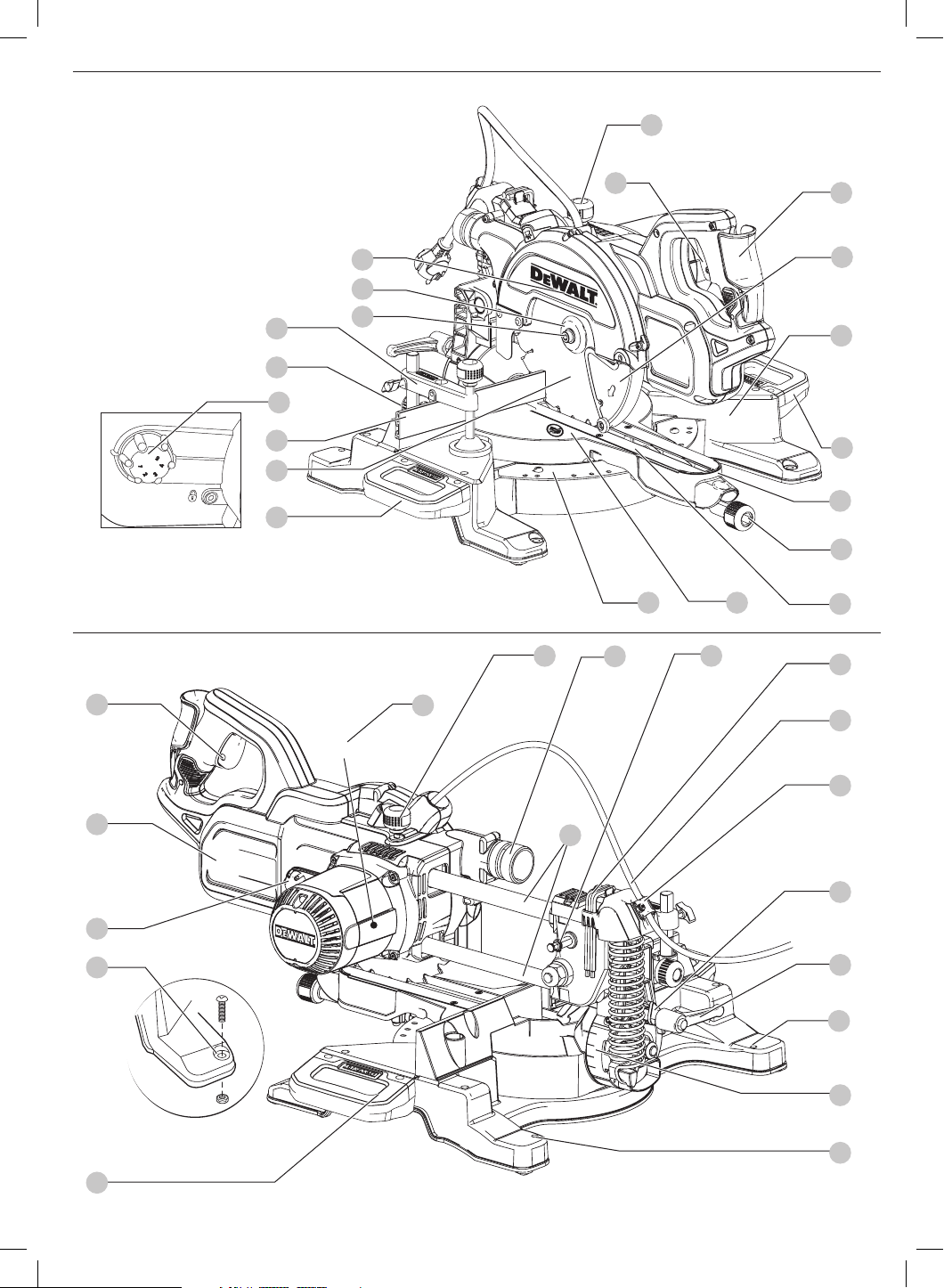

Fig. A
Fig. B
00-00-0000
20
22
31
14
30
DWS771
27
17

2
Fig. C Fig. D
Fig. E
Fig. G
Fig. F
Fig. H
26
25
34
7
33
5
46
4
13
815
24
36
35
31
37
24

3

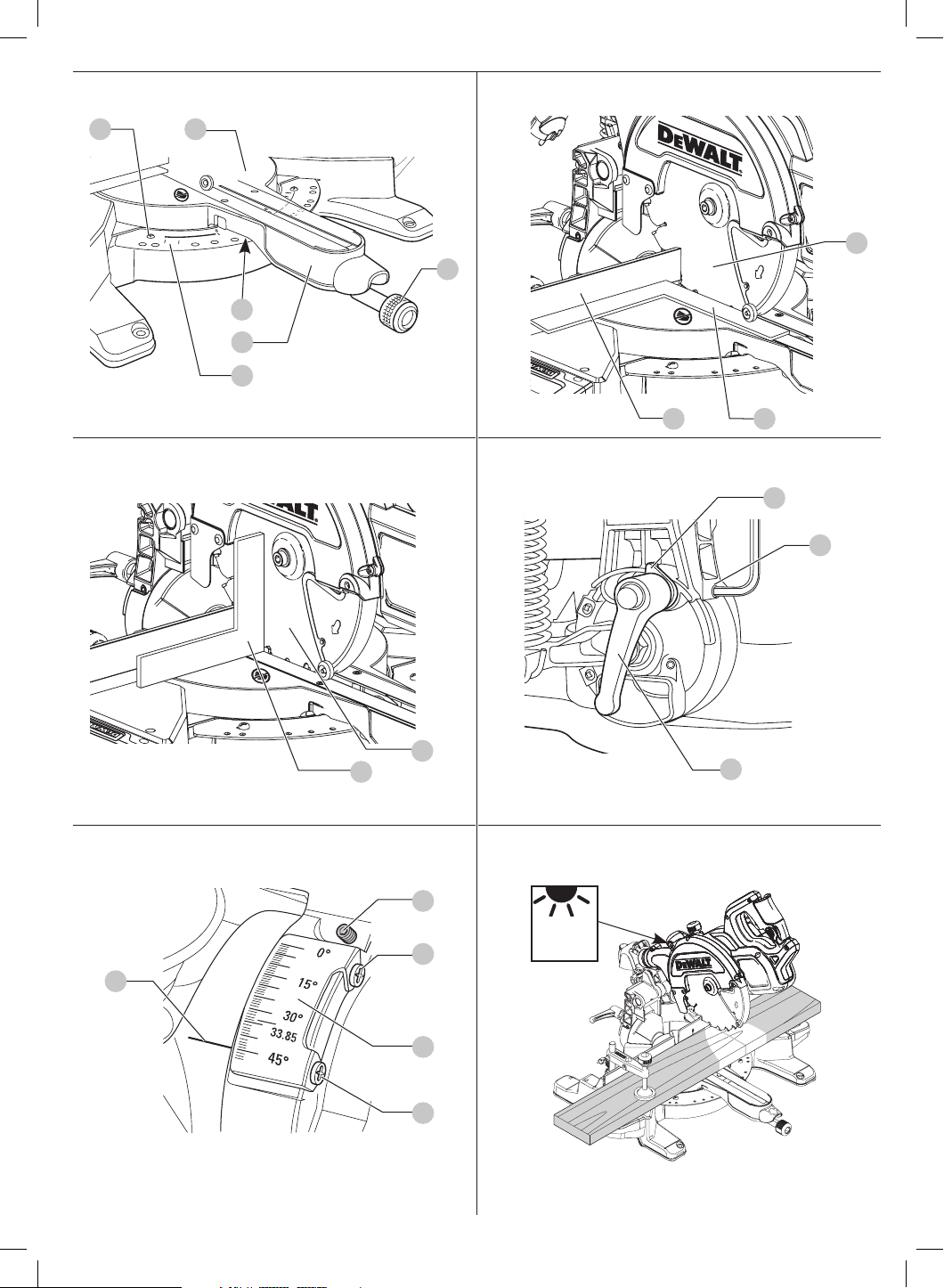

Fig. J
Fig. K
Fig. M
Fig. L
Fig. N
7
4015
39 13
11
14
29
41
18
7
40
Fig. I
12
38
42
44
43
43
19
XPS

4
Fig. O
Fig. Q
Fig. P
Fig. R
16

5
Fig. S
Fig. U
30
46
47
45
Fig. V
Fig. T

6
ENGLISH
CROSSCUT MITRE SAW
DWS771, DWS777
Congratulations!
You have chosen a
DeWALT
tool. Years of experience, thorough product
development and innovation make
DeWALT
one of the most reliable
partners for professional power toolusers.
Technical Data
DWS771 DWS777
Voltage VAC 230 230
U.K. & Ireland only VAC 230 230/115
Type 2 2
XPS Yes Yes
Power input W1550 1800/1600
Blade diameter mm 216 216
Blade bore mm 30 30
Max. blade speed min-1 2600–5200 6300
Kerf width mm 2.6 2.6
Mitre (max. positions) left and right 50° 50°
Bevel (max. positions) left 48° 48°
Compound mitre bevel 45° 45°
mitre 45° 45°
Capacities
cross-cut 90° mm 60 x 270 60 x 270
mitre 45° mm 60 x 190 60 x 190
mitre 48° mm 60 x 180 60 x 180
bevel 45° mm 48 x 270 48 x 270
bevel 48° mm 45 x 270 45 x 270
Overall dimensions mm 460 x 560 x 430 460 x 560 x 430
Weight kg 15.5 15.5
Noise values and/or vibration values (triax vector sum) according to EN62841:
LPA (sound pressure) dB(A) 93 96
LWA (acoustic power) dB(A) 102 107
K (acoustic power
uncertainty)
dB(A) 3 3
The vibration and/or noise emission level given in this information sheet has
been measured in accordance with a standardised test given in EN62841
and may be used to compare one tool with another. It may be used for a
preliminary assessment ofexposure.
WARNING: The declared vibration and/or noise emission level
represents the main applications of the tool. However if the tool is
used for different applications, with different accessories or poorly
maintained, the vibration and/or noise emission may differ. This may
significantly increase the exposure level over the total workingperiod.
An estimation of the level of exposure to vibration and/or noise should
also take into account the times when the tool is switched off or when
it is running but not actually doing the job. This may significantly
reduce the exposure level over the total workingperiod.
Identify additional safety measures to protect the operator from the
effects of vibration and/or noise such as: maintain the tool and the
accessories, keep the hands warm (relevant for vibration), organisation
of workpatterns.
EC-Declaration of Conformity
Machinery Directive
Cross-Cut Mitre Saw
DWS771, DWS777
DeWALT
declares that these products described under Technical Data are
in compliance with:
2006/42/EC, EN60745-1:2009+A11:2010, EN62841-1:2015/AC:2015;
EN62841-3-9:2015/AC:2016-09.
These products also comply with Directive 2014/30/EU and 2011/65/EU. For
more information, please contact
DeWALT
at the following address or refer
to the back of themanual.
The undersigned is responsible for compilation of the technical file and
makes this declaration on behalf of
DeWALT
.
Markus Rompel
Vice President of Engineering, PTE-Europe
DeWALT
, Richard-Klinger-Straße 11,
D-65510, Idstein, Germany
20.09.2019
WARNING: To reduce the risk of injury, read the instructionmanual.
Definitions: Safety Guidelines
The definitions below describe the level of severity for each signal word.
Please read the manual and pay attention to thesesymbols.
DANGER: Indicates an imminently hazardous situation which, if not
avoided, will result in death or seriousinjury.
WARNING: Indicates a potentially hazardous situation which, if not
avoided, could result in death or seriousinjury.
CAUTION: Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderateinjury.
NOTICE: Indicates a practice not related to personal injury which,
if not avoided, may result in propertydamage.
Denotes risk of electricshock.
Denotes risk offire.
General Power Tool Safety Warnings
WARNING: Read all safety warnings, instructions, illustrations
and specifications provided with this power tool. Failure to follow
all instructions listed below may result in electric shock, fire and/or
seriousinjury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTUREREFERENCE.
The term “power tool” in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) powertool.
1) Work Area Safety
a ) Keep work area clean and well lit. Cluttered or dark areas
inviteaccidents.
English (original instructions)

7
ENGLISH
b ) Do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust orfumes.
c ) Keep children and bystanders away while operating a power
tool. Distractions can cause you to losecontrol.
2) Electrical Safety
a ) Power tool plugs must match the outlet. Never modify the
plug in any way. Do not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs and matching outlets
will reduce risk of electricshock.
b ) Avoid body contact with earthed or grounded surfaces such as
pipes, radiators, ranges and refrigerators. There is an increased
risk of electric shock if your body is earthed orgrounded.
c ) Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electricshock.
d ) Do not abuse the cord. Never use the cord for carrying, pulling
or unplugging the power tool. Keep cord away from heat,
oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electricshock.
e ) When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electricshock.
f ) If operating a power tool in a damp location is unavoidable, use
a residual current device (RCD) protected supply. Use of an RCD
reduces the risk of electricshock.
3) Personal Safety
a ) Stay alert, watch what you are doing and use common sense
when operating a power tool. Do not use a power tool while you
are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in
serious personalinjury.
b ) Use personal protective equipment. Always wear eye
protection. Protective equipment such as a dust mask, non-skid
safety shoes, hard hat or hearing protection used for appropriate
conditions will reduce personalinjuries.
c ) Prevent unintentional starting. Ensure the switch is in the off-
position before connecting to power source and/or battery
pack, picking up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools that have the
switch on invitesaccidents.
d ) Remove any adjusting key or wrench before turning the power
tool on. A wrench or a key left attached to a rotating part of the
power tool may result in personalinjury.
e ) Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpectedsituations.
f ) Dress properly. Do not wear loose clothing or jewellery. Keep
your hair and clothing away from moving parts. Loose clothes,
jewellery or long hair can be caught in movingparts.
g ) If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly
used. Use of dust collection can reduce dust-relatedhazards.
h ) Do not let familiarity gained from frequent use of tools allow
you to become complacent and ignore tool safety principles. A
careless action can cause severe injury within a fraction of asecond.
4) Power Tool Use and Care
a ) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at
the rate for which it wasdesigned.
b ) Do not use the power tool if the switch does not turn it on
and off. Any power tool that cannot be controlled with the switch is
dangerous and must berepaired.
c ) Disconnect the plug from the power source and/or remove the
battery pack, if detachable, from the power tool before making
any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power
toolaccidentally.
d ) Store idle power tools out of the reach of children and do
not allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are dangerous
in the hands of untrainedusers.
e ) Maintain power tools and accessories. Check for misalignment
or binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s operation.
If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained powertools.
f ) Keep cutting tools sharp and clean. Properly maintained cutting
tools with sharp cutting edges are less likely to bind and are easier
tocontrol.
g ) Use the power tool, accessories and tool bits, etc. in accordance
with these instructions, taking into account the working
conditions and the work to be performed. Use of the power
tool for operations different from those intended could result in a
hazardoussituation.
h ) Keep handles and grasping surfaces dry, clean and free from oil
and grease. Slippery handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpectedsituations.
5) Service
a ) Have your power tool serviced by a qualified repair person
using only identical replacement parts. This will ensure that the
safety of the power tool ismaintained.
Safety Instructions for Mitre Saws
a ) Mitre saws are intended to cut wood or wood-like products,
they cannot be used with abrasive cut-off wheels for cutting
ferrous material such as bars, rods, studs, etc. Abrasive dust
causes moving parts such as the lower guard to jam. Sparks from
abrasive cutting will burn the lower guard, the kerf insert and other
plasticparts.
b ) Use clamps to support the workpiece whenever possible. If
supporting the workpiece by hand, you must always keep your
hand at least 100mm from either side of the saw blade. Do
not use this saw to cut pieces that are too small to be securely
clamped or held by hand. If your hand is placed too close to the saw
blade, there is an increased risk of injury from bladecontact.
c ) The workpiece must be stationary and clamped or held against
both the fence and the table. Do not feed the workpiece into
the blade or cut “freehand” in any way. Unrestrained or moving
workpieces could be thrown at high speeds, causinginjury.
d ) Push the saw through the workpiece. Do not pull the saw
through the workpiece. To make a cut, raise the saw head
and pull it out over the workpiece without cutting, start the
motor, press the saw head down and push the saw through
the workpiece. Cutting on the pull stroke is likely to cause the saw
blade to climb on top of the workpiece and violently throw the blade
assembly towards theoperator.
e ) Never cross your hand over the intended line of cutting either
in front or behind the saw blade. Supporting the workpiece “cross
handed” i.e. holding the workpiece to the right of the saw blade with
your left hand or vice versa is verydangerous.
f ) Do not reach behind the fence with either hand closer than
100mm from either side of the saw blade, to remove wood
scraps, or for any other reason while the blade is spinning. The
proximity of the spinning saw blade to your hand may not be obvious
and you may be seriouslyinjured.
g ) Inspect your workpiece before cutting. If the workpiece is
bowed or warped, clamp it with the outside bowed face toward
the fence. Always make certain that there is no gap between
the workpiece, fence and table along the line of the cut. Bent or
warped workpieces can twist or shift and may cause binding on the

8
ENGLISH
spinning saw blade while cutting. There should be no nails or foreign
objects in theworkpiece.
h ) Do not use the saw until the table is clear of all tools, wood
scraps, etc., except for the workpiece. Small debris or loose pieces
of wood or other objects that contact the revolving blade can be
thrown with highspeed.
i ) Cut only one workpiece at a time. Stacked multiple workpieces
cannot be adequately clamped or braced and may bind on the blade
or shift duringcutting.
j ) Ensure the mitre saw is mounted or placed on a level, firm work
surface before use. A level and firm work surface reduces the risk of
the mitre saw becomingunstable.
k ) Plan your work. Every time you change the bevel or mitre
angle setting, make sure the adjustable fence is set correctly
to support the workpiece and will not interfere with the blade
or the guarding system. Without turning the tool “ON” and with
no workpiece on the table, move the saw blade through a complete
simulated cut to assure there will be no interference or danger of
cutting thefence.
l ) Provide adequate support such as table extensions, saw horses,
etc. for a workpiece that is wider or longer than the table top.
Workpieces longer or wider than the mitre saw table can tip if not
securely supported. If the cut-off piece or workpiece tips, it can lift the
lower guard or be thrown by the spinningblade.
m ) Do not use another person as a substitute for a table extension
or as additional support. Unstable support for the workpiece can
cause the blade to bind or the workpiece to shift during the cutting
operation pulling you and the helper into the spinningblade.
n ) The cut-off piece must not be jammed or pressed by any means
against the spinning saw blade. If confined, i.e. using length
stops, the cut-off piece could get wedged against the blade and
thrownviolently.
o ) Always use a clamp or a fixture designed to properly support
round material such as rods or tubing. Rods have a tendency to
roll while being cut, causing the blade to “bite” and pull the work with
your hand into theblade.
p ) Let the blade reach full speed before contacting the workpiece.
This will reduce the risk of the workpiece beingthrown.
q ) If the workpiece or blade becomes jammed, turn the mitre
saw off. Wait for all moving parts to stop and disconnect the
plug from the power source and/or remove the battery pack.
Then work to free the jammed material. Continued sawing with
a jammed workpiece could cause loss of control or damage to the
mitresaw.
r ) After finishing the cut, release the switch, hold the saw head
down and wait for the blade to stop before removing the cut-off
piece. Reaching with your hand near the coasting blade isdangerous.
s ) Hold the handle firmly when making an incomplete cut or when
releasing the switch before the saw head is completely in the
down position. The braking action of the saw may cause the saw
head to be suddenly pulled downward, causing a risk ofinjury.
Additional Safety Rules for Mitre Saws
WARNING: Do not connect to the mains power supply into the unit
until complete instructions are read andunderstood.
• DO NOT OPERATE THIS MACHINE until it is completely assembled and
installed according to the instructions. A machine incorrectly assembled
can cause seriousinjury.
• OBTAIN ADVICE from your supervisor, instructor, or another qualified
person if you are not thoroughly familiar with the operation of this
machine. Knowledge issafety.
• MAKE CERTAIN the blade rotates in the correct direction. The teeth on the
blade should point in the direction of rotation as marked on thesaw.
• TIGHTEN ALL CLAMP HANDLES, knobs and levers prior to operation.
Loose clamps can cause parts or the workpiece to be thrown at
highspeeds.
• BE SURE all blade and blade clamps are clean, recessed sides of blade
clamps are against blade and arbour screw is tightened securely. Loose or
improper blade clamping may result in damage to the saw and possible
personalinjury.
• DO NOT OPERATE ON ANYTHING OTHER THAN THE DESIGNATED
VOLTAGE for the saw. Overheating, damage to the tool and personal
injury mayoccur.
• DO NOT WEDGE ANYTHING AGAINST THE FAN to hold the motor
shaft. Damage to tool and possible personal injury mayoccur.
• NEVER HAVE ANY PART OF YOUR BODY IN LINE WITH THE PATH
OF THE SAW BLADE. Personal injury willoccur.
• NEVER APPLY BLADE LUBRICANT TO A RUNNING BLADE. Applying
lubricant could cause your hand to move into the blade resulting in
seriousinjury.
• DO NOT place either hand in the blade area when the saw is connected to
the power source. Inadvertent blade activation may result in seriousinjury.
• NEVER REACH AROUND OR BEHIND THE SAW BLADE. A blade can
cause seriousinjury.
• DO NOT REACH UNDERNEATH THE SAW unless it is unplugged and
turned off. Contact with saw blade may cause personalinjury.
• SECURE THE MACHINE TO A STABLE SUPPORTING SURFACE.
Vibration can possibly cause the machine to slide, walk, or tip over, causing
seriousinjury.
• USE ONLY CROSSCUT SAW BLADES recommended for mitre saws.
For best results, do not use carbide tipped blades with hook angles in
excess of 7 degrees. Do not use blades with deep gullets. These can deflect
and contact the guard, and can cause damage to the machine and/or
seriousinjury.
• USE ONLY BLADES OF THE CORRECT SIZE AND TYPE specified for this
tool to prevent damage to the machine and/or serious injury (complying
with EN847-1).
• INSPECT BLADE FOR CRACKS or other damage prior to operation. A
cracked or damaged blade can come apart and pieces can be thrown at
high speeds, causing serious injury. Replace cracked or damaged blades
immediately. Observe the maximum speed marked on the sawblade.
• CLEAN THE BLADE AND BLADE CLAMPS prior to operation. Cleaning
the blade and blade clamps allows you to check for any damage to the
blade or blade clamps. A cracked or damaged blade or blade clamp
can come apart and pieces can be thrown at high speeds, causing
seriousinjury.
• THE MAXIMUM SPEED OF THE SAW BLADE shall always be greater
than or at least equal to the speed marked on the rating plate of thetool.
• THE SAW BLADE DIAMETER must be in accordance with the markings
on the rating plate of thetool.
• DO NOT USE WARPED BLADES. Check to see if the blade runs true and
is free from vibration. A vibrating blade can cause damage to the machine
and/or seriousinjury.
• DO NOT use lubricants or cleaners (particularly spray or aerosol) in the
vicinity of the plastic guard. The polycarbonate material used in the guard
is subject to attack by certainchemicals.
• KEEP GUARD IN PLACE and in workingorder.
• ALWAYS USE THE KERF PLATE AND REPLACE THIS PLATE WHEN
DAMAGED. Small chip accumulation under the saw may interfere with
the saw blade or may cause instability of workpiece whencutting.
• USE ONLY BLADE CLAMPS SPECIFIED FOR THIS TOOL to prevent
damage to the machine and/or seriousinjury.
• MAKE SURE to use the correct saw blade for the material to becut.
• CLEAN THE MOTOR AIR SLOTS of chips and sawdust. Clogged motor
air slots can cause the machine to overheat, damaging the machine and
possibly causing a short which could cause seriousinjury.

9
ENGLISH
• NEVER LOCK THE SWITCH IN THE “ON” POSITION. Severe personal
injury mayresult.
• NEVER STAND ON TOOL. Serious injury could occur if the tool is tipped
or if the cutting tool is unintentionallycontacted.
WARNING: Cutting plastics, sap coated wood, and other materials
may cause melted material to accumulate on the blade tips and the
body of the saw blade, increasing the risk of blade overheating and
binding whilecutting.
WARNING: Always wear proper personal hearing protection.
Under some conditions and duration of use, noise from this product
may contribute to hearing loss. Be aware of the following factors
influencing exposure to noise:
• Use saw blades designed to reduce the emitted noise,
• Use only well sharpened saw blades, and
• Use specifically designed noise-reduction sawblades.
WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT
safety glasses. Also use face or dust mask if cutting operation isdusty.
WARNING: Use of this tool can generate and/or disperse dust, which
may cause serious and permanent respiratory or otherinjury.
WARNING: Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains chemicals known to
cause cancer, birth defects or other reproductive harm. Some examples
of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treatedlumber.
Your risk from these exposures varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such as those dust masks
that are specially designed to filter out microscopicparticles.
• Avoid prolonged contact with dust from power sanding, sawing,
grinding, drilling, and other construction activities. Wear protective
clothing and wash exposed areas with soap and water. Allowing dust to
get into your mouth, eyes, or lay on the skin may promote absorption of
harmfulchemicals.
WARNING: Use of this tool can generate and/or disperse dust, which
may cause serious and permanent respiratory or other injury. Always
use approved respiratory protection appropriate for the dustexposure.
WARNING: We recommend the use of a residual current device with a
residual current rating of 30mA orless.
Residual Risks
The following risks are inherent to the use ofsaws:
• injuries caused by touching the rotating parts
In spite of the application of the relevant safety regulations and the
implementation of safety devices, certain residual risks cannot be avoided.
Theseare:
• Impairment ofhearing.
• Risk of accidents caused by the uncovered parts of the rotating sawblade.
• Risk of injury when changing the unprotected sawblade.
• Risk of squeezing fingers when opening theguards.
• Health hazards caused by breathing dust developed when sawing wood,
especially oak, beech andMDF.
The following factors increases the risk of breathingproblems:
• No dust extractor connected when sawing wood
• Insufficient dust extraction caused by uncleaned exhaust filters
Electrical Safety
The electric motor has been designed for one voltage only. Always check
that the power supply corresponds to the voltage on the ratingplate.
Your
DeWALT
tool is double insulated in accordance with
EN60745; therefore no earth wire isrequired.
WARNING: 115 V units have to be operated via a fail-safe isolating
transformer with an earth screen between the primary and
secondarywinding.
If the supply cord is damaged, it must be replaced by a specially prepared
cord available through the
DeWALT
serviceorganisation.
Mains Plug Replacement
(U.K. & Ireland Only)
If a new mains plug needs to be fitted:
• Safely dispose of the oldplug.
• Connect the brown lead to the live terminal in theplug.
• Connect the blue lead to the neutralterminal.
WARNING: No connection is to be made to the earthterminal.
Follow the fitting instructions supplied with good quality plugs.
Recommended fuse: 13A.
Using an Extension Cable
If an extension cable is required, use an approved 3–core extension cable
suitable for the power input of this tool (see Technical Data).The minimum
conductor size is 1.5 mm2; the maximum length is 30m.
When using a cable reel, always unwind the cablecompletely.
Package Contents
The package contains:
1 Partly assembled machine
2 Hex key 4/6mm
1 216mm TCT saw blade
1 Material clamp
2 Base extention handles and installation hardware
1 Instruction manual
• Check for damage to the tool, parts or accessories which may have
occurred duringtransport.
• Take the time to thoroughly read and understand this manual prior
tooperation.
Markings on Tool
The following pictograms are shown on the tool:
Read instruction manual beforeuse.
Wear earprotection.
Wear eyeprotection.
Keep hands 100 mm from either side of sawblade.
Do not stare directly into the lightsource.
Date Code Position (Fig. B)
The date code32, which also includes the year of manufacture, is printed
into thehousing.
Example:
2019 XX XX
Year of Manufacture
Description (Fig. A–C)
WARNING: Never modify the power tool or any part of it. Damage or
personal injury couldresult.
1 On/off switch
2 Guard lock release lever
3 Fixed upper guard
4 Outer flange

10
ENGLISH
The plywood must sit flush on the work support. When clamping the
saw to any work surface, clamp only on the clamping bosses where
the mounting screw holes are located. Clamping at any other point will
interfere with the proper operation of thesaw.
3. To prevent binding and inaccuracy, be sure the mounting surface is
not warped or otherwise uneven. If the saw rocks on the surface, place
a thin piece of material under one saw foot until the saw is firm on the
mountingsurface.
Assembling the Base Extensions (Fig. V)
WARNING: Base extensions must be assembled to both sides of
the saw's base before using thesaw.
WARNING: Be sure to adjust the base extensions using the
mounting slots so they are level with the saw'sbase.
1. Locate the holes above the hand indentations on the side of thebase.
2. Using a hex wrench, attach the screw46 through the nut47, through
the base extension30, and into the holes on thebase.
3. Ensure the extension is secure by pulling on the extension to verify
nomovement.
4. Repeat steps 1 through 3 on the otherside.
NOTE: Make sure the extensions are level with the work surface so that the
workpiece rests evenly. A straight workpiece should have no gap between it
and the baseextensions.
Changing or Installing a New Saw Blade (Fig. A, C–E)
WARNING:To reduce the risk of injury, wear gloves when handling
the sawblade.
WARNING: To reduce the risk of injury, turn unit off and
disconnect machine from power source before installing and
removing accessories, before adjusting or changing set-ups
or when making repairs. Be sure the trigger switch is in the OFF
position. An accidental start-up can causeinjury.
• Never depress the spindle lock button while the blade is under
power orcoasting.
• Do not cut light alloy and ferrous metal (containing iron or steel)
or masonry or fibre cement product with this mitresaw.
Removing the Blade
1. Unplug thesaw.
2. Insert the 6mm hex key24 into the opposite location of the blade
shaft and hold it(Fig.D).
3. Loosen the blade bolt5 by turning clockwise. Remove the blade bolt
and the outer flange4.
4. Press the lower guard lock release lever2 to raise the lower blade
guard6 and remove the saw blade7.
Installing a Blade
1. Unplug thesaw.
2. Install the new saw blade onto the shoulder provided on the inner
flange33 making sure that the teeth at the bottom edge of the blade
are pointing towards the fence (away from the operator).
3. Replace the outer flange4, making sure that the location lugs34 are
engaged correctly, one on each side of the motorshaft.
4. Tighten the blade bolt5 by turning counterclockwise while holding
the 6mm hex key24 engaged with your other hand (Fig.D).
WARNING:Be aware the saw blade shall be replaced in the described
way only. Only use saw blades as specified under Technical Data;
Cat. no.: DT4320 issuggested.
Transporting the Saw (Fig. A, B)
WARNING: To reduce the risk of serious personal injury,
ALWAYS lock the rail lock knob, mitre latch, bevel clamp handle, lock
down button and fence lock knobs before transporting the saw. Never
use guards for transporting or liftingup.
5 Blade bolt
6 Lower blade guard
7 Saw blade
8 Sliding fence lock knob
9 Fixed table
10 Kerf plate
11 Mitre arm
12 Mitre latch
13 Rotating table
14 Mitre scale
15 Sliding fence
16 Material clamp
17 Rail lock knob
18 Bevel clamp handle
19 Bevel scale
20 Bench mounting holes
21 Lock down button
22 Rails
23 Saw head
24 Hex keys (Fig. C)
25 Cable clamp
26 Cable
27 Speed control dial
(DWS771only)
28 Padlock hole
29 Bevel override lever
30 Base extension handles
31 Dust extraction port
32 Date code
Intended Use
Your
DeWALT
cross-cut mitre saw has been designed for professional
cutting wood, wood products and plastics. When using the appropriate
saw blades, sawing aluminium is also possible. It performs the sawing
operations of cross-cutting, bevelling and mitring easily, accurately
andsafely.
This unit is designed for use with a nominal blade diameter 216mm carbide
tipblade.
DO NOT use under wet conditions or in the presence of flammable liquids
orgases.
These miter saws are professional powertools.
DO NOT let children come into contact with the tool. Supervision is
required when inexperienced operators use thistool.
WARNING! Do not use the machine for purposes other thanintended.
• Young children and the infirm. This appliance is not intended for use
by young children or infirm persons withoutsupervision.
• This product is not intended for use by persons (including children)
suffering from diminished physical, sensory or mental abilities; lack of
experience, knowledge or skills unless they are supervised by a person
responsible for their safety. Children should never be left alone with
thisproduct.
ASSEMBLY
WARNING: To reduce the risk of serious personal injury, turn
tool off and disconnect tool from power source before making
any adjustments or removing/installing attachments or
accessories. Be sure the trigger switch is in the OFF position. An
accidental start-up can causeinjury.
Unpacking
The motor and guards are already assembled onto thebase.
Cable Clamp (Fig. C)
Verify the cable26 runs through the cable clamp25 . Allow enough cable
for the saw head to travel, then tighten the clamp by means of thescrew.
Bench Mounting (Fig. B)
1. Holes20 are provided in all four feet to facilitate bench mounting.
Two different sized holes are provided to accommodate different sizes
of bolts. Use either hole; it is not necessary to use both. Bolts with a
diameter of 8mm and 80mm in length is suggested. Always mount
your saw firmly to prevent movement. To enhance the portability, the
tool can be mounted to a piece of 12.5mm or thicker plywood which
can then be clamped to your work support or moved to other job sites
andreclamped.
2. When mounting your saw to a piece of plywood, make sure that the
mounting screws do not protrude from the bottom of the wood.

11
ENGLISH
• Before transporting the saw, lower the saw head, loosen the rail lock
knob17 and push the saw head all the way to the back. Press in the
lock down button21 and tighten the rail lockknob.
• Lock the mitre arm in the full right mitre angle, slide the fence15
completely inward and lock the fence lock knobs, then lock the bevel
clamp handle18 with the saw head in the vertical position to make the
tool as compact aspossible.
• Before transporting the saw, verify that the cord isdisconnected.
• Always use the base extension handles30 to carry thesaw.
ADJUSTMENTS
WARNING: To reduce the risk of serious personal injury, turn
tool off and disconnect tool from power source before making
any adjustments or removing/installing attachments or
accessories. Be sure the trigger switch is in the OFF position. An
accidental start-up can causeinjury.
Your mitre saw was accurately adjusted at the factory. If readjustment
due to shipping and handling or any other reason is required, follow the
steps below to adjust your saw. Once made, these adjustments should
remainaccurate.
Adjusting the Rails for Constant Cutting Depth
(Fig. A, B, F, G)
The blade must run at a constant cutting depth along the full length of the
table and must not touch the fixed table at the rear of the slot or at the front
of the rotating arm. To achieve this, the rails must be perfectly parallel to the
table when the saw head is fullydepressed.
1. Press the lower guard lock release lever2 (Fig.A).
2. Press the saw head fully to the rear position and measure the height
from the rotating table13 to the bottom of the outer flange4 (Fig.F).
3. Loosen the rail lock knob17 (Fig.B).
4. Keeping the saw head fully depressed, pull the head to the end of
itstravel.
5. Measure the height indicated in FigureF again. Both values should
beidentical.
6. If adjustment is required, proceed as follows (Fig. G):
a. Loosen the locknut37 in the bracket35 under the upper dust
extraction port31 and adjust the screw36 as required, proceeding
in smallsteps.
b. Tighten the locknut37 .
WARNING: Always check that the blade does not touch the table at
the rear of the slot or at the front of the rotating arm at 90° vertical and
45° bevel positions. Do not switch on before having checked this!
Adjusting the Fence (Fig. H)
Turn the sliding fence lock knob8 counterclockwise to loosen. Move the
sliding fence15 to a position that avoids the blade cuts it,then tighten the
fence lock knob by turningclockwise.
Checking and Adjusting the Blade to the Fence
(Fig. B, I, J)
1. Slacken the mitre latch12 .
2. Place your thumb on the mitre arm11 and squeeze the mitre latch12
to release the rotating table13/ mitre arm11.
3. Swing the mitre arm until the latch locates it at the 0° mitreposition.
4. Pull down the head and lock it in this position using the lock down
button21 .
5. Check that the two 0° markings38 on the mitre scale14 are
justvisible.
6. Place a square40 (FIG. J) against the left side of the fence15 and
blade7.
WARNING: Do not touch the tips of the blade teeth with thesquare.
7. If adjustment is required, proceed asfollows:
a. Loosen the screws39 and move the scale/mitre arm assembly
left or right until the blade is at 90° to the fence as measured with
thesquare.
b. Retighten the screws39 .
Checking and Adjusting the Blade to the Table
(Fig. B, K–M)
1. Loosen the bevel clamp handle18 (Fig.L).
2. Press the saw head to the right to ensure it is fully vertical and tighten
the bevel clamphandle.
3. Place a set square40 on the table and up against the blade7 (Fig.K).
WARNING: Do not touch the tips of the blade teeth with thesquare.
4. If adjustment is required, proceed asfollows:
a. Loosen the bevel clamp handle18 and turn the vertical position
adjustment stop screw41 in or out with the hex wrench (as shown
in Fig. L) until the blade is at 90° to the table as measured with
thesquare.
b. If the bevel pointer42 (Fig. M) does not indicate zero on the bevel
scale19, loosen the screws43 that secure the scale and move the
scale asnecessary.
Checking and Adjusting the Bevel Angle (Fig. L, M)
The bevel override allows the maximum bevel angle to be set at 45° or 48°
asrequired.
• Left = 45°
• Right = 48°
1. Make sure the override lever29 is located in the leftposition.
2. Loosen the bevel clamp handle18 by pulling it outward then down
and move the saw head to theleft.
3. This is the 45° bevelposition.
If adjustment is required, turn the stop screw44 in or out as necessary until
the pointer42 indicates 45°.
Prior to Operation
• Install the base extensions to both sides of the saw's base. Refer to
Assembling the Base Extensionssection.
• Check the protective belt cover for damage and the proper functioning
of the lowerguard.
• Make sure to use the kerf plate. Do not operate the machine if the kerf
slot is wider than 12mm.
• Install the appropriate saw blade. Do not use excessively worn blades.
The maximum rotation speed of the tool must not exceed that of the
sawblade.
• Make sure all locking knobs and clamp handles aretight.
• Use personal protective equipment and connect the saw to an external
dustextractor.
• Although this saw will cut wood and many nonferrous materials, these
operating instructions refer to the cutting of wood only. The same
guide-lines apply to the other materials. Do not cut ferrous (iron and
steel) materials, fibre cement or masonry with this saw!
• Do not attempt to cut excessively smallpieces.
• Secure theworkpiece.
• Allow the blade to cut freely. Do notforce.
• Allow the motor to reach full speed beforecutting.

12
ENGLISH
Basic Saw Cuts
Vertical Straight Cross-Cut (Fig.A,O)
NOTE: Use 216 mm saw blades with 30 mm arbour holes to obtain
the desired cuttingcapacities.
1. Raise the saw head23 to its highest position by pushing down on the
saw head23 and pulling out the lock-down button21. Release the
downward pressure and allow the saw head to rise to its fullheight.
2. Squeeze the mitre latch12 then move the arm to the 0°position.
3. Release the mitrelatch.
4. Always ensure that the mitre latch is locked tightly beforecutting.
5. Place the wood to be cut against the sliding fence15 and secure it
with the material clamp16.
6. Take hold of the operating handle and press the guard lock release
lever2 to release the guard. Press the trigger switch1 to start the
motor. It is recommended to start the cut near thefence.
7. Depress the head to allow the blade to cut through the timber and
enter the plastic kerf plate10.
8. After completing the cut, release the switch and wait for the saw blade
to come to a complete standstill before returning the head to its upper
restposition.
WARNING:
• For some types of plastic profiles, it is advisable to follow the
sequence in reverseorder.
9. The lower blade guard is designed to close quickly when the lever2 is
released. If it does not, have the saw serviced by an authorized
DeWALT
repairagent.
Performing a Sliding Cut (Fig.A,B,O)
1. Turn the rail lock knob17 toloosen.
2. Push down the saw head23, pull out the lock down button21 and let
the saw head rise to it’s highestposition.
3. Place the wood to be cut against the sliding fence15 and secure it
with the material clamp16.
4. Lower the saw head then pull it to the end of itstravel.
5. Press the guard lock-up release lever2 to release the guard. Press the
trigger switch1 to start themotor.
6. Totally depress the head to allow the blade to cut through the timber
and push the head back to complete thecut.
7. After completing the cut, release the switch and wait for the saw blade
to come to a complete standstill before returning the head to its upper
restposition.
WARNING: Remember to lock the saw head in the rear position when
the sliding cuts arefinished.
Vertical Mitre Cross-Cut (Fig.A,P)
1. Squeeze the mitre latch12 . Move the arm left or right to the
requiredangle.
2. The mitre latch will automatically locate at 0°, 15°, 22.5°, 31.62°, 45° and
50° both left and right. If any intermediate angle is required hold the
head firmly and lock by fastening the mitrelatch.
3. Always ensure that the mitre lock lever is locked tightly beforecutting.
4. Proceed as for a vertical straight cross-cut.
WARNING: When mitring the end of a piece of wood
with a small off-cut, position the wood to ensure that the off-cut is to
the side of the blade with the greater angle to the fence, i.e.:
• left mitre, off-cut to the right
• right mitre, off-cut to the left
Bevel Cross-Cuts (Fig.L, Q)
Bevel angles can be set from 0° to 48° to the left. Bevels up to 45° can be cut
with the mitre arm set between zero and a maximum of 45° mitre position
right orleft.
OPERATION
Instructions for Use
WARNING: Always observe the safety instructions and
applicableregulations.
WARNING: To reduce the risk of serious personal injury, turn
tool off and disconnect tool from power source before making
any adjustments or removing/installing attachments or
accessories. Be sure the trigger switch is in the OFF position. An
accidental start-up can causeinjury.
Ensure the machine is placed to satisfy your ergonomic conditions in terms
of table height and stability. The machine site shall be chosen so that the
operator has a good overview and enough free surrounding space around
the machine that allows handling of the workpiece without anyrestrictions.
To reduce effects of increased vibration, make sure the environment is not
too cold, the machine and accessory are well maintained and the workpiece
size is suitable for thismachine.
Switching On and Off (Fig. A)
A hole28 is provided in the on/off switch1 for insertion of a padlock to
lock thetool.
1. To run the tool, press the on/off switch1 .
2. To stop the tool, release theswitch.
Use of XPS LED Worklight System (Fig. A, N)
NOTE: The mitre saw must be connected to a powersource.
The XPS LED Worklight System is activated with a push button switch, fitted
on the handle under the guard lock release lever2. The XPS LED Worklight
System is independent of the mitre saw’s triggerswitch. A failure of XPS has
no effect on the intendedoperation.
To cut through an existing pencil line on a piece ofwood:
1. Push the black plastic lever, then pull down on the operating handle to
bring the saw blade7 close to the wood. The shadow of the blade will
appear on thewood.
2. Align the pencil line with the edge of the blade’s shadow. You may
have to adjust the mitre or bevel angles in order to match the pencil
lineexactly.
Speed Control Dial (Fig. A)
DWS771 only
The speed control dial27 can be used for advance setting of the required
range ofspeed.
Turn the speed control dial27 to the desired range, which is indicated by
a number (1–5).
• Use high speeds for sawing soft materials such aswood.
• Use low speeds for sawinghardwood.
Body and Hand Position (Fig. O)
Proper positioning of your body and hands when operating the mitre saw
will make cutting easier, more accurate andsafer.
WARNING:
• Never place your hands near the cuttingarea.
• Place your hands no closer than 100mm from theblade.
• Hold the workpiece tightly to the table and the fence when cutting.
Keep your hands in position until the switch has been released and
the blade has completelystopped.
• Always make dry runs (without power) before finish
cuts so that you can check the path of theblade.
• Do not cross yourhands.
• Keep both feet firmly on the floor and maintain properbalance.
• As you move the saw arm left and right, follow it and stand slightly
to the side of the sawblade.

13
ENGLISH
1. Loosen the bevel clamp handle18 by pulling it outward then down
and set the bevel asdesired.
2. Set the override lever29 ifrequired.
3. Hold the head firmly and do not allow it tofall.
4. Tighten the bevel clamp handle18 firmly.
5. Proceed as for a vertical straight cross-cut.
Quality of Cut
The smoothness of any cut depends on a number of variables, i.e. the
material being cut. When smoothest cuts are desired for moulding andother
precision work, a sharp (60-tooth carbide) blade and a slower, even cutting
rate will produce the desiredresults.
WARNING: Ensure that the material does not creep while cutting;
clamp it securely in place. Always let the blade come to a full stop
before raising the arm. If small fibres of wood still split out at the rear
of the workpiece, stick a piece of masking tape on the wood where
the cut will be made. Saw through the tape and carefully remove tape
whenfinished.
Clamping the Workpiece (Fig. R)
WARNING: A workpiece that is clamped, balanced and secure
before a cut may become unbalanced after a cut is completed. An
unbalanced load may tip the saw or anything the saw is attached to,
such as a table or workbench. When making a cut that may become
unbalanced, properly support the workpiece and ensure the saw is
firmly bolted to a stable surface. Personal injury mayoccur.
WARNING: The clamp foot must remain clamped above the base of
the saw whenever the clamp is used. Always clamp the workpiece to
the base of the saw – not to any other part of the work area. Ensure
the clamp foot is not clamped on the edge of the base of thesaw.
CAUTION: Always use a work clamp to maintain control and reduce
the risk of personal injury and workpiecedamage.
For best results use the material clamp16 made for use with yoursaw.
To Install Clamp
1. Insert it into the hole behind the fence. The clamp16 should be facing
toward the back of the mitre saw. Ensure the groove on the clamp rod is
fully inserted into the base of the mitre saw. If the groove is visible, the
clamp will not besecure.
2. Rotate the clamp 180º toward the front of the mitresaw.
3. Loosen the knob to adjust the clamp up or down, then use the fine
adjust knob to firmly clamp theworkpiece.
NOTE: Place the clamp on the right side of the base when beveling.
ALWAYS MAKE DRY RUNS (UNPOWERED) BEFORE FINISH CUTS TO CHECK
THE PATH OF THE BLADE. ENSURE THE CLAMP DOES NOT INTERFERE
WITH THE ACTION OF THE SAW ORGUARDS.
Compound Mitre (Fig. S, T)
This cut is a combination of a mitre and a bevel cut. This is the type of cut
used to make frames or boxes with slanting sides like the one shown in
FigureS.
WARNING: If the cutting angle varies from cut to cut, check that
the bevel clamp handle and the mitre clamping knob are securely
tightened. These must be tightened after making any changes in bevel
ormitre.
• The chart shown below will assist you in selecting the proper bevel and
mitre settings for common compound mitrecuts.
• To use the chart, select the desired angle “A” (Fig.T) of your project and
locate that angle on the appropriate arc in the chart. From that point
follow the chart straight down to find the correct bevel angle and
straight across to find the correct mitreangle.
0510 15 20 25 30 35 40 45
0510 15 20 25 30 35 40 45
5
10
15
20
25
30
35
40
45
5
10
15
20
25
30
35
40
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
SET THIS BEVEL ANGLE ON SAW
SET THIS MITER ANGLE ON SAW
ANGLE OF SIDE OF BOX (ANGLE"A")
SQUARE BOX
6 SIDED BOX
8 SIDED BOX
1. Set your saw to the prescribed angles and make a few trialcuts.
2. Practice fitting the cut piecestogether.
Example: To make a four-sided box with 25° exterior angles (angle “A”)
(Fig.T), use the upper right arc. Find 25° on the arc scale. Follow the
horizontal intersecting line to either side to get the mitre angle setting
on the saw (23°). Likewise follow the vertical intersecting line to the top
or bottom to get the bevel angle setting on the saw (40°). Always try
cuts on a few scrap pieces of wood to verify the settings on thesaw.
WARNING: Never exceed the compound mitre limits of 45° bevel with
45° left or rightmitre.
Dust Extraction (Fig. A, U)
WARNING: To reduce the risk of serious personal injury, turn
tool off and disconnect tool from power source before making
any adjustments or removing/installing attachments or
accessories. An accidental start-up can causeinjury.
WARNING: Certain dust, such as oak or beech dust, is considered
carcinogenic, especially in connection with wood-treatmentadditives.
• Always use dustextraction.
• Provide for good ventilation of the workspace.
• It is recommended to wear an appropriaterespirator.
CAUTION: Never operate this saw unless the dust bag or
DeWALT
dust extractor is in place. Wood dust may create a
breathinghazard.
CAUTION: Check and clean the dust bag each time afterusing.
WARNING: When sawing aluminium, remove the dust bag, or
disconnect the dust extractor to avoid the risk offire.
Your mitre saw has a built-in dust port31 that allows connection to
either a dust bag (33mm nozzles) or direct attachment to the
DeWALT
AirLock(DWV9000-XJ)45.
Observe the relevant regulations in your country for the materials to
beworked.
To Attach the Dust Bag
1. Fit a dust bag to the dust port31.
To Empty the Dust Bag
1. Remove dust bag from the saw and gently shake or tap the dust bag
toempty.
2. Reattach the dust bag back onto the dustport.
You may notice that all the dust will not come free from the bag. This will
not affect cutting performance but will reduce the saw's dust collection

14
ENGLISH
efficiency. To restore your saw's dust collection efficiency, depress the spring
inside the dust bag when you are emptying it and tap it on the side of the
trash can or dustreceptacle.
External Dust Extraction
When vacuuming dry dust that is especially detrimental to health or
carcinogenic, use a special dust Class M vacuumcleaner.
Connecting to an AirLock Compatable Dust Extractor (Fig.U)
The dust port31 on your mitre saw is compatable with the D
e
WALT
AirLock connection system. The AirLock allows for a fast, secure connection
between the dust extractor hose and the mitresaw.
1. Ensure the collar on the AirLock connector45 is in the unlock position.
Align notches on collar and AirLock connector as shown for unlock and
lockpositions.
2. Push the AirLock connector onto the dust port31.
3. Rotate the collar to the lockedposition.
NOTE: The ball bearings inside collar lock into slot and secure
the connection.The mitre saw is now securely connected to the
dustextractor.
MAINTENANCE
Your
DeWALT
power tool has been designed to operate over a long period
of time with a minimum of maintenance. Continuous satisfactory operation
depends upon proper tool care and regularcleaning.
WARNING: To reduce the risk of serious personal injury, turn
tool off and disconnect tool from power source before making
any adjustments or removing/installing attachments or
accessories. Be sure the trigger switch is in the OFF position. An
accidental start-up can causeinjury.
WARNING: If the saw blade is worn, replace it with a new sharpblade.
Lubrication
Your power tool requires no additionallubrication.
Cleaning
Before use, carefully check the upper blade guard, movable lower blade
guard as well as the dust extraction tube to determine that it will operate
properly. Ensure that chips, dust or workpiece particle cannot lead to
blockage of one of thefunctions.
In case of workpiece fragments jammed between saw blade and guards
disconnect the machine from the power supply and follow the instructions
given in section Changing or Installing a New Saw Blade. Remove the
jammed parts and reassembling the sawblade.
WARNING: Blow dirt and dust out of the main housing with dry air
as often as dirt is seen collecting in and around the air vents. Wear
approved eye protection and approved dust mask when performing
thisprocedure.
WARNING: Never use solvents or other harsh chemicals for cleaning
the non-metallic parts of the tool. These chemicals may weaken the
materials used in these parts. Use a cloth dampened only with water
and mild soap. Never let any liquid get inside the tool; never immerse
any part of the tool into aliquid.
WARNING: To reduce the risk of injury, regularly clean the
tabletop.
WARNING: To reduce the risk of injury, regularly clean the dust
collectionsystem.
Optional Accessories
WARNING: Since accessories, other than those offered by
DeWALT
,
have not been tested with this product, use of such accessories with
this tool could be hazardous. To reduce the risk of injury, only
DeWALT
recommended accessories should be used with thisproduct.
Range of saw blades available (recommended blades)
Type of blade Blade dimensions
(diameter x bore x no. of teeth)
Usage
DT4310 series 40 216x30x24 For general purpose, ripping and cross-
cutting of wood and plastics
DT4286 series 40 216x30x80 TCG for use with aluminum
DT4320 series 60 216x30x48 ATB for fine cutting of manmade and
natural wood
DT4350 series 60 216x30x60 TCG for extra fine cutting of manmade
and natural wood
Consult your dealer for further information on the appropriateaccessories.
Protecting the Environment
Separate collection. Products and batteries marked with this
symbol must not be disposed of with normal householdwaste.
Products and batteries contain materials that can be recovered or
recycled reducing the demand for raw materials. Please recycle
electrical products and batteries according to local provisions. Further
information is available at www.2helpU.com.

16
ENGLISH

17
ENGLISH

Belgique et
Luxembourg België en Luxemburg
DeWALT
- Belgium BVBA
Egide Walschaertsstraat 16
2800 Mechelen
Tel: NL 32 15 47 37 63
Tel: FR 32 15 47 37 64
Fax: [phone]
www.dewalt.be
[email protected]
Danmark
DeWALT
(Stanley Black&Decker AS)
Roskildevej 22
2620 Albertslund
Tel: [phone]
Fax: [phone]
www.dewalt.dk
[email protected]
Deutschland
DeWALT
Richard Klinger Str. 11
65510 Idstein
Tel: [phone]
Fax: [phone]
www.dewalt.de
[email protected]
Ελλά
DeWALT
(Ελλάς) Α.Ε.
EΔΡΑ-ΓΡΑΦΕΙΑ : Στράβωνος 7
& Λ. Βουλιαγμένης, Γλυφάδα 166 74, Αθήνα
SERVICE : Ημερος Τόπος 2 (Χάνι Αδάμ) – 193 00 Ασπρόπυργος
Τηλ: 00302108981616
Φαξ: 00302108983570
www.dewalt.gr
[email protected]
España
DeWALT
Ibérica, S.C.A.
Parc de Negocios “Mas Blau”
Edificio Muntadas, c/Bergadá, 1, Of. A6
08820 El Prat de Llobregat (Barcelona)
Tel: [phone]
Fax: [phone]
www.dewalt.es
[email protected]
France
DeWALT
(Stanley Black & Decker France SAS)
62 Chemin de la Bruyère
CS 60105,
69574 DARDILLY Cedex
Tel: [phone]
Fax: [phone]
www.dewalt.fr
[email protected]
Schweiz
Suisse
Svizzera
DeWALT
In der Luberzen 42
8902 Urdorf
Tel: 044 - 755 60 70
Fax: 044 - 730 70 67
www.dewalt.ch
[email protected]
Ireland
DeWALT
Building 4500, Kinsale Road
Cork Airport Business Park
Cork, Ireland
Tel: [phone]
Fax: [phone]
www.dewalt.ie
[email protected]
Italia
DeWALT
via Energypark 6
20871 Vimercate (MB), IT
Tel: [phone]
39 039-9590200
Fax: [phone]
www.dewalt.it
Nederlands
DeWALT
Netherlands BVPostbus 83,
6120 AB BORN
Tel: [phone]
Fax: [phone]
www.dewalt.nl
Norge
DeWALT
Postboks 4613
0405 Oslo, Norge
Tel: [phone]
Fax: [phone]
www.dewalt.no
[email protected]
Österreich
DeWALT
Werkzeug Vertriebsges m.b.H
Oberlaaerstrasse 248, A-1230 Wien
Tel: 01 - 66116 - 0
Fax: 01 - 66116 - 614
www.dewalt.at
[email protected]
Portugal
DeWALT
Ed. D Dinis, Quina da Fonte
Rua dos Malhoes 2 2A 2º Esq.
Oeiras e S. Juliao da Barra, paço de Arcos e Caxias
2770 071 Paço de Arcos
Tel: [phone]
Fax: [phone]
www.dewalt.pt
[email protected]
Suomi
DeWALT
PL47
00521 Helsinki, Suomi
Puh: 010 400 4333
Faksi: 0800 411 340
www.dewalt.fi
[email protected]
Sverige
DeWALT
BOX 94
43122 Mölndal
Sverige
Tel: [phone]
Fax: [phone]
www.dewalt.se
[email protected]
Türkiye Sanayi ve Ticareet Bakanlığı tebliğince kullanim ömrü 7 yıldır.
Stanley Black & Decker Turkey Alet Üretim San. Tic. Ltd.Şti.
AND Kozyataği - İçerenköy Mah. Umut Sok. AND Ofis Sit. No: 10-12 / 82-83-84
Ataşehir/İstanbul, Türkiye
Tel: [phone]
Faks: [phone]
www.dewalt.com.tr
[email protected]
United Kingdom
DeWALT
, 210 Bath Road;
Slough, Berks SL1 3YD
Tel: [phone]
Fax: [phone]
www.dewalt.co.uk
[email protected]
Australia
DeWALT
810 Whitehorse Road Box Hill
VIC 3128 Australia
Tel: Aust1800 338 002
Tel: NZ 0800 339 258
www.dewalt.com.au
www.dewalt.co.nz
Middle East Africa
DeWALT
P.O. Box - 17164,
Jebel Ali Free Zone (South), Dubai, UAE
Tel: [phone]
Fax: [phone]
www.dewalt.ae
[email protected]
N680078 09/19
