dewert okin RF506A User manual

Issue Department
：
Bedding
Division
Date：2022-02-11
System Instruction
Author
：
User Manual
Edition
：
1.0
Page 1 of 5
User Manual of RF506A
Massage time
Head massage
Head up
Head down
Massage All
Flat
Zero G
Foot down
Foot massage
Foot up
TV
M1
1/ 5

Issue Department
：
Bedding
Division
Date：2022-02-11
System Instruction
Author
：
User Manual
Edition
：
1.0
Page 2 of 5

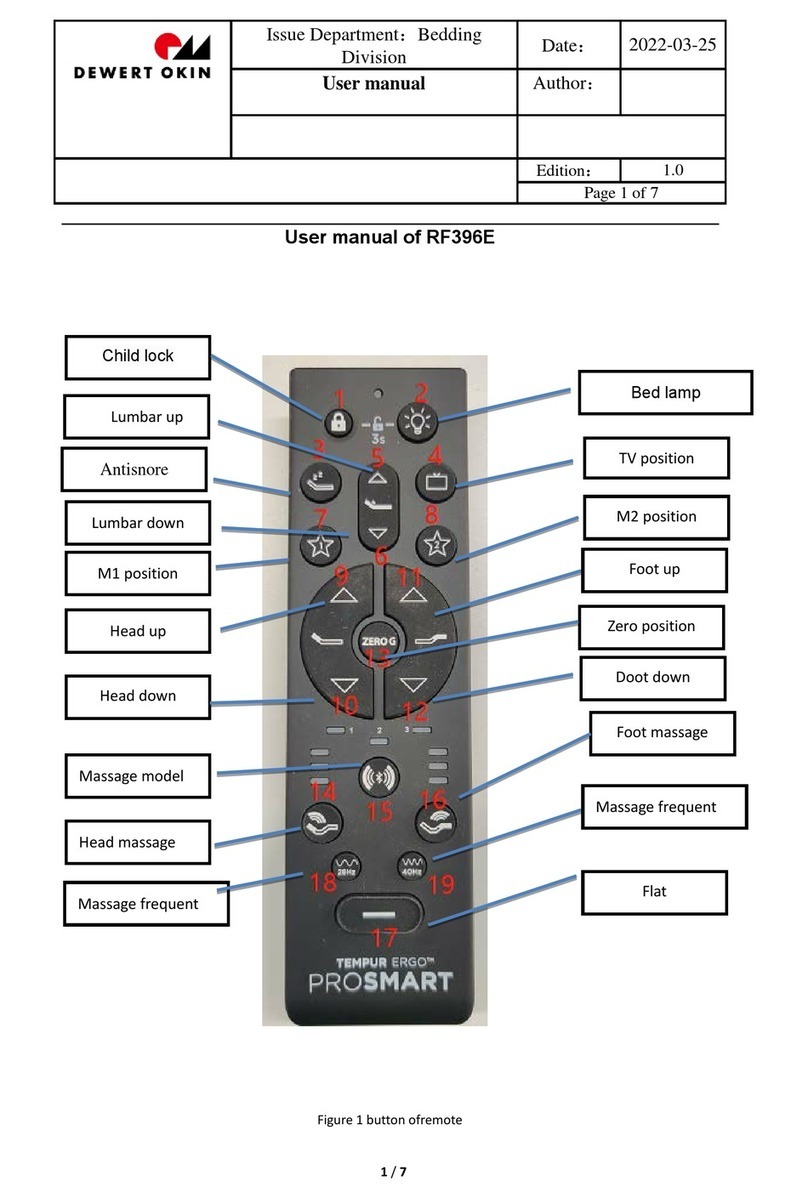

Figure 1 button ofremote
Item
1.1HEAD MASSAGE 1
Click the HEAD MASSAGE button, head massage motor switches massage intensity, massage
intensityswitches among 0-1-2-3；
1.2MASSAGE TIME SET 2
Click the massage time button to set the massage time among 10min-20min-30min-off.
1.3FOOT MASSAGE 3
Click the FOOT MASSAGE button, foot massage motor switches massage intensity, massage
intensityswitches among 0-1-2-3
1.4TV 4
Click the TV button, the bed moves to TV position, press and hold TV button for 5s, until
backlight flashes, the control set the current position as TV position.
1.5MASSAGE 5
Press Massage button to open and shut the head and foot massage.
2/ 5

Issue Department
：
Bedding
Division
Date：2022-02-11
System Instruction
Author
：
User Manual
Edition
：
1.0
Page 3 of 5
1.6M1 6
Click the M1 button, the bed moves to M1 position, press and hold M1 button for 5s until
backlight flashes, the control set the current position as M1 position
1.7HEAD UP 7
Press and hold HEAD UP button, head actuator moves out, stop when released.
1.8 HEAD DOWN 8
Press and hold HEAD DOWN button, head actuator moves in, stop when released.
1.9FLAT 9
Click the FLAT button, the bed goes flat.
1.10 ZG 10
Click the ZG button, the bed moves to zeroG position, press and hold zeroG button for 5s,
until backlight flashes, the control set the current position as zeroG position
1.11 FOOT UP 11
Press and hold FOOT UP button,foot actuator moves out, stop when released.
1.12 FOOT DOWN 12
Press and hold FOOT DOWN button, foot actuator moves in, stop when released.
3/ 5
