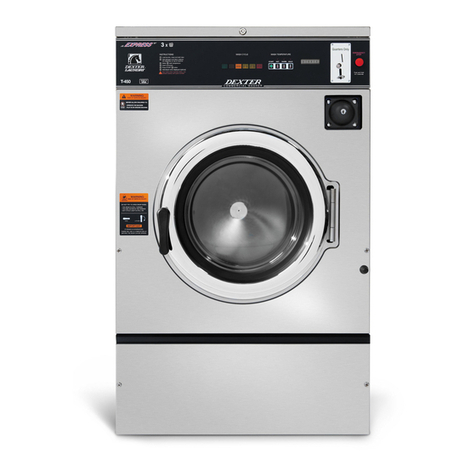

Dexter Laundry C Series User manual

USE THE BLUE TABS LOCATED ON THE
RIGHT AND LEFT SIDES OF THE FOLLOWING
DOCUMENT TO ADVANCE TO EACH SECTION.
8533-115-001 3/22

C-Series Accessories
WC0350XB-12EC4X 208-240 volts 60hz. Single Phase or Three Phase
WC0450XB-12EC4X 208-240 volts 60hz Single Phase or Three Phase
Key Description T-350 T-450 QTY
* Kit, Door Gasket Expander (large) 9732-139-002 9732-139-002
* Kit, Door Gasket Expander (small) 9732-139-001 9732-139-001
* Hose, Water Supply 3/8” I.D. x 48” 9990-027-011 9990-027-011 2
*Washer, Inlet Hose (furnished) 8641-242-000 8641-242-000 2
*Strainer, Inlet Hose (furnished) 9565-003-001 9565-003-001 2
* Bevel Washer for 5/8” bolt used in installations using angle iron bases 8641-586-002 8641-586-002
* Bevel Washer for 3/4” bolt used in installations using angle iron bases 8641-586-003 8641-586-003
*Sealing compound 8538-151-001 8538-151-001
*TOR X#20 8545-051-002 8545-051-002
* Flow Restrictors (in dispenser ) 9475-002-002 9475-002-002 2
* Battery (used on Control PCB) 8612-001-001 8612-001-001
* Coin Bearing & Seal Kit 9732-219-008 9732-219-005
* Coin Box Assy, Blue Large 9807-099-002 9807-099-002 1
Coin Box Assy, Black Large 9807-099-004 9807-099-004 1
USB, Thumb Drive (Blank) 9150-045-001 9150-045-001 1
USB, Thumb Drive, W/File 9150-045-002 9150-045-002 1
* Mode Light Backing Window 9635-022-001 9635-022-001 1
2 3
Part # 8533-115-001 3/22 Part # 8533-115-001 3/22
Kits, Assemblies, & Common Parts
Coin Acceptor Components Part Number
Optical Coin Acceptor 9021-092-002
Optical Coin Switch Replacement 9801-099-001
Coin Drop Screws 9545-053-002
Retainer, Coin Acceptor 9486-149-001
Loading Door & Door Lock Components Part Number
Door Glass Gasket (Standard Door) 9206-419-001
Door Glass Gasket (Small Door) 9206-411-002
Door Handle Only (Large) 9244-091-001
Door Close Switch 9539-492-001
Door Lock Gear Motor Assembly 9922-015-001
Kit - Door Latching Assy. & Cam (replaces original Door Latching Assembly) 9732-347-001
Kit - Door Cam Replacement 9732-346-002
Kit - Locking Pawl Replacement 9732-346-001
Kit - Door Gasket Expander Kit (Small) 9732-139-001
Kit - Door Gasket Expander Kit (Large) 9732-139-002
Electrical Components Part Number
Transformer, Main 8711-004-001
Transformer, Control 8711-009-004
Main Control Board 9473-010-001
Kit-Replacement, Pressure Sensor (Only) 9732-315-001
VFD & Breaking Resistors Components Part Number
Breaking Resistor 200 Ohms 9483-004-002
Breaking Resistor 160 Ohms 9483-004-003
Delta E Drive Display 9150-044-001
MS 300 VFD Display 9150-058-001
Data Cable (56”) 9806-015-003
Drain & Water Valve Components Part Number
Kit - 3” Drain Valve Seal Replacement 9732-327-001
Drain Valve 3” 9379-202-001
Drain Valve 2” 9379-199-001
Water Valve (Dual) 9379-183-012
Diaphragm (Dual) 9118-049-003
Cabinet Components Part Number
Front Panel Screw 9545-008-014
Front Panel Finisher Washer 8641-585-001
Front Panel Spring Nut 8640-399-008
Top Soap Box Screw (Regular Chassis Only) 9545-008-012
Top Soap Box Spring Nut (Regular Chassis Only) 8640-399-007
5/16 Hex Screw, Common 9545-008-026
Top Lock Key #6324 9306-025-001
Cylinder Plug (1.5” Plastic) 9456-041-007
Parts
Data
Coin
Handling
50Hz
Parts
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel

Wiring Harness Part # by Model
Key Description T350 T450 QTY
Control Panel Wiring Harnesses
* Wiring Harness, Door Lock 9627-791-003 9627-791-003 1
*Wiring Harness, Drain/Thermo/DoorSol 9627-796-001 9627-796-001 1
* Wiring Harness, Relay Board to Control Board (P20/P21) 9627-793- 001 9627-793- 001 1
* Wiring Harness LED PCB Board to Control Board 9627-797-001 9627-797-001 1
Control Trough Wiring Harnesses
* Wiring Harness, Control Board to Relay Board (P8/P16) 9627-794- 001 9627-794- 001 1
* Wiring Harness, Water Valve to Relay Board (P19) 9627-795-003 9627-795-003 1
*Harness, Control Board (P5) to Pressure Switch 9627-908-003 9627-908-005 1
* Wiring Assembly, Fuse (Red 7”) 9631-381-001 9631-381-001 3
* Wiring Assembly, Terminal Block to Control Transformer (Blk/Red) 8220-001-230 8220-001-230 1
* Wiring Assembly, Terminal Block to Control Transformer (Blk/Blu) 8220-001-231 8220-001-231 1
*Harness, Power Terminal Block 9627-747-003 9627-747-003 1
Rear Channel Wiring Harnesses
* Wiring Assembly Jumper Yel (Water Valve) 8220-123-001 8220-123-001 1
* Wiring Assembly, Relay Board to VFD (Yel. 32”) 8220-064-023 8220-064-023 2
*Data Communication Cable 9806-015-001 9806-015-001 1
4 5
Part # 8533-115-001 3/22 Part # 8533-115-001 3/22
4
Section 8:
Parts Data
C-Series Vended
Regular Chassis
WC0350XA-12EC4X After Serial # W1.19225.020
WC0450XA-12EC4X After Serial # W1.19213.001
Parts
Data
Coin
Handling
50Hz
Parts
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel

Cabinet and Front Panel Group Part # by Model
Key Description T-350 T-450 QTY
Key Description T350 T450 QTY
1 Panel, Side (Left or Right) - stainless 9732-359-007 2
1Panel, Right Side-stainless 9989-640-001 1
1 Panel, Left Side - stainless 9989-640-002 1
2 Screw, (Side Panel to Base) 9545-018-018 9545-018-013 6
* Nut, Hex 1/4-20 UNC 8640-414-006 8640-414-006 6
*Pad-Foam, Side Panel 0904-904-001 0904-904-001 2
3 Vault Assembly, Coin 9942-040-002 9942-040-002 1
4Back-Coin Vault 9050-066-001 9050-066-001 1
* Screw, #10B x 1/2 9545-008-026 9545-008-026 8
5Chute-Coin 9119-032-001 9119-032-001 1
* Screw, 10B x 1/4 9545-008-001 9545-008-001 1
* Bracket, Side Panel under front panel 9029-263-001 9029-263-001 1
* Nut, Hex (to tub front) 8640-413-002 8640-413-002 2
* Screw, #10B x 1/2 9545-008-026 9545-008-026 2
6 Panel, Control (Mounts Nameplate) 9989-557-001 9989-558-001 1
* Screw, Control Panel to Sides 9545-008-026 9545-008-026 4
7 Nameplate Decal, Control Panel (Blue) 9412-209-002 9412-211-002 1
7 Nameplate Decal, Control Panel (Black) 9412-209-001 9412-211-001 1
8 Label-Nameplate, RH (Blue) 8502-744-002 1
8Label-Nameplate, RH (Black) 8502-744-001 1
*Stop Button Mounting Plate 9452-725-001 9452-725-001 1
9 Kit-Stop button with harness & Switch 9732-223-001 9732-223-001 1
10 Acceptor, Coin-Optical switch w/harness 9021-092-002 9021-092-002 1
*Retainer-Dual coin Acceptor 9486-149-001 9486-149-001 2
* Screws, Coin Acceptor 9545-053-002 9545-053-002 4
11 Panel Assy, Front 9454-893-001 9454-894-001 1
* Trim Edge Protector 9578-092-005 9578-092-005 1
* Screw, Hex- To Control Panel 9545-008-026 9545-008-026 2
* Nut, Spring- To Control Panel 10/32 8640-442-001 8640-442-001 4
12 Screw, Flat Head- Front to Sides 9545-008-014 9545-008-014 2
13 Washer, Finish 8641-585-001 8641-585-001 2
* Nut, Spring-To Front Panel 8640-442-001 8640-442-001 2
14 Label, Door Opening-Blue 8502-757-002 8502-757-002 1
14 Label, Door Opening-Black 8502-757-001 8502-757- 001 1
15 Label, Warning Risk of Injury-Blue 8502-759-002 8502-759-002 1
15 Label, Warning Risk of Injury-Black 8502-759-001 8502-759- 001 1
Key Description T350 T450 QTY
16 Bumper-Loading door 9051-055-001 9051-055-001 1
* Nut, 1/4-20 UNC, 2B 8640-414-003 8640-414-003 1
17 Door, Lower Service (includes handle & Rivits) 9960-286-001 9960-286-002 1
18 Handle (bumper guard) 9244-086-001 9244-086-002 1
*Rivet 9491-009-003 9491-009-003 4
19 Screw Mtg., Flat Head 9545-008-030 9545-008-030 2
20 Washer, Finish 8641-585-001 8641-585-001 2
*Nut, Spring 8640-399-008 8640-399-008 2
21 Coin Box Assy, Blue 9807-099-002 9807-099-002 1
21 Coin Box Assy, Black 9807-099-004 9807-099-004 1
6 7
Part # 8533-115-001 3/22 Part # 8533-115-001 3/22
6 7
1
2
6
54
3
12, 13
11
7
21
9
10
19, 20
18
17
16
15
14
8
Parts
Data
Coin
Handling
50Hz
Parts
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel

Cabinet and Front Panel Group Part # by Model Continued
Key Description T350 T450 QTY
22 Panel Top, Assembly (includes catch) 9989-498-002 9989-563-004 1
* Catch, Top Panel 9086-017-001 9086-017-001 2
*Rivit-Catch, Top Panel 8638-190-009 8638-190-009 4
23 Lock, Top (w/Key) 8650-012-003 8650-012-003 1
* Lock Spacer 9538-189-001 9538-189-001 *
* Key, Top- # 6324 6292-006-007 6292-006-007 1
*Cam, Loc k-Top 9095-049-001 9095-049-001 1
* Nut, 9/32 - 28 Hex 8640-426-001 8640-426-001 1
*Washer Flat 5/16 8641-581-008 8641-581-008 1
24 Screw, Locator 9545-008-023 9545-008-023 2
25 Plastic Sleeve, Locator 9355-001-001 9355-001-001 2
26 Locator Post 9467-024-001 9467-024-001 2
*Nut, Locator Post 8640-411-003 8640-411-003 2
27 Door, Dispenser 9108-095-005 9108-095-005 1
28 Post, Door Mounting 9467-025-001 9467-025-001 2
*Pin, Plain-SS 9451-191-001 9451-191-001 2
*Screw, Disp.Post Mtg 9545-045-002 9545-045-002 4
29 Dispenser, Soap 9122-005-004 9122-005-004 1
30 Gasket, Dispenser 9206-416-001 9206-416-001 1
*Nut,Spring-SS 8640-399-007 8640-399-007 4
31 Screw, Disp. Mtg 9545-008-012 9545-008-012 4
*Flow Restrictor 9475-002-002 9475-002-002 2
* Plastic Plug 1 1/2”-(inside cylinder) 9456-041-007 9456-041-007 1
*Hose-Dispenser outlet 9242-450-002 9242-450-002 1
32 Bracket, Side Panel under front panel 9029-263-001 9029-263-001 1
33 Nut, Hex (to tub front) 8640-413-002 8640-413-002 2
8 9
Part # 8533-115-001 3/22 Part # 8533-115-001 3/22
Notes
8
22
29
23
27
26
24
24, 25
30
34
31
32
28
Parts
Data
Coin
Handling
50Hz
Parts
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel

Rear View Access Part # by Model
Key Description T350 T450 QTY
1 Drive Motor, 3 Phase (Inverter duty) 9376-307-001 9376-319-001 1
2 Pulley, Motor 9453-180-001 9453-181-001 1
* Set Screw,Sq.Hd(motor pulley) 9545-028-015 9545-028-015 2
3 Rod, Motor Mtg 9497-222-002 9497-222-002 1
4 Screw (end of motor rod) 9545-029-005 9545-029-005 1
* Lockwasher (end of motor rod) 8641-582-014 8641-582-014 1
5Motor Bushing (Rubber) 9053-082-001 9053-082-001 2
6 Clamp-Worm, 316SS, 1.5" (for Rubber bushing) 8654 -117-019 8654-117-019 2
7Strap Bracket, Motor Tension 9029-206-001 9029-206-002 1
8 Nut, Strap to Motor 10/32 UNF 8640-413-002 8640-413-002 1
*Washer #10 8641-581-006 8641-581-006 1
9 Spring, Belt Tension 9534-319-002 9534-319-002 1
10 Pulley, Driven 9453-168-005 9453-168-006 1
* Tolerance Ring driven pulley 9487-234-001 9487-234-003 1
11 Screw 1/2-13x1 1/4” 9545-017-009 1
11 Screw 5/8-11x1/1/2” Driven pulley 9545-060-001 1
12 Lockwasher 1/2” 8641-582-016 1
12 Lockwasher 5/8” 8641-582-018 1
13 Washer, Flat 1/2” 8641-581-026 1
13 Washer, Flat 5/8x2 1/4” 8641-581-032 1
14 Drive Belt 9040-079-004 9040-079-005 1
15 Channel, Rear 9947-025-001 9947-026-001 1
16 Screw Mtg rear channel 9545-008-026 9545-008-026 4
* Nut, Spring Rear Channel MTG 8640-399-008 8640-399-008 4
17 Cover, Power Terminal Block 9074-267-001 9074-267-001 1
18 Screw, 9545-008-026 9545-008-026 1
19 Hose, Overow Vent Top 9242-463-002 9242-463-003 1
20 Clamp, Hose Vent 8654-117-008 8654-117-008 2
21 Hose, Overow to drain 9242-449-002 9242-449-002 1
22 Clamp, Hose overow to drain 8654-117-018 8654-117- 018 2
23 Hose, Pressure Switch 9242-175-000 9242-175-007 1
*Clamp, Pressure Switch Hose 8654-117-015 8654-117- 015 1
* Vaccuum Breaker Mtg Bracket 9029-266-001 9029-077-001 1
* Vaccum Breaker ALL 9610-001-001 9610-001-001 1
*Clamp, Hose to Vacuum Breaker 8654 -117-008 8654-117-014 1
24 Hose, Vacuum Breaker to tub 9242-458-001 9242-458-002 1
25 Plastic Plug 7/8” Electrical Connection 9456-041-006 9456-041-006 2
26 Bushing, 7/8 9053-067-002 9053-067-002 1
* Panel Assy., Back 9454-632-001 1
* Panel Assy., Back, Upper 9444-014-001 1
* Panel Assy., Back, Lower 9444-013-001 1
*Screw Panel Mtg.#10Bx1/2” 9545-008-026 9545-008-026 10
*Nut, Spring 8640-399-004 8640-399-004 6
* Screw, To Base-1/4x3/4 9545-030-002 9545-030-002 3
10 11
Part # 8533-115-001 3/22 Part # 8533-115-001 3/22
10 11
1
2
5, 6
4
3
11, 12, 13
7
21
22
26
25
24
23
9
10
20
19
18
17
16
15
14
8
114
Parts
Data
Coin
Handling
50Hz
Parts
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel

Cylinder, Seals & Bearings Part # by Model
Key Description T350 T450 QTY
* Bearings and Seal Kit 9732-219-008 9732-219-005 1
*Housing, Bearing- Assembly (items #2-#6) 9803-179-003 9803-186-001 1
2Housing, Bearing 9241-169-002 9241-180-002 1
3 Bearing, Front (LARGE) 9036-159-009 9036-159-005 1
4Bearing, Rear (SMALL) 9036-159-008 9036-159-004 1
5Spacer, Bearing 9538-158-001 9538-167- 001 1
6Ring, Bearing Retainer 9487-238-001 9487-238-003 1
7Tub Back Mating Ring 9487-261-002 9487-261-003 1
8Seal, Large 9532-140-009 9532-140-009 1
9 Seal, Small 9532-140-003 9532-140-006 1
10 Ring, Seal Mounting 9950-042-001 9950-048-001 1
11 Back Assy, Tub 2 piece 9732-016-001 9962-013-002 1
12 Bolt, Tub End of Bearing Housing (1/2” x 1 1/4”) 9545-017-009 6
12 Nut 1/2’ 8640-417-005 6
12 Flat washer 1/2” (ext. tooth) 8641-581-034 6
12 Bolt 5/8-11x1 1/2” Tub end of bearing housing 9545-060-001 6
12 Washer-Flat, 5/8” 8641-581-040 6
12 Lockwasher 5/8” 8641-582-018 6
12 Nut 5/8” 8640-425-001 6
13 Support Arm Assy, Bearing Housing 9991-057-002 9991-056-002 6
* Tub Alignment Spacer 9552-038-003 9552-038-003
14 Bolt Pulley End of Bearing Housing (3/8” x 1 1/2”) 9545-029-003 6
14 Nut, Flange Locking 3/8” 8640-415-004 6
14 Bolt Pulley end of bearing housing (7/16-14x2”) 9545-059-002 6
14 Nut, Flange Locking 7/16” 8640-416-005 6
15 Pulley, Driven 9453-168-005 9453-168-006 1
* Ring, Tolerance 9487-234-001 9487-234-003 1
16 Washer 1/2” 8641-581-026 1
16 Washer 5/8” 8641-581-032 1
17 Bolt 1/2-13 x 1 1/4” 9545-017-009 1
17 Bolt 5/8-11x11/2” 9545-060-001 1
18 Lockwasher 1/2” Ext. tooth 8641-582-016 1
18 Lockwasher 5/8 Ext. tooth 8641-582-018 1
* Cylinder Assy Before Serial # W1.20190.XXX 9732-354-002 9732-354-004 1
* Cylinder Assy After Serial # W1.20190.XXX 9848-164-001 9848-166- 001 1
* Tub and Cylinder Assy. 9869-029-001 9869-031-001 1
13
12
11
7
8
10
16, 17, 18
15
14
9
9
7
10
9
8
12 13
Part # 8533-115-001 3/22 Part # 8533-115-001 3/22
12 13
8
11
Parts
Data
Coin
Handling
50Hz
Parts
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel

Door Latching Assembly Part # by Model
Key Description T350 T450 QTY
33 Latching Assy, Complete (#1-22) (includes #1 thru #22) 9885-031-001 9885-031-001 1
1 Plate Assy, Door Lock 9982-346-001 9982-346-001 1
2Washer, Flat 8641-581-030 8641-581-030 1
3Actuator, Latching Switch 9008-005-001 9008-005-001 1
4Pawl, Locking 9732-346-002 9732-346-002 1
5Washer, Spring 8641-569-003 8641-569-003 1
6Ring, Retaining 9487-200-004 9487-200-004 1
7Bracket Switch 9029-163-001 9029 -163-001 1
8 Nut, Hex 10-32 UNF 8640-413-002 8640-413-002 2
9Spring, Actuating 9534-364-002 9534-364-002 1
* Door Stud Pin, 3/16” x 3/4” 9451-181-004 9451-181-004 1
1
33
21
18
9
12
15
8 6
22
5
12
11
17
19
7
14
13
11
4
3
10
16
20
Key Description T350 T450 QTY
10 Screw, Hx. 10-32 x 1” 9545-012-020 9545-012-020 1
11 Nut, Elastic Stop 10-32 8640-413-004 8640-413-004 2
12 Spring, Return 9534-364-001 9534-364-001 2
13 Pin, Guide 9451-193-001 9451-193-001 1
14 Ring, Retaining 9487-200-005 9487-200-005 1
15 Washer 8641-581-031 8641-581-031 1
16 Switch, Latching Sensing 9539-461-008 9539-461-008 1
17 Shield, Switch 9550-169-003 9550-169-003 3
18 Screw 4-40 x 5/8” 9545-020-001 9545-020-001 2
18 Nut, Twin 4-40 8640-401-001 8640-401-001 1
19 Switch, Locking Sensing 9539-461-007 9539-461-007 2
20 Actuator, Switch Locking 9008-006-003 9008-006-003 1
21 Screw 4-40 x 1 1/8” 9545-020-003 9545-020-003 2
21 Nut, Twin 4-40 8640-401-001 8640-401-001 1
*Spacer Sensor 9538-182-0 01 9538-182- 001 *
22 Pin, Dowel 9451-181-004 9451-181-004 1
* Shim, Door Lock, Thin 9552-037-001 9552-037-001 AR
* Screw, Lock mtg 1/4”-20 x 3/4” 9545-018-004 9545-018-004 3
* Lockwasher 1/4” Ext tooth 8641-582-007 8641-582-007 3
*Harness Door-Switches, P4 9627-791-003 9627-791-003 1
Switch, Door Hinge 9539-492-001 9539-492-001 1
Wire Assy, Red 8220-063-025 8220-063-025 1
Door Latching Assembly Part # by Model Contuied
14 15
Part # 8533-115-001 3/22 Part # 8533-115-001 3/22
14 15
Parts
Data
Coin
Handling
50Hz
Parts
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel

Gear Motor Door Lock Assembly
Key Description T350 T450 QTY
* Actuator Assembly (Includes 1-12, Rod NOT included) 9892-015-001 9892-015-001 1
1 Bracket Assy, Slide Lock Actuator 9985-190-001 9985-190-001 1
2 Bracket Assy, Slide - Unlock 9985-189-001 9985-189-001 1
3 Bracket Slide Lock 9029-204-001 9029-204-001 1
4Spacer, Plastic 9538-157-021 9538-157-021 4
5 Arm - Door Lock 9001-063-001 9001-063-001 1
6 Thermoactuator - Door Lock Relay 120v 9586-001-001 9586-001-001 2
7Spring - Extension 9534-350-001 9534-350-001 1
8 Motor & Gear Assembly 120v 9914-137-015 9914-137-015 1
9Screw -Hxwshrhdslsems, 6-32 x 3/16 9545-044-003 9545-044-003 6
10 Cross Recessed PAn Hd Tapping screw 9545-031-011 9545-031-011 4
11 Screw - hxwshdsl, 10-24 - 1.25f, ctd 9545-046-007 9545-046-007 4
12 Stando-Wire 9527-007-001 9527-007-001 1
* Rod, Door Lock 9497-225-011 9497-225-012 1
* Harness, Door Lock/Drain, P17 9627-796-001 9627-796-001 1
1
2
3
4
8
5
6
6
7
9
9
10
11
12
16 17
Part # 8533-115-001 3/22 Part # 8533-115-001 3/22
16
Notes
Parts
Data
Coin
Handling
50Hz
Parts
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel

1
2
6
5 4
3
13
12
11
7
9
10
14
8
9
Loading Door Part # by Model
Key Description T350 T450 QTY
* Loading Door, Complete #1-10 9960-308-001 9960-309-001 1
1 Loading Door, Ring 9487-264-002 9487-265-002 1
2Gasket, Loading Door 9206-411-002 9206-419-001 1
3Window, Loading Door 9635-018-001 9635-016-001 1
* Shaft Assy, Locking (includes 4 thru 7) 9913-136-001 9913-136-001 1
4 Shaft, Door Locking 9537-195-002 9537-195-002 1
5Cam, Locking 9095-051-001 9095-051-001 1
6 Pin, Groove (1 1/4) 9451-181-005 9451-181-005 1
7 Pin, Groove (3/4) 9451-181-004 9451-181-004 1
8 Spring, Lock Cam 9534-360-002 9534-360-002 1
9 Handle, Door 9244-091-001 9244-091-001 1
10 Pin, Door Handle (groove) 9451-181-005 9451-181-005 1
11 Door Hinge Assembly Mounts to Tub Front 9955-030-001 9955-030-001
* Shim, Loading Door Hinge (Thin) 9552-036-001 9552-036-001 2
*Screw, 5/16-18x3/4 9545-014-009 9545-014-009 3
*Lock Washer, 5/16 8641-582-009 8641-582-009 3
12 Leaf Assembly-Hinge, Top 9845-008-001 9845-008-001 1
13 Leaf Assembly-Hinge, Bottom 9845-005-002 9845-005-002 1
*Screw, 5/16x5/8 9545-056-002 9545-056-002 3
14 Bumper-Loading Door 9051-055-001 9051-055-001 1
* Nut, 1/4, 20UNC, 2B 8640-414-003 8640-414-003 1
18 19
Part # 8533-115-001 3/22 Part # 8533-115-001 3/22
18 19
Parts
Data
Coin
Handling
50Hz
Parts
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel

Key Description T350 T450 QTY
1 Door Hinge Assembly (mounts to tub front) 9955-030-001 9955-030-001 1
* Shim, Loading Door Hinge (Thin) 9552-036-001 9552-036-001 2
*Screw, 5/16-18x3/4 9545-014-009 9545-014-009 3
*Lock Washer, 5/16 8641-582-009 8641-582-009 3
2 Leaf Assembly-Hinge, Top 9845-008-001 9845-008-001 1
3Leaf Assembly-Hinge, Bottom 9845-005-002 9845-005-002 1
4Screw, 5/16x5/8 9545-056-002 9545-056-002 3
* Red Wire (Door Close Switch) 8220-063-025 8220-063-025 1
*Black Wire (Door Close Switch) 8220-063-026 8220-063-026 1
5 Switch, Door Hinge Close (Plunger) 9539-492-001 9539-492-001 1
6 Door Ring 9487-264-002 9487-265-002 1
7 Gasket, Door Glass 9206-411-002 9206-419-001 1
8Window, Cloths 9635-018-001 9635-016-001 1
9 Trim Edge Protector 9578-092-004 9578-092-005 1
*Bumper-Loading Door 9051-055-001 9051-055-001 1
* Nut, 1/4, 20UNC, 2B 8640-414-003 8640-414-003 1
Loading Door Hinge 180 Degree Opening Drain Valve Group Part # by Model
Key Description T350 T450 QTY
1 Valve, Drain (includes #2 thru #11) 9379-199-001 9379-202-001 1
2 Body, Valve (w/ball) 9064-068-002 9064-072-001 1
3 Motor & Gear Train (complete) 9914-137-020 9914-137-023 1
4 Plate, Motor Mtg 9452-538-001 9452-538-001 1
5Screw 8639-994-001 8639-994-001 3
6Spring, Drive 9534-340-001 9534-339-001 1
7Screw 9545-054-001 9545-054-001 2
8Screw 9545-054-002 9545-054-002 1
9 Seal, V Packer 9532-134-001 9532-134-001 2
10 Washer 8641-584-001 8641-584-001 1
11 Pin, Main Drive 9451-196-001 9451-196-001 1
* Plate (spacers needed for replacement motor mtg. plate) 9538-149-001 9538-149-001 4
12 Kit - Seal Replacement 9732-327-001 9732-327-001 1
2
4
3
9, 10, 11
8
1
12
3
4
56
7
20 21
Part # 8533-115-001 3/22 Part # 8533-115-001 3/22
20 21
1
92
6
5
4
3
8
7
Parts
Data
Coin
Handling
50Hz
Parts
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel

Chassis and Drain Part # by Model
Key Description T350 T450 QTY
1 Base Assy,Frame 9945-119-002 9945-141-002 1
2 Outer Tub Assy 9930-160-001 9930-162-001 1
3 Tub & Cylinder Assy 9869-029-002 9869-031-001 1
4 Ring Assy, Tub Mtg-Front 9950-057-002 9950-051-004 1
5 Bolt, 1/2-13x1 1/4 (Ring to Base) 9545-017-009 4
5 Nut, Wizlock, 1/2-13 (Ring to Base) 8640-417-005 4
5 Bolt, 5/8-11x1 1/2 (Ring to Base) 9545-060-001 4
5 Nut, Wizlock, 5/8-11 (Ring to Base) 8640-425-001 4
* Ring Assembly, Tub Mounting, Rear 9950-046-002 9950-056-002 1
6 Back Ass’y, Tub 9962-016-001 9962-013-002 1
8 Bolt, 3/8-16x1 1/2 9545-029-003 12
8 Nut, Wizlock, 3/8-16 8640-415-004 12
8 Bolt, 7/16-14 x 2 9545-059-002 12
8 Nut, Wizlock, 7/16-14 8640-416-005 12
8Lockwasher 8641-582-018 4
8Nut, Hex 5/8-11 8640-425-001 4
* Shim, Support Assembly (thin) 9552-038-003 9552-038-001 AR
9 Hose, Tub to Drain Valve 9242-468-001 9242-456-001 1
10 Clamp, Hose (Tub to Drain Valve) 8654 -117-014 8654-117-014 2
11 Valve, Drain 9379-199-001 9379-202-001 1
12 Hose, Drain Valve to Tube 9242-451-002 9242-457-001 1
13 Clamp, Hose (Drain Valve to Tube) 8654 -117-014 8654-117-014 2
14 Bracket, Drain Valve 9029-005-001 1
* Screw, Valve to Bracket 12ABx1/2 9545-008-026 9545-008-026 2
15 Tube Assy, Drain 9915-125-002 9915-119- 002 1
16 Screw Tube (Bracket to Base 1/4Bx3/4 9545-030-002 9545-030-002 2
17 Hose, Overow to drain 9242-449-002 9242-449-002 1
18 Clamp, Overow Hose 8654-117- 015 8654-117-015 1
19 Fill Hose, Vacuum Brkr. to Tub 9242-458-001 9242-458-002 1
*Dispenser Soap 9122-005-004 9122-005-004 1
*Gasket, Dispenser 9206-416-001 9206-416-001 1
* Nut Spring SS 8640-399-007 8640-399-007 4
20 Hose, Dispenser to Tub 9242-450-002 9242-450-002 1
*Clamp, Dispenser Hose 8654-117-0 08 8654-117-008 2
21 Hose, Pressure Switch 9242-175-000 9242-175-007 1
*Clamp, Pressure Switch Hose 8654-117-015 8654-117-015 1
1
2, 3
5
4
13
12
11
7
21
9
10
20
19 18 17
16
15
14
8
1
6
5
5
8
8
9
1
1
22 23
Part # 8533-115-001 3/22 Part # 8533-115-001 3/22
Parts
Data
Coin
Handling
50Hz
Parts
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel

Water Inlet Valve Breakdown Part # by Model
Key Description T350 T450 QTY
*Valve, Water Inlet (includes 1 thru 6) 9379-183-012 9379-183-012 2
1 Screen, Inlet end of valve 9555-056-001 9555-056-001 2
2 Coil Assy., 120 V Invensys 9089-017-001 9089-017-001 2
3Diaphragm Invensys (Viton) 9118-049-002 9118-049-002 2
3Diaphragm Invensys (EPDM) 9118-049-001 9118-049-001 2
3 Diaphragm Invensys (EPDM NSF) 9118-049-003 9118-049-003 2
4Guide, Solenoid Invensys 9211-021-002 9211-021-002 2
5Armature Invensys 9015-008-001 9015-008-001 2
6Spring, Armature Invensys 9534-298-001 9534-298-001 2
24 25
Part # 8533-115-001 3/22 Part # 8533-115-001 3/22
25
Notes
1
2
6
5
4
3
Parts
Data
Coin
Handling
50Hz
Parts
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel

Key Description T350 T450 QTY
1Channel Assembly, Rear 9947-025-001 9947-026-001 1
2 Screw, #10B x 1/2 9545-008-026 9545-008-026 4
*Nut, Spring 8640-399-007 8640-399-007 4
3Mounting Plate Water Valves 9452-813-001 9452-813-001 1
* Nut-Elastic stop, #10-32 8640-413-002 8640-413-002 2
5 Valve, Water Inlet (dual outlet) (see Water Inlet Valve Breakdown for individual
parts)
9379-183-012 9379-183-012 2
6Screw, Valve Mtg 9545-008-026 9545-008-026 4
* Wire-Assy, Jumper, Yellow 8220-123-001 8220-123-001 1
8 Shield over Water Valves Plastic 9550-194-001 9550-194-001 1
*Push Clip 9083-121-001 9083-121-001 2
10 Vacuum Breaker 9610-001-001 9610-001-001 1
*Bracket, Vacuum Breaker 9029-266-001 9029-077-001 1
* Vacuum Breaker Cap (Red) 0935-135-002 0935-135-002 *
11 Screw, #10B x 1/2 9545-008-026 9545-008-026 4
* Clamp, Hose to Vacume Braker 8654-117- 014 8654-117-014 1
* Hose, Vacuum Breaker to Tub 9242-458-001 9242-458-002 1
*Clamp, Tub End 8654-117-0 09 8654 -117-009 1
12 Hose, Valve to Vac. Braker 9242-453-020 9242-453-020 4
* Hose, Cold, Vac. Brkr. dispenser 9242-453-007 9242-453-016 1
* Hose, Hot, Vac. Brkr. dispenser 9242-453-020 9242-453-017 1
*Clamp, Hose-Worm 8654-117- 015 8654-117-015 12
14 Hose, overow Suds 9242-463-003 9242-463-003 4
*Clamp, Hose-Spring (overow to tub back) 8654 -117-018 8654-117-018 2
15 Plate Assembly, Drive Mounting 9452-847-001 9452-847-001 1
*Nut-#10-32UNF, 2B 8640-413-002 8640-413-002 4
17 VFD Delta MS300 9375-034-003 9375-035-003 1
* VFD Cooling Fan 9189-015-001 9189-016-001 1
*Key Pad-Display Delta MS300 9150-058-001 9150-058-001 1
18 Cable-Data, Communication 9806-025-001 9806-025-001 1
19 Bushing, 7/8 9053-067-002 9053-067-002 1
20 Clip Strain Relif 8618-037-001 1
21 Plug, 7/8 9545-041-006 9545-041-006 1
22 Bracket, Terminal-Mounting 9029-265-001 9029-265-001 1
23 Screw, #10B x 1/2 9545-008-026 9545-008-026 4
24 Label-Warning 8502-639-001 8502-639-001 1
25 Strip-Terminal Marker 9558-025-001 9558-025-001 1
26 Terminal Block 9897-033-002 9897-033-002 1
27 Screw-Phillips, 6ABx3/4 9545-031-010 9545-031-010 2
28 Harness-Power, Terminal Block 9627-747-003 9627-747-003 1
29 Bushing, 1” 9053-067-004 9053-067-004 1
30 Terminal Lug, Solderless 8652-134-001 8652-134-001 1
31 Lock-Washer Extooth #10 8641-582-006 8641-582-006 1
31 Screw, #10-32 TTX 1/2 GRN 9545-008-027 9545-008-027 1
32 Bushing, 3/4 9053-067-001 9053-067-001 1
33 Braking resistors (200 ohm) 9483-004-002 9483-004-002 2
34 Screw-#10Bx1/2 9545-008-026 9545-008-026 4
Water Inlet & Rear Channel
Key Description T350 T450 QTY
35 Wire Assy, Jumper 8220-117-002 8220-117-002 2
36 Screw, #6-32x5/16 9545-044-006 9545-044-006 4
37 Nut, #6-32 8640-411-003 8640-411-003 4
*Cover Controls 9074-267-001 9074-267-001 1
*Screw-#10Bx1/2 9545-008-026 9545-008-026 1
*Label-Warning, Notice 8502-761-0 01 8502-761-001 1
26 27
Part # 8533-115-001 3/22 Part # 8533-115-001 3/22
1
2
6
5
3
10
20
19
18 17
15
14
8
12
11
1
36,37
21
5
22
11
30 29
28
27 26 2524
23 31 32
35
34
33
Parts
Data
Coin
Handling
50Hz
Parts
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel

Key Description T350 T450 QTY
1 Trough Assy,Control 208-240 volt (all parts below 7-28 & trough) 9857-255-001 9857-257-001 1
* Trough only 9839-018-001 9839-018-001 1
* Screw, Trough Sides 9545-008-026 9545-008-026 4
* Lockwasher Exttooth #10 8641-582-006 8641-582-006 4
2Angle Support Trough 9003-337-001 9003-337-001 1
*Screw, Trough Bracket 9545-008-026 9545-008-026 3
3 Screw GRN. #10-32x 1/2” 9545-008-027 9545-008-027 1
* Lockwasher #10 8641-582-006 8641-582-006 1
4 Transformer, Control 208/240 (Secondary Voltage to 115 volts) 8711-004-001 8711-004-001 1
5 Screw, Mtg #10Bx1/2” 9545-008-026 9545-008-026 4
*Lockwasher #10 8641-582-006 8641-582-006 4
6 Wire Assy-BLK/RED, 8 1/2” 8220-001-230 8220-001-230 1
7 Wire Assy-BLK/BLUE, 8 1/2” 8220-001-231 8220-001-231 1
8 Terminal Block Assy, POWER 9897-026-004 9897-026-004 1
* Screw, Mtg 8Bx3/8” 9545-045-012 9545-045-012 2
9 Wire Assy, RED, #36, 7” 9631-381-018 9631-381-018 3
10 Fuse Holder 9200-001-002 9200-001-002 1
*Fuse 1.5 amp 8636-018-001 8636-018-001 1
* Label Fuse 1.5 amp 8502-716- 001 8502-716-0 01 1
11 PCB assembly Relay Main 9473-006-001 9473-006-001 1
*Support-PCB, 3/8 Edge Holding 9548-285-001 9548-285-001 6
12 Harness Drain/Therm/Sol, P17 9627-796-001 9627-796-001 1
13 Screw GRN. #10-32x 1/2” 9545-008-027 9545-008-027 1
* Lockwasher #10 8641-582-006 8641-582-006 1
*Lug, Grounding 8652-130-037 8652-130-037 1
14 Harness P19/Water Valve 9627-795-003 9627-795-003 1
15 Harness P8/P16 9627-794- 001 9627-794- 001 1
16 Harness P20/P21 9627-793- 001 9627-793- 001 1
17 Bushing , Wire 7/8 9053-067-002 9053-067-002 2
18 Stando Twistlock 9527-002-002 9527-002-002 4
21 Harness P5/Pressure 9627-908-003 9627-908-005 1
* Harness Doorlock, Switch P4/P15 9627-791-003 9627-791-0 03 1
22 Transformer, (Step Down)120VAC / 24 VAC 50/60hz 8711-009-006 8711-009-006 1
*Screw, Transformer #8Bx1/4” 9545-045-001 9545-045-001 2
*Lockwasher #6 exttooth 8641-582-005 8641-582-005 2
23 PCB assembly Control /Display 9473-010-001 9473-010-001 1
24 Kit-Pressure Sensor, Electronic 9732-314-001 9732-314-001 1
24 Kit-Repaacement, Pressure Sensor (only) 9732-315-001 9732-315-001 1
*Support-PCB, 3/8”, Edge Holding 9548-285-001 9548-285-001 1
Electrical Components - Top Compartment
2
11
7
17
23
22
10
24
18
8
4
Electronic Pressure Sensor
6
8
12
14
3
3
13
18
4
5
9
22
21
10
1
15
16
24
20
11
19
28 29
Part # 8533-115-001 3/22 Part # 8533-115-001 3/22
Parts
Data
Coin
Handling
50Hz
Parts
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel

Key Description T350 T450 QTY
1Panel Control Assembly(panel only) 9989-557-001 9989-558-001 1
* Screw, to Side Panels 5/16, Hxwshrhdundct #10Bx 1/2” 9545-008-026 9545-008-026 4
2Plate-Latch, Top 9452-625-001 9452-625-001 1
3Nut, #8-32 8640-412-005 8640-412-005 2
4 Post Locator Top 9467-024-001 9467-024-001 2
5 Nut Hexkeps #6-32 8640-411-003 8640-411-003 2
6 Locator Panel 9355-001-001 9355-001-001 2
7 Screw FillHDCR 10Bx1/2” Guide 9545-008-023 9545-008-023 2
8Spacer Pushbutton (Micro) 9538-192-001 9538-192-001 1
9Pushbutton Control (coin)[Blue] 9035-062-001 9035-062-001 1
9Pushbutton Control (coin)[Black] 9035-062-002 9035-062-001 1
10 Retainer Pushbutton (Micro) 9486-150-001 9486-150-001 1
11 Nut Hexelasticstop #4-40 8640-424-002 8640-424-002 2
12 Spacer Plastic #6x9/16 9538-157-018 9538-157-018 5
13 PCB assembly Control /Display STOP 9473-010-001 9473-010-001 1
14 Nut Elasticstop #6-32 8640-411-002 8640-411-002 5
15 Nut-Hexkeps, #6-32 8640-411-003 8640-411-003 1
16 Harness LEDPCB 9627-797-001 9627-797-001 1
*Harness Doorlock, Switches P4/P15 9627-791- 003 9627-791-003 1
17 Spacer Plastic #6x9/16 9538-157-018 9538-157-018 2
18 PCB assembly Mode lights 9473-005-001 9473-005-001 1
19 Nut Hexkeps #6-32 8640-411-003 8640-411-003 2
* Mode Light Backing Window 9635-022-001 9635-022-001 1
20 Accecptor-Coin, Optical 9021-092-002 9021-092-002 1
21 Retainer, Coin Accecptor 9486-149-001 9486-149-001 2
22 Screws, Torx, T-10, 4Bx3/8ss 9545-053-002 9545-053-002 2
23 Switch Assembly Emergency Stop (includes wire harness) 9732-223-001 9732-223-001 1
24 Spacer Plastic #8x5/16 E-Stop 9538-157- 020 9538-157-020 2
25 Plate to mount e-stop button 9452-725-001 9452-725-001 1
26 Nuts-Hexkeps, #8-32 8640-412-005 8640-412-005 3
27 Plastic Shield over main PCB 9550-184-001 9550-184-001 1
28 Nuts-Hexkeps, #8-32 8640-412-005 8640-412-005 3
29 Nameplate,Control Panel (Blue) 9412-209-002 9412-211-002 1
29 Nameplate,Control Panel (Black) 9412-209-001 9412-211-001 1
* Label Name Plate RH (Blue) 8502-744-002 1
*Label Name Plate RH (Black) 8502-74 4- 001 1
30 Motor Ass’y, Door Locking (see Door Lock Group for parts breakdown) 9922-015-001 9892-015-001 1
31 Nuts-Hexkeps, #8-32 8640-412-005 8640-412-005 3
*Battery 8612-001-001 8612-001-001 1
32 Cable, USB 9806-022-001 9806-022-001 1
*USB Retainer 9486-159-001 9486-159-001 *
33 Screw-Torx T10, #4-40x3/8ss 9545-053-002 9545-053-002 2
34 Nut, Spring 8640-399-008 8640-399-008 2
Control Panel Part # by Model
30 31
Part # 8533-115-001 3/22 Part # 8533-115-001 3/22
1
9
2
6
5
4
3
10
20
19
18
17
16
15
14
13
8
12 11
7
21
22
26
25
24
23
30
34
33
28
32
31
27
23
920 23
29
32 6, 7 4
Parts
Data
Coin
Handling
50Hz
Parts
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel

Labels and Diagrams WC0 Models
Key Description T350 T450 QTY
*Wiring Diagram and Schematic, Coin 9506-872-001 9506-873-001 1
*Instructions Spin Direction 8507-273-001 8507-274-001 1
*Transient Voltage Surge Suppressor Infomational 8507-330-001 8507-330-001 1
* Label High Voltage Warning 8502-614-004 8502-614-004 1
* Label Fusing & Installation 8502-619-004 8502-619-004 1
* Label Quality 8511-001-002 8511-001-002 1
1Label, Door Opening-Blue 8502-757-002 8502-757-002 1
1Label, Door Opening-Black 8502-757-001 8502-757- 001 1
2 Label, Warning Risk of Injury-Blue 8502-759-002 8502-759-002 1
2 Label, Warning Risk of Injury-Black 8502-759-001 8502-759-001 1
1Manual-Operators 8514-296-001 8514-296-001 1
32 33
Part # 8533-115-001 3/22 Part # 8533-115-001 3/22
Notes
32
12
Parts
Data
Coin
Handling
50Hz
Parts
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel

34 35
Part # 8533-115-001 3/22 Part # 8533-115-001 3/22
35
Notes
Section 9:
Coin Handling
Parts:
Wiring Diagrams
& Schematics &
maintenance Procedures
Parts
Data
Coin
Handling
50Hz
Parts
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel

Optical Coin Acceptor
Key Description T350 T450 QTY
1Optical Coin Acceptor 9021-092-002 9021-092-002 1
2Replacement Optical Sensor 9801-099-001 9801-099-001 1
* Screw, Highth Bar, 3mm 9545-039-002 9545-039-002 2
Kit - Electronic Acceptor
(USA and Canada)
Key Description T350 T450 QTY
KIT - Electronic Acceptor Conversion for C-Series (USA and Canada)
Contact the Dexter Factory for Other Countries
9732-301-004 9732-301-004 1
1 Electronic Coin Acceptor (USA and Canada) 9021-077-001 9021-077-001 1
2Harness for Electronic Coin Acceptor 9627-909-001 9627-909-001 1
3Transformer 120/18VAC 8711-015-001 8711-015-001 1
* Wire Assembly - Blue 8220-001-338 8220-001-338 1
* Wire Assembly - Orange/White 8220-001-235 8220-001-235 1
4 Coin Chute for Electronic Drop 9119-028-001 9119-028-001 1
* Nut - Hex Elastic Stop 8640-424-002 8640-424-002 1
*Screw, Torx 9545-020-004 9545-020-004 4
*Screw, Hex 9545-045-001 9545-045-001 4
*Label, Informative 6102-017-001 6102-017-001 2
*Label, Warning 8502-730-001 8502-730-001 1
*Instructions, Installation 8507-466-004 8507-466-004 1
5 Coin Chute for Electronic Drop 9119-030-001 9119-030-001 1
3
2
4
1
36 37
Part # 8533-115-001 3/22 Part # 8533-115-001 3/22
37
2
1
1
2
5
Parts
Data
Coin
Handling
50Hz
Parts
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel

38 39
Part # 8533-115-001 3/22 Part # 8533-115-001 3/22
Electronic Acceptor Coin Drop
Setting the electronic coin acceptor switches
Some washer models come equipped with an electronic coin acceptor. Follow the instructions below for
setting the switches for the desired country and currencies.
1. The electronic coin acceptor has switch settings depending on the coins and country. See the table
below for available values of the left and right coin inputs for the available countries.
WARNING: turn power o before and leave power o when changing the switches of the
electronic coin acceptor.
2. Turn power back on and test coins to ensure proper operation.
Dip Switches



Parts
Data
Coin
Handling
50Hz
Parts
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel
