Dexter Laundry T-350SWD User manual

8514-302-001 REV B page 1
COMMERCIAL WASHER
MODEL T-300/350/350SWD VENDED
C-SERIES CONTROL – 50Hz, (Lower Extr ct)
OPERATOR’S MANUAL
INSTALLATION & OPERATION
INSTRUCTIONS
Please read this information and retain for reference.
WARNING - HIS WASHER IS EQUIPPED WI H DEVICES AND FEA URES RELA ING O I S SAFE
OPERA ION. O AVOID INJURY OR ELEC RICAL SHOCK, DO NO PERFORM ANY SERVICING UNLESS
QUALIFIED O DO SO.
I IS HE RESPONSIBILI Y OF HE OWNER O CHECK HIS EQUIPMEN ON A FREQUEN
BASIS O ASSURE I S SAFE OPERA ION.
A machine should not be allowed to operate if any of the following occur:
- Excessively high water level.
- If machine is not connected to a properly grounded circuit.
- If the door does not remain securely locked during the entire cycle.
- Vibration or shaking from an inadequate mounting or foundation.
WARNING - FOR SAFETY
1. Always shut off power and water supply before servicing.
2. Do not overload the washer.
3. Do not open door when cylinder is in motion or it contains water.
4. Do not bypass any safety devices of this washer.
5. Do not use volatile or flammable substances in or near this washer.
6. Keep all panels in place. hey protect against shock and injury and add rigidity to the washer.
PREVENTIVE MAINTENANCE REQUIREMENTS
DAILY
- Check that the loading door remains securely locked and cannot be opened during an entire cycle.
- Clean the top, front, and sides of the cabinet to remove residue.
- Clean the soap dispenser and lid and check that all dispenser mounting screws are in place and tight.
- Check the loading door for leaks. Clean the door seal of all foreign matter.
- Leave the loading door open to aerate the washer when not in use.
QUARTERLY
- Make sure the washer is inoperative by switching off the main power supply.
- Check the V belts for wear and proper tension.
- Clean lint and other foreign matter from around motor.
- Check all water connections for leaks.
- Check the drain valve for leaking and that it opens properly.
- Wipe and clean the inside of the washer and check that all electrical components are free of moisture and
dust.
- Remove and clean water inlet hose filters. Replace if necessary.
- Check anchor bolts. Retighten if necessary.
IMPORTANT: Replace any and all panels that were removed to perform daily and/or quarterly
maintenance.

8514-302-001 REV B page 2
TABLE OF CONTENTS
Page
No.
Wash
er Specifications
2

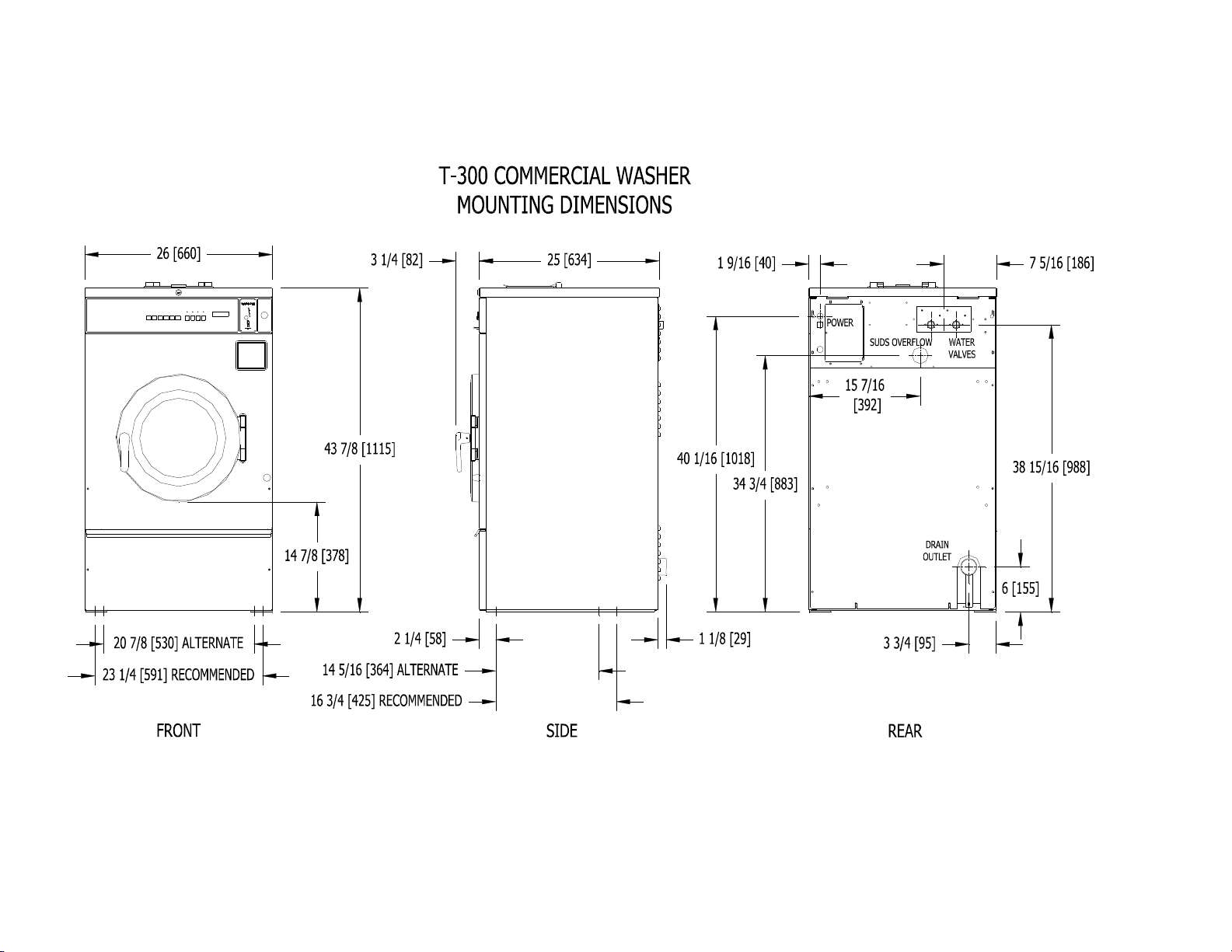

Mounting Dimensions 3
Installation Instructions 7
Operating Instructions 22
Programming the Washer Control 24
Water Level Adjustment 42
Displayed W
asher Faults
44
Servicing and roubleshooting
51
Accessor
ies and Contact Information
55
WASHER SPECIFICATIONS
MODEL
-
300
10.5
kg
(
23
LB.
)
WASHER
(Lower Extract Model
)
CAPACI Y
CYLINDER SIZE
ELEC RICAL
DRIVE SYS EM
WASH SPEED
IN ERMEDIA E
EX RAC
FINAL EX RAC
MACHINE CON ROL
WA ER INLE
DRAIN VALVE
10.5 kg/76.5L (23 LBS/2.7 CUBIC F .)
53cm DIA X 34cm DEEP (21” X 13 1/2”)
230 VAC, 50 HZ, 1 PHASE
SOF S AR REVERSING INVER ER DRIVE, 1 HP MO OR
55 RPM
449 RPM (60 G’S)
550 RPM (90 G’S)
PROGRAMMABLE COMPU ER
2 SOLENOID OPERA ED VALVES
FLOW RA E: 35L/MIN (9 GAL/MIN) EACH, 207-827 kPa
(30-120 PSI)
57mm (2 1/4”) DIAME ER

8514-302-001 REV B page 3
MODEL
-
35
0
EXPRESS
and
-
350SWD E
XPRESS
10.5
kg (
23
LB.
)
WASHER (Lower Extract Model)
CAPACI Y
CYLINDER SIZE
ELEC RICAL
DRIVE SYS EM
WASH SPEED
IN ERMEDIA E
EX RAC
FINAL EX RAC
MACHINE CON ROL
WA ER INLE
DRAIN VALVE
10.5 kg/76.5L (23 LBS/2.7 CUBIC F .)
53cm DIA. X 34cm DEEP (21” DIA X 13 1/2” DEEP)
230 VAC, 50 HZ, 1 PHASE
SOF S AR REVERSING INVER ER DRIVE, 1 HP MO OR
55 RPM
449 RPM (60 G’S)
777 RPM (180 G’S)
PROGRAMMABLE COMPU ER
2 SOLENOID OPERA ED VALVES
FLOW RA E: 35L/MIN (9 GAL/MIN) EACH, 207-827 kPa
(30-120 PSI)
57mm (2 1/4”) DIAME ER

8514-302-001 REV B page 4

8514-302-001 REV B page 5

8514-302-001 REV B page 6

8514-302-001 REV B page 7
INSTALLATION INSTRUCTIONS
For -350SWD models, this washer may have been purchased as part of a stacked
washer/dryer. In addition to these instructions, please also refer to the installation
instructions that accompany the dryer when installing this product.
All washers must be installed in accordance with all local, state and national building,
electrical, plumbing and other codes in effect in the area.
WARNING - THESE INSTALLATION AND SERVICING
INSTRUCTIONS ARE FOR USE BY QUALIFIED PERSONNEL ONLY.
TO AVOID INJURY AND ELECTRICAL SHOCK DO NOT PERFORM
ANY SERVICING OTHER THAN THAT CONTAINED IN THE
OPERATING INSTRUCTIONS, UNLESS QUALIFIED.
FOUNDA ION REQUIREMEN S
T-300:
his machine is designed for use on or over bare concrete floor - not to be
used above combustible flooring, such as carpet or wood. he washer
must be securely bolted to a substantial concrete floor, or mounted upon
a suitable base that is securely bolted to a substantial concrete floor.
Grouting is highly recommended, especially to the concrete surface. See
Machine Grouting section for details.
T-350 nd T-350SWD:
his machine is designed for use on or over bare concrete floor - not to be
used above combustible flooring, such as carpet or wood. he washer
must be securely bolted nd grouted to a substantial concrete floor or
mounted nd grouted upon a suitable base that is securely bolted nd
grouted to a substantial concrete floor. See Machine Grouting section for
details.
CARE MUS BE AKEN WI H ALL FOUNDA ION WORK O ENSURE A
S ABLE UNI INS ALLA ION, ELIMINA ING POSSIBILI IES OF
EXCESSIVE VIBRA ION.
Allow a minimum 24 inches (610 mm) of clearance behind the rear of the
machine to provide access for motor service.
Installation on an isolated pad is NO recommended. Consult a structural
engineer for installations that will not be tied to a surrounding floor.

8514-302-001 REV B page 8
MOUN ING HEIGH
A concrete pedestal or steel-mounting base that elevates the machine
above the floor level is suggested to provide easy access to the loading
door.
Suggested Amount to Elevate Washer:
-300/350/350SWD: approximately 8 inches (203 mm)
Contact a Dexter laundry equipment distributor for recommended steel
mounting bases. Available steel mounting bases:
Washer Part Number Height
-300 9945-094-003 8” (203 mm) Single Base
-300 9945-094-004 8” (203 mm) Double Base
-350 9945-121-001 8” (203 mm) Single Base
-350 SWD 9945-151-001 6” (152 mm) Single Base
If an elevated concrete pedestal is desired, it should be embedded and
tied into the existing floor. DO NO install a pad on top of the existing
floor. Cut through existing floor as shown below. See Machine Mounting
Detail Figures for floor thickness and bolt sizes.
EXPANSION ANCHORS ARE NO RECOMMENDED FOR USE IN CONCRE E
PEDES ALS BECAUSE HE ANCHORS ARE OO CLOSE O AN EDGE,
CAUSING I O BREAK OU .
FOUNDA ION AND PAD OP IONS
All installations require reinforced concrete floors. Refer to appropriate
model Machine Mounting Detail Figures 1-1, 1-2 and 1-3 for minimum
floor thickness and minimum pad sizes. See mounting diagram for overall
washer dimensions.
Refer to appropriate model Figure 1-4 for side by side mounting
dimensions.
WASHER INS ALLA ION ON EXIS ING FLOOR:

8514-302-001 REV B page 9
WASHER INS ALLA ION ON NEW FLOOR:
NEW PAD IED O EXIS ING FLOOR:
If the existing floor is not reinforced concrete that meets the minimum
thickness requirements, DO NO install a pad on top of the existing floor.
he existing floor and the machine pad must be tied together as one
piece as follows:
1) Cut an opening through the existing floor that is wider and deeper
than the washer as shown below. See Machine Mounting Details for
dimensions.
2) Excavate to a depth that allows for 6” [152] minimum of
compacted fill plus the minimum required concrete thickness. Also
excavate 2” [51] under the existing floor so that the new concrete is
poured under the floor as well.
3) Back fill with clean fill dirt and compact dirt, making sure to allow
for the minimum thickness concrete pad to be poured.
4) Drill holes around the perimeter of the existing floor to install
reinforcing bars to tie the new pad to the existing floor. Drill 2-1/2”
[64] deep into the existing floor on 12” [305] centers around the entire
perimeter.
5) Clean holes and fill half-way with acrylic adhesive rated for
commercial-grade machine installations.
6) Use #4 (60 ksi) reinforcing bar to tie the new pad to the existing
floor. ie the bars together at intersections and use supports to hold
bars in the proper depth in the pad.
7) After adhesive has cured, pour 4000 psi concrete up to level with
the existing floor plus any extra elevated pedestal desired 4-10” [102-
254].
Concrete must be done in one pour so that the entire pad cures as one
piece.

8514-302-001 REV B page 10
NEW PAD IED O EXIS ING FLOOR (LEVEL WI H FLOOR):
NEW RAISED CONCRE E PEDES AL IED O EXIS ING FLOOR:

8514-302-001 REV B page 11
S EEL MOUN ING BASE ON CONCRE E FLOOR:
MACHINE ANCHORING
All installations require concrete floors and quality grade anchor bolts or
expansion anchors. Mounting hardware is not provided with the
machines. Refer to appropriate model Machine Mounting Detail Figures 1-
1, 1-2 and 1-3 for floor thickness and bolt sizes. See mounting diagram
for overall washer dimensions.
EXPANSION ANCHORS ARE NO RECOMMENDED FOR USE IN RAISED
CONCRE E PEDES ALS BECAUSE HE ANCHORS ARE OO CLOSE O AN
EDGE, CAUSING I O BREAK OU .
ANCHORING OP IONS:
1) Cast in place bolts headed by square fish plates. See Machine
Mounting Detail Figures 1-1 thru 1-3 for exact washer model.
Or after concrete has completely cured:
2) Use Hilti Adhesive System ‘HAS’ Rods and adhesive capsules. See
Machine Mounting Detail Figures 1-1 thru 1-3 for exact washer model.
3) Or use an equivalently rated epoxy or acrylic adhesive anchor.
As an installation aid, the anchor pattern can be found on the back panel
of the washers and can be used as a template. Compare panel to the
mounting dimension drawing to find the right holes. Example:

8514-302-001 REV B page 12
ANCHOR
PATTERN
MACHINE GROU ING
After concrete has cured completely and anchors have cured completely
into place:
1) Position washer over the mounting anchors.
2) Raise the washer 1/2” [12.7] off the mounting surface and place
spacers under the corners of the washer base.
3) Level the washer, leaving washer at least 1/2” [12.7] off the
mounting surface.
Do not permanently support the washer with spacers under the
corners. Machine must be grouted, and spacers must be removed.

8514-302-001 REV B page 13
4) Mix non-shrinking machinery grout according to the grout
instructions. he grout should not be too runny or too firm.
Completely fill the 1/2” [12.7] space between the washer base and the
mounting surface. Force grout under all base angles and plates until
completely filled. Fill around all anchor bolts.
5) Finger tighten all nuts to anchor bolts.
6) When the grout has started to stiffen (but before it is cured),
remove the spacers from the corners and allow the washer to settle
into the wet grout. Fill in any voids as necessary with additional grout.
7) Allow grout to completely cure, then tighten all nuts to securely
fasten the washer to the grouted mounting surface.
8) Retighten nuts after 5 days of operation and check quarterly.
If using a steel mounting base, first grout the steel mounting base to the
concrete floor using the above steps, then repeat the steps for mounting
and grouting the washer to the steel mounting base.
FLOOR LOAD DA A
Model
Dry Weight
Capacity
(lb [kg])
Extract
Speed
(RPM)
Extract G-
orce
Maximum
Static Load
(lb [kN])
Static Load
Pressure
(lb/sq ft
[kN/ sq m])
Total
Dynamic
Load (lb
[kN])
Dynamic
Load
Pressure
(lb/sq ft
[kN/ sq m])
Dynamic
Load
requency
(Hz)
Maximum
Vertical
Load (lb
]kN])
Maximum
Moment About
Washer Base
(ft*lbs [m-kN])
T-300 23 [10.5] 550 90 384 [1.7] 91 [4.4] 416 [1.9] 99 [4.7] 9.2 756 [3.4] 816 [1.1]
T-350 23 [10.5] 777 180 450 [2.0] 94 [4.5] 832 [3.7] 174 [8.3] 13.0 1238 [5.5] 1633 [2.2]
T-350 SWD 23 [10.5] 777 180 867 [3.9] 128 [6.1] 832 [3.7] 123 [5.9] 13.0 1655 [7.4] 1633 [2.2]
Note:
DEXTER DYNAMIC LOADING CHART
The out-of-balance loading conditions may very dependent on load size and
material.

8514-302-001 REV B page 14
MOUN ING DE AIL
RAISED CONCRETE PEDESTAL MOUNTING OPTION
Figure 1-1 Figure 1-3
MACHINE MOUNTING DETAIL
Figure 1-2
FLOOR OUTLINE
T-300 MOUNTING DETAIL

8514-302-001 REV B page 15
SIDE BY SIDE MOUNTING DIMENSIONS
Figure 1-4
T-300 SIDE BY SIDE MOUNTING DETAIL

8514-302-001 REV B page 16
RAISED CONCRETE PEDESTAL MOUNTING OPTION
Figure 1-1 Figure 1-3
MACHINE MOUNTING DETAIL
Figure 1-2
FLOOR OUTLINE
T-350 MOUNTING DETAIL

8514-302-001 REV B page 17
SIDE BY SIDE MOUNTING DIMENSIONS
Figure 1-4
T-350 SIDE BY SIDE MOUNTING DETAIL

8514-302-001 REV B page 18
RAISED CONCRETE PEDESTAL MOUNTING OPTION
Figure 1-1 Figure 1-3
MACHINE MOUNTING DETAIL
Figure 1-2
FLOOR OUTLINE
T-350SWD MOUNTING DETAIL

8514-302-001 REV B page 19
SIDE BY SIDE MOUNTING DIMENSIONS
Figure 1-4
T-350 SWD SIDE BY SIDE MOUNTING DETAIL

8514-302-001 REV B page 20
PLUMBING
Water supply hoses are furnished with each machine. he threaded connections on the
hoses are ¾-14 BSP.
Separate hot and cold water lines must be provided, maintaining 207 kPa to 827 kPa (30
psi to 120 psi) water flow pressure. A 60C (140F) degree hot water supply is
recommended for best washing results. Do not exceed 82C (180F) degree water
temperature.
DRAIN
he drain outlet tube at the rear of the machine is 57 mm (2 ¼ inches) in diameter. Any
drain hose used must be lower than the drain valve to assure proper draining.
ELEC RICAL
WARNING
SHUT OFF POWER AND WATER BEFORE OPENING ANY SERVICE PANELS.
he Dexter single phase 230VAC 50 Hz washing machines are intended to be permanently
installed appliances. No power cord is provided. he machine should be connected to an
individual branch circuit not shared by lighting or other equipment. A means for
disconnection with a contact separation of at least 3 mm must be provided. he
connection should be sheathed in liquid tight flexible conduit, or equivalent, with
conductors of the proper size and insulation. he sheath of the supply cord must be at
least equivalent to that of a cord complying with IEC 227 or IEC 245. A qualified technician
should make such connections in accordance with the wiring diagram. (Suggest a minimum
wire size of 3.5 mm
2
)
O MAKE ELEC RICAL CONNEC IONS: Disconnect all power to the washer. Remove the
top panel of the washer and locate the power terminal block near the back of the control
compartment.
 Locate the power terminal block and connect L1, N, and Earth as marked.
 It is important that the earthing screw next to the power terminal block B-1 be
connected to a good external earth.
FUSING REQUIREMEN S
15 AMP IME-DELAY (DUAL ELEMEN ) FUSE (or equivalent circuit breaker)
