DFI COM333-I User manual

www.dfi.comChapter 1 Introduction
1
COM333-I
COM Express Carrier Board
User’s Manual
A47100832
Preliminary
Version

www.dfi.comChapter 1 Introduction
2
Copyright
This publication contains information that is protected by copyright. No part of it may be re-
produced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2018. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

www.dfi.comChapter 1 Introduction
3
Table of Contents
Copyright........................................................................................................... ..2
Trademarks ........................................................................................................2
FCC and DOC Statement on Class B.....................................................2
Warranty..............................................................................................................4
Static Electricity Precautions......................................................................4
Safety Measures ..............................................................................................4
About the Package......................................................................................... 5
Optional Items..................................................................................................5
Before Using the System Board...............................................................5
Chapter 1 - Introduction .............................................................................6
Specifications ................................................................................................6
Chapter 2 - Hardware Installation................................................ 7
Board Layout.................................................................................................7
Function Test Jumper ................................................................................. 8
Battery Low Indicator ...................................................................................8
Jumper Settings ...........................................................................................8
USB Power Select ......................................................................................... 8
USB 2.0 Port 3 Select ................................................................................... 9
10G PHY Capability Select.............................................................................9
PCIe Lane Select ........................................................................................ 10
PCIe Lane 12 Select ................................................................................... 10
TPM_PP on CB Select ................................................................................. 11
ESPI- Enable Select .................................................................................... 11
BIOS Boot Location Select........................................................................... 12
PIN 0~3 DIO Output/Input Select ............................................................... 12
VCC5_IN Power Select ................................................................................ 13
ATX/AT Mode Select (Power_OK)................................................................. 13
PS_ON Select ............................................................................................. 14
Clear CMOS................................................................................................ 14
BMC UART1 Port Mode Select ..................................................................... 15
BMC UART1 Driver’s/Receiver’s Power Rail Select ......................................... 15
BMC SPI1 Interface Mode Select ................................................................. 16
BMC 2nd Boot Watchdog Timer Select......................................................... 16
BMC MAC#1 Interface Type Select .............................................................. 17
BMC VGA Select ......................................................................................... 17
Rear Panel I/O Ports................................................................................. 18
Graphics Interface ...................................................................................... 18
COM (Serial) Ports...................................................................................... 19
LAN Ports................................................................................................... 20
USB Ports................................................................................................... 20
I/O Connectors ........................................................................................... 21
LPC Connector............................................................................................ 21
Digital I/O Connector.................................................................................. 21
SATA (Serial ATA) Connectors...................................................................... 22
Cooling Fan Connectors............................................................................... 22
I2C Header ................................................................................................. 23
SMBus Header............................................................................................ 23
Power Connectors....................................................................................... 24
Battery....................................................................................................... 24
Front Panel Connector ................................................................................ 25
Expansion Slots .......................................................................................... 26
COM Express Connectors ............................................................................ 26
SDIO (Optional).......................................................................................... 30
Switches .................................................................................................... 30
LEDs .......................................................................................................... 31
Inphi Configure Pin-Plug ............................................................................. 31
eSPI Female Header ................................................................................... 32

www.dfi.comChapter 1 Introduction
4
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper instal-
lation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the
product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con-
nectors by their ends.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or servic-
ing. After installation or servicing, cover the system chassis before plugging the power
cord.
Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other com-
ponents. Perform the upgrade instruction procedures described at an ESD worksta-
tion only. If such a station is not available, you can provide some ESD protection by
wearing an antistatic wrist strap and attaching it to a metal part of the system chas-
sis. If a wrist strap is unavailable, establish and maintain contact with the system
chassis throughout any procedures requiring ESD protection.

www.dfi.comChapter 1 Introduction
5
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• One COM333-I board
• One Serial ATA data cable (Length: 500mm)
Optional Items
• Serial ATA data cable (Length: 500mm)
• LPC EXT-RS232 module (4 x RS232 ports)
• LPC EXT-RS485 module (4 x RS485 ports)
• I/O shield
• Standoff (M2.5*12) (for compact size module)
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance with the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System Board
Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will need at least the following
internal components.
• Memory module
• Storage devices such as hard disk drive, etc.
You will also need external system peripherals you intend to use which will normally include at
least a keyboard, a mouse and a video display monitor.

www.dfi.comChapter 1 Introduction
6
ENVIRONMENT Temperature Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF TBD
MECHANICAL Dimensions microATX Form Factor
244mm (9.6") x 244mm (9.6")
Compliance PICMG COM Express®R3.0, Type 7
Basic, Compact Modules
Chapter 1 - Introduction
Specifications
Chapter 1
EXPANSION Interface B1: 2 x PCIe x4 or 1 x PCIe x8 (Gen 3)
B2: 2 x PCIe x4 or 1 x PCIe x8 (Gen 3)
B3: 2 x PCIe x4 or 1 x PCIe x8 (Gen 3)
B4: 2 x PCIe x4 or 1 x PCIe x8 (Gen 3)
REAR I/O Ethernet 4 x 10GbE LAN (2 x RJ-45, 2 x SFP+) by 10GBASE-KR interface
2 x 1GbE LAN (RJ-45) (one from module; another from BMC for remote management)
USB 4 x USB 3.0/2.0
Serial 1 x RS-232 (DB-9) (supports by BMC which default is debug port and may switch to
normal RS-232)
INTERNAL
I/O
Serial 2 x Serial Interface Connectors (TX/RX) (2.0mm pitch)
SATA 2 x SATA 3.0 (up to 6Gb/s)
DIO 1 x 8-bit DIO (4 input, 4 output)
1 x SDIO (available upon request)
LPC 1 x LPC
SMBus 1 x SMBus
BMC Features 1. IPMI 2.0
2. Web Browser Support
3. Web Interface
4. iKVM (keyboard, video and mouse)
5. Virtual Media
6. 3rd Party Authentication
7. Firmware Update
8. SMASH/CLP
9. WS-MAN
10. Network Service
Processor AST2500
SDRAM DDR4-2400 1200MHz 8Gb memory down
Display Through BMC to convert VGA signal
VGA: resolution up to 1920 x 1200 x 32bpp (share with SOC 16MB memory)
POWER Type 12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
Connector 4-pin ATX 12V power
24-pin ATX power
RTC Battery CR2032 Coin Cell

www.dfi.comChapter 2 Hardware Installation
7
Chapter 2
Chapter 2 - Hardware Installation
Board Layout
DDR4
Inphi
CS4227
ASPEED
AST2500
EZX557AT2
COM 1
9
1
2
COM 2
PCIe 8
(PCIe x4)
PCIe 5
(PCIe x4)
PCIe 6
(PCIe x4)
PCIe 7
(PCIe x4)
PCIe 1
(PCIe x8)
PCIe 2
(PCIe x8)
PCIe 3
(PCIe x8)
PCIe 4
(PCIe x8)
PCIe 12 (PCIe x4)
PCIe 10 (PCIe x4)
PCIe 11 (PCIe x4)
PCIe 9 (PCIe x4)
PCIe Lanes 28~31
Select (JP17)
PCIe Lanes 04~07
Select (JP10)
PCIe Lanes 08~11
Select (JP15)
PCIe Lanes 12~15
Select (JP11)
PCIe Lanes 16~19
Select (JP12) PCIe Lanes 20~23
Select (JP16)
PCIe Lanes 24~27
Select (JP13)
PCIe Lanes 00~03
Select (JP14)
Thermal
Trip LED PCIe Lane 12
Select (JP18)
Battery Low Indicator (J4)
Microsel0 Select (J18)
BMC VGA Select (J20)
Compact Basic
SPI Flash BIOS
Buzzer
1G RJ-45 LAN 1
USB 0,1
USB 3.0
10G SFP+ LAN 1,2
1
1
219
Digital I/O
1
1
24
ATX Power
13
1
12
11
21
1
SATA 1
SATA 3.0
5
1
2
SMBus HDR
+12V Power
VCC5_IN Power
Select (JP26)
12
56
1
1
USB 3.0 Ports 0,1
Power Select
(JP1)
USB 3.0 Ports 2,3
Power Select (JP2)
LC4064ZE
Debug
LED
LPC
Clear CMOS (JP29)
ATX/AT Mode Select
(Power_OK) (JP27)
PS_ON Select (JP28)
Front Panel
System
Fan2 11
System
Fan1
1
1
1
B110
A110
B1
A1 COM Express Connector
D110
C110
D1
C1 COM Express Connector
1G MGMT LAN
USB 2,3
USB 3.0
10G RJ-45 LAN 3,4
1
1
1
5
1
6
2
1
1
21
5
I
2
C HDR
Battery
1
PIN GPO0~3
DIO Output
(JP24) PIN GPI0~3
DIO Input
(JP25)
10G PHY CAP 2,3 Select (JP9)
1
SATA 0
BMC UART1 Driver’s/Receiver’s
Power Rail Select (JP31)
BMC UART1 Port Mode Select (JP30)
SPI
TPM
Disable
1
USB 2.0 Port 3
Select (JP4)
1
ON
234
SW1
1
10
12 3
1
10
12 3
1
10
12 3
BMC AST2500
Chip Level Reset
2
1
13
14
BMC AST2500 SOC
Level Reset
LED20
LED
9
LED10
LED
15
LED
13
LED12
LED14
LED
11
GPO0 LED (LED12)
GPO3 LED (LED9)
GPO2 LED (LED10)
GPO1 LED (LED11) GPI0 LED (LED20)
GPI1 LED (LED15)
GPI2 LED (LED14)
GPI3 LED (LED13)
1
1
1
1
1
1
Sleep
Lid
Power
Reset
SDIO
(optional)
111
10G PHY CAP 0,1
Select (JP19)
BIOS Boot Location Select (JP22, JP23)
ESPI- Enable Select (JP21)
TPM_PP on CB Select (JP20) 1
1
BMC UART1
VGA
eSPI Female HDR
9
1
2
BMC 1st SPI Flash
2
1
13
14
1
Inphi
Configure
Pin-Plug
(JP8)
BMC AST2500
Heart Beat LED
Indicator LED for
Non-Type 7 Module Inserted
Indicator LED for
Type 7 Module Inserted
Indicator LED for
Type 6 Module Inserted
BMC 2nd SPI Flash

www.dfi.comChapter 2 Hardware Installation
8
Chapter 2
1
ON
234
Jumper Settings

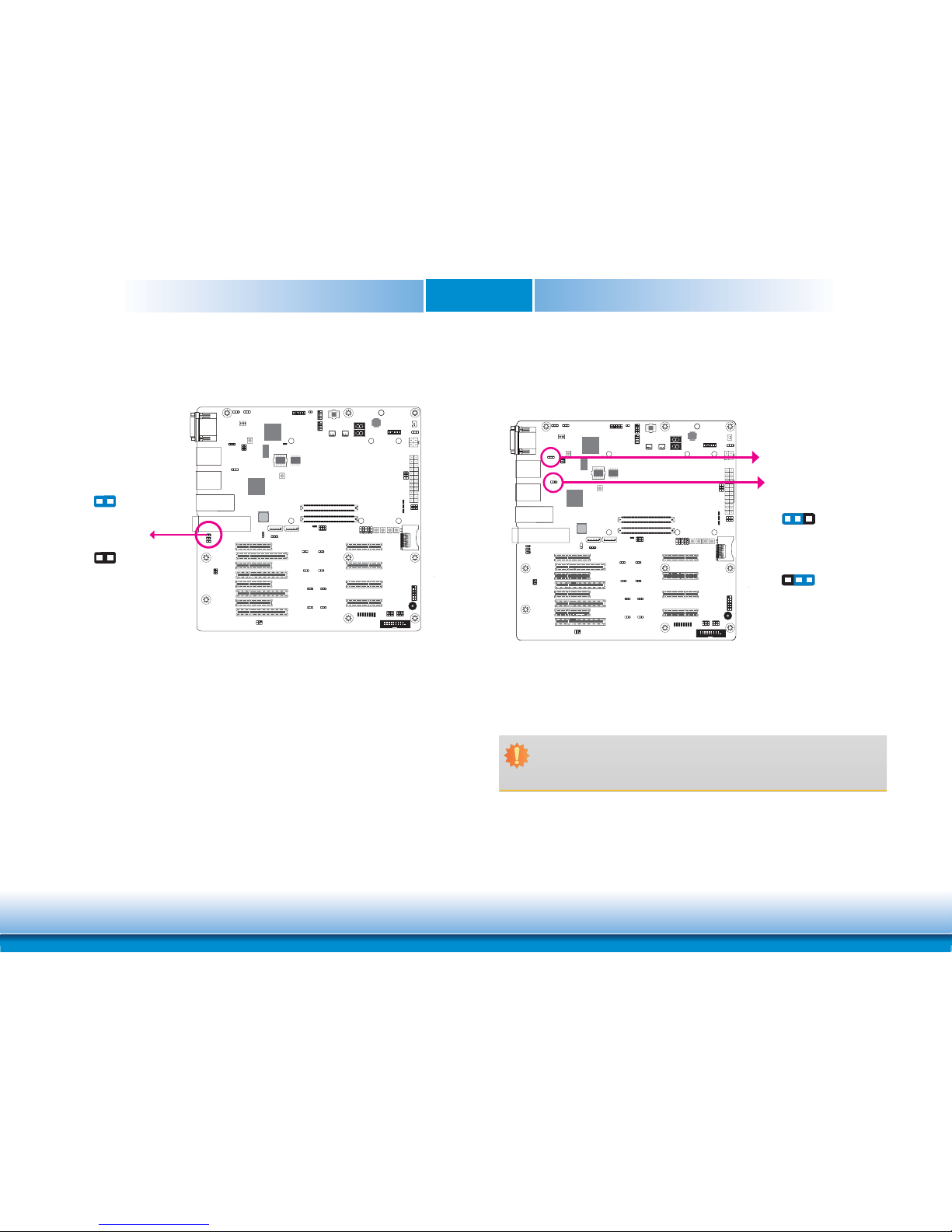

USB Power Select
JP1 (for USB 3.0 Ports 0,1) and JP2 (for USB 3.0 Ports 2,3) are used to select the power of
USB ports. Selecting +5VDU will allow you to use a USB keyboard to wake up the system.
USB 3.0 Ports 0,1
(JP1)
USB 3.0 Ports 2,3
(JP2)
2-3 On: +5VDU
1-2 On: +5V
(default)
312
312
Important:
If your module board supports Wake-On-USB Keyboard/Mouse function, the +5V_
standby power source of your power supply must support ≥2A for 2 USB devices.
Function Test Jumper
Battery Low Indicator
1
ON
234
J4
This jumper is used to simulate the signal status that indicates the external battery is low. By
setting J4 pins 1 and 2 to On, it sends a battery low signal to the module.
1-2 Off: Normal
(default)
1-2 On:
Battery low test
1 2
1 2

www.dfi.comChapter 2 Hardware Installation
9
Chapter 2
1
ON
234

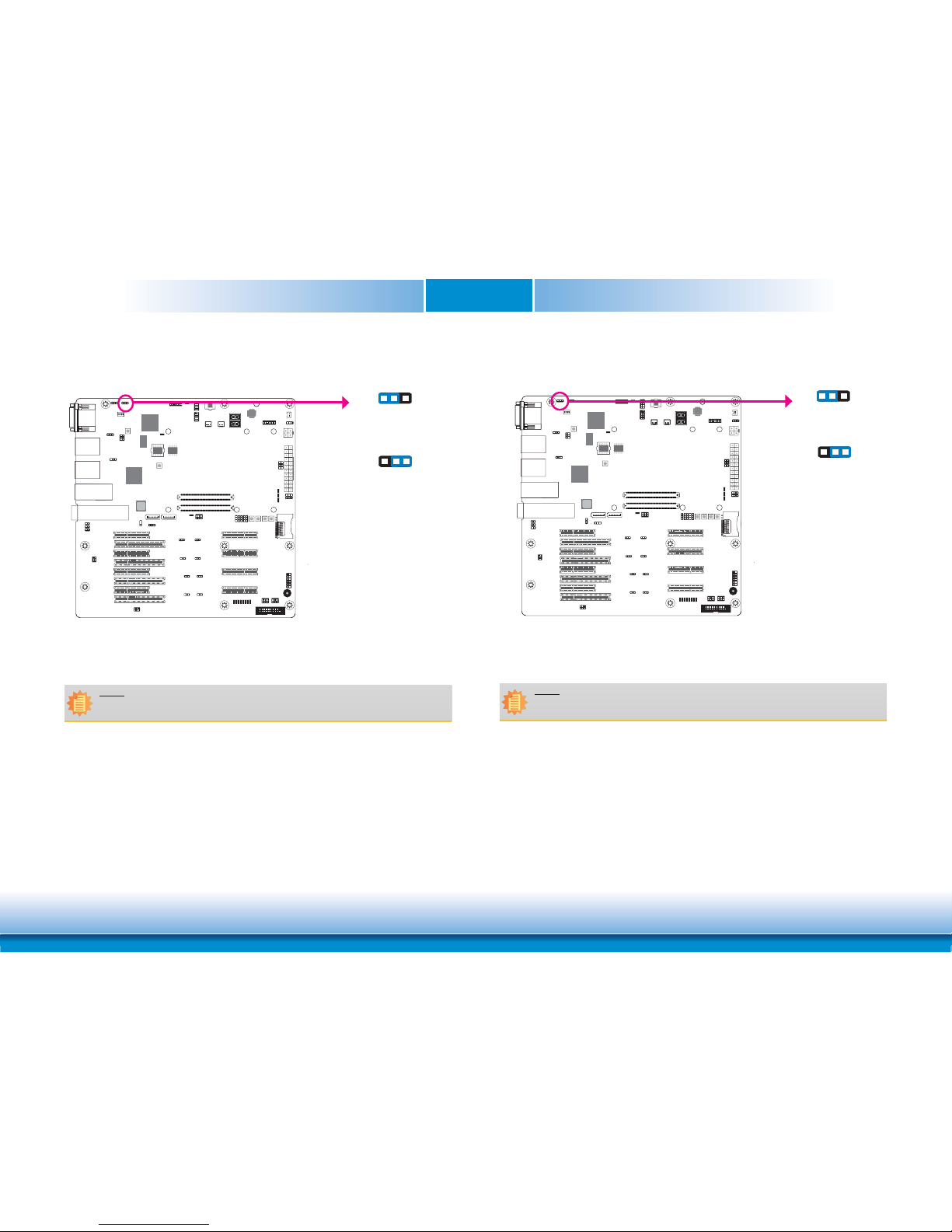

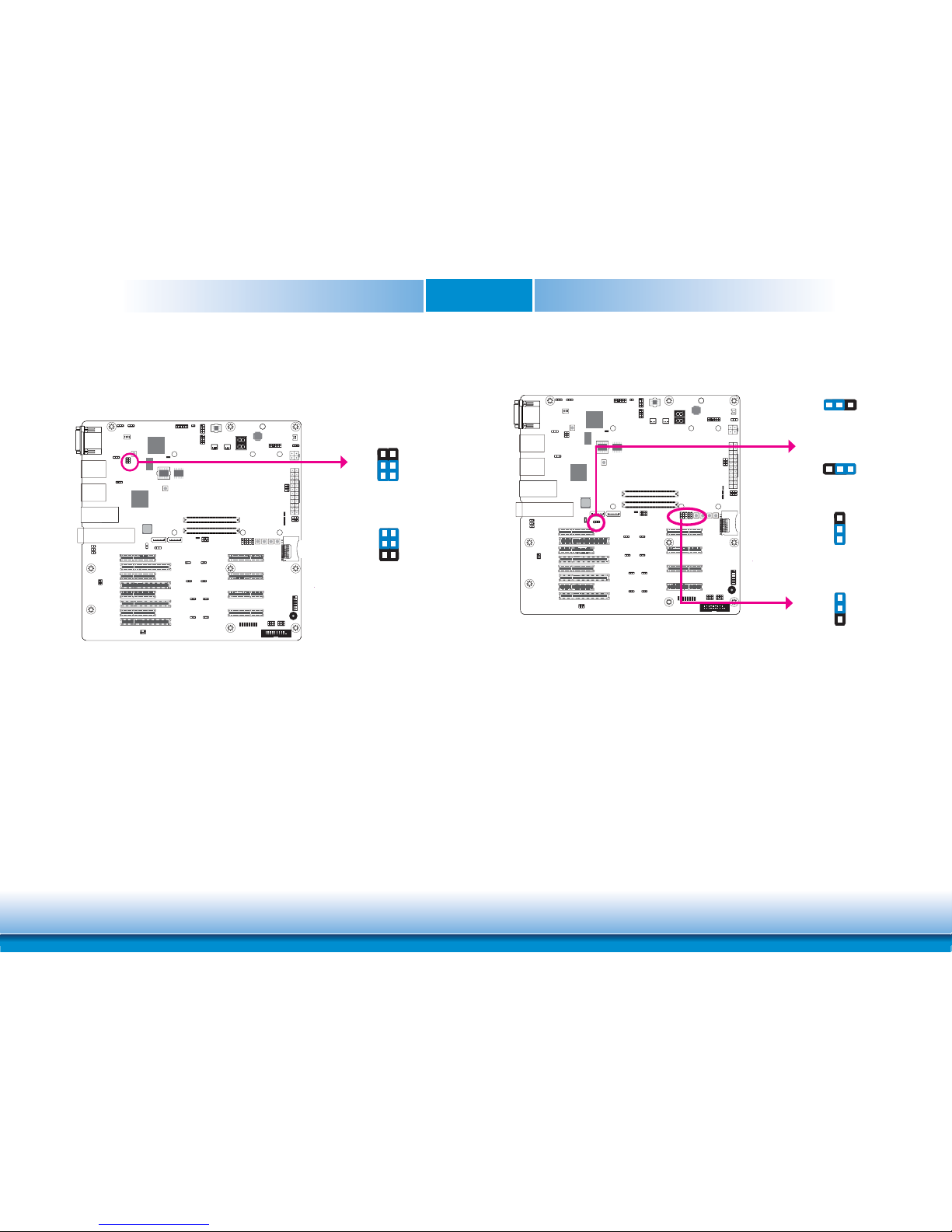

10G PHY Capability Select
JP9
The JP19 and JP9 are used to select the capability of 10G PHY lanes 0,1 and lanes 2,3 respec-
tively.
If 10G_PHY_CAP_0,1 is tied low on the Carrier, this indicates to the Module that the PHY on
the Carrier for 10G interfaces 0 and 1 can be configured by either I2C or by MDIO.
If the Carrier leaves the line NC, then this indicates to the Module that the Carrier PHY can
only be configured by MDIO.
1
3
2
1
3
2
JP19
2-3 On:
MDIO or I2C
1-2 On:
MDIO only
(default)
312
312
1-2 On:
MDIO only
(default)
2-3 On:
MDIO or I2C
1
ON
234
USB 2.0 Port 3 Select
The JP4 is used to select the USB 2.0 port 3 connection path.
JP4
1-3, 2-4 On:
USB 2.0 Port 3
to Rear I/O Connector
5
1
3
2
4
6
3-5, 4-6 On:
USB 2.0 Port 3 to BMC
(default)
5
1
3
2
4
6

www.dfi.comChapter 2 Hardware Installation
10
Chapter 2
1
ON
234

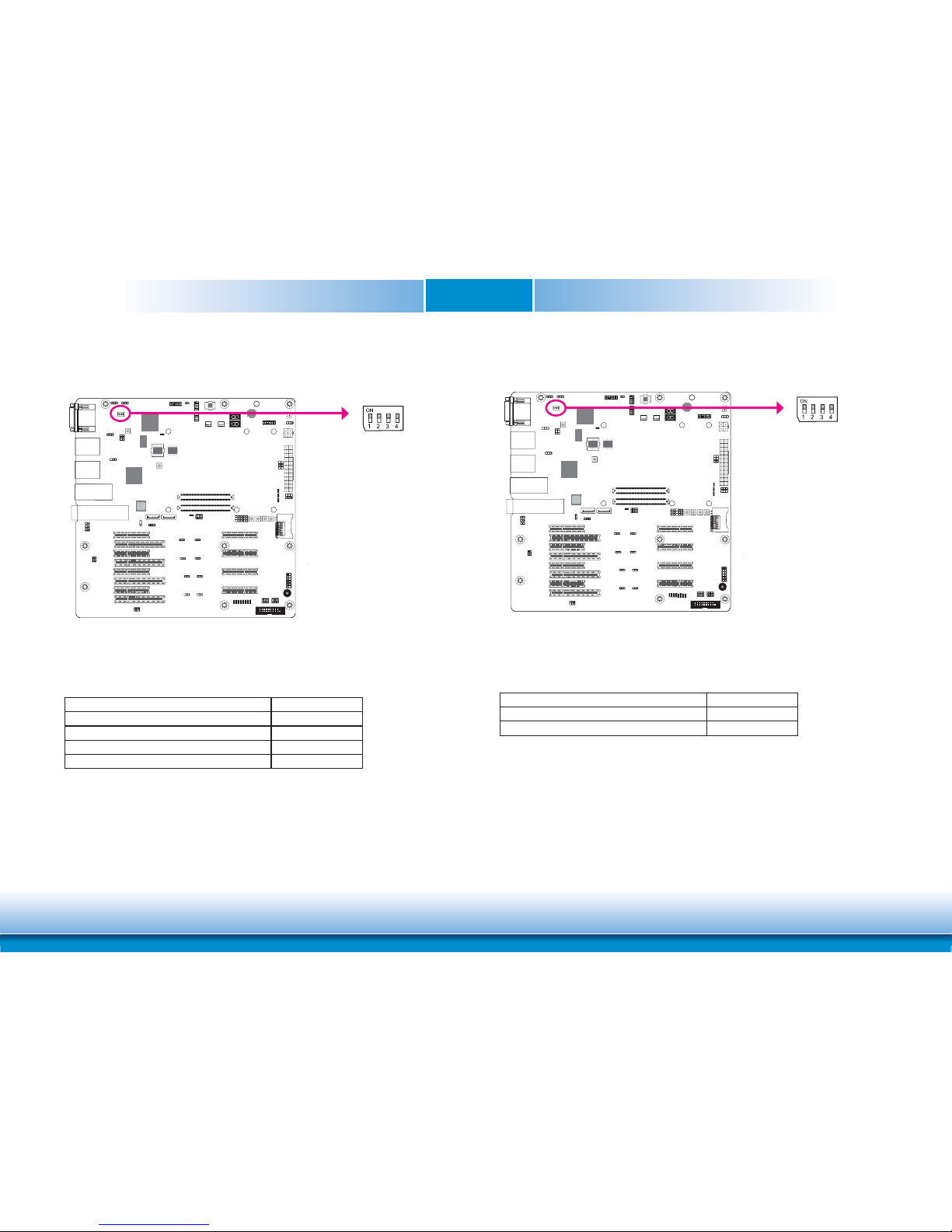

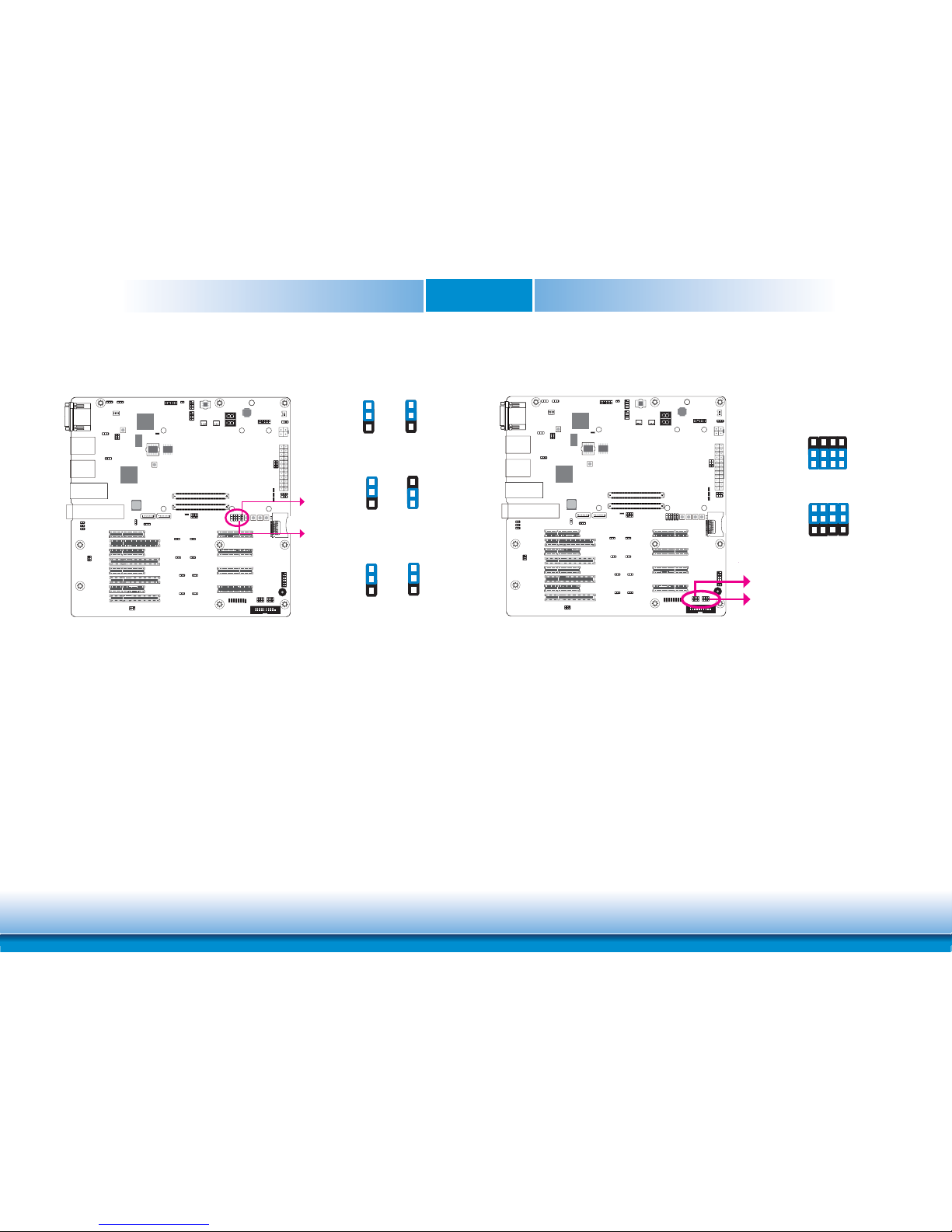

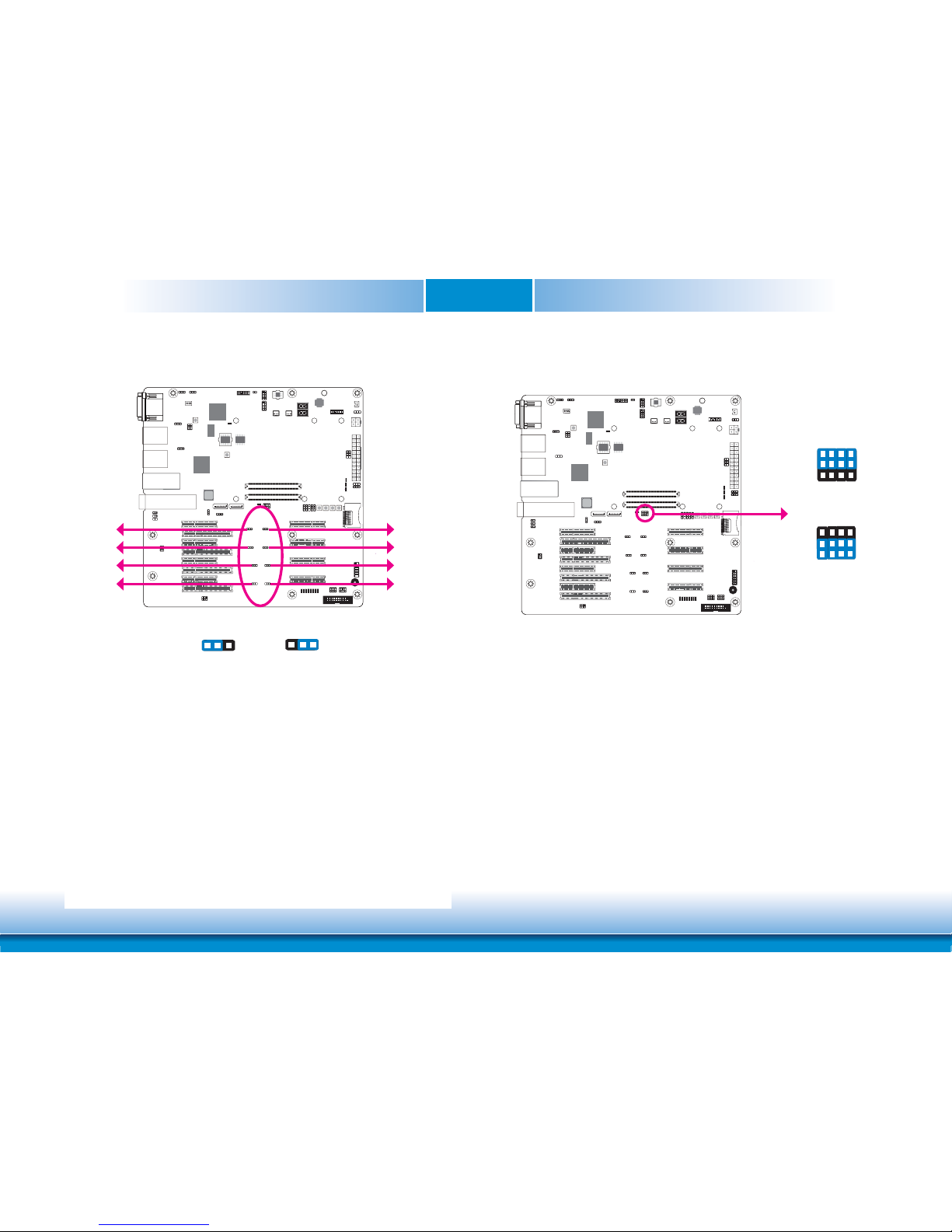

PCIe Lane Select
JP14
2-3 On
1-2 On (default)
312 312
The JP14 is used to select the PCIe Lanes 00~03: PCIe5 x4 slot (1-2 On) or PCIe1 x8 slot (2-3
On).
The JP10 is used to select the PCIe Lanes 04~07: PCIe9 x4 slot (1-2 On) or PCIe1 x8 slot (2-3
On).
The JP15 is used to select the PCIe Lanes 08~11: PCIe6 x4 slot (1-2 On) or PCIe2 x8 slot (2-3
On).
The JP11 is used to select the PCIe Lanes 12~15: PCIe10 x4 slot (1-2 On) or PCIe2 x8 slot
(2-3 On).
The JP12 is used to select the PCIe Lanes 16~19: PCIe7 x4 slot (1-2 On) or PCIe3 x8 slot (2-3
On).
The JP16 is used to select the PCIe Lanes 20~23: PCIe11 x4 slot (1-2 On) or PCIe3 x8 slot
(2-3 On).
The JP13 is used to select the PCIe Lanes 24~27: PCIe8 x4 slot (1-2 On) or PCIe4 x8 slot (2-3
On).
The JP17 is used to select the PCIe Lanes 28~31: PCIe12 x4 slot (1-2 On) or PCIe4 x8 slot
(2-3 On).
JP17
JP16
JP15
JP10
JP13
JP12
JP11
1
ON
234
PCIe Lane 12 Select
The JP18 is used to select PCIe Lane 12 to BMC or multiplexer.
3
1
2
JP18
1-2, 4-5, 7-8, 10-11 On:
PCIe Lane 12 to BMC
(default)
3
1
2
12
10
11
12
10
11
2-3, 5-6, 8-9, 11-12 On:
PCIe Lane 12 to Multiplexer
(Refer JP11 also)
