Chapter 1 Introduction
DT122-SB
Desktop Box PC
User’s Manual
A25620342

www.dfi.com
2
Chapter 1 Introduction
Copyright
This publication contains information that is protected by copyright. No part of it may be reproduced in any
form or by any means or used to make any transformation/adaptation without the prior written permission
from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no representations or
warranties with respect to the contents or use of this manual and specifically disclaims any express or im-
plied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk
of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise
this publication and make changes to its contents at any time, without obligation to notify any person or
entity of such revisions or changes.
Changes after the publication’s first release will be based on the product’s revision. The website will always
provide the most updated information.
© 2013. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

www.dfi.com
3
Chapter 1 Introduction
Table of Contents
Copyright.............................................................................................................2
Trademarks........................................................................................................2
FCC and DOC Statement on Class B.....................................................2
About this Manual..........................................................................................4
Warranty..............................................................................................................4
Static Electricity Precautions......................................................................4
Safety Measures..............................................................................................4
About the Package.........................................................................................5
Chapter 1 - Introduction.............................................................................6
Overview .......................................................................................................6
Key Features ................................................................................................6

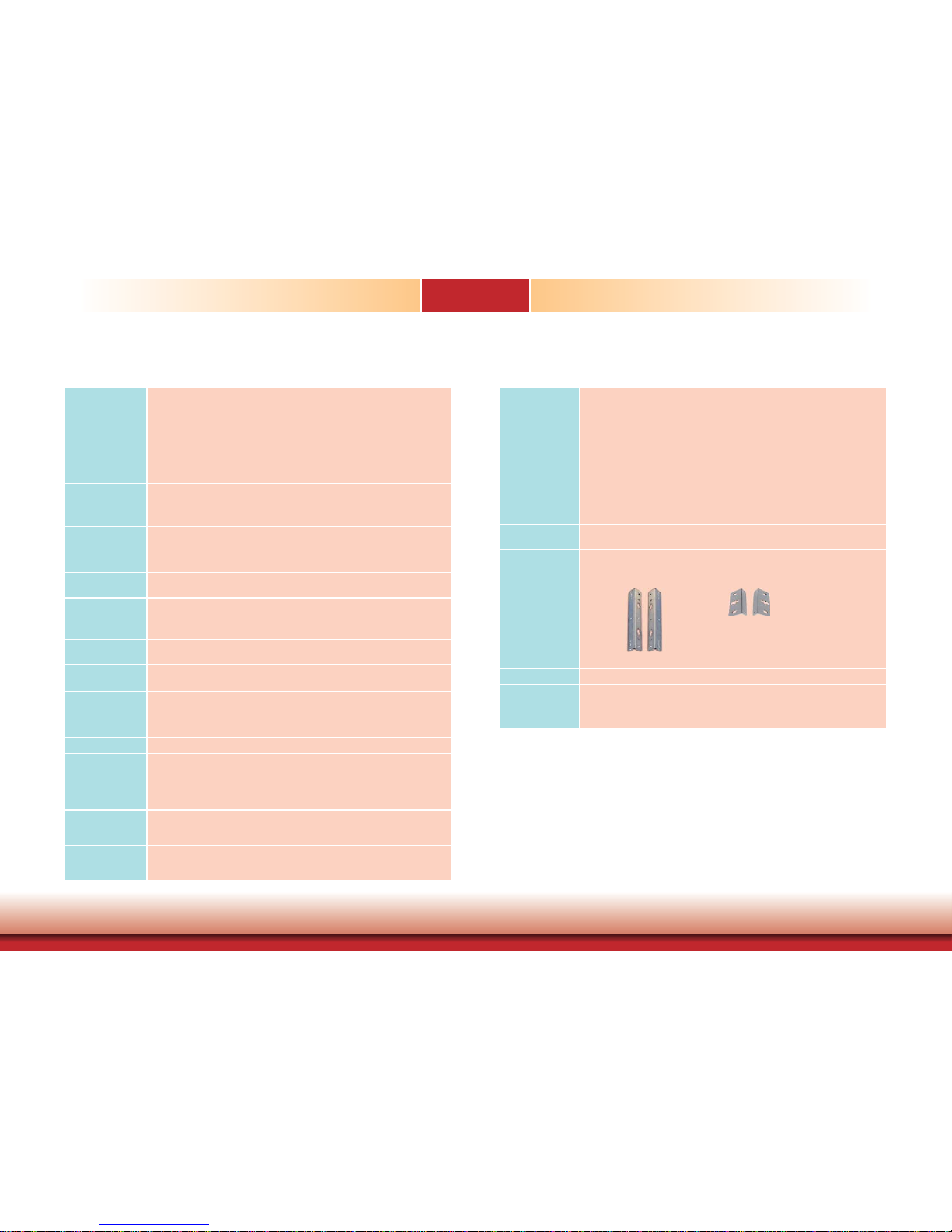

Specifications ...............................................................................................7

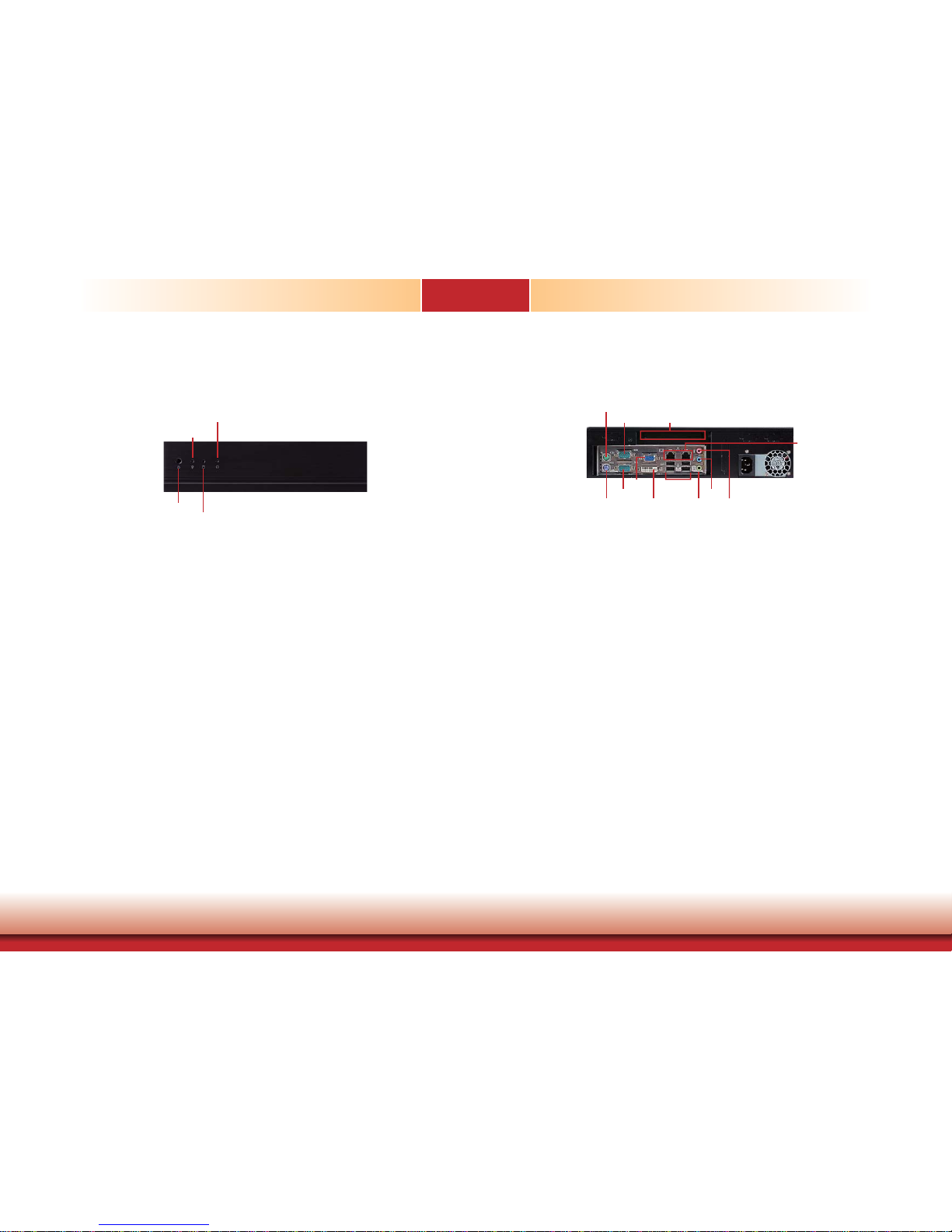

Getting to Know the DT122-SB ..............................................................8
Mechanical Dimensions .............................................................................9
Motherboad Dimensions ...........................................................................9
Chapter 2 - Getting Started..................................................................... 10
Preparing the System ..............................................................................10
Installing Devices .....................................................................................10
Configuring the BIOS ..............................................................................10
Installing the Operating System ..........................................................10
Installing the Drivers ...............................................................................10
Chapter 3 - Installing Devices .............................................................. 11

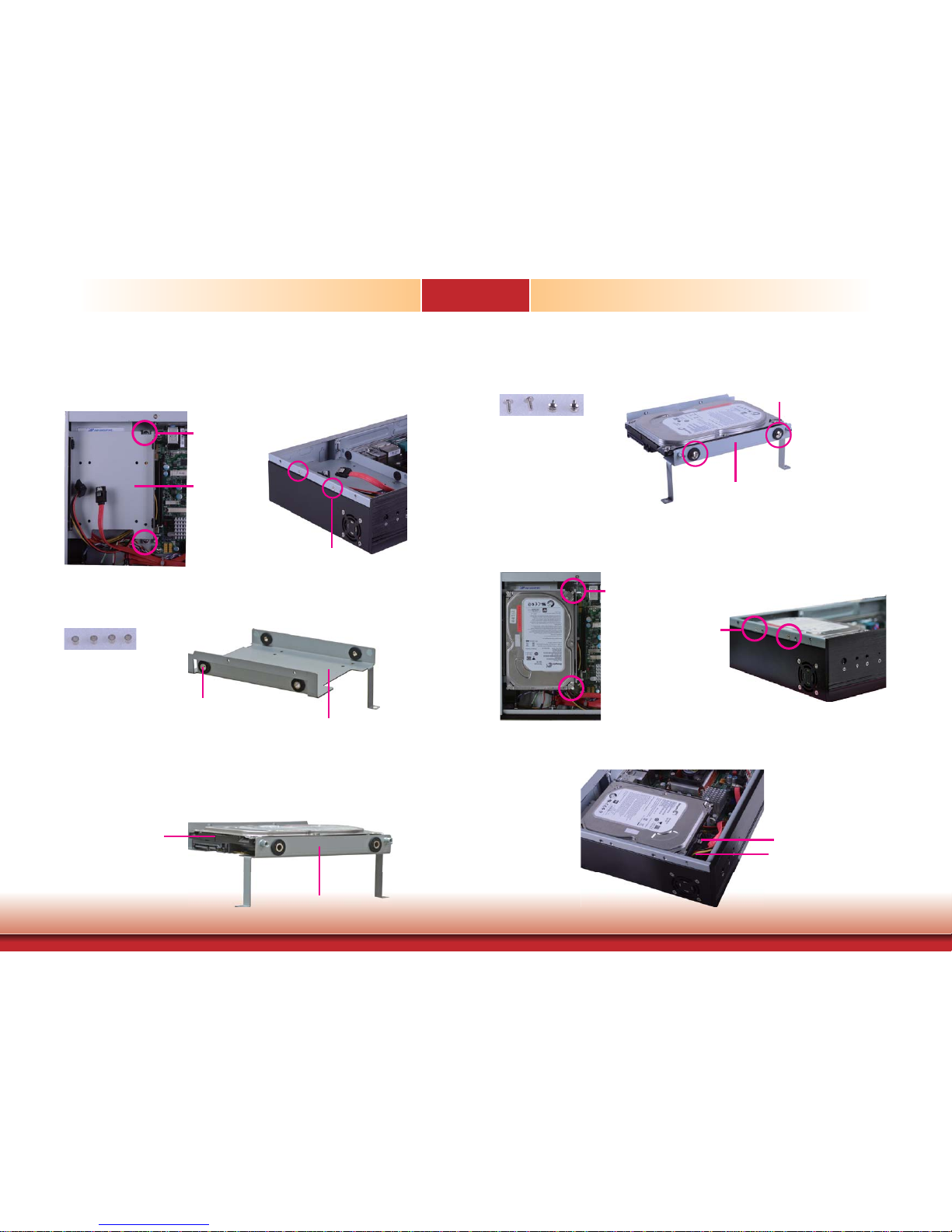

Installing a 2.5” or 3.5” SATA Drive ...................................................12
Installing a 2.5” SATA Drive .......................................................................12
Installing a 3.5” SATA Drive .......................................................................14

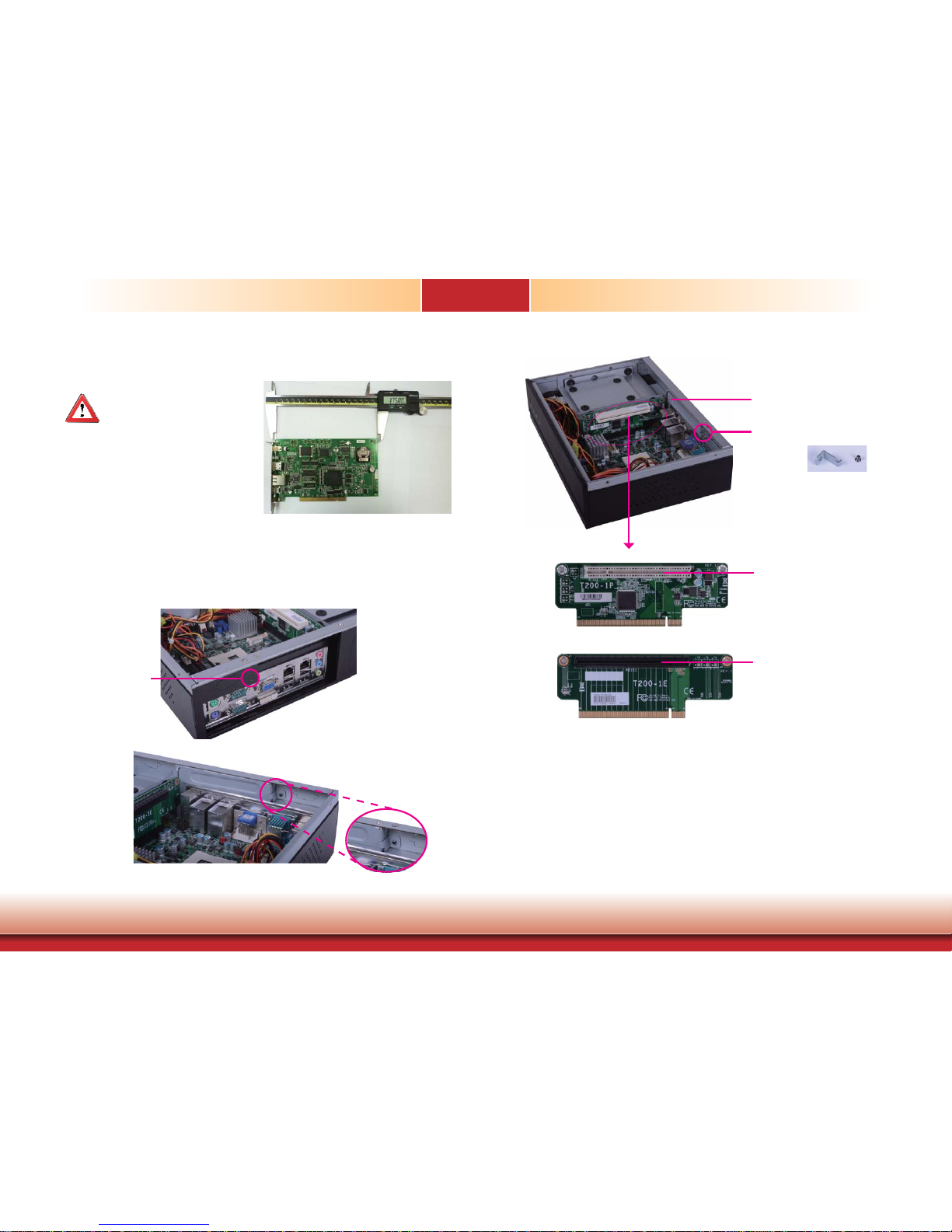

Installing the PCI and PCIe x16 Expansion Card ............................ 15
Chapter 4 - Jumper Settings .................................................................17
Clear CMOS ................................................................................................17
PS/2 Power Select .................................................................................... 17
USB Power Select ..................................................................................... 18
Power-on Select ........................................................................................ 18
COM 1 / COM 2 RS232/422/485 Select ............................................19
COM 1 / COM 2 RS232/Power Select .................................................19
Chapter 5 - Ports and Connectors........................................................20
Bottom Panel I/O Ports ...........................................................................20
PS/2 Mouse and PS/2 Keyboard .................................................................20
COM (Serial) Ports .....................................................................................21
VGA Port ...................................................................................................21
DVI-I Port .................................................................................................22
RJ45 LAN Ports ......................................................................................... 22
USB Ports .................................................................................................23
Audio ........................................................................................................24
I/O Connectors ..........................................................................................25
S/PDIF Connector ......................................................................................25
Digital I/O Connector .................................................................................25
SATA (Serial ATA) Connectors .....................................................................26
Cooling Fan Connectors .............................................................................26
Chassis Intrusion Connector .......................................................................27
Power Connectors ..................................................................................... 27
Standby Power LED ................................................................................... 28
Front Panel Connectors ..............................................................................28
Expansion Slots .........................................................................................29
Battery .....................................................................................................29
Chapter 6 - Mounting Options ..............................................................30
Wall Mount...................................................................................................30
Chapter 7 - BIOS Setup ...........................................................................32
Overview.......................................................................................................32
AMI BIOS Setup Utility.............................................................................33
Main .........................................................................................................33
Advanced ..................................................................................................33
Chipset .....................................................................................................40
Boot .........................................................................................................44
Security ....................................................................................................45
Save & Exit ............................................................................................... 46
Updating the BIOS ...................................................................................46
Chapter 8 - Supported Software .........................................................47
Chapter 9 - Raid ..........................................................................................59
RAID Levels ...............................................................................................59
Settings .......................................................................................................59
Chapter 10 - Intel AMT Settings .........................................................62
Overview.......................................................................................................62
Enable Intel®AMT in the AMI BIOS ...................................................62
Enable Intel®AMT in the Intel® Management Engine BIOS
Extension (MEBX) Screen ......................................................................63
Appendix A - NLITE and AHCI Installation Guide........................76
Appendix B - Watchdog Sample Code ..............................................82
Appendix C - System Error Message .................................................83
Appendix D - Troubleshooting Checklist ..........................................84

www.dfi.com
4
Chapter 1 Introduction
About this Manual
An electronic file of this manual is included in the CD. To view the user’s manual in the CD, in-
sert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click
“User’s Manual” on the main menu.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper in-
stallation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the
product that has been modified or altered.
Important:
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con
nectors by their ends.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or servic-
ing. After installation or servicing, cover the system chassis before plugging the power cord.
Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
Electrostatic discharge (ESD) can damage your processor, disk drive and other components.
Perform the upgrade instruction procedures described at an ESD workstation only. If such a sta-
tion is not available, you can provide some ESD protection by wearing an antistatic wrist strap
and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish
and maintain contact with the system chassis throughout any procedures requiring ESD protec-
tion.

www.dfi.com
5
Chapter 1 Introduction
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• 1 DT122-SB system unit
• 1 HDD drive bay kit
• 1 CD disk includes
- Manual
- Drivers
• 1 Quick Installation Guide
Optional Items
• Power Cord
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System
Before powering-on the system, prepare the basic system components.
If you are installing the system board in a new system, you will need at least the following
internal components.
• Memory module
• Storage devices such as hard disk drive, CD-ROM, etc.
You will also need external system peripherals you intend to use which will normally include at
least a keyboard, a mouse and a video display monitor.
Safety Precautions
• Use the correct DC input voltage range.
• Unplug the power cord before removing the system chassis cover for installation or servic-
ing. After installation or servicing, cover the system chassis before plugging the power cord.
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
• Keep this system away from humidity.
• Place the system on a stable surface. Dropping it or letting it fall may cause damage.
• The openings on the system are for air ventilation to protect the system from overheating.
DO NOT COVER THE OPENINGS.
• Place the power cord in such a way that it will not be stepped on. Do not place anything on
top of the power cord. Use a power cord that has been approved for use with the system
and that it matches the voltage and current marked on the system’s electrical range label.
• If the system will not be used for a long time, disconnect it from the power source to avoid
damage by transient overvoltage.
• If one of the following occurs, consult a service personnel:
- The power cord or plug is damaged.
- Liquid has penetrated the system.
- The system has been exposed to moisture.
- The system is not working properly.
- The system dropped or is damaged.
- The system has obvious signs of breakage.
• The unit uses a three-wire ground cable which is equipped with a third pin to ground the
unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does
not support this kind of plug, contact your electrician to replace the outlet.
• Disconnect the system from the DC outlet before cleaning. Use a damp cloth. Do not use
liquid or spray detergents for cleaning.

www.dfi.com
6
Chapter 1 Introduction
Chapter 1 - Introduction
Chapter 1
Overview Key Features
DT122-SB
PROCESSOR 3rd/2nd Generation Intel®CoreTM processors
CHIPSET Intel®Q67
LAN 2 LAN ports
COM 2 COM ports
DISPLAYS DVI-I (DVI-D Signal), 1 VGA
USB 4 Type A USB 2.0/1.1 ports
2 Type A USB 2.0/1.1 ports (optional)
AUDIO Mic-in, Line-in, Line-out

www.dfi.com
7
Chapter 1 Introduction
I/O Ports • Front Panel
- 1 Power button
- 1 Reset button
- 2 LED indicators: Power, HDD
• Rear Panel
- 1 PS/2 Mouse
- 1 PS/2 Keyboard
- 2 DB-9 RS232/422/485 COM
- 1 DB-15 VGA
- 1 DVI-I (DVI-D signal)
- 2 RJ45 LAN
- 4 USB 2.0
- Mic-in, Line-in and Line out
Expansion • 1 expansion slot
- 1 PCIe x16 or 1 PCI slot
Construction
• Front panel: aluminum
• Rear chassis: sheet metal
Mounting
• 2 types of wall mount bracket
- Type A - Type B
• Brackets and screws (optional)
Dimensions • 300mm x 75mm x 217mm (W x H x D)
Weight •
TBD
OS Support • Windows 7, Windows 7 Embedded, Windows XP, Windows XP Embedded,
Linux Kernel 2.6
Specifications
Processor System • Processors:
- 3rd generation Intel®CoreTM processors (22nm process technology)
: Intel®CoreTM i5-3550S (6M Cache, up to 3.7GHz); 65W
: Intel®CoreTM i3-3220 (3M Cache, 3.3GHz); 55W
: Intel®Pentium®G2120 (3M Cache, 3.1 GHz); 55W
- 2nd generation Intel®CoreTM processors (32nm process technology)
:Intel®CoreTM i3-2120 (3M Cache, 3.3 GHz); 65W
:Intel®Pentium®G850 (3M Cache, 2.9 GHz); 65W
• Chipset: Intel®Q67 Express chipset
Memory • Two DDR3 DIMM sockets
• Supports DDR3 1333/1600MHz (3rd generation processors)
Supports DDR3 1066/1333MHz (2nd generation processors)
• Supports up to 16GB memory
Graphics • Intel®HD Graphics
• Display ports: DVI-I (DVI-D signal) and VGA
• DVI-I supports up to 1920x1200 @ 60Hz resolution
• VGA supports up to 2048x1536 @ 75Hz resolution
Storage • Up to 2 2.5" or 1 3.5" SATA drive bay
• 1 optical drive bay (optional)
Ethernet • Intel®WG82579LM with iAMT8.0 Gigabit Ethernet Phy
• Intel®WG82574L PCI Express Gigabit Ethernet controller
Audio • Realtek®ALC262 2-channel High Definition Audio
COM • 2 DB-9 RS232/422/485 COM ports
• 2 DB-9 RS232 COM ports (optional)
USB • 4 Type A USB 2.0/1.1 ports
• 2 Type A USB 2.0/1.1 ports (optional)
Power • Power type
- ATX
• Power input voltage
- AC 100-240V, 3.5A, 250W
Cooling System • 1 CPU cooler
Environment • Temperature
- Operating: 0oC ~ 45oC
- Storage: -20oC ~ 60oC
• Humidity
- 90% RH at 45oC, 1 week
Vibration • Operating: 1G, 5~500Hz
• Non-operating: 1.5G, 5~25Hz
• IEC 68-2-64 compliant
Shock • Operating: 3G peak acceleration (11 msec. duration)
• Non-operating: 10G peak acceleration (11 msec. duration)
• IEC 68-2-27 compliant
Chapter 1

www.dfi.com
8
Chapter 1 Introduction
Getting to Know the DT122-SB
Chapter 1
Front View
Power Button
Press to power-on or power-off the system.
Reset Button
Press to reset the system.
HDD LED
Indicates the status of the hard drive.
Power LED
Indicates the power status of the system.
Bottom View
VGA Port
Use to connect a VGA device.
DVI-I Port
Used to connect a DVI device.
COM Ports
Used to connect serial devices.
USB Ports
Used to connect USB 3.0/2.0/1.1 devices.
LAN Ports
Used to connect the system to a local area network.
Line-out
Used to connect to a speaker.
Line-in
Used to connect any audio devices such as Hi-fi set, CD player, tape player, AM/FM radio tuner,
synthesizer, etc.
Mic-in
Used to connect an external microphone.
PS/2 KB/Mouse
Used to connect a PS/2 keyboard and PS/2 mouse.
Expansion Slot
Used to insert an expansion card.
Power Button
HDD LED
Power LED
Reset Button
Line-out
COM 2
Mic-in
Line-in
DVI-I
(DVI-D Signal)
COM 1
PS/2 KB
PS/2 Mouse Expansion slot
LAN 1-2
USB 2.0VGA

www.dfi.com
9
Chapter 1 Introduction
Mechanical Dimensions
Chapter 1
Motherboard Dimensions
74.00
217.20
300.00
Front View
Right View
Left View
Rear View
SB100
0.00
0.00
6.17
17.73
36.88
59.40
89.88
125.92
151.76
163.83
10.16
46.94
154.94
146.43
159.84
9.73
157.48
1.57
157.48
10.16
22.86
154.94
0.00

www.dfi.com
10
Chapter 2 Getting Started
Chapter 2 - Getting Started
Chapter 2
Preparing the System
Before you start using the system, you need the following items:
• SATA hard drive
• AC power adapter
• PS/2 or USB keyboard
• PS/2 or USB mouse
• CD-ROM drive (for installing software/drivers)
• Screwdriver
• Memory module (optional)

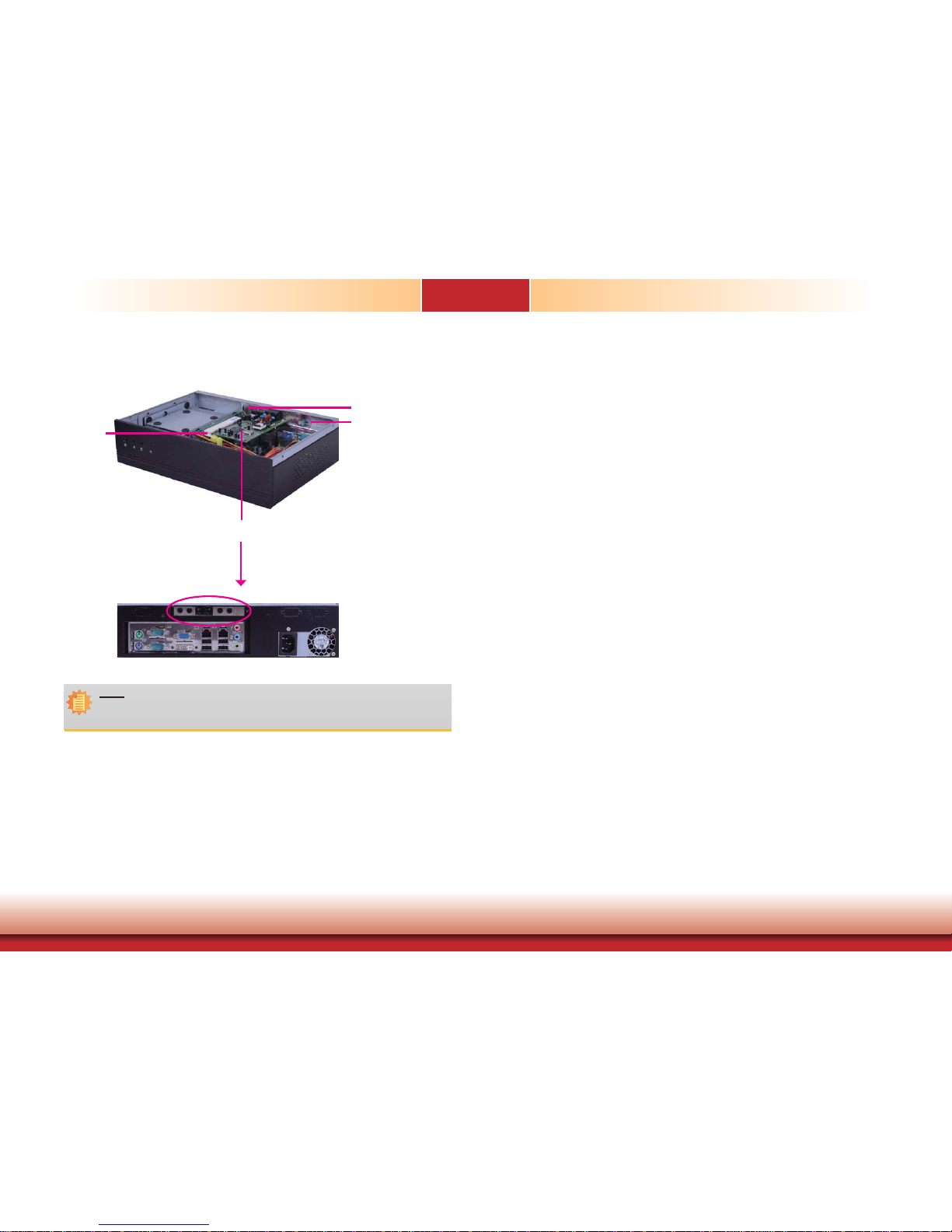

Installing Devices
The following are devices that can be installed in the system.
• Memory module
• SATA hard drive
• Mini PCIe card
Configuring the BIOS
To get you started, you may need to change configurations such as the date, time and the
type of hard disk drive.
1. Power-on the system.
2. After the memory test, the message “Press DEL to run setup” will appear on the screen.
Press the Delete key to enter the AMI BIOS setup utility.
Installing the Operating System
Most operating system software are provided in a CD therefore you need to install a CD-ROM
drive in order to use the CD.
Make sure a SATA drive is already installed.
1. Refer to the following chapters for information on connecting a CD-ROM drive and install-
ing a SATA drive.
2. Refer to your operating system manual for instructions on installing the operating system.
Installing the Drivers
The system package includes a CD disk. The CD includes drivers that must be installed to pro-
vide the best system performance. Refer to the Supported Software chapter for instructions on
installing the drivers.
