Chapter 1 Introduction
BPC370-BW
TFT-LCD Bar Type Panel PC
User’s Manual
A47500743

www.d.com
2
Chapter 1 Introduction
Copyright
This publication contains information that is protected by copyright. No part of it may be re-
produced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2017. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class A
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

www.d.com
3
Chapter 1 Introduction
Table of Contents
Copyright.............................................................2
Trademarks..........................................................2
FCC and DOC Statement on Class A .....................2
About this Manual................................................4
Warranty .............................................................4
Static Electricity Precautions .................................4
Safety Measures...................................................4
Safety Precautions ...............................................5
About the Package...............................................5
Before Using the System ......................................5
Chapter 1 - Introduction.......................................6
Overview .......................................................................6
Key Features..................................................................6
Specifications .................................................................7
Getting to Know the BPC370-BW ....................................8
Mechanical Dimensions...................................................9
Motherboard Dimension ...............................................10
Chapter 2 - Getting Started ..................................11
Chapter 3 - Installing Devices...............................12
Removing the Chassis Cover .........................................12
Installing a Mini PCIe Card ...........................................12
Chapter 4 - Jumper Settings.................................13
Clear CMOS..................................................................13
Auto Power-on Select ...................................................13
Backlight Power Select..................................................14
Panel Power Select .......................................................14
LVDS Channel and bpp Select .......................................15
Chapter 5 - Ports and Connectors.........................16
Panel I/O Ports ............................................................16
12V DC-in ................................................................................................. 16
Graphics Interfaces..................................................................................... 17
RJ45 LAN Ports........................................................................................... 17
USB Ports................................................................................................... 18
COM (Serial) Ports ...................................................................................... 19
I/O Connectors ............................................................20
Digital I/O Connector.................................................................................. 20
Front Audio Connector ................................................................................ 20
Standby Power LED .................................................................................... 21
Front Panel Connector ................................................................................ 21
SATA (Serial ATA) Connector ....................................................................... 22
SATA (Serial ATA) Power Connector ............................................................. 22
LVDS LCD Panel Connector ......................................................................... 23
LCD/Inverter Power Connector .................................................................... 23
Expansion Slot............................................................................................ 24
Cooling Fan Connector ................................................................................ 24
SMBus Connector ...................................................................................... 25
Chassis Intrusion Connector ....................................................................... 25
Battery....................................................................................................... 26
Chapter 6 - Mounting Options ..............................27
Chapter 7 - BIOS Setup .......................................28
Main .......................................................................................................... 29
Advanced .................................................................................................. 29
Security...................................................................................................... 37
Boot........................................................................................................... 38
This section configures boot options. .......................................................... 38
Exit............................................................................................................ 38
Chapter 8 - Supported Software ...........................40

www.d.com
4
Chapter 1 Introduction
About this Manual
An electronic file of this manual is included in the CD. To view the user’s manual in the CD, in-
sert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click
“User’s Manual” on the main menu.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper instal-
lation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the
product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con
nectors by their ends.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or servic-
ing. After installation or servicing, cover the system chassis before plugging the power cord.
Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other com-
ponents. Perform the upgrade instruction procedures described at an ESD worksta-
tion only. If such a station is not available, you can provide some ESD protection by
wearing an antistatic wrist strap and attaching it to a metal part of the system chas-
sis. If a wrist strap is unavailable, establish and maintain contact with the system
chassis throughout any procedures requiring ESD protection.

www.d.com
5
Chapter 1 Introduction
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• One BPC370-BW Panel PC
• 1 CD disk includes
- Manual
Optional Items
• Wi-Fi kit (SparkLAN WPEA-121N WiFi PCI express card)
• Power Cord
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System
Before powering-on the system, prepare the basic system components.
If you are installing the system board in a new system, you will need at least the following
internal components.
• Memory module
• Storage devices such as hard disk drive, CD-ROM, etc.
You will also need external system peripherals you intend to use which will normally include at
least a keyboard, a mouse and a video display monitor.
Safety Precautions
• Use the correct DC input voltage range.
• Unplug the power cord before removing the system chassis cover for installation or servic-
ing. After installation or servicing, cover the system chassis before plugging the power cord.
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by the manufacturer.
• Dispose of used batteries according to local ordinance.
• Keep this system away from humidity.
• Place the system on a stable surface. Dropping it or letting it fall may cause damage.
• The openings on the system are for air ventilation to protect the system from overheating.
DO NOT COVER THE OPENINGS.
• Place the power cord in such a way that it will not be stepped on. Do not place anything on
top of the power cord. Use a power cord that has been approved for use with the system
and that it matches the voltage and current marked on the system’s electrical range label.
• If the system will not be used for a long time, disconnect it from the power source to avoid
damage by transient overvoltage.
• If one of the following occurs, consult a service personnel:
- The power cord or plug is damaged.
- Liquid has penetrated the system.
- The system has been exposed to moisture.
- The system is not working properly.
- The system dropped or is damaged.
- The system has obvious signs of breakage.
• The unit uses a three-wire ground cable which is equipped with a third pin to ground the
unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does
not support this kind of plug, contact your electrician to replace the outlet.
• Disconnect the system from the DC outlet before cleaning. Use a damp cloth. Do not use
liquid or spray detergents for cleaning.

www.d.com
6
Chapter 1 Introduction
Chapter 1 - Introduction
Chapter 1
Overview
Key Features
BPC370-BW
Processor Intel®Pentium®/Celeron®Processor N3000 Family, BGA 1170
Intel®Pentium®Processor N3710, Quad Core, 2M Cache, 1.6GHz
(2.56GHz), 6W
LAN Two LAN ports
COM Two RS-232/422/485 COM ports (DB-9)
Display interfaces VGA and DP++
USB 4 USB 3.0 type-A connectors
Audio Speaker 2W+2W built on Realtek ALC888S-VD2-GR (optional)

www.d.com
7
Chapter 1 Introduction
Bottom I/O
Ports
Ethernet: 2 x GbE (RJ-45) (10/100/1000Mbps)
Serial: 2 x RS-232/422/485 (DB-9)
USB: 4 x USB 3.0 (type A)
Display: 1 x VGA and 1 x DP++
Audio: Speaker 2W+2W (available upon request)
Buttons: 1 x power button with LED
Antenna holes: 3 x Antenna Hole for Wi-Fi or Cell Module
Protection • IP65 Front Protection Glass (available upon request)
Construction • Sheet Metal
Mounting • VESA mount
Dimensions • 948.1mm x 305.1mm x 75.3mm (W x H x D)
Weight • 11.15 kg
OS Support • Windows 7 (32/64-bit)
• Windows 8.1 (64-bit)
• Windows 10 IoT Enterprise (32/64-bit)
• Ubuntu 15.10 (Intel graphics driver available)
Certication • CE
• FCC (to be applied)
Specications
Processor
System
Intel®Pentium®/Celeron®Processor N3000 Family, BGA 1170
I ntel®Pentium®Processor N3710, Quad Core, 2M Cache,
1.6GHz (2.56GHz), 6W
Memory One 204-pin SODIMM up to 8GB Single Channel DDR3L 1600MHz
(4GB DDR3L memory by default)
LCD and
Touch Screen
• 37” 1920x540 TFT-LCD Panel (no touch screen)
• 70,000 MTBF LED backlight
• Brightness (cd/m²): 700 (1000 available upon request)
• Contrast: 4000:1
Graphics Intel®HD Graphics
Supported applications:
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
Supported codecs:
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4
Display 1 x VGA (resolution up to 2560X1600 @ 60Hz)
1 x DP++ (resolution up to 3840x2160 @ 30Hz or 2560x1600 @ 60Hz)
Storage 1 x Full-size Mini PCIe (mSATA)
Expansion 1 x Half-size Mini PCIe (PCIe/USB)
1 x SIM (available upon request)
Ethernet 2 x Intel®I211AT PCIe (10/100/1000Mbps)
Audio • Realtek ALC888S-VD2-GR high denition audio codec
COM • 2 RS232/422/485 COM port via DB-9 connector
USB • 4 x USB 3.0 type-A connectors
Power • AC Input 110V ~ 240V via C14 Power Inlet
Environment • Temperature
- Operating: -5oC ~ 50oC
- Storage: -10oC ~ 65oC
• Storage Humidity
- 5% ~ 95% (non-condensing)
Vibration • Non-operating: Sweep sine, 3Grms @ 10~500Hz, 30min
Shock • Non-operating: Half-sine, 5G @ 11ms
Chapter 1

www.d.com
8
Chapter 1 Introduction

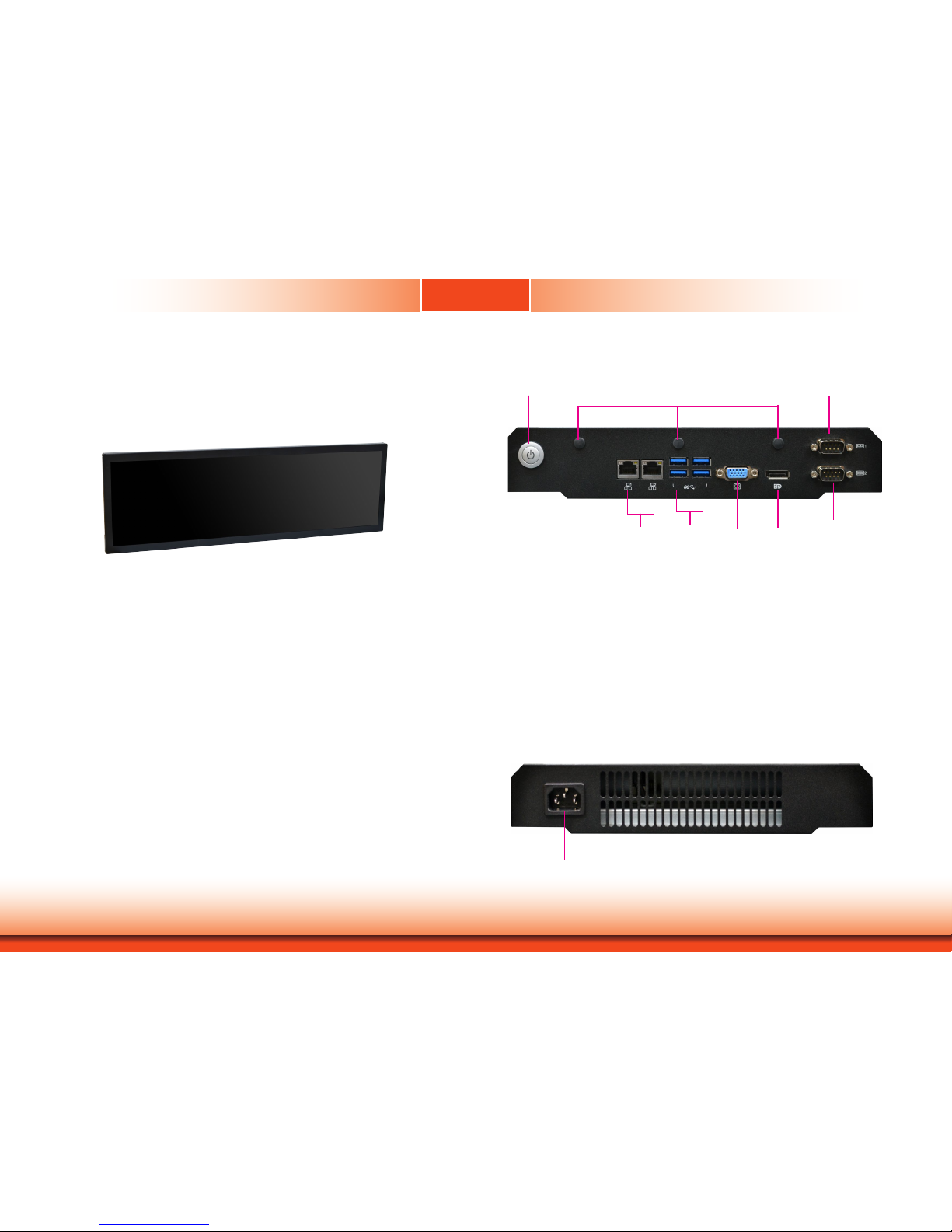

Getting to Know the BPC370-BW
Chapter 1
Front View
I/O Panel
Power Button with LED (green)
Connects an M12 power plug.
LAN Ports
Connect the system to a local area network.
USB 3.0 Ports
Connect USB 3.0 devices as well as USB 2.0/1.1 devices.
VGA
Connects to the VGA port of a display.
DP++
Connects to the DisplayPort of a display.
COM Ports
Connect serial devices.
COM 1 and COM 2 ports: Provide RS-232/422/485 communication modes.
Antenna hole COM 1
Power button
COM 2
LAN 1/LAN 2 USB 3.0 DP++
VGA
AC-in Power Inlet
Connects the AC power plug.
AC-in

www.d.com
9
Chapter 1 Introduction
948.10
905.9
305.10
255.9
24.55
485
75.30
Mechanical Dimensions
BPC370-BW
Chapter 1
Bottom View
Top View
Left View Right View

www.d.com
10
Chapter 1 Introduction
Motherboard Dimension
0 6 11.76 40.92 66
66.41
83.01 101.72 119.22 137.66 140 146
0
18.98
25
102
0 6
140
0
22
96
98.40
