DFI 915P-TAL User manual

935-915P01-000
85200508
915P-TAL
System Board User’s Manual
Carte Mère Manuel Pour Utilisateur
System-Platine Benutzerhandbuch
Manual del Usuario de Placas Base
Ðóêîâîäñòâî ÏîëüçîâàòåëÿÐóêîâîäñòâî Ïîëüçîâàòåëÿ
Ðóêîâîäñòâî ÏîëüçîâàòåëÿÐóêîâîäñòâî Ïîëüçîâàòåëÿ
Ðóêîâîäñòâî Ïîëüçîâàòåëÿ

2
Quick Setup Guide
1
Quick Setup
Guide
Copyright
This publication contains information that is protected by copyright. No part of it
may be reproduced in any form or by any means or used to make any
transformation/adaptation without the prior written permission from the copyright
holders. This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to the
contents or use of this manual and specifically disclaims any express or implied
warranties of merchantability or fitness for any particular purpose. The user will
assume the entire risk of the use or the results of the use of this document.
Further, the manufacturer reserves the right to revise this publication and make
changes to its contents at any time, without obligation to notify any person or
entity of such revisions or changes. © 2005. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification
purpose only and are the properties of the respective owners.
Caution
To avoid damage to the system, use the correct AC input voltage range.....
To reduce the risk of electric shock, unplug the power cord before removing the
system chassis cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.
Battery: 1. Danger of explosion if battery incorrectly replaced. 2. Replace only
with the same or equivalent type recommend by the manufacturer. 3. Dispose of
used batteries according to the battery manufacturer’s instructions.
Notice
The system board and accessories you receive in the package may not come
similar to the information stated in this manual. This may differ in accordance to
the sales region or models in which it was sold. For more information about the
standard package in your region, please contact your dealer or sales
representative.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accord-
ance with the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
2. Shielded interface cables must be used in order to comply with the emission
limits.

3
1
Quick Setup Guide
Quick Setup
Guide
Table of Contents
Chapter 1
Quick Setup Guide.............................................
Chapter 2
English......................................................................
Chapter 3
Français....................................................................
Chapter 4
Deutsch...............................................................................
Chapter 5
Español............................................................................
Chapter 6
Ðóññêèé.......................................................................
4
13
16
19
22
25
The user’s manual in the provided CD contains detailed information about the system board. If, in some
cases, some information doesn’t match those shown in this manual, this manual should always be re-
garded as the most updated version.
Le manuel d’utilisateur dans le CD muni contient renseignement détaillé au sujet de carte de système. Si,
en quelque cas, quelque renseignement n’appareille de ce que dit dans ce manuel, ce manuel doit
toujours être considéré comme la plus nouvelle version.
Das Benutzerhandbuch in der angebotenen CD enthält detaillierte Informationen über die Hauptplatine.
Wenn in manchen Fällen manche Informationen nicht denjenigen Informationen dargestellt in diesem
Handbuch entsprechen, soll dieses Handbuch als die meist aktualisierte Ausgabe gelten.
El uso explicativo contene información detalle sobre la sistema board en el CD preparativo. Si en algún
caso, la información no es igual con el uso explicativo, necesita ver el uso explicativo, esque es más
nuevo.
 ðóêîâîäñòâå ïîëüçîâàòåëÿ íà ïðåäîñòàâëÿåìîì CD äèñêå ñîäåðæèòñÿ ïîäðîáíàÿ
èíôîðìàöèÿ î ìàòåðèíñêîé ïëàòå. Èíîãäà íàïå÷àòàííîå ðóêîâîäñòâî ìîæåò íå
ñîâïàäàòü ðóêîâîäñòâîì íà CD, òàê êàê ïîñëåäíåå íàèáîëåå ÷àñòî îáíîâëÿåòñÿ è
ÿâëÿåòñÿ ñàìûì ñâåæèì.

4
Quick Setup Guide
1
Quick Setup
Guide

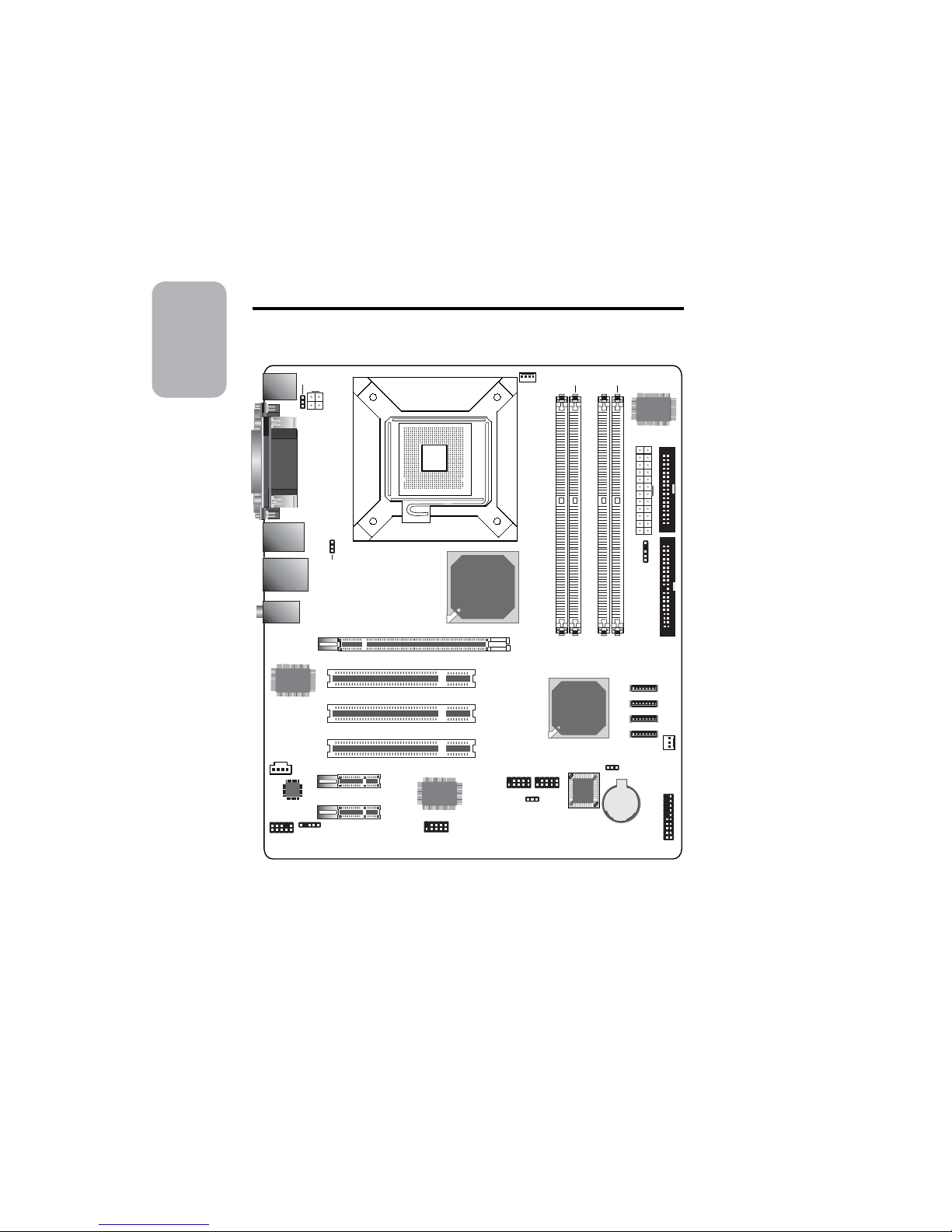

System Board Layout
Chapter 1 - Quick Setup Guide
KB
Mouse
1394_1
USB 1-2
LAN
USB 3-4
Line-in
Line-out
Mic-in
Parallel
COM 2
COM 1
1
CD-in
PCIE x16
Realtek
RTL8110SB
ITE
IT8712F
Audio
CODEC BIOS
VIA
VT6307
1
1
1
1
SATA 4
SATA 3
SATA 2
SATA 1
1
PS/2 power
select (JP3)
1
+12V
power
USB 1-4 power
select (JP2)
1
Front audio
1
1
S/PDIF
1
1394_2
1
USB 5-6
1
USB 7-8
USB 5-8 power
select (JP1)
1
Clear CMOS
(JP4)
LGA 775 CPU Socket
1
CPU fan
1
ATX p o we r
1
Chassis fan
DDR 1
DDR 2
DDR 3
DDR 4
1
IrDA
Intel
915P
Intel
ICH6
1
IDE
1
FDD
1
Front
panel
PCI 1
PCI 2
PCI 3
PCIE x1
PCIE x1
1
Battery

5
1
Quick Setup Guide
Quick Setup
Guide
Jumpers
Important:
The 5VSB power source of your power supply must support
≥ 720mA.
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
X
JP4 132 132
Clear CMOS Data
PS/2 Power Select
X
JP3
2-3 On: 5VSB
1-2 On: 5V
(default)
1
3
2
1
3
2

6
Quick Setup Guide
1
Quick Setup
Guide
Rear Panel I/O Ports
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2
USB ports, the 5VSB power source of your power supply must
support ≥ 1.5A. If you are using the Wake-On-USB Keyboard/Mouse
function for 3 or more USB ports, the 5VSB power source of your
power supply must support ≥ 2A.
USB Power Select
X
USB 1-4
(JP2)
2-3 On: 5VSB
1-2 On: 5V
(default)
X
USB 5-8
(JP1)
2-3 On: 5VSB
1-2 On: 5V
(default)
1
3
2
1
3
2
132 132
PS/2
Mouse Parallel
COM 1
PS/2 K/B
LAN
1394_1
USB 1-2 USB 3-4
Line-in
Line-out
Mic-in
COM 2

7
1
Quick Setup Guide
Quick Setup
Guide
I/O Connectors
IEEE 1394
1394_1
W
W
1394_2 1
2
10
9
TPA+TPA-
Ground Ground
TPB- TPB+
Key
+12V
+12V
Ground
USB 4
USB 3
USB Ports
W
USB 2
USB 1
W
USB 5-6
W
USB 7-8
1
210
9
VCC VCC
-Data -Data
+Data +Data
Ground Ground
KeyN. C.

8
Quick Setup Guide
1
Quick Setup
Guide

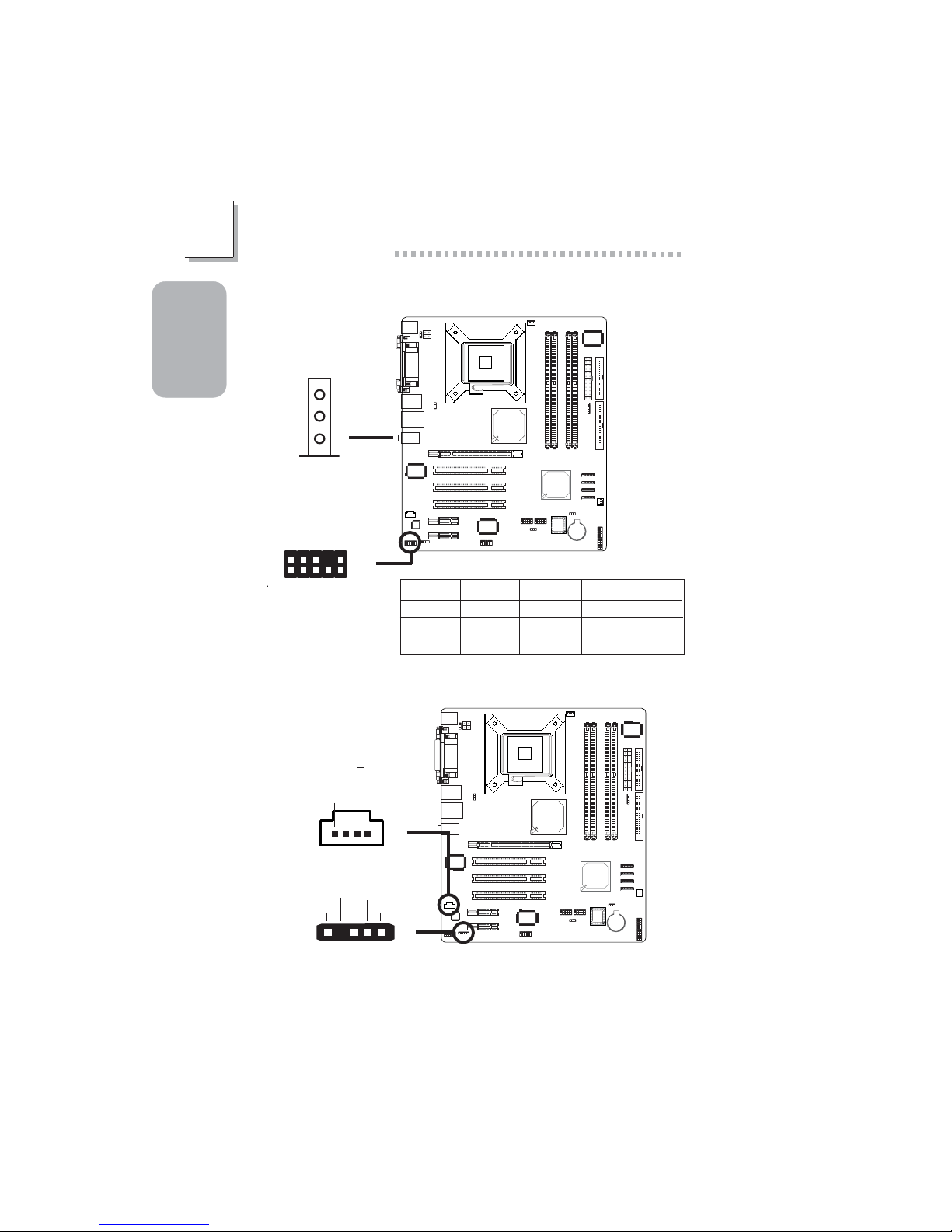

Audio (Rear Audio and Front Audio)
CD-in and S/PDIF Connectors
2-channel
Line-in
Line-out
Mic-in
4-channel
Line-in
Front R/L
Rear R/L
6-channel
Center/Subwoofer
Front R/L
Rear R/L
Light Blue
Lime
Pink
Front audio
W
Mic-in
Line-out
Line-in
W
1
Mic
N. C.
AuD_R_Out
N. C.
AuD_L_Out
GND
AuD_Vcc
Key
210
9
AuD_R_Return
AuD_L_Return
Rear Audio
W
1
4
Left audio
channel
Right audio
channel
Ground
Ground
15
+5V
Key
SPDIF out
GND
SPDIF in
W
CD-in
S/PDIF

9
1
Quick Setup Guide
Quick Setup
Guide
FDD and IDE Connectors
X
34 33
21
X
40 39
21
Serial ATA Connectors
X
SATA 2
SATA 1
SATA 4
SATA 3
GND
TXP
TXN
GND
RXN
RXP
GND
17
17
17
17
FDD
IDE

10
Quick Setup Guide
1
Quick Setup
Guide
Note:
The sequence of the pin functions on some IR cable may be
reversed from the pin function defined on the system board. Make
sure to connect the cable connector to the IR connector according to
their pin functions.
IrDA Connector
X
1
5
VCC
N. C.
IRRX
Ground
IRTX
Cooling Fan Connectors
X
CPU fan
X
Chassis fan
41
Sense
Power
Ground
Speed
Control
1
3
Ground
Power
Sense

11
1
Quick Setup Guide
Quick Setup
Guide
Important:
To ensure that adequate power is provided, we strongly recommend
that you use a minimum of 400 Watt (or greater) power supply.

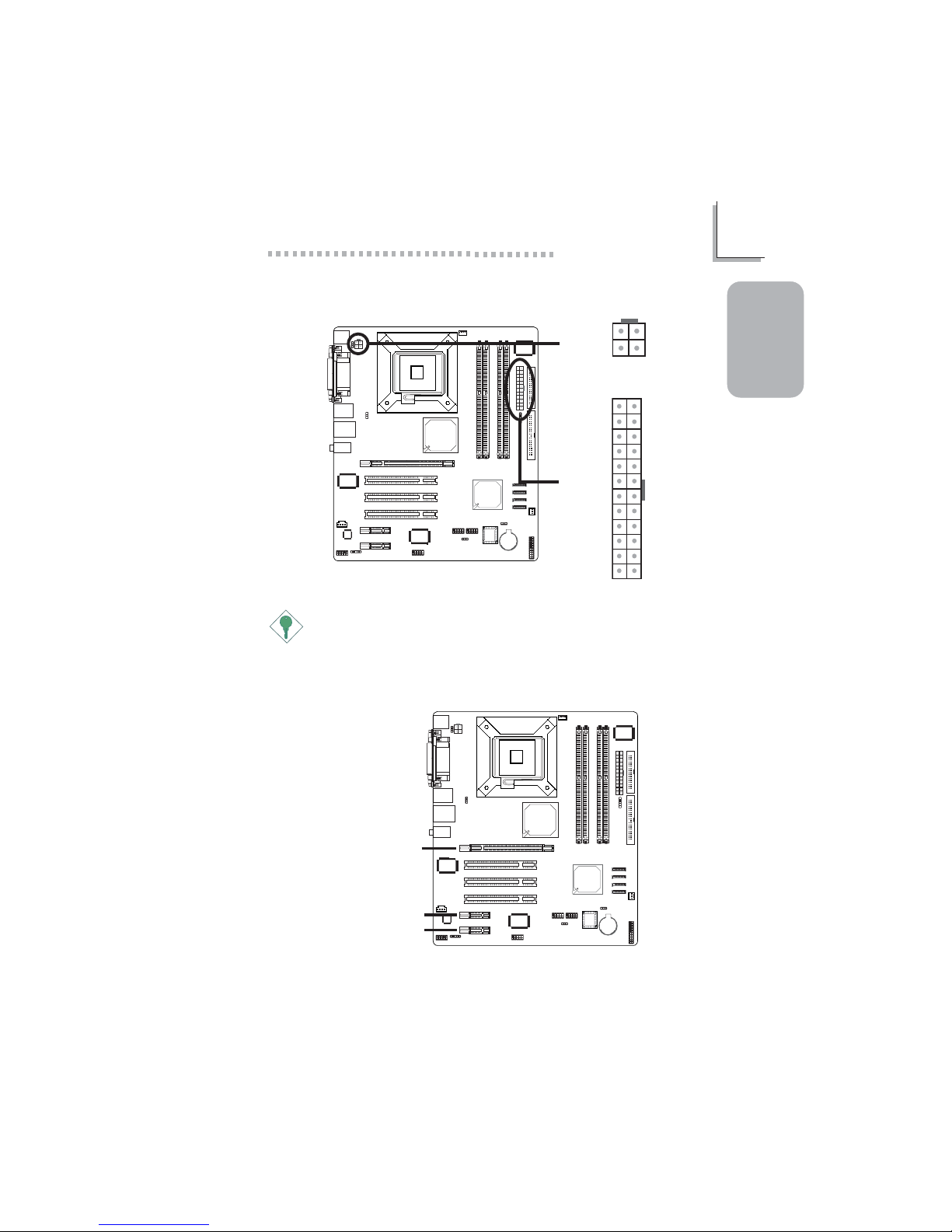

Power Connectors
X
X
131
12 24
+3.3VDC
+3.3VDC
COM
+5VDC
COM
+5VDC
COM
PWR_OK
+5VSB
+12VDC
+12VDC
+3.3VDC
+3.3VDC
-12VDC
COM
PS_ON#
COM
COM
COM
NC
+5VDC
+5VDC
+5VDC
COM
+12V
12
43
Ground
Ground
+12V
PCI Express x16 and x1 Slots
PCI Express x16
PCI Express x1
PCI Express x1

12
Quick Setup Guide
1
Quick Setup
Guide
Front Panel Connectors
X
J19
PWR-LED
ATX-SW
HD-LED
RESET
SPEAKER
21
2019
Pin
3
5
14
16
8
10
18
20
7
9
13
15
17
19
2
4
6
HD-LED
(Primary/Secondary IDE LED)
Reserved
ATX-SW
(ATX power switch)
Reserved
RESET
(Reset switch)
SPEAKER
(Speaker connector)
PWR-LED
(Power/Standby LED)
Pin Assignment
HDD LED Power
HDD
N. C.
N. C.
PWRBT+
PWRBT-
N. C.
N. C.
Ground
H/W Reset
Speaker Data
N. C.
Ground
Speaker Power
LED Power (+)
LED Power (+)
LED Power (-) or Standby Signal

13
2
English
English
Chapter 2 - English
Features and Specifications
Processor
• Intel®Pentium®4 Prescott processor
- Hyper-Threading Technology
- 533MT/s and 800MT/s (200MHz) system bus interface
• Socket LGA 775 (LAN Grid Array)
Chipset
• North bridge: Intel®915P Express chipset
South bridge: Intel®82801FB I/O Controller Hub (ICH6)
System Memory
• Four 184-pin DDR DIMM sockets that support PC2700
(DDR333) and PC3200 (DDR400) DIMMs
• Supports dual channel (128-bit wide) memory interface
• Supports up to 4GB system memory
• Supports non-ECC x8 and x16 DIMMs
• Supports up to 512Mb DRAM densities
• Supports unbuffered DIMMs
Note:
The system board does not support 16Mx8 DRAM.
BIOS
• Award BIOS
• 4Mbit flash memory
Energy Efficient Design
• Supports ACPI specification and OS Directed Power
Management
• Supports ACPI STR (Suspend to RAM) function
• Wake-On-Events include:
- Wake-On-PS/2 Keyboard/Mouse
- Wake-On-USB Keyboard/Mouse
- Wake-On-Ring (external modem)
- Wake-On-LAN
- RTC timer to power-on the system
• AC power failure recovery

14
English
2
English
Hardware Monitor
• Monitors CPU/system temperature and overheat alarm
• Monitors Vcore/V3SB/Vcc3/Vcc5/12V/V5SB/VBAT voltages
• Monitors the speed of the CPU/system fan
• CPU Overheat Protection function monitors CPU temperature
and fan during system boot-up - automatic shutdown upon
system overheat
Onboard Audio Features
• 6-channel audio CODEC
• Full-duplex codec with independent variable sampling rate
• True stereo line level outputs
• S/PDIF-in/out interface
Onboard LAN Features
• Realtek RTL8110SB PCI Gigabit LAN controller
• Fully compliant to IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX)
and 802.3ab (1000BASE-T) standards
• Integrated power management functions
• Supports wire for management
Serial ATA Interface
• Supports four SATA (Serial ATA) interfaces which are compliant
with SATA 1.0 specification (1.5Gbps interface)
IEEE 1394 Interface
• Supports two 100/200/400 Mb/sec ports
IDE Interface
• One IDE connector supports up to two UltraDMA100Mbps
hard drives
Rear Panel I/O Ports
• 1 mini-DIN-6 PS/2 mouse port
• 1 mini-DIN-6 PS/2 keyboard port
• 1 DB-25 parallel port
• 2 DB-9 serial ports
• 1 IEEE 1394 port
• 1 RJ45 LAN port
• 4 USB 2.0/1.1 ports
• Line-in, line-out and mic-in jacks

15
2
English
English
I/O Connectors
• 2 connectors for 4 additional external USB 2.0/1.1 ports
• 1 connector for 1 external IEEE 1394 port
• 1 front audio connector for external line-out and mic-in jacks
• 1 CD-in internal audio connector
• 1 S/PDIF connector
• 1 IrDA connector
• 4 Serial ATA connectors
• 1 IDE connector
• 1 floppy connector
• 1 24-pin ATX power connector
• 1 4-pin ATX 12V power connector
• 1 front panel connector
• 2 fan connectors
Expansion Slots
• 1 PCI Express x16 slot
• 2 PCI Express x1 slots
• 3 PCI slots
PCB
• microATX form factor
• 24.4cm (9.6") x 24.4cm (9.6")
Package Checklist
The system board package contains the following items:
;One system board
;One IDE cable
;One FDD cable
;Two Serial ATA data cables
;One Serial ATA power cable
;One I/O shield
;One “Mainboard Utility” CD
;One user’s manual
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

16
Français
3Français
Français
Chapter 3 - Français
Caractéristiques et Spécifications
Processeur
• Les processeurs Intel®Pentium®4 Prescott
- Intel Hyper-Threading Technologie
- Interface du bus système 533MT/s et 800MT/s (200MHz)
• Socket LGA 775 (LAN Grid Array)
Chipset
• Pont nord: Intel®915P Express chipset
Pont sud: Intel®82801FB I/O Controleur Hub (ICH6)
Mémoire Système
• 4 socles DIMM DDR 184-pin supportant les modules PC2700
(DDR333) et PC3200 (DDR400)
• Supporte l’interface de mémoire deux canaux (128-bit)
• Supporte jusqu’à 4 GB de mémoire système
• Supporte exclusivement les modules DIMM non-ECC x8 et x16
• Supporte une densité de RAM jusqu’à 512Mb
• Supporte les DIMM non-tamponnés
Remarque:
La carte mère ne supporte pas les DRAM de 16Mx8.
BIOS
• Compatible avec Award BIOS
• Mémoire Flash 4Mbit
Design à Haut Rendement Énergétique
• ACPI STR (Suspend to RAM) fonction
• Réveil-Sur-PS/2 Clavier/Souris et Réveil-Sur-USB Clavier/Souris
• Eveil Sonnerie et Réveil Par Le Réseau
• Minuterie RTC pour allumer le système
• Récupération après Défaillance d’Alimentation CA
System Health Monitor Fonctions
• Gère l’alarme de température et de surchauffe de CPU/système
• Gère l’alarme de voltage et d’échec de Vcore/V3SB/Vcc3/Vcc5/
12V/V5SB/VBAT

17
3
Français
Français
• Gère la vitesse de ventilateur du ventilateur de CPU/système
• Protection du CPU - supporte la mise hors circuit automatique
en cas de surchauffage du système
Fonctionnalités Audio Intégrées
• 6-canaux audio CODEC
• Codec full-duplex avec fréquence d’échantillonnage variable
indépendante
• Sorties de niveau de lignes stéréo vraies
• Interface entrée/sor tie S/PDIF
Fonctionnalités LAN Intégrées
• Realtek RTL8110SB PCI Gigabit LAN Controleur
• Supporte IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) et
802.3ab (1000BASE-T)
• Fonctions de gestion d’alimentation intégrées
• Support câble pour la gestion
Interface Serial ATA
• Supportant 4 interface SATA (Serial ATA) compatible avec la
spécification SATA 1.0 (bande passante à 1.5Gbps)
Interface IEEE 1394
• Supporte 2 ports 100/200/400 Mb/séc
Contrôleur IDE
• Supporte des disques durs jusqu’à UltraDMA 100Mbps
Le Panneau des Ports Entrée/Sortie en Arrière
• 1 port souris PS/2
• 1 port clavier PS/2
• 1 port parallèle DB-25
• 2 ports de DB-9 série
• 1 port IEEE 1394
• 1 port RJ45 LAN
• 4 ports USB 2.0/1.1
• Line-in, line-out et mic-in prises audio
Connecteurs Entrée/Sortie
•2 connecteurs pour 4 ports USB 2.0/1.1 supplémentaires
• 1 connecteur pour 1 IEEE 1394
• 1 connecteur audio de l’avant pour la sortie ligne/l’entrée micro

18
Français
3Français
Français
•1connecteur CD-in audio internes
• 1 S/PDIF l’assemblage pour l’adjonction de câble optique
• 1 connecteur IrDA
•4connecteurs Serial ATA
• 1 connecteur IDE
• 1 connecteur de FDD
• 1 connecteur d’alimentation ATX 24-pin
• 1 connecteur d’alimentation ATX 4-pin 12V
• 1 connecteur devant panneau
• 2 connecteurs de ventilateurs
Logements d’Extension
• 1 slot PCI Express x16
• 2 slots PCI Express x1
• 3 slots PCI
PCB
• Facteur de forme de microATX
• 24.4cm (9.6") x 24.4cm (9.6")
Liste de Vérification de l’Emballage
L’emballage de la carte système contient les éléments suivants:
;1 carte système
;1 câble IDE
;1 câble FDD
;2 câble SATA
;1 câble d’alimentation SATA
;1 plaque I/O
;1 CD “Mainboard Utility”
;1 manuel utilisateur
Si l’un de ces éléments n’était pas dans l’emballage ou s’il était
endommagé, veuillez contacter votre revendeur ou votre
représentant.

19
4
Deutsch
Deutsch
Chapter 4 - Deutsch
Leistungsmerkmale und Technische Daten
Prozessor
• Intel®Pentium®4 Prescott Prozessor
- Intel Hyper-Threading Technologie
- Interface des Systemreifens 533MT/s und 800MT/s (200MHz)
• Prozessor Socket LGA 775 (LAN Grid Array)
Chipset
• Nordbrücke: Intel®915P Express chipset
Südbrücke: Intel®82801FB (ICH6)
Systemspeicher
• 4 Sockel 184-pin DDR DIMM, die die Module PC2700
(DDR333) è PC3200 (DDR400) unterstützen.
• Unterhält 128-bit – Speiher mit den zwei Kanälen
• Unterhält bis zum 4GB-Systemspeicher
• Unterhält nur non-ECC x8 und x16 DIMMs
• Unterhält bis zum 512Mb DRAM
• Unterhält DIMMs ohne Dämpfer
Bemerkung:
Die Mutterplatte unterstützt den DRAM 16Mx8 nicht.
BIOS
• Kompatibilität mit Award BIOS
• Flash-Speicher (4Mbit)
Energomisches Design
• ACPI STR (Suspend to RAM) funktion
• Wecken bei Betätigung der PS/2 Tastatur/Maus
• Wecken bei USB-Tastatur/Maus
• Wecken bei Klingeln
• Wecken des Systems durch das Netzwerk
• RTC-Taktgeber zum Einschalten des Systems
• Wiederherstellung der Wechselstromversorgung nach einem
Ausfall

20
Français
4Deutsch
Deutsch
System Health Monitor Funktions
• Überwachung der Temperatur des CPU/Systems sowie
Warnsignal bei Überhitzung
• Überwachung der Spannungen des Vcore/V3SB/Vcc3/Vcc5/12V/
V5SB/VBAT
• Überwachung der Geschwindigkeit des CPU-Ventilators und
Systems-Ventilators
• Prozessor-Shutz - Die Ausschaltung bei der Überhitzung – die
automatische Ausschaltung des Computers bei der Überhitzung
Die Eingebauten Audio Möglichkeiten
• 6-Kanal-Audio-CODEC
• Vollduplex-Codec mit unabhängiger und variabler Abtastfrequenz
• Naturgetreue Stereo-Leitungspegel-Ausgabe
• S/PDIF-In/Aus-Schnittstelle
Die Eingebauten LAN Möglichkeiten
• Realtek RTL8110SB PCI Gigabit LAN Kontroller
• Unterstützt IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) und
802.3ab (1000BASE-T)
• Integrierte Power-Management-Funktionen
• Unterstützung des Leiters für das Management
Serial ATA Schnittstelle
• Unterstützt 4 SATA (Serielle ATA)-Schnittstelle, die mit SATA 1.0
Spezifikation (1.5Gigabits Schnittstelle) konform ist.
IEEE 1394 Schnittstelle
• Uunterstützt 2 Ports 100/200/400 Mbps
IDE-Controller
• Unterstützung der Festplatten bis zum UltraDMA 100Mbps
Ein-/Ausgabe-Porte an der Rückwand
• 1 Mini-DIN-6-Anschluß für eine PS/2-Maus
• 1 Mini-DIN-6-Anschluß für eine PS/2-Tastatur
• 1 DB-25-Parallelanschluß
• 2 serieller DB-9-Anschlüsse
• 1 IEEE 1394-Anschlüsse
• 1 RJ45 LAN-Anschlüsse
• 4 USB 2.0/1.1-Anschlüsse
• Line-in, line-out und mic-in Audio-Anschlußbuchsen
