DFI HM101-QM87 User manual

1
HM101-QM87/HM86

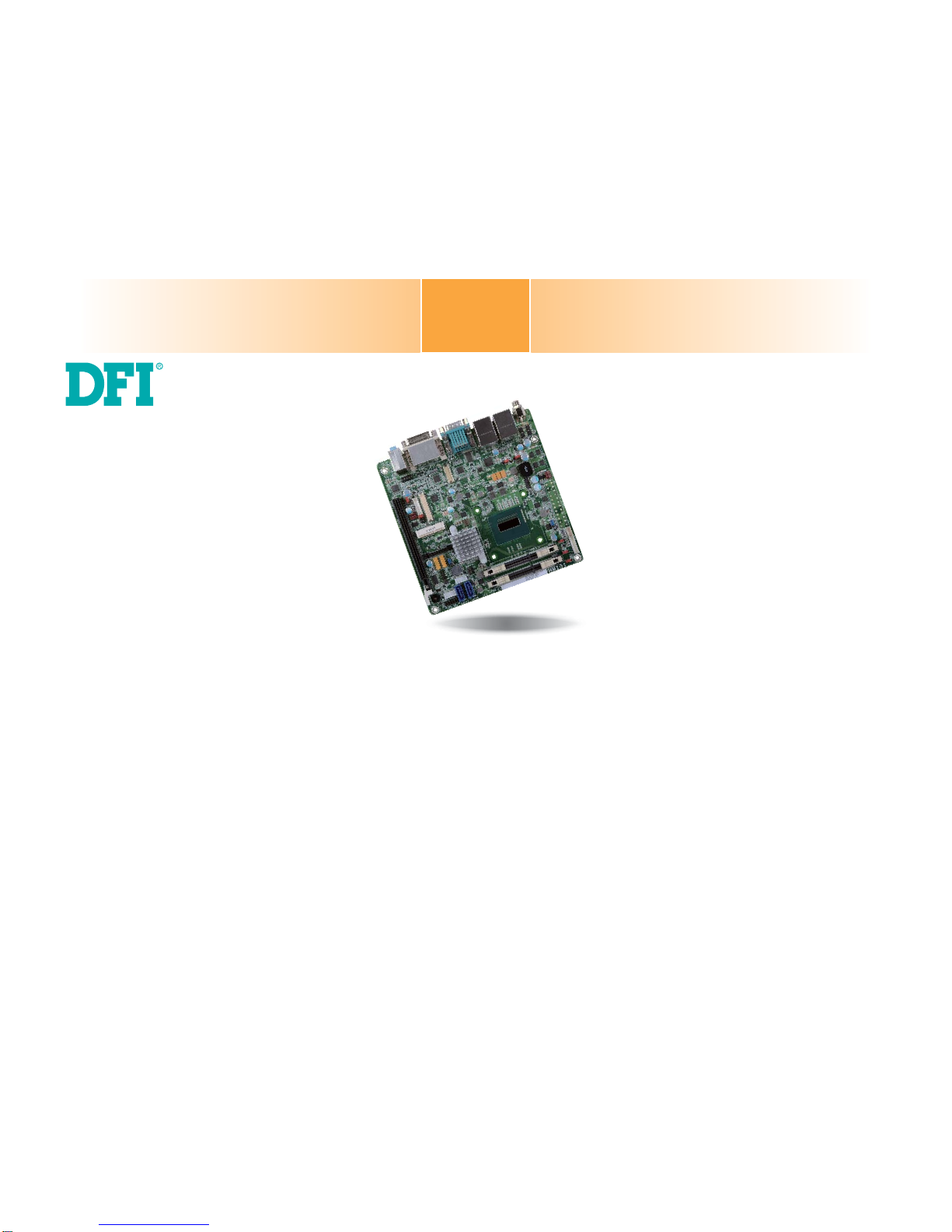

Mini-ITX Industrial Motherboard
User’s Manual
A29210427

2
Copyright
This publication contains information that is protected by copyright. No part of it may be re-
produced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2014. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

3
Copyright............................................................................................................. 2
Trademarks ........................................................................................................2
FCC and DOC Statement on Class B.....................................................2
About this Manual ..........................................................................................4
Warranty ............................................................................................................4
Static Electricity Precautions......................................................................4
Safety Measures ..............................................................................................4
About the Package.........................................................................................5
Chapter 1 - Introduction .............................................................................6
Specifications ................................................................................................6
Features.......................................................................................................... 7
Chapter 2 - Hardware Installation................................................9

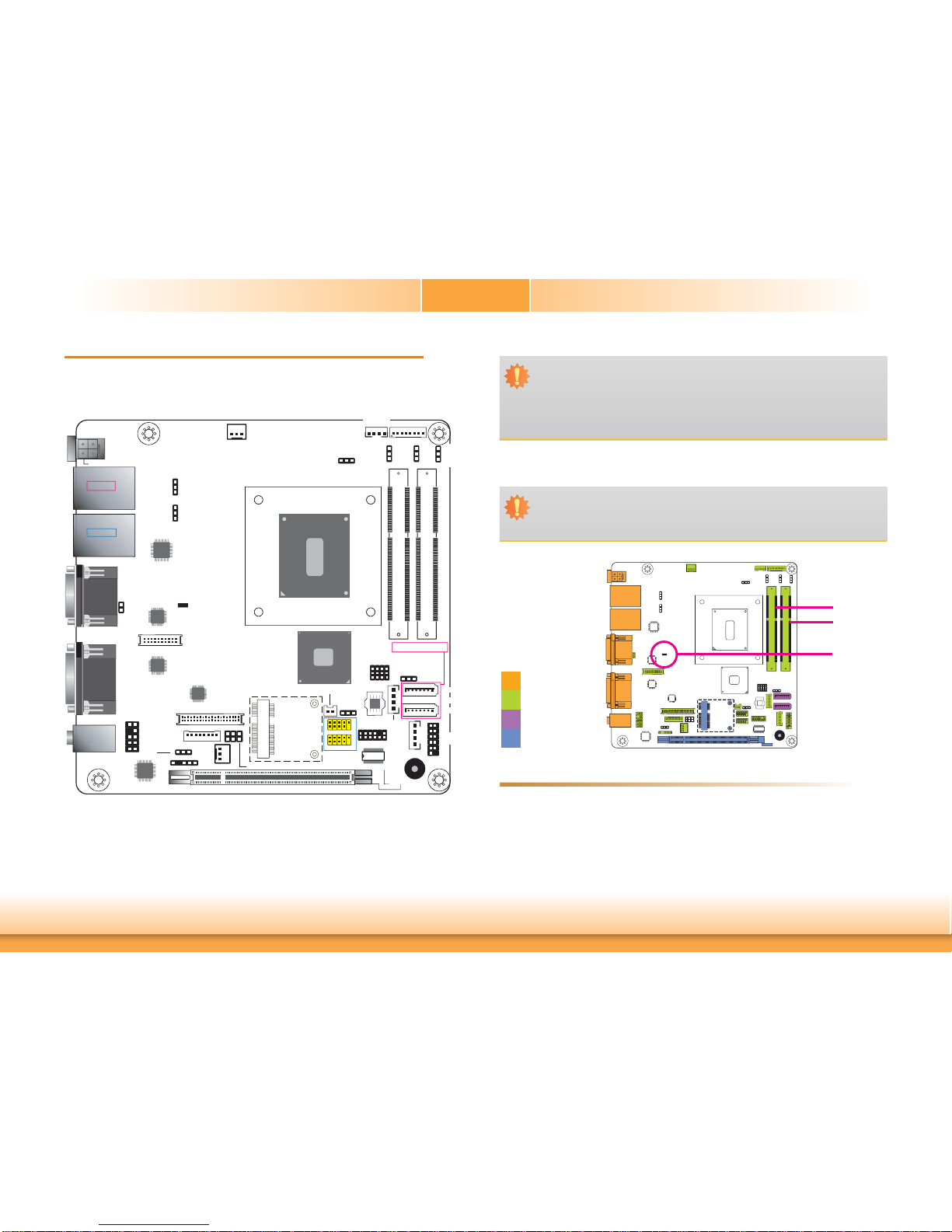

Board Layout................................................................................................. 9
System Memory............................................................................................ 9
Installing the DIMM Module ........................................................................ 10
Installing the Fan and Heat Sink.................................................11
Jumper Settings ......................................................................................... 12
Clear CMOS Data........................................................................................ 12
USB Power Select ....................................................................................... 13
Power-on Select.......................................................................................... 13
Mini PCIe Signal Select ............................................................................... 14
SATA DOM Power Select ............................................................................. 14
Panel Power Select ..................................................................................... 15
Backlight Power Select................................................................................ 15
Digital I/O Power Select.............................................................................. 16
Digital I/O Output State.............................................................................. 16
Rear Panel I/O Ports................................................................................. 17
12V DC-in .................................................................................................. 17

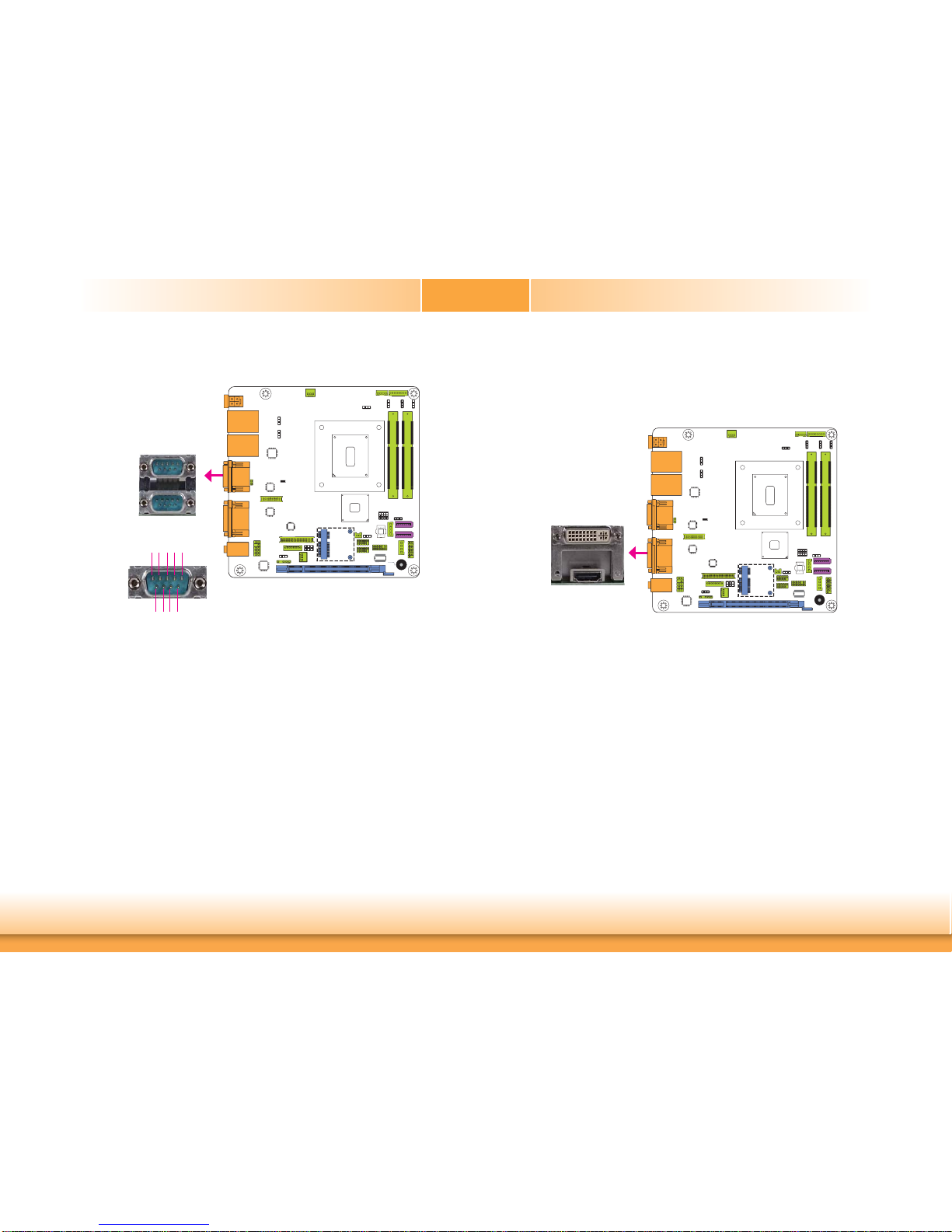

COM (Serial) Ports...................................................................................... 18
Graphics Interfaces..................................................................................... 18
RJ45 LAN Ports........................................................................................... 19
USB Ports................................................................................................... 19

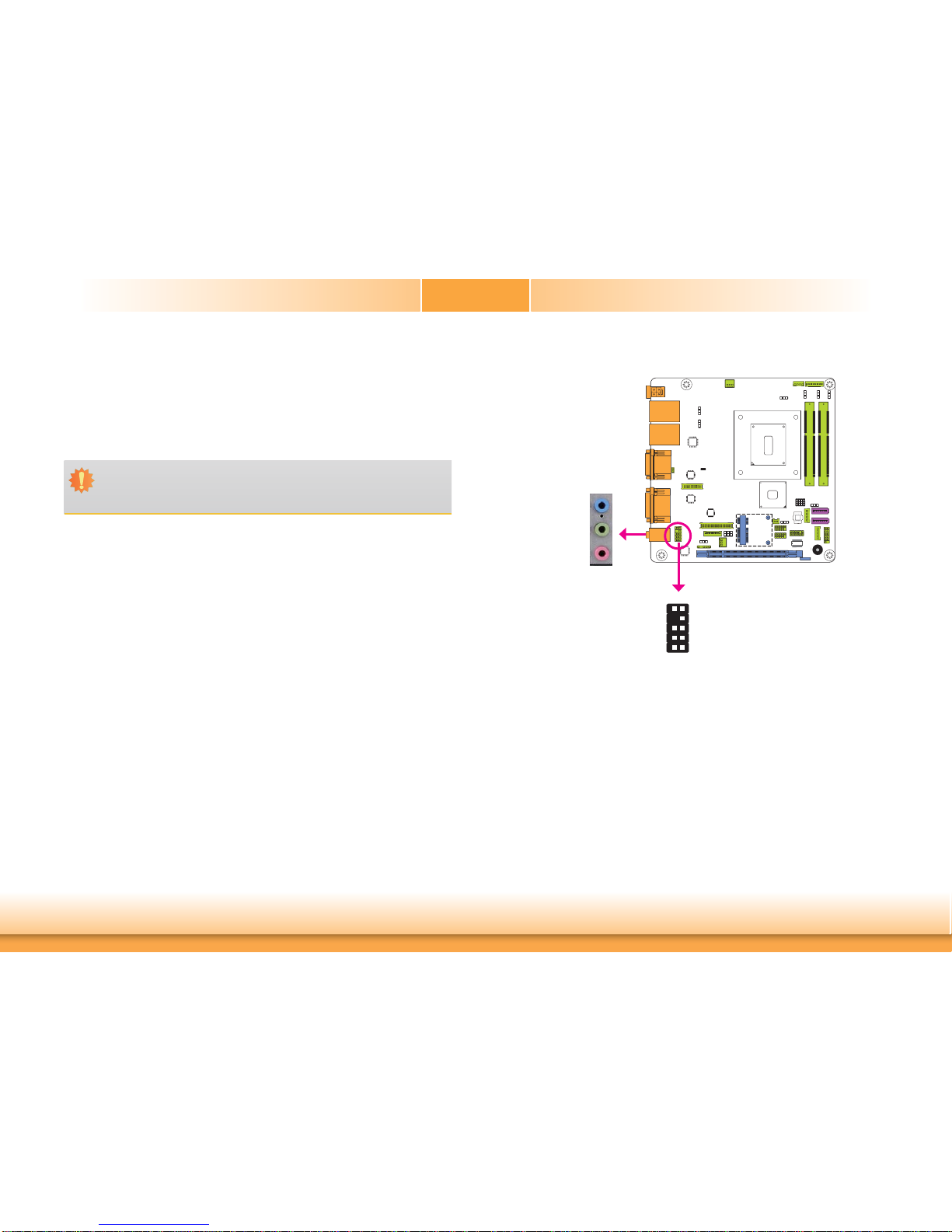

Audio ......................................................................................................... 20
I/O Connectors ........................................................................................... 21
SATA (Serial ATA) Connectors...................................................................... 21
SATA (Serial ATA) Power Connectors............................................................ 21
Cooling Fan Connectors............................................................................... 22
Digital I/O Connector.................................................................................. 22
Digital I/O Power Connector........................................................................ 22
Front Panel Connector ................................................................................ 23
Chassis Intrusion Connector ........................................................................ 23
LVDS LCD Panel Connector ......................................................................... 24
LCD/Inverter Power Connector .................................................................... 24
DisplayPort Connector................................................................................. 25
Expansion Slots .......................................................................................... 25
LPC Connector............................................................................................ 26
COM/Parallel Extension Modules.................................................................... 26
Connecting the Module to the Motherboard...................................................... 27
S/PDIF Connector ....................................................................................... 28
Standby Power LED .................................................................................... 28
Battery....................................................................................................... 29
Chapter 3 - BIOS Setup............................................................... 30
Overview ..................................................................................................... 30
AMI BIOS Setup Utility............................................................................. 31
Main .......................................................................................................... 31
Advanced ................................................................................................... 31
Chipset ...................................................................................................... 41
Boot........................................................................................................... 49
Security...................................................................................................... 50
Save & Exit ................................................................................................ 51
Updating the BIOS .................................................................................... 51
Chapter 4 - Supported Software........................................................... 52
Chapter 5 - Digital I/O Programming Guide.................................... 71
Chapter 6 - RAID (HM101-QM87)...............................................73
RAID Levels .................................................................................73
Settings .......................................................................................73
Chapter 7 - Intel AMT Settings (HM101-QM87)............................ 76
Overview...............................................................................................................76
Enable Intel®AMT in the AMI BIOS.........................................................76
Enable Intel®AMT in the Intel®Management Engine BIOS
Extension (MEBX) Screen..............................................................................77
Appendix A - Troubleshooting ................................................................ 90
nLite............................................................................................................... 90
AHCI .............................................................................................................. 94
Appendix B - Watchdog Sample Code................................................ 96
Appendix C - System Error Message................................................... 97
Appendix D - Troubleshooting................................................................ 98
Table of Contents

4
About this Manual
An electronic file of this manual is included in the CD. To view the user’s manual in the CD,
insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear.
Click “User’s Manual” on the main menu.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper instal-
lation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the
product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con-
nectors by their ends.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or servic-
ing. After installation or servicing, cover the system chassis before plugging the power
cord.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other com-
ponents. Perform the upgrade instruction procedures described at an ESD worksta-
tion only. If such a station is not available, you can provide some ESD protection by
wearing an antistatic wrist strap and attaching it to a metal part of the system chas-
sis. If a wrist strap is unavailable, establish and maintain contact with the system
chassis throughout any procedures requiring ESD protection.

5
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• One HM101 motherboard
• One Serial ATA data with power cable
• One I/O shield
• One DVD
• One QR (Quick Reference)
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Optional Items
• USB port cable
• I/O shield
• Serial ATA data cable
• Serial ATA power cable
• One LPC module kit (COM/Parallel extension module)
• Power adapter (100W, 12V)
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System Board
Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will need at least the following
internal components.
• A CPU
• Memory module
• Storage devices such as hard disk drive, CD-ROM, etc.
You will also need external system peripherals you intend to use which will normally include at
least a keyboard, a mouse and a video display monitor.

6
Rear Panel I/O
Ports • 1 12V DC-in jack (default) or 4-pin power connector (optional)
• 2 DB-9 RS232 serial ports
• 1 HDMI port
• 1 DVI-I port
• 2 RJ45 LAN ports
• 2 USB 2.0 ports
• 2 USB 3.0 ports
• Line-in, Line-out and mic-in jacks
I/O Connectors • 2 connectors for 4 external USB 2.0/1.1 ports
• 1 LVDS LCD panel connector
• 1 LCD/inverter power connector
• 1 DP connector
• 1 4-bit input and 4-bit output Digital I/O connector
• 1 Digital I/O power connector
• 1 front audio connector for line-out and mic-in jacks
• 1 S/PDIF connector
• 2 Serial ATA connectors
• 2 Serial ATA power connectors
• 1 LPC connector
• 1 chassis intrusion connector
• 1 front panel connector
• 2 fan connectors
Intel®Active
Management
Technology - AMT
(HM101-QM87)
• Supports iAMT9.0
• Out-of-band system access
• Remote troubleshooting and recovery
• Hardware-based agent presence checking
• Proactive alerting
• Remote hardware and software asset tracking
Trusted Platform
Module - TPM
(optional)
• Provides a Trusted PC for secure transactions
• Provides software license protection, enforcement and password protection
BIOS • AMI BIOS
- 64Mbit SPI BIOS
Energy Efficient
Design • Supports ErP Lot6 power saving (optional)
• Supports ACPI
• System Power Management
• Wake-On-Events include:
- Wake-On-PS/2 KB/Mouse
- Wake-On-USB KB/Mouse
- Wake-On-LAN
- RTC timer to power-on the system
• AC power failure recovery
Damage Free
Intelligence • Monitors CPU/system temperature and overheat alarm
• Monitors VCORE/12V/5V/DDR voltages and failure alarm
• Monitors CPU/system fan speed and failure alarm
• Read back capability that displays temperature, voltage and fan speed
• Watchdog timer function
Power
Consumption • TBD
Temperature • Operating: 0oC to 60oC
• Storage: -20oC to 85oC
Chapter 1 - Introduction
Specifications
Processor • 4th generation Intel®CoreTM processors
: Intel®CoreTM i7-4700EQ, 6M Cache, up to 3.4 GHz, 47W
: Intel®CoreTM i5-4400E, 3M Cache, up to 3.3 GHz, 37W
: Intel®CoreTM i5-4402E, 3M Cache, up to 2.7 GHz, 25W
: Intel®CoreTM i3-4100E, 3M Cache, 2.4 GHz, 37W
: Intel®CoreTM i3-4102E, 3M Cache, 1.6 GHz, 25W
: Intel®Celeron®2000E, 2M Cache, 2.2 GHz, 37W
: Intel®Celeron®2002E, 2M Cache, 1.5 GHz, 25W
• BGA 1364 packaging technology
• 22nm process technology
Chipset • Intel®QM87 Express Chipset (HM101-QM87)
• Intel®HM86 Express Chipset (HM101-HM86)
Super I/O
Address • NCT6102/4Eh
System Memory • Two 204-pin DDR3L SODIMM sockets
• Supports DDR3L 1333/1600MHz
• Supports dual channel memory interface
• Supports up to 16GB system memory
• DRAM device technologies: 1Gb, 2Gb and 4Gb DDR3L DRAM technologies are
supported for x8 and x16 devices, unbuffered, non-ECC
Expansion
Interfaces • 1 PCIe x16 Gen 3 slot (PCIe 3.0)
• 1 Mini PCIe slot
- Supports USB and PCIe signals
- Supports mSATA
- Supports half size Mini PCIe card
Graphics • Intel®HD Graphics 4600
• Display ports: HDMI, DVI-I, LVDS, DP
• HDMI: resolution up to 4096x2304 @24Hz or 2560x1600 @60Hz
• DVI-I: resolution up to 1920x1200 @60Hz
• LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @60Hz
• DP: resolution up to 3840x2160 @60Hz
• Intel®Clear Video Technology
• DirectX Video Acceleration (DXVA) support for accelerating video processing
• Supports DirectX 11.1, OpenGL 3.2, OpenCL 1.2
Audio • Realtek ALC886 5.1-channel High Definition Audio
• S/PDIF audio interface
LAN • Intel®I210 PCI Express Gigabit Ethernet controller
• Intel®I217LM with iAMT9.0 Gigabit Ethernet Phy (HM101-QM87)
• Intel®I217LM Gigabit Ethernet Phy (HM101-HM86)
• Integrated 10/100/1000 transceiver
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Serial ATA • 2 SATA 3.0 ports with data transfer rate up to 6Gb/s
- SATA port 4 provides adequate space for SATA DOM
• Integrated Advanced Host Controller Interface (AHCI) controller
• Supports RAID 0/1 (HM101-QM87)
• Supports Intel®Smart Response Technology (HM101-QM87)
Chapter 1
Chapter 1 Introduction www.dfi.com

7
Chapter 1
Chapter 1 Introduction www.dfi.com
Features
• Watchdog Timer
The Watchdog Timer function allows your application to regularly “clear” the system at the set
time interval. If the system hangs or fails to function, it will reset at the set time interval so
that your system will continue to operate.
• DDR3L
DDR3L is a higher performance DDR3 SDRAM interface providing less voltage and higher
speed successor. DDR3L SDRAM modules support 1333/1600MHz for DDR modules. DDR3L de-
livers increased system bandwidth and improved performance to provide its higher bandwidth
and its increase in performance at a lower power.
• Graphics
The integrated Intel®HD graphics engine delivers an excellent blend of graphics performance
and features to meet business needs. It provides excellent video and 3D graphics with out-
standing graphics responsiveness. These enhancements deliver the performance and compat-
ibility needed for today’s and tomorrow’s business applications. Supports HDMI, DVI-I, LVDS
and DP interfaces for display outputs.
• PCI Express
PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds
by forming multiple lanes. The PCI Express architecture also supports high performance graph-
ics infrastructure by enhancing the capability of a PCIe x16 Gen 3 at 16GB/s bandwidth.
• Serial ATA
Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of
up to 6Gb/s (SATA 3.0), it improves hard drive performance faster than the standard parallel
ATA whose data transfer rate is 100MB/s. The bandwidth of the SATA 3.0 will be limited by
carrier board design.
• Gigabit LAN
Two Intel®Gigabit LAN controllers (Intel®I210 PCI Express Gigabit Ethernet controller and
Intel®I217LM Gigabit Ethernet Phy) support up to 1Gbps data transmission.
• Audio
The Realtek ALC886 audio codec provides 5.1-channel High Definition audio output.
Humidity • 10% to 90%
OS Support • Windows 8 Enterprise x86 (32-bit)
• Windows 8 Enterprise x64 (64-bit)
• Windows 7 Ultimate x86 & SP1 (32-bit)
• Windows 7 Ultimate x64 & SP1 (64-bit)
• Windows XP Professional x86 & SP3 (32-bit)
• Windows XP Professional x64 & SP2 (64-bit)
(based on Intel's Windows XP support list)
Dimensions • Mini-ITX form factor
• 170mm (6.7") x 170mm (6.7")

8
Chapter 1
Chapter 1 Introduction www.dfi.com
• RTC Timer
The RTC installed on the system board allows your system to automatically power-on on the
set date and time.
• Power Failure Recovery
When power returns after an AC power failure, you may choose to either power-on the system
manually or let the system power-on automatically.
• USB
The system board supports the new USB 3.0. It is capable of running at a maximum transmis-
sion speed of up to 5 Gbit/s (625 MB/s) and is faster than USB 2.0 (480 Mbit/s, or 60 MB/s)
and USB 1.1 (12Mb/s). USB 3.0 reduces the time required for data transmission, reduces
power consumption, and is backward compatible with USB 2.0. It is a marked improvement
in device transfer speeds between your computer and a wide range of simultaneously
accessible external Plug and Play peripherals.
Important:
The 5V_standby power source of your power supply must support ≥720mA.
• Wake-On-USB
This function allows you to use a USB keyboard or USB mouse to wake up a system from the
S3 (STR - Suspend To RAM) state.
• ACPI STR
The system board is designed to meet the ACPI (Advanced Configuration and Power Interface)
specification. ACPI has energy saving features that enables PCs to implement Power Manage-
ment and Plug-and-Play with operating systems that support OS Direct Power Management.
ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM
function.
With the Suspend to RAM function enabled, you can power-off the system at once by pressing
the power button or selecting “Standby” when you shut down Windows® without having to
go through the sometimes tiresome process of closing files, applications and operating system.
This is because the system is capable of storing all programs and data files during the entire
operating session into RAM (Random Access Memory) when it powers-off. The operating ses-
sion will resume exactly where you left off the next time you power-on the system.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the
5V_standby power source of your power supply must support ≥1.5A. For 3 or more
USB ports, the 5V_standby power source of your power supply must support ≥2A.
• Wake-On-LAN
This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It
is supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power
Management Event) signal. However, if your system is in the Suspend mode, you can power-
on the system only through an IRQ or DMA interrupt.
Important:
The 5V_standby power source of your power supply must support ≥720mA.
• Wake-On-PS/2
This function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system.
Important:
The 5V_standby power source of your power supply must support ≥720mA.

www.dfi.com
9
Chapter 2 Hardware Installation
Chapter 2
Chapter 2 - Hardware Installation
Board Layout
System Memory
DDR3L-2
DDR3L-1
Standby
Power LED
Features
• Two 204-pin DDR3L SODIMM sockets
• Supports DDR3L 1333/1600MHz
• Supports dual channel memory interface
• Supports up to 16GB system memory
Important:
Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in
boards, and other components. Perform installation procedures at an ESD workstation
only. If such a station is not available, you can provide some ESD protection by wear-
ing an antistatic wrist strap and attaching it to a metal part of the system chassis. If
a wrist strap is unavailable, establish and maintain contact with the system chassis
throughout any procedures requiring ESD protection.
Important:
When the Standby Power LED lit red, it indicates that there is power on the system
board. Power-off the PC then unplug the power cord prior to installing any devices.
Failure to do so will cause severe damage to the motherboard and components.
1
1
2
139
40
1
SATA DOM Power
Select (JP10)
Intel
QM87/HM86
COM2
COM1
DVI-I
HDMI
Mic-in
Line-out
1
USB 0-1 Power
Select (JP1)
Power-on
Select (JP6)
11
1
1
PCIe x16
Mini PCIE SATA 4
SATA 5
9
10
2
1
2
1
9
10
SATA Power
Standby
Power LED
USB 2-3 Power
Select (JP2)
1
2
5
6
Panel Power Select (JP5)
DIO
Power
Select
(JP11)
DIO 4-7
Output
State
(JP9)
DIO 0-3
Output
State
(JP12)
1
Chassis
intrusion
DisplayPort
1
2
20
19
SATA Power
Backlight Brightness
Power Select
(JP3)
USB10-11
USB8-9
LVDS LCD Panel
CPU Fan
1
System
Fan
S/PDIF
1
910
Front
Audio
12
Buzzer
SPI Flash
BIOS
LAN 1
USB 0-1
USB 3.0
LAN 2
USB 2-3
USB 2.0
DDR3L_2 SODIMM
DDR3L_1 SODIMM
SATA 3.0
USB 2.0
LPC
1
122
11
12
10
3
1
Mini PCIe Signal
Select (JP8)
12
1112
Front
Panel
1
1
Realtek
ALC886
Clear CMOS
Data (JP7)
1
12
Battery
12V DC-in
+12V ATX power (optional)
Intel
BGA 1364
Digital I/O
1
Digital I/O
Power
1
LCD/Inverter
Power
1
4
Line-in
ASMedia
ASM1442
ASMedia
ASM1442
Note:
SATA4 supports SATA DOM.
TPM (optional)
Intel
I210AT
PTN3460
1
HM101-QM87: QM87
HM101-HM86: HM86
1
4
Rear I/O
Onboard I/O
Storage
Expansion

www.dfi.com
10
Chapter 2 Hardware Installation
Chapter 2
The system board supports the following memory interface.
Single Channel (SC)
Data will be accessed in chunks of 64 bits (8B) from the memory channels.
Dual Channel (DC)
Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides
better system performance because it doubles the data transfer rate.
Single Channel
DIMMs are on the same channel.
DIMMs in a channel can be identical or
completely different. However, we highly
recommend using identical DIMMs.
Not all slots need to be populated.
Dual Channel DIMMs of the same memory configuration
are on different channels.
Important:
You can populate either Channel A or Channel B first.
Installing the DIMM Module
Note:
The system board used in the following illustrations may not resemble the actual
board. These illustrations are for reference only.
1. Make sure the PC and all other peripheral devices connected to it has been powered down.
2. Disconnect all power cords and cables.
3. Locate the DIMM socket on the system board.
4. Push the “ejector tabs” which are at the ends of the socket to the side.
Ejector tab
Ejector tab
5. Note how the module is keyed to the socket.
Key
Notch
