DFI Qseven Q7A-551 User manual

www.dfi.comChapter 1 Introduction

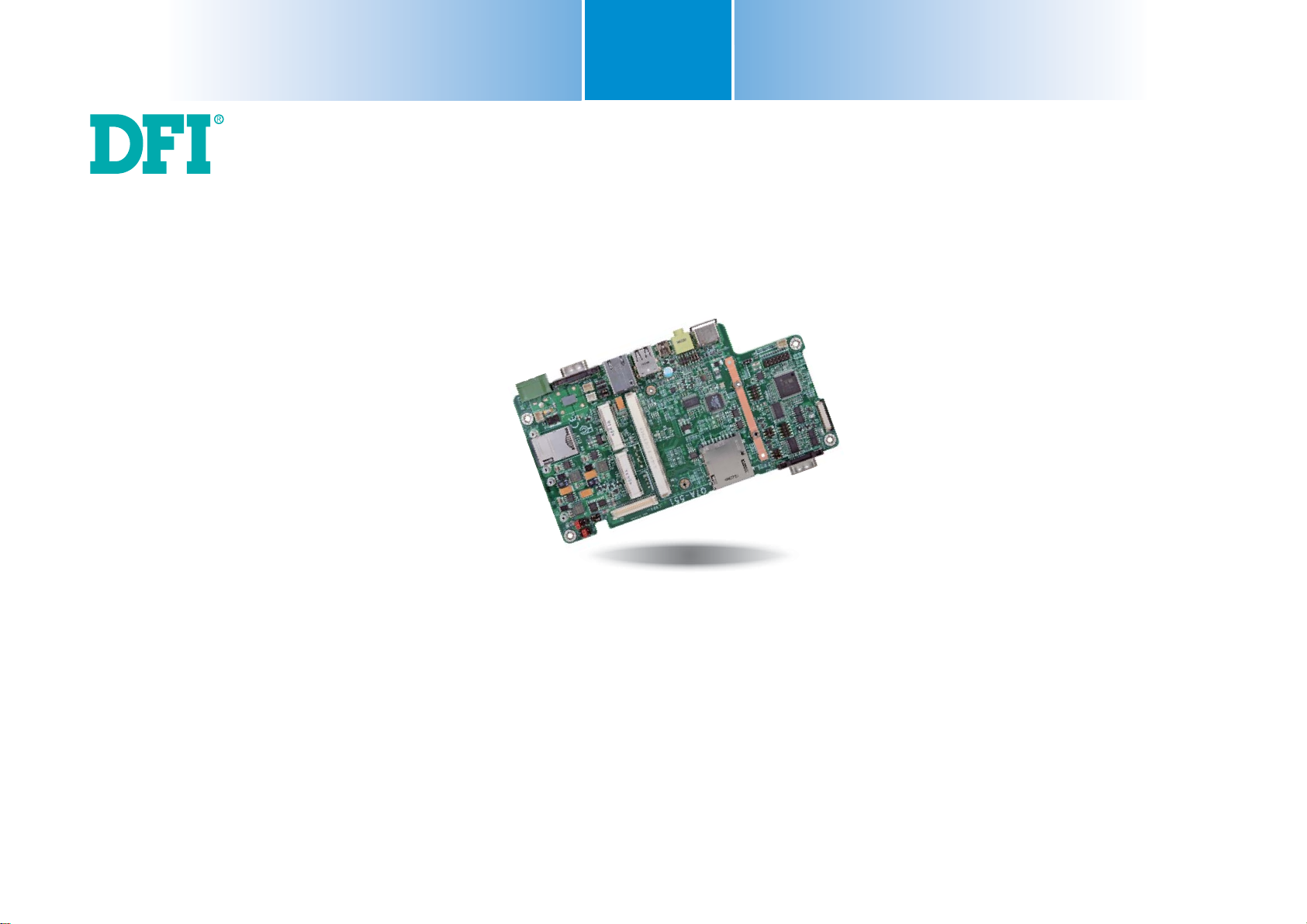

Q7A-551
Qseven Carrier Board
User’s Manual
A28410938

www.dfi.comChapter 1 Introduction
2
Copyright
This publication contains information that is protected by copyright. No part of it may be re-
produced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2015. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
•Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

www.dfi.comChapter 1 Introduction
3
Table of Contents
Copyright.............................................................................................................2
Trademarks........................................................................................................2
FCC and DOC Statement on Class B.....................................................2
About this Manual..........................................................................................4
Warranty ............................................................................................................4
Static Electricity Precautions......................................................................4
Safety Measures..............................................................................................4
About the Package.........................................................................................5
Chapter 1 - Introduction.............................................................................6
Specifications ................................................................................................6
Chapter 2 - Hardware Installation................................................7
Board Layout.................................................................................................7
Block Diagram...............................................................................................7
Mechanical Diagram....................................................................................8

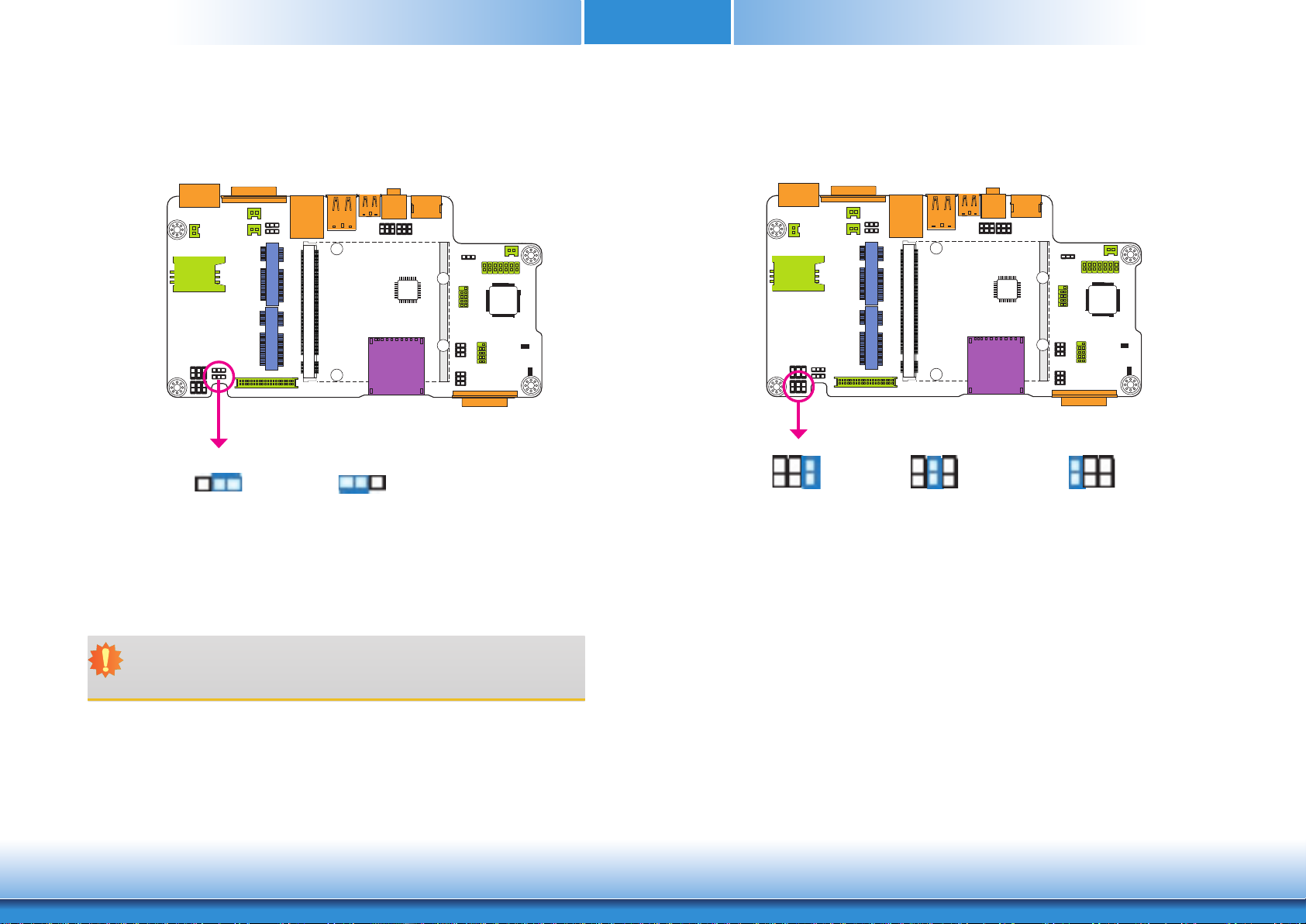

Jumper Settings ...........................................................................................9

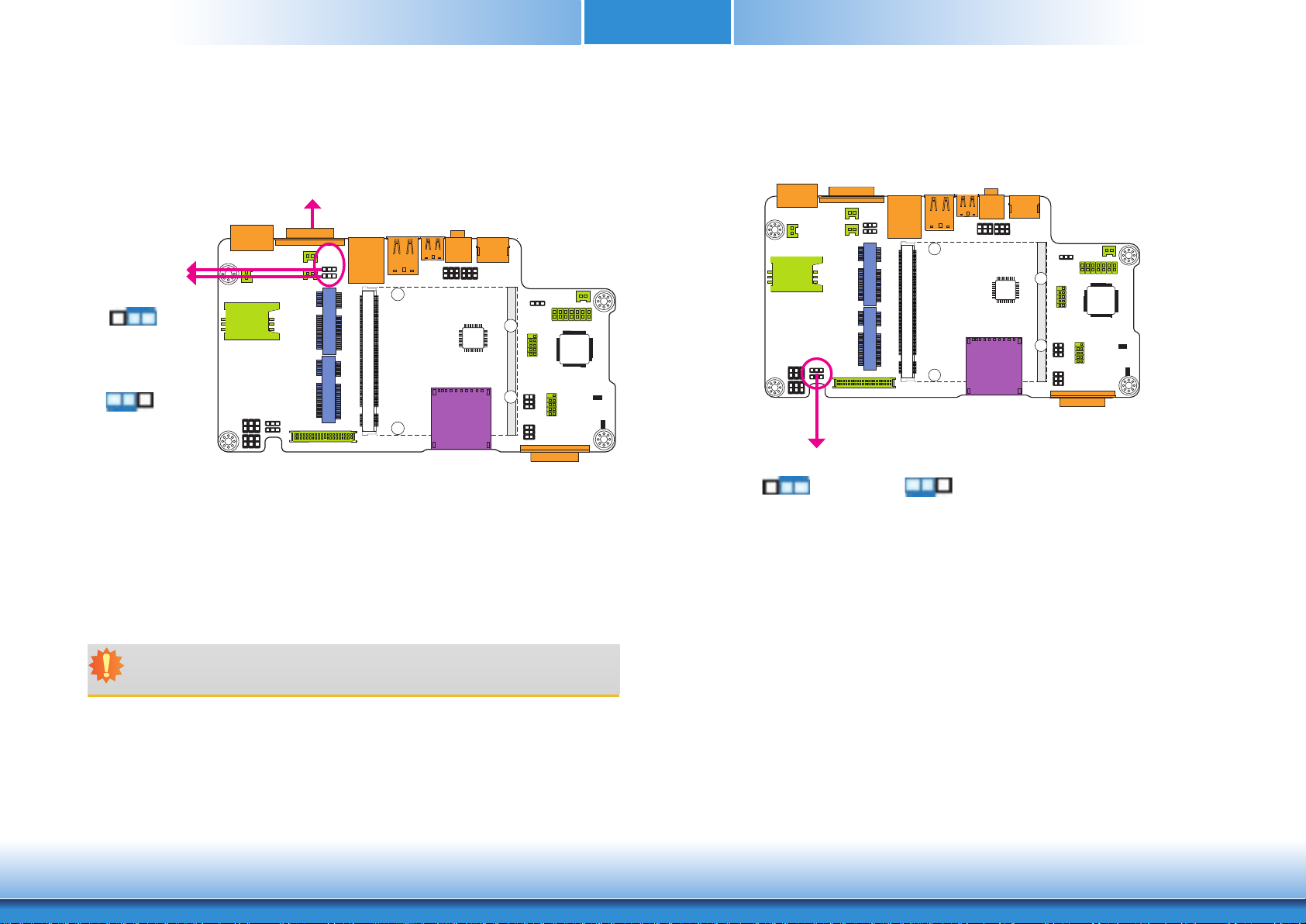

Panel Power Select.......................................................................................9

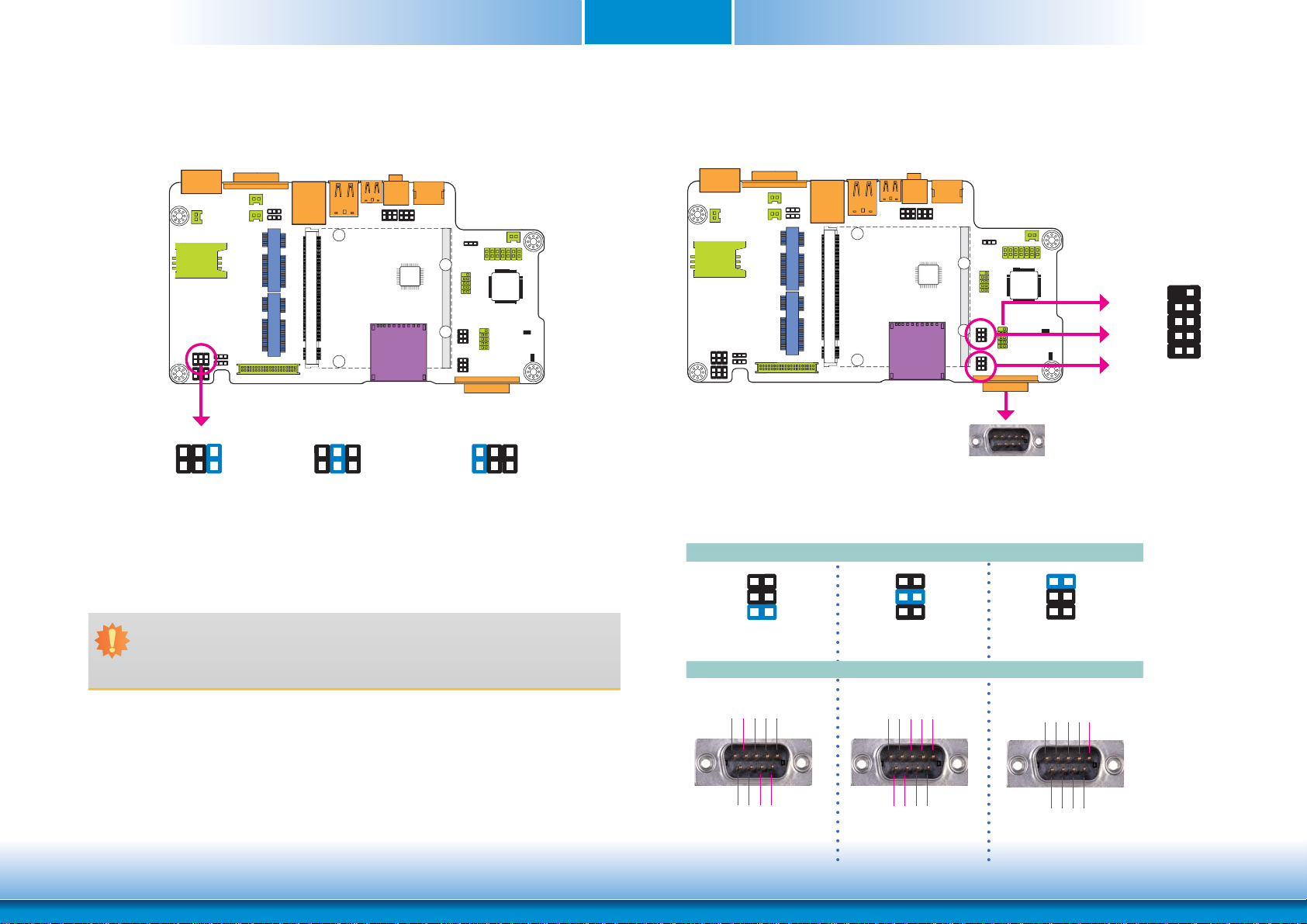

COM 1/COM 2 RS232/422/485 Select ............................................................9
COM RS232/UART5 Select...........................................................................10
Touch Panel Power Select ...........................................................................10
Dimming Mode Select.................................................................................11
LCD/Inverter Power Select ..........................................................................11

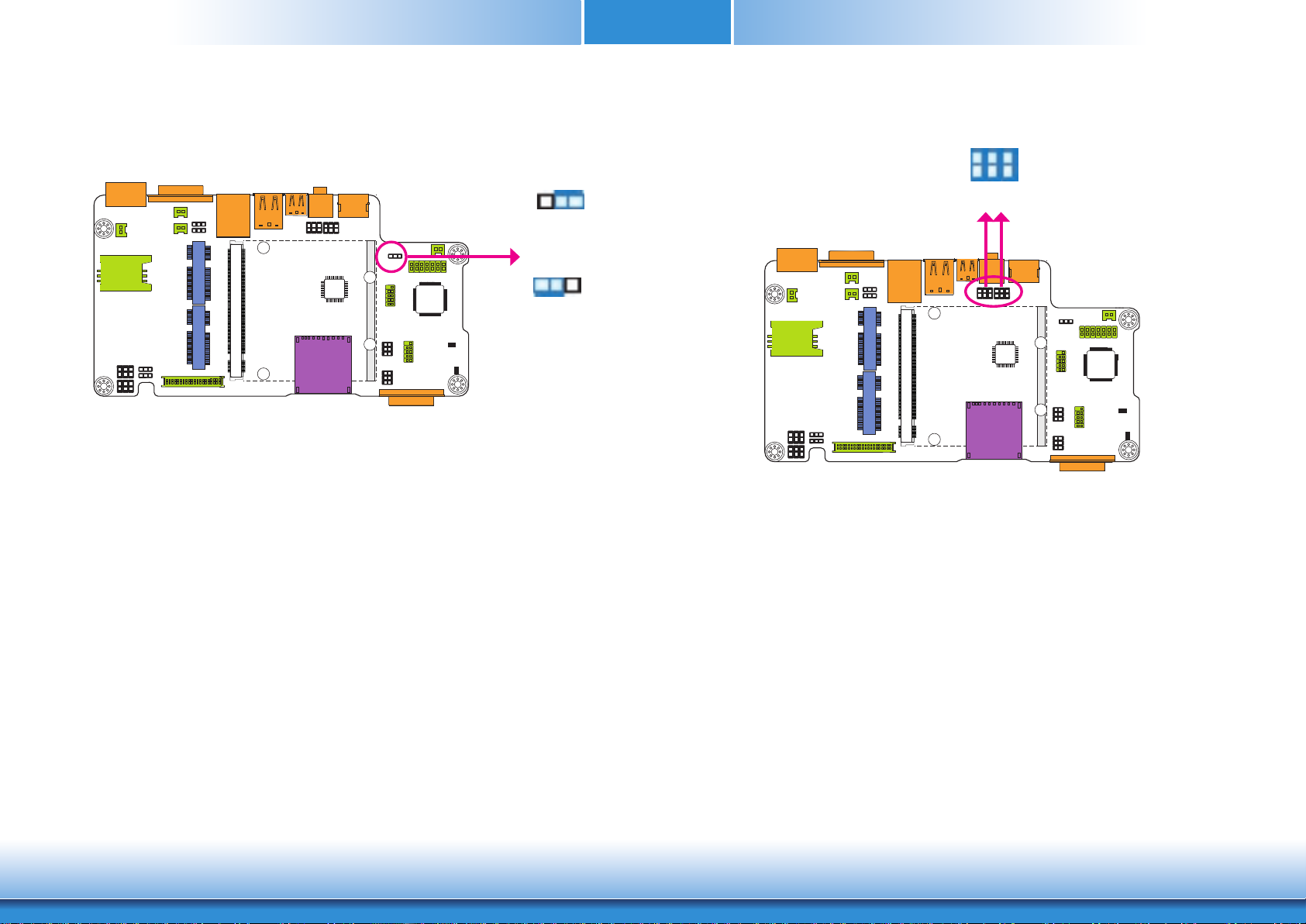

Download Mode Select................................................................................12
Line-out/Mic-in Select .................................................................................12
Panel I/O Ports...........................................................................................13
USB ports...................................................................................................13
USB Client Port...........................................................................................14

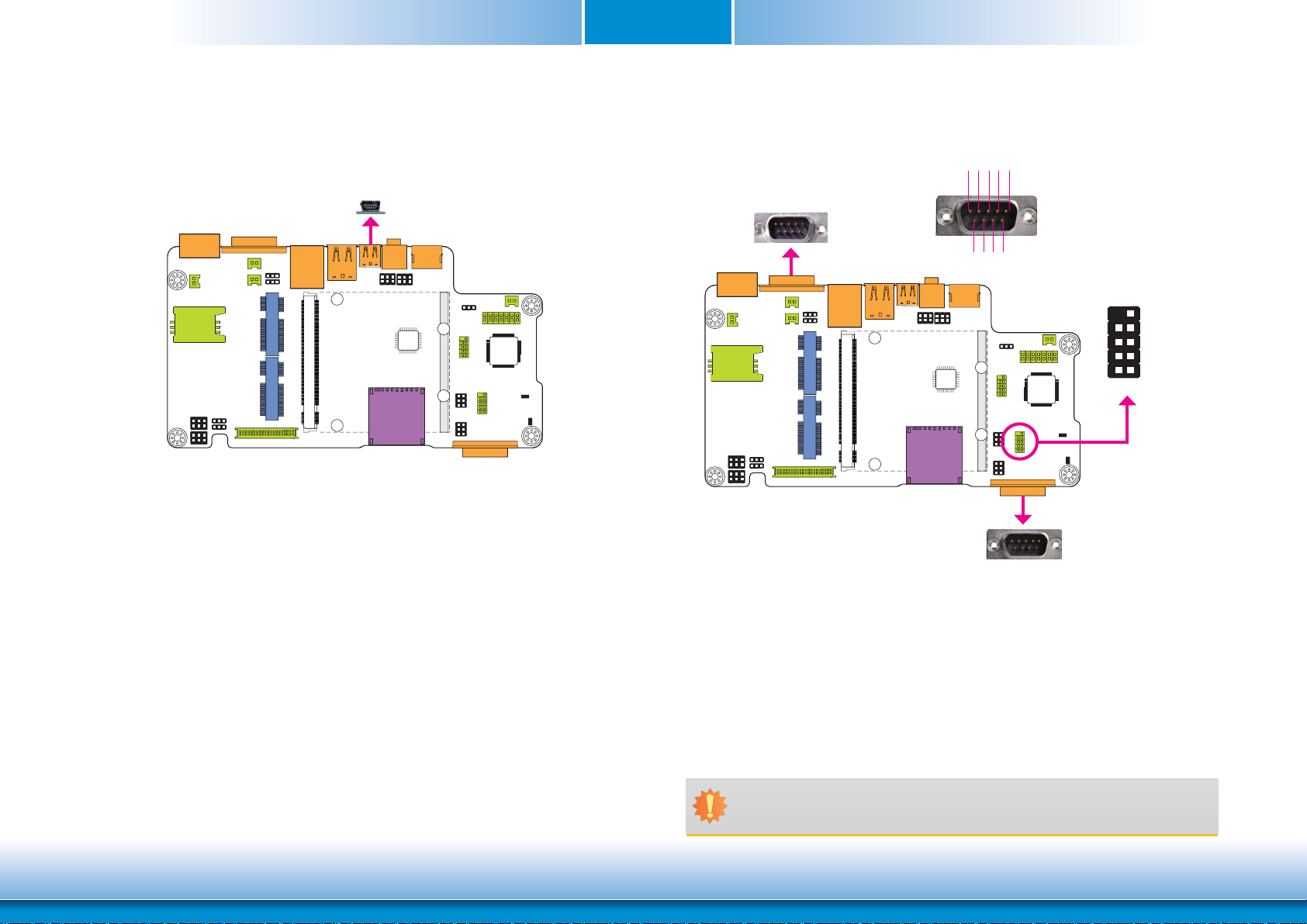

Serial (COM) Ports......................................................................................14
RJ45 LAN Port............................................................................................15
HDMI Port..................................................................................................15
Audio.........................................................................................................16
12~36V DC-in ...........................................................................................16
I/O Connectors...........................................................................................17
LVDS LCD Panel Connector .........................................................................17
Digital I/O Connector..................................................................................18
Connect the EXT-KSDIO Module to the Digital I/O Connector
on the Carrier Board.............................................................................18
1W Audio Amplifier Connectors ...................................................................19
FlexCAN Connector.....................................................................................19
Expansion Slots..........................................................................................20
LEDs..........................................................................................................20
RTC Battery................................................................................................21
Power Switch..............................................................................................21
MXM Connector..........................................................................................22

www.dfi.comChapter 1 Introduction
4
About this Manual
An electronic file of this manual is included in the CD. To view the user’s manual in the CD, in-
sert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click
“User’s Manual” on the main menu.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product, in-
ability to use the product, unauthorized replacement or alteration of components and prod-
uct specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper instal-
lation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the
product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con-
nectors by their ends.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or servic-
ing. After installation or servicing, cover the system chassis before plugging the power
cord.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other com-
ponents. Perform the upgrade instruction procedures described at an ESD worksta-
tion only. If such a station is not available, you can provide some ESD protection by
wearing an antistatic wrist strap and attaching it to a metal part of the system chas-
sis. If a wrist strap is unavailable, establish and maintain contact with the system
chassis throughout any procedures requiring ESD protection.

www.dfi.comChapter 1 Introduction
5
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• One Q7A-551 board
• One Power switch with cable
• One Speaker 1.5W with cable
• One QR (Quick Reference)
Optional Items
• COM port cable
• Power adapter (60W, 19V)
• EXT-KSDIO module (8-bit DIO Daughter Board)
• EXT-KSDIO cable
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance with the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System Board
Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will need at least the following
internal components.
• Storage devices such as hard disk drive, CD-ROM, etc.
You will also need external system peripherals you intend to use which will normally include at
least a keyboard, a mouse and a video display monitor.

www.dfi.comChapter 1 Introduction
6
Chapter 1 - Introduction
Specifications
Graphics • Display ports
- 1 HDMI
- 2 24-bit single channel LVDS
Audio • Supports I2S audio interface
• 2 1W audio amplifier connectors (left and right sides)
USB • 2 USB 2.0 ports
• 1 USB Client port
Storage • 1 mSATA via a Mini PCIe slot
• 1 SD card socket
Panel I/O Ports • 2 USB 2.0 ports
• 1 USB Client port
• 2 DB-9 serial ports
- 1 RS232/422/485
- 1 RS232/UART
• 1 RJ45 LAN port
• 1 HDMI port
• 1 Line-out/Mic-in jack
• 1 12~36V DC-in jack
I/O Connectors • 1 connector for an external RS232/422/485 serial port (2.0mm pitch)
• 1 LVDS LCD panel connector
• 2 1W audio amplifier connectors (left and right sides)
• 1 FlexCAN (Flexible Controller Area Network) connector
• 1 12-bit Digital I/O connector
Expansion Slots • 1 Mini PCIe slot
- supports PCIe and USB signals
- supports full size Mini PCIe card
• 1 SIM card socket
Temperature • Operating: 0oC to 60oC
• Storage: -20oC to 85oC
Humidity • 10% to 90%
Board to Board
Connector • One MXM connector
Dimensions • 190mm (7.48") x 102mm (4.02")
Chapter 1

www.dfi.comChapter 2 Hardware Installation
7
Chapter 2
Chapter 2 - Hardware Installation

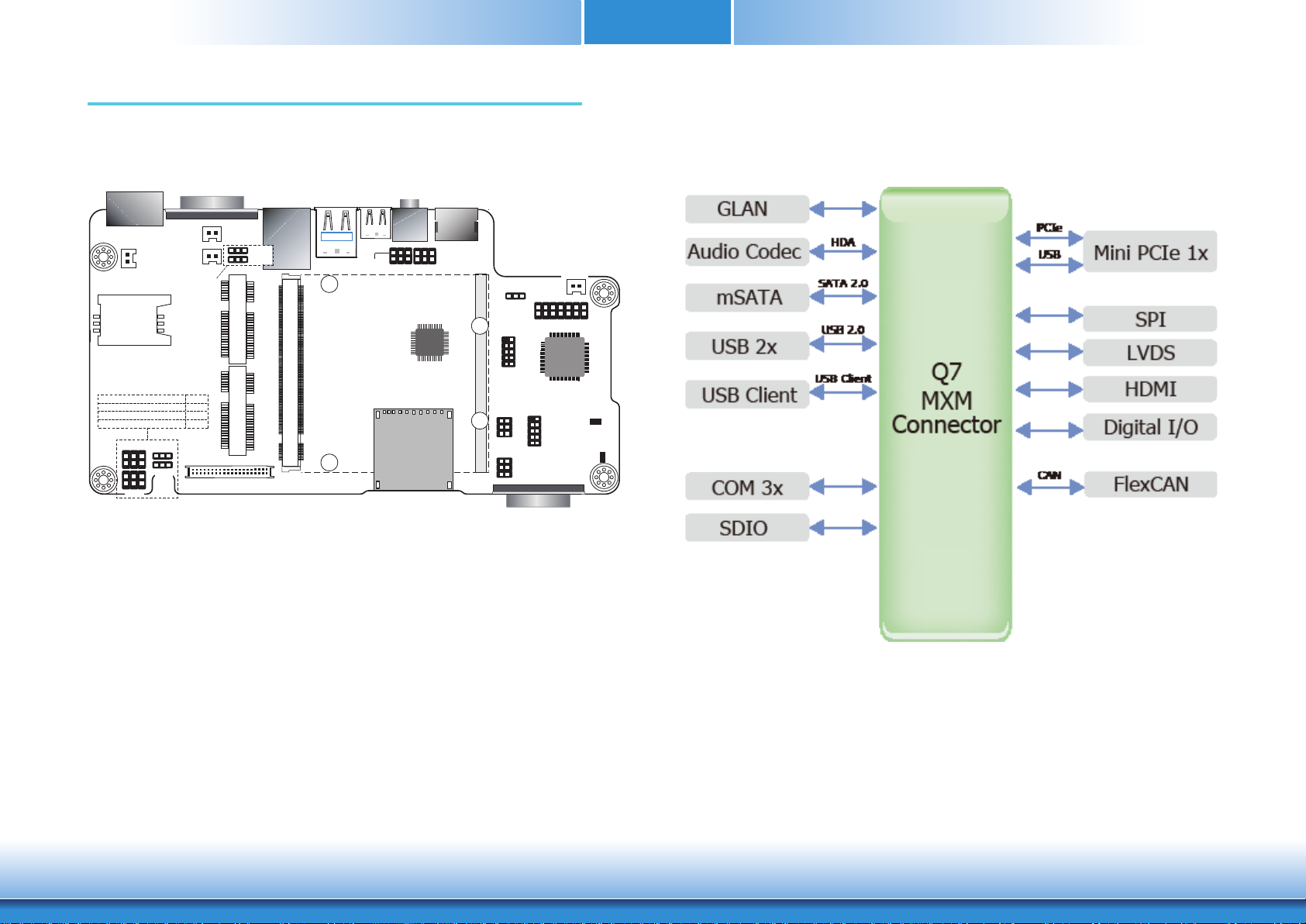

Board Layout Block Diagram
LVDS LCD Panel
40
1
2
39
13
2
1
5
6
12
COM
DC-in
12-36V
LAN
USB 0-1
HDMI
SIM
COM 2
10
12
9
Mini PCIe
Mini PCIe (mSATA)
12
12
56
56
ITE
IT8518E
USB 2.0
1
1
SD LED
10
12
9
13 13
Mic-in/
Line-out
12
MXM
1
2
1
13
14 2
Digital I/O
Download Mode
Select (JP9)
Mic-in/Line-out
Select (JP8)
COM 1 RS232/422/485
Select (JP4)
COM 2 RS232/422/485
Select (JP6)
RTC
Battery
AMP_L Mic-in/Line-out
Select (JP7)
2
1
5
6
(JP2)
Panel Power Select
(JP5)
(JP3)
(JP10)
(JP5)
(JP2)
(JP3)
(JP10)
Dimming Mode Select
Touch Panel Power Select
LCD/Inverter Power Select
12
FlexCAN
COM RS232/UART5 Select
(JP11)/(JP12)
+
-
USB Client
SD
COM 1 Power LED
MCS7840CV
1
2
5
6
1
2
5
6
Power
Switch
(JP12)
(JP11)
AMP_R
SPI
Q7
MXM
Connector
COM 3x
LVDS
mSATA
Audio Codec Mini PCIe 1x
PCIe
USB
USB 2x
GLAN
HDA
SATA 2.0
USB 2.0
USB Client USB Client HDMI
SDIO
Digital I/O
FlexCAN
CAN

www.dfi.comChapter 2 Hardware Installation
8
Chapter 2

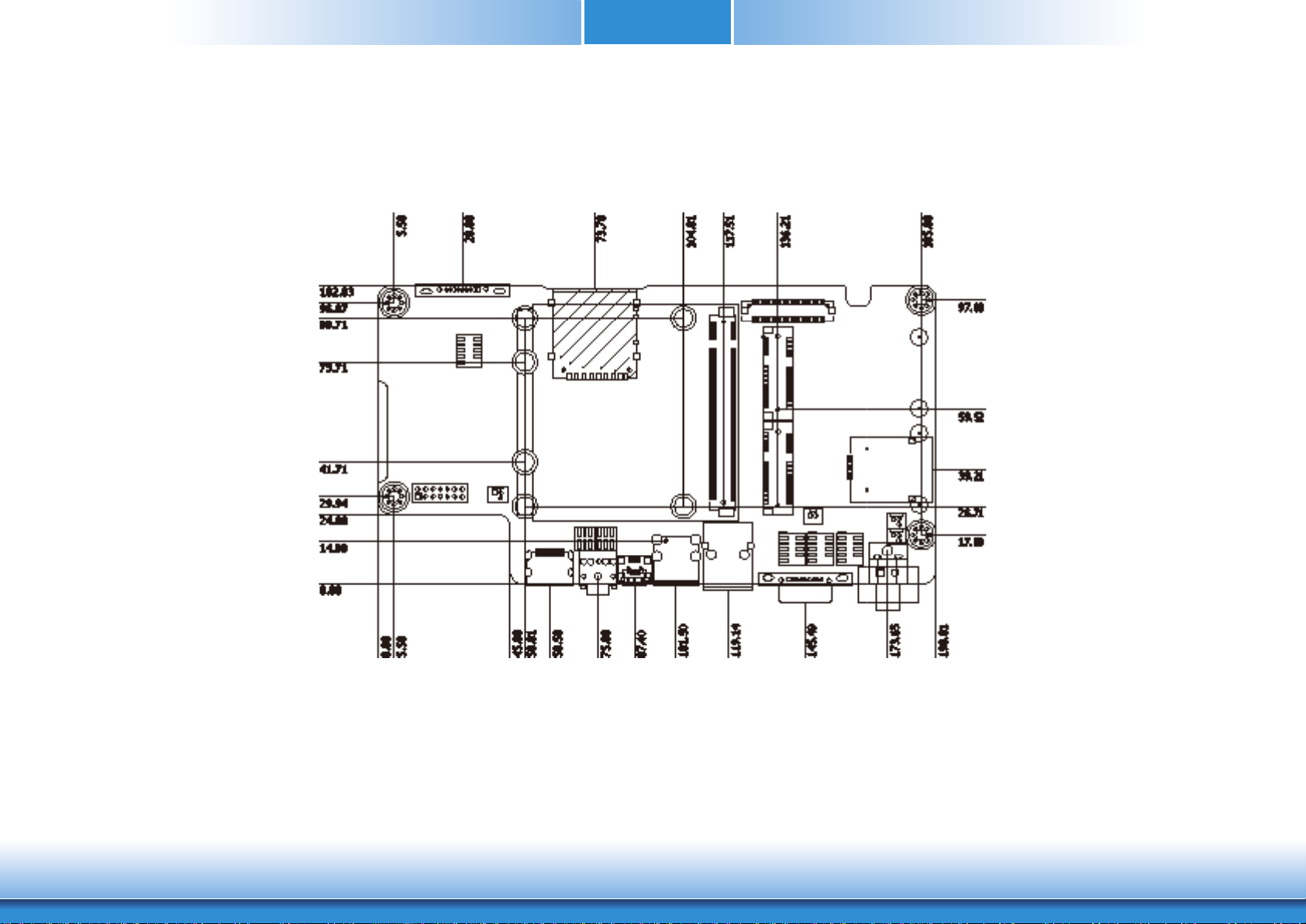

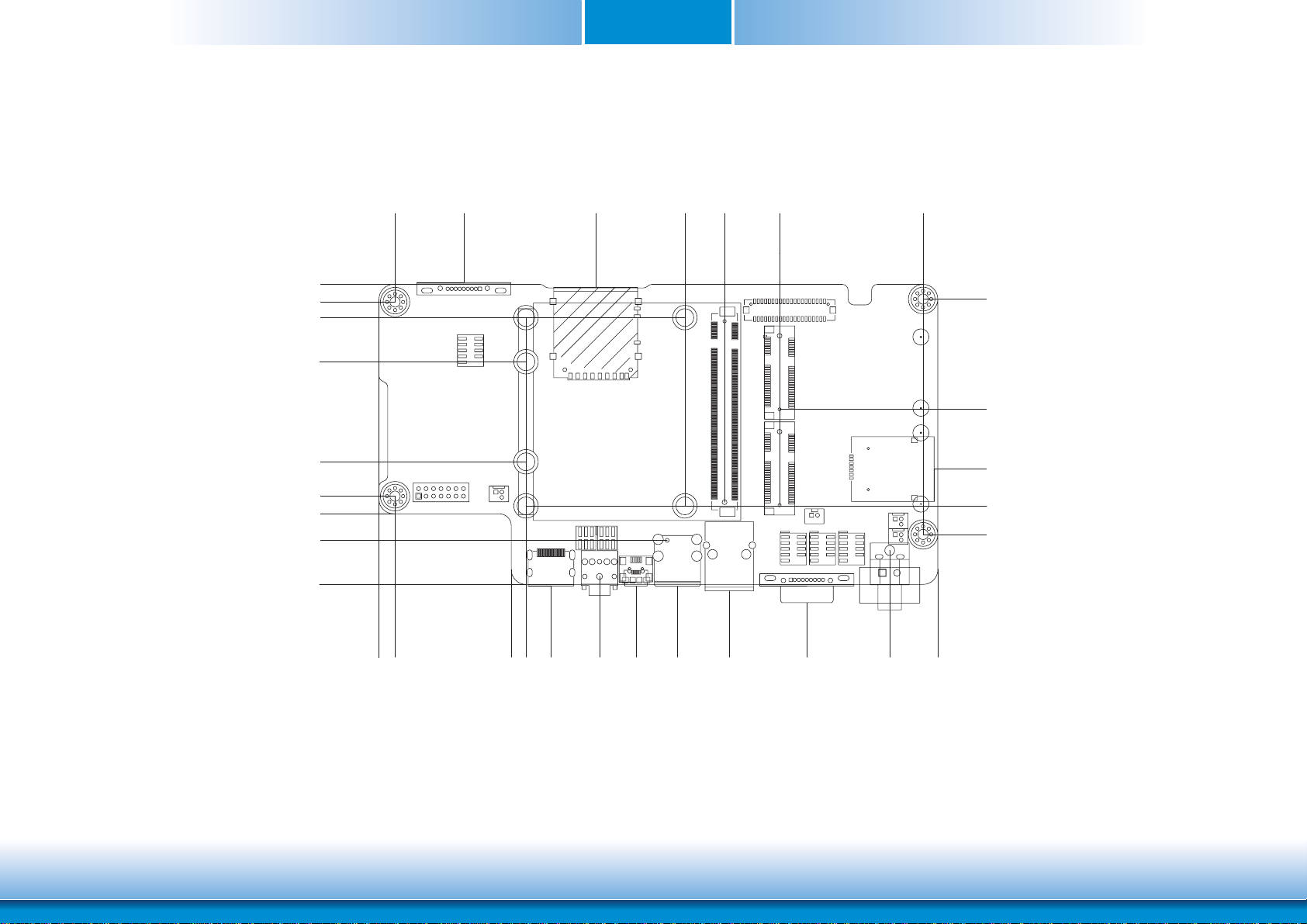

Mechanical Diagram
0.00
0.00
5.50 5.50
96.07
102.03
29.94
50.01 190.01
14.98
90.71
75.71
17.00
97.00
136.21
104.01
59.52
75.00 101.50
28.88
73.70
117.51
185.00
173.65
119.14
58.50
45.00
24.00
145.49
87.40
39.21
26.71
41.71

www.dfi.comChapter 2 Hardware Installation
9
Chapter 2
Jumper Settings
Panel Power Select
COM 1/COM 2 RS232/422/485 Select
JP2
JP2 is used to select the power supplied with the LCD panel.
Important:
Before powering-on the system, make sure that the power settings of JP2 match the
LCD panel’s specification. Selecting the incorrect voltage will seriously damage the
LCD panel.
1-2 On: +12V 3-4 On:+5V_standby 5-6 On: +3V_standby
(default)
1
642
531
642
531
642
53
JP4
JP6
JP4 (for COM 1) and JP6 (for COM 2) are used to configure the COM ports to RS232, RS422
(Full Duplex) or RS485. The pin functions of COM ports will vary according to jumpers’ setting.
JP4 (for COM 1)/ JP6 (for COM 2)
RS232 RS422
Full Duplex RS485
COM 2
1-2 On: RS232
(default)
1
3
5
2
4
6
3-4 On: RS422
Full Duplex
1
3
5
2
4
6
5-6 On: RS485
1
3
5
2
4
6
COM 2
COM 2:
RS232/422/485
COM 1
21
9
COM 1:
RS232/422/485
DCD-
TD
RD
DTR-
GND
RTS-
RI-
DSR-
CTS-
12345
6789
RXD+ TXD+ RXD- TXD- N.C.
N.C. N.C.
N.C.
N.C.
12345
6789
DATA+
DATA-
N.C. N.C.
N.C.
N.C. N.C.
N.C. N.C.
12345
6789

www.d.comChapter 2 Hardware Installation
10
Chapter 2
Touch Panel Power Select
1-2 On:
+5V_standby
2-3 On: +3V_standby
(default)
JP3
13 2
13 2
JP3 controls the power level of the touch panel IC.
COM RS232/UART5 Select
JP11
JP12
1-2 On:
RS232 (default)
2-3 On: UART5
13 2
13 2
JP11 and JP12 are used to configure the COM port to RS232 (default) or UART5.
Important:
You need to set JP11 and JP12 simultaneously.
COM
