DFI SU256-SCM User manual

1
SU256-SCM
Embedded SBC 4”
User’s Manual
A50900932
Preliminary
Version

2
Copyright
This publication contains information that is protected by copyright. No part of it may be re-
produced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2019. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

3
Copyright.............................................................................................................2
Trademarks ........................................................................................................2
FCC and DOC Statement on Class B.....................................................2
Warranty..............................................................................................................4
Static Electricity Precautions......................................................................4
Safety Measures ..............................................................................................4
Before Using the System Board...............................................................5
Chapter 1 - Introduction .............................................................................6
Specifications ................................................................................................6
Features..........................................................................................................7
Chapter 2 - Hardware Installation������������������������������������������������ 8
Board Layout.................................................................................................8
Block Diagram............................................................................................... 9
Mechanical Diagram....................................................................................9
System Memory.......................................................................................... 10
Jumper Settings ......................................................................................... 10
Clear CMOS................................................................................................ 10
Auto Power-on Select.................................................................................. 11
Mini PCIe Signal Select ............................................................................... 11
Front Panel I/O Ports................................................................................ 12
Rear Panel I/O Ports................................................................................. 12
15~36V DC-in ............................................................................................ 13
Graphics Interface ...................................................................................... 13
USB Ports................................................................................................... 14
RJ45 LAN Ports........................................................................................... 15
I/O Connectors ........................................................................................... 16
Serial ATA Connector .................................................................................. 16
Serial ATA Power Connector ........................................................................ 16
Expansion Slot............................................................................................ 16
Cooling Fan Connector ................................................................................ 17
SMBus Connector ....................................................................................... 17
Front Panel Connector ................................................................................ 18
Battery....................................................................................................... 19
Chapter 3 - BIOS Setup��������������������������������������������������������������� 20
Overview....................................................................................................... 20
Insyde BIOS Setup Utility........................................................................ 21
Main .......................................................................................................... 21
Advanced ................................................................................................... 21
Security...................................................................................................... 29
Boot........................................................................................................... 30
Exit............................................................................................................ 31
Updating the BIOS .................................................................................... 31
Notice: BIOS SPI ROM ............................................................................. 32
Chapter 4 - Supported Software........................................................... 33
Chapter 5 - RAID.......................................................................................... 48
Chapter 6 - Intel AMT Settings.............................................................. 51
Overview................................................................................51
Enable Intel®AMT in the Insyde BIOS.....................................51
Configure Intel®AMT in the Intel®Management Engine BIOS
Extension (MEBX) Section .......................................................52
Table of Contents

4
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product, in-
ability to use the product, unauthorized replacement or alteration of components and prod-
uct specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper instal-
lation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the
product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con-
nectors by their ends.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or servic-
ing. After installation or servicing, cover the system chassis before plugging the power
cord.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other com-
ponents. Perform the upgrade instruction procedures described at an ESD worksta-
tion only. If such a station is not available, you can provide some ESD protection by
wearing an antistatic wrist strap and attaching it to a metal part of the system chas-
sis. If a wrist strap is unavailable, establish and maintain contact with the system
chassis throughout any procedures requiring ESD protection.

5
Before Using the System Board
Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will need at least the following
internal components.
• Storage devices such as hard disk drive, etc.
You will also need external system peripherals you intend to use which will normally include at
least a keyboard, a mouse and a video display monitor.

6
Chapter 1
Chapter 1 Introduction www.d.com
Chapter 1 - Introduction
Specifications
SYSTEM Processor 6th Generation Intel®Core™ Processors, BGA 1356 (Skylake-U*)
Intel®Core™ i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz (3.4GHz), 15W
Intel®Core™ i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz (3.0GHz), 15W
Intel®Core™ i3-6100U Processor, Dual Core, 3M Cache, 2.3GHz, 15W
Intel®Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.8GHz (3.9GHz), 15W
Memory DDR4-2400 SO-DIMM 260pin 8GB (1R*8) x 2pcs
BIOS Insyde SPI 128Mbit
GRAPHICS Controller Intel®HD Graphics GT Series
Feature OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display 1 x HDMI
EXPANSION Interface 1 x Full-size Mini PCIe
Storage 1 x Flash Module mSATA SATAIII 256GB MLC
ETHERNET Controller 3 x Intel®I210IT PCIe (10/100/1000Mbps)
1 x Intel®I219LM PCIe with iAMT9.5 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
REAR I/O Ethernet 4 x GbE (RJ-45)
USB 4 x USB 3.0
Display 1 x HDMI
FRONT I/O USB 2 x USB 3.0
INTERNAL I/O SATA 1 x SATA 3.0 (up to 6Gb/s)
1 x SATA Power
SMBus 1 x SMBus
WATCHDOG
TIMER
Output &
Interval
System Reset, Programmable via Software from 1 to 255 Seconds
SECURITY TPM TPM 2.0
POWER Type Wide Range 15~36V
Connector Terminal Block
Consumption TBD
RTC Battery CR2032 Coin Cell
OS SUPPORT Microsoft/
Linux
Windows 7 (32/64-bit)
Windows 8.1 (64-bit)
Windows 10
WES 7
WE8S
CentOS 7 (1804)
ENVIRONMENT Temperature Operating: -20 to 70°C
Storage: -40 to 85°C
Humidity TBD
MTBF TBD
MECHANICAL Dimensions 4" SBC Form Factor
165mm (6.49") x 135mm (5.31")
Height PCB: 1.6mm
Top Side: TBD, Bottom Side: TBD

7
Chapter 1
Chapter 1 Introduction
Features
• Watchdog Timer
The Watchdog Timer function allows your application to regularly “clear” the system at the set
time interval. If the system hangs or fails to function, it will reset at the set time interval so
that your system will continue to operate.
• DDR4
DDR4 deliver increased system bandwidth and improved performance at a lower power than
DDR3 and DDR3L. It is not compatible with older standards of DDR memories.
• Graphics
The integrated Intel®HD graphics engine delivers an excellent blend of graphics performance
and features to meet business needs. It provides excellent video and 3D graphics with out-
standing graphics responsiveness. These enhancements deliver the performance and compat-
ibility needed for today’s and tomorrow’s business applications. Supports 1 HDMI interface for
display output.
• Serial ATA
Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of
up to 6Gb/s (SATA 3.0), it improves hard drive performance faster than the standard parallel
ATA whose data transfer rate is 100MB/s.
• Gigabit LAN
Four Intel®Gigabit LAN controllers (three Intel®I210IT PCI Express Gigabit Ethernet control-
lers and one Intel® I219LM Gigabit Ethernet Phy) support up to 1Gbps data transmission.
• Power Failure Recovery
When power returns after an AC power failure, you may choose to either power-on the system
manually or let the system power-on automatically.
• USB
The system board supports the USB 3.0. It is capable of running at a maximum transmission
speed of up to 5 Gbit/s (625 MB/s) and is faster than USB 2.0 (480 Mbit/s, or 60 MB/s) and
USB 1.1 (12Mb/s). USB 3.0 reduces the time required for data transmission, reduces power
consumption, and is backward compatible with USB 2.0. It is a marked improvement in device
transfer speeds between your computer and a wide range of simultaneously accessible exter-
nal Plug and Play peripherals.
• Wake-On-USB
This function allows you to use a USB keyboard or USB mouse to wake up a system from the
S3 (STR - Suspend To RAM) state.
• ACPI STR
The system board is designed to meet the ACPI (Advanced Configuration and Power Interface)
specification. ACPI has energy saving features that enables PCs to implement Power Manage-
ment and Plug-and-Play with operating systems that support OS Direct Power Management.
ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM
function�
With the Suspend to RAM function enabled, you can power-off the system at once by pressing
the power button or selecting “Standby” when you shut down Windows®without having to go
through the sometimes tiresome process of closing files, applications and operating system.
This is because the system is capable of storing all programs and data files during the entire
operating session into RAM (Random Access Memory) when it powers-off. The operating ses-
sion will resume exactly where you left off the next time you power-on the system.
• Wake-On-LAN
This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It is
supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Man-
agement Event) signal. However, if your system is in the Suspend mode, you can power-on
the system only through an IRQ or DMA interrupt.
www.d.com

www.dfi.com
8
Chapter 2 Hardware Installation
Chapter 2
Chapter 2 - Hardware Installation

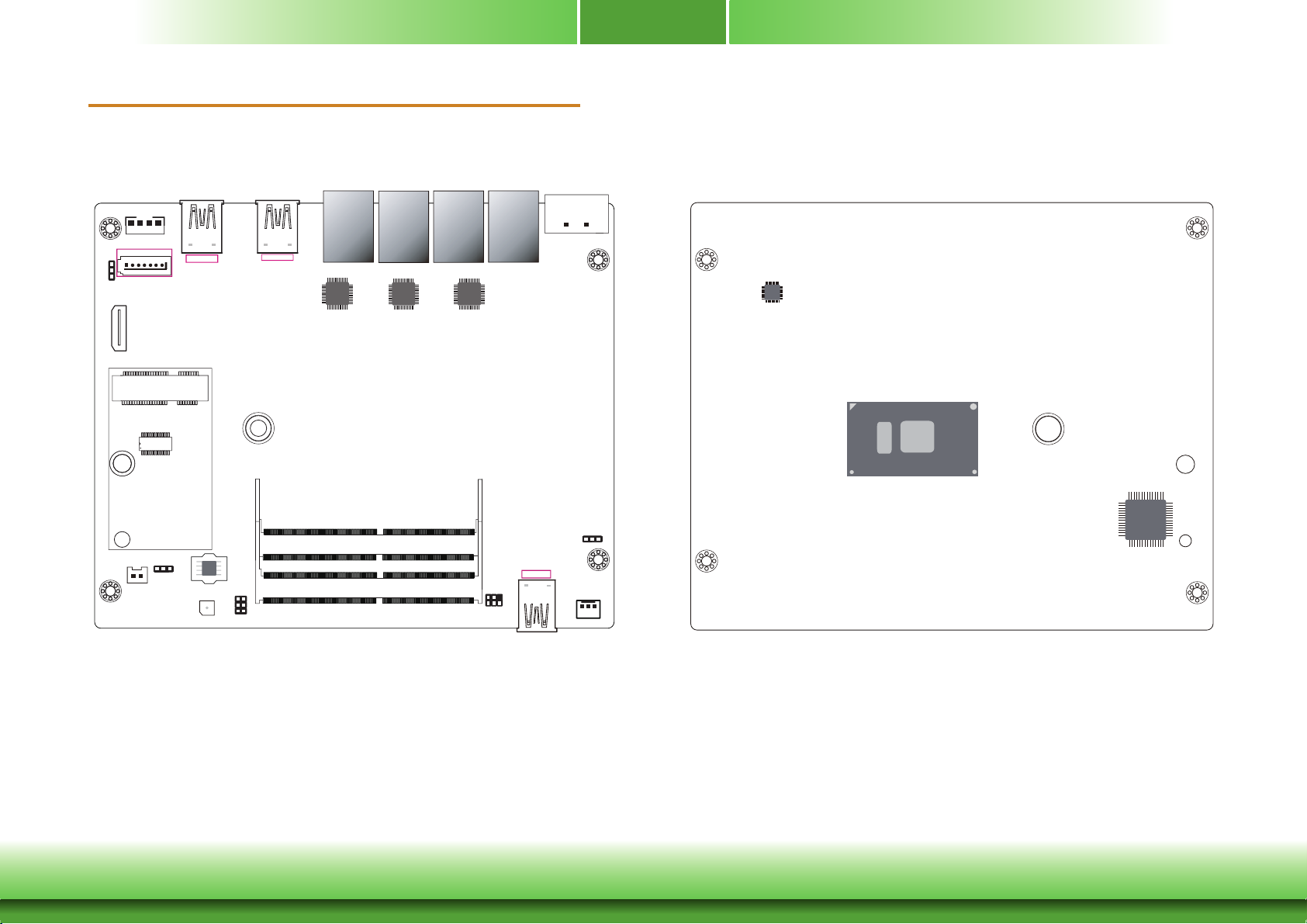

Board Layout
Top View
Bottom View
1
SATA 3.0
SATA 0
SATA Power
USB 4-5
USB 3.0
SPI Flash BIOS
1
CPU Fan
1
2
5
SMBus
2
1
6
5
1
Auto Power-on Select (JP7)
3
Front Panel
Buzzer
1
Clear CMOS (JP4)
3
1
Battery
1
Mini PCIe Signal Select (JP3)
3
14
DDR4_1 SODIMM
DDR4_2 SODIMM
Mini PCIe
HDMI
USB 0-1
USB 3.0
USB 2-3
USB 3.0
LAN 4 LAN 3 LAN 2 LAN 1
DC-IN
Intel I210IT Intel I210IT Intel I210IT
TPM 2.0
21
Nuvoton NCT6102D
Intel
Intel I219LM
Core i7/i5/i3

www.dfi.com
9
Chapter 2 Hardware Installation
Chapter 2
Block Diagram
Core
i7/i5/i3
Super IO
with WDT
4GB/8GB DDR4
SODIMM
Channel A
Full-size
Mini PCIe
PCIe/
SATA (default)
USB 2.0
SMBus SMBus
SPI
SATA 3.0
GLAN I210IT
GLAN I219LM
PCIe x1
SATA 3.0
USB 3.0
USB 2.0
USB 3.0 2x
4GB/8GB DDR4
SODIMM
Channel B
MDI
HDMI
TPM 2.0
GLAN I219LM
GLAN I219LM power input
Terminal Block
2 Pin
LAN
MDI
LAN
PCIe x1
DDI
LPC
FAN
Power/Reset
Buttom
LPC
USB 3.0
USB 2.0
USB 3.0 2x
USB 3.0
USB 2.0
USB 3.0 2x
GLAN I210IT PCIe x1
MDI
LAN
GLAN I210IT PCIe x1
MDI
LAN
Mechanical Diagram
8.00
10.44
165.00 160.00
156.28
123.20
58.75
145.52 131.66
19.51
127.39 103.33
79.91
81.95
67.72 62.41
44.91
27.41
9.50
7.28 5.00
135.00
113.20
18.00
14.59
7.35
0.00
27.99
124.56

www.dfi.com
10
Chapter 2 Hardware Installation
Chapter 2
Jumper Settings
Clear CMOS
If you encounter the following,
a) CMOS data becomes corrupted.
b) You forgot the supervisor or user password.
you can reconfigure the system with the default values stored in the ROM BIOS.
To load the default values stored in the ROM BIOS, please follow the steps below.
1. Power-off the system and unplug the power cord.
2. Set JP4 pins 2 and 3 to On. Wait for a few seconds and set JP4 back to its default setting,
pins 1 and 2 On.
3. Now plug the power cord and power-on the system.
2-3 On:
Clear CMOS
1-2 On:
Normal (default)
13 213 2
JP4
System Memory
Important:
Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in
boards, and other components. Perform installation procedures at an ESD workstation
only. If such a station is not available, you can provide some ESD protection by wear-
ing an antistatic wrist strap and attaching it to a metal part of the system chassis. If
a wrist strap is unavailable, establish and maintain contact with the system chassis
throughout any procedures requiring ESD protection.
• Two 260-pin SODIMM up to 8GB
• Dual Channel DDR4 2400MHz
Features
DDR4_2 SODIMM
DDR4_1 SODIMM
