DFI CS15-BN User manual

CS15 Series
Rev.A+
System Board
User’s Manual
49000116

Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose.The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 2001. All Rights Reserved.
Trademarks
Microsoft®MS-DOS®, WindowsTM, Windows®95, Windows®98,
Windows®98 SE, Windows®ME, Windows®2000 and Windows
NT®4.0 are registered trademarks of Microsoft Corporation. Intel®,
Pentium®III and CeleronTM are registered trademarks of Intel
Corporation. VIA CyrixIII is a registered trademark of VIA
Technologies, Inc. Award is a registered trademark of Award
Software, Inc. Other trademarks and registered trademarks of
products appearing in this manual are the properties of their
respective holders.
Caution
To avoid damage to the system:
• Use the correct AC input voltage range.....
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.

Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend by
the manufacturer.
• Dispose of used batteries according to the battery
manufacturer’s instructions.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
2. Shielded interface cables must be used in order to comply with
the emission limits.

Table of Contents
Chapter 1 - Introduction
1.1 Features and Specifications..................................................................................
1.2 Package Checklist.........................................................................................................
Chapter 2 - Hardware Installation
2.1 System Board Layout ..........................................................................................
2.2 System Memory...........................................................................................................

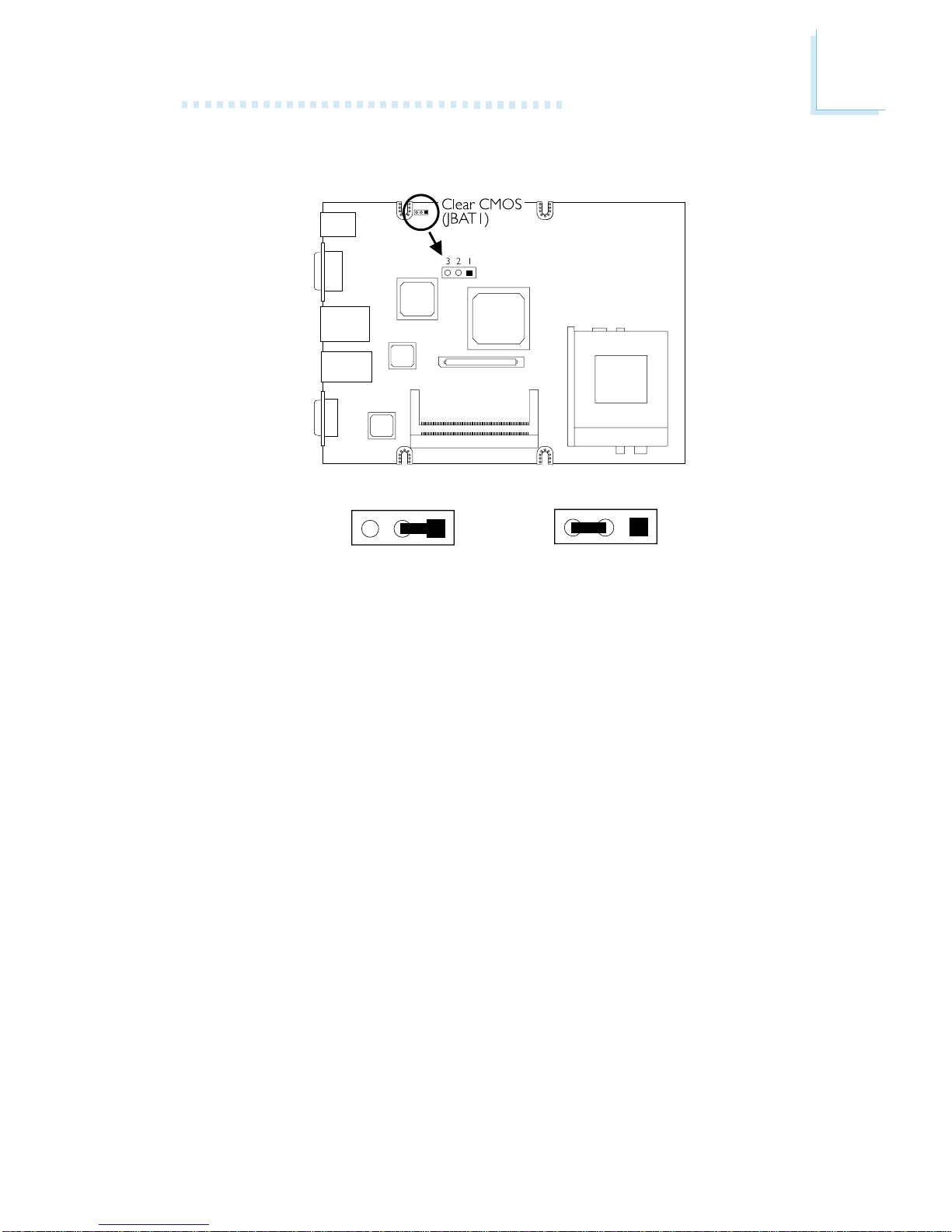

2.3 Jumper Settings for Clearing CMOS Data........................................
2.4 Ports and Connectors...........................................................................................
Chapter 3 - Award BIOS Setup Utility
3.1 The Basic Input/Output System.....................................................................
3.1.1 Standard CMOS Features.............................................................
3.1.2 Advanced BIOS Features..............................................................
3.1.3 Advanced Chipset Features ......................................................
3.1.4 Integrated Peripherals.........................................................................
3.1.5 Power Management Setup............................................................
3.1.6 PnP/PCI Configurations....................................................................
3.1.7 PC Health Status...................................................................................
3.1.8 Frequency/Voltage Control............................................................
3.1.9 Load Fail-Safe Defaults.....................................................................
3.1.10 Load Optimized Defaults..............................................................
3.1.11 Set Supervisor Password...............................................................
3.1.12 Set User Password..............................................................................
3.1.13 Save & Exit Setup.................................................................................
3.1.14 Exit Without Saving..............................................................................
6
11
34
34
38
42
46
51
55
57
58
60
60
61
61
62
62
12
14
15
17

66
66
Chapter 4 - Supported Softwares
4.1 Desktop Management Interface.....................................................................
Appendix A - System Error Messages
A.1 POST Beep.......................................................................................................................
A.2 Error Messages..............................................................................................................
Appendix B - Troubleshooting
B.1 Troubleshooting Checklist....................................................................................
Appendix C - Watchdog Timer
C.1 WatchdogTimer..............................................................................................................
63
68
72

Introduction
1
6
1.1 Features and Specifications
1.1.1 Features
Chipset
• Intel®815E
Processor
The system board is equipped with Socket 370. It is also equipped
with a switching voltage regulator that automatically detects 1.30V
to 2.05V.
• Pentium®III FCPGA 133MHz FSB (533EB-1GHz) or 100MHz
FSB (500E-850E) processor
• CeleronTM 66MHz FSB: FCPGA (566MHz-700MHz) or PPGA
(300A-533MHz) processor
• FutureVIA CyrixIII processor
System Memory
• 32MB to 512MB memory using unbuffered DIMMs
• Two 144-pin stacked SODIMM
• Uses x64 PC-133/PC-100 SDRAM DIMM (3.3V) for 133MHz/
100MHz system memory bus
Chapter 1 - Introduction
DIMMs
2MBx64
4MBx64
8MBx64
16MBx64
32MBx64
Memory Size
16MB
32MB
64MB
128MB
256MB

1
Introduction
7
Expansion Slots
The CS15-BN system board is not equipped with any expansion
slots.
The CS15-SN system board is equipped with a 90oPCI slot
located on the solder side of the board.
The CS15-EN system board is equipped with a riser card slot
located on the solder side of the board for connecting a 3-PCI-slot
riser card (the riser card is optional).
Onboard Graphics Features
• Graphics memory
- Shares 1MB of the system memory. This is fixed regardless of
the size of the system memory.
- Uses the Dynamic Video Memory Technology (DVMT) tech-
nology. This freely changes in size because graphics memory is
allocated from the system memory according to current
needs.
• Graphics controller
- 3D hyper pipelined architecture
- 2D hardware and motion video acceleration
- 9-bit precision hardware motion compensation assistance for
software MPEG2 decode
- Software DVD at 30fps
• 2D graphics features
- Resolution: up to 1600x1200 in 8-bit color at 85Hz refresh
- 3 Operand Raster BitBLTs
- 64x64x3 color transparent cursor
• 3D graphics features
- Flat and Gouraud shading
- MIP mapping with tri-linear and anisotropic filtering
- Full color specular / Z-buffering
- Fogging atmospheric effect
- 3D pipe 2D clipping / backface culling
• Software drivers
- Windows®95/98/2000
- Windows NT®4.0

Introduction
1
8
Compatibility
• Microsoft PC ’99 compliant
• VESA Display Power Management Signaling (DPMS)
• VESA DDC2B for Plug and Play monitors
• PCI 2.2 compliant
ATX Double Deck Connectors
• 2 USB ports
• 1 DB-9 serial port
• 1 mini-DIN-6 PS/2 mouse port
• 1 mini-DIN-6 PS/2 keyboard port
• 1 DB-15VGA port
• 3 RJ45 LAN ports
Connectors

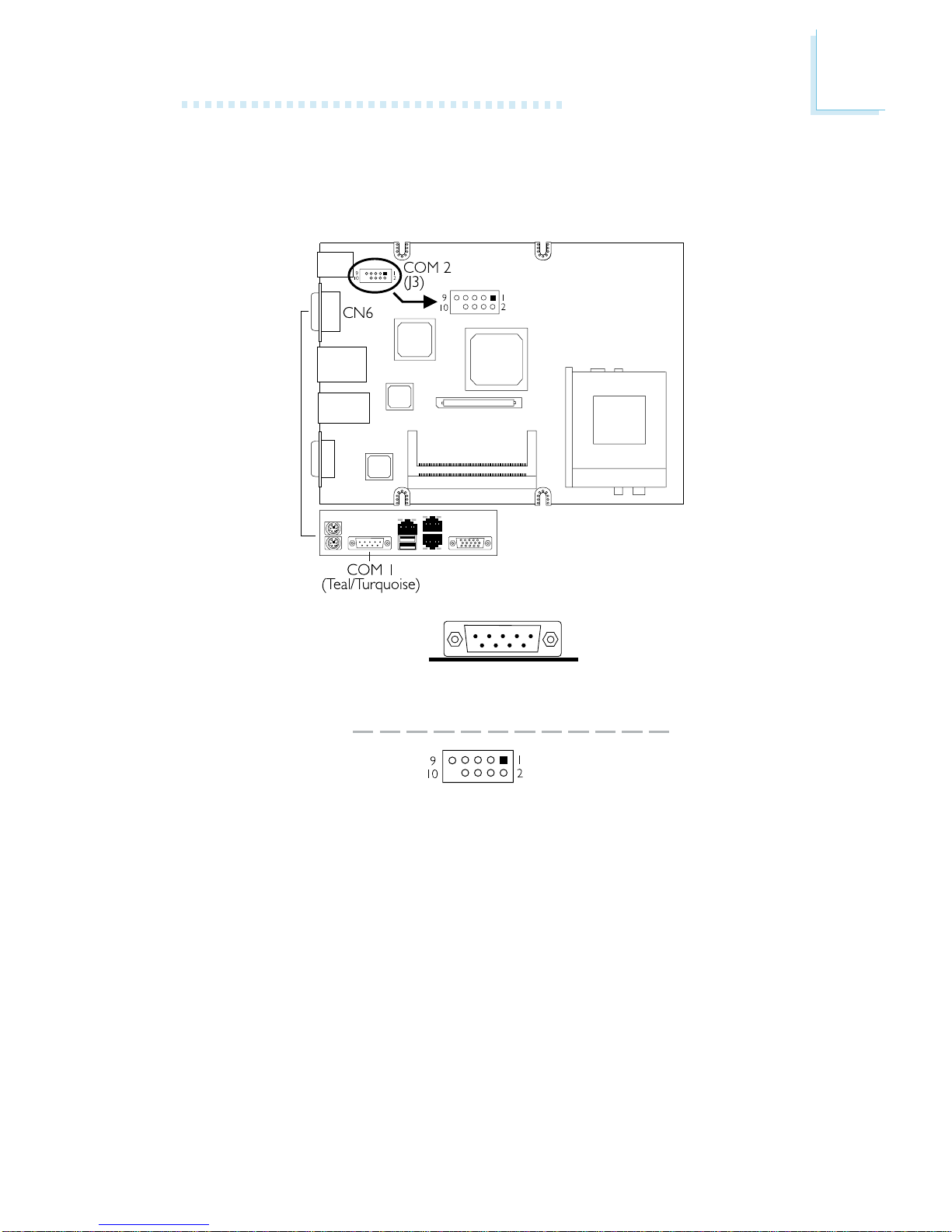

• 1 9-pin connector for 1 external serial port
• 2 IDE connectors (90O)
• 1 floppy connector
• 1 power board connector
• 2 connectors for CPU and chassis fans
Power Boards
• CS15-BN
Uses ATX power board which is compatible with ATX switching
power
• CS15-SN
Uses DC-DC power board: +12V input over 110W adapter
with 4 defined pins
• CS15-EN
Uses ATX power board which is compatible with ATX switching
power
PCI Bus Master IDE Controller
• Two PCI IDE interfaces support up to four IDE devices
• Supports ATA/33, ATA/66 and ATA/100 hard drives
• PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
• Bus mastering reduces CPU utilization during disk transfer
• Supports ATAPI CD-ROM, LS-120 and ZIP

1
Introduction
9
USB Ports
The system board is equipped with 2 USB ports. USB allows data
exchange between your computer and a wide range of
simultaneously accessible external Plug and Play peripherals.
BIOS
• Award BIOS, Windows®95/98/2000 Plug and Play compatible
• Supports SCSI sequential boot-up
• Flash EPROM for easy BIOS upgrades (4Mbit)
• Includes Symbios Logic SCSI BIOS
• Supports DMI 2.0 function
Desktop Management Interface (DMI)
The system board comes with a DMI 2.0 built into the BIOS.The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in the
DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventory, maintenance and troubleshooting of
computer systems easier. Refer to chapter 4 for instructions on using
the DMI utility.
1.1.2 System Health Monitor Functions
The system board is capable of monitoring the following “system
health” conditions.
• Monitors CPU/system temperature and overheat alarm
• Monitors 5VSB/VBAT/1.5V/3.3V/5V/±12V/CPU voltages and
failure alarm
• Monitors the fan speed of the CPU, chassis and second fans;
and failure alarm
• Automatic CPU and chassis fans on/off control
• Read back capability that displays temperature, voltage and fan
speed
• Supports Intel®processor thermal diode output (real processor
temperature)
Refer to the “PC Health Status” section in chapter 3 for more
information.

Introduction
1
10
1.1.3 Intelligence
Watchdog Timer
The system board supports the Watchdog Timer function. It allows
your application to regularly “clear” the system at the set time
interval. If the system hangs or fails to function, it will reset at the set
time interval so that your system will continue to operate. Refer to
WatchdogTimer in appendix C for more information.
Automatic CPU/Chassis Fan Off
The CPU and chassis fans will automatically turn off once the system
enters the Suspend mode.
Dual Function Power Button
Depending on the setting in the “Soft-Off By PWR-BTTN” field of
the Power Management Setup, this switch will allow the system to
enter the Soft-Off or Suspend mode.
Wake-On-Keyboard/Wake-On-Mouse
This function allows you to use the keyboard or PS/2 mouse to
power-on the system. Refer to “Keyboard/Mouse Power On” in the
Integrated Peripherals section in chapter 3 for more information.
Important:
• The power button will not function once a keyboard
password has been set in the “KB Power On Password”
field of the Integrated Peripherals submenu. You must type
the correct password to power-on the system. If you forgot
the password, power-off the system and remove the
battery. Wait for a few seconds and install it back before
powering-on the system.
• The 5VSB power source of your power supply must
support ≥ 720mA.
RTCTimer to Power-on the System
The RTC installed on the system board allows your system to
automatically power-on on the set date and time. Refer to “Resume
By Alarm” in the Power Management Setup section in chapter 3 for
more information.

1
Introduction
11
ACPI
The system board is designed to meet the ACPI (Advanced
Configuration and Power Interface) specification. ACPI has energy
saving features that enables PCs to implement Power Management
and Plug-and-Play with operating systems that support OS Direct
Power Management.
AC Power Failure Recovery
When power returns after an AC power failure, you may choose to
either power-on the system manually, let the system power-on
automatically or return to the state where you left off before power
failure occurs. Refer to “PWR Lost Resume State” in the Integrated
Peripherals section in chapter 3 for more information.
Year 2000 Compliant
• Supports hardware Y2K function.
• Supports hardware Random Number Generator (RNG) to en-
able a new security and manageability infrastructure for PC.
Virus Protection
Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table of
your hard disk drive.
1.2 Package Checklist
The system board package contains the following items:
!The system board
!A user’s manual
!One 9-pin RS-232 cable for chassis mounting
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

2
12
Hardware Installation
2.1 System Board Layout
Chapter 2 - Hardware Installation
CS15 System Board
Note:
The connector in the dotted-line box is located on the solder side of
the board.

2
Hardware Installation
13
CS15 ATX Power Board
Note:
The “power board connector” is located on the solder side of the
board.
CS15 DC-DC Power Board

2
14
Hardware Installation
2.2 System Memory
Warning:
Electrostatic discharge (ESD) can damage your system board,
processor, disk drives, add-in boards, and other components. Perform
the upgrade instruction procedures described at an ESD workstation
only. If such a station is not available, you can provide some ESD
protection by wearing an antistatic wrist strap and attaching it to a
metal part of the system chassis. If a wrist strap is unavailable,
establish and maintain contact with the system chassis throughout
any procedures requiring ESD protection.
The system board is equipped with two stacked SODIMM sockets
that support unbuffered PC-133/PC-100 SDRAM DIMM. PC
SDRAM (Synchronous Dynamic Random Access Memory) is a fast
memory interface technology that uses the clock on the chip to
synchronize with the CPU clock so that the timing of the memory
chips and the timing of the CPU are synchronized.This saves time
during transmission of data, subsequently increasing system
performance.

2
Hardware Installation
15
Clear CMOS Data - Jumper JBAT1
If you encounter the following,
a) CMOS data becomes corrupted.
b) You forgot the supervisor or user password.
c) You are unable to boot-up the computer system because the
processor’s ratio was incorrectly set in the BIOS.
you can reconfigure the system with the default values stored in the
ROM BIOS.
To load the default values stored in the ROM BIOS, please follow
the steps below.
1. Power-off the system.
2. Set JBAT1 pins 2 and 3 to On. Wait for a few seconds and set
JBAT1 back to its default setting, pins 1 and 2 On.
2.3 Jumper Settings for Clearing CMOS Data
1-2 On:
Normal (default) 2-3 On:
Clear CMOS Data
321 321

2
16
Hardware Installation
3. Now power-on the system.
If your reason for clearing the CMOS data is due to incorrect
setting of the processor’s ratio in the BIOS, please proceed to
step 4.
4. After powering-on the system, press <Del> to enter the main
menu of the BIOS.
5. Select the Frequency/Voltage Control submenu and press
<Enter>.
6. Set the “CPU Clock Ratio” field to its default setting or an
appropriate frequency ratio. Refer to the Frequency/Voltage
Control section in chapter 3 for more information.
7. Press <Esc> to return to the main menu of the BIOS setup
utility. Select “Save & Exit Setup” and press <Enter>.
8. Type <Y> and press <Enter>.

2
Hardware Installation
17
2.4 Ports and Connectors
2.4.1 Serial Ports
COM 1
Serial Port
COM 2
(J3)

2
18
Hardware Installation
The built-in serial ports are RS-232C asynchronous communication
ports with 16C550A-compatible UARTs that can be used with
modems, serial printers, remote display terminals, and other serial
devices. You can set the serial ports’ I/O address in the Integrated
Peripherals submenu of the BIOS.
Connecting the Serial Ports
The system board is equipped with an onboard serial port (CN6 -
Teal/Turquoise) for COM 1 primary serial port located at the ATX
double deck ports of the board. It is also equipped with a 9-pin
connector at location J3 for COM 2 secondary serial port.
One card-edge bracket mounted with a serial port cable may be
included in the system board package. If you want to use the
secondary serial port, connect the serial port cable to connector J3.
Make sure the colored stripe on the ribbon cable is aligned with pin
1 of connector J3. Mount the card-edge bracket to the system
chassis.

2
Hardware Installation
19
2.4.2 PS/2 Mouse and PS/2 Keyboard Ports
PS/2 Mouse
PS/2 Keyboard
The system board is equipped with an onboard PS/2 mouse
(Green) and PS/2 keyboard (Purple) ports - both at location JKBM1
of the ATX double deck ports of the system board. The PS/2
mouse port uses IRQ12. If a mouse is not connected to this port,
the system will reserve IRQ12 for other expansion cards.
Warning:
Make sure to turn off your computer prior to connecting or
disconnecting a mouse or keyboard. Failure to do so may
damage the system board.

2
20
Hardware Installation
Setting
SPP
(StandardParallel Port)
ECP
(ExtendedCapabilitiesPort)
EPP
(EnhancedParallelPort)
Function
Allowsnormalspeedoperationbut
inonedirectiononly.
Allows parallel port to operate in
bidirectional mode and at a speed
faster than the SPP’s data transfer
rate.
Allowsbidirectionalparallelportop-
erationat maximum speed.
2.4.3 Parallel Port
The system board is equipped with a shrouded parallel connector at
location J4 on the system board for interfacing your PC to a parallel
printer. It supports SPP, ECP and EPP modes.You can set the parallel
mode in the Integrated Peripherals submenu of the BIOS.
