DFI 865pe infinity User manual

Rev. B+
System Board User’s Manual
Carte Mère Manuel Pour Utilisateur
System-Platine Benutzerhandbuch
Manual del Usuario de Placas Base
Ðóêîâîäñòâî Ïîëüçîâàòåëÿ
935-865PE7-000
74740410
865pe infinity 74740410 1.pmd 3/15/2004, 8:34 AM1

Co yright
This publication contains information that is protected by copy-
right. No part of it may be reproduced in any form or by any
means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose. The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
2004. All Rights Reserved.
Trademarks
Windows® 98 SE, Windows® ME, Windows® 2000, Windows NT®
4.0 and Windows® XP are registered trademarks of Microsoft
Corporation. Intel®, Pentium® 4 and Celeron® are registered
trademarks of Intel Corporation. Award is a registered trademark
of Award Software, Inc. Other trademarks and registered trade-
marks of products appearing in this manual are the properties of
their respective holders.
Caution
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.
Battery:
• Danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent type recommend
by the manufacturer.
865pe infinity 74740410 1.pmd 3/15/2004, 8:34 AM2

• Dispose of used batteries according to the battery manufac-
turer’s instructions.
Joystick or MIDI port:
• Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's author-
ity to operate the equipment.
2. Shielded interface cables must be used in order to comply
with the emission limits.
865pe infinity 74740410 1.pmd 3/15/2004, 8:34 AM3

4
Quick Setup Guide
1
Quick Setu
Guide
Table of Contents
Chapter 1
Quick Setup Guide.................................................
Chapter 2
English......................................................................
Chapter 3
Français....................................................................
Chapter 4
Deutsch...............................................................................
Chapter 5
Españ l............................................................................
Chapter 6
Ðóññêèé...........................................................................
5
17
23
29
35
41
The user’s manual in the provided CD contains detailed information about the system
board. If, in some cases, some information doesn’t match those shown in this manual, this
manual should always be regarded as the most updated version.
Le manuel d’utilisateur dans le CD muni contient renseignement détaillé au su et de carte
de système. Si, en quelque cas, quelque renseignement n’appareille de ce que dit dans ce
manuel, ce manuel doit tou ours être considéré comme la plus nouvelle version.
Das Benutzerhandbuch in der angebotenen CD enthält detaillierte Informationen über die
Hauptplatine. Wenn in manchen Fällen manche Informationen nicht den enigen Informationen
dargestellt in diesem Handbuch entsprechen, soll dieses Handbuch als die meist
aktualisierte Ausgabe gelten.
El uso explicativo contene información detalle sobre la sistema board en el CD preparativo.
Si en algún caso, la información no es igual con el uso explicativo, necesita ver el uso
explicativo, esque es más nuevo.
 ðóêîâîäñòâå ïîëüçîâàòåëÿ íà ïðåäîñòàâëÿåìîì CD äèñêå ñîäåðæèòñÿ
ïîäðîáíàÿ èíôîðìàöèÿ î ìàòåðèíñêîé ïëàòå. Èíîãäà íàïå÷àòàííîå
ðóêîâîäñòâî ìîæåò íå ñîâïàäàòü ðóêîâîäñòâîì íà CD òàê êàê ïîñëåäíåå
íàèáîëåå ÷àñòî îáíîâëÿåòñÿ è ÿâëÿåòñÿ ñàìûì ñâåæèì.
865pe infinity 74740410 1.pmd 3/15/2004, 8:34 AM4

5
1
Quick Setup Guide
Quick Setu
Guide
Chapter 1 - Quick Setup Guide
1.1 System B ard Lay ut
865pe infinity 74740410 1.pmd 3/15/2004, 8:34 AM5

6
Quick Setup Guide
1
Quick Setu
Guide

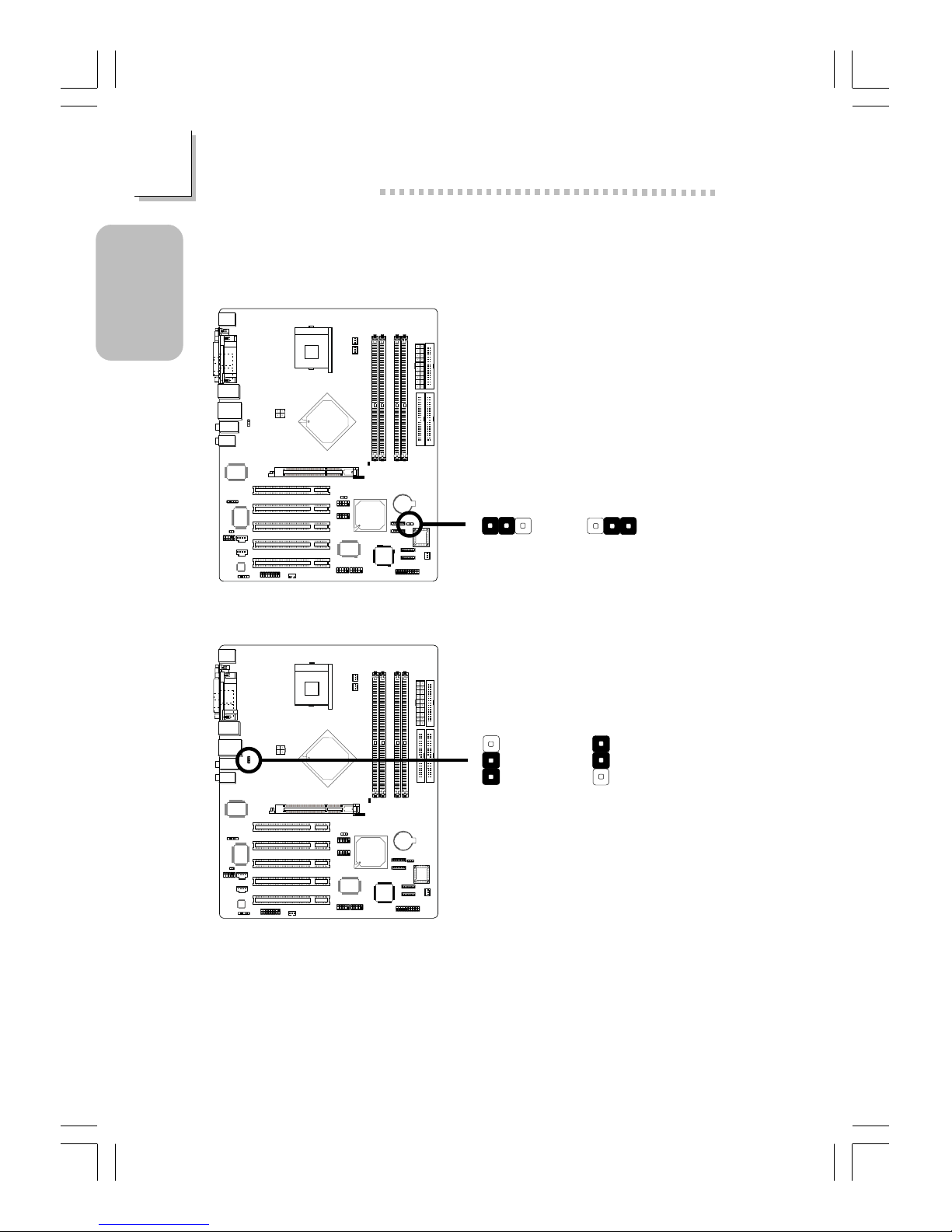

1.2 Jumpers
1.2.1 Clear CMOS Data
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
312 312

JP5
1.2.2 PS/2 Keyboard/Mouse Power Select
JP1 3
1
2
3
1
2
2-3 On: 5VSB
1-2 On: VCC
(default)

If you are using the Wake-On-PS/2 Keyboard/Mouse function, the 5VSB
power source of your power supply must support ≥720mA.
865pe infinity 74740410 1.pmd 3/15/2004, 8:34 AM6

7
1
Quick Setup Guide
Quick Setu
Guide
1.2.3 SB Power Power Select
USB 1-4
(JP1)
3
1
2
3
1
2
2-3 On: 5VSB
1-2 On: VCC
(default)


USB 5-8
(JP4) 312 312
2-3 On: 5VSB1-2 On: VCC
(default)
1.3 Rear Panel I/O P rts
PS/2
Mouse
PS/2
K/B
COM S/PDIF-in
S/PDIF-out
Rear out
USB 1-2 USB 3-4
IEEE
1394
RJ45
LAN Mic-in
Center/Bass
Line-in
Line-out
Parallel
If you are using the Wake-On-USB Keyboard function for 2 USB ports,
the 5VSB power source of your power supply must support ≥1.5A.
If you are using the Wake-On-USB Keyboard function for 3 or more
USB ports, the 5VSB power source of your power supply must sup-
port ≥2A.
865pe infinity 74740410 1.pmd 3/15/2004, 8:34 AM7

8
Quick Setup Guide
1
Quick Setu
Guide
1.4 I/O C nnect rs
1.4.1 S/PDIF-in/out
S/PDI -in

S/PDI -out
15
VCC
Key
SPDI out
GND
SPDI in
J4
RCA Jacks
or optical S/PDI cable connection.
1.4.2 IEEE 1394
1394_1


1
TPA+
Ground
TPB+
VCC
Key
TPA-
Ground
TPB-
VCC
Shield
210
9
1394_2 1394_3
865pe infinity 74740410 1.pmd 3/15/2004, 8:34 AM8

9
1
Quick Setup Guide
Quick Setu
Guide
1.4.3 SB
USB 4
USB 3

USB 5-6
USB 7-8

USB 2
USB 1
1
VCC
-Data
+Data
Ground
Key
VCC
-Data
+Data
Ground
N. C.
210
9
1.4.4 Audio
ront
audio


1
Mic
Mic Power
AuD_R_Out
N. C.
AuD_L_Out
GND
AuD_Vcc
Key
210
9
AuD_R_Return
AuD_L_Return
Line-out
Line-in
Mic-in
Rear out
Center/Bass

Center/Bass and Rear Out Jacks
support 4 audio output signals:
center channel, subwoofer, rear right
channel and rear left channel. These
4 audio output signals together with
the line-out (2-channel) jack support
6-channel audio output.
865pe infinity 74740410 1.pmd 3/15/2004, 8:34 AM9

10
Quick Setup Guide
1
Quick Setu
Guide
1.4.5 Game
115
2

1.4.6 Internal Audio Connectors
14
Right audio
channel
Left audio
channel
Ground Ground

AUX-in
14
Right audio
channel
Left audio
channel
Ground Ground
CD-in
865pe infinity 74740410 1.pmd 3/15/2004, 8:34 AM10

11
1
Quick Setup Guide
Quick Setu
Guide
1.4.7 Floppy Disk Drive Connector
34 33
21

1.4.8 IDE Disk Drive Connectors
40 39
21
IDE 2
40 39
21
IDE 1
IDE 2
IDE 1
865pe infinity 74740410 1.pmd 3/15/2004, 8:34 AM11

12
Quick Setup Guide
1
Quick Setu
Guide
1.4.9 Serial ATA Connectors
SATA 2
SATA 1
RAID SATA 2
RAID SATA 1
17
GND
TXP
TXN
GND
RXN
RXP
GND
SATA 1-2
RAID SATA 1-2
71
GND
TXP
TXN
GND
RXN
RXP
GND
1.4.10 IrDA Connector
15
VCC
N. C.
IRRX
Ground
IRTX

The Silicon Image Sil3112A chip allows configuring RAID on SATA
drives. It supports RAID 0 and 1. Refer to the Silicon Image RAID
User’s Manual for more information about the utility. The manual is
included in the CD.
865pe infinity 74740410 1.pmd 3/15/2004, 8:34 AM12

13
1
Quick Setup Guide
Quick Setu
Guide

1.4.11 Fan Connectors
Chassis fan

2nd fan
1
3
On/Off
Power
Sense
1
3
On/Off
Power
Sense
1
3
Ground
Power
Sense

CPU fan
1.4.12 Wake-On-LAN Connector
13
WOL
Ground
+5VSB
865pe infinity 74740410 1.pmd 3/15/2004, 8:35 AM13

14
Quick Setup Guide
1
Quick Setu
Guide
1.4.13 Chassis Open Alarm Connector
12
Ground
Chassis
signal

1.4.14 DIMM Standby Power LED
DIMM Standby
Power LED
If the DIMM Standby Power LED is lighted, you must power-off the
system then turn off the power supply’s switch or unplug the power
cord prior to installing any memory modules.
865pe infinity 74740410 1.pmd 3/15/2004, 8:35 AM14

15
1
Quick Setup Guide
Quick Setu
Guide

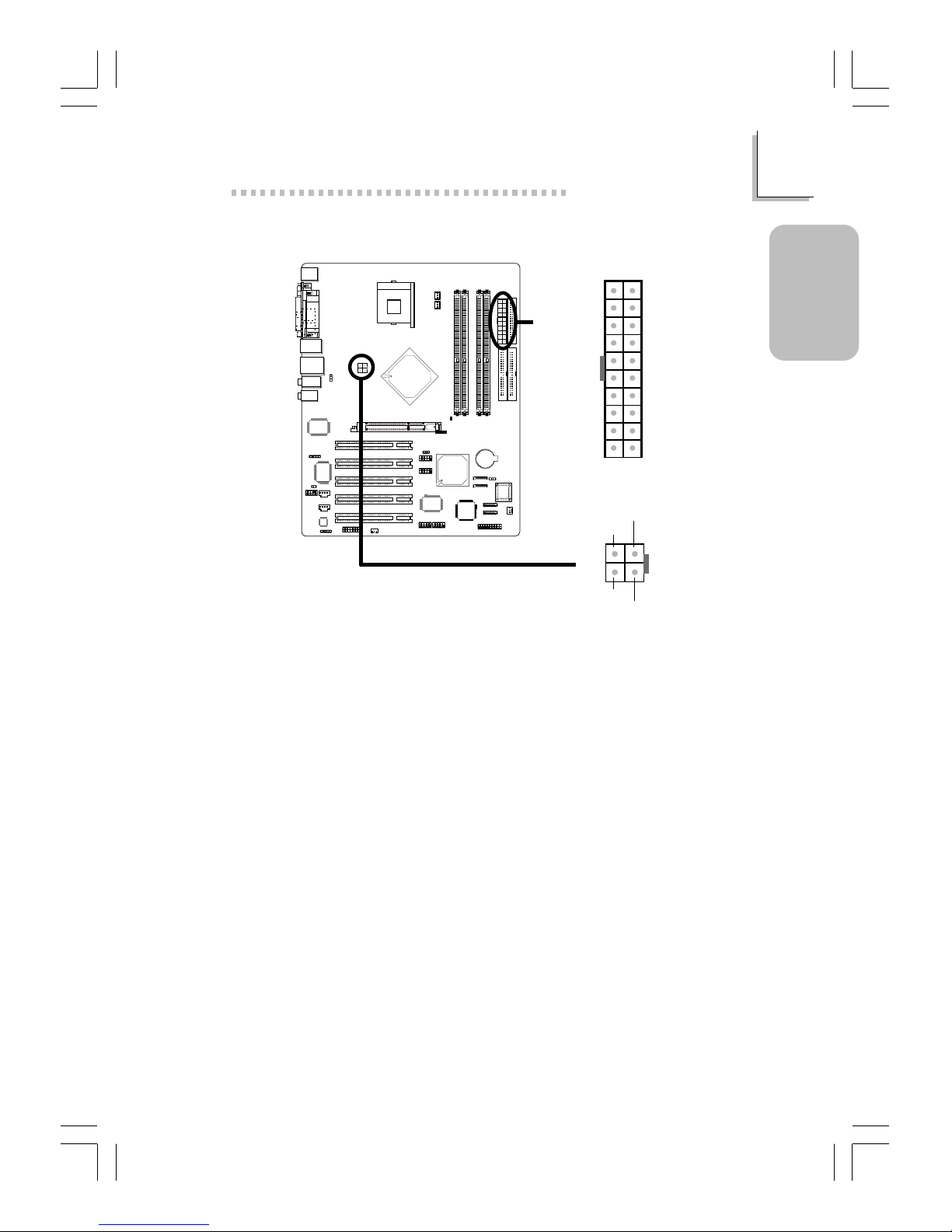

1.4.15 Power Connectors


+12V
10
1
20
11
3.3V
3.3V
Ground
+5V
Ground
+5V
Ground
PW-OK
5VSB
+5V
3.3V
-12V
Ground
PS-ON
Ground
Ground
Ground
-5V
+5V
1
24
3
Ground
Ground
+12V
+12V
The system board requires a minimum of 250 Watt power supply to
operate. Your system configuration (amount of memory, add-in cards,
peripherals, etc.) may exceed the minimum power requirement. To en-
sure that adequate power is provided, use a 300 Watt (or greater)
power supply.
865pe infinity 74740410 1.pmd 3/15/2004, 8:35 AM15

16
Quick Setup Guide
1
Quick Setu
Guide
1.4.16 Front Panel Connectors

J15 1
2
19
20
HD-LED
RESET
SPEAKER
PWR-LED
ATX-SW
Pin
3
5
14
16
8
10
18
20
7
9
13
15
17
19
2
4
6
HD-LED
(Primary/Secondary IDE LED)
Reserved
ATX-SW
(ATX power switch)
Reserved
RESET
(Reset switch)
SPEAKER
(Speaker connector)
PWR-LED
(Power/Standby LED)
Pin Assignment
HDD LED Power
HDD
N. C.
N. C.
PWRBT+
PWRBT-
N. C.
N. C.
Ground
H/W Reset
Speaker Data
N. C.
Ground
Speaker Power
LED Power (+)
LED Power (+)
LED Power (-) or Standby Signal
865pe infinity 74740410 1.pmd 3/15/2004, 8:35 AM16

17
2
English
English
2.1 Features and Specifications
Processor
• Intel® Pentium® 4 (Prescott and Northwood) processor up to
3.2GHz+
Intel Hyper Threading Technology
FSB: 533MHz and 800MHz
• Intel® Celeron® processor
400MHz system data bus
Chipset
• Intel® 865PE chipset
Intel® 865PE (MCH)
Intel® 82801EB (ICH5)
System Memory
• Supports four 184 pin DDR DIMM sockets
• Supports dual channel (128 bit wide) memory interface
Each channel supports 2 DIMM sockets
• Supports up to 4GB system memory
• Synchronous operation with processor system bus
PC2100/PC2700/PC3200 (DDR266/DDR333/DDR400)
with 800MHz FSB CPU. DDR333 will run at 320MHz
memory frequency when used with 800MHz FSB CPU.
Use PC2100/PC2700 (DDR266/DDR333) with 533MHz
FSB CPU
Use PC2100 (DDR266) with 400MHz FSB CPU
• Supports non ECC (x64) DIMM using 128Mb, 256Mb or
512Mb
• Supports unbuffered DIMMs
BIOS
• Award BIOS, Windows® 98SE/2000/ME/XP Plug and Play
compatible
Chapter 2 - English
865pe infinity 74740410 2.pmd 3/15/2004, 8:35 AM17

18
English
2
English
• Genie BIOS provides:
CPU/DRAM overclocking
AGP/PCI/SATA overclocking
CPU/DIMM/AGP overvoltage
• Supports SCSI sequential boot up
• Supports DMI 2.0 function
• 4Mbit flash memory
Energy Efficient Design
• ACPI STR (Suspend to RAM) function
• Wake On PS/2 Keyboard/Mouse
• Wake On USB Keyboard
• Wake On Ring
• Wake On LAN
• RTC timer to power on the system
• AC power failure recovery
System Health Monitor Functions
• Monitors CPU/system temperature and overheat alarm
• Monitors CPU/1.5V/5VSB/VBAT/3.3V/5V/±12V voltages and
failure alarm
• Monitors the speed of the CPU, chassis and 2nd fans and fail
ure alarm
• Automatic chassis fan and 2nd fan on/off control
• Read back capability that displays temperature, voltage and fan
speed
• Opened chassis alarm
Onboard udio Features
• 20 bit stereo full duplex codec with independent variable sam
pling rate
• High quality differential CD input
• True stereo line level outputs
• S/PDIF in/out interface
• 6 channel audio output
Onboard Gigabit L N PCI
• Realtek RTL8110S Gigabit LAN PCI controller
• Integrated power management functions
865pe infinity 74740410 2.pmd 3/15/2004, 8:35 AM18

19
2
English
English
• Full duplex support at both 10, 100 and 1000 Mbps
• Supports IEEE 802.3u auto negotiation
• Supports wire for management
S T IDE Interface with R ID
• Silicon Image Sil3112A PCI to Serial ATA controller
• Supports two SATA (Serial ATA) interfaces which are compli
ant with SATA 1.0 specification (1.5Gbps interface)
• Supports RAID 0 and RAID 1
IEEE 1394 Interface
• VIA VT6306 PCI 1394 integrated host controller
• Supports three 100/200/400 Mb/sec ports
PCI Bus Master IDE Controller
• Supports ATA/33, ATA/66 and ATA/100 hard drives
• PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/
sec.)
• Bus mastering reduces CPU utilization during disk transfer
• Supports ATAPI CD ROM, LS 120 and ZIP
Processor Socket
• Socket 478
GP ( ccelerated Graphics Port)
• Supports AGP 3.0 (AGP 4x and 8x) and AGP 2.0 (AGP 1x and
4x)
• Supports 1.5V AGP 8x (2.13GB/sec.) and AGP 4x (1066MB/
sec.) add in cards. AGP 2x and 3.3V AGP card are not sup
ported.
Rear Panel I/O Ports (PC 99 color-coded connectors)
• 1 PS/2 mouse port
• 1 PS/2 keyboard port
• 1 DB 9 serial port
• 1 DB 25 parallel port
• 4 USB 2.0/1.1 ports
• 1 IEEE 1394 port
865pe infinity 74740410 2.pmd 3/15/2004, 8:35 AM19

20
English
2
English
• 1 RJ45 LAN port
• 2 S/PDIF RCA jacks (S/PDIF in and S/PDIF out)
• 3 audio jacks: line out, line in and mic in
• 2 audio jacks for center/bass and rear out
I/O Connectors
• 2 connectors for 4 additional external USB 2.0/1.1 ports
• 2 connectors for 2 external IEEE 1394 ports
• 1 front audio connector for external line out and mic in jacks
• 1 connector for an external game/MIDI port
• 2 internal audio connectors (CD in and AUX in)
• 1 S/PDIF connector for optical cable connection
• 1 connector for IrDA interface
• 4 Serial ATA connectors
• 2 IDE connectors
• 1 floppy connector
• 2 ATX power connectors (20 pin and 4 pin 12V)
• 1 Wake On LAN connector
• 1 opened chassis alarm connector
• CPU fan, chassis fan and 2nd fan connectors
Expansion Slots
• 1 AGP slot
• 5 PCI slots
Compatibility
• PCI 2.2 and AC ’97 compliant
• Intel AGP version 3.0
2.2 CMOS Reloaded
CMOS Reloaded is a technology that allows storing multiple
user defined configurations by using the BIOS utility to save, load
and name the configurations. This is especially useful to
overclockers who require saving a variety of overclocked con
figurations and being able to conveniently switch between these
configurations simultaneously. Select CMOS Reloaded in the main
menu of the Award BIOS then press <Enter>.
You can save up to 4 configurations in the “User Define Config
1” to “User Define Config 4” fields.
865pe infinity 74740410 2.pmd 3/15/2004, 8:35 AM20
