DFI KD630-H110 User manual

KD630-H110
A-613-M-2102
ATX Industrial Motherboard
User’s Manual
ver.021_EVT_11-3020_14-53

2User's Manual | KD630
Copyright
This publication contains information that is protected by copyright. No part of it may be repro-
duced in any form or by any means or used to make any transformation/adaptation without the
prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions or
changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2020. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the re-
ceiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for com-
pliance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

3User's Manual | KD630
Table of Contents
Chapter 1 - Introduction.................................................................................................................................................6
Specifications..............................................................................................................................................................6
Features ........................................................................................................................................................................7
Block Diagram............................................................................................................................................................8
Chapter 2 - Hardware Installation...............................................................................................................................8

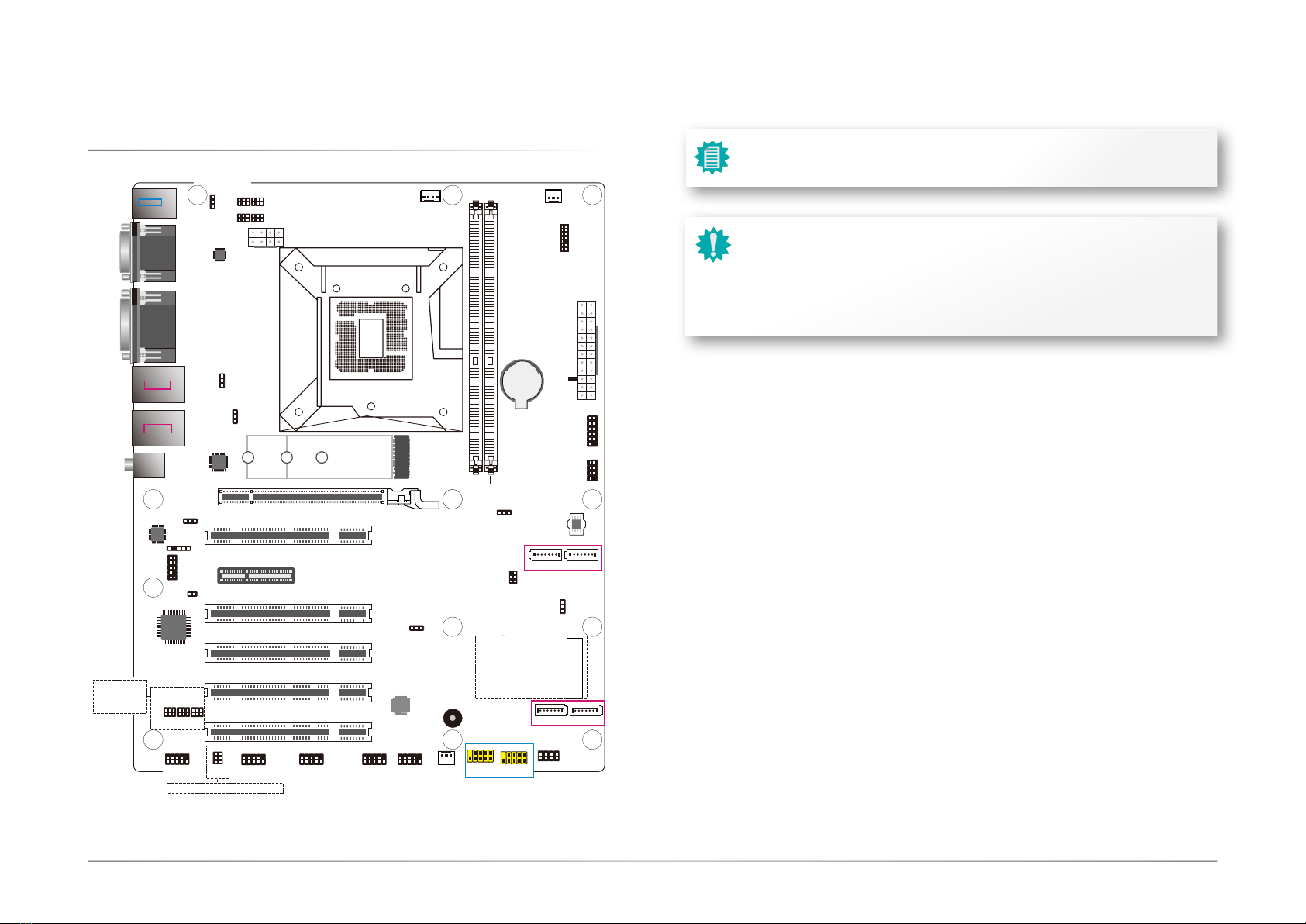

Board Layout...............................................................................................................................................................8
LED and Switch..........................................................................................................................................................8
System Memory.........................................................................................................................................................9
Installing the DIMM Module ........................................................................................................................9
Removing the DIMM Module ...................................................................................................................10
CPU..............................................................................................................................................................................11
Installing the CPU Fan and Heat Sink....................................................................................................11

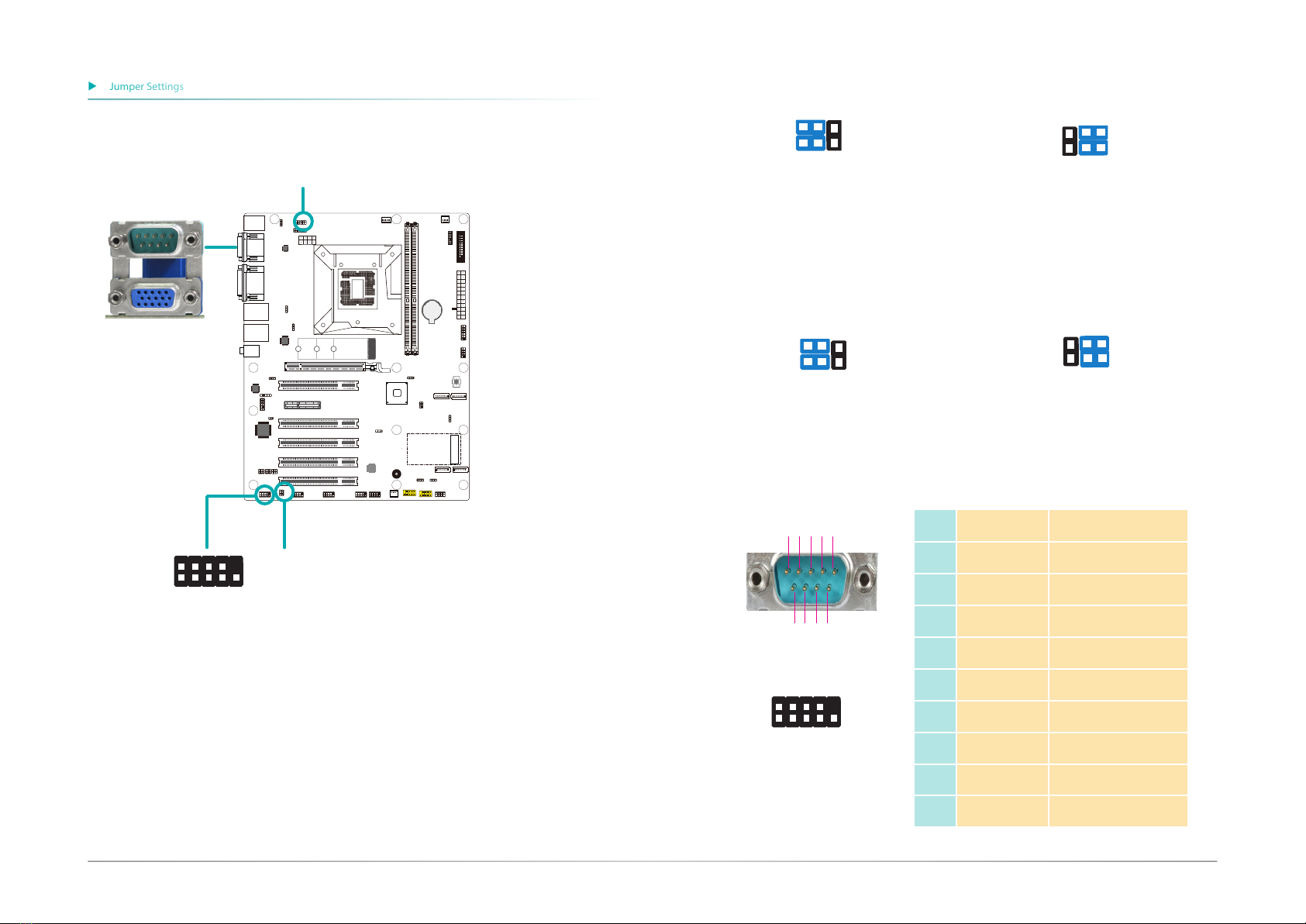

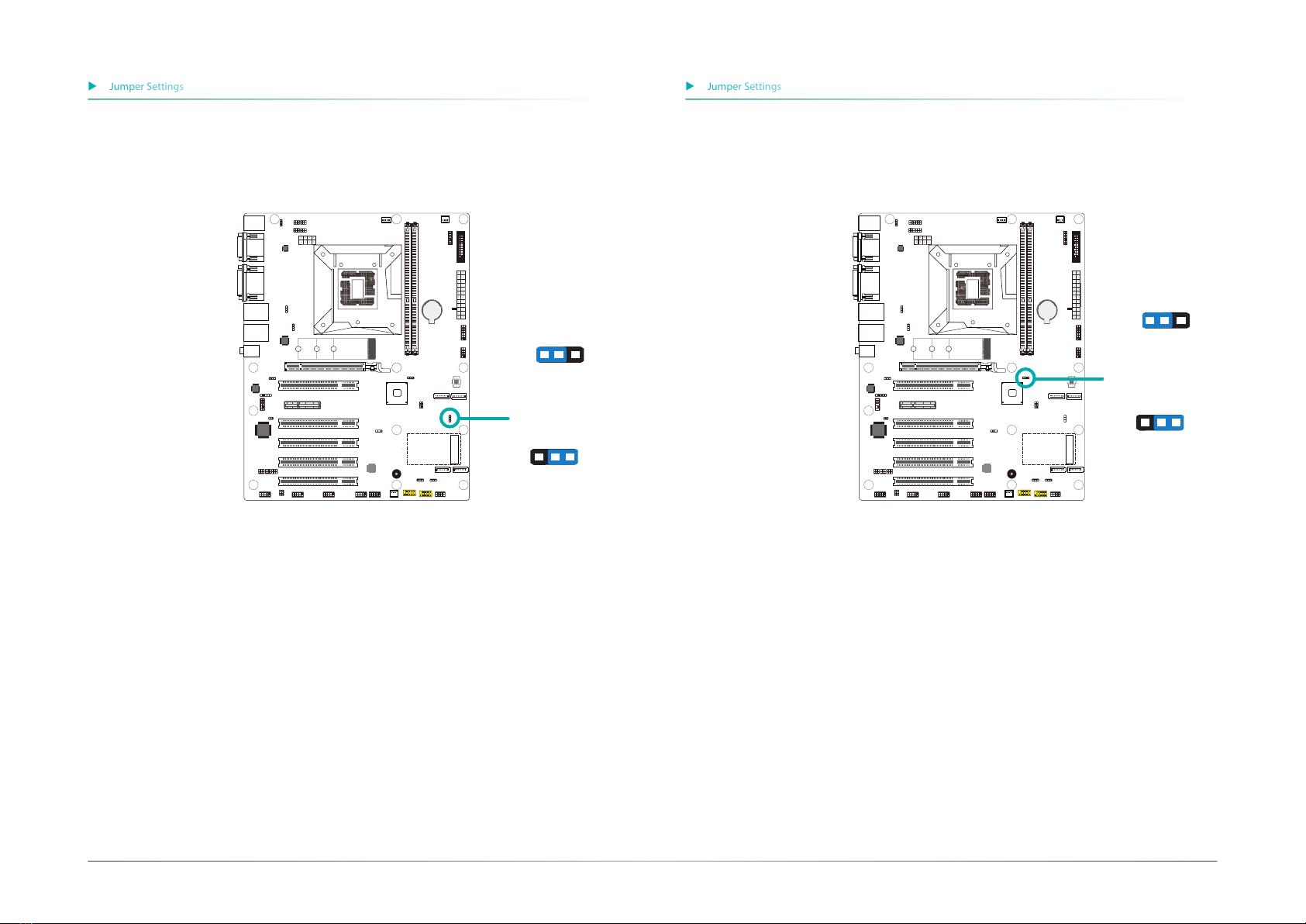

Jumper Settings......................................................................................................................................................12
CLEAR CMOS Data.........................................................................................................................................12

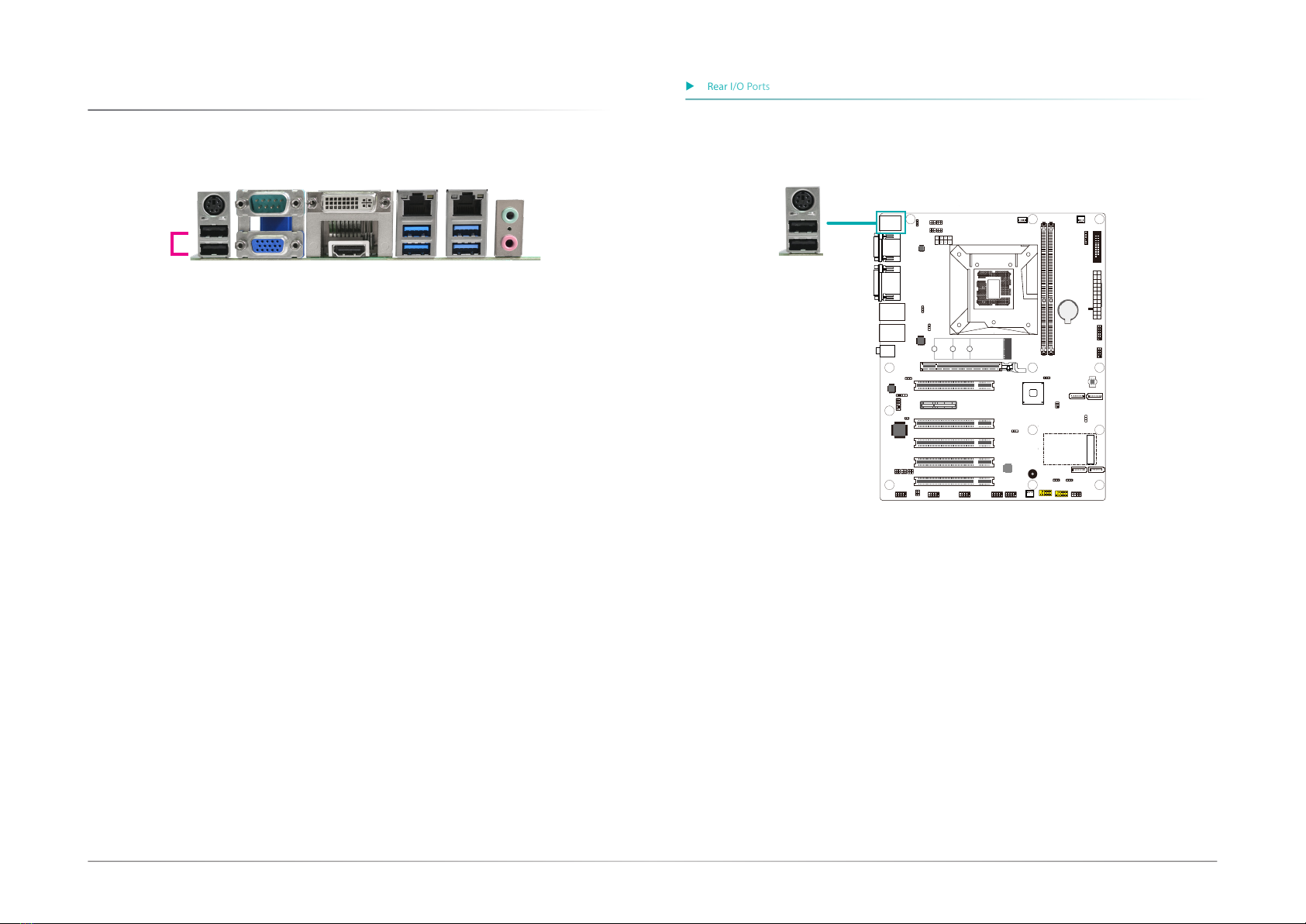

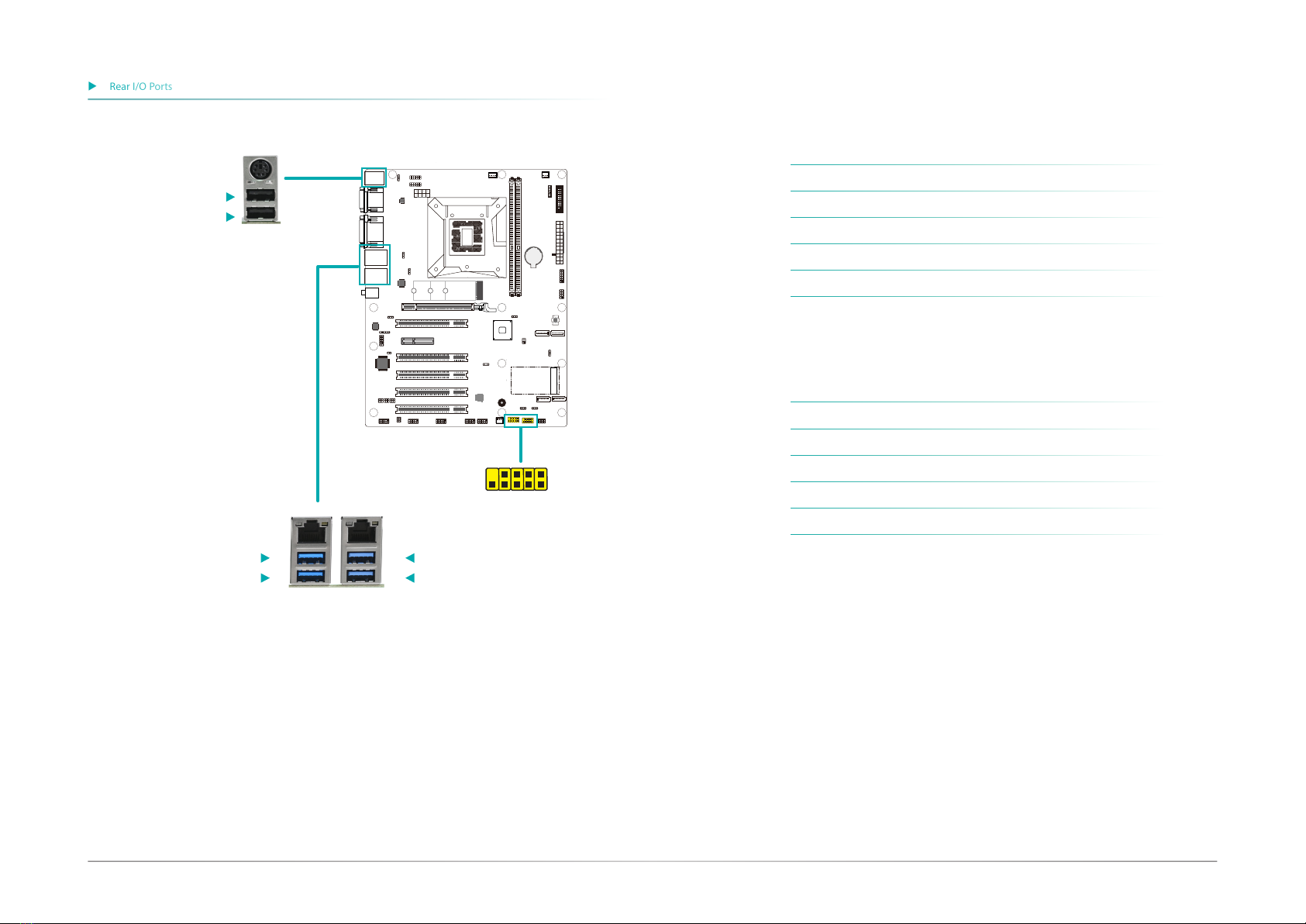

Rear I/O Ports...........................................................................................................................................................12
COM (Serial) ports .........................................................................................................................................13
RJ45 LAN Ports ...............................................................................................................................................13
USB Ports ..........................................................................................................................................................14
Internal I/O Connectors.......................................................................................................................................15
SATA (Serial ATA)............................................................................................................................................15
Debug................................................................................................................................................................15
Cooling Fan Connectors .............................................................................................................................16
Power Connector...........................................................................................................................................16
Chassis Intrusion............................................................................................................................................17
Front Panel.......................................................................................................................................................17
Expansion Slots ..............................................................................................................................................18
Installing the M.2 Module ..........................................................................................................................18
Battery ...............................................................................................................................................................19
Chapter 3 - BIOS Setup.................................................................................................................................................20
Overview ..................................................................................................................................................................20
Main ............................................................................................................................................................................21
Advanced .................................................................................................................................................................21
ACPI Configuration .......................................................................................................................................22
CPU Configuration ........................................................................................................................................23
Video Configuration .....................................................................................................................................23
SATA Configuration.......................................................................................................................................24
USB Configuration.........................................................................................................................................25
PCI Express Configuration..........................................................................................................................26
Debug Configuration...................................................................................................................................27
UEFI Device Manager...................................................................................................................................27
SIO NCT6112D ................................................................................................................................................28
Console Redirection .....................................................................................................................................30
Security ......................................................................................................................................................................31
Boot............................................................................................................................................................................. 31
Exit...............................................................................................................................................................................33
Updating the BIOS.................................................................................................................................................33
Notice: BIOS SPI ROM ...........................................................................................................................................33
Chapter 4 - RAID .............................................................................................................................................................34
RAID Levels...............................................................................................................................................................34
Setup Procedure.....................................................................................................................................................34

4User's Manual | KD630
About this Manual
This manual can be downloaded from the website.
The manual is subject to change and update without notice, and may be based on editions that
do not resemble your actual products. Please visit our website or contact our sales representa-
tives for the latest editions.
Warranty
1. Warranty does not cover damages or failures that occur from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper in-
stallation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether in
or out of warranty. It must be returned to the purchase point, factory or authorized ser-
vice agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequential damages to
the product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you
are ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, con-
tacts or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or
connectors by their ends.
Safety Measures
• To avoid damage to the system, use the correct AC input voltage range.
• To reduce the risk of electric shock, unplug the power cord before removing the sys-
tem chassis cover for installation or servicing. After installation or servicing, cover the
system chassis before plugging the power cord.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other
components. Perform the upgrade instruction procedures described at an ESD
workstation only. If such a station is not available, you can provide some ESD pro-
tection by wearing an antistatic wrist strap and attaching it to a metal part of the
system chassis. If a wrist strap is unavailable, establish and maintain contact with
the system chassis throughout any procedures requiring ESD protection.

5User's Manual | KD630
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• 1 KD630-H110 motherboard
• 1 COM port cable (Length: 300mm, 2 x COM ports)
• 1 Serial ATA data cable (Length: 500mm)
• 1 I/O shield
• 1 M.2 standoff
• 1 M.2 Screw
• 1 Mini PCIe Screw
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance with the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Optional Items
• USB port cable (Length: 350mm)
• COM port cable (Length: 300mm, 2 x COM ports)
• Serial ATA data cable (Length: 500mm)
• Thermal solution (For 35W, Height: 37.3mm)
• Thermal solution (For 65W, Height: 72.8mm)
• Thermal solution (For 95W, Height: 69.3mm)
• LPC EXT-RS232 module (4 x RS232 ports)
• LPC EXT-RS485 module (4 x RS485 ports)
• Mini PCIe bracket (expansion for full sized mini PCIe)
• Mini PCIe Screw (expansion for full sized mini PCIe)
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance with the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System Board
When installing the system board in a new system, you will need at least the following internal
components.
• Memory module
• Storage device such as a hard disk drive.
• Power supply
External system peripherals may also be required for navigation and display, including at least
a keyboard, a mouse and a video display monitor.

6
Chapter 1
INTRODUCTION
User's Manual | KD630
Chapter 1 - Introduction
XSpecifications
SYSTEM Processor 7th Gen Intel® Core™/Pentium®/Celeron® LGA 1151 Socket
Processors with TDP up to 95W:
Intel® Core™ i7-7700K (4 Cores, 8M Cache, up to 4.5 GHz); 91W
(Non-LTS)
Intel® Core™ i7-7700 (4 Cores, 8M Cache, up to 4.2 GHz); 65W
Intel® Core™ i7-7700T (4 Cores, 8M Cache, up to 3.8 GHz); 35W
Intel® Core™ i5-7500 (4 Cores, 6M Cache, up to 3.8 GHz); 65W
Intel® Core™ i5-7500T (4 Cores, 6M Cache, up to 3.3 GHz); 35W
Intel® Core™ i3-7101E (2 Cores, 3M Cache, 3.9 GHz); 65W
Intel® Core™ i3-7101TE (2 Cores, 3M Cache, to 3.4 GHz); 35W
6th Gen Intel® Core™/Pentium®/Celeron® LGA 1151 Socket
Processors with TDP up to 95W:
Intel® Core™ i7-6700K (Cores, 8M Cache, up to 4.2 GHz); 91W
(Non-LTS)
Intel® Core™ i7-6700 (4 Cores, 8M Cache, up to 4.0 GHz); 65W
Intel® Core™ i7-6700TE (4 Cores, 8M Cache, up to 3.4 GHz);
35W
Intel® Core™ i5-6500 (4 Cores, 6M Cache, up to 3.6 GHz); 65W
Intel® Core™ i5-6500TE (4 Cores, 6M Cache, up to 3.3 GHz);
35W
Intel® Core™ i3-6101E (2 Cores, 4M Cache, 3.7 GHz); 65W
Intel® Core™ i3-6101TE (2 Cores, 4M Cache, to 2.7 GHz); 35W
Intel® Pentium® G4400 (2 Cores, 3M Cache, 3.3 GHz); 65W
Intel® Pentium® G400TE (2 Cores, 3M Cache, 2.9 GHz); 35W
Intel® Celeron® G3900 (2 Cores, 2M Cache, 2.8 GHz); 65W
Intel® Celeron® G3900TE (2 Cores, 2M Cache, 2.6 GHz); 35W
Chipset Intel® H110 Chipset
Memory Two 288-pin UDIMM up to 64GB
Dual Channel DDR4 up to 2666MHz
Core™ i5/i7 only support non-ECC
BIOS Insyde SPI 128Mbit
GRAPHICS Controller Intel® HD Gen 9 Graphics
Feature OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG,
HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display 1 x VGA
1 x DVI-I (DVI-D signal)
1 x HDMI1.4b
VGA: resolution up to 1920x1200 @ 60Hz
DVI-I: resolution up to 1920x1200 @ 60Hz
HDMI1.4b: resolution up to 4096x2160 @ 24Hz
Dual Displays VGA + DVI-I / VGA + HDMI / DVI-I + HDMI
EXPANSION Interface 1 x PCIe x16 (Gen 3)
1 x PCIe x4 (Gen 2)
5 x PCI
1 x M.2 2242/2260/2280 M key (PCIe Gen3 x 4 NVMe, share
with PCIe x4 slot)
1 x mSATA (Share with SATA connector)
AUDIO Audio Codec Realtek ALC888S-VD2-GR
ETHERNET Controller 1 x Intel® I211AT (10/100/1000Mbps) 1 x Intel® I219V
(10/100/1000Mbps)
REAR I/O Ethernet 2 x GbE (RJ-45)
Serial 1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB 4 x USB 3.1 Gen1
2 x USB 2.0
PS/2 1 x PS/2 (mini-DIN-6)
Display 1 x VGA
1 x DVI-I (DVI-D signal)
1 x HDMI
Audio 1 x Line-in (opt., MOQ required)
1 x Line-out
1 x Mic-in
INTERNAL I/O Serial 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)
USB 4 x USB 2.0 (2.54mm pitch) or
up to 2 x Vertical USB 2.0 (type A) (opt., MOQ required)
Audio 1 x Audio
1 x S/PDIF

7
Chapter 1
INTRODUCTION
User's Manual | KD630
SATA 4 x SATA 3.0 (up to 6Gb/s)
DIO 1 x 8-bit DIO
LPC 1 x LPC (supports LPC EXT-RS232/RS485 module)
SMBus 1 x SMBus
WATCHDOG
TIMER
Output &
Interval
System Reset, Programmable via Software from 1 to 255
Seconds
SECURITY TPM Infineon TPM2.0/1.2 (opt., MOQ required)
POWER Type AT X
Connector 8-pin ATX 12V power 24-pin ATX power
Consumption TBD
RTC Battery CR2032 Coin Cell
OS SUPPORT Microsoft Windows 7 32/64-bit (6th Gen Intel® Core™/Pentium®/Cel-
eron® processors only)
Window 8.1 64-bit (6th Gen Intel® Core™/Pentium®/Celeron®
processors only)
Windows 10 64-bit
Linux Linux
ENVIRONMENT Temperature Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC
Battery
Humidity Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF TBD
MECHANICAL Dimensions ATX Form Factor 305mm (12") x 244mm (9.6")
Height TBD
CERTIFICA-
TIONS
TBD

8
Chapter 1
INTRODUCTION
User's Manual | KD630
XFeatures
Watchdog Timer
The Watchdog Timer function allows your application to regularly “clear” the system at the set
time interval. If the system hangs or fails to function, it will reset at the set time interval so that
your system will continue to operate.
DDR4
DDR4 delivers increased system bandwidth and improves performance. The advantages of
DDR4 provide an extended battery life and improve the performance at a lower power than
DDR3/DDR2.
Serial ATA
Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of
up to 6Gb/s (SATA 3.0), it improves hard drive performance faster than the standard parallel
ATA whose data transfer rate is 100MB/s.
Gigabit LAN
Two Intel®Gigabit LAN controllers (Intel®I210AT PCIe) support up to 1Gbps data transmis-
sion.
Wake-On-LAN
This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It is
supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Man-
agement Event) signal. However, if your system is in the Suspend mode, you can power-on the
system only through an IRQ or DMA interrupt.
Wake-On-USB
This function allows you to use a USB keyboard or USB mouse to wake up a system from the
S3 (STR - Suspend To RAM) state.
PCI Express
PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds
by forming multiple lanes. The x4 PCI Express lane supports transfer rate of 4 Gigabyte per
second (2 directions). The PCI Express architecture also supports high performance graphics
infrastructure by enhancing the capability of a PCIe x16 Gen 3 at 16GB/s bandwidth (8GB/s in
each direction).
ACPI STR
The system board is designed to meet the ACPI (Advanced Configuration and Power Interface)
specification. ACPI has energy saving features that enables PCs to implement Power Manage-
ment and Plug-and-Play with operating systems that support OS Direct Power Management.
ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM
function.
With the Suspend to RAM function enabled, you can power-off the system at once by pressing
the power button or selecting “Standby” when you shut down Windows®without having to go
through the sometimes tiresome process of closing files, applications and operating system.
This is because the system is capable of storing all programs and data files during the entire
operating session into RAM (Random Access Memory) when it powers-off. The operating ses-
sion will resume exactly where you left off the next time you power-on the system.
Power Failure Recovery
When power returns after an AC power failure, you may choose to either power-on the system
manually or let the system power-on automatically.
USB
The system board supports the new USB 3.1 Gen 1. It is capable of running at a maximum
transmission speed of up to 5 Gbit/s (625 MB/s), and is faster than USB 2.0 (480 Mbit/s, or 60
MB/s) and USB 1.1 (12Mb/s). USB 3.1 reduces the time required for data transmission, reduc-
es power consumption, and is backward compatible with USB 2.0. It is a marked improvement
in device transfer speeds between your computer and a wide range of simultaneously acces-
sible external Plug and Play peripherals.
RTC Timer
The Real Time Clock (RTC) installed on the system board allows your system to automatically
power-on on the set date and time.

9
Chapter 1
INTRODUCTION
User's Manual | KD630
XBlock Diagram
Core
i7/i5/i3
PCIe x1
Channel A
SATA 3.0
PCIe x4
SATA 3.0
SMBus
USB 3.0
USB 2.0
USB 2.0
PCIe x1
DDI
HDA
LPC Bus
I219V
USB 3.1 Gen1 2x
USB 2.0 2x
S/PDIF
GLAN 1
Audio Jack
(Line-out/Mic in)
RS-232 4x
RS-232/422/485 2x
FAN Control
H/W Monitor
PS/2 KB/MS
DDR4 up to 2666MHz
UDIMM
SATA 3x
PCIe x4
SATA 1x
Digital I/O 8-bit
SMBus
SPI
I211AT
AMS1085
ALC888
GLAN 2
Super IO
with WDT
H110
Channel B
PCIe x16 Gen3 PCIe x16
DDI
PIN3355
DDI
ASM1442
USB 3.0
USB 2.0
USB 3.1 Gen1 2x
mSATA 1x
USB 2.0 4x
USB 2.0
M.2 M key
PCIe x1 PCI PCI 5x
LPC
LPC header
TPM (opt.)
DVI-I
VGA
HDMI
R.G.B
TMDS
DDR4 up to 2666MHz
UDIMM

8
Chapter 2
HARDWARE INSTALLATION
User's Manual | KD630
Chapter 2 - Hardware Installation
XBoard Layout
Important:
Electrostatic discharge (ESD) can damage your board, processor, disk drives,
add-in boards, and other components. Perform installation procedures at an ESD
workstation only. If such a station is not available, you can provide some ESD pro-
tection by wearing an antistatic wrist strap and attaching it to a metal part of the
system chassis. If a wrist strap is unavailable, establish and maintain contact with
the system chassis throughout any procedures requiring ESD protection.
Note:
Some components are optional and only available upon request.
1
5
C
7
1
Mini PCIE_mSATA
1
2
91
2
91
2
91
2
91
2
9
Socket LGA1151
1
System
Fan 1
1
5
12
SMBus (J13)
Intel I211AT
CPU Fan
1
PTN3355
62
6
2
6
5
1
6
5
2
1
COM 1
RS232/422/485
Select (JP3)
COM 1
RS232/422/485
Select (JP1)
+12V
Power
4
8
1
5
2
COM 1 RS232/Power Select (JP4)
COM 1 RS232/422/485
Select (JP2)
2
S1 S3
LAN 2
USB 3-4
USB 3.0
LAN 1
USB 1-2
USB 3.0
PS/2 KB/MS
USB 5-6
USB 2.0
COM 1
VGA
DVI-I (DVI-D signal)
HDMI
S/PDIF
1
Realtek
ALC888S
2
9 10
1
Front
Audio
Buzzer
Nuvoton
NCT6106D
Chassis
Intrusion (J4)
1
3
DDR4_1
DDR4_2
LPC
1
13
2
14
12
11
Front
Panel
113
12 24
Standby
Power
LED
ATX
Power
1
SATA 1
1
SATA 0
SATA 3.0
SPI Flash BIOS
1
2
7
8
LAN
LED
USB 2.0
210
9
1
2
10
210
9
1
210
Asmedia
ASM1085
PCI 5
PCI 4
PCI 3
PCI 2
PCIE 2 (PCIe x4)
PCI 1
H110/Q170
PCIe 1 (PCIe x16)
1
2 6
5
(JP8)
(JP6)
(JP10)
1
2 6
51
2 6
5
1
2
65
COM 2 RS232
/422/485
Select (JP6/8
/10)
COM 2 RS232/Power Select (JP7)
SATA 2 SATA 3
COM 2 COM 3
COM 4 COM 5 COM 6 USB 7-8 USB 9-10
Line-out
Mic-in
Line-in
5
2
3
4
(JP7)
System
Fan 2
JP13 JP14
11
13
JP9
SATA 3.0
1
3JP16
JP23
1 2
78
13
M.2 M Key
1
3
J5
1
3JP11
1
3
JP15
13
JP12
JP18
Battery
Battery
