DiamaPro Systems WVX User manual

OWNER’S MANUAL
WVX
INDUSTRIAL WET VAC
USER & MAINTENANCE BOOK
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

INTRODUCTION
Thank you for purchasing a DIAMAPRO® SYSTEMS product.
This manual provides information and procedures to safely operate and maintain the WVX Wet Vacuum.For your own safety and protection from injury,
carefully read, understand, and observe the safety instructions described in this manual.
Keep this manual or a copy of it with the machine. If you lose this manual or need an additional copy, please contact DiamaPro® Systems. This machine
is designed and built with user safety in mind; however, it can present hazards if improperly operated and serviced.
Please follow the operating instructions carefully. If there are any questions regarding operating or servicing of this machine, please contact DiamaPro®
Systems customer service at 470-977-2323.
We also recommend that you visit our website www.diamaprosystems.com for the fastest, most e󰀩cient way to complete your product registration and
see other DiamaPro Systems’ products and accessories to meet your cleaning needs.
DISCLAIMER: DiamaPro and its a󰀩liates take no responsibility for any damage, injury or death resulting from the incorrect or unsafe use of this product.
Use of this product should be undertaken by competent persons only. It is the operator’s responsibility to ensure that the following safety procedures are
followed. If you are unsure, do not operate this product.
WARRANTY
OPERATION
BEFORE EACH USE
(1) This vacuum cleaner is designed for wet only pickup. Please avoid picking up dry materials.
(2) Make sure the tank is clean, and that there is no debris in the tank.
(3) Make sure the mesh lter bag is installed on the inlet inside the canister. The bag should be empty, and the slide-on clamp should be installed on the
bottom of the bag. Position the thin, at plastic strip that is attached to the mesh lter bag, over the rim of the canister. This strip helps retain the bag
when it lls with debris.
(4) Make sure that the oat mounted on the underside of the motor head is able to move freely, and that the lter on the outside of the oat housing is
clean and properly in place. This lter will protect the vacuum motor from debris.
(5) Attach the motor head to the canister using the two metal clamps mounted on the side of canister.
(6) Attach the long discharge hose to the brass tting on the rear of the canister. The tting is a ball coupling type. Pull the collar of the female brass
tting toward the canister before inserting the hose tting.
TO OPERATE
(1) The vacuum cleaner motor is controlled by the switch on the top left side of the motor head.
(2) The liquid in the canister can be emptied using the short, black, corrugated hose attached to the rear of the canister. Be sure the end of the hose is
securely attached to the stationary drain hose plug after use.
(4) Check the mesh bag frequently for debris. To empty, remove the bag from the canister and slide o󰀨 the retaining clip on the bottom of the bag. Rein-
stall the mesh lter bag before continuing to use the vacuum.
Do not operate the vacuum without the mesh lter bag in place
NEVER LUBRICATE THE VACUUM CLEANER MOTOR. THE MOTOR BEARINGS ARE PERMANENTLY
SEALED. THIS VACUUM IS INTENDED FOR INDOOR OR OUTDOOR USE AND FOR WET PICKUP, BUT
IT IS NOT INTENDED TO BE EXPOSED TO RAIN.
DiamaPro Systems’ WVX model vacuums are warranted to be free from manufacturing defects in normal service for a period of one or two years from
the date of purchase by the original consumer purchaser. Component manufacturers o󰀨er separate warranty periods. Call 470-977-2323 for complete
information.
DiamaPro System’s obligation under this warranty is expressly limited to the replacement of such part or parts as inspection shall disclose to have been
defective.
This warranty does not apply to defects caused by damage, unreasonable use, faulty repairs made by others or defects caused by failure to provide
reasonable maintenance.
Further, the warranty is void if the product, or any of its components, is altered or modied by the consumer or if the product is used in an inappropriate
manner or with equipment not recommended by the manufacturer.
Wear items are not covered under warranty: examples include: belts, wheels, casters, bearings, cart wheels, lters, wear pads, spark plugs, hoses,
wands and squeegees, motors, etc.
To qualify for warranty coverage, DiamaPro WVX vacuums must be registered within 30 days of purchase. Registration can be completed online at
www.DiamaProSystems.com.
To request your warranty service you MUST send a written request to the dealer or directly to the manufacturer including the manufacturing details that
can be found on a plate tted inside your machine together with a copy of the invoice.

SAFETY INSTRUCTIONS
When using an electrical vacuum, basic safety precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING YOUR
VACUUM CLEANER
WARNING: To reduce the risk of re, electrical shock, or injury:
1. Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
2. Do not expose to rain. Store indoors.
3. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
4. Use only as described in this manual. Use only manufacturer’s recommended attachments.
5. Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water,
contact Customer Service.
6. Do not pull or carry by cord, use as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliances over cord. Keep
cord away from heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8. Do not handle plug or appliance with wet hands.
9. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air ow.
10. Keep hair, loose clothing, ngers and all parts of the body away from openings and moving parts.
11. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
12. Do not use without dust bag and/or lters in place.
13. Turn o󰀨 all controls before unplugging.
14. Use extra care when cleaning on stairs.
15. Do not use to pick up ammable or combustible liquids such as gasoline, or use in areas where they may be present.
16. This vacuum is for commercial use only.
17. Connect to a properly grounded outlet only. See grounding instructions
This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the
risk of electric shock. This appliance is equipped with a cord having equipment grounding conductor and grounding plug. The plug must be inserted into
an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
Do not modify the plug provided with the appliance - if it will not t the outlet, have a proper outlet installed by a qualied electrician.
This appliance is for use on a nominal 120 - Volt circuit, and has a grounded plug that looks like the plug illustrated in sketch A below. A temporary adapt-
er that looks like the adapter illustrated in sketches B and C may be used to connect this plug to a 2-pole receptacle as shown in sketch B if a properly
grounded receptacle is not available. The temporary adapter should be used only until a properly grounded outlet (sketch A) can be
installed by a qualied electrician. The green colored ear, lug, or the like extending from the adapter must be connected to a permanent ground such as
a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw.
NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.
SAVE THESE INSTRUCTIONS - GROUNDING
IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONDUCTOR CAN RESULT
IN A RISK OF ELECTRIC SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE
PERSON IF YOU ARE IN DOUBT AS TO WEATHER THE OUTLET IS PROPERLY GROUNDED.

REPLACEMENT PARTS
MOTOR HEAD ASSEMBLY
Ref. Part No. Description Qty.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
WVX-TOP-HANDLE
WVX-SWITCH
WVX-OUTLET
WVX-SCREW-4.8X15MM
WVX-DOME
WVX-TERMINAL-STRIP
WVX-SCREW-2.9X19MM
WVX-CORD-RESTRAINT
WVX-RUBBER-STRAIN-REL
WVX-16/3-50
WVX-SCREW-4.9X25MM
WVX-BLOWER-CHAMBER
WVX-COOLING-GASKET
WVX-TPMOTOR-ADPT
WVX-HOUSING-GASKET
WVX-MOTOR-120V
WVX-FOAM
WVX-CAN-CAP
WVX-GASKET-CAN-CAP
WVX-SCREW
WVX-LOCK-NUT
TOP HANDLE
SWITCH
OUTLET
SCREW 4.8X15MM
DOME
TERMINAL STRIP
SCREW 2.9X19MM
CORD RESTRAINT
RUBBER-STRAIN RELIEF
CORD SET 16/3-50’
SCREW 4.9X25MM
BLOWER CHAMBER
MOTOR COOLING GASKET
TOP MOTOR ADAPTOR
MOTOR HOUSING GASKET
MOTOR 120V
FOAM
CAN CAP
GASKET CAN CAP
SCREW
LOCK NUT
1
2
1
8
1
1
3
1
1
1
6
1
1
1
2
1
1
1
1
4
4

TANK ASSEMBLY
Ref. Part No. Description Qty.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
WVX-20GL-POVTANK
WVX-CLAMP
WVX-SS-SCREW
WVX-HOSE-INLET-WGASKET
WVX-WHEEL-RETAINER
WVX-WHEEL-RETAINER-S
WVX-WHEEL
WVX-WHEEL-BEARING
WVX-AXLE
WVX-AXLE-MOUNT-SCREW
WVX-WASHER
WVX-CAST-COMPLETE
WVX-DRAIN-HOSE-ASSEMBLY
WVX-MESH-FILTER-BAG
WVX-BAG-CLIP
WVX-SQUEEGEE-FRAME
WVX-SQUEEGEE-RUBBER
20 GALLON POV TANK
CLAMP
STAINLESS STEEL SCREW
HOSE INLET W/GASKET
WHEEL RETAINER
WHEEL RETAINER W/SCREW
WHEEL
WHEEL BEARING
AXLE
AXLE MOUNTING SCREW
WASHER
CASTER COMPLETE
DRAIN HOSE ASSEMBLY
MESH FILTER BAG
BAG CLIP
FRAME FOR SQUEEGEE
RUBBER SQUEEGEE
1
2
4
1
2
2
2
2
1
2
2
2
1
1
1
1
1

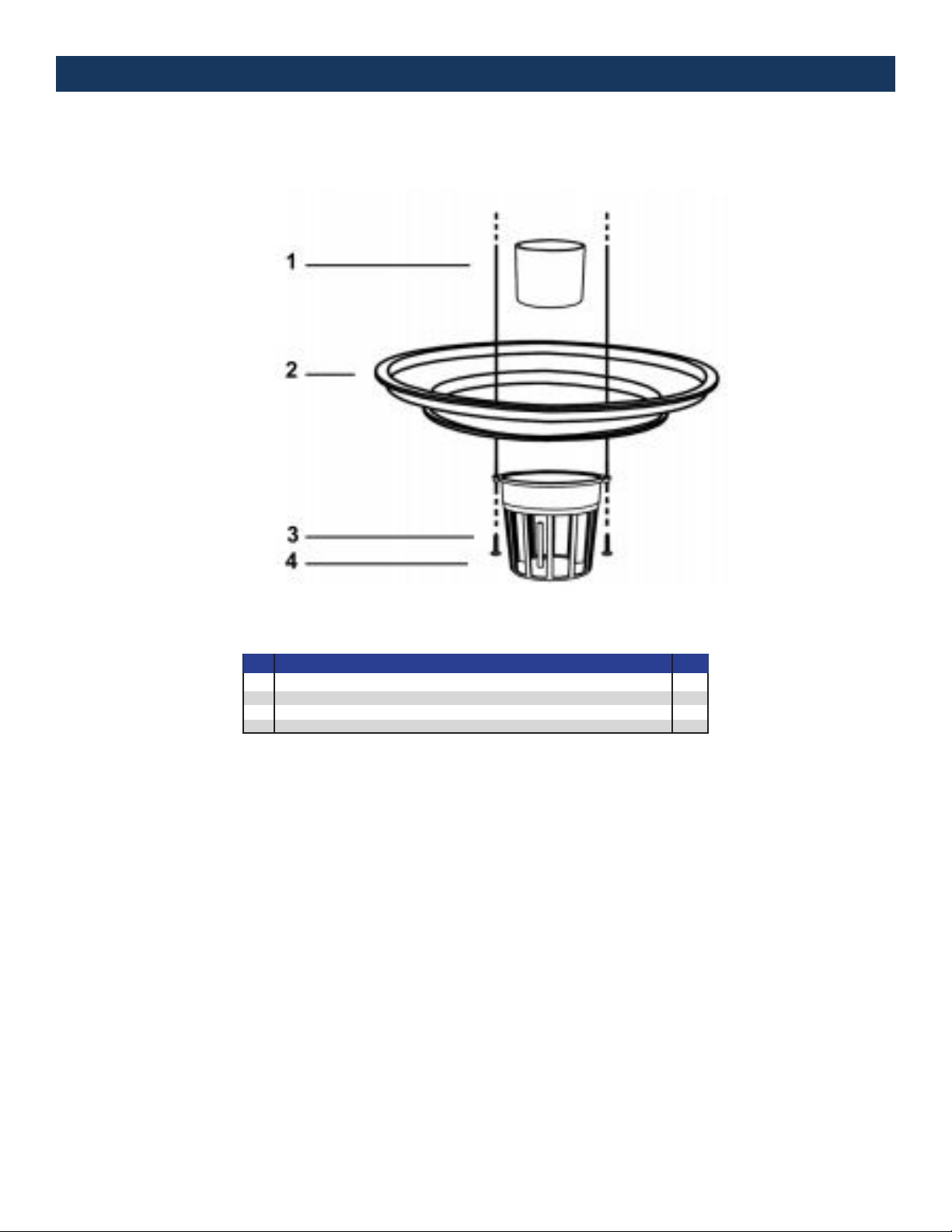

REPLACEMENT PARTS

REPLACEMENT PARTS
Ref. Part No. Description Qty.
1
2
3
4
WVX-FLOAT
WVX-FILTER-RING
WVX-SCREW-4.8X15MM
WVX-FLOAT-CAGE
FLOAT
FILTER RING
SCREW 4.8X15MM
FLOAT CAGE
1
1
2
1
FILTER ASSEMBLY

Part No. Description Qty.
WVX-WAND
WVX-CRUSHPROOF-W/ENDS
WVX-CREVICE-TOOL
WVX-SQUEEGEE-TOOL
5’ TWO-PIECE WAND
10’ CRUSHPROOF HOSE W/ENDS
17” CREVICE TOOL
SQUEEGEE TOOL
1
1
2
1
TOOL KIT
REPLACEMENT PARTS

DiamaPro Systems®
3343 Peachtree Road NE
Suite 145 #24
Atlanta, GA 30326
470-977-2323
