Cessna Swapping GIA 1 User manual

1
Version 1.0
Swapping GIA 1 & GIA 2 (GIA 63W) on Citation M2
Garmin G3000 Software Version 10
Caution: Before starting the software or configuration loading process, certain
items may be required to be recorded first, to prevent loss of
information or settings. See Section 1 for details.
Caution: Make certain that all SD cards are available before starting. These are
usually located in a blue pouch onboard the aircraft (usually in AFM).
Caution: Follow all steps in a given section for specific loadings. Failure to do so
will result in probable rework.
Caution: Ensure that power is available through a GPU so that power is not
interrupted during the loading process.
Note: This document is to supplement, not replace, the Cessna Citation M2
MM, and Garmin G3000 LMM.
Note: Reference latest revision of the Garmin G3000 LMM 190-01668-00.
Table of Contents
Introduction G3000 System Familiarization
Section 1 References Prior to Certain Software and Configuration Loading
Section 2 Software and Configuration Loading
Section 3 Reinstalling Options
Section 4 Final Verification / Return to Service
Section 5 Troubleshooting
Appendix A Configuration ID / CRC Numbers

2
Version 1.0
Introduction G3000 System Familiarization
When in configuration mode, select GDU controls on left side of GTC 1. Ensure that PFD 1 is
selected on the screen. The dual concentric knobs on the lower right bezel will be utilized, and
throughout this document will be referred to as the FMS small and large knob. The Enter
button will be in the lower right part of the screen.
As an alternative, you can use the dual concentric knobs (labeled PFD) and Enter button on the
GCU-275 controller mounted above PFD 1.

3
Version 1.0
Section 1 References Prior to Certain Software and Configuration Loading
When swapping GIA 63W from side to side the following steps must be completed first:
Note: This is with the G3000 powered up in normal mode.
Caution: If any optional radio appears to have an amber X and is grayed out as in this
example, then the LRU is not installed, but was previously loaded incorrectly.
Do not load this option during the procedures in section 3.
Determine Options Installed
•Single GSR56

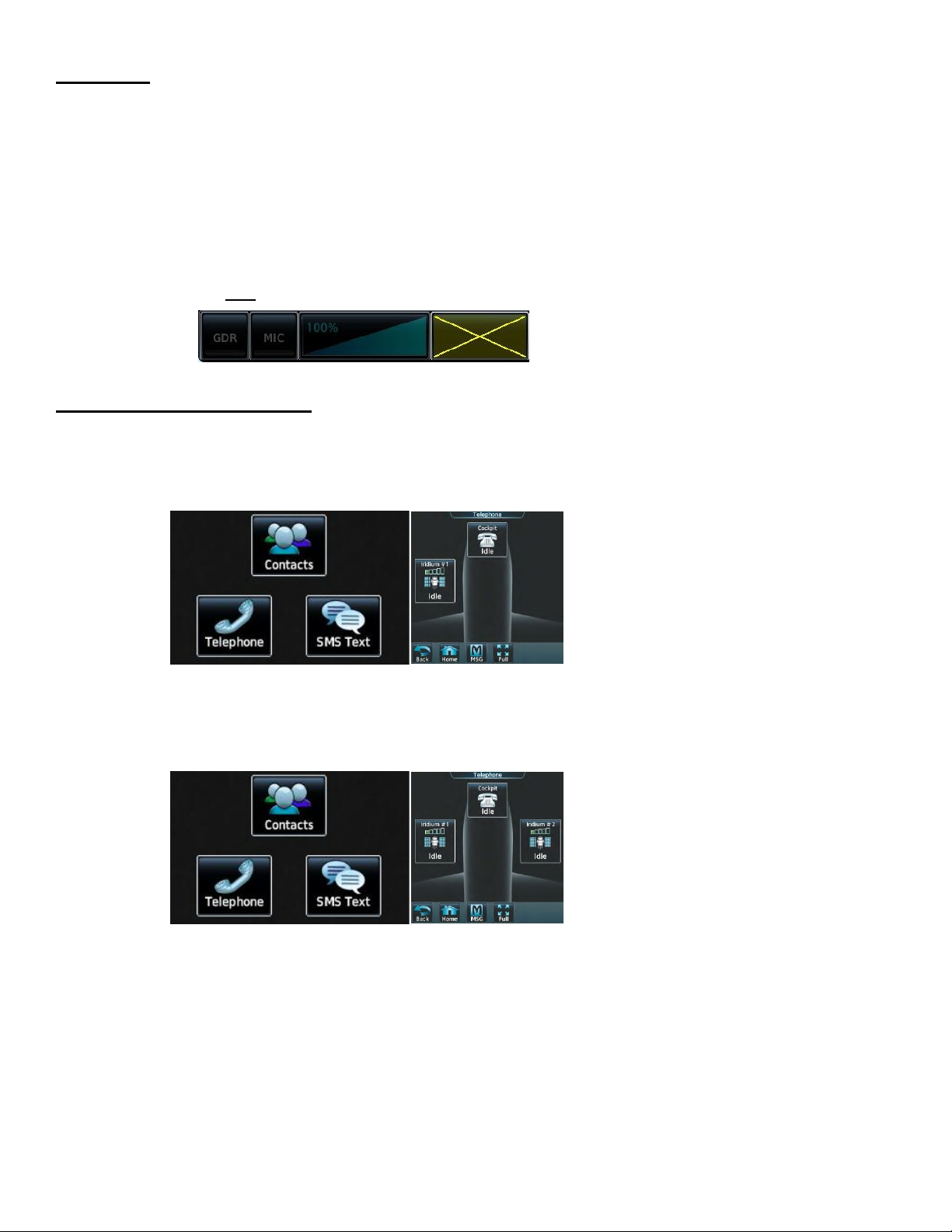

oOn either GTC 570, select the SERVICES / TELEPHONE button, then select
Telephone. A single Iridium transceiver is displayed on the left side.
•Dual GSR56
oOn either GTC 570, select the SERVICES / TELEPHONE button, then select
Telephone. A double Iridium transceiver is displayed on the left & right side.

4
Version 1.0
•GDL69

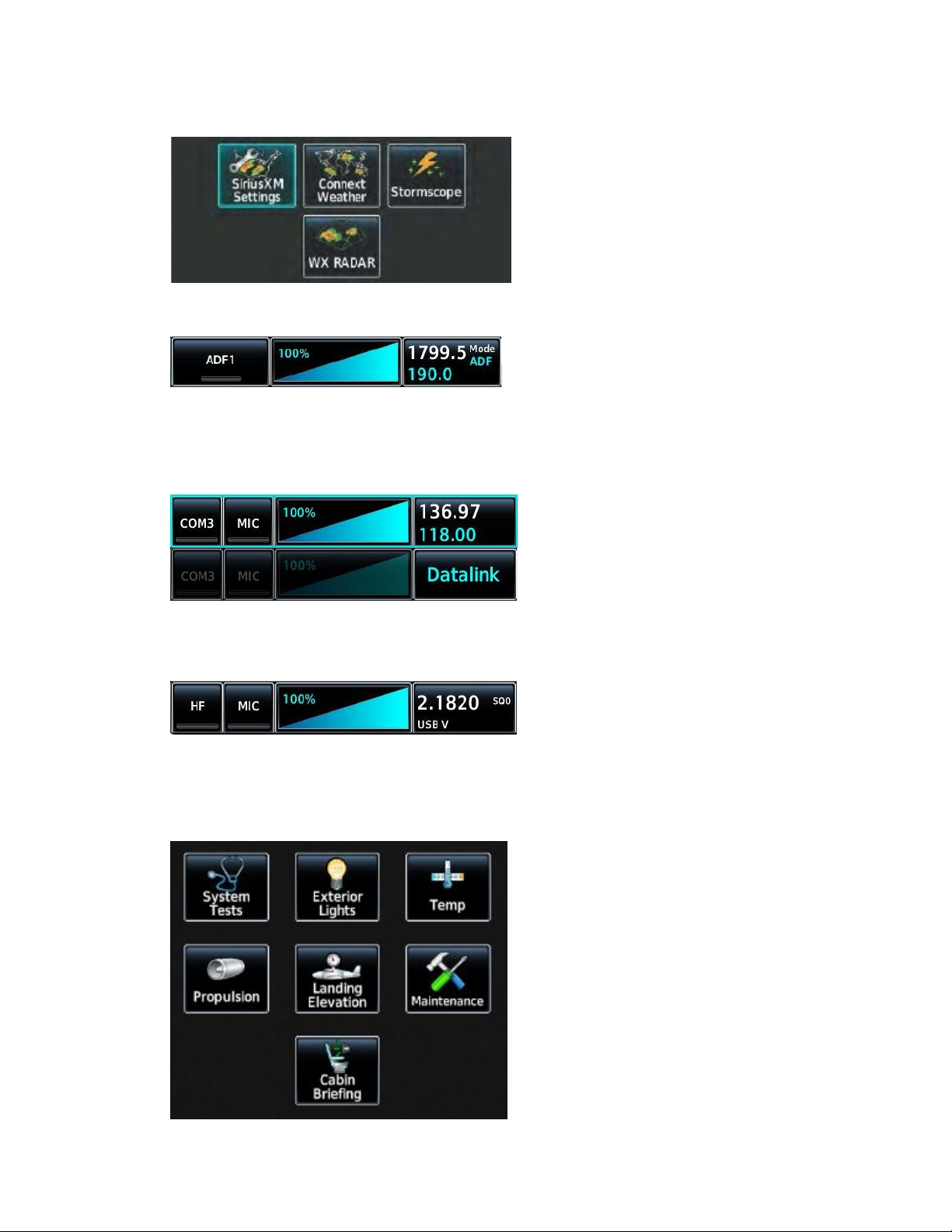

oFrom the Home screen of either GTC 570, touch the Weather button. Then touch
Weather Selection. The option is installed if Sirius XM Settings is displayed.
•Becker ADF
oADF controls are seen on the AUDIO & RADIO screen of either GTC 570.
•GDR66
oGDR or Datalink controls are seen on the AUDIO & RADIO screen of either GTC
570. Should appear as one of the 2 images below. It may say COM3 or GDR.
•HF9000
oHF9000 controls are seen on the AUDIO & RADIO screen of either GTC 570.
•Cabin Briefing
oFrom the Home screen of either GTC 570, select AIRCRAFT SYSTEMS. The option is
installed if Cabin Briefing is displayed.

5
Version 1.0
•GSR56 Weather
oFrom the Home screen of either GTC 570, touch the Weather button. Then touch
Weather Selection. The option is installed if CONNEXT WEATHER is displayed.
Should be if a single or dual GSR 56 is installed.
•DME 2
oSecond DME controls are seen on the AUDIO & RADIO screen of either GTC 570.
•Synthetic Vision
oOn the PFD, select PFD Settings, then select Attitude Overlays. Synthetic Terrain is
displayed. Also, there should be an unlock SD card present.
•TAWS Class A
oFrom the Home screen of either GTC 570, select the TAWS button. Then select
TAWS Selection button. TAWS A is loaded if there are 6 buttons displayed on the
page. Otherwise TAWS B is loaded as default. Also, there should be an unlock SD
card present. Note: First image is TAWS B, and second image is TAWS A.

6
Version 1.0
•TCAS II
oFrom the Home screen of either GTC 570, select the transponder button in the
upper right part of the screen. TCAS II option is loaded if there are 5 buttons on
the left side of the screen. Otherwise, TCAS I is loaded. Also, there should be an
unlock SD card present. Note: First image is TCAS I, and second image is TCAS II.
•Windshear
oThe Windshear option can be determined by viewing the PFD during power up.
During the self test, there should be a ‘WNDSHR TEST’ white message just to the
right of the airspeed tape. Also, there should be an unlock SD card present.
•Doppler & Turbulence
oFrom the Home screen of either GTC 570, select the Weather button. Then select
Weather Selection button. Select the WEATHER RADAR SETTINGS button and the
TURBULENCE DETECTION button will be visible. Also, there should be an unlock
SD card present.

7
Version 1.0
•CPDLC

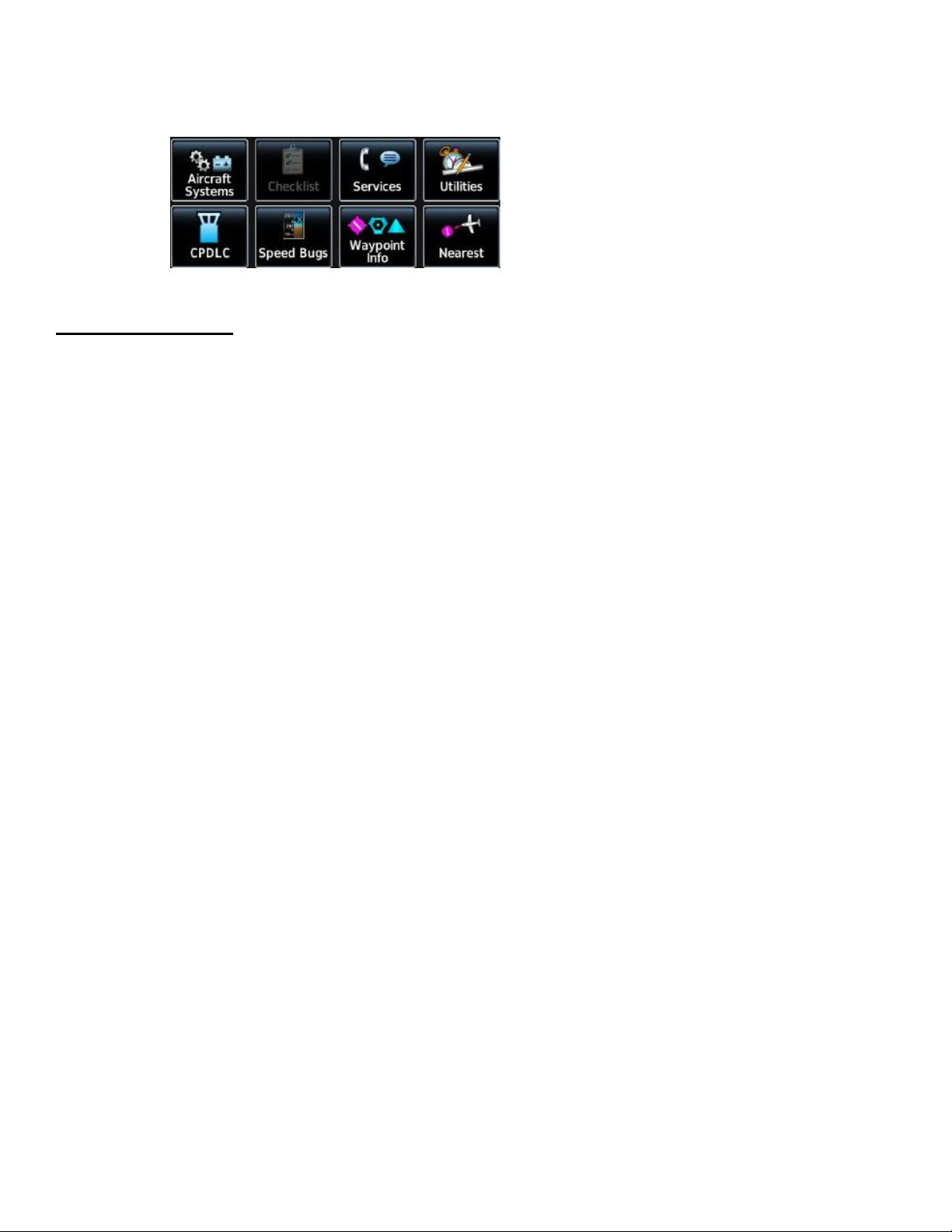

oThe CPDLC button is available on the home screen of either GTC. Also, there
should be an unlock SD card present.
Radar Trim Settings
•Go into the left GTC:
oUse Back button and select Aircraft Systems.
oSelect Maintenance.
oEnter CACCDMS for password.
oSelect Radar Trim.
Record Pitch Trim Value= ____________
Record Roll Trim Value= ____________
oIf the Radar trims were not both at zero originally:
Select Restore Defaults.
oSelect Home.
Select Utilities.
Select Setup.
Select Avionics Status.
Select the Airframe Tab on the left side.
Record the Config ID now that the radar trims are zero= ____________
•This is for reference in case it is needed later.

8
Version 1.0
Section 2 Software and Configuration Loading
This section will provide the steps necessary to target load the software and configuration into
GIA 1 & GIA 2 after swapping.
Note: Anytime that software or configurations are being loaded, all three displays, and both
touch controllers must be in configuration mode.
Note: Ensure that you have completed the steps contained in Section 1.
•GIA 63W GIA 1 & GIA 2 (Integrated Avionics)
•When GIA 1 & GIA 2 units are swapped, then software and configuration loading is
required.
1) Pull the following circuit breakers:
L PFD
MFD
R PFD
L Touch Control
R Touch Control
2) Insert the 010-01121-10 software loader card into the upper slot of PFD 1.
3) Turn on aircraft power.
4) Press and hold the right knob on the left GTC and push the L Touch Control circuit
breaker in.
Let go when you see initializing.
5) Press and hold the right knob on the right GTC and push the R Touch Control
circuit breaker in.
Let go when you see initializing.

9
Version 1.0
6) Press and hold the #12 softkey on the #2 PFD and push the R PFD circuit breaker
in.
Let go when you see initializing.
PFD 2 should come up in configuration mode.
•SYSTEM STATUS should show at the top of the screen.
7) Press and hold the #12 softkey on the MFD and push the MFD circuit breaker in.
Let go when you see initializing.
MFD should come up in configuration mode.
•SYSTEM STATUS should show at the top of the screen.
8) Press and hold the #12 softkey on the #1 PFD and turn on power.
Let go when you see initializing.
9) Press the NO softkey at “DO YOU WANT TO UPDATE SYSTEM FILES?” prompt.
10) Press the NO softkey at “DO YOU WANT TO UPDATE THE CUSTOM GRAPHICS
FILES (EG, SPLASH SCREEN)?” if it appears.
11) PFD 1 should come up in configuration mode.
SYSTEM UPLOAD should show at the top of the screen.
Clearing Maintenance Log
Note: The maintenance log must be cleared before loading the configuration.
•On the left GTC 570 touch controller:
1) Select GDU Controls.
2) Select MFD on the left side of the screen under GDU block.
•Rotate the small FMS knob to select the MAINTENANCE LOG on the page.
•Press the Clear softkey on the MFD.
1) The ‘Erase entire Maintenance Log?’ prompt will appear.
2) Press Enter.
•Wait until “Clearing Log…” disappears before continuing.
•Select PFD 1 on the GTC 570 to switch the display being controlled.

10
Version 1.0
Loading Software & Configuration
1) Activate the cursor by pushing down on the FMS knob.
2) Rotate the small knob to drop the menu down, and highlight ‘525 Base
Configuration’ in the GROUP field.
3) Press the Enter key.
4) Rotate the small knob to drop the menu down, and highlight ‘Cessna Model 525
Base Configuration’ in the ITEM field.
5) Press the Enter key.
6) Select the CLR ALL softkey at the bottom of the display.
7) Using the FMS knob, highlight the following, press Enter, which will place a check
mark in the box:
GIA63W 1 Software
GIA63W 2 Software
8) Select the LOAD softkey at the bottom of the display.
9) A green PASS message is shown beside the software box as it is successfully
completed.
10) Acknowledge when “Upload and Crossfill Complete” is displayed by pressing the
Enter key.
11) Select the CLR ALL softkey at the bottom of the display.
12) Using the FMS knob, highlight each box below, and press the Enter key to place
a check mark in each box:
Clear GIA 1 Config
Clear GIA 2 Config
GIA63W 1 Configuration
GIA63W 2 Configuration
GIA63W COM 1 Software and Configuration
GIA63W COM 2 Software and Configuration
GIA63W NAV 1 Software
GIA63W NAV 2 Software
GIA63W GPS/WAAS 1 Software
GIA63W GPS/WAAS 2 Software
GIA63W Audio 1 Software
GIA63W Audio 2 Software
GIA63W Audio 2 Configuration
GIA63W 1 Gains Software
GIA63W 2 Gains Software
13) Select the LOAD softkey at the bottom of the display.
14) A green PASS message is shown beside software and configuration items as they
are successfully completed.

11
Version 1.0
15) Acknowledge when ‘Upload and Crossfill Complete’ is displayed by pressing the
Enter key.
16) Push the UPDT CFG softkey to update the system configuration files.
17) Select YES, and press the Enter key.
18) Acknowledge when ‘Update Config Complete’ is displayed by pressing the Enter
key.

12
Version 1.0
Section 3Reinstalling Options
This section will provide the steps necessary to reload the options that were originally
installed.
CAUTION: Only load the options determined to be installed in Section 1.
•Single GSR56 Option:
1) Rotate the large knob to the left until in the GROUP field.
2) Rotate the small knob to drop the menu down, and highlight ‘Options’ in the
GROUP field.
3) Press the Enter key.
4) Rotate the small knob to drop the menu down, and highlight ‘Single GSR56
Option’ in the ITEM field.
5) Press the Enter key.
6) All boxes should be checked. These are:
Airframe
System
Manifest
GDL 59
GDL 59 Router
GDL 59 Router File System
7) Select the LOAD softkey at the bottom of the display.
8) Monitor the configuration load to verify the green PASS message next to each
item.
9) Press the Enter key when all the loading is complete to acknowledge the upload is
complete window.
•Dual GSR56 Option:
1) Rotate the large knob to the left until in the GROUP field.
2) Rotate the small knob to drop the menu down, and highlight ‘Options’ in the
GROUP field.
3) Press the Enter key.
4) Rotate the small knob to drop the menu down, and highlight ‘Dual GSR56 Option’
in the ITEM field.
5) Press the Enter key.
6) All boxes should be checked. These are:
Airframe

13
Version 1.0
System
Manifest
GDL 59
GDL 59 Router
GDL 59 Router File System
7) Select the LOAD softkey at the bottom of the display.
8) Monitor the configuration load to verify the green PASS message next to each
item.
9) Press the Enter key when all the loading is complete to acknowledge the upload is
complete window.
•GDL69 Option:
1) Rotate the large knob to the left until in the GROUP field.
2) Rotate the small knob to drop the menu down, and highlight ‘Options’ in the
GROUP field.
3) Press the Enter key.
4) Rotate the small knob to drop the menu down, and highlight ‘GDL69 Option’ in
the ITEM field.
5) Press the Enter key.
6) All boxes should be checked. These are:
Airframe
System
Manifest
GDL 69
7) Select the LOAD softkey at the bottom of the display.
8) Monitor the configuration load to verify the green PASS message next to each
item.
9) Press the Enter key when all the loading is complete to acknowledge the upload is
complete window.
•Becker ADF Option:
1) Rotate the large knob to the left until in the GROUP field.
2) Rotate the small knob to drop the menu down, and highlight ‘Options’ in the
GROUP field.
3) Press the Enter key.
4) Rotate the small knob to drop the menu down, and highlight ‘Becker ADF Option’
in the ITEM field.
5) Press the Enter key.
6) All boxes should be checked. These are:

14
Version 1.0
GIA63W 1 Config
7) Select the LOAD softkey at the bottom of the display.
8) Monitor the configuration load to verify the green PASS message next to each
item.
9) Press the Enter key when all the loading is complete to acknowledge the upload is
complete window.
•GDR66 Option:
1) Rotate the large knob to the left until in the GROUP field.
2) Rotate the small knob to drop the menu down, and highlight ‘Options’ in the
GROUP field.
3) Press the Enter key.
4) Rotate the small knob to drop the menu down, and highlight ‘GDR66 Option’ in
the ITEM field.
5) Press the Enter key.
6) All boxes should be checked. These are:
Airframe
System
Manifest
GIA63W 2
GDR
GDR Aux
7) Select the LOAD softkey at the bottom of the display.
8) Monitor the configuration load to verify the green PASS message next to each
item.
9) Press the Enter key when all the loading is complete to acknowledge the upload is
complete window.
•HF9000 Option:
1) Rotate the large knob to the left until in the GROUP field.
2) Rotate the small knob to drop the menu down, and highlight ‘Options’ in the
GROUP field.
3) Press the Enter key.
4) Rotate the small knob to drop the menu down, and highlight ‘HF9000 Option’ in
the ITEM field.
5) Press the Enter key.
6) All boxes should be checked. These are:
Airframe
GSD41 2

15
Version 1.0
7) Select the LOAD softkey at the bottom of the display.
8) Monitor the configuration load to verify the green PASS message next to each
item.
9) Press the Enter key when all the loading is complete to acknowledge the upload is
complete window.
•Cabin Briefing Option:
1) Rotate the large knob to the left until in the GROUP field.
2) Rotate the small knob to drop the menu down, and highlight ‘Options’ in the
GROUP field.
3) Press the Enter key.
4) Rotate the small knob to drop the menu down, and highlight ‘Cabin Briefing
Option’ in the ITEM field.
5) Press the Enter key.
6) All boxes should be checked. These are:
GIA63W 1
7) Select the LOAD softkey at the bottom of the display.
8) Monitor the configuration load to verify the green PASS message next to each
item.
9) Press the Enter key when all the loading is complete to acknowledge the upload is
complete window.
•GSR56 Weather Option:
1) Rotate the large knob to the left until in the GROUP field.
2) Rotate the small knob to drop the menu down, and highlight ‘Options’ in the
GROUP field.
3) Press the Enter key.
4) Rotate the small knob to drop the menu down, and highlight ‘GSR56 Weather
Option’ in the ITEM field.
5) Press the Enter key.
6) All boxes should be checked. These are:
Airframe
7) Select the LOAD softkey at the bottom of the display.
8) Monitor the configuration load to verify the green PASS message next to each
item.
9) Press the Enter key when all the loading is complete to acknowledge the upload is
complete window.

16
Version 1.0
•DME 2 Option:
1) Rotate the large knob to the left until in the GROUP field.
2) Rotate the small knob to drop the menu down, and highlight ‘Options’ in the
GROUP field.
3) Press the Enter key.
4) Rotate the small knob to drop the menu down, and highlight ‘DME 2 Option’ in
the ITEM field.
5) Press the Enter key.
6) All boxes should be checked. These are:
Airframe
GSD41 2
7) Select the LOAD softkey at the bottom of the display.
8) Monitor the configuration load to verify the green PASS message next to each
item.
9) Press the Enter key when all the loading is complete to acknowledge the upload is
complete window.
Note: Each option using an unlock card is assuming this is the first you are loading. If you have
already loaded an option with an unlock card, then steps 1 & 2 are already complete
•Synthetic Vision (SVS):
1) Pull the L PFD circuit breaker (if not already done).
2) Remove the 010-01121-10 software loader card from the upper slot of PFD 1 if
installed.
3) Insert the 010-00330-55 SVS Unlock card into the upper slot of PFD 1.
4) Press and hold the #12 softkey on the PFD 1 push the L PFD circuit breaker in.
5) Let go when you see initializing.
6) PFD 1 should be on the system upload page.
7) Activate the cursor by pushing down on the FMS knob.
8) Rotate the small knob to drop the menu down, and highlight ‘Configuration Files’
in the GROUP field.
9) Press the Enter key.
10) Rotate the small knob to drop the menu down, and highlight ‘Enable SVS Dual
PFD’ in the ITEM field.
11) Press the Enter key.
12) All boxes should be checked.

17
Version 1.0
13) Select the LOAD softkey at the bottom of the display.
14) Monitor the configuration load to verify the green PASS message next to each
item.
15) Press the Enter key when all the loading is complete to acknowledge the upload
is complete window.
16) Pull L PFD circuit breaker and remove the 010-00330-55 SVS Unlock card from
the upper slot of PFD 1.
•TAWS Class A:
1) Pull the L PFD circuit breaker (if not already done).
2) Remove the 010-01121-10 software loader card from the upper slot of PFD 1 if
installed.
3) Insert the 010-00330-56 TAWS Class A Unlock card into the upper slot of PFD 1.
4) Press and hold the #12 softkey on the PFD 1 push the L PFD circuit breaker in.
5) Let go when you see initializing.
6) PFD 1 should be on the system upload page.
7) Activate the cursor by pushing down on the FMS knob.
8) Rotate the small knob to drop the menu down, and highlight ‘Configuration Files’
in the GROUP field.
9) Press the Enter key.
10) Rotate the small knob to drop the menu down, and highlight ‘Enable TAWS-A’ in
the ITEM field.
11) Press the Enter key.
12) All boxes should be checked.
13) Select the LOAD softkey at the bottom of the display.
14) Monitor the configuration load to verify the green PASS message next to each
item.
15) Press the Enter key when all the loading is complete to acknowledge the upload
is complete window.
16) Pull L PFD circuit breaker and remove the 010-00330-56 TAWS Class A Unlock
card from the upper slot of PFD 1.
•TCAS II:
1) Pull the L PFD circuit breaker (if not already done).
2) Remove the 010-01121-10 software loader card from the upper slot of PFD 1 if
installed.
3) Insert the 010-00330-C1 TCAS II Unlock card into the upper slot of PFD 1.
4) Press and hold the #12 softkey on the PFD 1 push the L PFD circuit breaker in.
5) Let go when you see initializing.

18
Version 1.0
6) PFD 1 should be on the system upload page.
7) Activate the cursor by pushing down on the FMS knob.
8) Rotate the small knob to drop the menu down, and highlight ‘TCASII Enablement’
in the GROUP field.
9) Press the Enter key.
10) Rotate the small knob to drop the menu down, and highlight ‘GTS TCAS II
Enablement’ in the ITEM field.
11) Press the Enter key.
12) All boxes should be checked.
13) Select the LOAD softkey at the bottom of the display.
14) Monitor the configuration load to verify the green PASS message next to each
item.
15) Press the Enter key when all the loading is complete to acknowledge the upload
is complete window.
16) Pull L PFD circuit breaker and remove the 010-00330-C1 TCAS II Unlock card
from the upper slot of PFD 1.
•Windshear:
1) Pull the L PFD circuit breaker (if not already done).
2) Remove the 010-01121-10 software loader card from the upper slot of PFD 1 if
installed.
3) Insert the 010-00330-C7 Windshear Unlock card into the upper slot of PFD 1.
4) Press and hold the #12 softkey on the PFD 1 push the L PFD circuit breaker in.
5) Let go when you see initializing.
6) PFD 1 should be on the system upload page.
7) Activate the cursor by pushing down on the FMS knob.
8) Rotate the small knob to drop the menu down, and highlight ‘Enable_WndShr’ in
the GROUP field.
9) Press the Enter key.
10) Rotate the small knob to drop the menu down, and highlight ‘Windshear Option’
in the ITEM field.
11) Press the Enter key.
12) All boxes should be checked.
13) Select the LOAD softkey at the bottom of the display.
14) Monitor the configuration load to verify the green PASS message next to each
item.
15) Press the Enter key when all the loading is complete to acknowledge the upload
is complete window.

19
Version 1.0
16) Pull L PFD circuit breaker and remove the 010-00330-C7 Windshear Unlock card
from the upper slot of PFD 1.
•Doppler & Turbulence:
1) Pull the L PFD circuit breaker (if not already done).
2) Remove the 010-01121-10 software loader card from the upper slot of PFD 1 if
installed.
3) Insert the 010-00330-D2 Doppler & Turbulence Unlock card into the upper slot of
PFD 1.
4) Press and hold the #12 softkey on the PFD 1 push the L PFD circuit breaker in.
5) Let go when you see initializing.
6) PFD 1 should be on the system upload page.
7) Activate the cursor by pushing down on the FMS knob.
8) Rotate the small knob to drop the menu down, and highlight ‘Enable_DplrTdGcs’
in the GROUP field.
9) Press the Enter key.
10) Rotate the small knob to drop the menu down, and highlight ‘GWX Doppler
Features’ in the ITEM field.
11) Press the Enter key.
12) All boxes should be checked.
13) Select the LOAD softkey at the bottom of the display.
14) Monitor the configuration load to verify the green PASS message next to each
item.
15) Press the Enter key when all the loading is complete to acknowledge the upload
is complete window.
16) Pull L PFD circuit breaker and remove the 010-00330-D2 Doppler & Turbulence
Unlock card from the upper slot of PFD 1.
•CPDLC:
1) Pull the L PFD circuit breaker (if not already done).
2) Remove the 010-01121-10 software loader card from the upper slot of PFD 1 if
installed.
3) Insert the 010-00330-F0 CPDLC Unlock card into the upper slot of PFD 1.
4) Press and hold the #12 softkey on the PFD 1 push the L PFD circuit breaker in.
5) Let go when you see initializing.
6) PFD 1 should be on the system upload page.
7) Activate the cursor by pushing down on the FMS knob.
8) Rotate the small knob to drop the menu down, and highlight ‘Enable_CPDLC’ in
the GROUP field.

20
Version 1.0
9) Press the Enter key.
10) Rotate the small knob to drop the menu down, and highlight ‘FK677A-VHF
DataLink (CPDLC/Link 2000+)’ in the ITEM field.
11) Press the Enter key.
12) All boxes should be checked.
13) Select the LOAD softkey at the bottom of the display.
14) Monitor the configuration load to verify the green PASS message next to each
item.
15) Press the Enter key when all the loading is complete to acknowledge the upload
is complete window.
16) Pull L PFD circuit breaker and remove the 010-00330-F0 CPDLC Unlock card from
the upper slot of PFD 1.
