Diamond View 2115E User manual

DIAMOND VIEW 2115E
Colour Monitor
21 (53.3 cm) CRT Size

Table of Contents
1 Introduction ............................................................................. 1
Unpacking the Package .................................................... 1
Features .............................................................................. 2
Power Management ........................................................... 3
Factory Preset Timings...................................................... 3
2 Installing the Monitor ................................... 4
Connecting the Signal Cable ............................................ 5
3 Ad usting the Picture .................................. 8
Making Adjustments .......................................................... 9
Auto key (Auto Calibration key ) ........................................................... 9
Hot Keys............................................................................................... 9
OSDOperation ................................................................................... 10
Main Menu 1 Display Control ............................................................. 10
Main Menu 2 Color Control................................................................. 14
Main Menu 3 Advanced Display Control .............................................. 15
Timing Setting .................................................................. 20
Pin Assignments .............................................................. 21
D-SUBConnectors.............................................................................. 21
BNCConnectors ................................................................................. 22
4 Troubleshooting.................................................. 2 3
Need More Help?.............................................................. 25
5 Specifications ....................................................... 2 6

iii
Copyright
Copyright (c) 2001 by Mitsubishi Electric Australia Pty. Ltd. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored
in a retrieval system or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical,
manual or otherwise, without the prior written permission of Mitsubishi Electric
Australia Pty. Ltd.
Disclaimer
Mitsubishi Electric Australia Pty. Ltd. makes no representations or
warranties, either expressed or implied, with respect to the contents hereof
and specifically disclaims any warranties, merchantability or fitness for any
particular purpose. Further, Mitsubishi Electric Australia Pty. Ltd. reserves
the right to revise this publication and to make changes from time to time in
the contents hereof without obligation of Mitsubishi Electric Australia Pty.
Ltd. to notify any person of such revision or changes.
Diamond View is a registered trademark of Mitsubishi Electric Australia Pty.
Ltd.Microsoft and Windows areregistered trademarks of Microsoft Corporation.
All other trademarks remain the property of their respective owners.
Reference Information
For future reference, write the following information about your monitor in
the space below. The serial number is on the back of the product or on
the bottom of its stand.
Monitor Information
Product Name: 2115E
Serial Number:
Date of Purchase:
Dealer Information
Dealer:
TelephoneNumber:
Address:

iv
Safety Instructions
◆The AC plug isolates this equipment from the AC supply.
◆Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
◆Slots and openings in the cabinet and the back or bottom are provided for
ventilation. They must not be blocked or covered. This product should never
be placed near or over a radiator or heat register, or in a built-in installation
unless proper ventilation is provided.
◆This product should be operated from the type of power indicated on the
marking label. If you are not sure of the type of power available, consult your
dealer or local power company.
◆This product should be operated with a 3-wire grounding-type plug, a plug
having a third (grounding) pin. This plug will only fit into a grounding-type
power outlet. This is a safety feature. If you are unable to insert the plug into
the outlet, contact your electrician to make the necessary outlet changes.
◆Never push objects of any kind, or spill liquid of any kind into this product.
◆Do not attempt to service this product yourself, as opening or removing
covers may expose you to dangerous voltages or other risks. If any above
mentioned misuse or other accident (dropping, mis-operations) occurs, con-
tact qualified service personnel for servicing.
◆Use only the proper type of power supply cord set (provided in your PC box)
for this unit. It should be a detachable type: UL listed/CSA certified, type
SVT/SJT, VDE approved or its equivalent.
◆The power supply cord serves as a power disconnect device for pluggable
equipment. The socket outlet shall be installed near the equipment and
shall be easily accessible.

v
Maintenance
◆Do not expose the monitor to direct
sunlight or heat.
◆Do not spill liquid onto the monitor
◆ Do not attempt to open the monitor. You
may be hurt by electric shock. For
service, call your place of purchase.
Opening your monitor may also void
warranty.
◆ Do not use your monitor when magnets
or electronic products are operating
nearby.
◆ Do not use harsh chemicals or strong
cleaning solvents to clean the monitor
screen. Wipe it with clean, soft clothes
applied with mild solution.
◆ Do not place anything on your monitor.
Badventilationmayelevatetemperature
in the monitor

1
1 Introduction
Unpacking the Package
Check following items. If they are missing or damaged, consult your place of
purchase immediately.
Colour monitor User’s manual
Powercord 15-pin D-SUB Macintosh adaptor
signal cable
?Locate the model name and the serial number labeled on the back
of your monitor. Write down the related information of your
monitor and dealer in the space on page iii for future reference.

2
Features
◆Super-fine Dot PitchSuper-fine Dot Pitch
Super-fine Dot PitchSuper-fine Dot Pitch
Super-fine Dot Pitch
With 0.25 mm dot pitch, the Diamond View 2115E colour monitor provides strik-
ingly sharp high-resolution images up to 1920 x 1440 pixels.
◆ Wide Auto Scanning RangeWide Auto Scanning Range
Wide Auto Scanning RangeWide Auto Scanning Range
Wide Auto Scanning Range
The horizontal frequency range of 30 to 115 KHz supports 1600 x 1200 pixel
resolution at a flicker-free 85 Hz refresh rate.
◆ Auto keyAuto key
Auto keyAuto key
Auto key (Automatic picture adjustment)(Automatic picture adjustment)
(Automatic picture adjustment)(Automatic picture adjustment)
(Automatic picture adjustment)
Automatically adjust the image size and position with the press of one button.
◆ Low radiationLow radiation
Low radiationLow radiation
Low radiation
The Diamond View 2115E meets the low radiation requirements of the TCO’99
standard.
◆ Plug’n Play CompatibilityPlug’n Play Compatibility
Plug’n Play CompatibilityPlug’n Play Compatibility
Plug’n Play Compatibility
With support for the VESA DDC-2B standard, the 2115E is compatible with the
Plug’n Play features of Windows®95, 98, 2000, ME® and XP.

3
Power Management
The Power management of this monitor complies with these VESA
powersaving modes:
Mode Power Horizontal Vertical LED
Consumption Sync Sync
On < 150W Max. On On Green
Stand-by < 5 W Off On Amber
Suspend < 5 W On Off Amber
Off < 5 W Off Off Amber
Factory Preset Timings
Resolution Vertical Frequency Horizontal Frequency
(Hz) (KHz)
640 x 400 70 31.47
640 x 4 0 60 31.47
00 x 600 75 46.
1024 x 76 75 60.02
1024 x 76 5 6 .6
12 0 x 1024 75 79.9
12 0 x 1024 5 91.15
1600 x 1200 75 93.75
1600 x 1200 5 106.00
1920 x 1440 75 112.50
** All above timings are non-Interlace timings.

4
2 Installing the Monitor
This monitor is equipped with an auto sensing power supply for voltage range of
100~240V AC, 50~60Hz.
To install the monitor:
1) Make sure that the system power is turned off.
2) Connect the power cord to the monitor and attach it to power source.
3) Turn the power switch on at the wall socket.
4) Turn the computer and the monitor on.

5

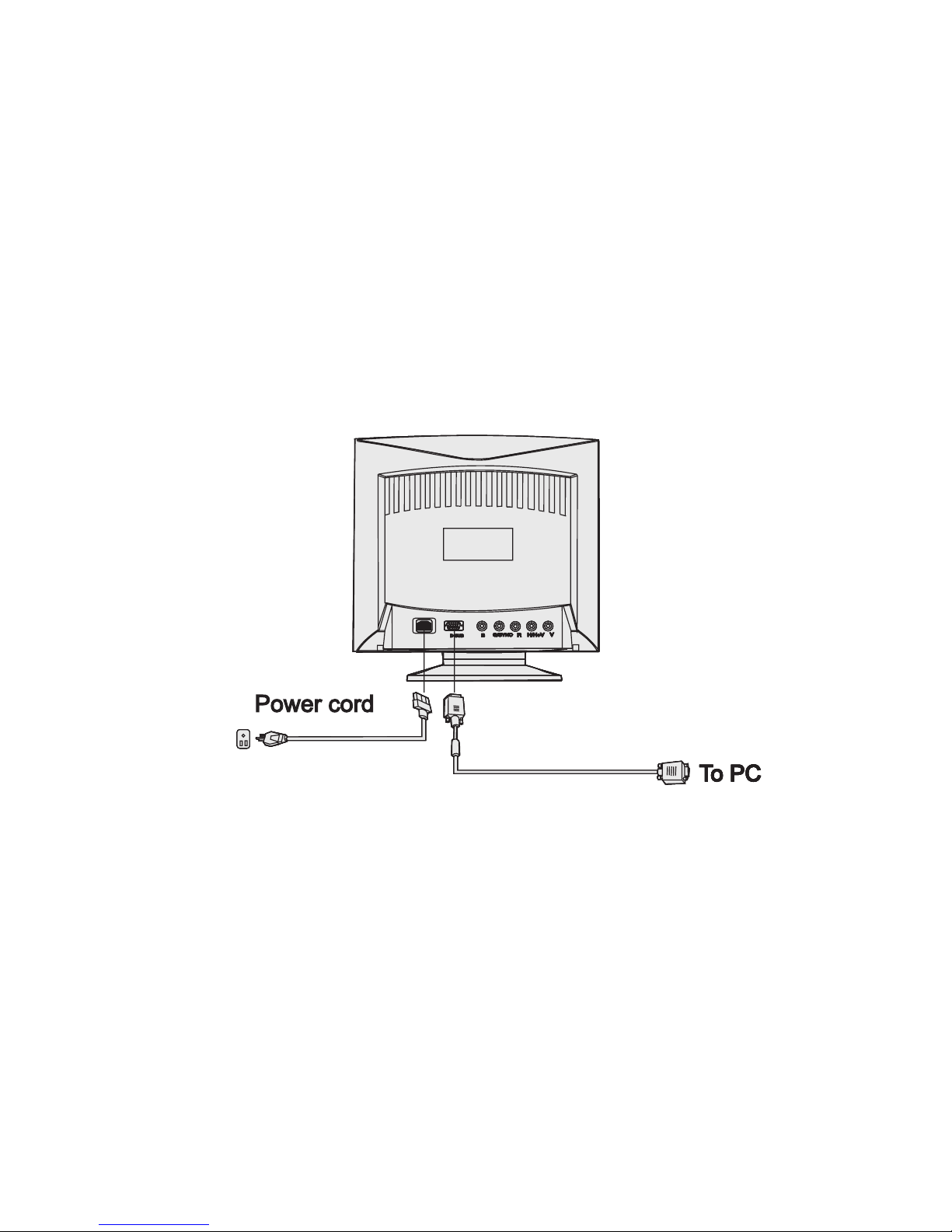

Connecting the Signal Cable
Your 2115E monitor provides both 15 pin VGA type (D-SUB) and BNC signal
connectors.TheD-SUBorBNCsignalsareautomaticallydetectedbythemonitor.
✏Connecting through D-SUB signal connector
1) Make sure that the system power is turned off.
2) Connect the computer end of the D-SUB cable to the 15-pin output connector
on the video board of your computer.
3) Connect the monitor end of the BNC signal cable to the BNC plugs at the
back of the monitor. Make sure that you connect each plug to the correct
socket.

6

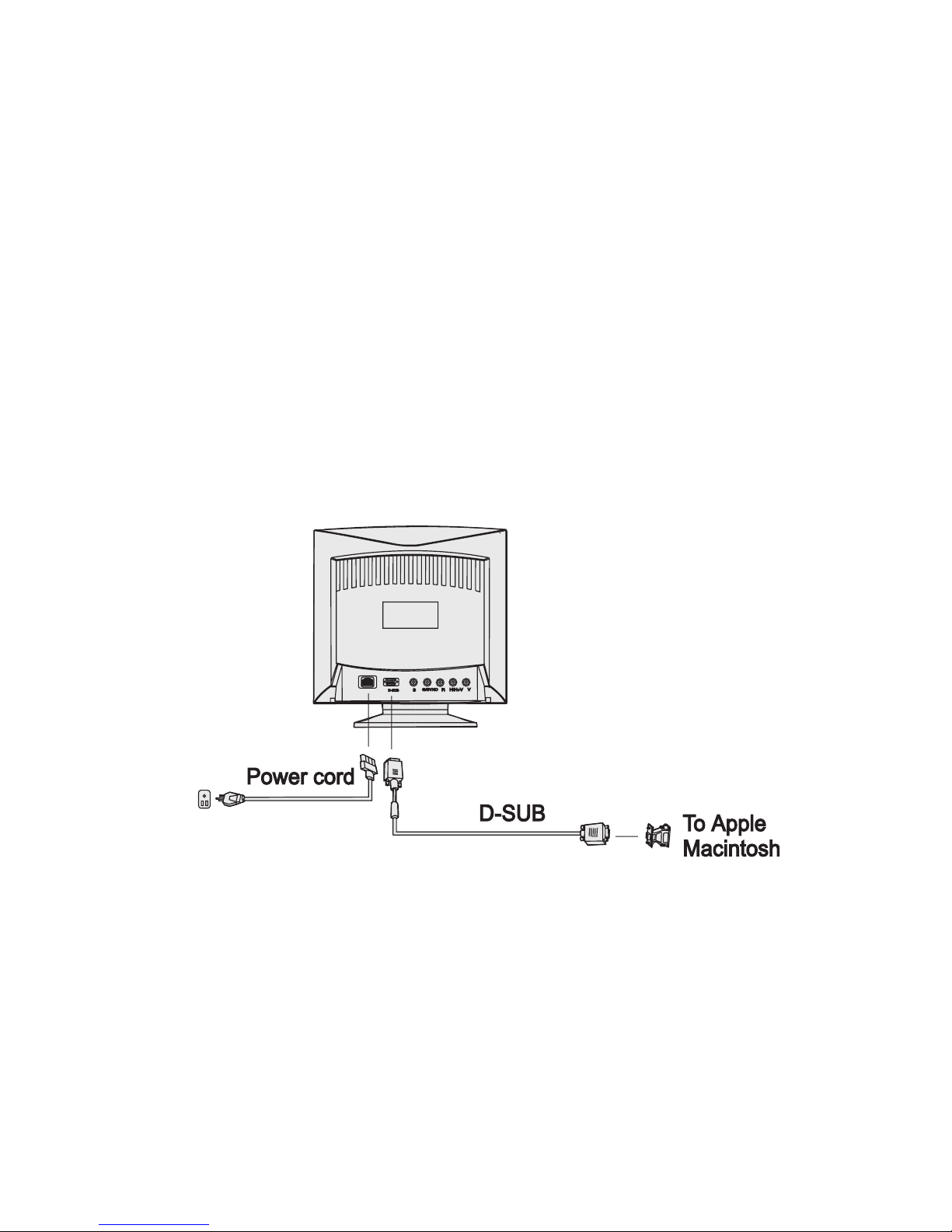

✏ Connecting to An Apple
If you need to connect the monitor to an older-style Apple Macintosh computer,
you will need to use the Macintosh adaptor included with your monitor. Before
connecting the adaptor please refer to the user's guide of the adaptor to set its
option switches. Plug the adaptor into the video signal port of your computer and
then connect the signal cable between the adaptor and the monitor.

7
✏ Connecting through BNC Signal Connector
1) Make sure that the system power is turned off.
2) Connect the computer end of the BNC cable to the output connector on the
video board of your computer.
3) Connect the monitor end of the BNC cable to the BNC receptacle on the back
of the monitor.

8
◆ Menu key : enters or changes Main menus. There are three main menus.
◆ Enter key : enters sub-menus or selects items.
◆ Exit key : goes back to main menus (auto save), or leaves OSD.
◆ & key : scrolls the light coloured bar up or down and represents
HOT KEY for brightness adjustment.
◆ & key : scrolls the light coloured bar left or right and represents
HOT KEY for contrast adjustment.
◆ Auto: performs automatic image adjustment.
Adjusting the Picture

9
Making Adjustments
Auto key (Auto Calibration key )
Just push the Auto key to automatically optimise the display’s size and position.
No re-configuration or adjustment is needed when the display mode is changed.
Please note that the Auto function is not the same as "Reset" function. The
"Reset" function only works if the graphics signal is the same as the monitor’s
factory preset signal timings (please see page 3). The Auto function will work
with any graphics signal that the 2115E can display.
Hot Keys
Press or to adjust contrast directly.
Press or to adjust brightness directly.

10
OSD Operation
1) Press Menu to enter or change Main menus (there are three main
menus)
2) Press or to scroll light coloured bar to desired items.
3) Press Enter to enter sub-menus.
4) Press ,( , ) to do the adjustments. If the sub-menu contains
multiple items. Press or to scroll light coloured bar to desired
items. Then press or to adjust as required.
5) Press Exit to save and return to main menus.
6) Press Exit to save and leave OSD
?To reset the monitor to the factory default settings, please see page
15.
Main Menu 1 Display Control
Main menu 1 includes six items. Scroll the light coloured bar to the desired item
and press Enter to go to one of the sub-menus.

11
Contrast adjusts the difference between the light and dark areas.
Brightness adjusts the brightness of the display.
Size & Position
Display size and position adjustment
Hor. Position adjusts the horizontal position of the display.
Hor. Size adjusts the width of the display.
Ver. Position adjusts the vertical position of the display.
Ver. Size adjusts the vertical height of the display.
Luminance
Contrast and Brightness adjustments

12
Geometry
Advanced geometry adjustments
Pincushion controls the straightness of the vertical edges of the display.
Unbalance adjusts balance when the sides of display are bowed
towards left or right
Trapezoid makes the vertical edges of the display parallel.
Parallelogram corrects image leaning left or right.
Rotation corrects screen tilt.
Top Corner adjusts the straightness of the vertical edges at the top
corners of the image.
Bottom Corner adjusts the straightness of the vertical edges at the
bottom corners of the image.

13
OSD Position
OSD position adjustments
moves the OSD menu position up.
moves the OSD menu position down.
moves the OSD menu position left.
moves the OSD menu position right.
Degauss
Manual Degauss. To eliminate color shading or impurity induced by re-
sidual magnetism. Press Enter to activate the manual Degauss function. Note
that the monitor automatically deguasses every time that it is turned on.
Reset to Default
Reset the monitor to the default factory settings including H/V position,
H/V size, Pincushion, Unbalance, Trapezoid, Parallelogram, Rotation, Corner,
H/V Convergence, H/V Moire. In order to reset the monitor to the factory default,
press Enter. You must be displaying one of the monitor’s factory preset graph-
ics signal for this function to work (see page 3). Please see page 15 for details
about resetting the colour temperature and balance .

14

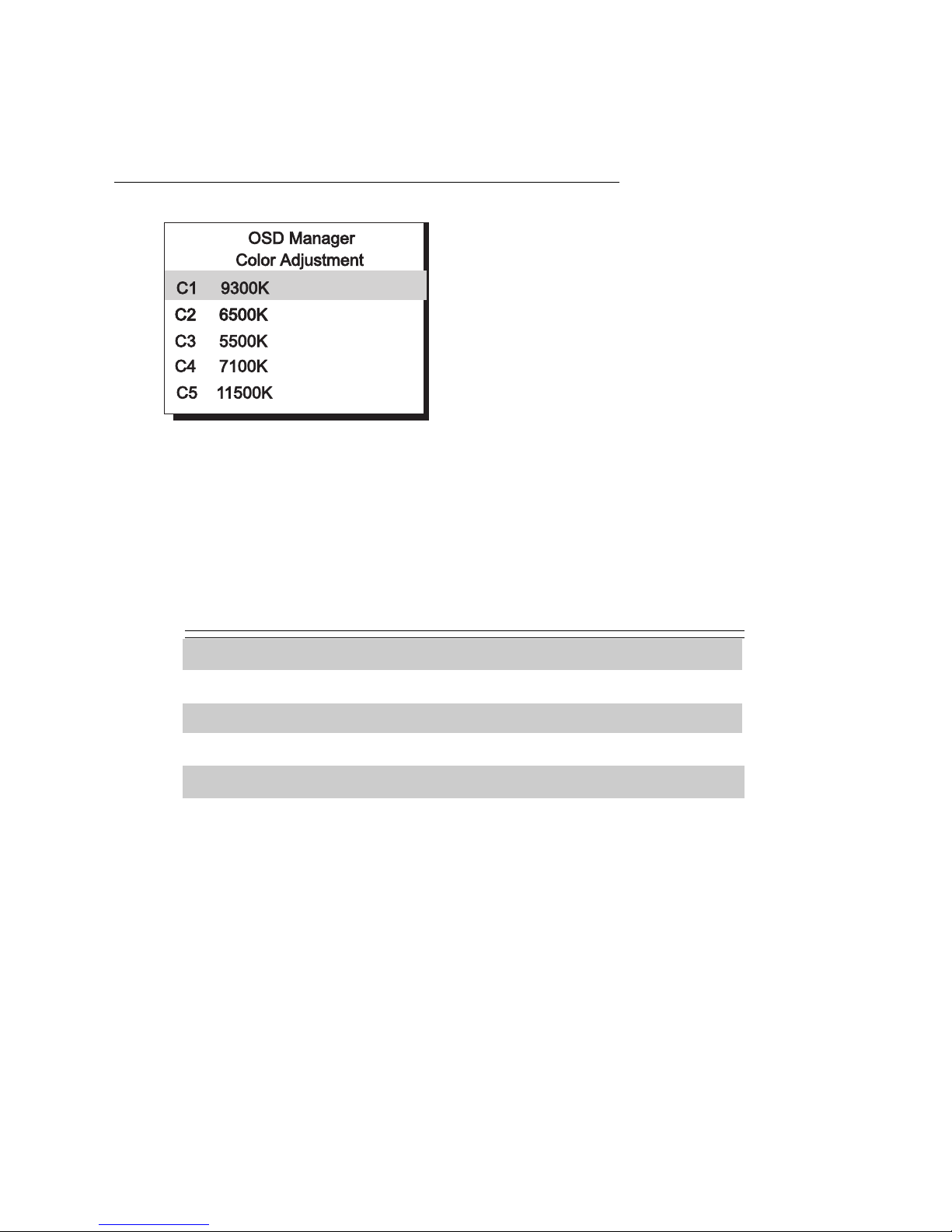

Main Menu 2 Color Control
This main menu is used to set the monitor’s colour balance. C1 ~ C5 are preset
colourtemperaturesthatcanbeusedtosetthewhitepointfordifferentapplications.
Factory Default Color Temperature
C1 9300K
C2 6500K
C3 5500K
C4 7100K
C5 11500K
Use the up and down arrows to select the desired coloured temperature. Press
Exit to save the setting and leave the OSD. Press the Enter key to adjust the
Red, Green and Blue colour balance.

15

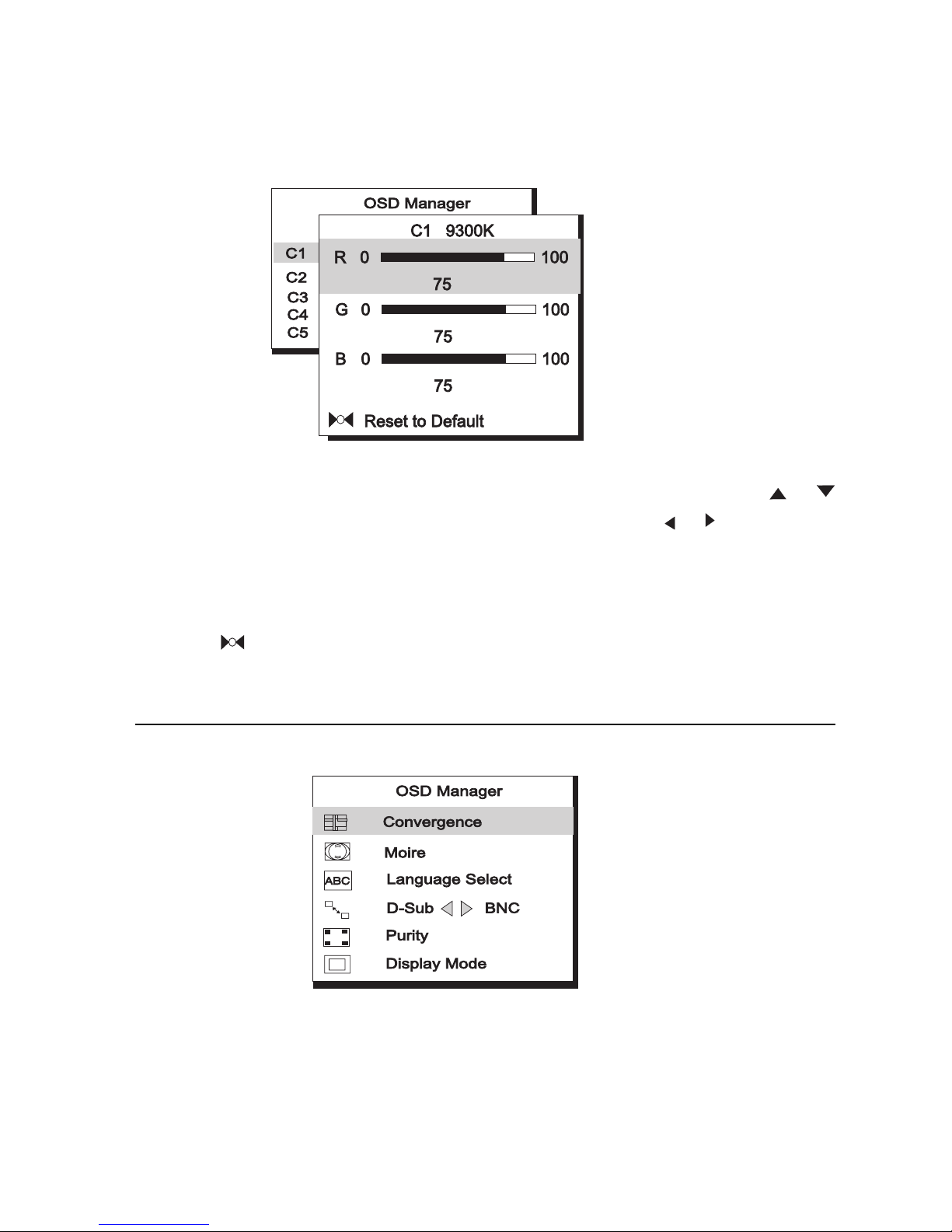

This sub-menu adjusts RGB (Red, Green, Blue) color balance. Press or
keys to scroll light coloured bar to desired items then press or key to do the
adjustments.
? To reset to factory default values, scroll light coloured bar to item
“ Reset to Default”.
Main Menu 3 Advanced Display Control
This main menu includes six items. Use the coloured bar to select desired item.
Press the Enter key to make an adjustment.
