Diamond TOP200/T User manual

Mod: TOP200/T
Production code: BC145
05/2011

English
BOTTLE COOLER
Instruction Manual
Please read this instruction manual carefully
before operating the unit.
Model ：BC85
BC145

English
INTRODUCTION
Thank you for choosing our bottle cooler. This unit is designed to improve your living and
entertaining comfort. With its silent operation and unique design, you will enjoy the convenience
and comfort for years to come.
Please read these instructions carefully before operating this appliance. When using this
appliance, always exercise basic safety precautions.
This easy-to-use manual will guide you to getting the best use of your bottle cooler.
REFERENCE INFORMATION
Please complete the following information for future reference. You will need it to
obtain warranty service.
Model Name*: __________________________________
Serial Number *: __________________________________
Date of Purchase: __________________________________
Place of Purchase: _________________________________
*The above information is written on the nameplate inside the cabinet. Retain this Owner’s Manual
with your sales receipt as a permanent record of your purchase.
TABLE OF CONTENTS PAGE
Introduction ………………………………………… .……………………………… . 1
Reference Information …………………….……………………………….………. 1
Important Safety Precautions…………………………………… .………………… 2
Installation ...................………………………………… .………………………….. 2
Product Parts and Features …….………………….…………………….………... 3
How to Operate…………………………………… .……………………………… ... 4
Reversing The Door……………………………………………………………… .….4
Proper Bottle cooler Care and Cleaning ……………………….……….…... …..5
Warranty ………………………………………… …..……………………………… ..6
Circuit Diagram ........…………………………..……………..………………….…7
1

English
IMPORTANT SAFETY PRECAUTIONS
Before you use your cooler, please read this instruction manual carefully.
Use this appliance only for its intended purpose as described in this owner’s manual.
This cooler must be properly installed in accordance with the installation instructions before it is
used.
Never unplug you cooler by pulling on the power cord. Always grasp the plug firmly and pull
straight out from the wall outlet.
1) Repair or replace immediately, all electric service cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length, the plug or
the connector end.
2) Unplug your cooler before cleaning or before making any repairs.
NOTE: If for any reason this product requires service, we strongly recommend that a certified
technician perform the service.
3) Do not operate your cooler in the presence of explosive fumes.
4) The power supply must be properly grounded.
5) Do not use an adapter plug or extension cord.
6) Do not use the unit in the immediate surroundings of a bath, shower or swimming pool.
7) Before discarding or storing, we recommend that you remove the door and leave the shelves in
place. This will reduce the possibility of danger to children.
8) Do not store food in cooler as the interior temperature may not be cool enough to prevent
spoilage.
INSTALLATION
It is advisable to clean the inside of the cooler with lukewarm water using a mild detergent,
and then to dry it thoroughly prior to use.
The temperature in the appliance will depend on:
The temperature in the room
The frequency and duration of periods when the door is open.
How many items are in the cooler.
It may therefore be necessary to adjust the thermostat from time to time.
The refrigeration system of the cabinet is designed to operate with the cabinet located on a
flat surface. Avoid tilting the cabinet side.
If the cabinetmust be tilted on an angle for handling or moving purposes, allow it to sit in an
upright position 20 to 30 minutes prior to plugging it in and starting the cooling of the storage
compartment.
2

English
Grounding plug and socket should be provided in accordance with local regulations. The
cable-size should meet the cooler’s requirements. The unit must be connected to proper electrical
network, which is shown on the nameplate, through an omnipoplar circuit-breaker.To assure the
proper function of the cooler, please observe the following recommended.
1. To ensure the circulation, the unit should be kept at 2 cm, away from the wall.
2. Locate the unit away from direct sunlight. This will enable you to obtain the best performance
and save energy.
3. Under no circumstances should the top grid be covered by any objest. It will preclude the
warm air from circulating.
Unpaking Your Cooler
1. Romove all packing material. This includes the foam base and all adhensive tape.
2. Inspect and remove any remains of packing, tape or printed materials before powering on the
cooler.
Leveling Your Cooler
1. There are four leveling legs which are located in the frontand rear corners of your cooler. After
properly placing your cooler in its final position,you can level your cooler.
2. Leveling legs can be adjusted by turning them clockwise to raise your cooler or by turning
them counterclockwise to lower your cooler. The cooler door will close easily when the
leveling legs are extended.
PRODUCT PARTS AND FEATURES
3
①Light
②light switch
③shelves
④handle
⑤leveling legs

English
HOW TO OPERATE BOTTLE COOLER
1. Insert the power plug into wall outlet.
2. To adjust the temperature turn thermostat knob inside the cabinet.
Temperature Control
Interior light
To completment the look of your colletction, a soft light has been built into the bottle cooler. Simply
turn the switch button and the light comes on, turn again counteractively for off. For maximum
energy efficiency, leave light off when not viewing your collection.
Normal Operating Sounds you may hear
Boiling water, gurgling sounds or slight vibrations is due to the refrigerant circulating through the
cooling coilds.
The thermostat control will click when it cycles on and off.

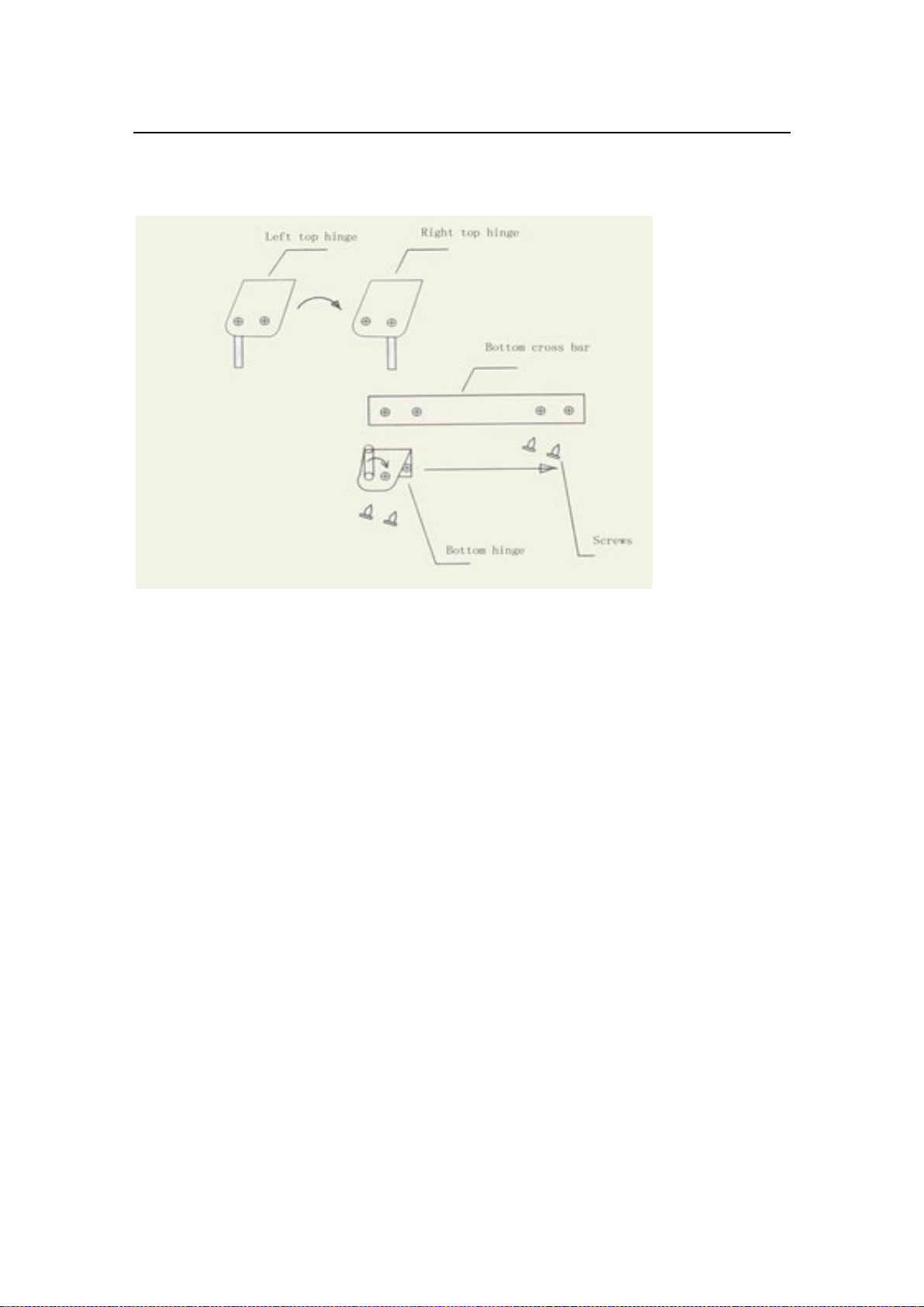

REVERSING THE DOOR (OPTION)
How to reverse the door
ØRemove the lower hinge by loosening and removing the screws with scredriver.
ØCarefully lower the door and remove it.
ØMove the pivot pin to the opposite hole on the lower hinge.
ØMove the pivot pin from the left top hinge to the opposite hole on the right top hinge.
ØRemove the two screws from the right holes in the bottom cross bar.
ØTake the door. Insert the lower hinge axle into the right bottom hole of the door,make the
right hole of the door into the righjt top hinge axle.
ØAdjust the door, make it straight and in alignment with the cabinet.
4

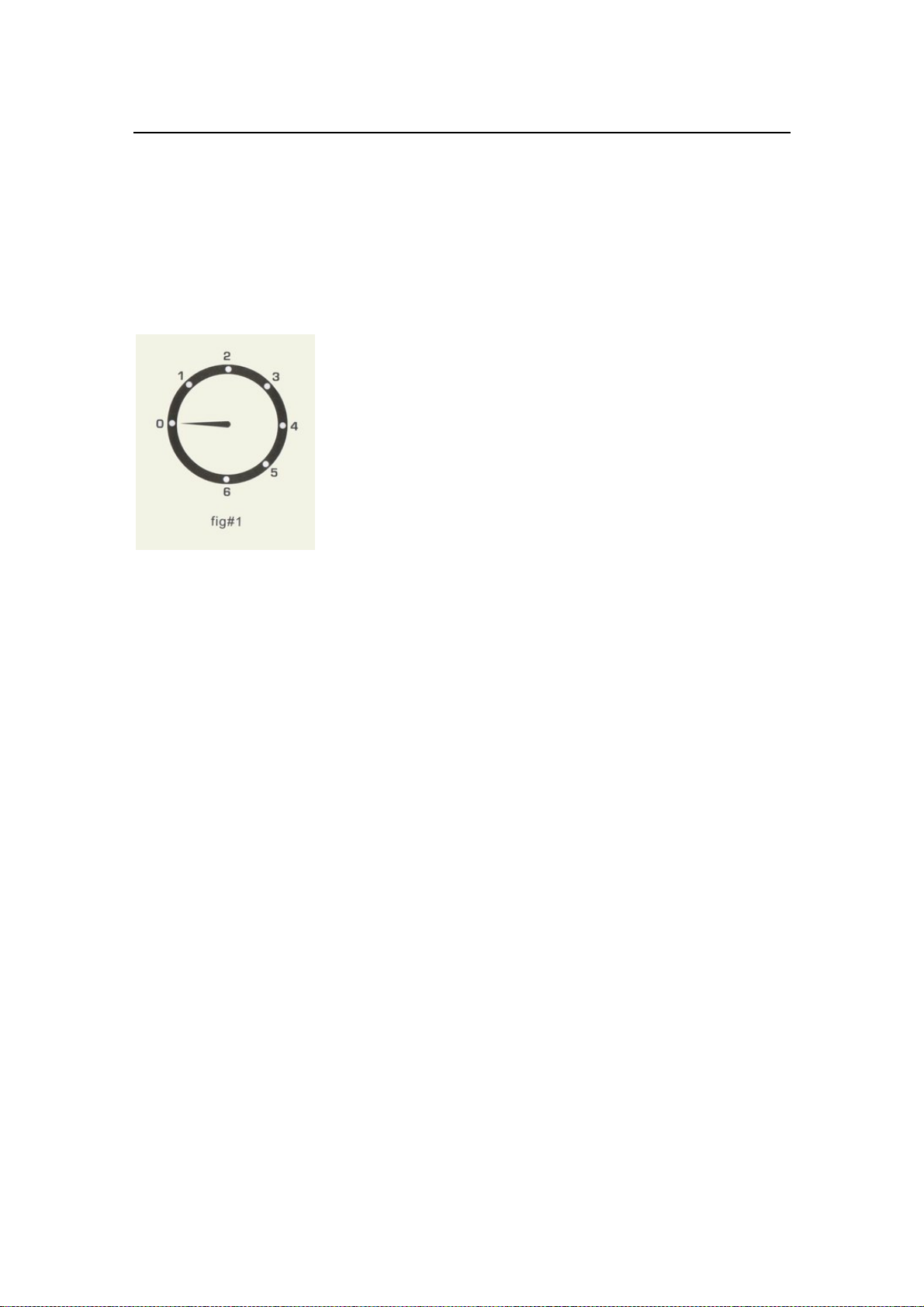

The inner temperature ranges from 0℃
to 10℃.You can turn the
thermostat knob to have your desired temperature. Turn the knob
clockwise, which the position varies from 1 to 6, you can get a lower
temperature inside. Turn the position to 0, you will switch off your
appliance. Please see fig #1.

English
ØFix the lower hinge with two screws.
ØCover the left holes in the bottom cross bar with two scews.
Note: As the door gasket gets pressed-in during shipment, after reversing the door the gasket
might have to be reset. This will be good for seal to avoid any air escaping. If there is a gap
between the cabinet and the door gasket, set the gasket by gently pulling it out to seal the gap. If
necessary, you are recommended also to use the hair drier to warm the gasket to get rid of the
gap.
PROPER BOTTLE COOLER CARE AND CLEANING
Warning:To avoid electric shock always unplug you cooler before cleaning. Ignoring this warning
may result in injury.
General:Do not use harsh chemicals, abrasives, ammonia, chlorine bleach,
concentrated detergents, solvents or metal scouring pads. SOME of
these chemicals may dissolve, damage and/or discolor your cooler.
5

English
1) Remove the contents of the appliance
2) Wipe the inside and outside surfaces with a damp cloth. The addition of vinegar to the
water is good for the prevention of mold and fungus.
3) Wipe all parts thoroughly after the cleaning.
IMPORTANT:
When the cooler is not in use it must be completely dry inside to avoid mold growth (if possible
have the door open).
LIMITED WARRANTY
As a condition to any warranty service obligation, the consumer must present this Warranty
Certificate along with a copy of the original purchase invoice.
THIS WARRANTY DOES NOT COVER:
1) Damage, accidental or otherwise, to the cooler while in the possession of a consumer not
caused by a defect in material or workmanship.
2) Damage caused by consumer misuse, tampering, or failure to follow the care and special
handling provisions in the instructions.
3) Damage to the finish of the case, or other appearance parts caused by wear
4) Damage caused by repairs or alterations of the cooler by anyone other than those authorized by
the manufacturer..
5) Freight and Insurance cost for the warranty service
ALL WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANT ABILITY ARE
LIMITED TO CLAIMED DURATION. THE MANUFACTURER DISCLAIMS ANY LIABILITY FOR
CONSEQUENTIAL OR INCIDENTAL DAMAGES.
6

English

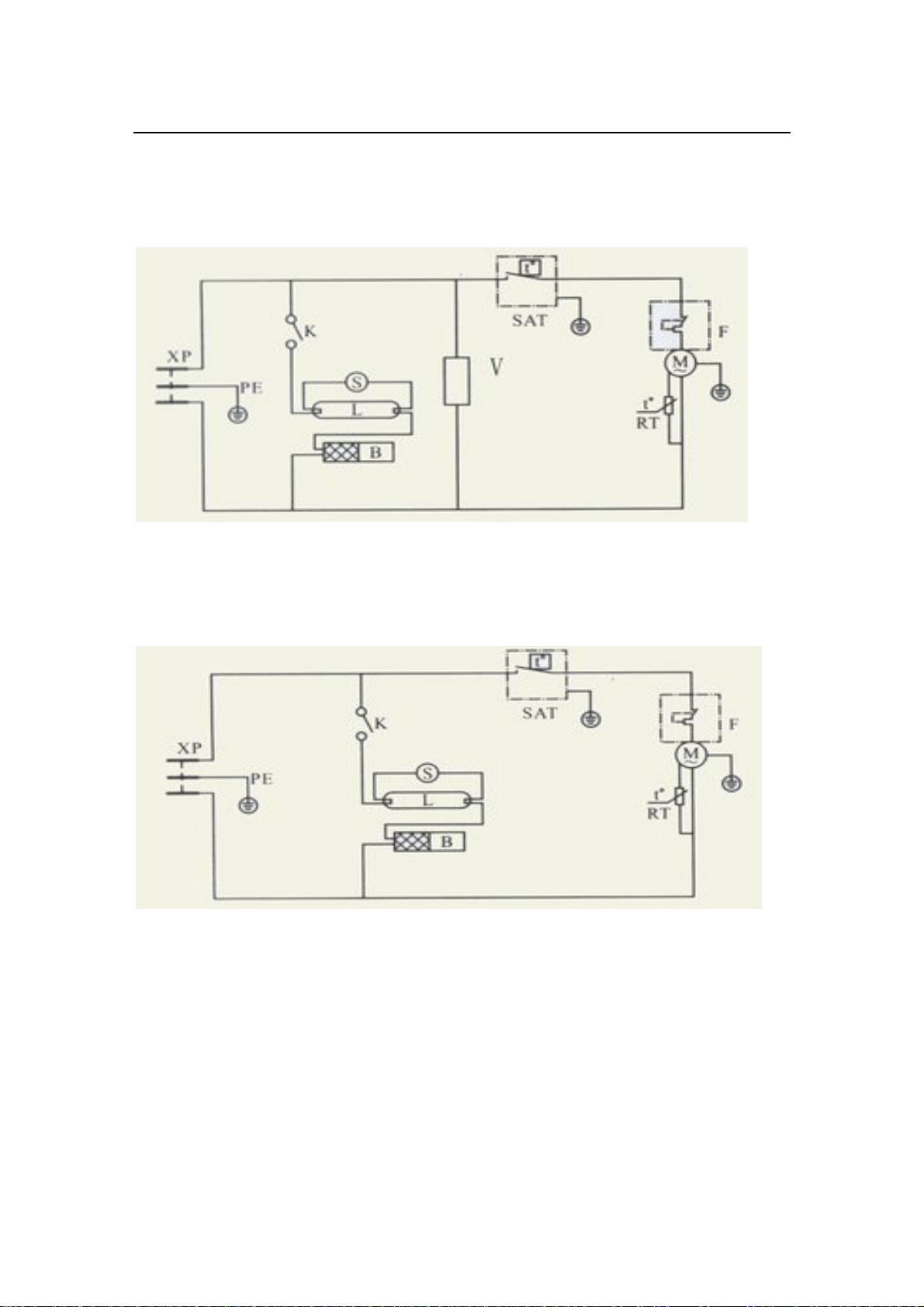

CIRCUIT DIAGRAM
For unit with fan ventilation
XP- Power supply M-Compressor RT- Startup V- Fan
F- Overheat protector RT- Startup SAT- Temperature control
K- Light switch S- Startup L- Light
B- Ballast
For unit without fan ventilation
XP- Power supply M-Compressor RT- Startup
F- Overheat protector RT- Startup SAT- Temperature control
K- Light switch S- Startup L- Light
B- Ballast
