Diamond SFE12/D-N User manual

Mod: SFE12/D-N
Production code: UH-12 & IL-1
04/2013

CONTENT
Declaration of a standart confirmity 3
Technical data 3
Packing check and important indication 4
Instalation 4
Placement of the device 4
Chart 5
Connection of the electric cable to electricity 6
Maintenance 6
Instructions for use 6
Cleaning and maintenance 7
Process in case of wrong function of the device 7
Wiring diagram: UH-12 8
Wiring diagram: IL-1 9
2

DECLARATION OF A STANDARDS CONFORMITY
The producer confirms that the devices agree with CEE 90/396 standards,rule nr. 22/1997 sb.
and with relevant goverment orders. Instalation must be done with respect to valid standards.
Attention, the producer refuses any responsibility in case of direct or indirect damages which
are caused due to wrong instalation, incorrect intervention or modification, insufficient
maintenance, incorrect use and also possibly caused by other reasons presented by items in
sale conditions. This appliance is setonly for skilled use and must be operated by qualified
persons only. Parts set and secured by the producer or accredited person must not be rebuilt
by user.
TECHNICAL DATA
Label with technical data is placed on the back side of the device. Study the electrical diagram
of connection and all following information before instalation.

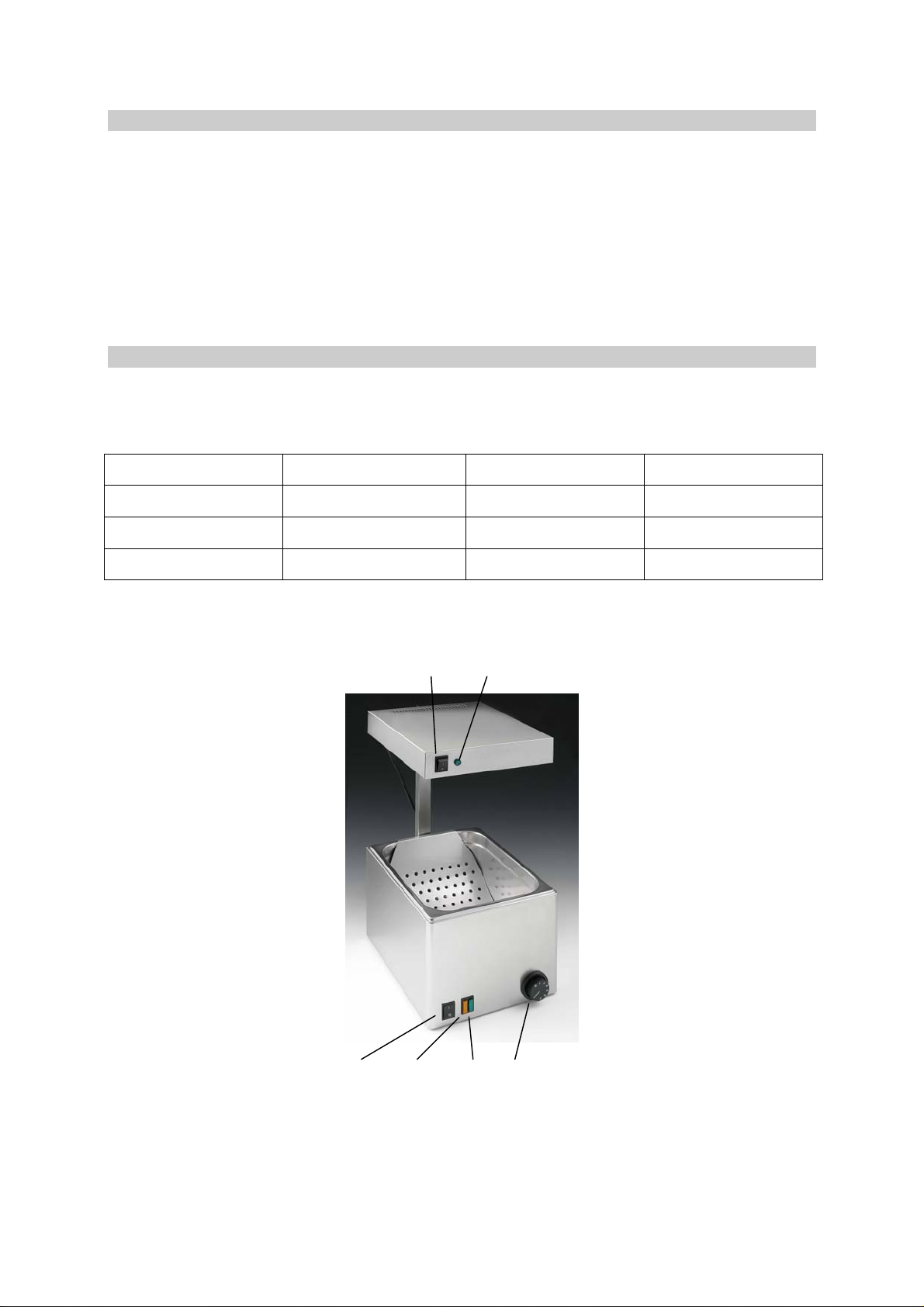

Model Dimensions(cm) Voltage(V/Hz) Power(W)
UH-12 27 x 33 x 24 220/50 350
IL-1 25 x 27 x 4 220/50 500
UH-12+IL1 27 x 33 x 54 220/50 850
E A
B D1 D2 C
3

PACKING AND DEVICE CHECK
The device leaves our stocks properly packed with appropriate symbols and labels. There are
also appropriate instructions for use. In case the packing shows bad handling or damage, it
must be reclaimed at transporter immediately by writing and signing of a damage protocol.
Important notice:
• this instructing guide must be read properly and carefuly because it contains important
information about safety elements, instalation, use
• these recommendations refer to this product
• this product corresponds with valid standards
• this guide must be properly deposited for fututre use
• keep the children away from manipulation with the product
• when selling or moving the product to another place it is necessary to make yourself
sure that the staff ot the proffesional service has got acquainted with control and
instalation instructions from enclosed guide
• only authorised person can operate the product
• the device can be used only for keeping food in gastrobowls
• it cannot be switched on without supervision
• we recommend to have the product checked by proffesional service min. once a year
• only original spare parts can be used for repairs
• the product can not be cleaned by the watter jet or pressure shower
• by damage or break down disconnect all the feeders (watter, gas, electricity) ans call
proffesional service
• producer refuses any responsibility in case of damages caused by wrong instalation, by
disobserving of above mentioned recommendations or by other use etc.
INSTALATION
Technical instructions for instalation and regulation: Can be used ONLY by
specialized technicians Following instructions apply to the technician specialized in
instalation to do all the operations in the most correct way and according to the valid
standards.
Important: Any activity connected with regulation etc. must be done only when the device
is disconnected from electricity. If it is necessary to havethe device connected to the
electricity you must be very careful.
PLACEMENT
The device must be instalated in well ventilated room what is necessary for regulation of the
function of the device (technician must go by validstandard ČSN....). If the device is situated
close to the wall or if it is incontact with the furniture walls, these walls must resist the
temperatures ranging to 60°C. Instalation, setting, putting into operation must be done by
qualified person who is competent for this and according to the valid standards.
4

Wrap up the device and check whether it was not damaged during transport. Settle the device
on horizontal surface (max imbalance 2°).Settle the device under the fumehood to eliminate
water steam and bad smell.The device can be instalated separately or in a set with devices of
our production. Min. distance 10 cm from other subjects must be kept.It is also necessary to
prevent our product from contact case you must make corresponding changes to secure heat
izolation of combustible parts.
SAFETY MEASURES FROM THE STANDPOINT OF THE FIRE PROTECTION
ACCORDING TO ČSN 061008ČL. 21:
• only adults can operate the device
• device must be safely used in common surroundings according to ČSN 332000-1
• device must be placed so as to stand or hang on the noncombustible surface
No subjects from combustible materials can be placed directly on the device or in distance
which is shorter than safety distance (the shortest distance is 10 cm).
• safety distances from various materials of different degree of combustion and
information about the degree of comb. of common building materials - see chart:
Chart: combustion degree of building materials classified according to the combustion
degree of materials and products (ČSN 730823)
A noncombustible granit, sandstone, concretes,bricks, ceramic wallfacing tiles,
plaster
B uneasily combustible akumine, heraklite, lihnos, itavere
C1 hardly combustible leafy wood, plywood, sirkoklit, rare paper formica
C2 middle combustile fibreboards, solodure, cork boards, rubber, floor-
coverings
C3 easily combustible - wood-fibreboards, polystyrene,polyurethane, PVC
Device must be instalated in a safe way. When instaling you must respect corresponding
project, safety and hygienic orders according to:
• ČSN 061008 fire protection of local devices and sources of heat
• ČSN 332000 surrounding for electric devices
5

CONNECTION OF THE ELECTRIC CABLE TO THE ELECTRICITY
Instalation of electric feeder - This feeder must be separetely protectedby a safety fuse
according to the specific electric stream which depends on the wattage of the instaled device.
Check the wattage on the label atthe back of the device. Connect the device directly to the
electricity but you must put the switch between the device and electric net. The switch must
be placed in min. distance 3 mm between the particular contactsaccording to the standards and
loading. The feeder of grounding (yellow-green) cannot be interrupted by this switch. In every
case feeding cable must be placed so that no point of the cablewill reach the temperature
which is 50°C higher than the temperature of the surrounding. Before connecting the device
check that:
• safety fuse of the feeder and inner mains can stand the loading of the device (see label
of the matrix)
• mains are equipped with effective grounding according to standards (ČSN) and
conditions given by law
• socket or switch of the feed is well accessible from device
We refuse any responsibility in case of not respecting above mentioned rules.
Before the first use it is necessary to remove all the protection foil and to clean the device
- see chapter "cleaning and maintenance".
Maintenance: We recommend to have the device checked once a year by the proffesional
service. Only qualified or competent persons can do interventions in the product.
INSTRUCTION FOR USE
Attention! Before the first use of the device you must remove protection foil from all surfaces
and wash the device with water containing detergent and than splash with clean water.The
device is suitable for keeping the pommes frites in optimal temperature for serving. For better
effect we reccommend to add the infra lamp IL-1 to the keeper UH-12. This combination
secures you creation of the mikroclimat, which keeps the tasty quality of the pommes frits for
serving.
Control of the UH-12: Switch it on by the main switch (B) turn the control (C) from position
"0"to the desired position,it ranges 30°C - 90°C. Pilot lamps (C) and (D)will light. Pilot lamp
(C) lights when the devide is connected with electricity.Pilot lamp (D) lights when the heating
spirals are on. Pilot lamp (D) goes out when the device reaches required temperature. Switch
the device off by turning the knob (E) into position "0" and switch over the main switch (B).
You put the frits on the perforated plate which prevents the frits from absorbing the oil.
Control of the IL-1: Switch the lamp on by the switch (E). Operating indicates pilot lamp
(A).Lower performance and higher draining the heat off prevents overheating.
6

CLEANING AND MAINTENANCE
ATTENTION! The device cannot be cleaned by direct or pressure water.Clean it daily. Daily
maintenance keeps longer useful life and efficiency ofthe device. Before cleaning make sure
to have disconnected the device from electricity. Always switch off the main feeder to the
device. Stain-less parts wash with moist cleaning cloth and detergent without grooveparts than
dry it by the cloth. Do not use abrasive and corrosive detergents.
What to do in case of break-down: Switch off the electric feeder and call seller´s
proffesional service.
Indication
Guarantee does not cover all consumption parts succumable to common wear (rubber seals,
bulbs, glas and plastic parts etc.). The guarantee does not refer to the devices which were not
instaled in correspondancewith instructions - by qualified worker, in confirmity with
standards andwhen somebody handled incompetently the device (interventions intoinner
equipment) or the device was operated by nonqualified staff or at variance with instructions
for use. Guarantee does not also cover the damages caused due to influance of nature or other
outer intervention.
7

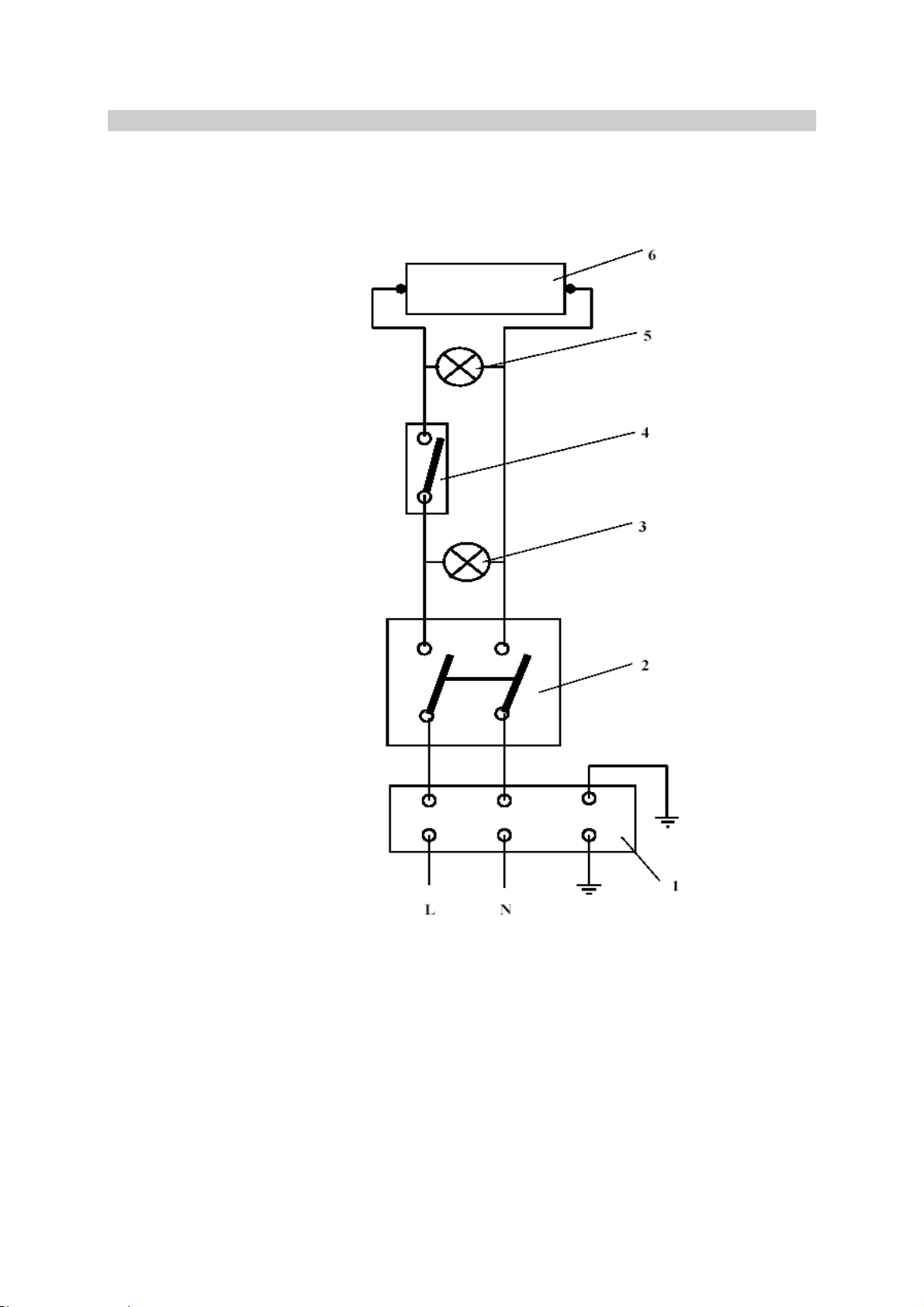

WIRING DIAGRAM: UH-12
1.- Terminal board
2 – Main switch
3 – Green control light
4 - Thermostat
5 – Orange control light
6 - Heating element
8

WIRING DIAGRAM: IL -1
4
3
2
1
L N
1.- Terminal board
2 – Main switch
3 – Green control light
4—Heating element
9
