DIBSIES MODERN EXPRESSIONS TOY BOX User manual

MODERN EXPRESSIONS TOY BOX
Assembly Manual (For Espresso Version Only)
Accompanying Assembly Video:
www.dibsies.com/me-espresso-assembly
SCAN FOR VIDEO

PRE-ASSEMBLY
This product must be assembled on a soft, non-slip surface, such as a carpet or padded mat.
2
WARNING
IMPORTANT
Check this product for damaged hardware, loose joints, missing parts or sharp
edges before and after assembly and frequently during use. Do not use if any
parts are missing, damaged, or broken. Send email to
[email protected] for replacement parts, if needed. Do not substitute
parts.
This product contains choking hazards from small parts and sharp points and
is not suitable for children under the age of three. This product should only be
assembled by an adult. To avoid risk of suffocation, do not allow childred to play
inside this product.
This unit is equipped with special lid supports that must be correctly attached and functioning
properly. The purpose of the safety lid supports is to prevent injury to a child’s ngers or other parts
when opening and closing the lid. The supports should allow the lid to be opened at any angle. The
lid must not drop more than 1/2 inch (from its own weight) with the exception of the nal 2 inches
before reaching its closed closed position.
Please note that there are some steps in the assembly process that require an additional person to
help with the assembly.
PARTS & TOOLS CHECK LIST
Ensure that the following parts are included with your Toy Box.
Part 1 x1 Part 4 x1Part 2 x1
Part 5 x1
Part 3 x1
Part 9 x1
Part H - x12

Part 7 x1Part 5 x1 Part 8 x1Part 6 x1
Part 9 x1 Part A - x2 Part B - x2 Part C - x13
Part D - x13 Part E - x4 Part F - x2 Part G - x12
3
Part J - x2 Part K - x4Part H - x12 Part I - x2
PARTS & TOOLS CHECK LIST
Ensure you have the following tools available for assembly. These tools are not included with the toy box.
Phillips Screwdriver x1 Flathead Screwdriver x1

4

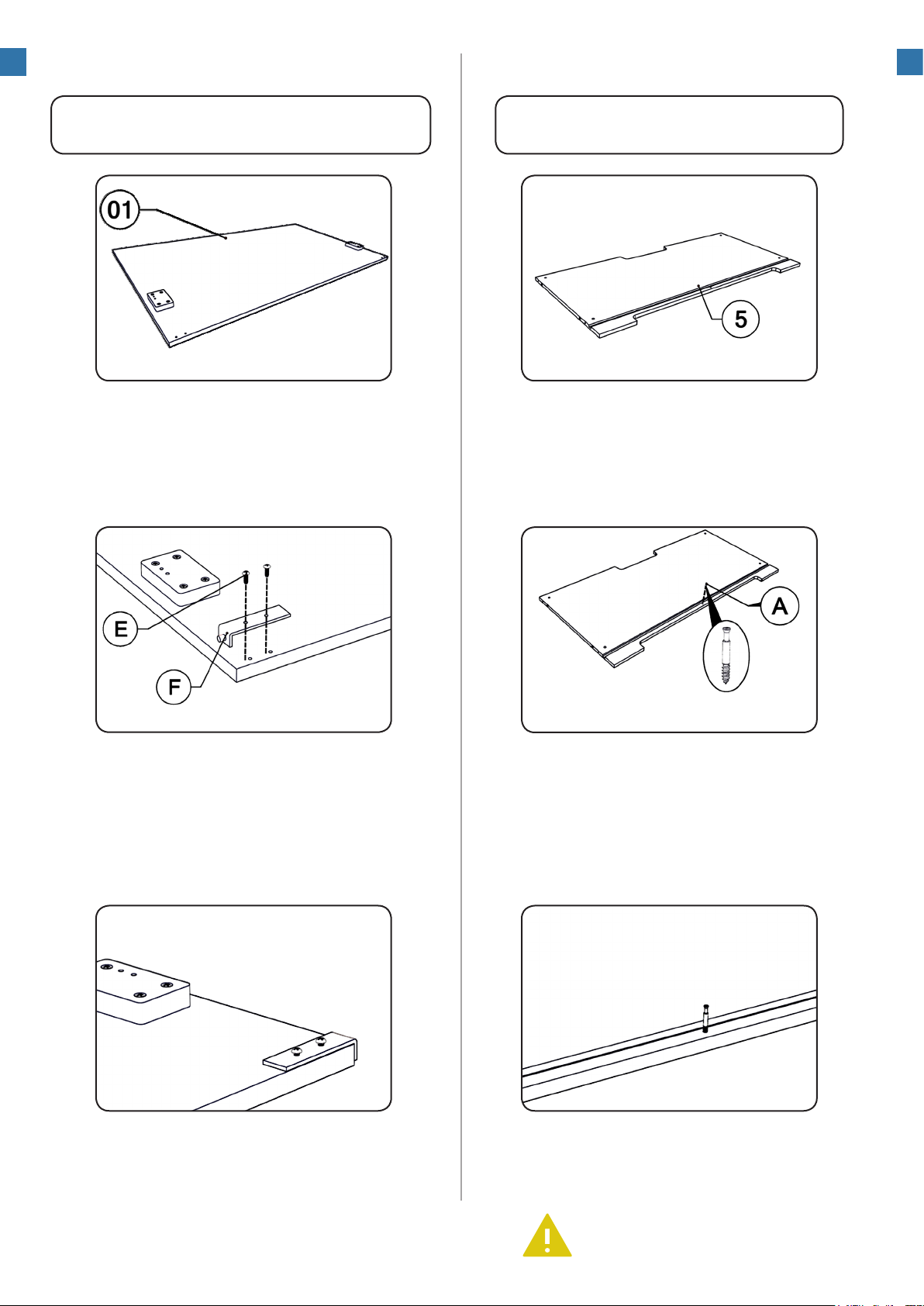

INSTRUCTIONS
Locate Part 1 Locate Part 5
Attach the Part F brackets to
Part 1
Align the Part A Stud to Part 5
Begin Step One by locating Part 1 and place
it at on the ground with the holes facing
upward, as shown.
Begin Step Two by locating Part 5 and
place it at on the ground with the holes
facing upward, as shown.
Secure both Part F brackets to Part 1 using
two Part E screws. Tighten the screws using
a Phillips screwdriver. Take care not to over
tighten the screws.
Next, secure the Part A stud to Part 5 using
a Phillips screwdriver. Take care not to over
tighten the stud.
1. 1.
3. 3.
Step 1 - Attaching the Part F Brackets Step 2 - Attaching the Part A Stud
Secure the Part F brackets Secure the Part A Stud to Part 5
Next, locate two Part F brackets and four
Part E screws to the locations shown. A
total of one bracket and two screws will
be used for each side. Align the hardware
accordingly.
Locate Part A and align it to the bottom
most center hole of Part 5, as shown.
2. 2.
DO NOT OVER TIGHTEN

INSTRUCTIONS
Secure Part 8 using two Part D screws
Secure Part 8 using two part D screws. Tighten the screws
using a Phillips screwdriver. Take care not to over tighten the
screws.
3.
Step 3 - Prepping the Part 7 Panel
Locate Part 7
Locate Part 8 and align it in the bottom cen-
ter
Secure one Part A stud on the opposite end
Begin Step Three by placing Part 7 at on the oor with the
bottom holes facing upward.
Next, locate Part 8 and align it with bottom center holes of Part
7, and push into place.
Finally, locate the opposite edge of Part 7 and locate one Part
A stud in the center hole, as shown. Tighten the stud using a
Phillips screwdriver. Take care not to over tighten the stud.
1.
2.
4.
5
DO NOT OVER TIGHTEN

INSTRUCTIONS
6
Locate the Part 7 and Part 5 Panel assemblies
1.
Step 4 - Attaching Part 9
Locate Part 9 and align in the lower center
Locate two Part B nuts and push into the holes of Part
9
Tighten the Part B nuts
USE FLATHEAD SCREWDRIVER
Next, locate Part 9 and align it to the lower center sections of
the Parts 7 and 9 assemblies, as shown.
Locate two Part B nuts and place them into the edge holes
of Part 9, as shown. Once the Part B nuts are placed, locate
the Part A studs of Parts 7 and 5 assemblies and push them
towards the Part B nuts.
Finally, tighten the Part B nuts by using a FLATHEAD
SCREWDRIVER. Take care not to over tighten the nuts.
Repeat tighten the opposite side as needed to fully secure the
assemblies.
Begin Step Four by locating the previously assembled Part 7
and Part 5 assemblies from Steps Two and Three, and with the
assistance of another person, place them vertically parallel, as
shown.
2.
3.
4.

INSTRUCTIONS
7
Locate the Part C
Dowels
Locate Part 6 and align
into place
1. 3.
Step 5 - Attaching the Part 6 Panel
Secure the Part C Dowels
Secure the Part C dowels into place. Next, locate Part 6 and align it to the
previously installed Part C dowels. Slowly
push Part 6 into place and ensure it is
pushed all the way down.
Begin Step Five by locating the upper
section of the Part 7 assembly where
there are three mid-section holes. Locate
three Part C dowels and align the dowels
into place.
2.
Step 6 - Attaching the Side Panel
Locate and align the
Part H barrel nuts
Locate and align Part
4 to the assembly
Locate Part 4 and align it to the
assembly. Slowly push Part 4 into
place. Make sure that the holes of
the Part 4 panel match that to the
portruding Part C dowels.
1. 3.
Locate and align the
Part C dowels
Locate and align the
Part G bolts
Locate the Part 1
assembly and align
Next, locate ve Part C dowels
and align them to the following
locations shown. Push the
dowels into place.
Begin Step Six by locating six Part H
barrel nuts and aligning them to the
following locations, as shown. Push
the barrel nuts into place and ensure
the barrel nuts are snug.
Locate six Part G bolts and align them
to the holes shown. Push the bolts
into place, and secure the bolts using
a Phillips screwdriver. Take care not
to over tighten the bolts.
Finally, locate the Part 1 assembly
from Step 1 and align it so that
the lower edge with the portruding
hardware of Part 1 aligns with the
upper corner hole of Part 4, as shown.
Push the assembly into place.
2.
4. 5.

INSTRUCTIONS
8
Step 7 - Installing the Part 2 Panel
Step 8 - Attaching the Part 3 Side Panel
Locate the Part 2
Panel and align
1. Push the Part 2
Panel into place
Slowly push Part 2 all the way
back into the slot of the Part 4
side panel.
Begin Step Seven by locating the
Part 2 Panel and inserting it into
the slots at the bottom of the Part 5
Panel and Part 7 Panel.
2.
Locate and align the
Part H barrel nuts
Locate and align Part 3
to the assembly
Locate Part 3 and align it to the
assembly. Slowly push Part 3 into
place. Make sure that the holes of
the Part 3 panel match that to the
portruding Part C dowels.
1.
3.
Locate and align
the Part C dowels
Locate and align
the Part G bolts
Next, locate ve Part C
dowels and align them to the
following locations shown.
Push the dowels into place.
Begin Step Eight by locating six
Part H barrel nuts and aligning
them to the following locations,
as shown. Push the barrel
nuts into place and ensure the
barrel nuts are snug.
Locate six Part G bolts and
align them to the holes shown.
Push the bolts into place, and
secure the bolts using a Phillips
screwdriver. Take care not to
over tighten the bolts.
2.
4.

INSTRUCTIONS
Locate the Part J hinge
Secure the Part J hinge
and tighten screws
Secure the Part J hinge to the assembly
by tightening the four Part D screws. Use
a Phillips screwdriver to tighten the screws.
Take care not to over tighten the screws
1.
3.
Step 9 - Attaching the Hinges
Locate the Part D screws
Repeat these steps for the
opposite side
Repeat these steps for the
opposite side
Attach the Part K inserts
Next, locate four Part D screws and align
the screws to the following holes.
With the help of another person, keep the
lid open at an angle less than 90 degrees
and locate the Part J hinge. The hinge
will be attached to the matching holes as
shown. Make sure the spring side of the
hinge faces the rear of the toy box.
Locate the second Part J hinge and repeat
these same steps on the opposite side and
secure the hinge.
Locate two more Part K inserts and repeat
these same steps on the opposite side.
Installation is now complete!
Locate two Part K inserts and place them
into the side hole on each side, as shown.
2.
4.
6.
5.
9

Customer Support
www.dibsies.com
[email protected]
7014 Faireld Business Center Dr.
Cincinnati, OH 45014
For Customer Service Issues
please contact us at:
[email protected]
© Dibsies 2020, All Rights Reserved
