Diehl IZAR RDC VEHICLE User manual

IZAR RDC VEHICLE
User guide

IZAR RDC Vehicle
2 08/2019
Table of contents
1Product description ................................................................................................................3
1.1 Brief description.................................................................................................................3
1.2 Processing information sequences.......................................................................................4
1.3 Product overview...............................................................................................................4
1.4 Package contents...............................................................................................................5
2Product characteristics ...........................................................................................................6
2.1 Technical data...................................................................................................................6
2.2 Dimensions .......................................................................................................................6
3Concentrator installation.........................................................................................................7
3.1 Usage precautions .............................................................................................................7
3.2 SIM card installation ..........................................................................................................7
3.3 Cover installation...............................................................................................................8
3.4 Connecting the inputs/outputs............................................................................................9
3.5 Connecting the external power supply.................................................................................9
4Configuration / starting up.................................................................................................... 10
5Identification ....................................................................................................................... 10
6Maintenance........................................................................................................................ 10
7Troubleshooting................................................................................................................... 11
7.1 LED information............................................................................................................... 11
7.2 Diagnosis ........................................................................................................................ 11
8Regulations ......................................................................................................................... 12
9Open Source software notice................................................................................................ 12

IZAR RDC Vehicle
3 08/2019
1PRODUCT DESCRIPTION
1.1 BRIEF DESCRIPTION
IZAR RDC VEHICLE is a standalone reading concentrator designed to be embedded on all types of
vehicle. It enables to have a “passive drive-by” reading solution in autonomous mode without any
driver intervention.
As soon as IZAR RDC VEHICLE is supplied with electrical energy, it reads and stores the data of
radio meters within range. Once reached a list of 1,000 meters or different frames, the concentrator
automatically sends data via the mobile network to a storage server (FTP / SFTP).
IZAR RDC VEHICLE then continues reading, memorizing and sending as long as it is powered.
An energy buffer manages short-term power cuts (<4min, micro-cut, "Start & Stop" function of
certain vehicles) and also allows the sending of the remaining data in the case of return of the
vehicle at the end even if the list of 1,000 meters is not reached.
The synchronisation of the date and time of the concentrator is performed at each start and before
sending any data in order to have the most accurate time stamped data possible.

IZAR RDC Vehicle
4 08/2019
1.2 PROCESSING INFORMATION SEQUENCES

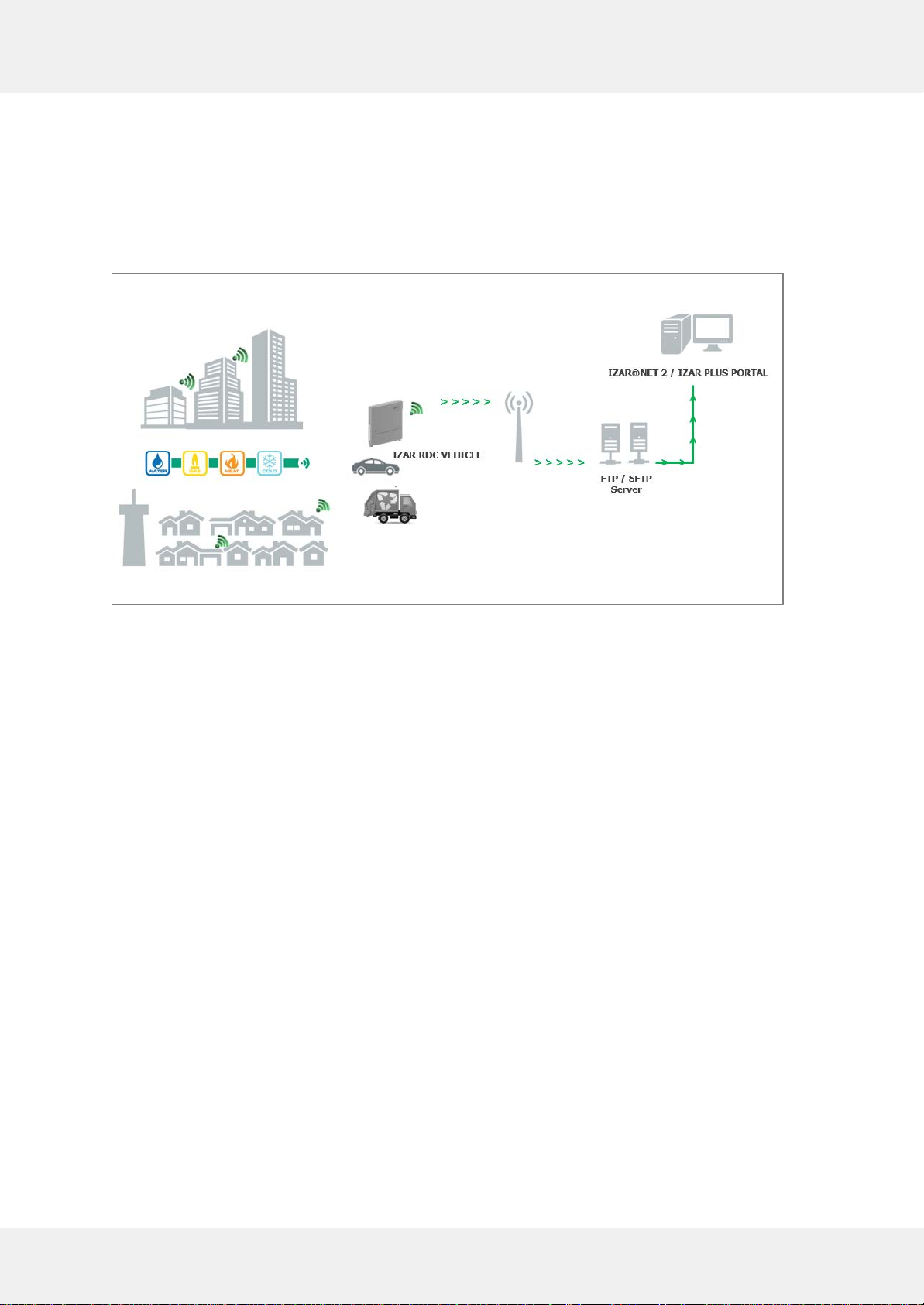

1.3 PRODUCT OVERVIEW
•Check NTP
•if NTP ok
•Check firmware
•Check paramètres
•Upgrade if needed
Power on
•By block of 1,000 meters
•Data transfer
Radio
reception
•Data transfer
Power off

IZAR RDC Vehicle
5 08/2019

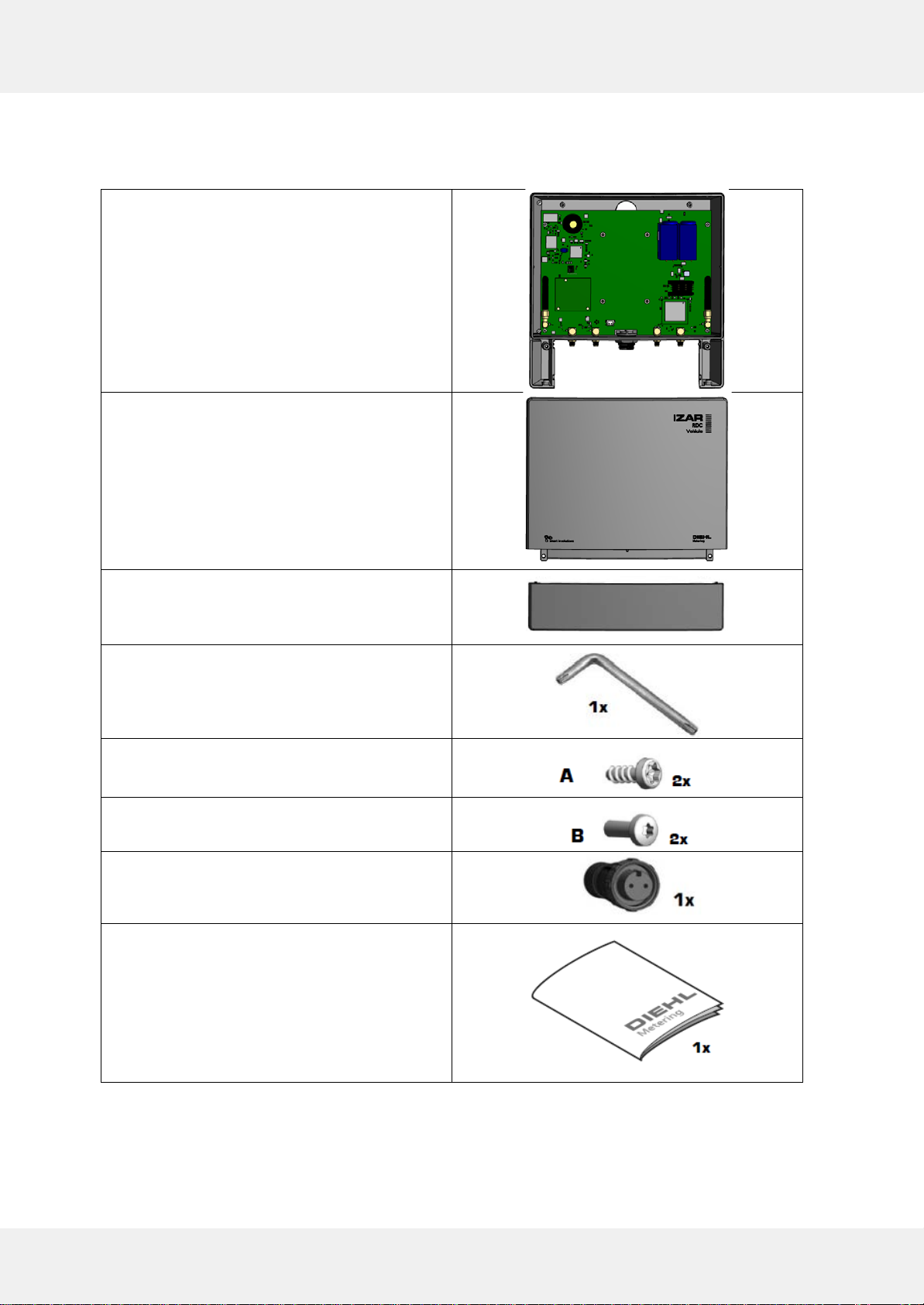

1.4 PACKAGE CONTENTS
IZAR RDC VEHICLE is delivered in individual packaging and comprises the following elements:
Housing with electronic card and connectors
Cover
Protective cover for antenna connectors
Torx key
Cover fixing screws
Retaining screws of the case’s cover
External power connector
Installation guide

IZAR RDC Vehicle
6 08/2019
2PRODUCT CHARACTERISTICS
2.1 TECHNICAL DATA
Technical data
Frequency
868.95 MHz (T1/C1 mode) or
434.475 MHz (T1 mode only)
Communication protocols
wM-Bus (EN13757-3/-4) / PRIOS / OMS
Conditions of use
Operating temperatures
-20 ... +70 °C
Storage temperatures
-20 … +70 °C
Protection class
IP 65 – outside installation possible
Ambient Humidity
10% to 90% (non-condensing)
Communication
GSM / GPRS
1 internal antenna + 1 SMA external connector
ISM (wM-Bus)
1 internal antenna + 2 SMA external connectors
Consumption
Power supply
External connector for power from the vehicle
Typical power
22 VA
Nominal voltage
12 … 24 V DC
Permissible voltage
6 … 36 V DC

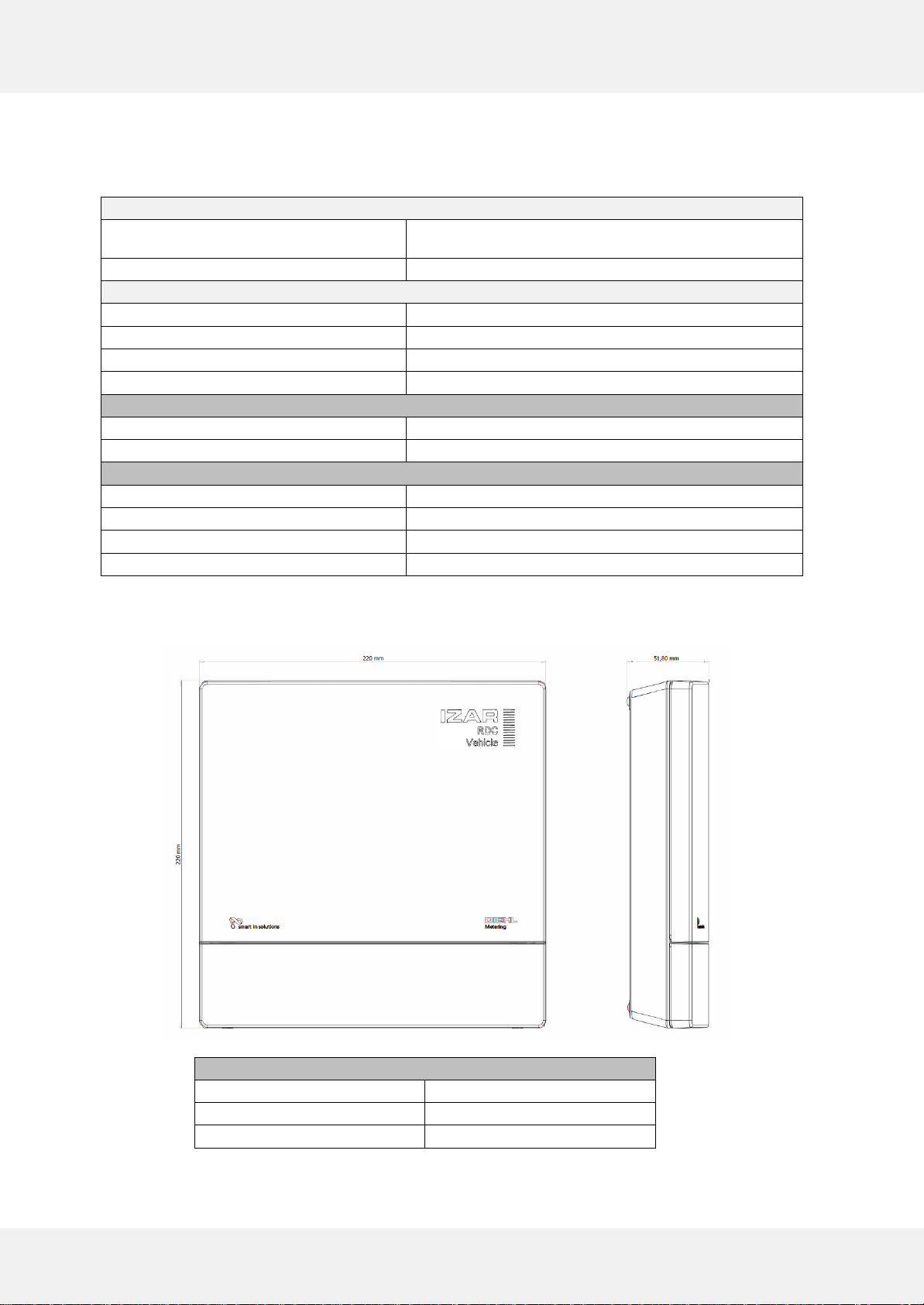

2.2 DIMENSIONS
Dimensions
Length
220 mm
Width
220 mm
Height
51.80 mm

IZAR RDC Vehicle
7 08/2019
3CONCENTRATOR INSTALLATION
3.1 USAGE PRECAUTIONS
IZAR RDC VEHICLE must be installed and put into operation by qualified staff. This
also applies to maintenance work during the life of the product.
Failure to follow these instructions can lead to serious health hazards or the risk of
electrocution.
Electronic discharge! Strict compliance with the pertinent provisions regarding ESD
(ElectroStatic Discharge) must be observed.
Electronic product must be handled with caution!
Housing gasket for IP65
The housing must be open and close with specific care to avoid any displacement of
the gasket.
If after this operation the gasket in not well in place or twisted, the IP65 rating of the
device is not valid anymore.
IZAR RDC VEHICLE is designed to be installed in a vehicle in accordance with the IP65
protection class and without any mechanical stress.
If the product is defective, stop using it and contact the after-sales service. Damage to
the housing as well as the presence of significant humidity in the housing are considered
as defects.
3.2 SIM CARD INSTALLATION
The SIM card is not provided. Please check with your telephone company that it is operational.
The card format must be: Standard format “Mini SIM” (25x15 mm).
The concentrator functions independently of the type of local operator used. It is also possible to use
multi-operator SIM card.
The SIM card installation must be performed with power supply off. Make sure that the
concentrator is disconnected before any intervention.
Insert the SIM card in the compartment as shown below and lock it.

IZAR RDC Vehicle
8 08/2019
Before closing the concentrator, make sure that the SIM card is properly locked in its
compartment.
3.3 COVER INSTALLATION
Close and screw the cover on the case, once the SIM card is locked in place, making sure that the
seal is also securely in place.

IZAR RDC Vehicle
9 08/2019
3.4 CONNECTING THE INPUTS/OUTPUTS
Connectors
Type
Functions
RF1
SMA
IZAR radio receiving antenna
RF 2
SMA
Not used
SUPPLY 12/24V
External power supply 12/24V DC
GPS
SMA
Antenna for geo-tracking (GPS)
GSM SMA
Transmitting antenna via mobile phone
network
3.5 CONNECTING THE EXTERNAL POWER SUPPLY
IZAR RDC VEHICLE must be powered by the vehicle DC voltage source.
Specifications: 22 VA / 12/24 V DC
Do not exceed the permissible voltage (36 V DC).

IZAR RDC Vehicle
10 08/2019
4CONFIGURATION / STARTING UP
IZAR RDC VEHICLE must be programmed on-site via a Bluetooth or Bluetooth Low Energy interface
using the IZAR@RDCBV Config software.
Please refer to the IZAR@RDCBV Config software user guide.

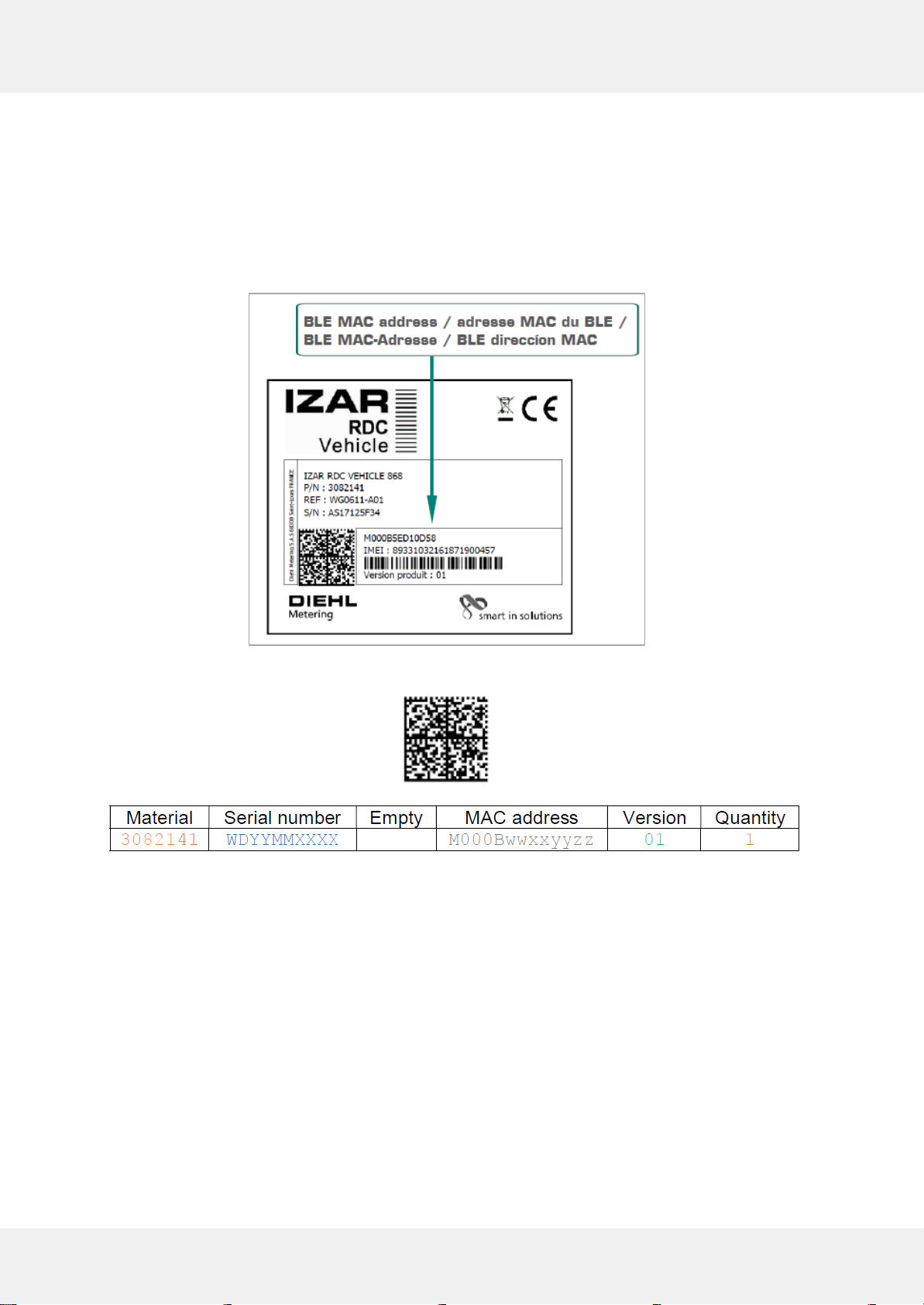

5IDENTIFICATION
Data matrix contents:
6MAINTENANCE
IZAR RDC VEHICLE requires no specific maintenance.
Do not clean it with solvents or abrasive cleaners, as these would damage the plastic shell. If
necessary, use a damp cloth or sponge.
Storage: The product should be stored in a dry place at temperatures between: - 20°C to + 70°C.

IZAR RDC Vehicle
11 08/2019
7TROUBLESHOOTING

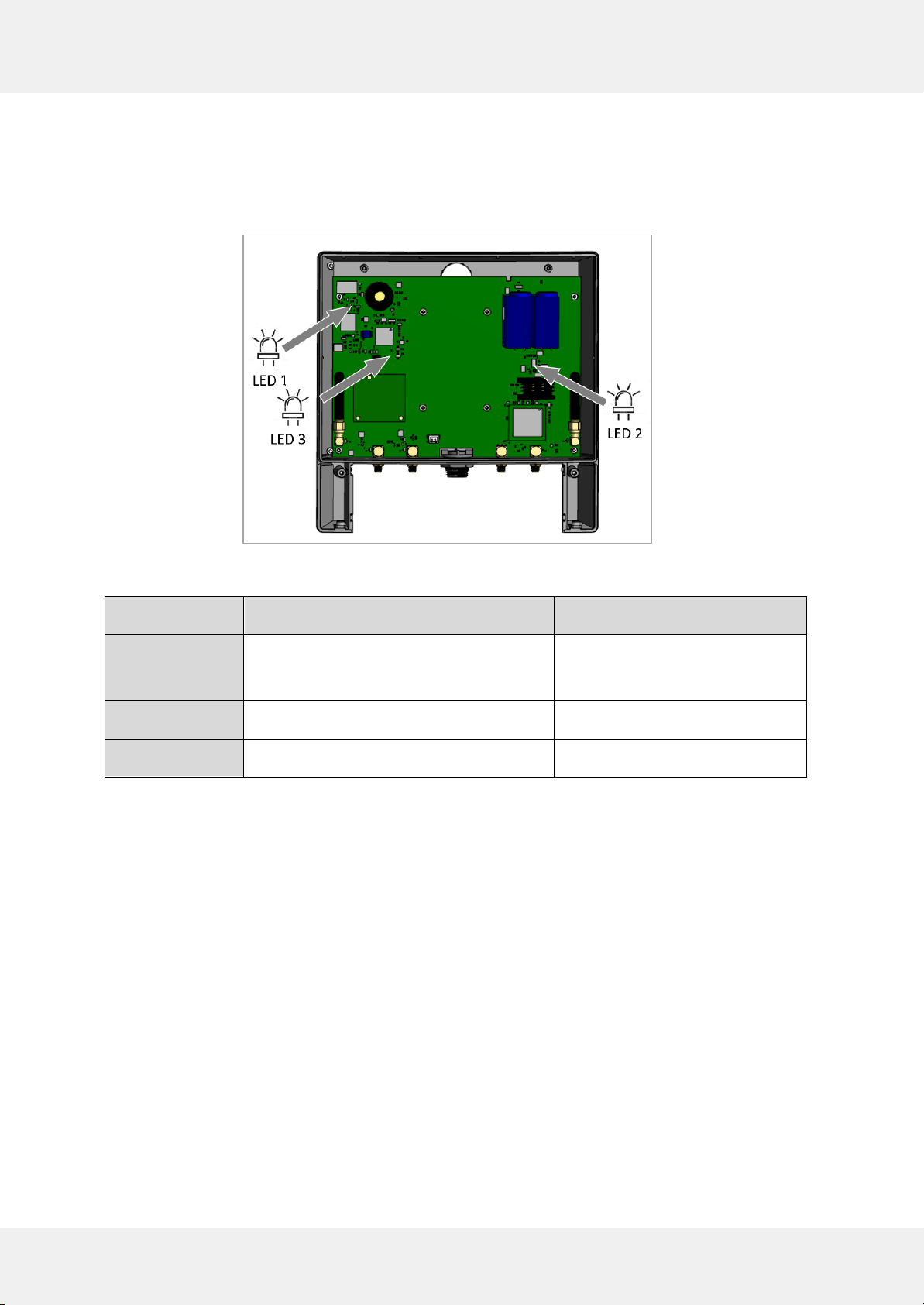

7.1 LED INFORMATION
IZAR RDC VEHICLE is equipped with several LEDs inside the housing accessible only by opening it.
ON OFF
LED 1 SPP is detectable SPP is not detectable or
SPP connection running
LED 2 Modem active Modem inactive
LED 3 Main microcontroller running (blinking) The device is off
7.2 DIAGNOSIS
This chapter provides a first level of diagnosis in case of malfunction.
Beforehand (at the office with an internet connection):
-Make sure the SIM card subscription is still active with your telephone company
-Check that the FTP account is accessible
-Check that the connection information to the FTP server is unchanged: user, password, URL
FTP address
-Make sure that the available disk space on the FTP server is sufficient
On site :
-Perform a visual inspection of the product and check in particular for the following elements :
significant humidity in the housing, damage …
-Check the antenna wiring for good reception
-When using the 12/24V DC external power connector, make sure that it is in place and that
power is available
-Connect to the device and check the settings

IZAR RDC Vehicle
12 08/2019
When opening the device :
-Check the correct installation of the SIM card and ensure that it is locked in place.
For any other malfunction or problem, please contact the Service Support.
8REGULATIONS
The product complies with the European Directives as indicated on the EU declaration of conformity
delivered with the product and available at:
https://www.diehl.com/metering/en/support-center/download-center/
Recycling
The transposed European Directives on waste batteries and waste electrical and electronic
equipment supervise the actions necessary to limit the negative impact of the product end
of life.
This product is subject to special collection and disposal. It should be deposited at an
appropriate facility to enable recovery and recycling.
For further details about recycling this product, please contact your Diehl Metering agency.
9OPEN SOURCE SOFTWARE NOTICE
This product contains source code developed by third parties. The use and distribution of these components is
governed by respective terms and conditions of the applicable open source licenses which are imposed by their
corresponding copyright holders. By using this product, you acknowledge that you have reviewed such licenses
and you agree to be obliged by these terms and conditions.
DIEHL Metering (“DIEHL Metering” in this context refers to the DIEHL Metering entity that offers respective
software for download or being responsible for distribution of products that contain respective code) is eager to
comply with all requirements set by various free or open source software licenses. For any inquiries related to
open source software, please send an email to [e-mail] or write a letter to DIEHL Metering GmbH,
Industriestr. 13, 91522 Ansbach, Germany, with subject “Open Source Software”, respectively.
The open source software contained in this product is distributed “AS IS” and WITHOUT ANY WARRANTY; without
even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
Please refer to the respective license terms below for further details.

IZAR RDC Vehicle
13 08/2019
Component:
Fatfs
Version:
R0.11a
Source:
http://www.elm-chan.org/fsw/ff/archives.html
Archive:
ff11a.zip
Copyright:
ChaN, 2015
License type:
BSD 1-Clause like
SPDX identifier:
n/a
License text:
Copyright (C) 2015, ChaN, all right reserved.
1. Redistributions of source code must retain the above copyright notice, this condition and the
following disclaimer.
This software is provided by the copyright holder and contributors "AS IS" and any warranties
related to this software are DISCLAIMED. The copyright owner or contributors be NOT LIABLE for
any damages caused by use of this software.
Component:
freeRTOS
Version:
9.0.0a
Source:
https://sourceforge.net/projects/freertos/files/FreeRTOS/V9.0.0
Archive:
FreeRTOS_V9.0.0a (V9 with MIT).zip
Copyright:
Amazon.com, Inc. or its affiliates, 2018
License type:
MIT
SPDX identifier:
MIT
License text:
Copyright (C) 2018 Amazon.com, Inc. or its affiliates.
All Rights Reserved.
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and
associated documentation files (the "Software"), to deal in the Software witho
ut restriction,
including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense,
and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do
so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial
portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR
COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER
IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN
CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

IZAR RDC Vehicle
14 08/2019
Component:
lwIP
Version:
1.4.0
Source:
http://download.savannah.nongnu.org/releases/lwip
Archive:
lwip-1.4.0.zip
Copyright:
Swedish Institute of Computer Science, 2001, 2002
License type:
BSD 3-Clause
SPDX identifier:
BSD-3-Clause
License text:
Copyright (c) 2001, 2002 Swedish Institute of Computer Science.
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted
provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and
the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions
and the following disclaimer in the documentation and/or other materials provided with the
distribution.
3. The name of the author may not be used to endorse or promote products derived from this
software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE AUTHOR ``AS IS'' AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT
SHALL
THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
This file is part of the lwIP TCP/IP stack.
Author: Adam Dunkels <[e-mail]>

IZAR RDC Vehicle
15 08/2019
Component:
LTC3350 SDK
Version:
2016-01-08
Source:
https://www.analog.com/en/products/ltc3350.html#code
Archive:
LTC3350_SDK.zip
Copyright:
Linear Technology Corp. (LTC), 2016
License type:
BSD 2-Clause
SPDX identifier:
BSD-2-Clause
License text:
Copyright (c) 2016, Linear Technology Corp.(LTC)
All rights reserved.
Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions
and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions
and the following disclaimer in the documentation and/or other materials provided with the
distribution.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND
ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR
ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
The views and conclusions contained in the software and documentation are those of the authors
and should not be interpreted as representing official policies, either expressed or implied, of
Linear Technology Corp.
The Linear Technology Linduino is not affiliated with the official Arduino team. However, the
Linduino is only possible because of the Arduino team's commitment to thenopen-
source
community. Please, visit http://www.arduino.cc and http://store.arduino.cc, and consider a
purchase that will help fund their ongoing work.

IZAR RDC Vehicle
16 08/2019
Component:
STM32CubeL4 SDK
Version:
1.7.1
Source:
https://www.st.com/en/embedded-software/stm32cubel4.html
Archive:
en.stm32cubel4.zip
Copyright:
STMicroelectronics Inc., 2018
License type:
SLA0048
SPDX identifier:
n/a
License text:
BY INSTALLING COPYING, DOWNLOADING, ACCESSING OR OTHERWISE USING THIS SOFTWARE
PACKAGE OR ANY PART THEREOF (AND THE RELATED DOCU
MENTATION) FROM
STMICROELECTRONICS INTERNATIONAL N.V, SWISS BRANCH AND/OR ITS AFFILIATED
COMPANIES (STMICROELECTRONICS), THE RECIPIENT, ON BEHALF OF HIMSELF OR HERSELF,
OR ON BEHALF OF ANY ENTITY BY WHICH SUCH RECIPIENT IS EMPLOYED AND/OR ENGAGED
AGREES TO BE BOUND BY THIS SOFTWARE PACKAGE LICENSE AGREEMENT.
Under STMicroelectronics’ intellectual property rights and subject to applicable licensing terms for
any third-party software incorporated in this software package and applicable Open Source Terms
(as defined here below), the redistribution, reproduction and use in source and binary forms of
the software package or any part thereof, with or without modification, are permitted provided
that the following conditions are met:
1. Redistribution of source code (modified or not) must retain any copyright notice, this list of
conditions and the following disclaimer.
2. Redistributions in binary form, except as embedded into microcontroller or microprocessor
device manufactured by or for STMicroelectronics or a software update for such device, must
reproduce the above copyright notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
3. Neither the name of STMicroelectronics nor the names of other contributors to this software
package may be used to endorse or promote products derived from this software package or part
thereof without specific written permission.
4. This software package or any part thereof, including modifications and/or derivative works of
this software package, must be used and execute solely and exclusively on or in combination with
a microcontroller or a microprocessor devices manufactured by or for STMicroelectronics.
5. No use, reproduction or redistribution of this software package partially or totally may be done
in any manner that would subject this software package to any Open Source Terms (as defined
below).
6. Some portion of the software package may contain software subject to Open Source Terms (as
defined below) applicable for each such portion (“Open Source Software”), as further specified in
the software package. Such Open Source Software is supplied under the applicable Open Source
Terms and is not subject to the terms and conditions of license hereunder. “Open Source Terms”
shall mean any open source license which requires as part of distribution of software that the
source code of such software is distributed therewith or otherwise made available, or open source
license that substantially complies
with the Open Source definition specified at
www.opensource.org and any other comparable open source license such as for example GNU
General Public License (GPL), Eclipse Public License (EPL), Apache Software License, BSD license
and MIT license.
7. This software package may also include third party software as expressly specified in the
software package subject to specific license terms from such third parties. Such third party
software is supplied under such specific license terms and is not subject to
the terms and
conditions of license hereunder. By installing copying, downloading, accessing or otherwise using
this software package, the recipient agrees to be bound by such license terms with regard to such
third party software.

IZAR RDC Vehicle
17 08/2019
8. STMicroelectronics has no obligation to provide any maintenance, support or updates for the
software package.
9. The software package is and will remain the exclusive property of STMicroelectronics and its
licensors. The recipient will not take any action that jeopardizes ST
Microelectronics and its
licensors' proprietary rights or acquire any rights in the software package, except the limited rights
specified hereunder.
10. The recipient shall comply with all applicable laws and regulations affecting the use of the
software package or any part thereof including any applicable export control law or regulation.
11. Redistribution and use of this software package partially or any part thereof other than as
permitted under this license is void and will automatically terminate your rights under this license.
THIS SOFTWARE PACKAGE IS PROVIDED BY STMICROELECTRONICS AND CONTRIBUTORS "AS
IS" AND ANY EXPRESS, IMPLIED OR STATUTORY WARRANTIES, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE
AND NON INFRINGEMENT OF THIRD PARTY INTELLECTUAL PROPERTY RIGHTS ARE DISCLAIMED
TO THE FULLEST EXTENT PERMITTED BY LAW. IN NO EVENT SHALL STMICROELECTRONICS OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING
IN ANY WAY OUT OF THE USE OF THIS SOFTWARE PACKAGE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE. EXCEPT AS EXPRESSLY PERMITTED HEREUNDER AND SUBJECT
TO THE APPLICABLE LICENSING TERMS FOR ANY THIRD-PARTY SOFTWARE INCORPORATED IN
THE SOFTWARE PACKAGE AND OPEN SOURCE TERMS AS APPLICABLE, NO LICENSE OR OTHER
RIGHTS, WHETHER EXPRESS OR IMPLIED, ARE GRANTED UNDER ANY PATENT OR OTHER
INTELLECTUAL PROPERTY RIGHTS OF STMICROELECTRONICS OR ANY THIRD PARTY.

IZAR RDC Vehicle
18 08/2019
Component:
uSSH SDK
Version:
3.59A
Source:
closed source
Archive:
n/a
Copyright:
Cypherbridge Systems LLC.
License type:
SLA
SPDX identifier:
n/a
License text:
Copyright (c) 2009-2017 Cypherbridge Systems, LLC.
www.cypherbridge.com
Portions of this work may be
based on third party contributions. Cypherbridge Systems LLC
reserves copyrights to this work whose license terms are defined under a separate Software
License Agreement (SLA). Re-distribution of any or all of this work, in source or binary form, is
prohibited unless authorized by Cypherbridge Systems, LLC under SLA.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND
ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR
ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

www.diehl.com/metering
PfM 08/2019 -Specifications subject to change without notice
Diehl Metering S.A.S.
67 rue du Rhône
68300 Saint-Louis
Phone: [phone]
Fax: [phone]
E-Mail: info-dm[email protected]
